Xycom 4117T User Manual

4117T

17” Light Duty Industrial PC

 2007 XYCOM AUTOMATION, LLC Printed in the United States of America

Revision Record

Revision Description Date

A Manual Released 9/06
B Name change, correct where applicable with document 4/07

Part Number 144811 (B)

Trademark Information

Xycom and Xycom Automation are trademarks of Xycom Automation, L.L.C.

Xycom Automation, L.L.C. now is referred to as Pro-face through a D.B.A. The Pro-face name and logo will replace
the Xycom name and logo on all documents where possible.

Pro-face is a trademark of Digital Electronics Corporation.

Brand or product names may be registered trademarks of their respective owners. Windows® is a registered
trademark of Microsoft Co the United States and other countries.

Copyright Information

This document is copyrighted by Xycom Automation, L.L.C. (Xycom) and shall not be reproduced or copied without
expressed written authorization from Xycom Automation, L.L.C.

The information contained within this document is subject to change without notice. Pro-face does not guarantee the
accuracy of the information.

United States FCC Part 15, Subpart B, Class A EMI Compliance Statement:
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his or her own expense.

For European Users - WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.

INSTALLATION: Electromagnetic Compatibility WARNING:

The connection of non-shielded equipment interface cables to this equipment will invalidate FCC EMI and European
Union EMC compliance and may result in electromagnetic interference and/or susceptibility levels which are in
violation of regulations applying to the legal operation of this device. It is the responsibility of the system integrator
and/or user to apply the following directions relating to installation and configuration:

All interface cables must include shielded cables. Braid/foil type shields are recommended. Communication cable
connectors must be metal, ideally zinc die-cast backshell types, and provide 360-degree protection about the
interface wires. The cable shield braid must be terminated directly to the metal connector shell, ground drain wires
alone are not adequate.

Protective measures for power and interface cables as described within this manual must be applied. Do not leave
cables connected to unused interfaces or disconnected at one end. Changes or modifications to this device not
expressly approved by the manufacturer could void the user’s authority to operate the equipment.

EMC compliance is, in part, a function of PCB design. Third party add-on AT/XT peripheral PCB assemblies installed
within this apparatus may void EMC compliance. FCC/CE compliant PCB assemblies should always be used where
possible. PRO-FACE can accept no responsibility for the EMC performance of this apparatus after system
integrator/user installation of PCB assemblies not manufactured and/or expressly tested and approved for
compliance by PRO-FACE. It is the responsibility of the system integrator/user to ensure that installation and
operation of such devices does not void EMC compliance.

144811(B)

Table of Contents

CHAPTER 1 – INTRODUCTION .................................................................................................................................1

GENERAL INFORMATION...............................................................................................................................................1

Standard Features ...............................................................................................................................................1

LCD Display .........................................................................................................................................................2

Touch Screen.......................................................................................................................................................2

FRONT AND SIDE PANELS ............................................................................................................................................4

UNPACKING THE SYSTEM .............................................................................................................................................5

QUICK STARTUP .........................................................................................................................................................5

CHAPTER 2 — INSTALLATION .................................................................................................................................6

INSTALLATION OVERVIEW.............................................................................................................................................6

MECHANICAL DIMENSIONS............................................................................................................................................8

MOUNTING OPTIONS....................................................................................................................................................9

Panel Mounting ....................................................................................................................................................9

Wall Mounting ....................................................................................................................................................11

Arm Mounting.....................................................................................................................................................13

CHAPTER 3 – ICPMB-7570 MOTHERBOARD.........................................................................................................14

ICPMB-7570 CPU Board ...................................................................................................................................14

Product Overview...............................................................................................................................................14

Specifications.....................................................................................................................................................14

Graphics Support ...............................................................................................................................................15

Display ...............................................................................................................................................................15

Internal Graphics Features ................................................................................................................................15

Intel® Embedded Graphics Drivers ...................................................................................................................15

ICPMB-7570E CPU BOARD LAYOUT ........................................................................................................................16

Jumper Settings .................................................................................................................................................17

JP2: Clear CMOS Setup ....................................................................................................................................17

JP4: CF card setup ............................................................................................................................................18

JP5: LCD voltage setup .....................................................................................................................................18

JP6: RS-232/485 Setup(for COM3) ...................................................................................................................18

Connector Pin Outs............................................................................................................................................19

AMI BIOS SETUP ....................................................................................................................................................28

Starting Setup ....................................................................................................................................................28

Using Setup .......................................................................................................................................................30

SETUP SUBMENU: MAIN .............................................................................................................................................30

SETUP SUBMENU: ADVANCED..............................................................................................................................31

CPU CONFIGURATION...............................................................................................................................................32

IDE CONFIGURATION ................................................................................................................................................33

PRIMARY IDE MASTER ..............................................................................................................................................34

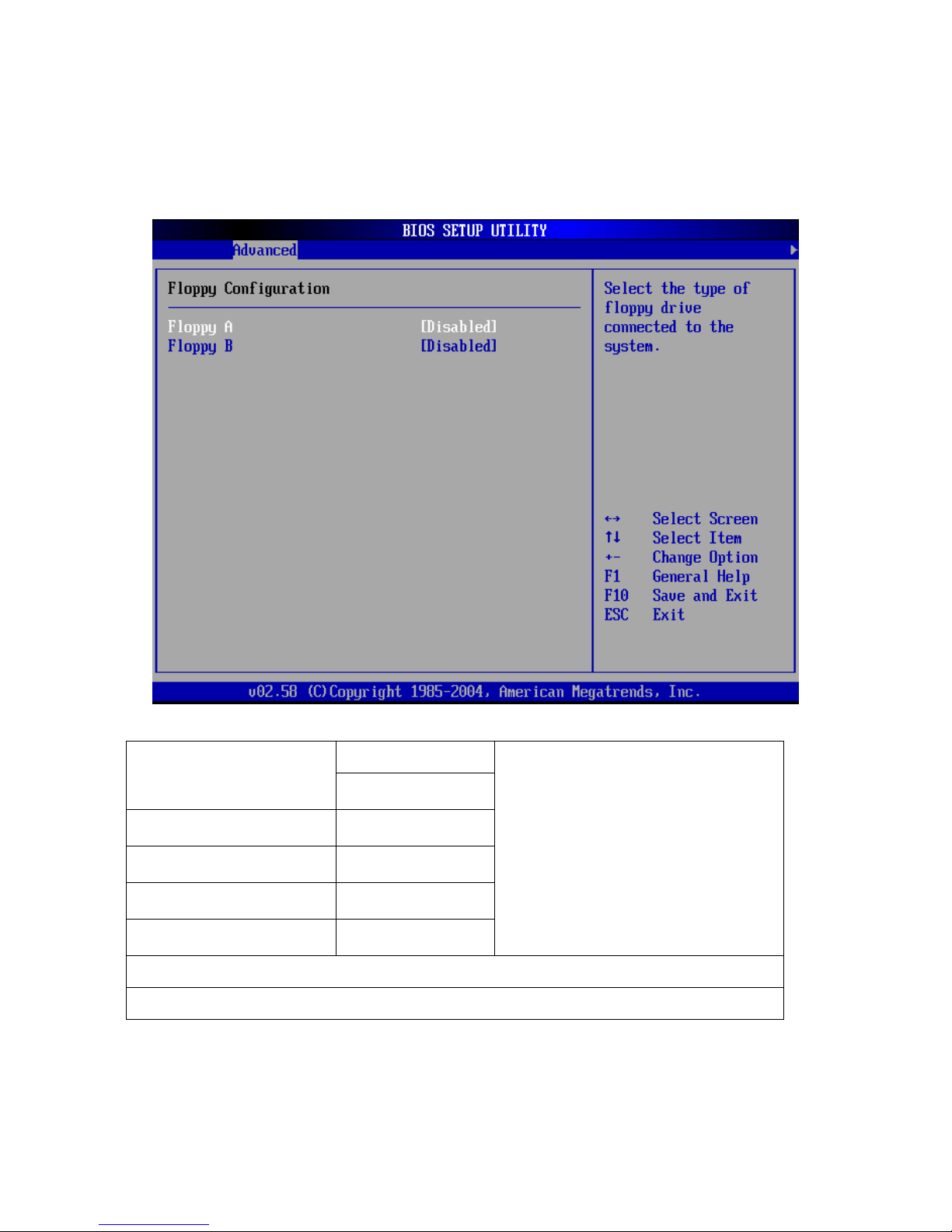

FLOPPY CONFIGURATION ...........................................................................................................................................37

SUPER I/O CONFIGURATION.......................................................................................................................................38

H/W HEALTH CONFIGURATION ...................................................................................................................................40

REMOTE ACCESS CONFIGURATION .............................................................................................................................41

USB CONFIGURATION ...............................................................................................................................................42

CHAPTER 4 – MAINTENANCE ................................................................................................................................61

GENERAL PREVENTIVE MAINTENANCE.........................................................................................................................61

Fuse Replacement .............................................................................................................................................61

RECOMMENDED HARD DRIVE PREVENTIVE MAINTENANCE.............................................................................................61

PRODUCT REPAIR PROGRAM / RETURNING A UNIT TO PRO-FACE ...................................................................................62

CHAPTER 5 – TROUBLESHOOTING.......................................................................................................................63

DIAGNOSTIC TESTING ................................................................................................................................................63

RUNNING THE TESTS .................................................................................................................................................65

REINSTALLING OPERATING SYSTEMS ..........................................................................................................................66

i 144811(B)

4117T Light Duty Industrial PC Table of Contents

Windows



2000 Reinstallation ...........................................................................................................................66

Windows XP® Reinstallation ..............................................................................................................................66

INSTALLING DRIVERS .................................................................................................................................................67

Video Drivers .....................................................................................................................................................67

Touch Screen Drivers ........................................................................................................................................67

Miscellaneous Drivers ........................................................................................................................................68

APPENDIX A TECHNICAL SPECIFICATIONS.........................................................................................................69

HARDWARE SPECIFICATIONS ......................................................................................................................................69

* NOMINAL POWER IS MEASURED FOR A BASE CONFIGURATION ONLY. ANY ADDITIONAL EXPANSION AND/OR

DEVICES WILL INCREASE THE INPUT POWER REQUIRED.ENVIRONMENTAL SPECIFICATIONS .....................................69

ENVIRONMENTAL SPECIFICATIONS ..............................................................................................................................70

APPENDIX B – POWER-ON SELF-TEST MESSAGES............................................................................................71

POST MESSAGES ....................................................................................................................................................71

POST BEEP ............................................................................................................................................................71

ERROR MESSAGES....................................................................................................................................................71

APPENDIX C – HOW TO UPGRADE A NEW BIOS .................................................................................................75

BIOS UPDATE PROCEDURE.......................................................................................................................................75

RECOVERING YOUR OLD BIOS ..................................................................................................................................76

ii 144811(B)

Chapter 1 – Introduction

General Information

The 4117T 17" LCD TFT Panel PC, takes advantage of a modern flat-panel display,
ICPMB-7560 CPU board, drive spaces and a power supply for minimum size. It is an
IBM PC/AT® compatible computer specially designed to meet the applications for
light duty environments.

Standard Features

The 4117T comes standard with the following features:

•••• ICPMB-7570 CPU board equipped with a high performance socket Pentium

1.4GHz CPU with 400 MHz front system bus and 2MB cache

•••• 4X AGP video controller

•••• 10/100 and 10/100/1000 Base T Ethernet ports

•••• 2 USB 2.0 ports

•••• Audio (in/out/mic)

•••• Three RS-232 serial ports

•••• Video, printer, and PS/2 ports

•••• 17” flat panel TFT XGA (1280 x 1024) LCD

•••• 100-240 VAC, 50-60 Hz power supply

•••• Analog resistive touch screen

•••• Internal 80GB hard disk drive

•••• Slim line CD-R/W with DVD-ROM drive

•••• 2 DDR 333 sockets, 512MB SDRAM DIMM

•••• 1 half-length of PCI expansion port

•••• AC power supply

•••• NEMA 4/4X/12 front panel

•••• RoHS compliant

•••• Windows

Optional Features:

•••• DDR 333 1GB - 2GB SDRAM DIMM

•••• DVD +/-RW

•••• Windows

®

2000 Operating System

®

XP Operating System

®

M

1 144811(B)

4117T Light Duty Industrial PC Chapter 1 – Introduction

LCD Display

Table 1-1 identifies the features of the 4117T LCD display.

Table 1-1. 4117T LCD Display Specifications

Display Model AUO

Display Type 17” TFT color

Resolution 1280 x 1024

Maximum colors 16.2M

Brightness 300 cd/m

2

Touch Screen

Table 1-2 identifies important specifications of the 4117T touch screen.

Table 1-2. 4117T Touch Screen Specifications

Touch Screen Model Description

Screen Type Eight wire analog resistive touch screen

Resolution Continuous

Light Transmission Typical value 75%

Surface Hardness 4H (Test condition: ASTM D3363-92A)

Support Driver Supports Windows 2000/XP

The figures on the next several pages show the internal and external components on
the front and back panels of the unit to help you locate features relevant to
installation.

Figure 1-1. I/O Panel

2 144811(B)

4117T Light Duty Industrial PC Chapter 1 – Introduction

Back Panel

The diagram below shows the back panel of the 4117T. For maintenance, installation
or upgrade, first remove the back cover by unfastening 13 screws as shown in the
diagram below.

Figure 1-2. System Back Panel

Caution

Before any installation or un-installation, please take precautions to prevent
damage to the components due to static electricity.

3 144811(B)

4117T Light Duty Industrial PC Chapter 1 – Introduction

Front and Side Panels

One CD R/W- DVD is accessible from the side of the chassis.

Logo

Figure 1-3. Right Side View

Figure 1-4. Left Side View

4 144811(B)

4117T Light Duty Industrial PC Chapter 1 – Introduction

Unpacking the System

When you remove the system from its shipping container, verify that you have the
parts listed below. Save the box and inner wrapping in the event you need to reship
the unit.

•••• 4117T Unit

•••• Documentation kit, which includes:

 Power cable

 Twelve panel mounting clamps

 Documentation and Support Library CD-ROM

 Operating System Recovery Media or retail operating system (CD-

ROM)

Quick Startup

This section gives you the steps to get the system up and running without explaining
the capabilities and options.

Warning

Remove power from the unit and disconnect the power cord before making any
adjustments to the inside or outside of the computer.

To prepare the system for use, perform the following steps.

1. Attach optional keyboard to the keyboard port, and optional mouse to the mouse
port.

2. Confirm that the 100-240 VAC selector switch on the power supply is set
appropriately.

3. Attach the power cord from the power receptacle to a properly grounded 100­240 VAC, 50-60 Hz outlet.

4. Turn on power to the unit (via an outlet power switch if applicable). The system
will boot up into the operating system.

5. Install application software via the CD-ROM, or the network.

5 144811(B)

Chapter 2 — Installation

Installation Overview

The rugged design of the 4117T unit allows it to be installed in most industrial
environments. The system is generally placed in a NEMA 4/4X/12 enclosure to
protect against contaminants such as dust, and moisture. Metal enclosures also help
minimize the effects of electromagnetic radiation that nearby equipment can generate.

Read the following sections carefully to be sure that you are complying with all the
safety requirements.

1. Select a NEMA rated enclosure and place the unit to allow easy access to the
system ports (see other sections in this chapter and Appendix A).

 To assure a NEMA 4 seal choose an approved enclosure that has a 14-

gauge (0.075 in/1.9 mm thick steel or 0.125 in/3.2 mm thick aluminum)
front face.

 Be sure to account for the unit’s depth when choosing the depth of the

enclosure.

2. Create a cutout in the enclosure (see Figure 2-2).

 Be sure to place the unit at a comfortable working level

 Make sure the area around the cutout is clean and free from metal burrs

3. Mount the unit in an upright position and properly secure the unit into the panel.

 Tighten the twelve panel mounting clamps to 25 inch-pounds (2.8

Newton-meters / 28Kgf cm).

4. Attach one end of the power cord to the power receptacle on the unit and the
other end to a properly grounded 100-240 VAC, 50-60 Hz outlet.

5. Turn on power to the system. The system will boot up the installed operating
system.

6. Install the application software via a CD-ROM, or the network.

Additional aspects to take into account when mounting your 4117T unit:

•••• Consider locations of accessories such as AC power outlets and lighting (interior

lighting and windows) for installation and maintenance convenience

•••• Prevent condensation by installing a thermostat-controlled heater or air

conditioner

•••• To allow for maximum cooling, avoid obstructing the airflow

6 144811(B)

4117T Light Duty Industrial PC Chapter 2 – Installation

•••• Place any fans or blowers close to the heat generating devices. If using a fan,

make sure that outside air is not brought into the enclosure unless a fabric or
other reliable filter is used. This filtration prevents conductive particles and other
harmful contaminants from entering the enclosure.

•••• Do not select a location near equipment that generates excessive electromagnetic

interference (EMI) or radio frequency interface (RFI). Examples of these types
of equipment are: high power welding machines; induction heating equipment;
and large motor starters.

•••• Place incoming power line devices (such as isolation or constant voltage

transformers, local power disconnects, and surge suppressers) away from the
system. The proper location of incoming line devices keeps power wire runs as
short as possible and minimizes electrical noise transmitted to the unit.

•••• Make sure the location does not exceed the unit’s shock, vibration, and

temperature specifications

•••• Install the unit in the rack or panel in such a way as to ensure that it does not

cause a hazard from uneven mechanical loading

•••• Incorporate a readily-accessible disconnect device in the fixed wiring on

permanently connected equipment

•••• Avoid circuit overloading of the supply circuit

7 144811(B)

4117T Light Duty Industrial PC Chapter 2 – Installation

Mechanical Dimensions

Front Panel: 17.79” (451.61 mm) x 13.99”(355.25 mm) x 0.39”(9.79 mm) (WxHxD)

Cabinet: 15.1” (339.98 mm) x 12.91” (328 mm) x 4.94” (125.41 mm) (WxHxD)

Note: All dimensions in mm)

Figure 2-1. Unit Dimensions

8 144811(B)

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation

Mounting Options

The 4117T can be mounted to a panel, to the wall, or to an arm. The following
sections describe each mounting option for the 4117T.

Panel Mounting

The 4117T is designed for panel mounting. Before mounting the 4117T to the panel,
check the cut out dimensions as shown in Figure 2-2. Then, mount it to the panel
using twelve supporters, as shown in the Figure 2-3 and Figure 2-4 (see next page).

13.1” (332.74mm)

13.59” (344.93mm)

Figure 2-2. Panel Cutout Dimensions

9 144811(B)

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation

Figure 2-3. Panel Mounting Diagram

Figure 2-4 Panel Mounting Diagram

10 144811(B)

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation

Wall Mounting

The 4117T is suitable for wall mount using the included brackets and hardware. See
Figure 2-5 for wall mounting bracket. See Figure 2-7, Figure 2-8 and Figure 2-9 for
wall-mounting diagrams

.

Figure 2-5. Wall Mounting Bracket

Figure 2-6. Chassis Support Screws

11 144811(B)

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation

Figure 2-7. Wall Mounting Diagram – Install wall-mounting hook

Figure 2-8. Wall Mounting Diagram – Mount the bracket

12 144811(B)

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation

Arm Mounting

The 4117T also accommodates 75/100 mm interface pads for arm mounting. Figure
2-9 gives the dimensions for arm mounting.

All dimensions in mm

Figure 2-9. Arm Mounting Dimensions

13 144811(B)

Chapter 3 – ICPMB-7570 Motherboard

ICPMB-7570 CPU Board

Product Overview

The 4117T is equipped with a ICPMB-7570 Socket 479 Pentium M with CPU control
board. It is equipped with a high-performance processor and advanced high
performance multi-mode I/O.

Specifications

The following section lists some of the features of the 855GME and the ICH4
chipsets. For more information on these two chipsets please refer to the Intel website.

 400 MHz system bus delivers a high-bandwidth connection between the processor

and the platform

 Integrated graphics utilizing Intel® Extreme Graphics 2 technology
 AGP 4X support
 Three USB host controllers provide high-performance peripherals with 480 Mbps of

bandwidth, while enabling support for up to six USB 2.0 ports (only two available on
the I/O panel).

 The latest AC '97 implementation delivers 20-bit audio for enhanced sound quality

and full surround sound capability

 LAN Connect Interface (LCI) provides flexible network solutions such as 10/100 Mbps

Ethernet and 10/100 Mbps Ethernet with LAN manageability

 Dual Ultra ATA/100 controllers, coupled with the Intel® Application Accelerator

support faster IDE transfers to storage devices

 PCI Local Bus Specification, Revision 2.2-compliant with support for 33 MHz PCI

operations.

 ACPI Power Management Logic Support
 Enhanced DMA controller, Interrupt controller, and timer functions
 Supports Audio Codec ’97, Revision 2.3 specification
 Alert On LAN* (AOL) and Alert On LAN 2* (AOL2)

14 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Graphics Support

The graphics features listed below are all integrated on the 855GME chipset.

Display

 Analog display support
 Dual independent pipe support

o Concurrent: different images and native display timings on each display

device

o Simultaneous: same images and native display timings on each display

device

 DVO (DVOB and DVOC) support

o Digital video out ports DVOB and DVOC with 165 MHz dot clock on each 12-

bit interface; two 12-bit channels can be combined to form one dual-channel
24-bit interface with an effective dot clock of 330 MHz

o Compliant with DVI Specification 1.0

 Dedicated Local Flat Panel (LFP) LVDS interface

Internal Graphics Features

 Core frequency

o Display core frequency of 133 MHz
o Render core frequency of 133 MHz

Intel® Embedded Graphics Drivers

 Graphics interface support

o GDI and DirectX* DirectDraw* with overlay for Windows* XP, Windows*

2000, and Windows* Embedded XP

o XFree86*, XAA, and Xv for Linux*

 Multi-monitor support

o Multiple programmable configurations
o Dual independent display
o DVO device support/TV-Out

 Dynamic display-mode support

o User definable and extensible

 Embedded video BIOS

o Common port interface support
o Full VGA compatibility

15 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

ICPMB-7570E CPU Board Layout

Figure 3-1. ICPMB-7570E Board Layout

16 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Caution

Some components on ICPMB-7570E are very sensitive to static discharges. To
protect it from unintended damage, be sure to follow these precautions:

1. Ground yourself to remove any static charge before touching your ICPMB-7570E.
You can do it by using a grounded wrist strap at all times or by frequently touching
any conducting materials that is connected to the ground.

2. Handle your ICPMB-7570E by its edges. Don’t touch IC chips, leads or circuitry if
not necessary.

3. Do not plug any connector or jumper while the power is on.

4. Do not put your ICPMB-7570E unprotected on a flat surface, as the board has
components on both sides.

Jumper Settings

The following table lists the functions of all the jumpers on the 4117T. The following
sections describe how to set jumpers on the ICPMB-7570 board.

Table 3-1. Jumper Functions

Label

JP2 CMOS State Setting

JP4 CF Card Setting

JP5 LCD Voltage Setting

JP6 COM3 Mode RS-232 or RS-485 Setting

Function

JP2: Clear CMOS Setup

If the CPU Card fails to boot due to improper BIOS settings, use this jumper to clear
the CMOS data and reset the system BIOS information. To do this, use the jumper cap
to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and

2.

If the “CMOS Settings Wrong” message displays during the boot up process, you may
then try to correct the fault by pressing the F1 to enter the CMOS Setup menu. You
may then do one of the following:

 Enter the correct CMOS setting
 Load Optimal Defaults
 Load Failsafe Defaults.

17 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

After you have done one of the above, save your changes and exit the CMOS Setup
menu.

JP2 DESCRIPTION

1 - 2 Normal

2 – 3

Clear CMOS

JP4: CF card setup

This jumper setting allows you to configure a CF card as either the slave or the
master.

JP4 DESCRIPTION

Open Slave(Default)

Close

JP5: LCD voltage setup

Do not change this voltage. This voltage has been preset and is

compatible with the currently installed 17” TFT LCD screen. If you

change this jumper setting you may cause damage to the system.

This jumper sets the voltage for the LCD screen. This setting MUST NOT be
changed.

Master

WARNING:

JP5

1-2

2-3 5V

DESCRIPTION

3.3V(Default)

JP6: RS-232/485 Setup(for COM3)

This jumper allows you to configure the COM3 serial port as a RS-485 compatible
serial communications port (must also connect an interface cable from a 4117T I/O
plate to the 14 pin COM3 header).

JP6

1-2

2-3 RS-485

DESCRIPTION

RS-232(Default)

18 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Connector Pin Outs

The following describes how to connect peripherals, switches and indicators to ICPMB-7570 board.

Peripheral Interface Connectors

The 4117T flat panel PC motherboard, the ICPMB-7570 comes with a number of peripheral
interface connectors and configuration jumpers listed in Chapter 3. The pinouts for these
connectors are listed below:

CN5: Front Panel Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 2
3 4
5 6
7 GND 8 LCD Rotate

CN9: DISC LED

PIN NO.

CN12 : System Panel Connectors

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1-3 POWER LED 2-8 SPEAKER

5-7 PWR BUTTON 10-12 RESET

9-11 HDLED

1

2

DESCRIPTION

+LED

-LED

IDE1: Primary IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET# 2 GROUND

3 DATA 7 4 DATA 8

5 DATA 6 6 DATA 9

19 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11

11 DATA 3 12 DATA 12

13 DATA 2 14 DATA 13

15 DATA 1 16 DATA 14

17 DATA 0 18 DATA 15

19 GROUND 20 N/C

21 IDE DRQ 22 GROUND

23 IOW# 24 GROUND

25 IOR# 26 GROUND

27 IDE CHRDY 28 GROUND

29 IDE DACK 30

31 INTERRUPT 32 N/C

33 SA1 34 N/C

35 SA0 36 SA2

37 HDC CS0# 38 HDC CS1#

39 HDD ACTIVE# 40 GROUND

IDE2: Secondary IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

GROUND–
DEFAULT

1 RESET# 2 GROUND

3 DATA 7 4 DATA 8

5 DATA 6 6 DATA 9

7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11

11 DATA 3 12 DATA 12

13 DATA 2 14 DATA 13

20 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

15 DATA 1 16 DATA 14

17 DATA 0 18 DATA 15

19 GROUND 20 N/C

21 IDE DRQ 22 GROUND

23 IOW# 24 GROUND

25 IOR# 26 GROUND

27 IDE CHRDY 28 GROUND

29 IDE DACK 30

31 INTERRUPT 32 N/C

33 SA1 34 N/C

35 SA0 36 SA2

37 HDC CS0# 38 HDC CS1#

39 HDD ACTIVE# 40 GROUND

41 VCC 42 VCC

43 GROUND 44 N/C

CN7: Compact Flash Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 26 VCC-IN CHECK1

GROUND–
DEFAULT

2 DATA 3 27 DATA 11

3 DATA 4 28 DATA 12

4 DATA 5 29 DATA 13

5 DATA 6 30 DATA 14

6 DATA 7 31 DATA 15

7 HDC_CS0# 32 HDC_CS1

8 N/C 33 N/C

9 GROUND 34 IOR#

10 N/C 35 IOW#

11 N/C 36 VCC_COM

12 N/C 37 IRQ15

13 VCC_COM 38 VCC_COM

21 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

14 N/C 39 CSEL

15 N/C 40 N/C

16 N/C 41 HDD_RESET

17 N/C 42 IORDY

18 SA2 43 SDREQ

19 SA1 44 SDACK#

20 SA0 45 HDD_ACTIVE#

21 DATA 0 46 66DET

22 DATA 1 47 DATA 8

23 DATA 2 48 DATA 9

24 N/C 49 DATA 10

25 VCC-IN CHECK2 50 GROUND

FDD1 :FLOPPY CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 DENSEL

3 GND 4 NC

5 NC 6 NC

7 GND 8 INDEX

9 GND 10 MTRA

11 GND 12 DRVB

13 GND 14 DRVA

15 GND 16 MTRB

17 GND 18 DIR

19 GND 20 STEP

21 GND 22 WDATA

23 GND 24 WGATE

25 GND 26 TRK0

27 GND 28 WPT

29 GND 30 RDATA

31 GND 32 SIDE1

33 GND 34 DSKCHG

22 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

CN1.A : Parallel Port Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 STROBE# 2 DATA 0

3 DATA 1 4 DATA 2

5 DATA 3 6 DATA 4

7 DATA 5 8 DATA 6

9 DATA 7 10 ACKNOWLEDGE

11 BUSY 12 PAPER EMPTY

13 PRINTER SELECT 14 AUTO FORM FEED #

15 ERROR# 16 INITIALIZE

17 PRINTER SELECT LN# 18 GROUND

19 GROUND 20 GROUND

21 GROUND 22 GROUND

23 GROUND 24 N/C

25 GROUND 26

CN1.B : COM1 Connector(RS-232)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD1 2 DSR1

3 RX1 4 RTS1

5 TX1 6 CTS1

7 DTR1 8 RI1

9 GND 10 GND

CN1.C : CRT(15-pin Female Connector)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 9 NC

2 GREEN 10 GROUND

3 BLUE 11 NC

4 NC 12 DDCDAT

5 GROUND 13 HSYNC

6 GROUND 14 VSYNC

7 GROUND 15 DDCCLK

8 GROUND

23 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

J5 (Dual DB-9 CONNECTOR): COM2,COM3(RS-232)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD2/3 2 DSR2/3

3 RX2/3 4 RTS2/3

5 TX2/3 6 CTS2/3

7 DTR2/3 8 RI2/3

9 GND 10 GND

COM3 : COM3(RS-232/485) (14-pin Pin Header, Shared with J5.Com3)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD3 2 DSR3

3 RX3 4 RTS3

5 TX3 6 CTS3

7 DTR3 8 RI3

9 GND 10 GND

11 TX3+ 12 TX3-

13 RX3+ 14 RX3-

COM4 : COM4(10-pin Pin Header, Shared with J5.Com3)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD4 2 DSR4

3 RX4 4 RTS4

5 TX4 6 CTS4

7 DTR4 8 RI4

9 GND 10 GND

KB_MS1 : PS/2 Keyboard & Mouse Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 KB DATA 7 MS DATA

2 NC 8 NC

3 GND 9 GND

4 5V 10 5V

5 KB CLK 11 MS CLK

6 NC 12 NC

24 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

USB1: USB(0~1) Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 USBVCC0 2 USBVCC1
3 D0- 4 D1­5 D0+ 6 D1+
7 USBGND0 8 USBGND1

USB2: USB(2~3) Connector(2*4 Pin header)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 USBVCC2 2 USBGND3
3 D2- 4 D3+
5 D2+ 6 D3­7 USBGND2 8 USBVCC3

USB3,USB4: USB(4~5) Connector(1*5 Pin header)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 USBVCC4
3 GND 4 D4+
5 D4-

LAN1: DUAL RJ45 Connector

PIN NO. Description PIN NO. Description

A1 MDIOA0+ B1 MDIOB0+

A2 MDIOA0- B2 MDIOB0-

A3 MDIOA1+ B3 MDIOB1+-

A4 MDIOA1- B4 MDIOB1-

A5 MDIOA2+ B5 NC

A6 MDIOA2- B6 NC

A7 MDIOA3+ B7 NC-

A8 MDIOA3- B8 NC

A9 NC B9 NC

A10 NC B10 NC

A11 LINK1000 B11 VCC

A12 LINK100 B12 LINK100

A13 ACT B13 ACT

A14 LINK B14 LINK

A15-17 GND B15-17 GND

25 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

CN8: LCD LVDS Interface Connector

PIN NO. Description PIN NO. Description

1 GND 2 GND

3 LVDS_Y3+ 4 LVDS_Y3-

5 LVDS_CLK+ 6 LVDS_CLK-

7 LVDS_Y2+ 8 LVDS_Y2-

9 LVDS_Y1+ 10 LVDS_Y1-

11 LVDS_Y0+ 12 LVDS_Y0-

13 GND 14 GND

15 LVDSB_Y3+ 16 LVDSB_Y3-

17 LVDSBCLK+ 18 LVDSBCLK-

19 LVDSB_Y2+ 20 LVDSB_Y2-

21 LVDSB_Y1+ 22 LVDSB_Y1-

23 LVDSB_Y0+ 24 LVDSB_Y0-

25 GND 26 GND

27 VCC_LCD 28 VCC_LCD

29 VCC_LCD 30 VCC_LCD

CN3: Inverter Power Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC12 2 VCC12
3 BKLT_EN 4 BKLT_ADJ
5 GND 6 GND

26 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

PW1: ATX Power Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 3.3V 11 3.3V

2 3.3V 12 -12V

3 GND 13 GND

4 5V 14 PSON

5 GND 15 GND

6 5V 16 GND

7 GND 17 GND

8 PWR OK 18 -5V

9 5VSB 19 5V

10 12V 20 5V

DIO1: 8 Bits GPIO Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 2 VCC5

3 GPIO0 4 GPIO1

5 GPIO2 6 GPIO3

7 GPIO4 8 GPIO5

9 GPIO6 10 GPIO7

CPU_FAN1,SYS_FAN1,SYS_FAN2: Fan Connector

PIN NO. DESCRIPTION

1 Fan Speed Detect

2 +12V

3 GND

27 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

CN11: Audio Connector (Shared With AUDIO1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 Speaker out R 2 GND

3 Speaker out L 4 GND

5 Line out R 6 Line out L

7 GND 8 GND

9 Line in R 10 Line in L

11 GND 12 GND

13 NC 14 NC

15 MIC1/CEN OUT 16 LFE OUT

IR1: IR Interface

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

AMI BIOS Setup

This section describes the AMI Setup program built into the ROM BIOS. The setup
program allows users to modify the basic system configuration. This special
information is then stored in battery-backed RAM so that it retains the Setup
information when the power is turned off.

For Advanced Users Only – Changing settings in the BIOS to values other than the
defaults may cause the computer to stop functioning correctly.

Starting Setup

1 VCC5 2 NC

3 IRRX 4 GND

5 IRTX 6

Warning

The AMI BIOS is immediately activated when you first power on the computer. The
BIOS reads the system information contained in the CMOS and begins the process of
checking out the system and configuring it. When it finishes, the BIOS will seek an
operating system on one of the disks and then launch and turn control over to the
operating system.

28 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the
bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart
the system to try again by turning it OFF then ON or pressing the "RESET" button on
the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and
<Delete> keys. If you do not press the keys at the correct time and the system does not
boot, an error message will be displayed and you will again be asked to...

PRESS F2 TO CONTINUE, DEL TO ENTER SETUP

29 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Using Setup

In general, you use the arrow keys to highlight items, press Enter to select, use the
PgUp and PgDn keys to change entries, press F1 for help and press Esc to quit. The
following table provides more detail about how to navigate in the Setup program
using the keyboard.

Setup submenu: Main

30 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Setup submenu: Advanced

31 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

CPU Configuration

Options summary

Intel(R) SpeedStep(tm)
tech.

Disable CPU TM function

Enable Optimal Default, Failsafe Default

Maximum Speed

Minimum Speed

Automatic Optimal Default

Disable Failsafe Default

32 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

IDE Configuration

Options summary

OnBoard PCI IDE
Controller

Disable

Primary

Secondary

Both Optimal Default, Failsafe Default

Disable Optimal Default, Failsafe Default Hard Disk Write Protect

Enable

33 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

IDE Detect Time Out (Sec)

0

5

10

15

20

25

30

35 Optimal Default, Failsafe Default

ATA(PI) 80Pin Cable

Host & Device Optimal Default, Failsafe Default

Dtection

Host

Device

Primary IDE Master

34 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Options summary

Type

Not Installed

Auto Optimal Default, Failsafe Default

CDROM

ARMD

Select the type corresponding to the device present.

Not Installed : No device

Auto : Auto detected

CDROM: ATAPI CDROM

ARMD : ATAPI Removable Media Device

Disabled LBA/Large Mode

Auto Optimal Default, Failsafe Default

Disabled: Disables LBA Mode.

Auto: Enables LBA Mode if the device supports it and the device is not already formatted with
LBA Mode disabled.

Disabled Block (Multi-Sector

Transfer)

Auto Optimal Default, Failsafe Default

Disabled: The Data transfer from and to the device occurs one sector at a time.

Auto: The Data transfer from and to the device occurs multiple sectors at a time if the device

supports it.

PIO Mode

Auto Optimal Default, Failsafe Default

0

1

2

3

4

35 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

DMA Mode

Select DMA Mode.

Auto : Auto detected

Auto Optimal Default, Failsafe Default

SWDMA0

SWDMA1

SWDMA2

MWDMA0

MWDMA1

MWDMA2

UDMA0

UDMA1

UDMA3

UDMA4

SWDMA n: SingleWord DMA n

MWDMA n: MultiWord DMA n

UDMA n : Ultra DMA n

S.M.A.R.T.

Auto Optimal Default, Failsafe Default

Disabled

Enabled

S.M.A.R.T. stands for “Self-Monitoring, Analysis and Reporting Technology”.

Disabled Optimal Default, Failsafe Default 32Bit Data Transfer

Enabled

36 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Floppy Configuration

Options summary

Disabled Floppy A

360 KB 51/4” Optimal Default, Failsafe Default

1.2 MB 51/4”

720 KB 31/2”

1.44 MB 31/2”

2.88 MB 31/2”

Select the floppy drive type.

** Support only Floppy A, no Floppy B.

37 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Super I/O Configuration

Options summary :

OnBoard Floppy
Controller

Serial Port1 Address

Serial Port1 Mode

Enable Optimal Default, Failsafe Default

Disable Optimal Default, Failsafe Default Floppy Driver Swap

Enable **No Function

3F8/IRQ4 Optimal Default, Failsafe Default

3E8/IRQ4

2E8/IRQ3

Normal Optimal Default, Failsafe Default

IrDA

ASK IR

38 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Serial Port2 Address

2F8/IRQ3 Optimal Default, Failsafe Default

3E8/IRQ4

2E8/IRQ3

Serial Port2 Mode

Normal Optimal Default, Failsafe Default

IrDA

ASK IR

Parallel Port Address

378 Optimal Default, Failsafe Default

278

3BC

Parallel Port Mode Normal Optimal Default, Failsafe Default

EPP

ECP

EPP+ECP

Digital I/O port

Serial Port3 Address

Serial Port3 IRQ

IRQ5 Parallel Port IRQ

IRQ7 Optimal Default, Failsafe Default

201h

221h

241h

261h

281h Optimal Default, Failsafe Default

3E8 Optimal Default, Failsafe Default

2E8

2F0

2E0

3

4

10

39 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

11 Optimal Default, Failsafe Default

Serial Port4 Address 3E8

2E8 Optimal Default, Failsafe Default

2F0

2E0

Serial Port5 IRQ 3

4

10 Optimal Default, Failsafe Default

11

Allows BIOS to Select Serial Port1 Base Addresses.

H/W Health Configuration

Options summary

40 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Disabled H/W Health function

Enable Optimal Default, Failsafe Default

Fan 1 Mode Setting

Full On Mode Optimal Default, Failsafe Default

Automatic mode

PWM Manually mode

Remote Access Configuration

Options summary

Disabled Optimal Default, Failsafe Default Remote Access

Enable

41 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

USB Configuration

Options summary

USB function

Disabled

2 USB Ports

4 USB Ports

6 USB Ports Optimal Default, Failsafe Default

Legacy USB Support Disabled

Enable Optimal Default, Failsafe Default

Disable Failsafe Default USB 2.0 Controller

Enable Optimal Default

FullSpeed USB 2.0 Controller Mode

HiSpeed ** Only exist when enable USB 2.0

Controller

42 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Advanced PCI/PnP Settings

43 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Options summary

PCI Latency Timer

No Optimal Default, Failsafe Default Plug & Play O/S

Yes

32 Optimal Default, Failsafe Default

64

96

128

160

192

224

248

Yes Optimal Default, Failsafe Default Allocate IRQ to PCI VGA

No

44 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Disable Optimal Default, Failsafe Default Palette Snooping

Enable

PCI IDE BusMaster Disable Optimal Default, Failsafe Default

Enable

OffBoard PCI/ISA IDE
Card

IRQ5

Auto Optimal Default, Failsafe Default

PCI Slot1

PCI Slot2

PCI Slot3

PCI Slot4

PCI Slot5

PCI Slot6

Available Optimal Default, Failsafe Default IRQ3

Reserved

Available Optimal Default, Failsafe Default IRQ4

Reserved

Available Optimal Default, Failsafe Default

Reserved

IRQ6

IRQ7

IRQ8

IRQ9

IRQ10

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

45 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

IRQ11

IRQ12

IRQ13

IRQ14

IRQ15

DMA Channel 0

DMA Channel 1

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

DMA Channel 3

DMA Channel 5

DMA Channel 6

DMA Channel 7

Reserved Memory Size

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Available Optimal Default, Failsafe Default

Reserved

Disable Optimal Default, Failsafe Default

16k

32k

64k

46 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Boot Settings

Note: Correction for Boot Settings screen capture above:

• Boot Settings Configuration

o Boot Device Priority
o Hard Disk Drives
o CD/DVD Drives

47 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Boot Settings Configuration

Options summary

Enable Optimal Default, Failsafe Default Quick Boot

Disable

Disable Optimal Default, Failsafe Default Boot From LAN Support

Enable

Disable Optimal Default, Failsafe Default Quite Boot

Enable

Force BIOS AddOn ROM display Mode

Keep Current Optimal Default, Failsafe Default

Off Bootup Rum-Lock

On Optimal Default, Failsafe Default

48 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

PS/2 Mouse Support

Security Settings

Disable

Enable

Auto Optimal Default, Failsafe Default

Disable Wait For ‘F1’ If Error

Enable Optimal Default, Failsafe Default

Disable Hit ‘DEL’ Message Display

Enable Optimal Default, Failsafe Default

Disable Optimal Default, Failsafe Default Interrupt 19 Capture

Enable

49 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Options summary

Change Supervisor
Password

Change User Password

Change User/Supervisor Password

You can install a Supervisor password, and if you install a supervisor password, you can then
install a user password. A user password does not provide access to many of the features in
the Setup utility.

If you highlight these items and press Enter, a dialog box appears which lets you enter a
password. You can enter no more than six letters or numbers. Press Enter after you have
typed in the password. A second dialog box asks you to retype the password for confirmation.
Press Enter after you have retyped it correctly. The password is required at boot time, or when
the user enters the Setup utility.

Clear User Password

Highlight this item and type in the current password. At the next dialog box press Enter to
disable password protection.

Disable Optimal Default, Failsafe Default Boot Sector Virus Protection

Enable

50 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Advanced Chipset Settings

51 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Northbridge Chipset Configuration

Options summary

DRAM Frequency

SPD

Init. Graphic Adapter Priority

200 Mhz

266 Mhz

333 Mhz

Auto Optimal Default, Failsafe Default

Disable Configure DRAM Timing by

Enable Optimal Default, Failsafe Default

Internal VGA

AGP/Int-VGA Optimal Default, Failsafe Default

AGP/PCI

PCI/AGP

52 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

PCI/Int-VGA

Internal Graphic Mode Select

Internal Aperture Size

Boot Display Device

Disable

Enable, 1MB

Enable, 4MB

Enable, 8MB

Enable, 16MB

Enable, 32MB Optimal Default, Failsafe Default

64MB Optimal Default, Failsafe Default

128MB

256MB

CRT

EFP

LFP

CRT+EFP

Flat Panel Type

CRT+LFP Optimal Default, Failsafe Default

640x480LVDS

800x600LVDS

1024x768LVDS
24bits

1280x1024LVDS

1400x1050LVDS

1024x768LVDS
18bits

1600x1200 48bits

1280x1024 48bits

Optimal Default, Failsafe Default

800x600 24bits

800x600 18bits

1024x768 37bits

53 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Southbridge Chipset Configuration

Options summary

Disabled OnBoard LAN1

Enable Optimal Default, Failsafe Default

Disabled OnBoard LAN1

Enable Optimal Default, Failsafe Default

Auto Optimal Default, Failsafe Default OnBoard AC’97 Audio

Enable

Disable Spread Spectrum Mode

Enable Optimal Default, Failsafe Default

54 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

55 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Power Key Configuration

56 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Options summary

Video Power Down Mode

Hard Disk Power Down
Mode

Standby Time Out

Disabled Power Management/APM

Enable Optimal Default, Failsafe Default

Disable Optimal Default

Standby Failsafe Default

Suspend

Disable Optimal Default

Standby Failsafe Default

Suspend

Disable Optimal Default, Failsafe Default

1 Min

2 Min

4 Min

57 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

Suspend Time Out

8 Min

10 Min

20 Min

30 Min

40 Min

50 Min

60 Min

Disable Optimal Default, Failsafe Default

1 Min

2 Min

4 Min

8 Min

10 Min

20 Min

30 Min

40 Min

50 Min

60 Min

IGNORE Keyboard & PS/2 Mouse

Monitor Optimal Default, Failsafe Default

IGNORE FDC/LPT/COM Ports

Monitor Optimal Default, Failsafe Default

IGNORE Primary Master IDE

Monitor Optimal Default, Failsafe Default

IGNORE Primary Slave IDE

Monitor Optimal Default, Failsafe Default

58 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

IGNORE Secondary Master IDE

Monitor Optimal Default, Failsafe Default

IGNORE Secondary Slave IDE

Monitor Optimal Default, Failsafe Default

On/Off Optimal Default, Failsafe Default Power Button Mode

Suspend

Restore on AC Power Loss

Power Off

Power On

Last State Optimal Default, Failsafe Default

Resume On Ring Disable Optimal Default, Failsafe Default

Exit Options

59 144811(B)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup

to save any changes that you

key can be used for this

Options summary

Save Change and Exit Highlight this item and press Enter

have made in the Setup utility and exit the Setup utility. When
the Save Settings and Exit dialog box appears, select [OK] item
to save the changes and exit, or press [Cancel] to return to the
setup main menu. [F10] key can be used for this operation.

Discard Changes and Exit Highlight this item and press Enter to discard any changes that

you have made in the Setup utility and exit the Setup utility.
When the Exit Discarding Changes dialog box appears, press
[OK] to discard changes and exit, or press [Cancel] to return to
the setup main menu. [ESC] key can be used for this operation.

Discard Changes If you highlight this item and press Enter, a dialog box asks if

you want to discard the settings changes for all the items in the
Setup utility. Select the [OK] item to indicate Yes, and then
press Enter to bypass the optimal settings changes

Load Optimal Defaults If you highlight this item and press Enter, a dialog box asks if

you want to install optimal settings for all the items in the Setup
utility. Select the [OK] item to indicate Yes, and then press
Enter to install the optimal settings. [F9]
operation.

Load Failsafe Defaults Load Failsafe Default values for all the setup questions. [F8] key

can be used for this operation..

60 144811(B)

Chapter 4 – Maintenance

The 4117T is designed to withstand the harsh environment of the factory floor.
Routine maintenance can help keep your system in good operating condition.
Preventive maintenance consists of several basic procedures that will greatly reduce
the chance of system malfunction. Schedule preventive maintenance along with the
regular equipment maintenance to minimize down time.

General Preventive Maintenance

Here are some preventive measures you can take:

•••• Clean the monitor screen using a non-residue cleaner such as a mild window

cleaning solution or CRT screen cleaner. Take care not to scratch the screen
face.

•••• Remove dust and dirt from PC components. If dust builds up on heat sinks and

circuitry, an obstruction of heat dissipation could cause the unit to malfunction.
If dust reaches the electronic boards, a short circuit could occur.

•••• Check the connections to I/O modules, especially in environments where

vibration could loosen the connections. Check to see that all plugs, sockets,
terminal strips, and module connections are solid.

•••• Remove unnecessary articles, such as drawings or manuals, from the unit. They

can obstruct airflow and create hot spots, which cause the system to malfunction.

•••• Do not place noise-generating equipment near the 4117T unit.

Fuse Replacement

The 4117T unit has no accessible fuse. Return the unit to the factory for fuse
replacement.

Recommended Hard Drive Preventive Maintenance

Pro-face has recognized that hard drive failures may begin to increase an average of
four to five years into the life of most computers used in industrial applications.
Therefore, it is our recommendation as a preventive maintenance measure that all
hard drives used in these types of applications be replaced at a two year interval to
avoid any down time related to hard drive failure.

The purpose of this message is to merely bring this to our customer’s attention, to
offer alternative solutions, and to provide all of our customers with the excellent
service they deserve.

61 144811(B)

4117T Light Duty Industrial PC Chapter 4 – Maintenance

Any questions regarding this issue may be directed to our support center at

[e-mail].

Please note: Pro-face recommends frequent backups of your hard drive, especially before beginning
preventive maintenance procedures.

Product Repair Program / Returning a Unit to Pro-face

Pro-face’s Product Repair & Customization Department (PR&C) restores equipment
to normal operating condition and implements engineering changes that enhance
operating specifications. Pro-face tests products returned to Pro-face with the standard
Pro-face test diagnostics.

Note

Before sending the unit in for repair, back up the hard drive in case Pro-face needs to
restore the hard drive to the factory default O/S load.

Follow the steps below to prepare the unit for shipment:

1. Obtain an Return Merchandise Authorization (RMA) number for your unit by
visiting the Pro-face RMA Request web page and fill out the online request
form:

http://www.profaceamerica.com//rma//

If you cannot fill out the online form, there is an RMA Request Form Document
that can be downloaded and either E-mailed ([e-mail]) or
Faxed (734-429-1010) to the Pro-face Customer Support Team.

If you have difficulty then please call the Pro-face Customer Support Team at
[phone]).

2. Please have the following information:

•••• Company name, shipping and billing address

•••• Type of service desired: product repair or product exchange

•••• Product model number, part number, quantity, serial number(s), and

warranty status

•••• Failure mode and failure systems

•••• Purchase order number or repair order number

3. Make sure the front panel assembly is properly attached to the unit.

4. Attach failure information to the unit to speed processing.

5. Place the unit securely in its original packaging or an equivalent heavy-duty box.

6. Mark the RMA number on your purchase order and on the outside of the box.

7. Send the unit to the address given when you receive your RMA number.

62 144811(B)

Chapter 5 – Troubleshooting

Diagnostic Testing

If you suspect that you are having hardware problems with your 4117T, you can use
the Pro-face diagnostic utility to check out the PC’s various ports and subsystems.
The diagnostic utility is on the Documentation and Support Library CD that was
included with the your unit.

The first step is to create a diagnostic diskette. The following steps can be done on
any computer with a CD-ROM drive:

1. Create a DOS-bootable diskette

2. Create a temporary folder on the computer hard drive

3. There is a self-extracting zip file on the Documentation and Support Library CD
located in:

DRIVERS\utility\xydiag

Run that program and extract the files to the temporary folder you just created.

4. Copy the extracted files onto the DOS-bootable diskette.

When you have created the diskette, insert it into an external floppy drive, connect it
to the 4117T and re-boot the unit. The menu in Figure 5–2, Main Menu, will appear
following boot-up. Additional information on the tests is included in the .txt files on
the diskette.

Perform the following steps before starting the system tests:

1. Place the CPU board jumpers and switches to the factory set positions.

2. Plug the female end of the AC power cable into the side of the unit and the male
end into a properly grounded outlet.

3. Connect the serial loopback connector(s) and the printer cable to the appropriate
connectors, and connect a PC/AT or PS/2 keyboard. Figure 5–1, Serial Loopback
Connections, illustrates the wiring necessary for the loopback connection.

4. Default the CMOS setup to the factory settings.

63 144811(B)

4117T Light Duty Industrial PC Chapter 5 – Troubleshooting

Figure 5-1. Serial Loopback Connections

64 144811(B)

4117T Light Duty Industrial PC Chapter 5 – Troubleshooting

Running the Tests

To run the test, insert the diagnostics disk into drive A. Turn on the computer (the
diagnostics program will boot-up). Figure 5–2 shows the Main Menu.

Copyright xxxx, <Company Name> All rights reserved.

Diagnostic Tests Sequence/Selection Menu (Rel. xx)

1. WILL pause on error

2. SINGLE PASS test mode

3. Save setup to file

4. Extract setup from a file

5. Auto-select tests

6. Deselect all tests

7. Quit and exit to DOS

8. Return to previous screen

A) RAM Test

B) Video RAM Test

C) Extended RAM Test

D) Real Time Clock Test

E) COM1 Serial Port Test

F) COM2 Serial Port Test

G) COM3 Serial Port Test

H) COM4 Serial Port Test

I) Math Coprocessor Test

J) Video Adjustments Test

[ENTER]=START TESTING

Use the letters to move the cursor and select/deselect, or use the arrow
keys to move, then use the [SPACE] key to select/deselect a test or
function.

Figure 5-2. Main Menu

K) Video Interface Test

L) Speaker Port Test

M) LPT1: Printer Port Test

N) LPT2: Printer Port Test

O) C: Hard Drive Interface Test

P) D: Hard Drive Interface Test

Q) A: Floppy Drive Interface Test

R) B: Floppy Drive Interface Test

S) Keyboard, Keypad Tests

≡ = Test Selected

Note

Please read the DIAG.TXT file on the diagnostics disk for detailed information about
the tests.

Avoid repeated running of any hard disk diagnostic utility if you use the Solid State
(Flash) drive option. The Flash drive has a limited number of writes to each logical
sector. Repeated writes from a diagnostic utility will prematurely shorten the life of
the drive.

Note

65 144811(B)

4117T Light Duty Industrial PC Chapter 5 – Troubleshooting

Reinstalling Operating Systems

The 4117T CPU ships with Windows 2000 or Windows XP Professional operating
systems installed. If you want to install a different operating system, refer to that
operating system’s manual for directions.

Note

If you need to reinstall the Windows 98, Windows 2000, Windows NT, or Windows
XP Professional operating system, you must have an internal CD-ROM drive or an
external parallel port CD-ROM drive. Windows NT and Windows XP ship only on
CD-ROM.

Windows 2000 Reinstallation

If you need to reinstall the Windows 2000 operating system, refer to the

Pro-face/Xycom Workstation Recovery Media Software Installation Instructions for
Microsoft® Windows® 2000 (shipped with systems preinstalled with

Windows 2000). This document is devoted to the reinstallation of your
Windows 2000 operating system and drivers utilizing the Recovery Media provided
with your Pro-face/Xycom industrial computer.

Note

This procedure assumes that the computer hard disk drive has been completely
corrupted or replaced.

Warning

This procedure will destroy data that may exist on the hard disk drive.

Windows XP® Reinstallation

If you need to reinstall the Windows® XP operating system, refer to the

Pro-face/Xycom Workstation Software Installation Instructions For Microsoft
Windows XP (shipped with systems preinstalled with Windows XP). This document

is devoted to the reinstallation of your Windows XP operating system and drivers,
utilizing the XP CD provided with your Pro-face/Xycom industrial computer. If you
want to install a new operating system or reinstall a current operating system, refer to
the Windows XP Professional CD-ROM (shipped with systems preinstalled with
Windows XP Professional).

66 144811(B)

4117T Light Duty Industrial PC Chapter 5 – Troubleshooting

Note

This procedure assumes that the computer hard disk drive has been completely
corrupted or replaced.

Warning

This procedure will destroy data that may exist on the hard disk drive.

If you want to install a new operating system or reinstall a current operating system,
refer to the operating system’s manual for directions.

Installing Drivers

This section describes how to install the drivers associated with the system.

Note

For further assistance, call Pro-face technical support at 734–944-0482.

Video Drivers

Video drivers and the expansion utilities are on the Documentation and Support
Library CD included with the documentation kit.

Choose the video driver for your operating system from the following directory on the
Documentation and Support Library CD:

\DRIVERS\VIDEO\INTEL\855GME

Touch Screen Drivers

If you have a touch screen driver that has been factory installed, you will also receive,
pre-loaded and at no extra charge: Windows 2000, and Windows XP Professional
touch screen drivers.

Note

If you ordered a system pre-loaded with an operating system, the touch screen driver
was pre-installed.

67 144811(B)

4117T Light Duty Industrial PC Chapter 5 – Troubleshooting

You must install the corresponding touch screen driver software if you change the
operating system. The touch screen drivers are located on the Document and Support
Library CD under:

\DRIVERS\TOUCHSREEN\TOUCHKIT

Miscellaneous Drivers

Refer to your operating system and peripheral manuals for information on installing
drivers related to these items.

Note

If you ordered a system with Windows pre-loaded, you may have to purchase and
install an external parallel port CD-ROM drive, or order your system with a CD­ROM drive pre-installed, to be able to install Windows drivers. The Windows
operating system ships only on CD-ROM.

68 144811(B)

Appendix A Technical Specifications

5.32" (135.20 mm) overall

4.94" (125.41 mm) behind front panel

This section contains the hardware and environmental specifications for the 4117T.

Hardware Specifications

The following table lists the hardware specifications for the 4117T.

Table A - 1. Hardware and Compliance Specifications

Characteristic Specification

Mechanical

Height

Width

Depth

Weight

Electrical

AC

Power Supply 200 watts
Mounting Panel mount or 19” rack mount
Flat Panel 17” TFT active color display
Agency Approvals UL 508 (Listed), E300525

Regulatory
Compliance

ROHS Compliant

13.99” (355.25 mm)

17.79" (451.614 mm)

0..385" (9.79 mm) front panel protrusion

21.3 lbs (9.66 kg)

100-240 VAC 50\60 Hz 1.0A 95W *Nominal

cUL CSA C22.2, No. 142 (Listed), E300525

FCC 47 CFR, Part 15, Class A
CE
EMI EN55022, Class A
IMMUNITY EN61000–6-2
SAFETY IEC60950-1
HARMONICS EN61000-3-2, Class A
FLICKER EN61000-3-3

* Nominal Power is measured for a base configuration only. Any additional expansion and/or devices
will increase the input power required.

69 144811(B)

4117T Light Duty Industrial PC Appendix A – Technical Specifications

Environmental Specifications

Table A-2 lists the environmental and compliance specifications for the 4117T.

Table A-2. Environmental Specifications

Temperature

Operating

Non-operating

Humidity

Operating

Non-operating

Shock1

Operating

Non-operating

Vibration (5-2000 Hz)1

Operating

Non-operating

Altitude2

Operating

Non-operating

1

These values are with solid state hard drives and not rotating media drives.

2

Consistent with internal component specifications.

0˚C to 50˚C (32˚F to 122˚F)

-20˚C to 60˚C (-4˚F to 140˚F)

20% to 80% RH, non-condensing

5% to 95% RH, non-condensing

15g peak acceleration, 11 msec duration

30g peak acceleration, 11 msec duration

0.006” peak to peak displacement

1.0g maximum acceleration

0.015” peak to peak displacement

2.5g maximum acceleration

Sea level to 10,000 ft. (3,000 m)

Sea level to 40,000 ft. (12,000 m)

70 144811(B)

Appendix B – Power-On Self-Test Messages

POST Messages

During the Power-On Self-Test (POST) if the BIOS detects an error, it will either
sound a beep code or display a message.

If a message is displayed, it will be accompanied by:

PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP

POST Beep

There are two kinds of beep codes in BIOS:

Single long beep followed by three short beeps—This code indicates that a video
error has occurred and the BIOS cannot initialize the video screen to display any
additional information.

Repeating long beep—This code indicates that a DRAM error has occurred.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an error
during the POST. This list includes messages for both the ISA and the EISA BIOS.

Table B–1. Error Messages

Error Messages Cause/Solution

CMOS BATTERY HAS FAILED

CMOS CHECKSUM ERROR

DISK BOOT FAILURE, INSERT
SYSTEM DISK AND PRESS
ENTER

DISKETTE DRIVES OR TYPES
MISMATCH ERROR - RUN SETUP

DISPLAY SWITCH IS SET
INCORRECTLY

DISPLAY TYPE HAS CHANGED
SINCE LAST BOOT

CMOS battery is no longer functional. It should be replaced.

Checksum of CMOS is incorrect. A weak battery may have caused this error;
replace if necessary. It may also indicate that CMOS has become corrupt.

No boot device was found. This could mean that either a boot drive was not
detected or the drive does not contain proper system boot files. Insert a
system disk (formatted as a boot device) into Drive A: and press Enter. If you
assumed the system would boot from the hard drive, make sure the
controller is inserted correctly and all cables are properly attached, then
reboot the system.

Type of diskette drive installed in the system is different from the CMOS
definition. Run Setup to reconfigure the drive type correctly.

The display switch on the motherboard is set to a different setting than
indicated in Setup. Determine which setting is correct and then either turn off
the system and change the jumper, or enter Setup and change the VIDEO
selection.

Since the last powering off the system, the display adapter has been
changed. You must configure the system for the new display type.

71 144811(B)

4117T Light Duty Industrial PC Appendix B – Power-On Self-Test Messages

Error Messages Cause/Solution

EISA CONFIGURATION
CHECKSUM ERROR
PLEASE RUN EISA
CONFIGURATION UTILITY

EISA CONFIGURATION IS NOT
COMPLETE
PLEASE RUN EISA
CONFIGURATION UTILITY

ERROR ENCOUNTERED
INITIALIZING HARD DRIVE

ERROR INITIALIZING HARD DISK
CONTROLLER

FLOPPY DISK CNTRLR ERROR
OR NO CNTRLR PRESENT

INVALID EISA CONFIGURATION
PLEASE RUN EISA
CONFIGURATION UTILITY

KEYBOARD ERROR OR NO
KEYBOARD PRESENT

KEYBOARD IS LOCKED OUT ­UNLOCK THE KEY

MEMORY ADDRESS ERROR AT
...

MEMORY PARITY ERROR AT ... Indicates a memory parity error at a specific location. You can use this location along

MEMORY SIZE HAS CHANGED
SINCE LAST BOOT

MEMORY VERIFY ERROR AT ... Indicates an error verifying a value already written to memory. Use the location along

OFFENDING ADDRESS NOT
FOUND

OFFENDING SEGMENT This message is used in conjunction with the I/O CHANNEL CHECK and RAM

PRESS A KEY TO REBOOT This will be displayed at the bottom screen when an error occurs that requires you to

PRESS F1 TO DISABLE NMI, F2
TO REBOOT

RAM PARITY ERROR ­CHECKING FOR SEGMENT

SHOULD BE EMPTY BUT EISA
BOARD FOUND
PLEASE RUN EISA
CONFIGURATION UTILITY

SHOULD HAVE EISA BOARD BUT
NOT FOUND
PLEASE RUN EISA
CONFIGURATION UTILITY

SLOT NOT EMPTY

The EISA non-volatile RAM checksum is incorrect or cannot correctly read the EISA
slot. This can indicate either the EISA non-volatile memory has become corrupt or the
slot has been configured incorrectly. Verify the card is installed firmly in the slot. When
this error appears, the system will boot in ISA mode allowing you to run the EISA
Configuration Utility.

The slot configuration information stored in the EISA non-volatile memory is
incomplete. When this error appears, the system will boot in ISA mode allowing you to
run the EISA Configuration Utility.

Check that the adapter is installed correctly and all cables are firmly attached. Verify
that the correct hard drive type is selected in Setup.

See the cord is correctly and firmly installed in the bus. Verify the correct hard drive
type is selected in Setup. Check jumper settings on the hard drive.

Make sure the controller is installed correctly and firmly. If there are no floppy drives
installed, be sure the Diskette Drive selection in Setup is set to NONE.

The non-volatile memory containing EISA configuration information was programmed
incorrectly or has become corrupt. The system will boot in ISA mode allowing you to
run the EISA Configuration Utility and correctly program the memory.

Make sure the keyboard is attached correctly and no keys are being pressed during
the boot. If you are purposely configuring the system without a keyboard, set the error
halt condition in Setup to HALT ON ALL, BUT KEYBOARD. This will cause the BIOS
to ignore the missing keyboard and continue the boot.

BIOS detected the keyboard is locked. P17 of keyboard controller is pulled low.

Indicates a memory address error at a specific location. You can use this location
along with the memory map for your system to find and replace the bad memory chips.

with the memory map for your system to find and replace the bad memory chips.

Memory has been added or removed since the last boot. In EISA mode use
Configuration Utility to reconfigure the memory configuration. In ISA mode enter Setup
and enter the new memory size in the memory fields.

with your system's memory map to locate the bad chip.

This message is used in conjunction with the I/O CHANNEL CHECK and RAM
PARITY ERROR messages when the segment that has caused the problem cannot be
isolated.

PARITY ERROR messages when the segment that has caused the problem has been
isolated.

reboot. Press any key to reboot.

When BIOS detects a Non-maskable Interrupt condition during boot, this will allow you
to disable the NMI and continue to boot, or you can reboot the system with the NMI
enabled.

Indicates a parity error in Random Access Memory.

A valid board ID was found in a slot that was configured as having no board
ID. When this error appears, the system will boot in ISA mode allowing you
to run the EISA Configuration Utility.

The board installed is not responding to the ID request, or no board ID has
been found in the indicated slot. When this error appears, the system will
boot in ISA mode allowing you to run the EISA Configuration Utility.

A slot designated as empty by the EISA Configuration Utility actually contains
a board. When this error appears, the system will boot in ISA mode allowing
you to run the EISA Configuration Utility.

72 144811(B)

4117T Light Duty Industrial PC Appendix B – Power-On Self-Test Messages

Error Messages Cause/Solution

SYSTEM HALTED, (CTRL-ALT­DEL) TO REBOOT ...

WRONG BOARD IN SLOT
PLEASE RUN EISA
CONFIGURATION UTILITY

FLOPPY DISK(S) FAIL (80)

FLOPPY DISK(S) FAIL (40)

HARD DISK(S) FAIL (80)

HARD DISK(S) FAIL (40)

HARD DISK(S) FAIL (20)

HARD DISK(S) FAIL (10)

HARD DISK(S) FAIL (08)

MANUFACTURING POST LOOP.

BIOS ROM CHECKSUM ERROR ­SYSTEM HALTED.

MEMORY TEST FAIL.

The present boot attempt has been aborted and the system must be
rebooted. Press and hold down the CTRL and ALT keys and press DEL.

The board ID does not match the ID stored in the EISA non-volatile memory.
When this error appears, the system will boot in ISA mode, allowing you to
run the EISA Configuration Utility.

Unable to reset floppy subsystem

Floppy type dismatch

HDD reset failed

HDD controller diagnostics failed

HDD initialization error

Unable to recalibrate fixed disk

Sector Verify failed

System will repeat POST procedure infinitely while the P15 of keyboard
controller is pulled low. This is also used for M/B burn in test.

The checksum of ROM address F0000H-FFFFFH is bad.

BIOS reports the memory test failed if the onboard memory is tested error.

73 144811(B)

Appendix C – How to Upgrade a New BIOS

Please contact the Pro-face Application Engineering Department at 734-944-0482 to
obtain the latest BIOS.

BIOS Update Procedure

Notes

A. This procedure will erase any prior data on that floppy, so please proceed
accordingly.

B. Typically four files will be transferred, only COMMAND.COM being visible when
running a simple directory listing.

C. Please leave the diskette un-write protected for the balance of this procedure.

1. Make a boot disk. Go to the DOS command prompt in MS-DOS or Windows 9x
and, with an available floppy disk in "A", type "format A:/s" That will format the
floppy and transfer the needed system files to it.

2. Download the BIOS upgrade file and awdflash.exe utility from an ICP web site
to a temporary directory on your hard drive, or directly to the floppy formatted in
step 1.

3. Copy (BIOS file and awdflash.exe) files to the boot floppy disk.

4. Reboot the system to the DOS command prompt using the boot disk made in the
previous steps.

5. At the DOS command prompt, awdflash filename.xxx, (filename.xxx is the file
name of the upgraded BIOS file), press Enter.

6. The first prompted option is to save the old BIOS. It is recommended that this
option be selected in case it is later decided not to use the new version once it is
installed. To save, enter Y. To not save, enter N.

74 144811(B)

4117T Light Duty Industrial PC Appendix C – How to Upgrade a New BIOS

Notes

A. DO NOT save the old BIOS with the same file name as the new BIOS. If the
same file name is used, the new BIOS will write over the old BIOS with no prompted
warning.

B. If the old BIOS is not saved write down the version number of the old BIOS and
store it with your important computer documents. If not saving old BIOS, enter N
(for "no") and skip to step 9.

7. Enter a NEW name for the old BIOS file, press Enter.

8. The second prompted option will be whether you want to flash your BIOS.
Enter Y for yes, N for no.

Warning

Once the Enter key is pressed, DO NOT touch the keyboard, reset button, or power
switch while flashing is in progress. A progress bar on the screen will show the
progress of the flashing.

9. When the flashing process is complete, you will be asked to reset or

power off the system. Remove the floppy disk from the drive and reset or
power off the system.

10. Reboot the system and note that the BIOS version on the initial boot-up

screen has changed to the new BIOS version. Your BIOS upgrade is now
complete.

Recovering Your Old BIOS

1. Boot the system with the floppy disk that contains the new BIOS. If you do not
have the floppy disk, repeat steps 1, 2, and 3 of the BIOS Upgrade Procedure
above for the version of the BIOS recovering.

2. Complete steps 4 and 5 (filename.xxx is the name of the recovered BIOS file).
Select N for no in step 6, and continue with steps 8, 9, and 10.

75 144811(B)

4117T Light Duty Industrial PC Appendix C – How to Upgrade a New BIOS

Install screen:

Figure C - 1. BIOS Upgrade Screen

76 144811(B)

4117T Light Duty Industrial PC Appendix C – How to Upgrade a New BIOS

Index

17” TFT LCD .......................................................... 18

AC '97 ....................................................................14

ACPI Power Management...................................... 14

AGP 4X .................................................................. 14

Application Accelerator .......................................... 14

Arm mounting......................................................... 13

Award BIOS setup.................................................. 14

BIOS ...................................................................... 17

BIOS recovery........................................................ 74

BIOS setup............................................................. 14

overview.............................................................28

starting ............................................................... 28

using .................................................................. 30

BIOS upgrades ...................................................... 73

CF card setup ........................................................ 18

clear CMOS...................................................... 17, 18

CMOS data ..............................................................17

Compact Flash Connector ..................................... 21

CPU ................................................................. 17, 27

CPU board ............................................................. 14

layout ................................................................. 16

product overview ................................................14

Dimensions

mechanical...........................................................8

Documentation kit .................................................... 5

Drivers

installing ............................................................. 66

miscellaneous .................................................... 67

touch screen ...................................................... 66

video .................................................................. 66

Enhanced DMA controller ......................................14

Environmental specifications ................................. 69

Error messages (power on self test .......................70

Extreme Graphics 2 ............................................... 14

Fuse

replacement ....................................................... 60

General information ................................................. 1

HDD ...........................................................20, 21, 22

Installation

driver .................................................................. 66

operating systems ..............................................65

Intel® 855GME ................................................ 14, 15

Intel® ICH4 ............................................................14

LAN ........................................................................ 14

LCD display

specifications ....................................................... 2

LCD voltage setup ................................................. 18

Maintenance .......................................................... 60

general ............................................................... 60

hard drive ........................................................... 60

Mechanical diminsions .............................................8

motherboard........................................................... 19

Mounting

arm.....................................................................13

panel .................................................................... 9

wall.....................................................................11

Operating systems

installation .......................................................... 65

panel ...................................................................... 19

Panel mounting ........................................................ 9

PCI Local Bus Specification...................................14

peripheral interface connectors.............................. 19

POST messages ....................................................70

Power on self test .................................................. 70

error messages .................................................. 70

POST beep ........................................................ 70

POST messages ................................................70

Preventive maintenance ........................................ 60

general ............................................................... 60

hard drive ........................................................... 60

Product information

CPU board ......................................................... 14

environmental specifications..............................69

general ................................................................. 1

LCD display.......................................................... 2

mechanical dimensions........................................ 8

touch screen ........................................................ 2

4117T Light Duty Industrial PC Appendix C – How to Upgrade a New BIOS

Product specifications

environmental .................................................... 69

LCD display.......................................................... 2

touch screen ........................................................ 2

Recovering the old BIOS ....................................... 74

Repairs and service ............................................... 61

Reverse side of unit

system setup ....................................................2, 3

screen .................................................................... 18

serial port ............................................................... 18

Service and repairs ................................................ 61

Side view of unit

system setup ........................................................4

Specifications

environmental .................................................... 69

LCD display.......................................................... 2

touch screen ........................................................ 2

system bus............................................................. 14

System setup

arm mounting ..................................................... 13

panel mounting .................................................... 9

reverse side of unit........................................... 2, 3

side view of unit ................................................... 4

wall mounting ..................................................... 11

Touch screen

specifications ....................................................... 2

Touch screen drivers ............................................. 66

Unit reverse side .................................................. 2, 3

Unit side view...........................................................4

Upgrading the BIOS ............................................... 73

USB 2.0.................................................................. 14

USB host controllers .............................................. 14

Video drivers .......................................................... 66

Wall mounting ........................................................ 11

http://www.profaceamerica.com

144811(B)

144811(B)

Xycom Automation, L.L.C.
734-429-4971

Xycom Automation, LLC

Fax: [phone]
734-429-4971

http://www.profaceamerica.com

Fax: [phone]

Canada Sales: 905-607-3400
Northern Europe Sales: [phone]

Canada Sales: 905-607-3400

Southern Europe Sales: [phone]

Northern Europe Sales: [phone]
Southern Europe Sales: [phone]
