XVIVE U2 Guitar wireless system wood, U2 Guitar wireless system black Xvive_U2_MANUAL_EN.pdf

GUITAR

WIRELESS SYSTEM

RISK OF ELECTRIC SHOCK

CAUTION

DO NOT OPEN

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THE APPLIANCE TO RAIN OR
MOISTURE.

01

Radio Approvals: FCC Part 15.249, FCC Part 15 B, RSS-210
(Canada), EN 300 440 (Europe), EN 301.489 (Europe), Japan
Radio 2.4GHz Band (Japan), MIC ARIB STD-T66 (Japan)

The CE Declaration of Conformity & California 65 Test
Report can be obtained at
http://www.xviveaudio.com/productInfo.asp?id=354

CERTIFICATION

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL

INTERFERENCE, AND

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE

RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSEUNDESIRED OPERATION.

Warning: Changes or modifcations not expressly approved
in writing by Xvive may void the users authority to operate
this equipment.

RF Exposure Statement: This transmitter must not be
co-located or operated in conjunction with any other
antenna or transmitter.

Note: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference

in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and
receiver.

- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV
technician for help.

This Class B digital apparatus complies with Canadian
ICES-003.

02

IMPORTANT SAFETY INSTRUCTIONS

PLEASE THESE INSTRUCTIONS

IN A SAFE PLACE

WARNING: BEFORE USING YOUR XVIVE U2 DIGITAL WIRELESS SYSTEM,

CAREFULLY READ THE OPERATING INSTRUCTIONS.

1. Observe all instructions carefully in the U2 manual.

2. Do not to perform service operations beyond those
described in the U2 Manual. Services required when the
apparatus has been damaged in any way, such as:

t-JRVJEIBTCFFOTQJMMFEPSPCKFDUTIBWFGBMMFOJOUPUIF

apparatus

t5IFVOJUIBTCFFOFYQPTFEUPSBJOPSNPJTUVSF
t5IFVOJUEPFTOPUPQFSBUFOPSNBMMZPSDIBOHFTJO

performance in a significant way

t5IFVOJUJTESPQQFEPSUIFFODMPTVSFJTEBNBHFE

03

3. Do not place near heat sources, such as radiators, heat
registers, or appliances which produce heat.

4. Guard against objects or liquids entering the device.
Do not use or place unit near water.

5. Clean only with a damp cloth.

6. Only use attachments/accessories specified by the
manufacturer.

7. Prolonged listening at high volume levels may cause
irreparable hearing loss and/or damage. Always be sure
to practice “safe listening.”

PRODUCT INTRODUCTION PACKAGE DETAILS

Xvive U2 guitar system features digital wireless technolo­gy that delivers incredible audio quality, simple setup, and
is extremely reliable for any gigging musicians. It delivers a
full 20 Hz - 20K Hz frequency response, so you’ll hear your
guitar tone in great detail with only 6ms of latency. This
wireless system operates at 2.4G Hz ism band for crystal
clear broadcasting ensuring the integrity of your signal on
stage and covers 70 feet of range without any signal
dropout. The li-ion batteries help makes the U2 wireless
system environmentally friendly that can last up to 5 hours
per charge. The chassis is made out of a durable abs plastic
that can withstand the rigors of touring and the harshest
of climates. This wireless is a perfect fit for any pedal board
thanks to its simplistic, and compact design. So, go
wireless with the xvive U2 system. It’ll declutter the stage
and offers freedom in motion

U2 Guitar Transmitter 1PCS
U2 Guitar Receiver 1PCS
USB cable 1PCS
Manual 1PCS

04

QUICK START

or

channels 1 flash once

or

channels 2 flash twice

channels 3 flash three times

channels 4 flash four times

1. Transmitter plugs into the Guitar (you instruments), the
receiver plugs into the effects pedal, AMP, Audio, etc.

05

2. Turn on the Transmitter and the receiver and check the
LED blue lights flashing times and make sure the blue
led lights have same flashing times which means
transmitter and receiver are in both same channels.

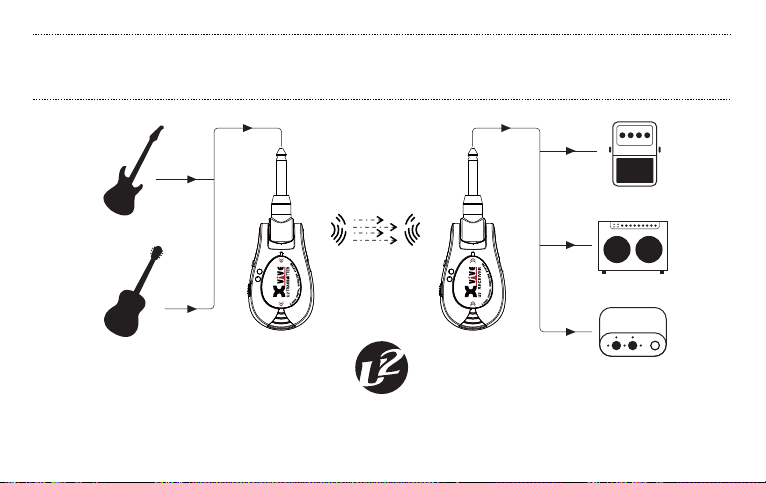

QUICK START DIAGRAM

Hello!

3. After connecting successfully, LED lights on receiver will
keep light on.

4. Now, let’s rock together.

06

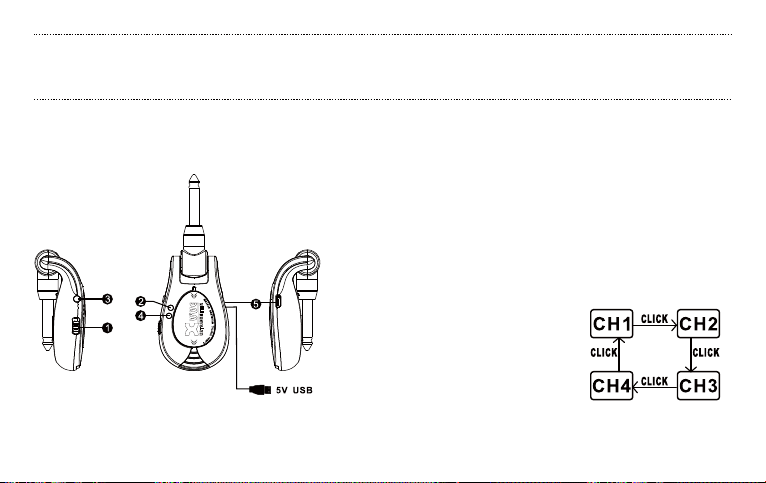

BASIC OPERATION

1. Power – Slide Switch to turn on/off

ÓTRANSMETER/RECEIVER

2. Power LED and Battery LED

ÓSolid Red LED indicates the power on,
ÓThe flashing red LED indicates the battery is low charge, it needs

to be recharged .

ÓIn the progress of charging, the light will stop flashing and will

turn off when it is fully charge.

3. Channel Select - Align TRANSMITTER and RECEIVER channels.

ÓDouble click the switch to activate

the channel select function.

ÓFollow the diagram below to set up

the channel , meanwhile the audio
signal indicator LED will flash to
indicate the channel.

07

BASIC OPERATION

4. Transmitter Audio signal indicator LED

ÓWhen Power is on, the Blue LED will flash to indicate the

pre-set channel.

ÓAfter activating the channel selection function, click the

button to set up the channel , the blue LED will flash to
indicate the channel

* For the flicking channel indication, please refer to chart 1*

Receiver Audio Signal indicator LED

ÓWhen the power is on, the blue LED will flash to indicate

the pre-set channel .

ÓAfter activating the channel selection function, click the

channel button, the blue LED will flash to indicate the
channel

ÓThe Receiver audio signal indicator LED will become

solid blue when the Transmitter and Receiver are in
alignment.

ÓWhen the signal is good, The receiver audio Signal

indicator LED will become solid blue, it will start to flash
if the signal is not good .

*For the flashing channel indication, please refer to chart 1*

5. USB Port – Battery recharger port.

* Chart 1, Flashing channel indication

Channel 1 The Audio signal LED will flash once

Channel 2 The Audio signal LED will flash twice

Channel 3 The Audio signal LED will flash three times

Channel 4 The Audio signal LED will flash four times

FOR THE FLASHING CHANNEL
INDICATION, PLEASE REFER
TO CHART 1

08

BATTERIES AND CHARGING

Connect to the socketConnect Power

CHARGING TIMES BATTERY LIFE

0:15 min

0:30 min

1 hour

2 hours

30 min

1 hour

2 hours

5 hours

* Always store U2 at room temperature
* When storing the unit, please check the battery
state regularly and charge if necessary.

In an emergency, power can be supplied via a USB wall

Note:

adapter however, the battery life will be reduced.

09

2.4 GHz SPECTRUM OVERVIEW AND INTERFERENCE

U2 operates within the 2.4GHz ISM band which is utilize
by Wi-Fi, Bluetooth, and other wireless devices. 2.4Ghz is
an open band and, as such, does not require a license to be
used worldwide.

Tips and Methods to Improve Wireless System Performance

1) Keep more than 3 meteres distance between U2 Receiver
unit and other WiFi transmitters such as routers.

2) Change channels to avoid interference with other WiFi
products.

3) In case of environmental interference from other WiFi
systems, shorten the distance between the U2 receiver
and transmitter units.

2.4Ghz Frequency Tables

CHANNEL1 2402MHZ,2480MHZ,2482MHZ

CHANNEL2 2408MHZ,2472MHZ,2474MHZ

CHANNEL3 2420MHZ,2456MHZ,2458MHZ

CHANNEL4 2432MHZ,2448MHZ,2450MHZ

10

Q & A

Four channels

The U2 wireless guitar system has four different channels,
and can use up to 4 pair of systems at the same time.
When your band plays for guitar, bass, keyboard and
other instruments, U2 can set up different channels for
them to prevent signal interference. When there is only
one player, the different channel function can also be
used for him/her to prevent interferences from different
frequency bands of routers or other WIFI devices.
Generally we recommend to use Channel 1

Portable Plug-and- Play design

U2 wireless system uses a portable design; both the
receiver and the receiver are plug-and-play design. It is
very convenient for fast switching among guitar, bass,
amplifiers, effect pedal and other audio equipments. It
provides more flexibility in adjusting the equipments.

One Transmitter and multiple Receivers

When using a transmitter, you can use multiple receivers.
For example, if you want to connect a guitar to two

11

amplifiers or connect to effect pedal and pedal tuner,
you need just use multiple receivers with setting up to
be the same channel.

U2 Receiver

Since U2 is the 2.4 GHz wireless system, please avoid
putting the receiver close to other signal emitting
devices. It is recommended that your U2 receiver keep a
distance of more than 3 meters from the other 2.4 GHz
transmitter and WIFI router.

Channel switching and locking

The select function of channel is unlocked within 15
seconds after the product is started. You can click the
“Channel” button for selecting the channel that you want.
After the click, the blue LED will flash. Flash once means
you are in Channel 1. Flash twice means you are in
Channel 2, and so forth. The select function of channel
will be locked after 15 seconds. Double clicks for the
Channel button can activate the function again.

Q & A

Power charge

There is a “Y” shape cable in the package. It can charge
the transmitter and receiver at the same time.
The voltage output is 5V. The red LED light of U2 will be
always on for normal use. Red LED light flashing means
low battery which requires immediate power charge.
During power charging, the red LED on the transmitter
and receiver will light on and they will be light off
automatically after full power charge.

Blue LED Flashing

The blue LED light flashing indicates there is signal
interference. Please switch to another channel, turn off
or stay away from other 2.4GHZ WIFI, to make sure the
U2 transmitter and receiver antennae be in the signal
receiving range.

Antennae angle

The rear end of U2 is the antenna, which can be used at
about an angel of 180°. The front signal of the transmitter
and the receiver is the strongest. Please try to keep the

front to face each other during using. Do not block the
antenna with your hand or other items, and keep the
signal within the receiving range of the antenna. When
confront with interferrence from other devices or need
more distance for using, you can change the antenna's
angle and adjust it to be the best condition.

Supportive pickup and musical instrument

U2 wireless system works fine with passive electric
guitar pickup, Piezo-electric acoustic guitar pickup and
Piezo-electric violin pickup. For the Active electric guitar,
pickup output voltage need less than 5.6Vp-p . Acoustic
guitar with microphone pickup system , Please keep the
U2 transmitter away from the microphone. Transmitter
is better to connect to the instrument. Please avoid
connecting it to distortion effect pedal or high power
output interface which may incur the timbre distortion.

USB port

USB only works for charging function, does not support
firmware upgrade.

12

SPECIFICATIONS

Tuning Bandwidth

Working Range

Audio Frequency Response

Dynamic Range

Battery Life

RF Sensitivity

Total Harmonic distortion

RF Output Power

Operating Temperature Range

Channel Count

Maximum Level

Sample Rate

13

2400 – 2483.5MHz

>70 feet Line-0-site outdoors. Actual range depends on RF signal
absorption, reflection and interference.

20Hz – 20KHz(-3dB). Dependent on microphone type or Input signal.

>103dB

Up to 5 hours (3.7V Rechargeable Li-lon, 650mA)

-85dBm

0.2%

10 mW E.I.R.P. max

-18ȭ to 57ȭ. Battery characteristics may limit this range.

up to 4 Channels

Input: 5.6Vp-p Output: 5.6Vp-p

24bit/48K Hz uncompressed digital transmission

Guitar / Bass

Piezo-electric

Acoustic Guitar

APPLICATION SCENE

GUITAR WIRELESS SYSTEM

Guitar Effects Pedal

Guitar AMP

Portable PA Systems

Recorders

14

China Patent Numbers ZL 2016 3 0165464.8

2nd floor, Building 12, Xicheng Industrial Area, Xixiang Town,

Baoan District, Shenzhen Guangdong China. 518101

E-mail: [e-mail]
