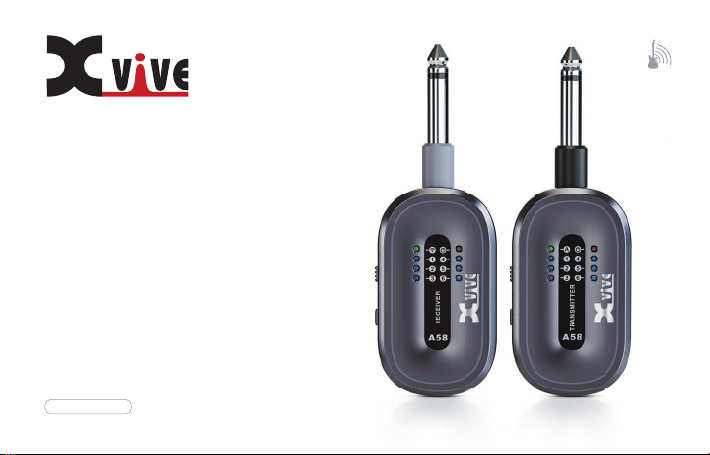

NJǍ
GUITAR WIRELESS
SYSTEM
NJȒǍ',Ķ×ĈÂêÂČČ%ĈÂćęÂò·İ©ò½
English Manual
5.8 GHz
Plug and Play
INTRODUCTION
In order to oer customers more wireless frequency options,
Xvive has developed a wireless system that uses the 5.8 GHz
band: the A58 Guitar Wireless System. 5.8 GHz is a less crowded
frequency, so it’s less likely to encounter signal interference;
the 2.4 GHz frequency, meanwhile, performs better than 5.8
GHz when there are obstacles between the transmitter and the
receiver. The A58 System has been ne-tuned for improved
performance and guitar tone.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THE APPLIANCE TO RAIN OR MOISTURE.
01
Radio Approvals: FCC Part 15.249, RSS-247(Canada), EN 300 440
(Europe), EN 301.489 (Europe)
This device is in compliance with the essential requirements
and other relevant provisions of Directive 2014/53/EU. All
essential radio test suites have been carried out.
Detailed DOC le please visit our website: www.xvive.com
IC CAUTION:
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference,
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
FCC CERTIFICATION
FCC Caution: Any changes or modications not expressly
approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 2AJ3O-A58 IC: 22031-A58
WARNING:
harm from exposure to Lead
www.P65Warnings.ca.gov
Risk of reproductive
02
SAFETY INSTRUCTIONS FOR LITHIUM-ION
RECHARGEABLE BATTERIES
If abused or misused, the rechargeable batteries may leak.
In extreme cases, they may even present a risk of explosion,
re, heat, smoke or gas. Xvive does not accept any liability
for damage arising from abuse or misuse.
• Keep away from children.
• Only charge rechargeable batteries with chargers
recommended by Xvive.
• Observe correct polarity.
• Pack/store charged rechargeable batteries so that the
terminals cannot contact each other (danger of shorting
out/re hazard).
• Do not expose to moisture.
• Switch rechargeable battery-powered products o after use.
• Only charge rechargeable batteries at ambient
temperatures between 10°C/50°F and 40°C/104°F.
• When not using rechargeable batteries for extended periods
of time, charge them regularly (about every three months).
• Do not mutilate or dismantle.
• Do not heat above 60°C/140°F, e.g. do not expose to
sunlight or throw into a re.
03
• Immediately remove rechargeable batteries from
obviously defective products.
• Do not continue to use defective rechargeable batteries.
• Only use rechargeable batteries specied by Xvive.
• Dispose of rechargeable batteries at special collection
points or return them to your specialist dealer.
• Store the products in a cool and dry place at room
temperature (approx. 20°C/68°F).
• Remove the rechargeable batteries if the products will
not be used for extended periods of time.
Hereby, SHENZHEN FZONE TECHNOLOGY CO., LTD,
declares that this type of equipment is in compliance
with the essential requirements and other relevant
provisions of Directive 2014/53/EU
INFORMATION ABOUT COLLECTION AND DISPOSAL
OF OLD ITEMS AND USED BATTERIES
[For customers in the European Union]
If you want to discard electrical and electronic items, please
contact your dealer or supplier for further information.
These symbols on the products, packaging, or on any
documents in the package mean it is incorrect to mix the
used electrical and electronic products and batteries with
general household garbage. These symbols are only valid
in the EU. Please contact your local authorities or dealer for
more information on the disposal of old items and used
batteries:
Cd
To protect our environment, please take old products and
used batteries to proper collection places, and follow your
national legislation and the Directives 2012/19/EU and
2006/66/EC.
[Information on Disposal in Countries outside the
European Union]
To deal with these old products and batteries
please help to save valuable resources
possibility of side eects on human health and our
environment due to the inappropriate disposal of the old
products and used batteries.
Please contact your local authorities to get more helpful
information on how to dispose of old products and
batteries.
properly,
and prevent any
04
ONE-YEAR LIMITED WARRANTY
Xvive Corporation Ltd. [Xvive] warrants our products to be
free of defects in materials and workmanship in normal use
for a period of one (1) year from the date of original purchase.
Please visit https://www.xvive.com to register your new
purchase.
Xvive will, at its sole discretion, or in cooperation with our
authorized retailers, repair or replace at no charge, any unit
that is inspected by Xvive or an aliated Xvive service center
and deemed to be defective within the warranty period.
This warranty is non-transferrable.
This warranty is only valid to the original purchaser, only
when purchased “new-in-box” from an Authorized Xvive
Dealer and with a valid proof of purchase bearing the
purchase date.
Within the USA:
• All Xvive warranty claims should be made with the retailer
from which the unit was purchased. This applies to both
05
retail stores and online retailers.
Outside of the USA:
• For all warranty and non-warranty claims, the purchaser
should contact the Authorized Xvive Retailer from which
the unit was purchased within the country or province in
which it was purchased for information on how to obtain
warranty or non-warranty service.
This limited warranty does not cover the following:
• Products that have been modied in any way;
• Any products whose serial numbers have been altered or
removed;
• Exterior cosmetic damage or damage to the nish due to
misuse or normal wear and tear;
• Products that were purchased as “used”, items listed as
demo stock or refurbished items;
• Damage to the product or parts caused by improper
storage by the user;
• Any freight charges (from or to the retailer);
• Shipping Damage:
- Shipping damage claims must be led with the freight
carrier (such as UPS, FedEx).
- Notify the freight carrier immediately of any shipping
damage upon receipt of damaged items to begin the
claim process.
- We also recommend reporting any shipping damage
claim within 48 hours of receipt to the Authorized
Retailer from which the item was purchased.
- Keep all original documents and packing materials until
the freight damage claim has a nal resolution.
For units returned to Xvive USA:
• The item must be returned in the same format in which it
was purchased. If a system containing a transmitter and
receiver was purchased, then both units will need to be
returned together.
• The purchaser will pay all freight charges to return the
original item to Xvive USA or its aliated service centers.
• If the unit is deemed to be covered by this warranty, Xvive
will ship the repaired or replacement unit to the purchaser
free-of-charge and without any additional freight charges.
• If the unit is deemed to NOT be covered by this warranty,
other charges plus return freight charges will apply.
EXCEPT AS EXPRESSLY SET FORTH ABOVE IN THIS LIMITED
WARRANTY, XVIVE MAKES NO OTHER EXPRESS OR
IMPLIED WARRANTIES TO THE EXTENT PERMITTED BY
LAW. XVIVE ASSUMES NO LIABILITY FOR PROPERTY DAMAGE
RESULTING FROM FAILURE OF THIS PRODUCT NOR ANY
LOSS OF INCOME, SATISFACTION, OR DAMAGES ARISING
FROM THE LOSS OF USE OF SAME DUE TO DEFECTS OR
AVAILABILITY OF SAME DURING SERVICE.THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE
OR BY COUNTRY OR PROVINCE.
For warranty inquiries not covered in this policy, please
contact support@xvive.com
06
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS AND KEEP THEM IN A SAFE PLACE
WARNING: BEFORE USING YOUR XVIVE 5.8GHz WIRELESS GUITAR SYSTEM,
CAREFULLY READ THE OPERATING INSTRUCTIONS.
1. Observe all instructions carefully in the A58 set manual.
2. Do not to perform service operations beyond those
described in the A58 set manual. Service is required when
the apparatus has been damaged in any way, such as:
• Liquid has been spilled or objects have fallen into the
apparatus;
• The unit has been exposed to rain or moisture;
• The unit does not operate normally or changes in
performance in a signicant way;
• The unit is dropped or the enclosure is damaged
07
3. Do not place near heat sources, such as radiators, heat
registers, or appliances that produce heat.
4. Guard against objects or liquids entering the device.
Do not use or place unit near water.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the
manufacturer.
5.8 GHz 100FT
BAND
FREQUENCY
SIGNALTONOISE
RATIO
MORE THAN
100FT OF RANGE
110 dB110 dB
DYNAMIC
RANGE
FEATURES & SPECIFICATIONS
LESS THAN
5 MS LATENCY
6
6 WIRELESS
CHANNELS
24-bit / 48 kHz
HIGHRESOLUTION
AUDIO
5 hours
5 HOURS
BATTERY LIFE
• 5.8 GHz True Diversity wireless system
• High-resolution 24-bit / 48 kHz audio
• Up to 5 hours of battery life
• Less than 5 ms latency
• 6 wireless channels
• Dynamic range: 110 dB
• Signal-to-noise ratio: 110dB
• Frequency response: 20 Hz – 20 kHz
• Wireless range: up to 100 ft; depends on RF signal
absorption, reection and interference
• Compatible with active and passive pickups
• Scans for wireless status and selects the best channel
• Includes transmitter, receiver, USB charging cable, manual
• For guitar, bass and other musical instruments
08

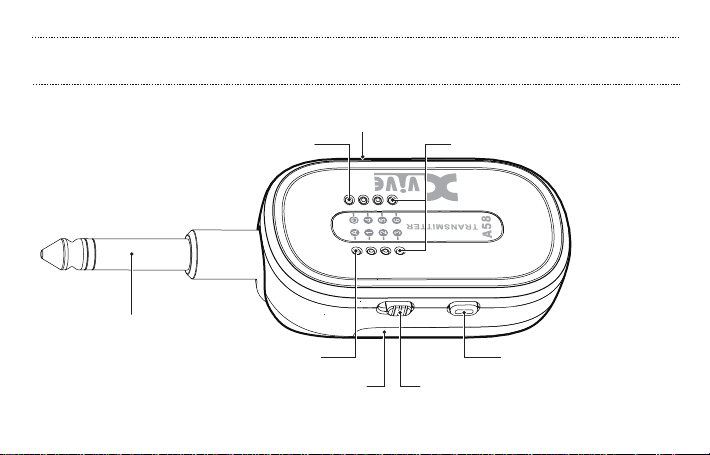

TRANSMITTER
USB charging port
Power LED
1/4” TS input
Active/Passive Mode LED CH: Channel select button /
Battery Compartment
09
Channel LED
Power on/o
Active/Passive Mode
1/4” TS output

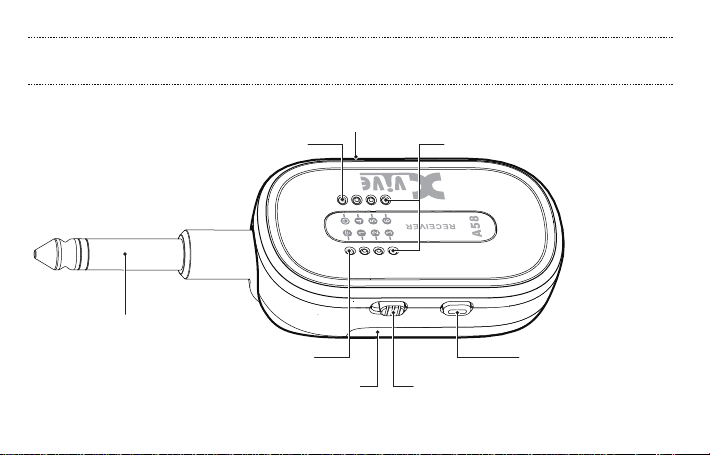

RECEIVER
USB charging port
Power LED
Wireless RF Led CH: Channel Select /
Battery Compartment
Channel LED
Power on/o
Channel Scan button
10

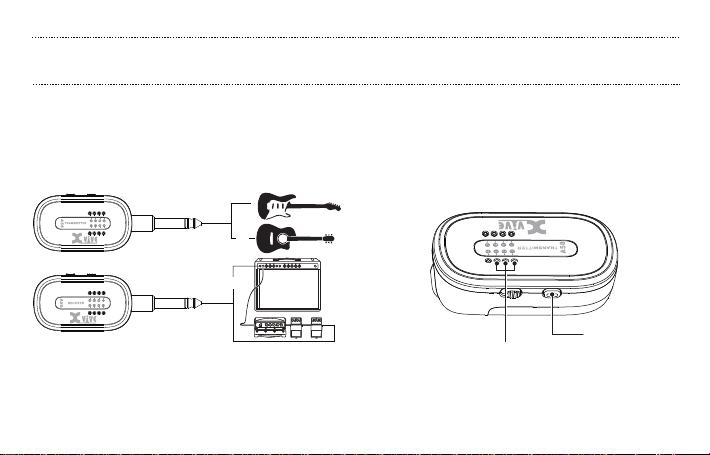

QUICK START
1. Plug the transmitter into the output jack of your guitar/
bass/instrument. Plug the receiver into your amplier,
amp modeler, eect pedal, audio interface, etc.
TRANSMITTER
or
or
RECEIVER
11
2. Pair the transmitter and receiver by making sure that
they are set to the same wireless channel. A58 has six
channels; use the channel select button to change the
channel as needed.
Channel select
1-6 Channel LED
button
QUICK START

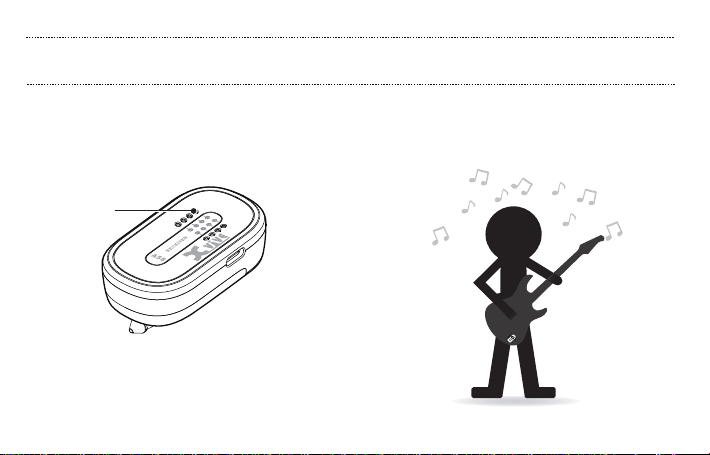

3. The Green RF LED on the receiver will always be on when
the transmitter and receiver are successfully paired.
RF LED
4. Enjoy your wireless freedom!
Hello!
12

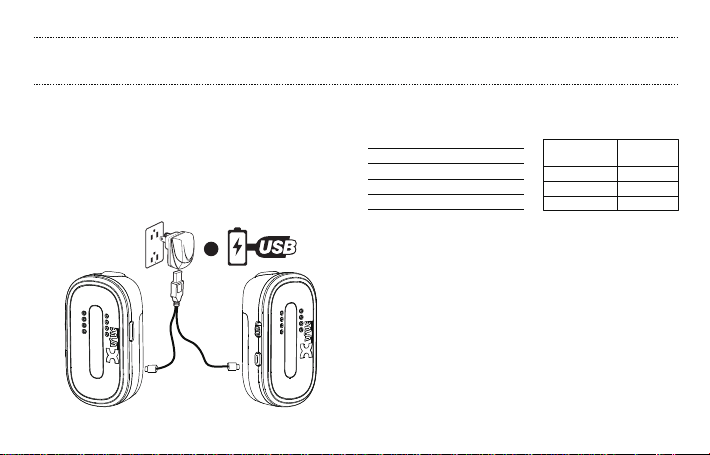

BATTERIES AND CHARGING
BATTERIES AND CHARGING
The A58 system comes with a dual USB charging cable,
which charges the transmitter and the receiver at the
same time. Plug it into any 5V / 2A USB charger adapter or
USB power source.
Note: Turn o the power while charging. Please do not
use A58 while charging, as this may reduce your battery life.
Connect to a power
supply or USB power
outlet
13
OR
POWER STATUS LED INDICATIONS
POWER STATUS
Green (solid):
Yellow (solid):
Red (solid):
Red (blinking):
* Low battery, charge required when red light is on.
* Always store at room temperature.
* When storing the unit, please check the battery charge level regularly
and charge if necessary.
41-100%
6%-40%
1%-5%
<1%
CHARGING
TIMES
30 min
1:15
2:30
BATTERY
LIFE
1 hour
2 hours
5 hours
OPEN-BATTERY-COMPARTMENT DESIGN
Access to the battery compartment makes it easy for
professional maintenance personnel to perform maintenance
and testing on the battery as needed, giving you increased
mileage!
5.8 GHz WIRELESS OVERVIEW AND INTERFERENCE
Tips for improving wireless system performance:
1) Keep more than 3 metres of distance between the A58
receiver unit and Wi-Fi transmitters, such as routers.
2) If you experience interference from Wi-Fi devices in the
vicinity, try changing to a dierent channel on the A58
transmitter and receiver.
3) If necessary, shorten the distance between the
transmitter and receiver units.
5.8 GHz Frequency Tables
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
CHANNEL 5
CHANNEL 6
* Up to six A58 sets can be used simultaneously in one area
5730 MHz, 5842 MHz, 5844 MHz
5736 MHz, 5835 MHz, 5838 MHz
5743 MHz, 5747 MHz, 5827 MHz
5752 MHz, 5780 MHz, 5817 MHz
5760 MHz, 5795 MHz, 5804 MHz
5811 MHz, 5824 MHz, 5830 MHz
14

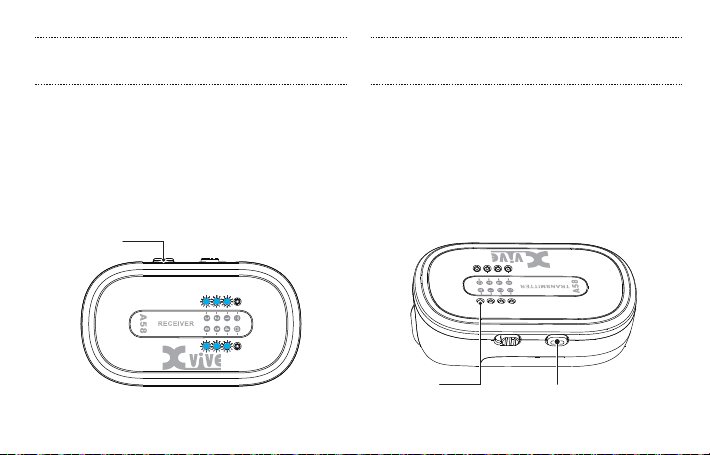

SCAN FOR THE BEST CHANNEL ACTIVE AND PASSIVE MODES
Press and hold the channel button on the receiver for 3
seconds to enter Channel Scan mode. The receiver’s channel
LED will ash during scanning and then will stay on the
optimal wireless channel.
When scanning is complete, manually set the transmitter’s
channel to be the same as the receiver channel.
Press and hold
3 seconds
15
A58 oers both Active and Passive modes, making it
compatible with all pickups—from passive to high-output
active pickups!
When using a guitar or bass with active pickups, press and
hold the transmitter’s Channel button for 3 seconds to
turn on Active mode. When Active mode is on, the Active
LED will illuminate.
Active LED
Press and hold
3 seconds
SPECIFICATIONS
Passive Mode Input
Working Range
Audio Frequency
Response
Battery Life
RF Sensitivity
Total Harmonic Distortion
RF Output Power
Operating
Temperature Range
Channel Count
5.8 GHz
>100 feet line-of-sight outdoors. Actual
range depends on RF signal absorption,
reection and interference
20 Hz – 20 KHz (-3 dB)
Up to 5 hours
(3.8V rechargeable Li-ion, 780 mA)
-90 dBm
0.1%
25 mW E.I.R.P. max
0ȭ to 45ȭ. Battery characteristics
may limit this range
Six: up to six A58 sets can be used
simultaneously in one area
Maximum Level
Sample Rate
Dynamic Range
Signal-To-Noise Ratio
Latency
Charging Voltage &
Current
lmpedance
Input and output
connector
Dimensions
Weight
Passive mode input: 2.84Vp-p，
Active mode input: 7.5Vp-p，
volume -10 dB
24-bit / 48 KHz
110 dB
110 dB
5 ms
5V / 2A
Input: 1 MΩ Output: 470 Ω
1/4” / 6.5 mm TS jack
65 mm x 37 mm x 28 mm / 2.6” x 1.5” x 1.1”
88 g / 3.1 oz
16
TROUBLESHOOTING
• Check that the Transmitter and Receiver are connected
NO SOUND
properly, and that their power switches are turned on.
• Check your instrument’s volume knob to make sure that
signal is being sent to the Transmitter.
• Check that your amplier or other receiving device is on,
with volume up.
• Ensure that the Transmitter and Receiver are set to the
same channel.
• Check that the Receiver's RF LED is on.
DISTORTED AUDIO
• If the output volume of your guitar or bass seems really
high, switch to Active mode
17
• When using a passive instrument, make sure your
LOW AUDIO OUTPUT
Transmitter is set to Passive mode.
SIGNAL INSTABILITY: RF LED FLICKERING
• See page 14: “5.8 GHz Wireless Overview and Interference”.
• Hold on the Receiver switch button for 3 seconds to scan
for the best wireless channel.
MULTIPLE CONNECTIONS
• Make sure the receivers are both set to the same channel
as the transmitter you want them to receive audio from.
Guitar / Bass

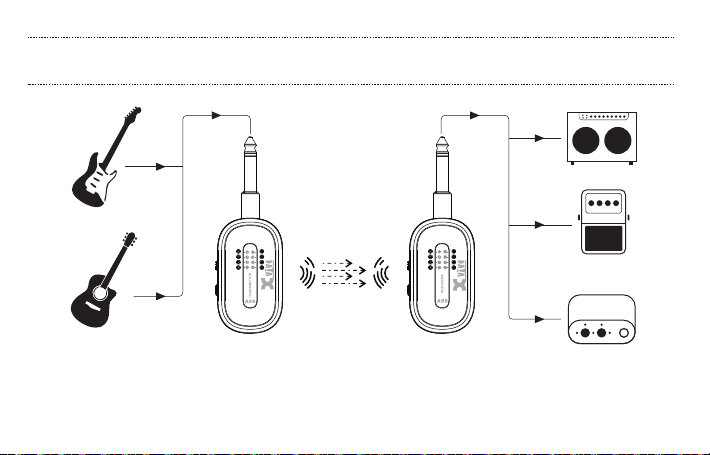

APPLICATIONS
Guitar or Bass Amp
Amp Modeler,
Eect Pedal or Pedalboard
Piezo-electric
Acoustic Guitar
TRANSMITTER
NJǍ
GUITAR WIRELESS SYSTEM
NJȒǍ',Ķ×ĈÂêÂČČ%ĈÂćęÂò·İ©ò½
RECEIVER
PA Mixer or Digital Recorder
18
SHENZHEN FZONE TECHNOLOGY CO., LTD.
2nd oor, Building 12, Xicheng Industrial Area, Xixiang Town,
Baoan District, Shenzhen Guangdong China. 518101
E-mail: support@xvive.com Tel: +86-755-2786 6639
www.xvive.com
