CCTV
Model:
XSD27ZDN
Colour 550 TVL Speed Dome
with 270x Zoomd
Before you begin
• Please unpack the box carefully and identify that all the parts are present.
• Do not cut the cables, this will void the warranty.
• Make sure you use only the recommended power supply. Damage caused to the unit by
incorrect voltage or wiring is not covered by the warranty.
The Pre-Installation Guide will show you how to correctly remove the camera body’s padding
from inside the speed dome housing. Damage can be caused to the camera if these instructions
are not followed properly.
Model: XSD27ZDN
Colour 550 TVL Speed Dome with
270x Zoom

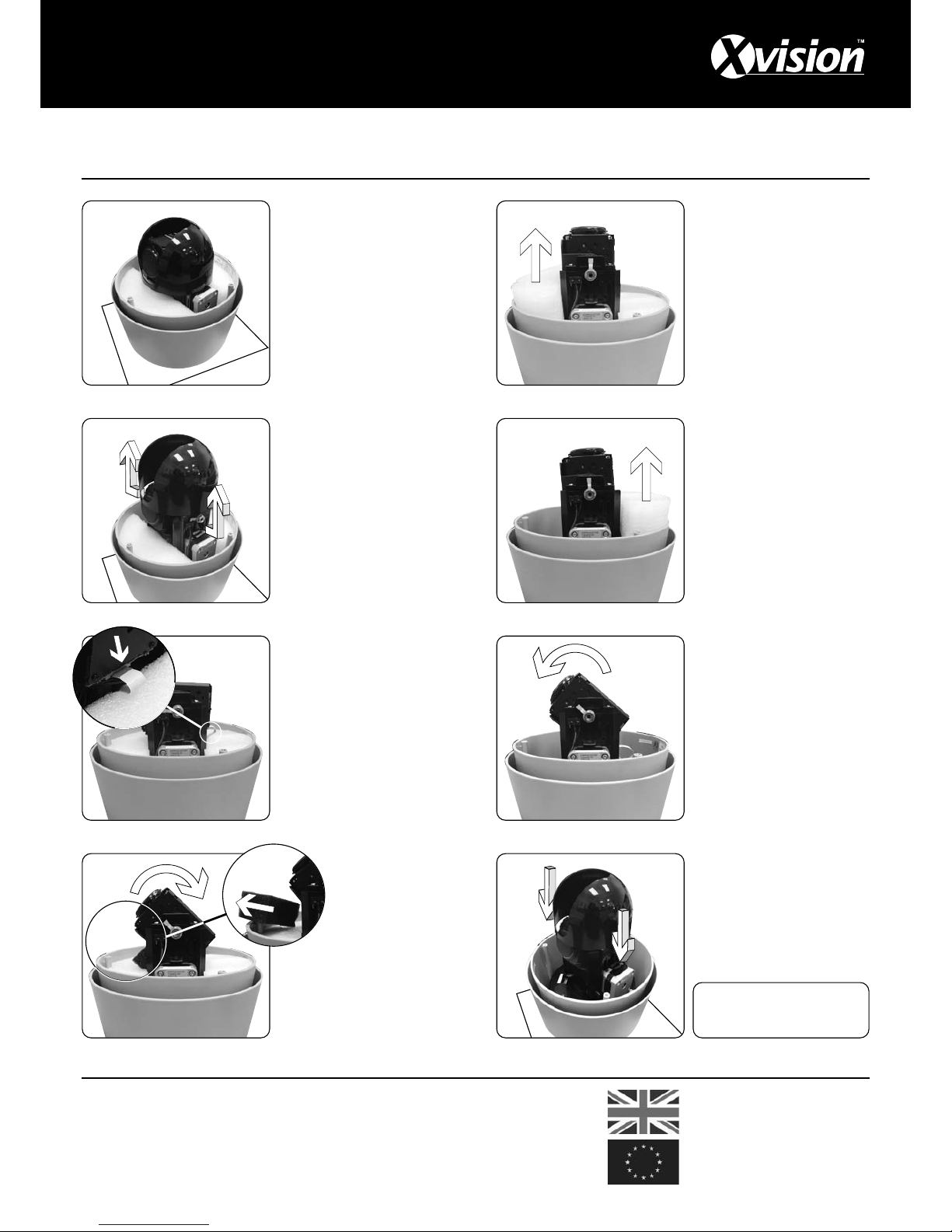

PRE-INSTALLATION GUIDE
Please read before installation
STEP 1.
Remove all packaging and place
the Speed Dome on a secure
l
evel surface. You should
position it so the camera is
upsidedown.
STEP 2.
Carefully remove the camera’s
cover from its base.
STEP 3.
You should now be able to see
the ribbon wiring at the back
of the camera. This wiring needs
to be protected during the next
few steps.
STEP 4.a.
T
ilt the camera body upw
ards
.
STEP 4.b.
Remove the small grey padding
under the camera.
STEP 5.
Remove the front semicircular padding.
STEP 6.
Carefully remove the rear
semi-circular padding. The
ribbon wiring should be
positioned neatly under the
camera body.
STEP 7.
Tilt the camera body back
down to its original position.
STEP 8.
Re-attach the camera’s cover
ensuring it clicks back into
place.
Refer to the XSD27ZDN Product
Manual for further installation
and operating instructions.
Thank you for purchasing this Xvision Colour 550TVL Speed Dome.
Before operating this product, please read this pre-installation guide.
PRE-INSTALLATION GUIDE
Manufactured exclusively for:
Xvision (Europe) Group
,
Head Office: London, U.K.
Email: info@x-vision.co.uk
Web: www.x-vision.co.uk
TECHNICAL SUPPORT:
F
or
T
echnical Support for any Xvision product please contact your local distributor.
LIMITED
W
ARRANTY
:
This product is supplied with a 1 Year warranty.The Warranty excludes products that have been misused, (including
accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a
problem with this product, it should be returned to the place of purchase.
