XP3000B
HD IR Waterproof Fixed IP Camera User’s Manual
Version 3.5.0
i
Welcome
Thank you for purchasing our IP camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
ii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC or 24V AC in the IEC60950-1.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series IP camera should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
iii
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name
Amount
Unit
1
Quick Start Guide
1
CD
1
iv
Table of Contents
1 General Introduction .................................................................................................................. 1
1.1 Overview ........................................................................................................................ 1
1.2 Features ......................................................................................................................... 1
1.3 Specifications ................................................................................................................ 2
1.3.1 Performance........................................................................................................... 2
1.3.2 Factory Default Setup ........................................................................................... 4
2 Structure .................................................................................................................................... 11
2.1 Multiple-function Combination Cable ...................................................................... 11
2.2 Framework and Dimension ....................................................................................... 12
2.3 Bidirectional talk ......................................................................................................... 13
2.3.1 Device-end to PC-end ........................................................................................ 13
2.3.2 PC-end to the device-end .................................................................................. 13
2.4 Alarm Setup................................................................................................................. 13
3 Device Installa tion .................................................................................................................... 15
4 Quick Configuration Tool......................................................................................................... 16
4.1 Overview ...................................................................................................................... 16
4.2 Operation ..................................................................................................................... 16
5 Web Operation.......................................................................................................................... 19
5.1 Network Connection................................................................................................... 19
5.2 Login and Logout........................................................................................................ 19
6 FAQ ............................................................................................................................................ 22
Appendix Toxic or Hazardous Materials or Elements ............................................................... 23
1
1 General Introduction
1.1 Overview
This series IP camera integrates the traditional camera and network video technology. It adopts audio
and video data collection, transmission together. It can connect to the network directly without any
auxiliary device.
This XP3000B uses standard H.264 video compression technology and G.711a audio compression
technology, which maximally guarantee the audio and video quality.
It supports the IR night vision function. In the night environments, the device can use the IR light to
highlight the object which is suitable for the surveillance function in the low illumination environments.
The built-in protection enclosure and waterproof design conforms to the IP 66 level. It has the sound
waterproof function suitable for use in the outdoor environments.
It supports real-time monitor and listening at the same time. It supports analog video output and dualway bidirectional talk.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the
network and then use a network client-end. Due to its multiple functions and various uses, the
XP3000B is widely used in many environments such office, bank, road monitor and etc.
1.2 Features
User
Management
Different user rights for each group, one user belongs to one group.
The user right shall not exceed the group right.
Storage
Function
Support central server backup function in accordance with your configuration
and setup in alarm or schedule setting
Support record via Web and the recorded file are storage in the client-end
PC.
Support built-in SD card.
Do not support local SD card hot swap storage function. Support short-time
storage when encounter disconnection.
Support network storage function such as FTP.
Alarm
Function
Real-time respond to external on-off alarm input, and video detect as user
pre-defined activation setup and generate corresponding message in screen
and audio prompt(allow user to pre-record audio file)
Real-time video detect: motion detect, camera masking.
Network
Monitor
IPC supports one-channel audio/video data transmit to network terminal and
then decode. Delay is within 270ms (network bandwidth support needed)
Max supports 20 connections.
Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP, RTSP and etc.
Support web access.
Network
Management
Realize IPC configuration and management via Ethernet.
Support device management via web or client-end.
Power
External power adapter DC12V/AC 24V. You can select according to your
actual environments. Please note system can not support these two types of
power supplying at the same time.
Assistant
Function
Log function
Support system resource information and running status real-time display.
2
Day/Night mode auto switch.
Built-in IR light. Support IR night vision.
Support picture parameter setup such as electronic shutter and gain setup.
Backlight compensation: screen auto split to realize backlight compensation
to adjust the bright.
Support video watermark function to avoid vicious video modification.
The enclosure conforms to the IP 66 protection. Has the waterproof function.
1.3 Specifications
1.3.1 Performance
Please refer to the following sheet for IPC performance specification.
Model
Parameter
XP3000B Series
System
Main Processor
TI Davinci high performance DSP
OS
Embedded LINUX
System
Resources
Support real-time network, local record, and remote operation at the
same time.
User Interface
Remote operation interface such as WEB, DSS, PSS
System Status
SD card status, bit stream statistics, log, and software version.
Video Parameter
Image Sensor
1/2.8-inch CMOS
Pixel
2048(H)*1536(V)
Day/Night Mode
Support day/night mode switch and IR-CUT at the same time.
Auto Aperture
DC drive
Gain Control
Fixed/Auto
White Balance
Manual/Auto
Exposure Mode
Auto/Low noise/Low motion blur/Defend flicker /Manual
PAL: It ranges from 1/3 to 1/10000
NTSC: It ranges from 1/4 to 1/10000
Video
Compression
Standard
H264/H264B/MJPEG
Video Frame
Rate
PAL:
Main stream（2048*1536@15fps），extra stream,（704*576@15fps）
Main stream（1920*1080@25fps），extra stream（704*576@25fps）
NTSC:
Main stream（2048*1536@15fps），extra stream（704*480@15fps）
Main stream（1920*1080@30fps），extra stream（704*480@30fps）
Video Bit Rate
H264/H264B/MJPEG
Video Flip
Support mirror and flip function.
Snapshot
Max 1f/s snapshot. File extension name is JPEG.
Privacy Mask
Supports max 4 privacy mask zones
Video Setup
Support parameter setup such as bright, contrast.
Video
Channel title, time title, motion detect, camera masking.
3
Information
Lens
8~16mm @F1.6
Lens Interface
C/CS. Lens is the default accessories
Audio
Audio Input
1-channel，LINE IN
Audio Output
1-channel, 3.5mm JACK SPEAK OUT.
Bidirectional
Talk Input
Reuse the first audio input channel
Audio Bit Rate
16kbps 16BIT
Audio
Compression
Standard
G.711a/G.711u/PCM
Video
Motion Detect
396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The
6th level has the highest sensitivity)
Activation event, alarm device, audio/video storage, image snapshot,
log, email SMTP function and etc.
Alarm Input
2-channel input，1-channel output
Record and
Backup
Record Priority
Manual>External alarm >Video detect>Schedule
Local Storage
Support Micro SD card hot swap
Storage
Management
Support display local storage status
Network
Wire Network
1-channel wire Ethernet port, 10/100 Base-T Ethernet
Network Protocol
Standard HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP,UDP, RTCP,
SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour,
SNMP.
Remote
Operation
Monitor, system setup, file download, log information, maintenance ,
upgrade and etc
AUX
Interfac
e
Video Output
1-channel analog video output，BNC port, 9-pin port connection
Reset
9-pin port connection
IR light
42 LED, IR distance 20 to 30 meters.
70 LED, IR distance 30 to 50 meters.
General Parameter
Power
Support AC24V/DC12V power.
Power
Consumption
For –IR2 device: 8W MAX (10W MAX when ICR switch)
For –IR4 device:10W MAX (12W MAX when ICR switch)
Working
Temperature
-10℃~+60℃
Working
Humidify
10%~90%
Dimensions(mm)
288×118×101
Weight
2468G（Excluding box）
Installation
Support various installation modes（Bracket is optional）
4
1.3.2 Factory Default Setup
Please refer to the following sheet for factory default setup information.
Setup
Item
Default Setup
XP3000BSeries
Camera
Conditions
Brightness
50
Contrast
50
Hue
50
Saturation
50
Gain Mode
Auto
Gain Limit
80
Exposure Mode
Auto
Auto Iris
On
Scene Mode
Auto
Day/night Mode
Auto
BLC
Off
Mirror
Off
Flip
Off
Video Video bit stream
Main
Stream
Bit stream
type
General
Encode
mode
H.264
Resolution
1080P（1920*1080）
Frame
Rate
（FPS）
PAL: 25
NTSC:30
Bit Rate
Type
CBR
Recomme
nded Bit
3584-6144 Kb/S
Bit Rate
6144
I Frame
50
Watermark
Enable
Watermark
character
DigitalCCTV
Sub
Stream
Enable
Enable
Bit stream
type
General
Encode
mode
H.264B
Resolution
CIF(352*288/352*240)
Frame
Rate
（FPS）
PAL: 25
NTSC:30
5
Setup
Item
Default Setup
XP3000BSeries
Bit Rate
Type
CBR
Recomme
nded Bit
192-1024Kb/S
Bit Rate
1024
I Frame
50
Snapshot
Snapshot
Type
General
Size
1080P（1920*1080）
Quality
5
Interval
1s
Video Overlay
Privacy
Mask
Disable
Channel
Title
Enable
Time Title
Enable
Path
Snapshot
Path
C:\PictureDownload
Record
Path
C:\RecordDownload
Audio
Main Stream
Enable
Enable
Encode
Mode
G.711A
Sub Stream
Enable
Disable
Encode
Mode
G.711A
Network
TCP/IP
Host
Name
IPC
Ethernet
Card
Wire(Default)
Mode
Static
Mac
Address
Device MAC address when it is shipped out of the factory
IP Version
IPV4
IP Address
192.168.1.108
Subnet
Mask
255.255.255.0
Default
Gateway
192.168.1.1
Preferred
DNS
8.8.8.8
Alternate
DNS
8.8.8.8
6
Setup
Item
Default Setup
XP3000BSeries
Enable
ARP/Ping
set device
IP address
service
Enable
Connection
Max
Connectio
n
10
TCP Port
37777
UDP Port
37778
HTTP Port
80
RTSP Port
554
HTTPs
Port
443
PPPoE
Enable
Disable
Username
N/A
Password
N/A
DDNS
Server
Type
Disable，CN99 DDNS
Server IP
none
Server
Port
80
Domain
Name
none
User
none
Password
****
Update
Period
10 minutes
IP Filter
Trusted
sites
Disable
SMIT(Email)
SMTP
Server
none
Port
25
Anonymity
Disable
User
Name
anonymity
Password
****
Sender
none
7
Setup
Item
Default Setup
XP3000BSeries
Authentica
tion
(Encryptio
n mode)
N/A
Title
(Subject)
IPC Message
Attachmen
t
Enable
Mail
Receiver
N/A
Send
Interval
0 second
Email Test
Disable，interval=60 minutes
UPnP
Enable
UPnP
Disable
SNMP
SNMP v1
Disable
SNMP v2
Disable
SNMP
Port
161
Read
Communit
y
public
Write
Communit
y
private
Trap
Address
N/A
Trap Port
162
SNMP v3
Disable
Bonjour
Enable
Enable
Server
Name
“SN”. It depends on the device.
Multicast
Multicast
Address
239.255.42.42
Port
36666
QoS
Real-time
Monitor
0
Command
0
Wireless
QoS
Enable
8
Setup
Item
Default Setup
XP3000BSeries
Event
Video detect
Motion
Detect
Enable
Disable
Anti-dither
5 seconds
Sensitivity
3
Record
Channel
Enable
Record
Delay
10 seconds
Relay out
Enable
Alarm
Delay
10 seconds
Send
Email
Disable
Snapshot
Disable
Video
Masking
Enable
Disable
Record
Channel
Enable
Record
Delay
10 seconds
Relay out
Enable
Record
Delay
10 seconds
Send
Email
Disable
Snapshot
Disable
Alarm
Alarm
Activation
Enable
Disable
Relay in
Alarm 1
Anti-dither
5 seconds
Sensor
Type
NO
Record
Channel
Enable
Record
Delay
10 seconds
Relay out
Enable
Alarm
Delay
10 seconds
Send
Email
Disable
Snapshot
Disable
Relay output
1
Abnormity
No SD
Card
Enable
Disable
Relay out
Enable
Relay out
Delay
10 seconds
Send
Disable
9
Setup
Item
Default Setup
XP3000BSeries
email
Capacity
Warning
Enable
Disable
Capacity
Limit
10%
Relay out
Enable
Relay out
Delay
10 seconds
Send
Email
Disable
SD Card
Error
Enable
Disable
Relay out
Enable
Relay out
Delay
10 seconds
Send
email
Disable
Disconnect
ion
Enable
Disable
Record
Enable
Record
Delay
10 seconds
Relay out
Enable
Relay out
Delay
10 seconds
IP Conflict
Enable
Disable
Record
Enable
Record
Delay
10 seconds
Relay out
Enable
Relay out
Delay
10 seconds
Storage
Storage
FTP
Enable
FTP
Disable
Server IP
N/A
Port
21
Username
anonymous
Password
N/A
Remote
path
share
Emergenc
y (Local)
Disable
Record Control
Pack
Duration
8 minutes
Pre-record
5 seconds
Disk Full
Overwrite
Record
Mode
Auto
10
Setup
Item
Default Setup
XP3000BSeries
Record
Stream
Main Stream
System
General
Local Host
Device No
Device factory SN
Language
English
Video
Standard
PAL
Date and
time
Date
Format
Y-M-D
Time
Format
24H
Time Zone
GMT+08:00
System
Time
Sync
DST
Disable
DST Type
Week
Start Time
00:00:00 of the first Sunday of the month
End Time
00:00:00 of the second Monday of the month
NTP
Disable
NTP
Server
clock.isc.org
Port
37
Update
Period
10 minutes
Auto
Maintenance
Auto
Reboot
Enable
Auto
Delete Old
Files
Disable
11
2 Structure
2.1 Multiple-function Combination Cable
You can refer to the following figure for multiple-function combination cable information. See Figure
2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
Port Name
Function
Connection
Note
VIDEO OUT
Video output
port
BNC
Output analog video signal. It can connect to the
TV monitor to view the video.
AUDIO IN
Audio input
port
RCA
Input audio signal. It can receive the analog audio
signal from the pickup.
AUDIO OUT
Audio output
port
RCA
Output audio signal to the devices such as the
sound box.
LAN
Network port
Ethernet
port
Connect to standard Ethernet cable.
Support PoE.
I/O
I/O cable port
/
Includes alarm input and output.
RESET
Reset button
/
The reset button is to restore device factory default
setup.
12
Port Name
Function
Connection
Note
POWER
Power input
port
/
Power port. Input DC 12V or AC 24V.
Please note：
Connect the DC5.5 round port to 2-pin
converter cable （Provided） when you are
using AC 24V series product.
The DC5.5 round port to 2-pin converter
cable is not included in the accessories
bag if you are using DC 12V series product.
Please refer to the follow sheet for detailed pin information
Port Name
SN
Name
Note
I/O Port
1
ALARM_COM
Alarm output public port.
2
ALARM_NO
Alarm output port. It is to output the alarm signal
to the alarm device.
NO: normal open alarm output port.
3
ALARM_IN1
Alarm input port 1. It is to receive the on-off signal
from the external alarm source.
4
ALARM_IN2
Alarm input port 2. It is to receive the on-off signal
from the external alarm source.
5
GND
Ground port
2.2 Framework and Dimension

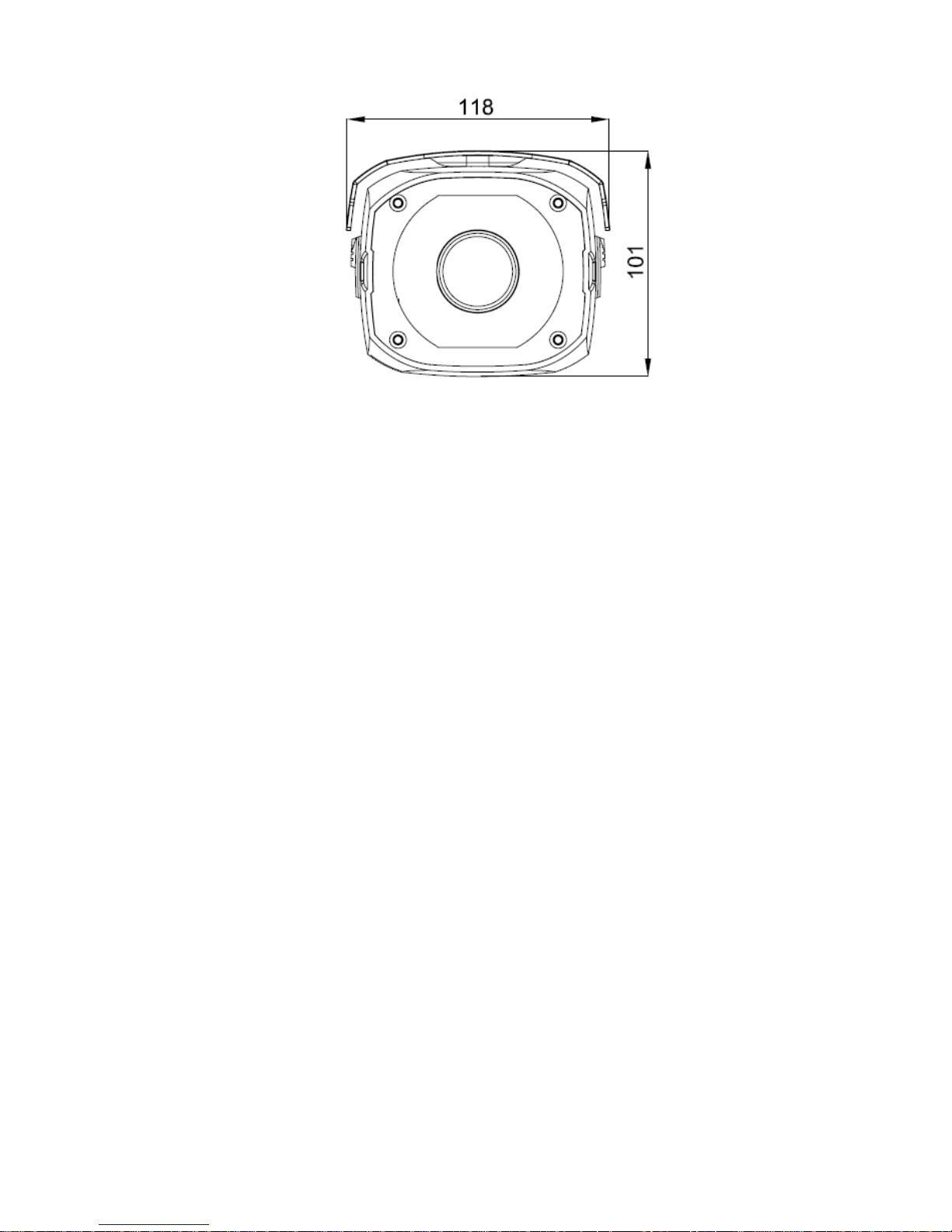

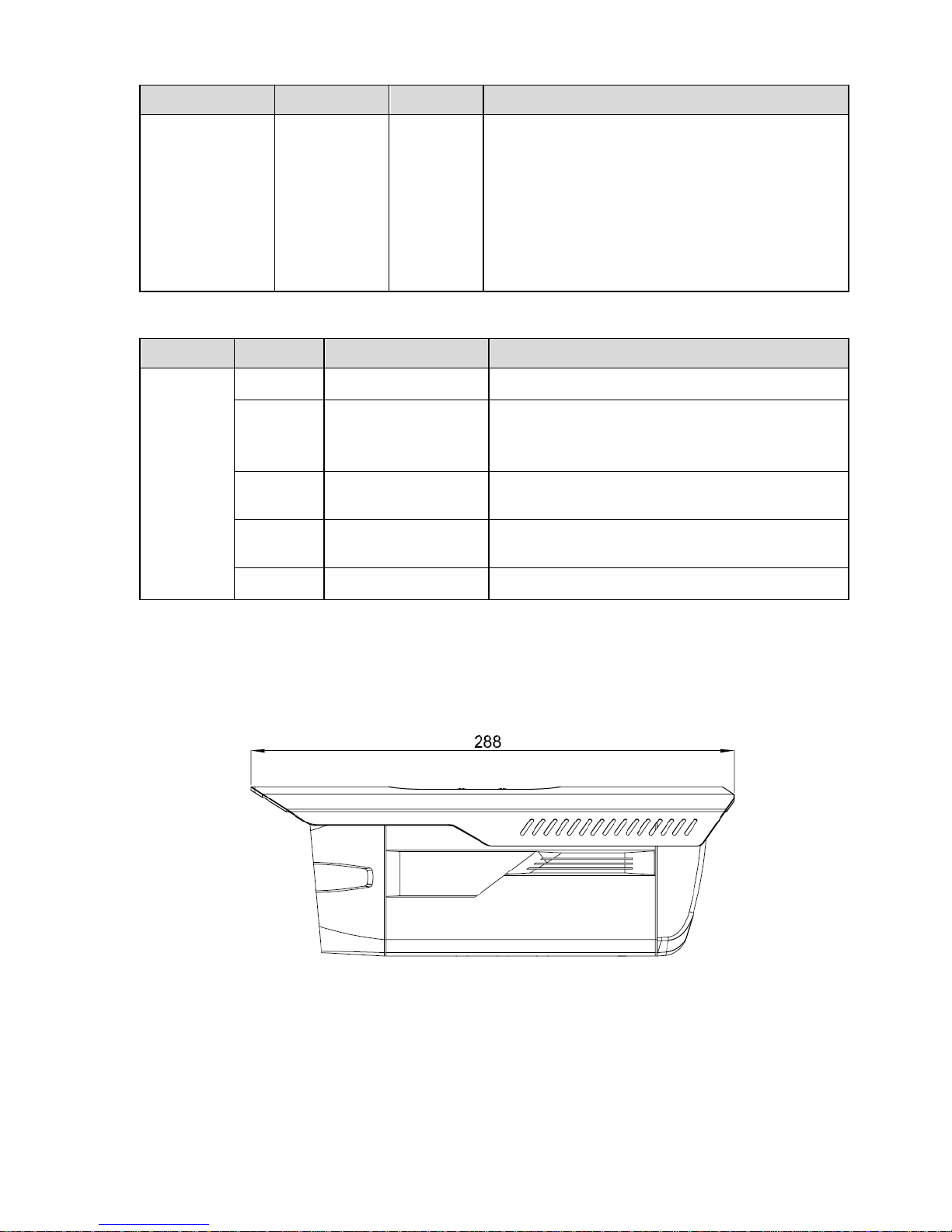

Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2 and
Figure 2-3.
Figure 2-2
13
Figure 2-3
2.3 Bidirectional talk
2.3.1 Device-end to PC-end
Device Connection
Please connect the speaker or the pickup to the first audio input port in the device rear panel. Then
connect the earphone or the sound box to the audio output port in the PC.
Login the Web and then enable the corresponding channel real-time monitor.
Listening Operation
At the device end, speak via the speaker or the pickup, and then you can get the audio from the
earphone or sound box at the pc-end.
2.3.2 PC-end to the device-end
Device Connection
Connect the speaker or the pickup to the audio output port in the PC and then connect the earphone
or the sound box to the first audio input port in the device rear panel.
Login the Web and then enable the corresponding channel real-time monitor.
Listening Operation
At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone
or sound box at the device-end.
2.4 Alarm Setup
The alarm interface is shown as in Figure 2-4. Please follow the steps listed below for local alarm input
and output connection.
1) Connect the alarm input device to the alarm input port (No.3 pin or No.4 pin) of the I/O cable.
2) Connect the alarm output device to the alarm output port (No.2 pin) and alarm output public port
(No.1 pin). The alarm output port supports NO (normal open) alarm device only.
3) Open the Web, go to the Figure 2-4. Please set the alarm input 01 port for the first channel of the
I/O cable (No.3 pin). The alarm input 02 is for the 2nd channel of I/O cable (No.4 pin). Then you can
select the corresponding type (NO/NC.)
14
4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is the
No.2 pin of the I/O cable.
Figure 2-4
Please refer to the following figure for alarm input information. See Figure 2-5.
Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of
the alarm input port. When the input signal is connected to the 5V or is idle, the device collects the
logic “1”. When the input signal is grounded, the device collects the logic “0”.
Figure 2-5
Please refer to the following figure for alarm output information. See Figure 2-6.
Port NO and Port C composes an on-off button to provide the alarm output.
If the type is NO, this button is normal open. The button becomes on when there is an alarm output.
If the type is NC, this button is normal off. The button becomes off when there is an alarm output.
Figure 2-6
15
3 Device Installation
Please follow the steps listed below to install the device. Please refer to Figure 3-1 for reference.
Please line up the installation holes of the bottom of the device to the installation holes in the
front part of the bracket. Then insert the screws to the holes to fasten the device on the
bracket.
Dig four holes in the wall or the surface, and then input the expansion bolts to the holes and
secure.
Put the four fixed holes of the bottom of the bracket to the four holes you just dug in the wall or
surface. Put the four fixed screws to the four holes of the bracket and then secure firmly.
Finally you can fix the bracket in the wall or surface.
Figure 3-1
16
4 Quick Configuration Tool
4.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
4.2 Operation
Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default
gateway, MAC address and etc.
Figure 4-1
Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.
Figure 4-2
17
Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure
4-3.
Figure 4-3
If you want to modify the device IP address without logging in the device web interface, you can go to
the configuration tool main interface to set.
In the configuration tool search interface (Figure 4-1), please select a device IP address and then
double click it to open the login interface. Or you can select an IP address and then click the Login
button to go to the login interface. See Figure 4-4.
In Figure 4-4, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in Web
Network interface. Otherwise, you can not login the device.
If you are use device background upgrade port 3800 to login, other setups are all invalid.
Figure 4-4
18
After you logged in, the configuration tool main interface is shown as below. See Figure 4-5.
Figure 4-5
19
5 Web Operation
This series XP3000B product support the Web access and management via PC.
Web includes several modules: monitor channel preview, system configuration, alarm and etc.
5.1 Network Connection
Please follow the steps listed below for network connection.
Make sure the IPC has connected to the network properly.
Please set the IP address, subnet mask and gateway of the PC and the IPC respectively. IPC
default IP address is 192.168.1.108. Subnet mask is 255.255.255.0. Gateway is 192.168.1.1
Use order ping ***.***.***.***(* IP camera address) to check connection is OK or not.
5.2 Login and Logout
Open IE and input IP camera address in the address bar.
For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address
bar. See Figure 5-1.
Figure 5-1
The login interface is shown as below. See Figure 5-2.
Please input your user name and password.
Default factory name is admin and password is admin.
Note: For security reasons, please modify your password after you first login.
Input your IP
address here
20
Figure 5-2
If it is your first time to login in, system pops up warning information to ask you whether install control
webrec.cab or not after you logged in for one minute. Please click OK button, system can
automatically install the control. When system is upgrading, it can overwrite the previous Web too.

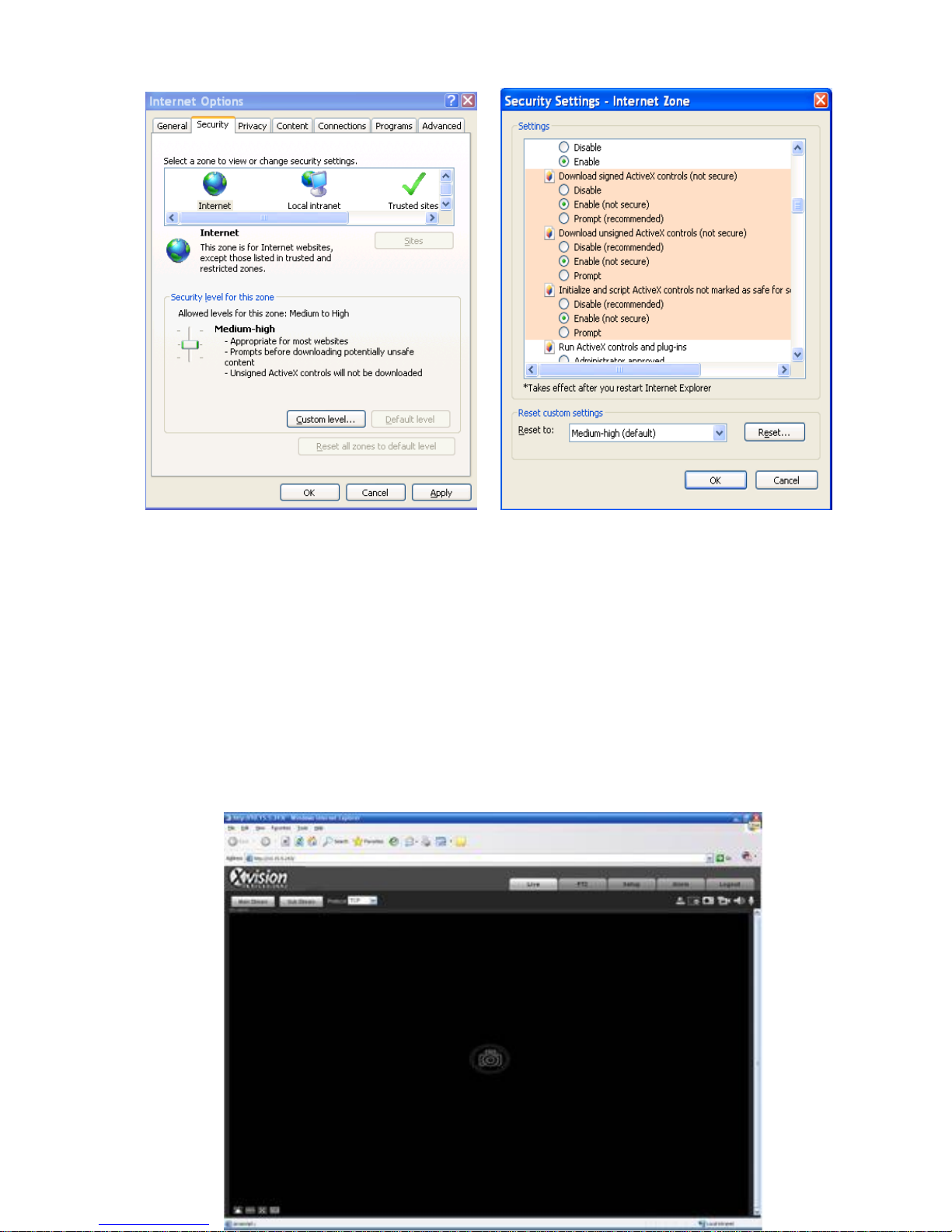

If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable
the control download. Or you can lower the IE security level. See Figure 5-3.
21
Figure 5-3
After you logged in, you can see the main window. See
Figure 5-4.
22
Figure 5-4
Please refer to the Web Operation Manual included in the resource CD for detailed operation
instruction.
23
6 FAQ
Bug
I can not boot up
the device.
Please click RESET button for at least five seconds to restore
factory default setup.
SD card write
times
Do not set the SD card as the storage media to storage the
schedule record file. It may damage the SD card duration.
I can not use the
disk as the storage
media.
When disk information is shown as hibernation or capacity is 0,
please format it first (Via Web).
I can not upgrade
the device via
network.
When network upgrade operation failed, you can use port 3800 to
continue upgrade.
Recommended SD
card brand
Kingston 4GB, Kingston 1GB, Kingston 16GB, Transcend 16GB,
SanDisk 1G, SanDisk 4G
Usually we recommend the 4GB (or higher) high speed card in case
the slow speed results in data loss.
Audio function
Please use active device for the audio monitor input, otherwise there
is no audio in the client-end.
To guarantee
setup update
After you modified the important setup, please reboot the device via
the software to make sure the setup has been updated to the
storage medium.
Power adapter
The power adapter included in the accessories bag can work
ranging from 0℃ to 40 ℃. The device may result in unstable power
supply when the temperature exceeds the working temperature.
Please replace an industry-level power adapter if you are using in
the harsh environments.
24
Appendix Toxic or Hazardous Materials or Elements
Component
Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
Circuit Board
Component
○ ○ ○ ○ ○
○
Device
Construction
Material
○ ○ ○ ○ ○ ○
Wire and Cable
○ ○ ○ ○ ○ ○
Packing
Components
○ ○ ○ ○ ○
○
Accessories
○ ○ ○ ○ ○
○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the
parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous
materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the
environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements
contained in products will not leak or mutate so that the use of these (substances or elements) will not
result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer
is not authorized to process such kind of substances or elements, please return to the corresponding
local authorities to process according to your local government statutes。
Note
This user’s manual is for reference only. Slight difference may be found in user interface.
All the designs and software here are subject to change without prior written notice.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website for more information.
Loading...
