XVision X720D User Manual

Download

Page 1

X720D

Mini IP Dome Camera User’s Manual

Version 3.5.0

Page 2

Welcome

Thank you for purchasing our IP camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!

Page 3

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC in the IEC60950-1. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. We are not liable for any problems caused by unauthorized modification or attempted repair.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

3．Installation

Do not apply power to the camera before completing installation. Please install the proper power cut-off device during the installation connection. Always follow the instruction guide the manufacturer recommended.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers. We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series IP camera should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc. Please keep it away from the electromagnetic radiation object and environment. Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device. Otherwise it may result in CCD (CMOS) optical component damage. Please keep the sound ventilation. Do not allow the water and other liquid falling into the camera. Thunder-proof device is recommended to be adopted to better prevent thunder. The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.

6. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance work. Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface.

Page 4

iii

Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.

7. Accessories

Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check all the components are included. Contact your local retailer ASAP if something is broken in your package.

Accessory Name

Amount

IPC Unit

Accessories bag

Quick Start Guide

Page 5

Table of Contents

1 General Introduction .................................................................................................................. 1

1.1 Overview ........................................................................................................................ 1

1.2 Features ......................................................................................................................... 1

1.3 Specifications ................................................................................................................ 2

1.3.1 Performance ........................................................................................................... 2

1.3.2 Factory Default Setup ........................................................................................... 3

2 Framework ................................................................................................................................... 9

2.1 Dimensions .................................................................................................................... 9

2.2 Structure ...................................................................................................................... 10

3 Installation.................................................................................................................................. 12

3.1 Device Installation ...................................................................................................... 12

3.2 SD Card Installation ................................................................................................... 13

4 Quick Configuration Tool ......................................................................................................... 15

4.1 Overview ...................................................................................................................... 15

4.2 Operation ..................................................................................................................... 15

5 Web Operation .......................................................................................................................... 18

5.1 Network Connection ................................................................................................... 18

5.2 Login and Main Interface ........................................................................................... 18

6 FAQ ............................................................................................................................................ 21

Appendix Toxic or Hazardous Materials or Elements ............................................................... 22

Page 6

1 General Introduction

1.1 Overview

This series IP camera integrates the traditional camera and network video technology. It adopts audio and video data collection, transmission together. It can connect to the network directly without any auxiliary device.

This series IPC uses standard H.264 video compression technology and MJPEG audio compression technology, which maximally guarantee the audio and video quality.

This series IPC enclosure has the strong resistance capacity, which can guarantee the proper work performance under heavy strike. It supports real-time monitor and motion detect function.

It can be used alone or used in a network area. When it is used lonely, you can connect it to the network and then use a network client-end. Due to its multiple functions and various uses, this series IPC is widely used in many environments such office, bank, road monitor and etc.

1.2 Features

User

Management

 Different user rights for each group, one user belongs to one group.  The user right shall not exceed the group right.

Storage

Function

 Support central server backup function in accordance with your configuration

and setup in schedule setting

 Support record via Web and the recorded file are storage in the client-end

PC.

 Support built-in Micro SD card. Support short-time storage when encounter

disconnection. (For some series only.)

 Support network storage such as FTP.

Alarm

Function

 Real-time respond to video detect as user pre-defined activation setup and

exert corresponding message in screen and audio prompt(allow user to prerecord audio file)

 Real-time video detect: motion detect, camera masking.  Can generate an alarm when network abnormal, SD card abnormal event

occurred.

Network

Monitor

 IPC supports one-channel video data transmit to network terminal and then

decode. Delay is within 270ms (network bandwidth support needed)

 Max supports 20 connections.  Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,

RTP/RTCP, RTSP and etc.

 Support web access, widely used in WAN.

Network

Management

 Realize IPC configuration and management via Ethernet.  Support device management via web or client-end.  Support various network protocols.

Power

 External power adapter DC12V  Support PoE.

Assistant

Function

 Log function  Support PAL/NTSC  Support system resource information and running status real-time display.  Day/Night mode auto switch.  Backlight compensation: screen auto split to realize backlight compensation

to adjust the bright.

 Support electronic shutter and gain setup.

Page 7

 Support video watermark function to avoid vicious video modification.

1.3 Specifications

1.3.1 Performance

Please refer to the following sheet for IPC performance specification.

Model Parameter

X720D

System

Main Processor

TI Davinci high performance DSP

Embedded LINUX

System Resources

Support real-time network, local record, and remote operation at the same time.

User Interface

Remote operation interface such as WEB, DSS, PSS

System Status

SD card status, bit stream statistics, log, and software version.

Video Parameter

Image Sensor

1/2.9-inch CMOS

Pixel

1920(H)*1080(V)

Day/Night Mode

Support day/night mode switch.

Gain Control

Fixed/Auto

White Balance

Manual/Auto

BLC

On/off

Electronic Shutter

Manual/Auto PAL: It ranges from 1/3 to 1/10000. NTSC: It ranges from 1/4 to 1/10000.

Video Compression Standard

H264/ H.264B /MJPEG

Video Frame Rate

PAL: Main stream（1920*1080@25fps） extra stream（704*576@25fps）

NTSC： Main stream (1920*1080@30fps) Extra stream (704*480@30fps)

Video Bit Rate

H.264: 56Kbps-8192Kbps. ＭJPEG: 128-20480Kbps. The bit rate is adjustable. Support customized setup.

Video Flip

Support mirror function. Support flip function.

Snapshot

Max 1f/s snapshot. File extension name is JPEG.

Privacy Mask

Supports max 4 privacy mask zones

Video Setup

Support parameter setup such as bright, contrast.

Video Information

Channel title, time title, motion detect, privacy mask.

Lens

2.8mm/3.6mm/6mm/8mm MP

Lens Interface

M12. Lens is the default accessories

Video

Motion Detect

396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The 6th level has the highest sensitivity) Activation event: Video storage, image snapshot, log, email SMTP function and etc.

Page 8

Video Loss

Activation event: Video storage, image snapshot, log, email SMTP function and etc.

Record

and

Backup

Record Priority

Manual> Video detect>Schedule

Local Storage

Support Micro SD card storage

Network

Wire Network

1-channel wire Ethernet port, 10/100 Base-T Ethernet

Network Protocol

Standard HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP.

Platform interface Standard

ONVIF

Remote Operation

Monitor, system setup, log information, maintenance , upgrade and etc

AUX

Interf

ace

Reset

Built-in RESET button

General Parameter

Power

Support DC12V and PoE

Power Consumption

2.5W MAX

Working Temperature

-10℃~+60℃

Working Humidify

10%~90%

Dimensions(m m)

¢110×54

Weight

0.25Kg

Installation

Installed in the places such as wall or the ceiling

1.3.2 Factory Default Setup

Please refer to the following sheet for factory default setup information.

Function Setup Type

Item Default setup

X720D

Camera Setup

Conditions

Brightness

Contrast

Hue

Saturation

Exposure mode

Auto

Gain Scope

0~80

Profile

Auto

Day&Night

Auto

Backlight

Off

Mirror

Off

Flip

Off

Video

Video bit stream

Main stream

Bit stream type

General

Encode mode

H.264B

Page 9

Function Setup Type

Item Default setup

X720D

Resolution

1080P（1920*1080）

Frame rate

（FPS）

PAL: 25 NTSC:30

Bit stream type

CBR

Reference bit rate

3584-6144 Kb/S

Bit rate

8192

I frame interval

Watermark settings

Enable

Watermark character

DigitalCCTV

Extra stream

Enable

Bit stream type

General

Encode mode

H.264B

Resolution

CIF(352×288/352×240)

Frame rate

（FPS）

PAL: 25 NTSC:30

Bit rate type

CBR

Reference bit rate

192-1024Kb/S

Bit rate

1024

I frame interval

Snapshot

Snap type

General snap

Image size

1080P（1920*1080）

Quality

Better

Interval

1picture/s

Overlay Privacy mask

Disable

Channel title

Enable

Time title

Enable

Path

Snapshot path

C:\PictureDownload

Record path

C:\RecordDownload

Network setup

TCP/IP

Host name

IPC

Ethernet card

Wire(Default)

Mode

Static

Page 10

Function Setup Type

Item Default setup

X720D

MAC address

Depends on the device IP version

IPV4

IP address

192.168.1.168

Subnet mask

255.255.255.0

Default gateway

192.168.1.1

Preferred DNS

8.8.8.8

Alternate DNS

8.8.8.8

Enable ARP/Pingto to set IP address service

Enable

Connection

Max connection

TCP port

37777

UDP port

37778

HTTP port

RTSP port

554

PPPoE Enable

Disable

User name

N/A

Password

N/A

DDNS

Server type

Disable, CN99 DDNS

Server IP

none

Port

Domain name

none

User name

none

Password

N/A

Update period

10m

IP filter

Trusted sites

Disable

SMTP（email）

SMTP server

none

Port

Anonymity

Disable

User name

anonymity

Password

N/A

Sender

none

Page 11

Function Setup Type

Item Default setup

X720D

Authenticati on (Encrypt mode)

N/A Title

(Subject)

IPC Message

Attachment

Enable

Main Receiver

N/A

Interval

Health email

Disable ，interval=60m

UPnP

Enable UPnP

Disable

SNMP

SNMP v1

Disable

SNMP v2

Disable

SNMP v3

Disable

SNMP port

161

Read community

public

Write community

private

Trap address

N/A

Trap port

162

Bonjour Enable

Enable

Server name

“Device name+SN”. Depends on the device.

Multicast

Multicast address

239.255.42.42

Port

36666

QoS

Real-time monitor

Command

Event management

Video detect

Motion detect

Enable

Disable

Anti-dither

5 seconds

Sensitivity

Record Channel

Enable

Record Delay

10 seconds

Send email

Disable

Snapshot

Disable

Vide

(Ca

mer

Enable

Disable

Page 12

Function Setup Type

Item Default setup

X720D

Record Channel

Enable

Record Delay

10 seconds

Send email

Disable

Snapshot

Disable

Abnormity

No SD

card

Enable

Send email

Capacit

warning

Enable

Capacity limit (Space threshold)

Send email

SD card

error

Enable

Send email

Disconnec

tion

Enable

Disable

Record

Enable

Record delay

10s

IP conflict

Enable

Disable

Record

Enable

Record delay

10s

Storage management

Destination(Stora ge )

FTP

FTP enable

Disable

Server IP

N/A

Port

User name

anonymity

Password

N/A

Remote storage path

Emergency storage to local path

Disable

Conditions (Record control)

Pack duration

Pre-record

Disk full

Overwrite

Record mode

Auto

Record Stream

Main Stream

System management

General setup

cal

set

Device name

Device factory SN

Page 13

Function Setup Type

Item Default setup

X720D

Language

English

Video standard

NTSC

Date and time

Date format

Y-M-D

Time format

24H

Time zone

GMT+08:00

Current time

Sync PC

DST

Disable

DTS type

Week

Start time

00:00:00 of the first Sunday of the month

End time

00:00:00 of the second Monday of the month

Synchronize with NTP

Disable

NTP server

clock.isc.org

Port

Update period

10m

Auto maintenance Auto reboot

Enable

Auto delete old files

Disable

Page 14

2 Framework

2.1 Dimensions

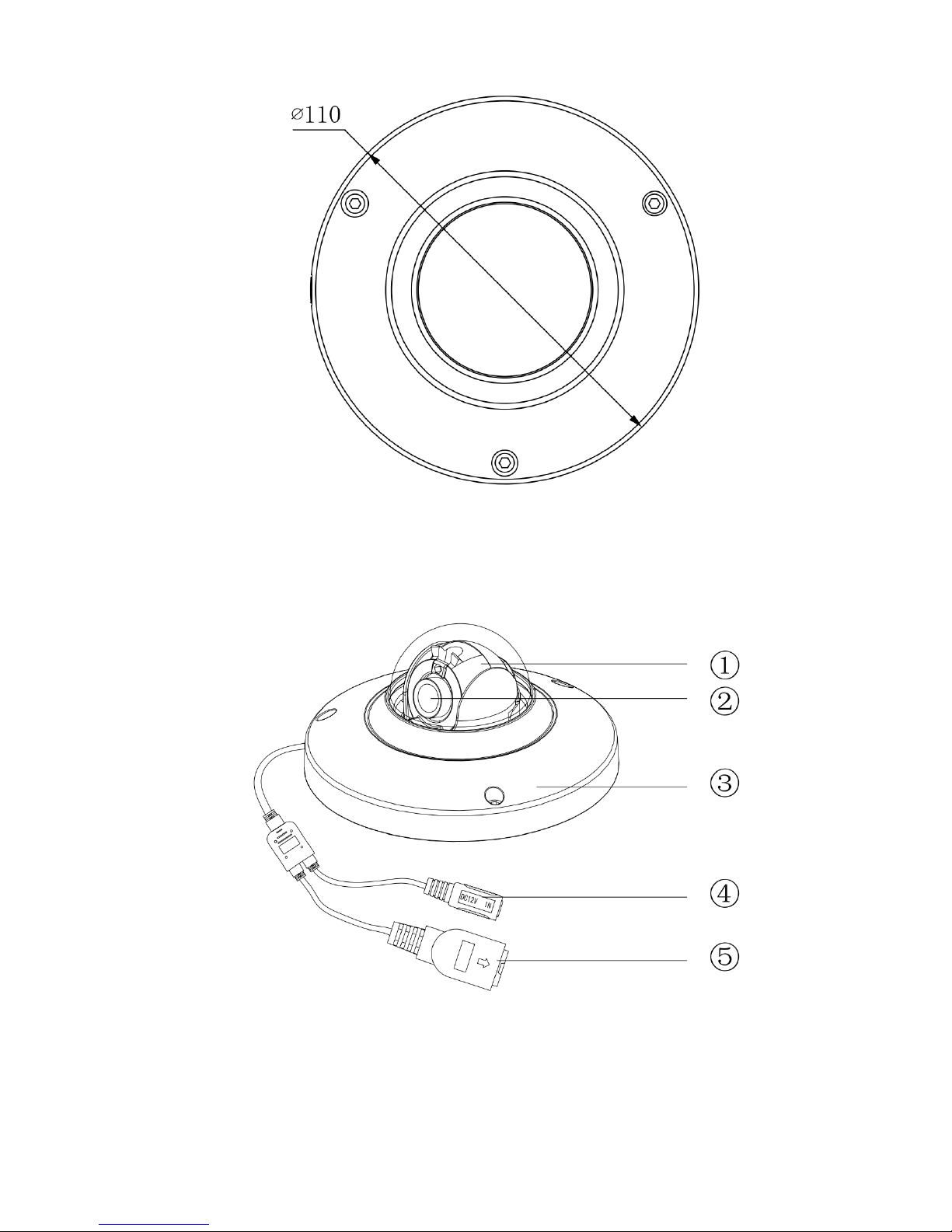

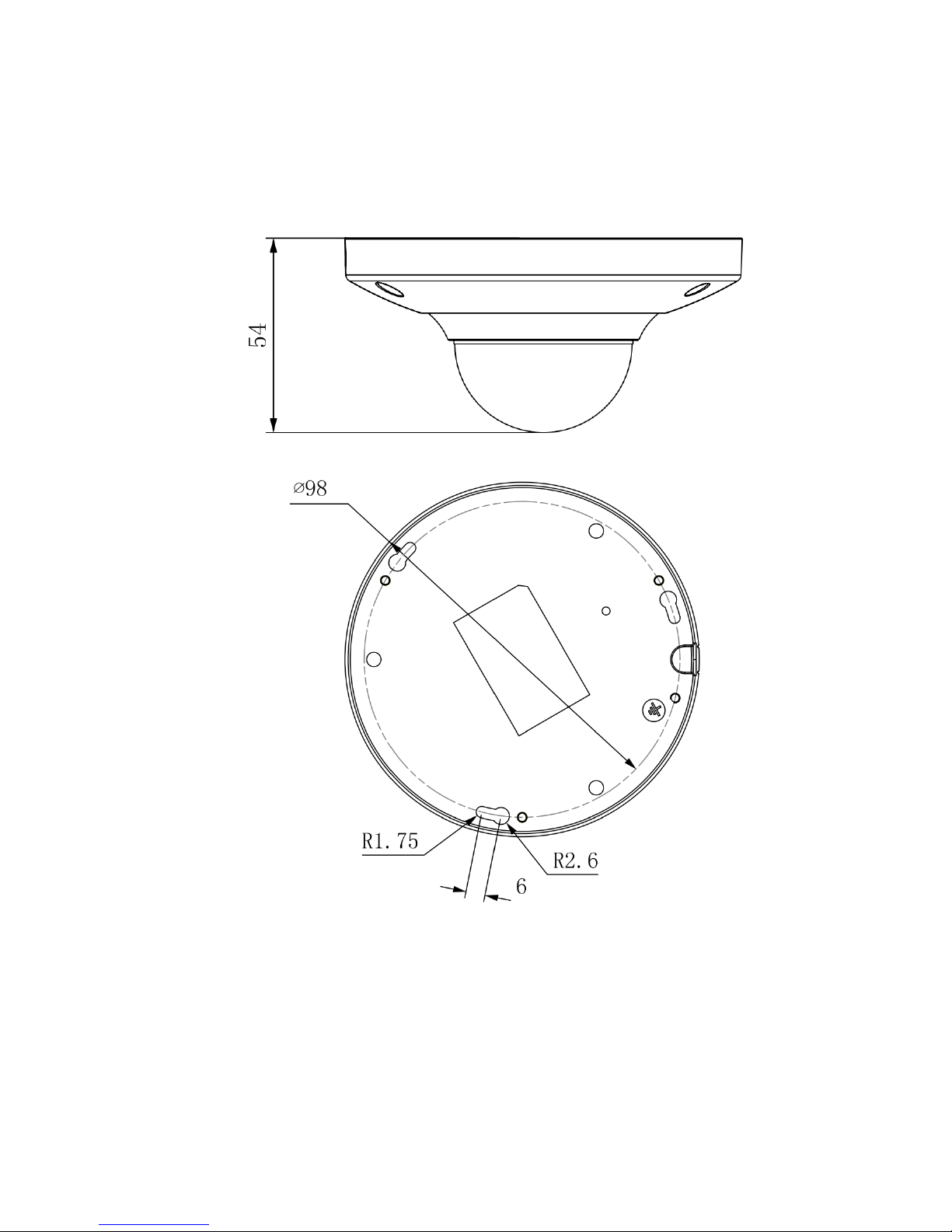

Please refer to the following figure for the dimension information. The unit is mm. See Figure 2-1 through Figure 2-3.

Figure 2-1

Figure 2-2

Page 15

Figure 2-3

2.2 Structure

Please refer to the following figure for detailed information. See Figure 2-4.

Figure 2-4

Please refer to the following sheet for detailed information.

Page 16

Name

X-Y-Z rotation module

Device lens

Dome camera enclosure

Name

Function

Power input port

Connect to the DC 12+ power to input the power.

Network port

Network data input, output and PoE.

Page 17

3 Installation

3.1 Device Installation

This series IPC can be put on the table to realize surveillance. Or you can use the bracket or the inceiling installation to realize the hang function. Please refer to the steps listed below.

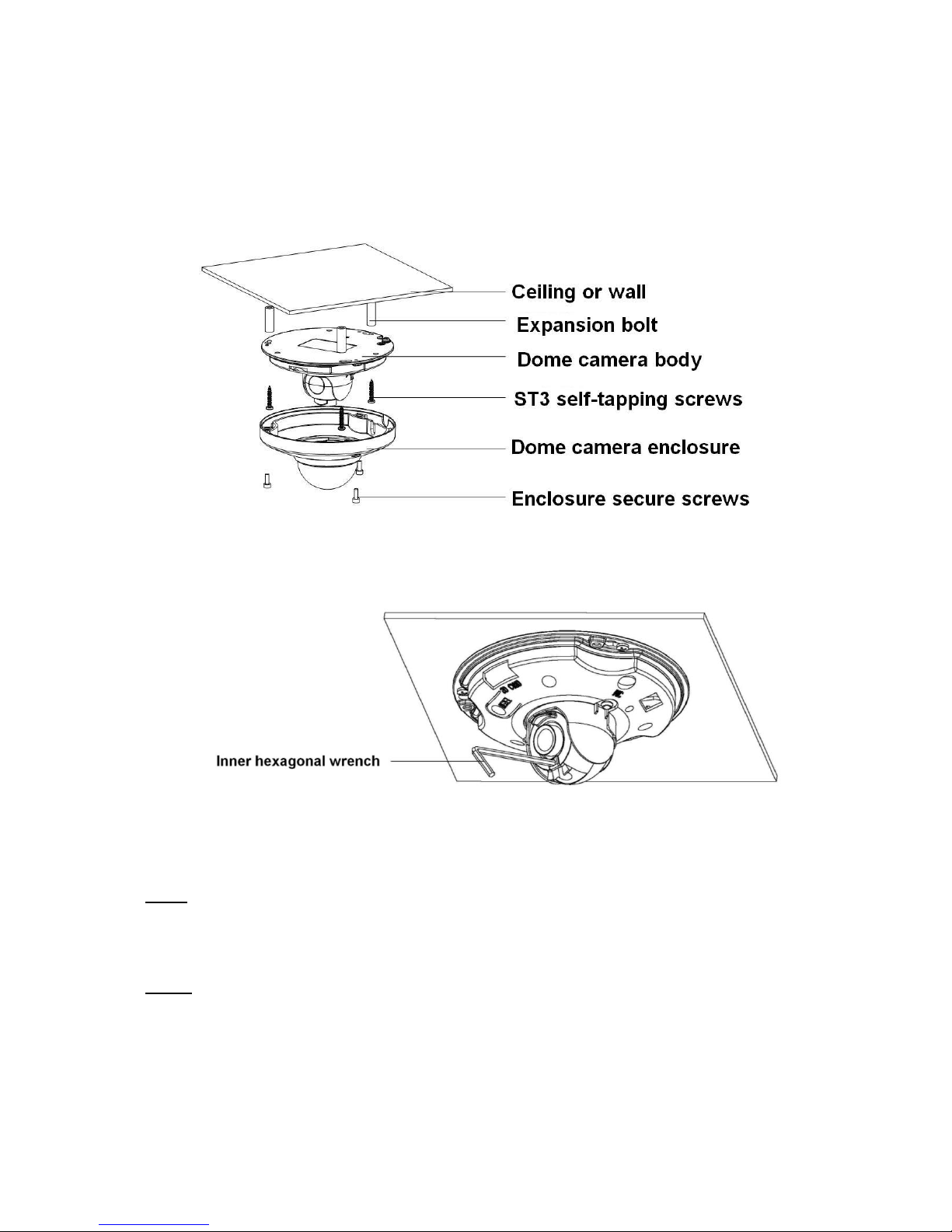

Figure 3-1

Figure 3-2

Step1

Use the inner hexagonal wrench (provided) to loose the three inner hexagon screws in the dome cover and then open the cover.

Step 2

Please take the installation position map in the accessories bag, and then paste it on the ceiling or the wall according to your monitor area requirements. Draw and then dig three plastic expansion bolts holes in the installation surface and then insert three expansion bolts in the holes. Secure these three bolts firmly. Please dig a “cable exit hole” in the surface according to the installation position map if you want to draw out the cable from the top of the installation surface. You need to use the proper tool to open up the side port of the U-cable channel of the dome camera pedestal if you want to draw out

Page 18

the cable from the side port of the cable channel when you are installing the device cable. And then you can draw out the cable from the cable channel of the pedestal.

Step 3

Adjust the device installation pedestal to the proper position and then draw the cable through the cable exit you just dug in the ceiling (wall). Line up the TOP direction of the device to the installation position map and then line up the three screw holes in the device pedestal to the three plastic expansion bolt holes in the installation position. Put the three self-tapping screws in the three plastic expansion bolts firmly. Now the dome camera is secure in the installation surface.

Step 4

Loosen the two M3 secure screws of the lens rotation structure (Do not remove, loosen a little bit will be OK.). Use the inner hexagonal wrench to insert them to the inner hexagonal holes and then use the wrench to turn the lens. Adjust the lens to the proper monitor angle and then secure the screws of the lens rotation structure. The lens adjust angle ranges are: flip (0°~+75°),video pan rotation (-15° ~+15°) , video rotation angle(-15°~+15°).

Step 5

Line up the dome camera cover to the cable exits and put the cover back. Use the inner hexagonal wrench to secure the three inner hexagonal screws firmly. Now the installation completed.

Note:

The device GND cable can effectively enhance the device reliability. The GND hole is near the cable exit of the back of the enclosure. The GND screw specification is M3. See Figure 3-3.

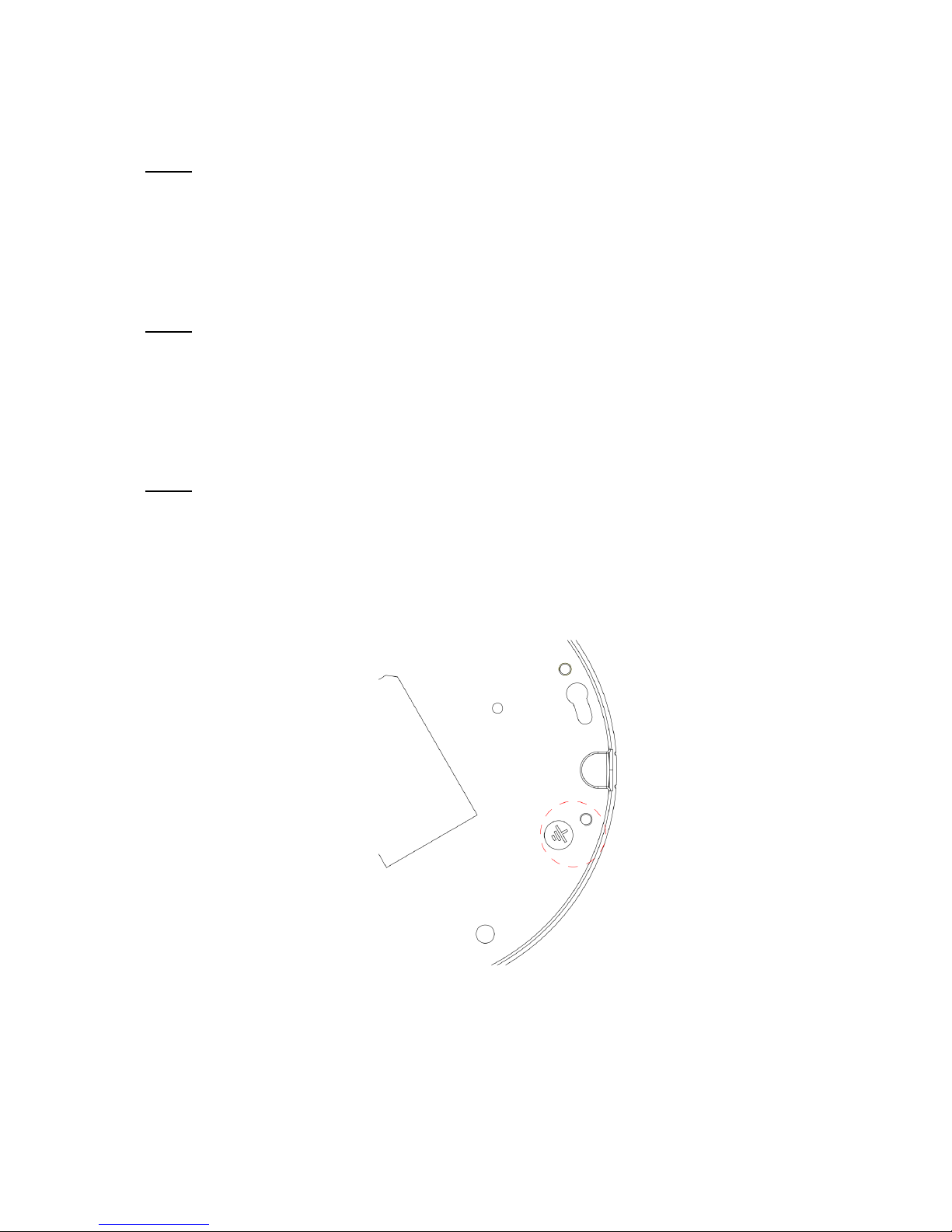

Figure 3-3

3.2 SD Card Installation

Important

Some series product do not support the SD card storage function. Please shut down the power and then turn off the device before you install the SD card.

Page 19

Step 1

Please refer to the step 1 in chapter 2.1 to open the device.

Step 2

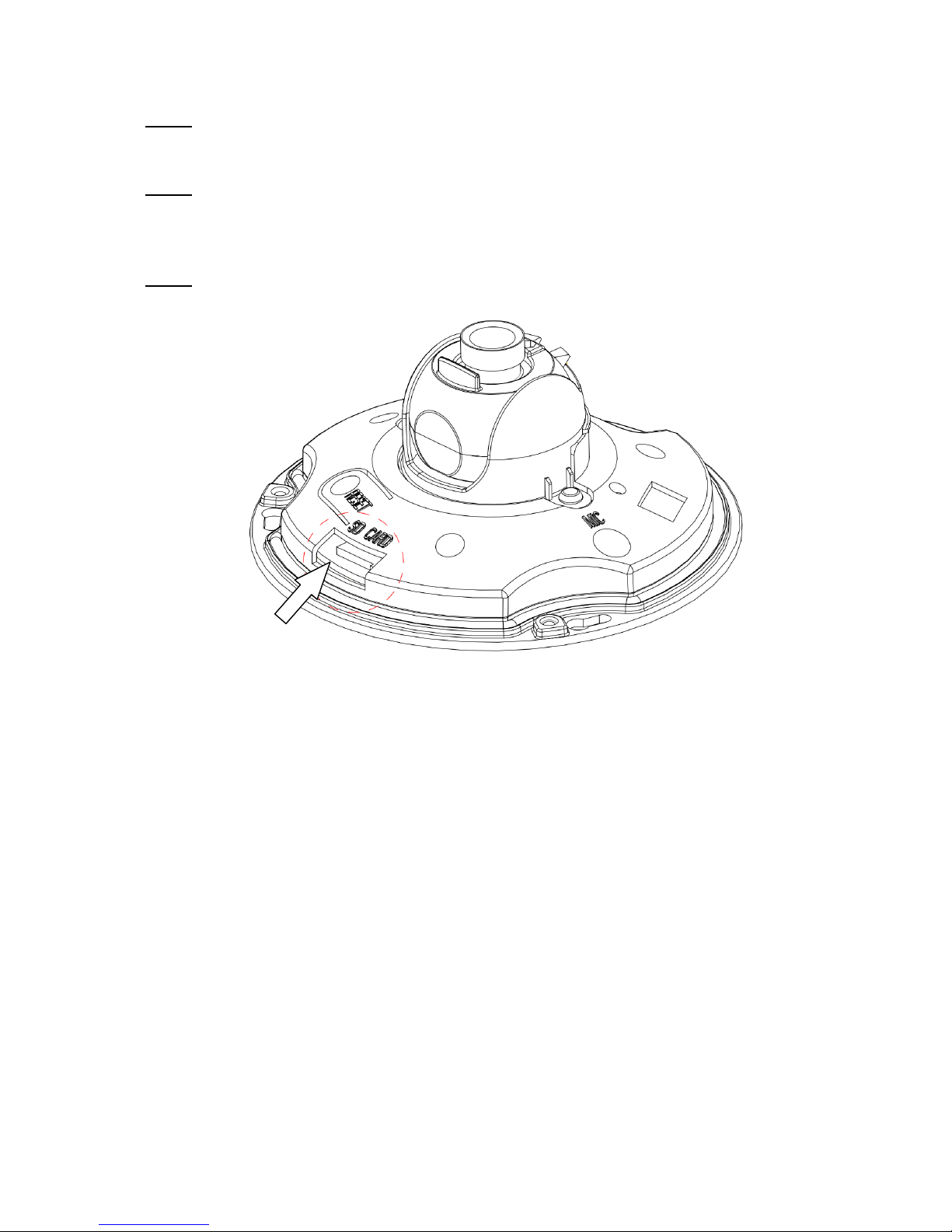

Find the “SD CARD” indicator in the enclosure. Adjust the SD card to the proper direction and then install. See Figure 3-4.

Step 3

Please refer to the step 5 in chapter 2.1 to complete the installation.

Figure 3-4

Page 20

4 Quick Configuration Tool

4.1 Overview

Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment.

4.2 Operation

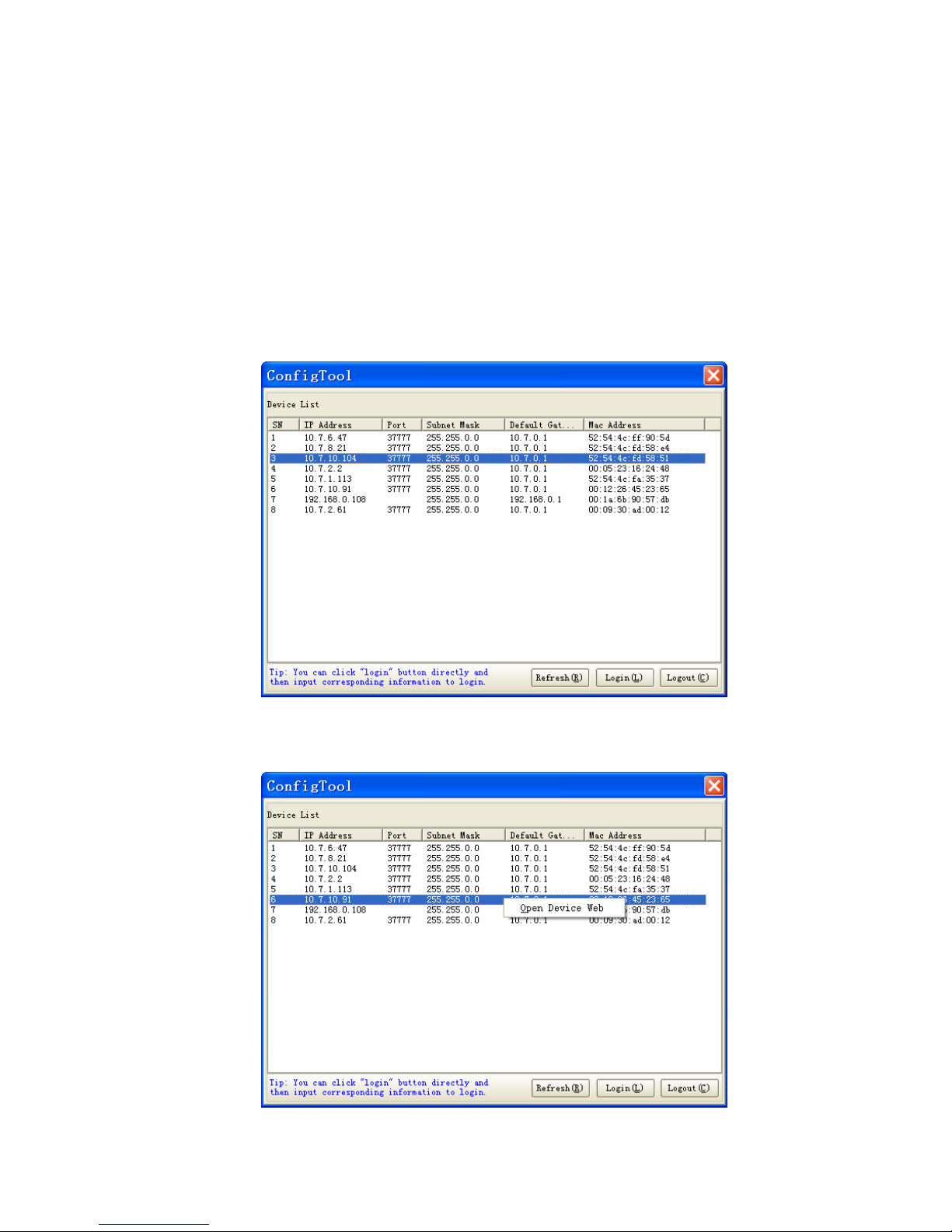

Double click the “ConfigTools.exe’” icon, you can see an interface is shown as in Figure 4-1. In the device list interface, you can view device IP address, port number, subnet mask, default gateway, MAC address and etc.

Figure 4-1

Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.

Figure 4-2

Page 21

Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 4-3.

Figure 4-3

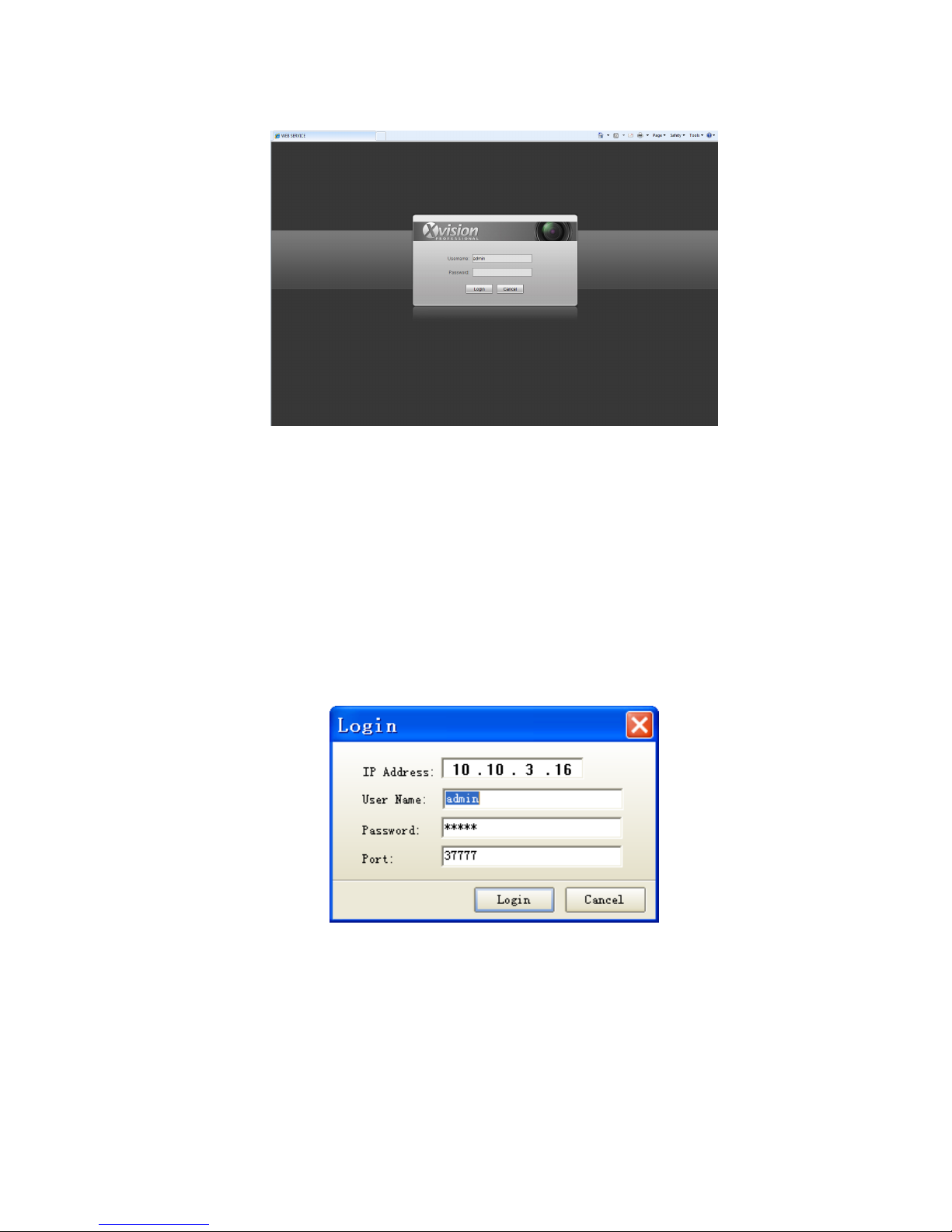

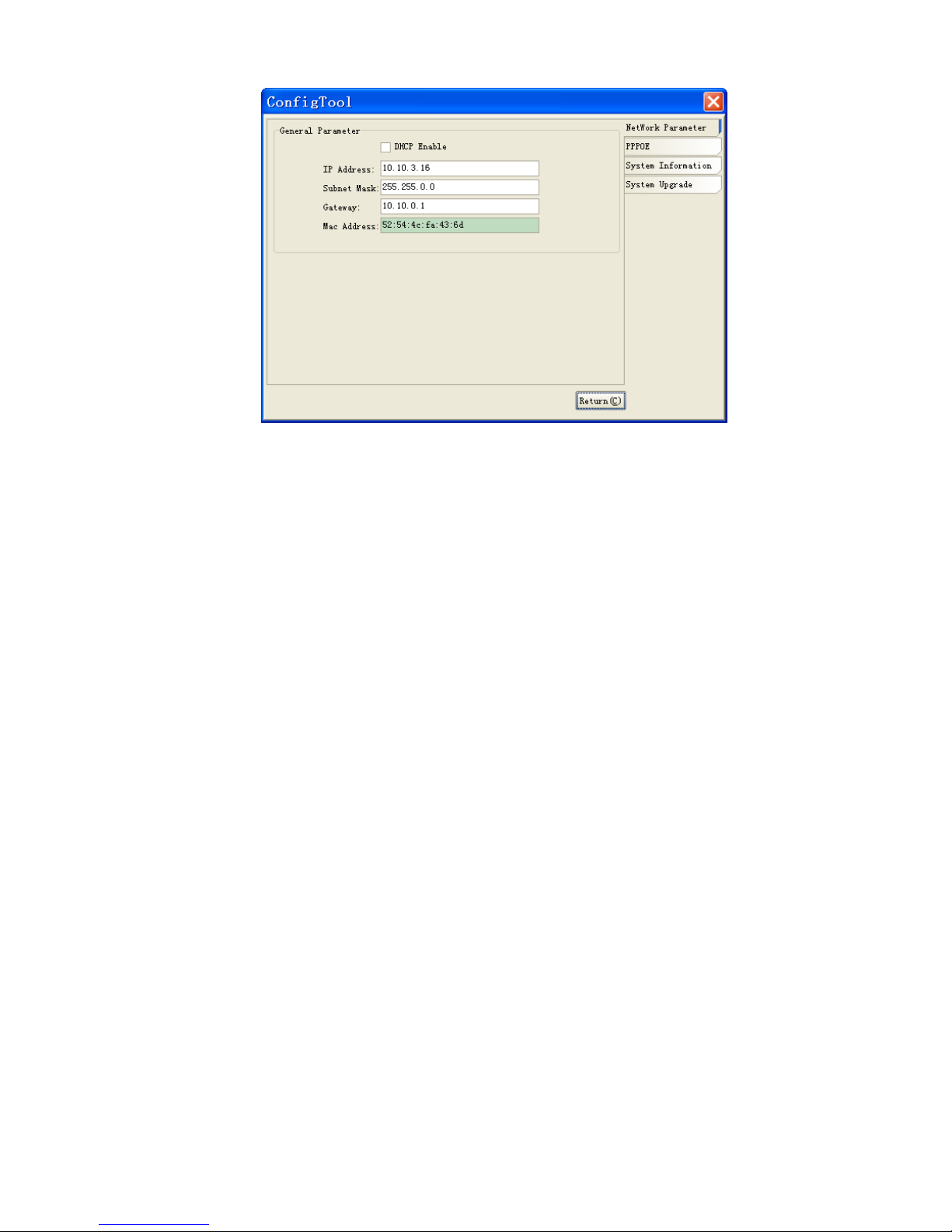

If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set. In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface. Or you can select an IP address and then click the Login button to go to the login interface. See Figure 4-4. In Figure 4-4, you can view device IP address, user name, password and port. Please modify the corresponding information to login. Please note the port information here shall be identical with the port value you set in TCP port in Web Network interface. Otherwise, you can not login the device. If you are use device background upgrade port 3800 to login, other setups are all invalid.

Figure 4-4

After you logged in, the configuration tool main interface is shown as below. See Figure 4-5.

Page 22

Figure 4-5

Page 23

5 Web Operation

This series IPC product support the Web access and management via PC. Web includes several modules includes monitor channel preview, PTZ control, system configuration, alarm and etc. IP camera factory default setup:

 IP address: 192.168.1.108.  User name: admin  Password: admin

5.1 Network Connection

Please follow the steps listed below for network connection.

 Make sure the IPC has connected to the network properly.  Please set the IP address, subnet mask and gateway of the PC and the IPC respectively. IPC

default IP address is 192.168.1.108. Subnet mask is 255.255.255.0. Gateway is 192.168.1.1

 Use order ping ***.***.***.***(* IP camera address) to check connection is OK or not.

5.2 Login and Main Interface

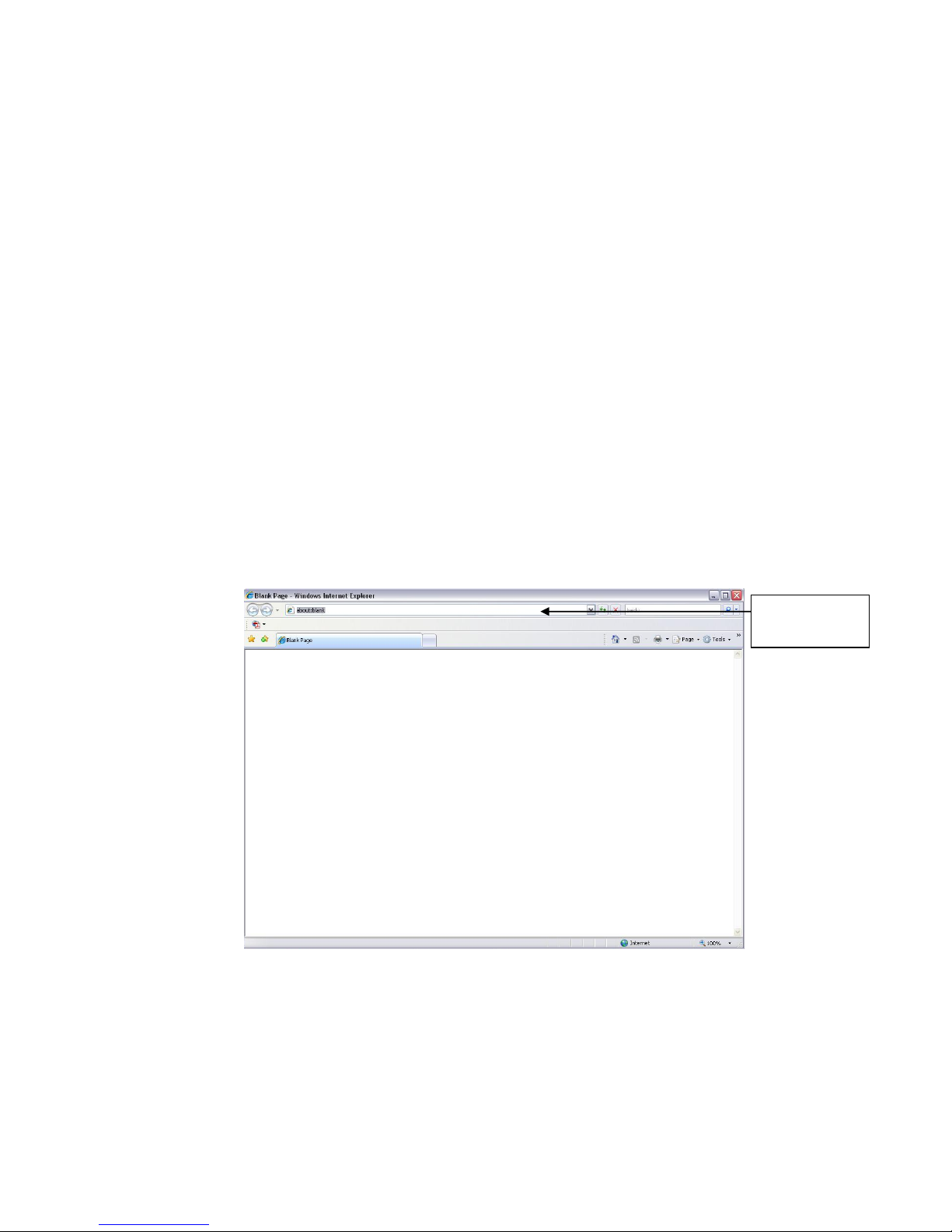

Open IE and input IP camera address in the address bar. For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address bar. See Figure 5-1.

Figure 5-1

The login interface is shown as below. See Figure 5-2. Please input your user name and password. Default factory name is admin and password is admin.

Note: For security reasons, please modify your password after you first login.

Input your IP address here

Page 24

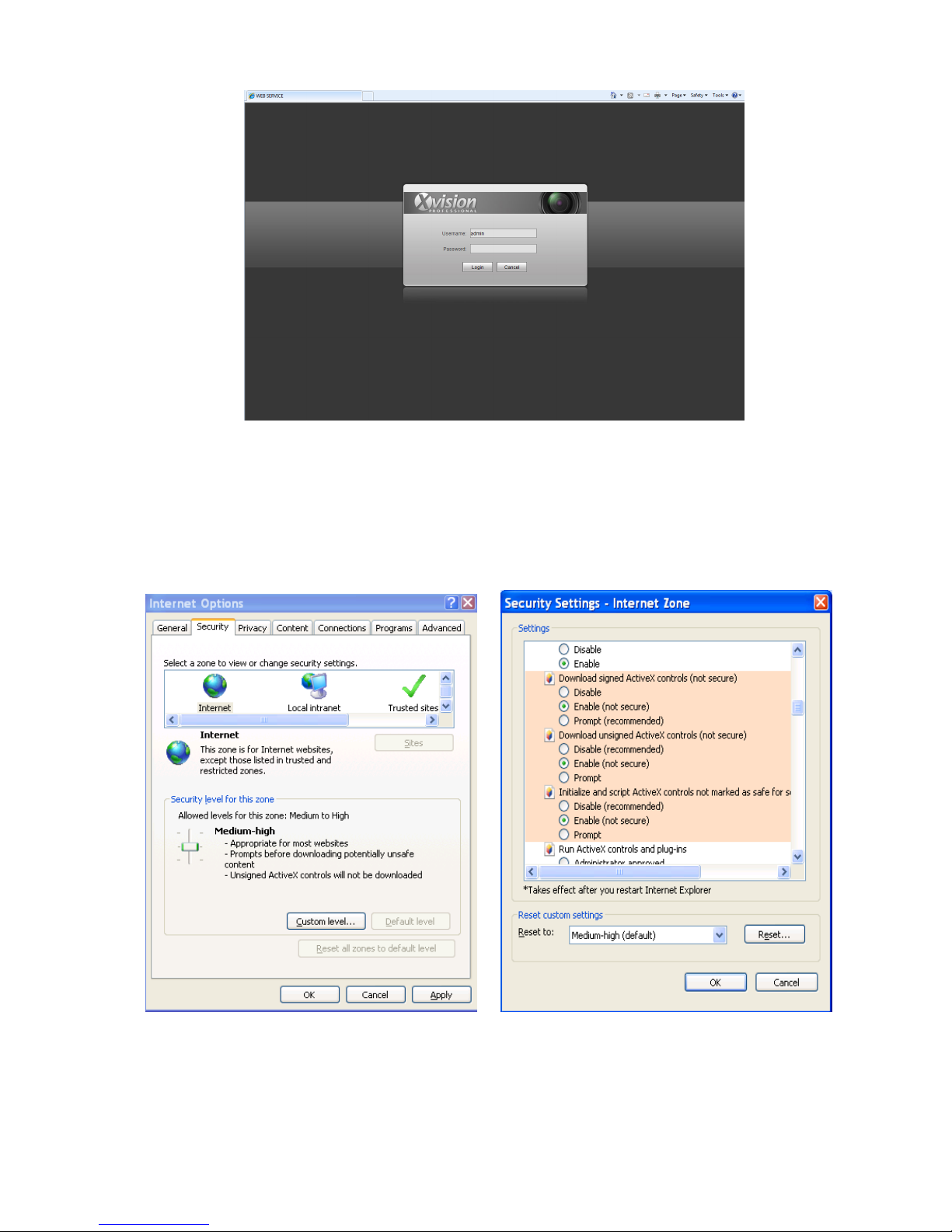

Figure 5-2

If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too. If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable the control download. Or you can lower the IE security level. See Figure 5-3.

Figure 5-3

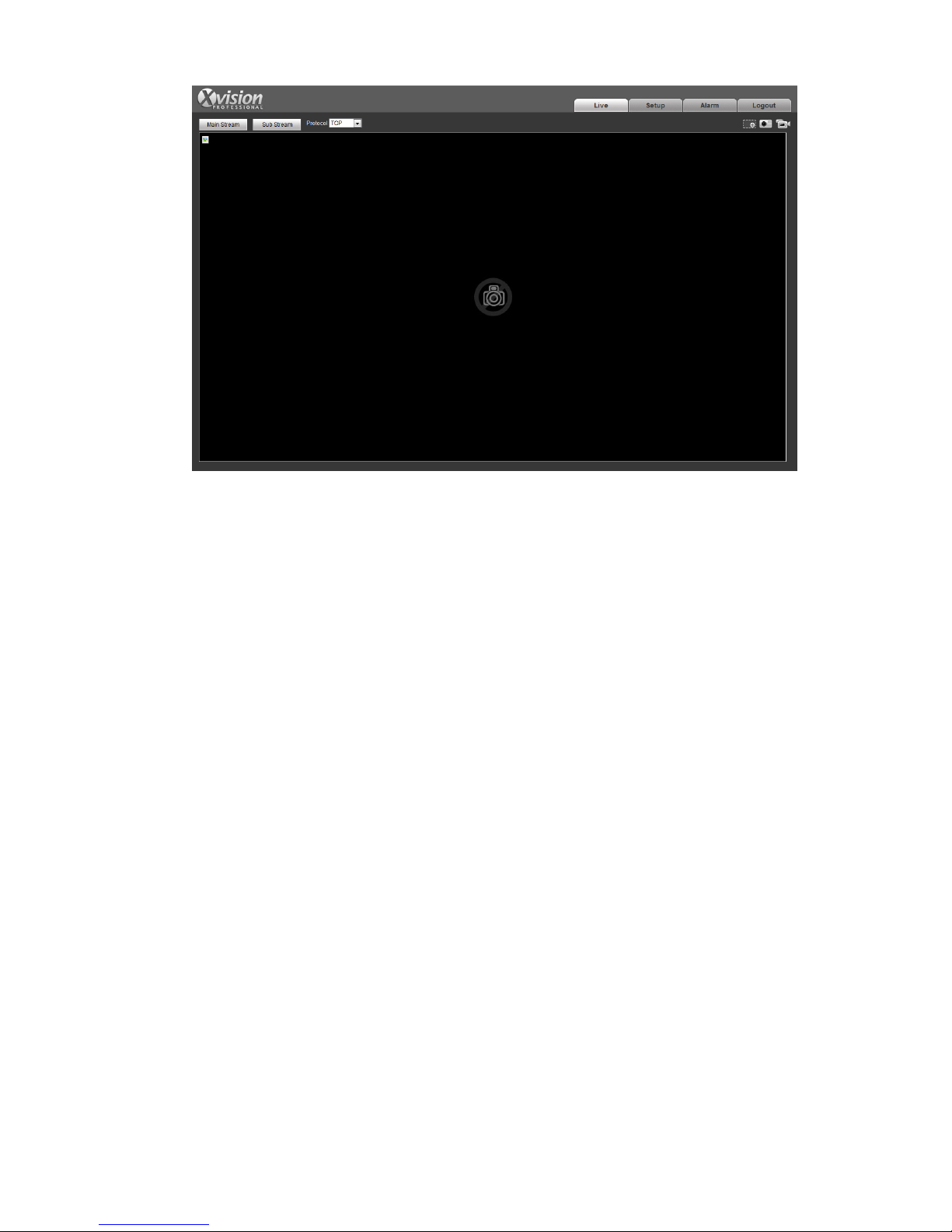

After you logged in, you can see the main window. See Figure 5-4.

Page 25

Figure 5-4

Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.

Page 26

6 FAQ

Bug

I can not boot up the device.

Please click RESET button for at least five seconds to restore factory default setup.

SD card write times

Do not set the SD card as the storage media to storage the schedule record file. It may damage the SD card duration.

I can not use the disk as the storage media.

When disk information is shown as hibernation or capacity is 0, please format it first (Via Web).

I can not upgrade the device via network.

When network upgrade operation failed, you can use port 3800 to continue upgrade.

Recommended SD card brand

Kingston 4GB, Kingston 1GB, Kingston 16GB, Transcend 16GB, SanDisk 1G, SanDisk 4G.

Usually we recommend the 4GB (or higher) or industry-level high speed card in case the slow speed results in data loss.

Save setup

Please use active device for the audio monitor input, otherwise there is no audio in the client-end.

Power adapter

The power adapter in the accessories bag work temperature ranges from 0℃ to 40℃. It may result in unstable performance if it works in the extremely too hot or too cold environments. In this case, you may need to use the industrial-level power adapter.

Page 27

Appendix Toxic or Hazardous Materials or Elements

Component

Name

Toxic or Hazardous Materials or Elements

Cr VI

PBB

PBDE

Circuit Board

Component

○ ○ ○ ○ ○

○

Device

Construction

Material

○ ○ ○ ○ ○ ○

Wire and Cable

○ ○ ○ ○ ○ ○

Packing

Components

○ ○ ○ ○ ○

○

Accessories

○ ○ ○ ○ ○

○

O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the SJ/T11363-2006 standard.

X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements contained in products will not leak or mutate so that the use of these (substances or elements) will not result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer is not authorized to process such kind of substances or elements, please return to the corresponding local authorities to process according to your local government statutes.

Note

 This user’s manual is for reference only. Slight difference may be found in user interface.  All the designs and software here are subject to change without prior written notice.  If there is any uncertainty or controversy, please refer to the final explanation of us.  Please visit our website for more information.
