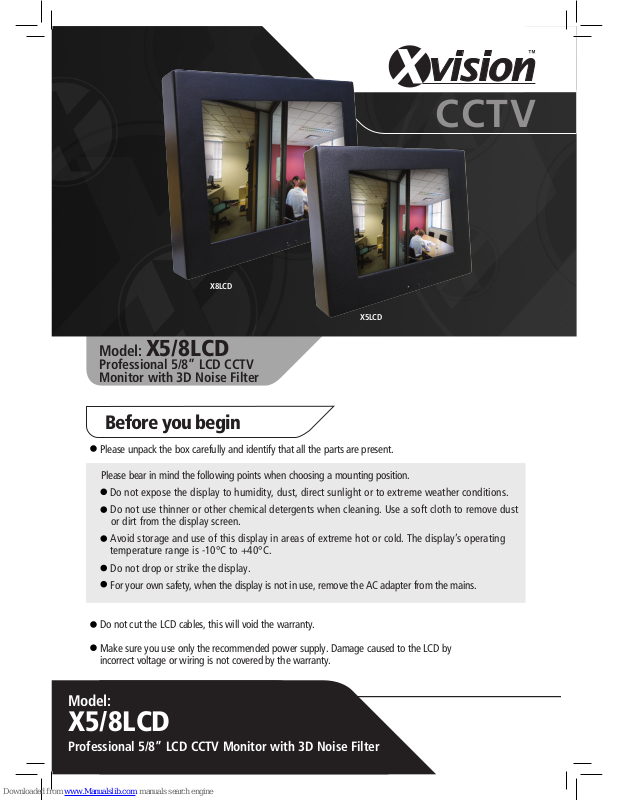

Model: X5/8LCD
Professional 5/8” LCD CCTV
Monitor with 3D Noise Filter
Model:
X5/8LCD
Professional 5/8” LCD CCTV Monitor with 3D Noise Filter
Before you begin
Please unpack the box carefully and identify that all the parts are present.
Do not cut the LCD cables, this will void the warranty.
Make sure you use only the recommended power supply. Damage caused to the LCD by
incorrect voltage or wiring is not covered by the warranty.
Please bear in mind the following points when choosing a mounting position.
Do not expose the display to humidity, dust, direct sunlight or to extreme weather conditions.
Do not use thinner or other chemical detergents when cleaning. Use a soft cloth to remove dust
or dirt from the display screen.
Avoid storage and use of this display in areas of extreme hot or cold. The display’s operating
temperature range is -10°C to +40°C.
Do not drop or strike the display.
For your own safety, when the display is not in use, remove the AC adapter from the mains.
CCTV
X8LCD
X5LCD
Thank you for purchasing this Xvision monitor. Before operating this product,
please read this instruction manual carefully.
Make sure that you use only the recommended power supply
supplied with the unit.
When installing the monitor, please make sure that you observe the
necessary safety precautions.
Try to avoid all direct contact with the LCD screen as any scratches or marks
left on the surface could affect the image quality.
Professional 5”/ 8” LCD Colour Monitor for excellent quality 640x480 and
800x600 resolution images respectively.
High Brightness design for vibrant colours, excellent contrast and
brightness response.
Specially designed for CCTV use.
Features 2 Phono inputs for 2 different devices.
Includes VGA input (X8LCD only).
Compact and robust design ideal for use inside vehicles.
Can be Wall or Desk mounted.
Supplied with Remote Control for ease of use.
Powered by a 12V DC Power Supply (supplied).
1. Safety Precautions
2. Product Features
X5/8LCD Monitor with Bracket Remote Control
3. Contents
Mains Power Adaptor
4. Connections
1. Power (Switches monitor ON/OFF)
2. - Button (decreases value/setting in Menu mode)
3. Menu Button (Press to enter Menu mode)
4. + Button (increase value/setting in Menu mode)
Top of Monitor
Standard
Connections from
Monitor
(X5/8LCD)
Additional
Connections from
Monitor
(X8LCD only)
5. Controls
AV1 Input
(Phono Socket)
AV2 Input
(Phono Socket)
VGA Input
Power Input
(Red DC Socket)
Mains Power Adaptor
(DC Plug)
Plug into
Mains
Power
Power - Menu +
1. Aim the remote control at the infra-red receiver on the front of the LCD.
2. Avoid pressing, dropping, moistening or disassembling the unit.
3. Avoid pressing remote control buttons continuously and quickly. The interval
time between operations, allow at least 2 seconds for the remote control to
function correctly.
6. Remote Control
REMOTE CONTROL FUNCTIONS
POWER - Press this button to turn the monitor ON and OFF
MENU - Press this button to enter the Menu mode
Buttons - Press these to decrease/increase the numerical values when in
Menu mode. Use the buttons to also adjust the volume.
VIDEO SELECT: Press this button to switch between AV1 and AV2
MODE SELECT: Function unavailable
NOTE: Remember to remove
the plastic sheet located at
the bottom of the remote
control before use.
Power
VIDEO
SELECT
MENU
MODE
SELECT
Menu
Mode Select
(Function unavailable)
Video Select
-/+ Buttons
In AV mode, press the MENU button to enter Menu mode and then to select the
menu category you wish to adjust. Use the and buttons on the remote
control or the -/+ buttons on the monitor to make any adjustments to the
following:
BRIGHTNESS - Adjustment range: 0-100.
CONTRAST - Adjustment range: 0-100.
SATURATION - Adjustment range: 0-100.
HUE - Adjustment range: 0-100.
ROTATION LR - ON/OFF. When ON is selected, use the and buttons to
make the image rotate to the Left or Right.
ROTATION UD - ON/OFF. When ON is selected, use the and buttons to
make the image flip 180° Up or Down.
RESET - Press this button to revert the monitor to the original factory settings.
Press the MENU button once you have finished making adjustments to exit Menu
mode.
7. OSD Menu
8. Troubleshooting
SYMPTOM POSSIBLE CAUSE
Monitor does not turn ON
1. Make sure the power adapter is plugged in correctly
2. Make sure the power switch is switched ON
Video input does not work
1. Make sure the AV (or VGA, X8LCD only) cable is
connected properly
2. Make sure the AV mode is activated
The remote control does
not work
1. Battery power is low
9. Specifications
Model:
X5LCD X8LCD
Screen Type:
Professional LCD
Screen Size:
5” 8”
Resolution:
640x480 800x600
Audio:
Yes
AV Inputs:
2x Phono Socket
VGA Input: No Yes
Remote Control:
Yes
Power Requirements:
12V DC, 2000mA
Power Consumption: < 10W < 20W
Suggested Power Supply:
Main powered, Supplied
Mounting:
Wall or Desk Standing
Dimensions without bracket
(WxHxD):
150 x 120 x 28mm 205 x 173 x 29mm
CCTV
TECHNICAL SUPPORT:
For Technical Support for any Xvision product please contact your
local distributor.
LIMITED WARRANTY:
This product is supplied with a 2 Year warranty. The Warranty excludes
products that have been misused, (including accidental damage) and
damage caused by normal wear and tear. In the unlikely event that you
encounter a problem with this product, it should be returned to the place
of purchase.
UK/Europe
Xvision Group (UK)
Unit 2, Valley Point,
Beddington Farm Road,
Croydon, Surrey CR0 4WP
Email: sales@x-vision.co.uk
Far East
Kyoung Am Building
157-27 Samsung-dong
Kangnam-ku
135 090 Seoul, Korea
Email: globalsales@x-vision.co.uk
Middle East
Burjuman Tower, 18th Floor
PO Box 121828
Dubai 43659
United Arab Emirates
Email: mesales@x-vision.co.uk
North America
100 Park Avenue
New York City,
New York 10017
United States
Email: usasales@x-vision.co.uk
Manufactured exclusively for Xvision - www.x-vision.co.uk
