X4D1H – User Manual
Table of Contents
CHAPTER 1 MAIN MENU SETUP ____________________________________ 3
1-1 RECORD SETUP ____________________________________________ 5
1-1.1 Quality & Frame Rate Setup ______________________________ 6
1-2 EVENT SETUP ______________________________________________ 6
1-2.1 MOTION SETUP ________________________________________ 7
1-2.1.1 MOTION AREA SETUP ______________________________ 7
1-2.2 SENSOR/ALARM SETUP _________________________________ 8
1-3 SCHEDULE SETUP __________________________________________ 9
1-3.1 Schedule Record Setup ___________________________________ 9
1-3.2 Holiday Setup __________________________________________ 10 1-4 CAMERA SETUP ____________________________________________ 10 1-5 ACCOUNT SETUP __________________________________________ 11
1-5.1 Permission Setup _______________________________________ 11
1-5.2 User Picture Setup _____________________________________ 12 1-6 NETWORKING SETUP _______________________________________ 12
1-6.1 NETWORKING SETUP __________________________________ 13
1-6.1.1 DHCP ___________________________________________ 13 1-6.1.2 LAN _____________________________________________ 13 1-6.1.3 ADSL ____________________________________________ 14
1-6.1.4 3G ______________________________________________ 14 1-6.2 HTTP Setup ___________________________________________ 15 1-6.3 DDNS Setup ___________________________________________ 16 1-6.4 Mail Setup ____________________________________________ 16
1-7 PTZ & RS485 SETUP _______________________________________ 17 1-8 SYSTEM SETUP ____________________________________________ 18
1-8.1 DISPLAY SETUP _______________________________________ 19 1-8.2 DATE/TIME SETUP _____________________________________ 19
1-8.2.1 CHANGE DATE & TIME ____________________________ 20
1-8.2.2 TIME ZONE AND DAYLIGHT SAVING TIME SETUP ____ 20
1-8.2.3 INTERNET TIME SETUP ___________________________ 21 1-8.3 BUZZER & RELAY SETUP ______________________________ 21 1-8.4 SPOT SETUP __________________________________________ 23
1-9 UTILITY SETUP_____________________________________________ 24 1-10 DIAGNOSTIC ______________________________________________ 25
CHAPTER 2 BACKUP & SEARCH __________________________________ 26
2-1 BACKUP SETUP ____________________________________________ 26 2-2 SEARCH SETUP ____________________________________________ 28
2-2.1 EVENT SEARCH _______________________________________ 28
2-2.1.1 CRITERIA SETUP FOR EVENT SEARCH _____________ 29 2-2.2 TIME SEARCH _________________________________________ 30
CHAPTER 3 REMOTE ACCESS ____________________________________ 30
3-1 Remote Access via Software __________ Error! Bookmark not defined. 3-2 Remote Access via Internet Explorer ___ Error! Bookmark not defined. 3-3 Remote Access via Smartphone Apps __________________________ 35 3-4 Minimum Software Requirements _______________________________ 36
Please Note: On-screen options such a number of Channels, Split Screen Options, Alarm inputs etc. used in this manual may differ from the actual model purchased (i.e. a 4 channel DVR will display 4 channel options and the 8 Channel will display 8 channel options).
4
X4D1H – User Manual
CHAPTER 1 - MAIN MENU SETUP
To enter the main menu and set up the DVR a user log-in and password are required. The default password of the administrator is 123456. Please check the section Account Setup for information on setting up other users.
Table 1-0.1 Virtual keyboard
Item
Description
Switch between capital and small letters.
/
Switch between numbers and letters.
Press to cancel the setup, and re-enter the login
account.
Delete the last character.
Enter to confirm the password
Space key
A successful log-in will take you to the following Main Menu screen as detailed below:
5
X4D1H – User Manual
Table 1-0.2 Remote Control Button Description
Item
Description
Scroll LEFT/RIGHT
Scroll UP/DOWN
MENU
Save current settings and return to live view mode
ESC
Return back to the previous menu level without saving
ENTER
Enter the selected menu option or bring up the virtual keyboard
Please Note: A new hard drive must be formatted before it can be used. Please refer to the section UTILITY SETUP for further information.
1-1 RECORD SETUP
Item
Description
HDD Full
Recording options once the hard drive reaches full capacity:
Stop
: Stop recording
Overwrite
: Starts to overwrite previous recorded
data starting from oldest data on the hard drive.
OSD position X
Setup (On Screen Display) X axis position on the screen
OSD position Y
Setup OSD Y axis position on the screen
OSD position setup
Further setup options on the OSD
Video Preservation
Select the check box to setup the Video Preservation period. This function will automatically delete recorded data after the selected preservation period has expired.
Quality & Frame Rate Setup
Setup the quality and frame rate for each channel
Please Note: 4 camera DVR will display 4 channel options and 8 camera DVR will display 8 channel options.
6
X4D1H – User Manual
1-1.1 Quality & Frame Rate Setup
Item
Description
Normal/Event Setup
Select a recording mode from Normal or Event. Normal recording to a standard recording mode defined by the user. Event recording refers to recordings either Motion Detection or an Alarm sensor being triggered (setup of Event recording is detailed further in this section)
Resolution
Select recording resolution: NTSC:352x240, 704x240, 704x480 PAL:352X288,704X288,704X576
Record Type
Setup quality and Frame Per Second (FPS) for each channel
No.
Enable/disable which channels record by checking/unchecking the relevant boxes.
Quality
Select a recording quality: Below Basic/ Basic/ Normal/ High/ Highest
FPS
Set the recording FPS for each individual channel
Auto
Assigns each channel with the maximum available FPS
Please Note: 4 camera DVR will display 4 channel options and 8 camera DVR will display 8 channel options.
1-2 EVENT SETUP
Item
Description
Motion Setup
Select to set up the motion detection feature
Sensor Setup
Enter to set up the sensor detection feature
7
X4D1H – User Manual

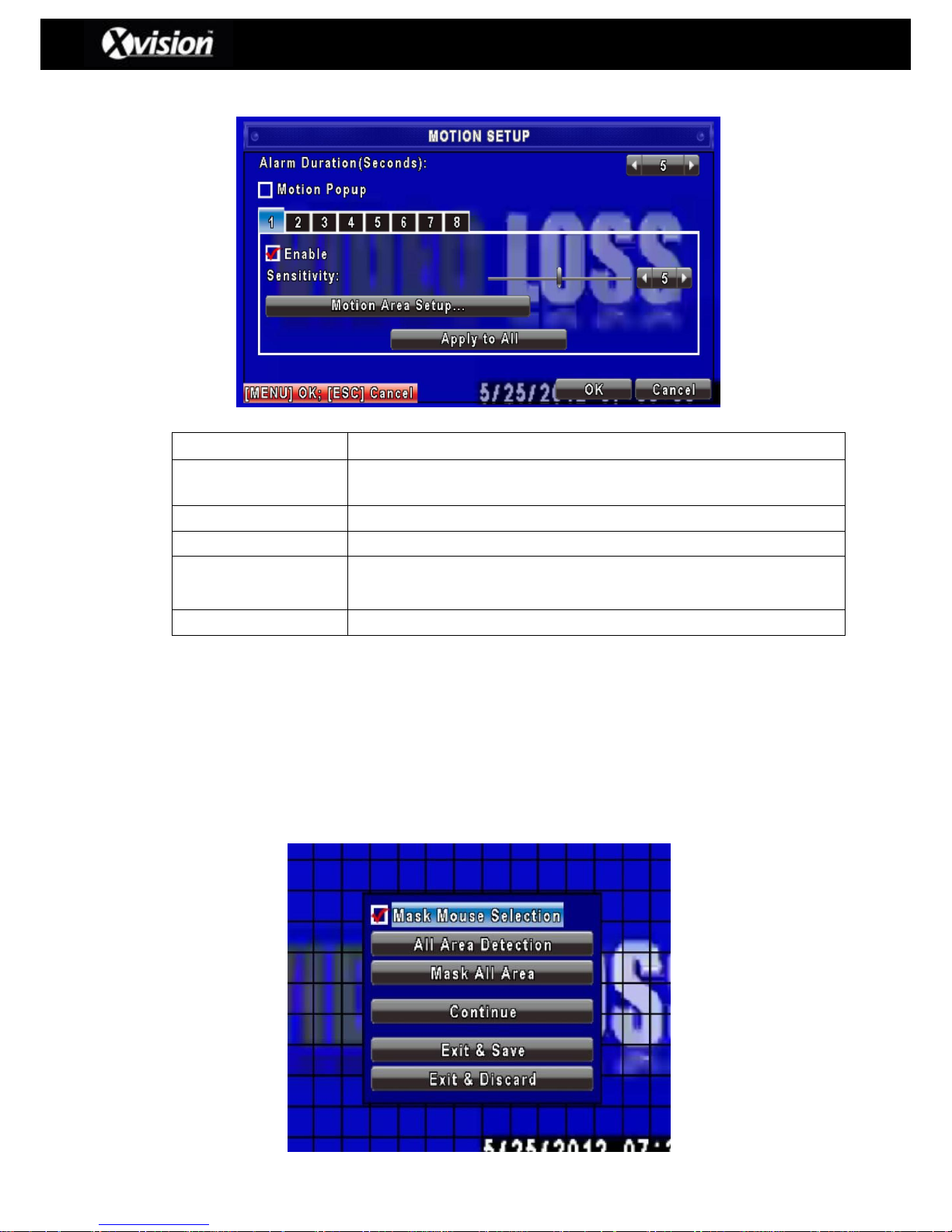

1-2.1 MOTION SETUP
Item
Description
Alarm Duration (Seconds)
The number of seconds the alarm buzzer remains activated once motion has been detected
1~8
Select chosen channel to apply the motion detection
Enable
Select checkbox to Enable/Disable motion detection for each channel
Sensitivity
Drag the on–screen white bar or press to set up the motion detection sensitivity from value 0 to 10 for each channel (i.e. the higher value the greater the sensitivity)
Motion Area Setup
Select to setup motion detection area
Please Note: 4 camera DVR will display 4 channel options and 8 camera DVR will display 8 channel options.
1-2.1.1 MOTION AREA SETUP
The motion detection has been divided into 22x18 grids. The default detection area is a full screen. This area is transparent for local access and purple for remote access users. (i.e. areas deselected from motion detection are marked in red for both local and remote access users).
8
X4D1H – User Manual
Item
Description
Mask Mouse Selection
Check box to enable/disable using the mouse to set the motion detection area (i.e. drag and select)
All Area Detection
Selects the entire screen as a detection area.
Mask All Area
Deselects the entire screen as a detection area.
Continue
Continue into further setup options
Exit & Save
Exits the function and saves any changes to the settings
Exit & Discard
Exits the function and does not save any changes to the settings
1-2.2 SENSOR SETUP
Item
Description
Sensor Popup
Check the box to Enable/Disable Popup screen function for all channels (i.e. the corresponding channel will pop-up in a full screen mode when an alarm sensor has been triggered)
All Off
Switches all alarm sensors off
All Low
Sets all sensors to low polarity (see below for further details)
All High
Set all sensors to high polarity (see below for further details)
Sensor Polarity
Click or press to select between OFF or HIGH and LOW voltage for triggering sensor detection:
Low Polarity:When the sensor has been triggered, the sensor alert
will be activated (i.e. Normally Closed)
High Polarity:When the sensor has been triggered, the sensor alert
will be de-activated (i.e. Normally Open)
Off : Sensors alerts are de-activated
Please Note: 4 camera DVR will display 4 channel options and 8 camera DVR will display 8 channel options.
9
X4D1H – User Manual
1-3 SCHEDULE SETUP
Except from starting recording manually, you can also setup the recording time by weeks and a specific schedule which includes normal, motion detection, and recording type.
Item
Description
Page
Each page provides 10 schedules for setup (5 pages in total)
Holiday Setup
Select to enter to setup holiday function, (setup up to 50 days, other than weekends)
View Event/Motion/ Sensor Setup
View Normal/Motion/Sensor setup for holidays
Please Note: 4 camera DVR will display 4 channel options and 8 camera DVR will display 8 channel options.
1-3.1 Schedule Record Setup
Select the chosen time on the left side menu to display the setup menu (as shown below). This allows you to setup the schedule in further detail by Time, Motion Detection, specific days of the week and days designated as holidays.
10
X4D1H – User Manual
1-3.2 Holiday Setup
The user can select the specific dates to be designated as holidays, which can then be specified during the configuration of scheduled recording.
1-4 CAMERA SETUP
Item
Description
1~16
Select to choose the setup camera setup requirements for each individual channels.
Mask
Select the checkbox to enable/disable the mask function (i.e. within live mode).
Sharpness
Drag the bar or press to adjust Sharpness of your camera from value 0 to 15.
Brightness
Drag the bar or press to adjust Brightness of your camera from value 1 to 255.
Contrast
Drag the bar or press to adjust Contrast of your camera from value 1 to 255.
Saturation
Drag the bar or press to adjust Saturation of your camera from value 1 to 255.
Name
Set up name of each individual channel.
Volume
Audio volume under LIVE mode and recording mode can be adjusted.
11
X4D1H – User Manual
1-5 ACCOUNT SETUP
The Account Setup menu is used to provide a maximum of 4 users’ individual and unique access to the DVR over a network setup. The default administrator account username and password is admin and 123456.
Please Note: The default password remains the same after firmware upgrade
Item
Description
No.
Select checkbox to activate the chosen user account.
Username
Set up username
Password
Set up password for each user. Password requires 8-digits which can be a mixture of letters and numbers (passwords are case-sensitive)
Permissions
Set up permissions/rights for each user
Change Admin Password
Select to change administrators password
Picture (Change)
Select to change/set a users picture
1-5.1 Permission Setup
The permission setup is used to provide individual users (maximum of 4 users) tailored access
to the DVR’s functions. The administrator can select the relevant checkboxes (as detailed below)
to give access to the Setup Menu, Network Operations, PTZ function, Playback, Utility, Backup. Access the password expiry dates and Masks on specific channels while playing back can also be specified.
12
X4D1H – User Manual
1-5.2 User Picture Setup
Users can select the ‘Change’ button then select a picture to be added to their profile:
1-6 NETWORKING SETUP
Item
Description
Connect type
Setup mode for network connection: (ADSL, DHCP, LAN, 3G).
HTTP Setup
Select to set up HTTP
DDNS Setup
Select to set up DDNS
Mail Setup
Select to set up email
3G Setup
Select to set up 3G network
13
X4D1H – User Manual
1-6.1 NETWORKING SETUP
There are four methods that allow the DVR to be connected to a network:
1-6.1.1 DHCP
When DHCP is selected, IP address will be assigned by DHCP server automatically.
1-6.1.2 LAN
Select LAN for network connection, the following information is required:
Item
Description
IP Address
Enter IP address set by yourself or your systems administrator
Subnet Mask
Enter IP address of Subnet Mask provided by You or your Systems Administrator
Gateway
Enter IP address of Gate way provided by You or your Systems Administrator
DNS
Enter DNS address set by yourself or your systems administrator
(Please Note: The correct DNS address must be entered for DDNS function).
14
X4D1H – User Manual
1-6.1.3 ADSL
Select ADSL for network connection, the following information is required.
Item
Description
User Name
Enter user name provided by user’s ISP
Password
Enter password provided by user’s ISP
1-6.1.4 3G
Select 3G for network connection, the following information is required.
Item
Description
Dial-up Number
Dial-up Number, Determined by the ISP
PIN
Enter SIM card password
APN
Enter Determined by the ISP
Advance Setting
The advanced settings
15
X4D1H – User Manual
Item
Description
Enable
Select checkbox to enable advanced settings
User Name
Enter username (provided by the ISP)
Password
Enter password (provided by the ISP)
IP Address
Enter the fixed IP address (provided by the ISP)
Please Note: This feature may not work with all 3G cards (Please contact technical support for further details)
1-6.2 HTTP Setup
Item
Description
Enable HTTP Server
Check to enable HTTP server. Users can remotely access into the DVR over the network if the HTTP function is activated.
Port
Enter a valid port value from 1 up to 65000 (The default value is 80)
Auto
Assign each channel with its maximum fps
No.
Selected channel number
Quality
Setup the recording quality from the options: Basic, Normal, High, and highest
FPS
Setup the recording FPS
16
X4D1H – User Manual
1-6.3 DDNS Setup
Item
Description
Enable DDNS
Select checkbox to enable/disable DDNS function.
DDNS Server
Enter the registered DDNS Server: (i.e. details taken provider from such as no.ip.org)
Host Name
Enter the completed registered SMTP Server.
(Including username + Server)
If the user name is home’ and you choose ‘john-home.com’ as your server, you should enter: home.john-home.com’
User Name
Enter user name.
Password
Enter password.
Please Note: Refer to appendix for further detail on setting up a DDNS Server
1-6.4 Mail Setup
When specific event occurs (i.e. Video Loss, Motion Detection etc.) an email will be sent to the receiver’s account automatically. Setting up email accounts is detailed below:
17
X4D1H – User Manual
Item
Description
Enable E-mail Notification
Select checkbox to enable/disable E-mail Notification function.
SMTP Server
Enter to set up SMTP Server name.
Port
Select specific Port (if required).
User Name
Enter to set up User Name.
Password
Enter to set up Password.
Sender E-mail
Enter to set up e-mail address of receivers (up to 10 addresses can be set).
Trigger Event
Enter to select which events (Motion, Sensor and Vloss (Video Loss) will be emailed notifications.
Receiver E-mail
Enter to set up e-mail addresses for up to 10 receivers individually.
1-7 PTZ & RS485 SETUP
The DVR allows users to control PTZ functions of your camera. Please ensure that the PTZ camera is connected correctly to the RS-485 port of DVR.
Item
Description
Enable PTZ
Click the box to Enable/Disable PTZ function for each channel.
Protocol
Set up the protocol of PTZ cam. The supported protocols are
PELCO-P, PELCO-D, KND, LI-LIN, SAMSUNG, LG, AVTECH.
PTZ ID
Select ◀ ▶ to set up PTZ ID (The ID range is from 1 to 64)
Baud Rate
Select Baud Rate for PTZ from 2400, 4800, 9600,19200
RS-485 ID
Select RS-485 ID (values from 1 to 64)
RS-485 Baud Rate
Select RS-485 Baud Rate from 2400. 4800, 9600,19200
Keyboard
Select Keyboard for use with the PTZ camera
18
X4D1H – User Manual
1-8 SYSTEM SETUP
Item
Description
DVR Name
Set the name of the DVR. This will be displayed when users login remotely)
DVR Location
The location of DVR will be shown when users login remotely
Language
Use the button to select OSD language.
Remote ID
Setup the ID of the remote control.(the Default ID is set to 0)
Display Setup
Enter to set up the DVR’s display options
Date/Time Setup
Enter to set up the DVR’s Date/Time
Device Setup
Enter to set up Buzzers & Relay options
Spot Setup
Enter to set up Spot monitor
19
X4D1H – User Manual
1-8.1 DISPLAY SETUP
Item
Description
Auto-Seq Interval
Set up duration time (in seconds) for the interval between the channel switching channels under Auto-Sequential mode.
Show OSD
Turn On / Off OSD display.
Show DVR Status
Turn On / Off DVR illustration and record status display.
Show Date/Time
Turn On / Off date and time display.
Show Channel Name
Turn On / Off channel name display.
Border Color
Set up the color of border in LIVE, PLAYBACK mode. (Red, Green, Blue).
1-8.2 DATE/TIME SETUP
Item
Description
Hour Format
12HOURS/ 24HOURS
Date Format
MM-DD-YY/DD-MM-YY/YY-MM-DD
Date/Time Position
Choose the position of Time and Date display.
Change Date & Time
Setup time and date of DVR.
Time Zone Setup
Set up GMT and Daylight Saving Time.
Internet Time Setup
Setup automatic synchronization with internet server.
20
X4D1H – User Manual
1-8.2.1 CHANGE DATE & TIME
This allows the user to setup the DVR’s date and time, as detailed below:
1-8.2.2 TIME ZONE AND DAYLIGHT SAVING TIME SETUP
Set up time zone and activate Daylight Saving Time function according to users DVR location.
Item
Description
Select Time Zone
Enter to modify GMT from GMT- 13 to GMT+ 13
Daylight Saving Time
Turn on/ off Daylight Saving Time
21
X4D1H – User Manual
1-8.2.3 INTERNET TIME SETUP
Synchronize your DVR time with an internet time server:
Item
Description
Automatic Synchronization
Check to enable DVR’s automatic synchronization function. Once selected the DVR will automatically synchronize the time upon rebooting or by every 24 hours after booting.
Update Now
Select to update/synchronize the time.
1-8.3 BUZZER & RELAY SETUP
Item
Description
Mouse Speed
Select the mouse cursor speed.
Buzzer Setup
Buzzer & relay setup.
AV Output Setup
Into the Audio/Video setup.
22
X4D1H – User Manual
Item
Description
Key Tone
Enable/Disable sound/tone when the front panel buttons are used.
Buzzer
Enable/Disable which functions will generate a buzzer sound (i.e. HDD error, Video Loss, Motion Detection and Sensor/Alarm triggers).
Relay
Enable/Disable which functions will allow a signal to be sent to the RELAY OUT (Alarm Output) (i.e. HDD error, Video Loss, Motion Detection and Sensor/Alarm triggers).
Item
Description
VGA Resolution
Adjust the resolution from 800x600 / 1024x768 / 1280x1024
Brightness
Adjust the brightness
Contrast
Adjust the contrast
Saturation
Adjust the saturation
Hue
Adjust the hue
Volume
Adjust the volume
23
X4D1H – User Manual
1-8.4 SPOT SETUP
Item
Description
SPOT MODE
Check to select the chosen spot mode.
Interval (Seconds)
The duration time in seconds for the interval between channels under SPOT mode.
Skip Video Loss Channel
Select to skip channels without video signal.
24
X4D1H – User Manual
1-9 UTILITY SETUP
Item
Description
HDD Initialization
Select to enter hard disk initialization (i.e. format) menu but please ensure the DVR has stopped recording. On entering the menu select the hard drive to be formatted and then press Start. Once the HDD has formatted successfully the DVR will display the text Succeed.
USB Initialization
Select to enter USB initialization (i.e. format). Press Start’ to begin the procedure and once the HDD has formatted successfully the DVR will display the text Succeed’.
System Recovery
Restore the DVR to the original factory settings
Reset System Events
Reset all the recording events in DVR.
Copy Setup to USB
This allows the user to copy the DVR configuration (i.e. Record/Display/Motion settings etc.) to a USB device. The file will be saved as sdvr_conf.dat on your USB memory stick.
Download Setup from USB
Select to download a saved configuration from a USB device and apply to the DVR.
Upgrade
Allows the user to upgrade the DVR firmware via a USB device. Please ensure that the DVR is not recording before applying the new firmware update. Please note that the System will reboot automatically once the upgrade is completed.
Please Note: Do not turn off the power to the DVR or remove the USB device whilst upgrading as it may cause an incomplete firmware upgrade and may damage the DVR.
25
X4D1H – User Manual
1-10 DIAGNOSTIC
Item
Description
Version
This displays the current firmware version of DVR
IP
This displays the connected IP address of DVR. If disconnected from network the screen will display the following:
NETWORK DISCONNECT
MAC
MAC Address of DVR
HDD Status (Hard Drive)
No.
HDD number
Volume
HDD Capacity
Used Rate
Percentage of space used on the HDD.
Status
Displays the HDD status.
USING: means the HDD is being used for recording now GOOD/BAD: means the HDD has a known/unknown format for
the DVR. Please Note: A new hard drive must be formatted before it can be
used in the DVR.
Format Time
This shows the last date the hard drive was formatted.
26
X4D1H – User Manual
CHAPTER 2 - BACKUP & SEARCH
2-1 BACKUP SETUP
Users can backup any segment of recorded data within a specified time frame, using a USB memory device which must be connected to the DVR.
The backup file that is produced by the DVR is an IRF file which is designed to be played back with the software called Ifileplay and CMS’.
Please Note: When using a USB flash drive to backup data, the DVR will automatically copy the ‘Ifileplay’ software onto the USB flash drive.
Item
Description
From
The start time of the backup file.
To
The end time of the backup file.
Device
Select the USB or PC as the backup device.
Free Space
The available space on your backup device (not available for PC backup).
Refresh
Recalculate the available space of backup device (not available for PC backup).
Required Space
Displays the size of the backup file.
Calculate
Refreshes the calculation of the size of backup file.
Start
Commences the backup file function.
Please ensure that the backup device has enough space before commencing the backup procedure.
Please Note: Do not turn off the power to the DVR or remove the USB device whilst upgrading as it may cause an incomplete firmware upgrade and may damage the DVR.
27
X4D1H – User Manual
iFileplay Use Method
Step 1: Install iFileplay’ software to your PC (i.e. ’iFileplayfile will be included on the
installation CD provided with this DVR).
Please Note: When using a USB flash drive to backup data, the DVR will automatically copy the ‘Ifileplay’ software onto the USB flash drive.
Step 2: Double click the file ‘ifileplaypack.exe’ to setup the software.
Step 3: Once the software has successfully loaded please click the ‘Open’ and select the
chosen backup file to play.
Please Note: If the software does not play the chosen file it may not be in the correct format for it to play.
28
X4D1H – User Manual
2-2 SEARCH SETUP
Item
Description
Event Search
Select to enter the Event Search Menu
Time Search
Select to enter the Time Search Menu
2-2.1 EVENT SEARCH
The DVR automatically records events with channel information such Event Type, Date/Time, User etc. If there is recorded data for an event, a yellow signal will be shown on the left
side of the time information. Rest your cursor under the line and press enter, or left click your mouse to playback the recording data.
Please Note: Event Records will still be generated even when a hard drive is not installed or the record function has not been activated. However, the event record itself cant be viewed after selecting it.
29
X4D1H – User Manual
Item
Description
Criteria
Setup parameters of the event search.
Page
Switch between the various pages of events.
Date/Time
Date/time when the event occurred.
Event Type
Event types are defined as the following:
MOTION
Motion Detected
Video Loss
Video Loss
Remote Login
User log-in over the network
Remote Logout
User log-out over the network
Power On
DVR has been switched on
HDD Full
HDD space has reached full capacity
HDD Error
HDD error has been detected
Reboot
DVR has been rebooted
Info
The channel where event has occurred or the username that has logged in.
2-2.1.1 CRITERIA SETUP FOR EVENT SEARCH
The amount of events generated can be numerous and the users can make the search more efficient by clicking ‘Criteria’, and selecting specific parameters to search within. The search results will be limited to a specific period of time but the user can also select functions such as Motion Detection, Video Loss etc.
30
X4D1H – User Manual
2-2.2 TIME SEARCH
TIME SEARCH can search for the specific time of recording data to playback. Users can press Enter or left click on the desired date to playback. Please note that dates that contain recorded data are marked with a red square .
Users can further narrow the results by clicking on a chosen date and then set a specific time range (hour/minute/second), as shown below:
31
X4D1H – User Manual
Chapter 3 REMOTE ACCESS
This section explains how users can access the X4D1H via the iWatchDVR software, an internet browser and smartphone mobile apps. Please note the following:
- To access the DVR locally (LAN) users can simply use the network IP address, as detailed in section 3 ‘Network Setup’.
- If users are accessing their DVR’s remotely, from a location outside their local network (i.e. from home), they will need to ensure that they have suitable fixed IP address (please consult your Internet Service Provider for further information).
- Users may need to configure their router so that they can access their DVR remotely, a process known as ‘Port Fowarding’. Please consult your technician or our technical support for further details.
Please Note: The address used in this image is only for demonstration purposes only. The actual DVR address will be specific to the local network environment or a user defined address.
3-1 Remote Access via Software
The DVR Remote Desktop software will allow users to remotely access and control the DVR from a PC. Please note that the software currently supports Windows XP SP2 and above.
Step 1: Enter the IP address of the DVR in an Internet browser (i.e. Internet Explorer)
Step 2: The user will then be prompted for an account Username and Password:
Step 3: The user will then be taken to an access page (detailed below) and can select the
relevant download link (i.e. iWatchDVR for PC or Mac) begin the download.
32
X4D1H – User Manual
Step 4: Run/install the downloaded iWatchDVR software and the user will be prompted for
the login details to the DVR (IP address, Port Number, Username and Password):
Please Note: The drop-down menu can be used to record previous IP addresses. Press Clear” to clear IP address history.
Step 5: Once the user authentication has been confirmed the iWatchDVR software will
have access to the DVR:
33
X4D1H – User Manual
3-2 Remote Access via Internet Explorer
The DVR Remote Desktop software will allow users to remotely access and control the DVR via an Internet browser. Please note that the software currently supports Microsoft Internet Explorer 7, 8 and 9.
Please follow Steps 1-2 (page 46)
Step 3: Click on ‘iWatchDVR for Internet Explorer 7/8/9”.
Please Note: The user will be prompted to download/install specific ActiveX controls, which are required to access the DVR, when clicking this link for the first time.
Step 4: The link will take the user directly into the DVR
Please Note: The default display when logging in via an Internet Browser is 16:9 (Widescreen mode)
34
X4D1H – User Manual
Additionally users at can access a simpler version of the software by selecting the ‘JPEG Viewer’ option at STEP 3:
This allows the user to log into one channel at a time (using the dropdown menu) and generates low frame rate image snapshot, which updates itself every few seconds (detailed below):
35
X4D1H – User Manual
3-3 Remote Access Via Smartphone Apps
Smartphone apps that allow the user to access their DVR are currently available for Android, iPhone/iPad and Windows Mobile. These apps provide a host of features that allow the user to view live footage (single screen or multi-view options), control PTZ cameras, Zoom, Backup, and search events/logs.
Step 1: Download the iWatchDVR 2 smartphone apps from the respective online app
stores Links direct to the smartphone App stores can be found on the DVRs web access page, as detailed above (Step 3 for setting up remote access):
Step 2: The user can save the relevant DVR access details, as detailed below for
iPad/iPhone users:
36
X4D1H – User Manual
Step 3: Select to the chosen DVR and once the user details have been correctly
verified they will be taken to the main access page.
3-4Minimum Software Requirements
The remote desktop software requires minimum hardware requirements to operate the software effectively, which are detailed below:
CPU
Intel Pentium 4 above
OS
Microsoft Windows 7, Windows Vista, Windows XP SP2 above
RAM
512M above
VGA Card
Needed to support DirectX9.0 (Above)
Anti-virus
software (firewall)
Suitable port and access to be available (i.e. port 80) for access to the DVR via Internet Explorer
Others
DirectX 9.0 above
Please Note: Users can download iWatchDVR smartphone apps for Android, iPhone/iPad and Windows Mobile directly from the links found on the DVR web access page (as detailed on Step 3 for setting up remote access)
Loading...
