X100 SERIES
Quick Guide
2 X100 Series Quick Guide
QUICK GUIDE CONTENTS
INTRODUCTION.................................................................................................... 3
i Overview ............................................................................................................ 3
ii Features ............................................................................................................. 3
Standard Features across the Range ............................................................... 3
Additional Features ......................................................................................... 4
iii Minimum System Requirements ................................................................ 5
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
iv Notes on Installation ................................................................................... 6
INSTALL & CONNECT ......................................................................................... 7
1.1 X100C Wireless IP Cube Camera ................................................................ 7
1.2 X104P Wireless Pan Tilt Zoom IP Camera ................................................ 9
1.3 X100D IP Dome Camera .............................................................................. 12
1.4 X100V Vandal Resistant IP Dome Camera ............................................... 16
1.5 X100B IP Bullet Camera .............................................................................. 21
1.6 X100T IP Body Camera ................................................................................ 24
1.7 X104S Vandal Resistant IP Speed Dome .................................................. 28
1.8 X100VS Video Server (Codec) .................................................................... 31
SETUP (Quick Guide) ............................................................................................ 34

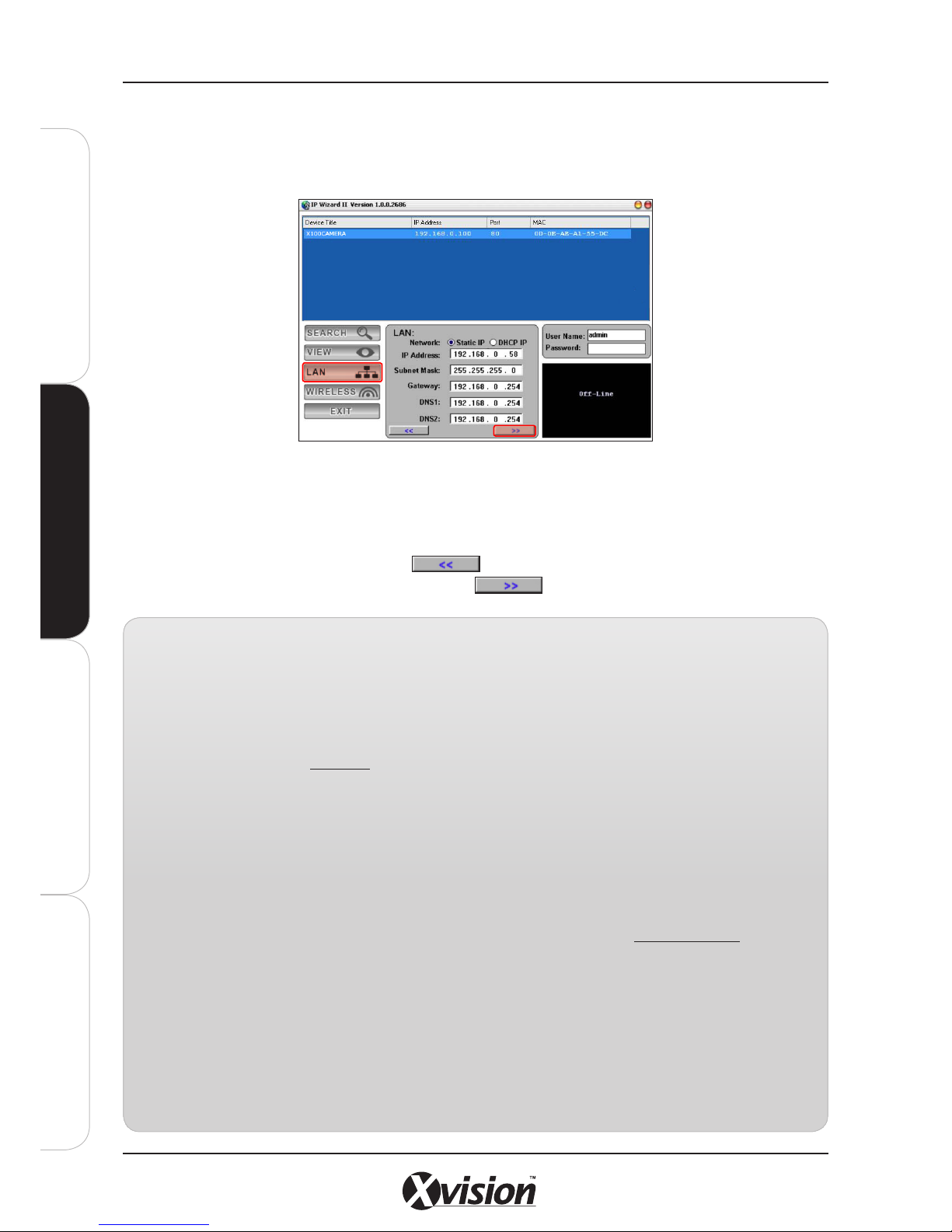

2.1 Setting up your Network ............................................................................ 34

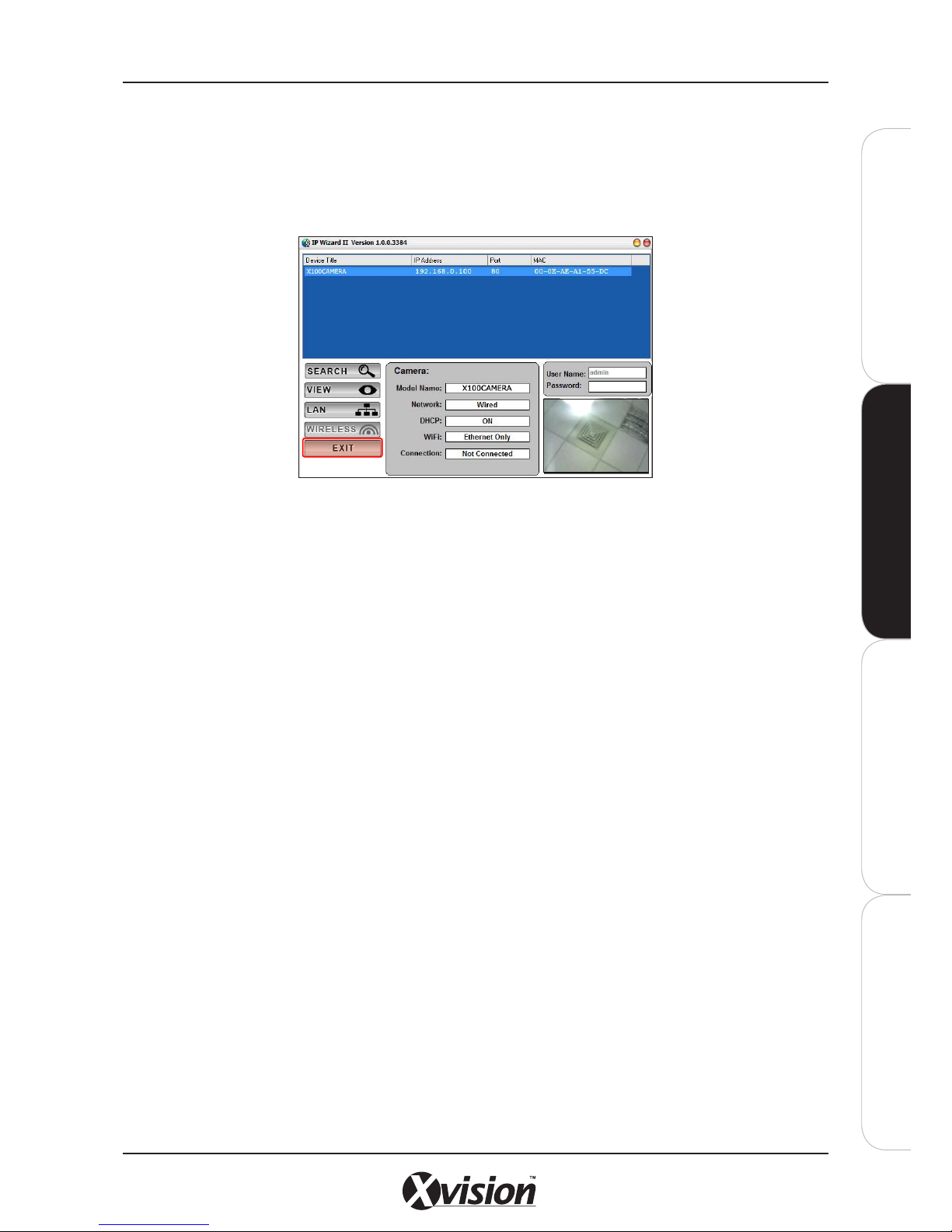

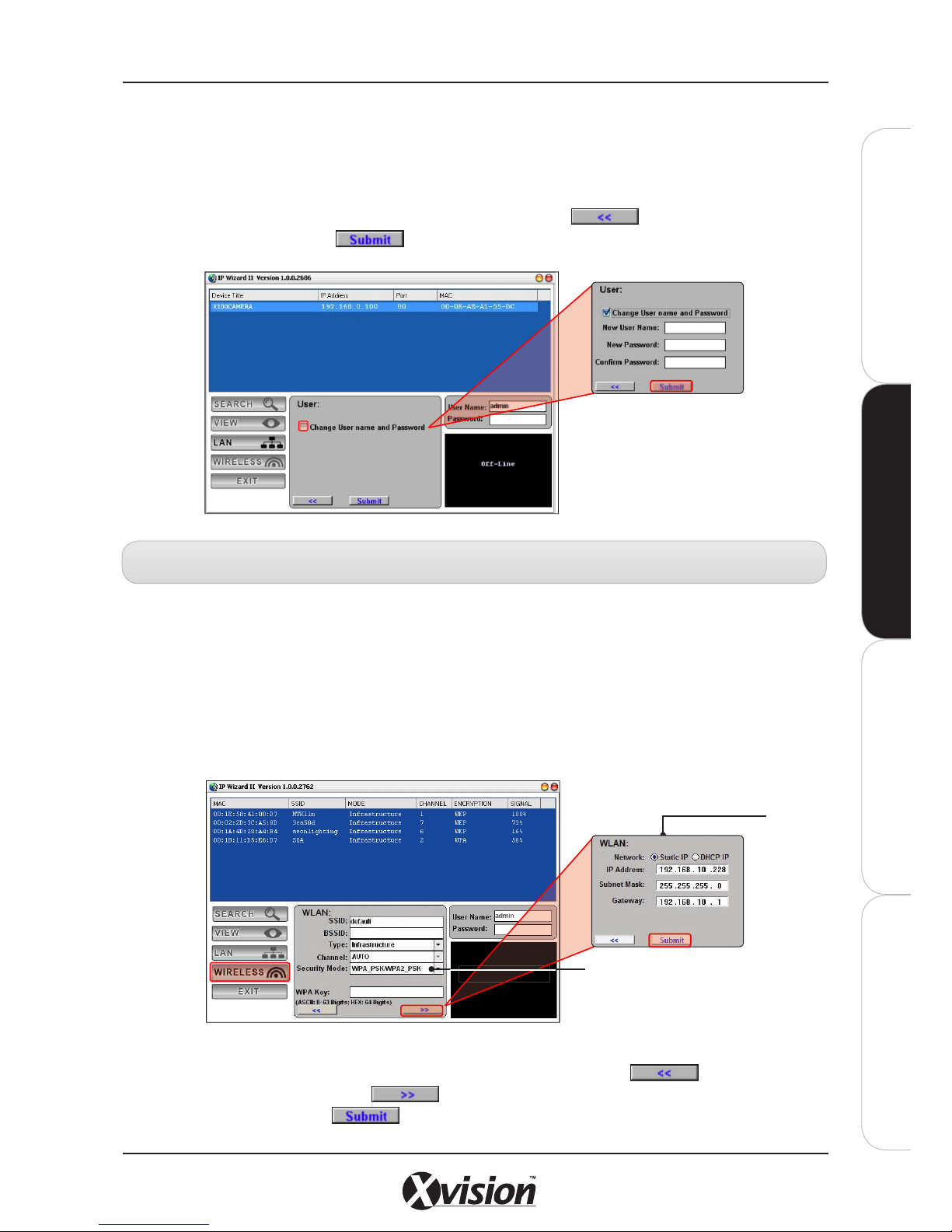

2.2 Search and Setup by IPWizard II ............................................................... 35
2.3 Access Your IP Camera On Your Web Browser ....................................... 40
(See full version of the SET UP chapter on the User Manual CD)
CONFIGURE .............................................................................. See User Manual CD
RECORDING SOFTWARE ........................................................ See User Manual CD

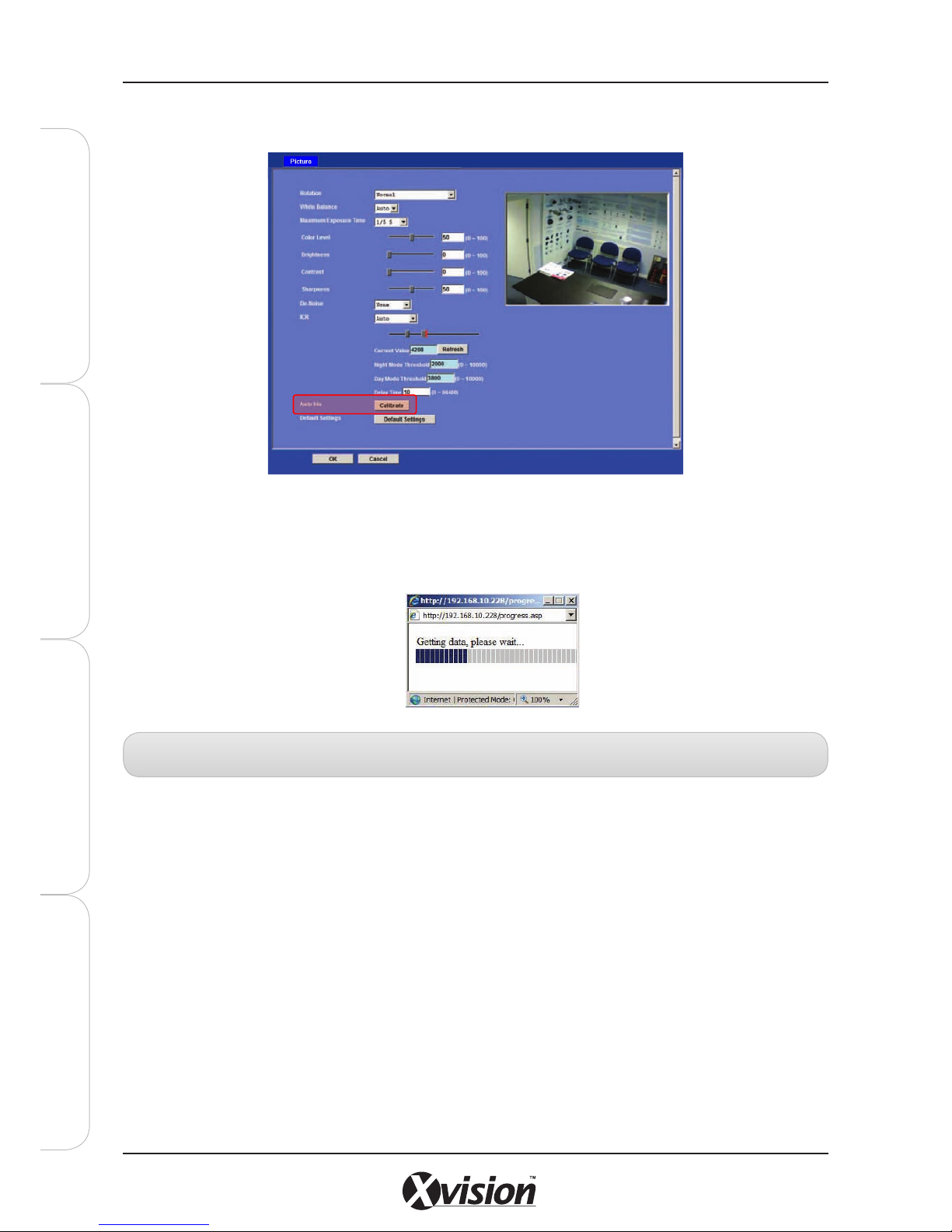

APPENDIX 1: HOW TO CALIBRATE AN AUTO IRIS LENS ............................... 41
XVISION SUPPORT .............................................................................................. 43
WARRANTY ........................................................................................................... 43
X100 Series Quick Guide 3
i OVERVIEW
This user guide explains how to operate your camera from a computer. Read this manual completely and
carefully before you operate the device.
ii FEATURES
STANDARD FEATURES ACROSS THE RANGE
The following are features of the X100 IP Camera Series:
• Easy ‘Plug and Play’ installation and configuration using the Setup Wizard
• 1.3 Megapixel High Definition images up to 1280x1024 resolution, 3x the resolution of standard
CCTV cameras
• IEEE 802.3af Power over Ethernet (except X100C and X104P)
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
• Choice of compressions and multiple streams for optimum performance in any environment
• Up to 30 fps in VGA mode, 15 fps in Megapixel mode
• Digital Zoom for detailed viewing
• Remote Viewing from anywhere in the world using any standard PC or Mac web browser
• Supports 3G Mobile Viewing on all popular Smart Phones
• Intelligent Motion Detection with Automatic Email Alerts & Local Alarm* Notifications when
motion is detected
• Two-way audio for remote communication with people near the camera*
• Alarm Input and Output (except X100C and X104P)
• Supports DDNS (Dynamic Domain Name System)
• Supplied with Free Multi-channel Management and Recording software for up to 64 IP Cameras
*Speakers will need to be plugged in to the camera for this function
4 X100 Series Quick Guide
ADDITIONAL FEATURES
X100C WIRELESS IP CUBE CAMERA
• Features White LEDs for 10m Night Vision
• 4.0mm Lens for 50° viewing angle
• SD Card Recording
• Designed for Wall, Ceiling or Desk
mounting
• Suitable for indoor use only
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
X104P WIRELESS PAN TILT ZOOM
IP CAMERA
• Features White LEDs for 10m Night Vision
• 4.0mm lens for 50° viewing angle
• Motorised Pan (355°) and Tilt (100°)
• Designed for Wall, Ceiling or Desk
mounting
• Suitable for indoor use only
X100D IP DOME CAMERA
• 4.0mm Lens for 50° viewing angle
• Optional lenses available for 35°, 43°, 85°,
or 135° viewing
• Power Over Ethernet
• Designed for Wall or Ceiling Mounting
• Suitable for indoor use only
X100V VANDAL RESISTANT IP DOME
CAMERA
• Vandal Resistant
• Features IR LEDs for 30m Night Vision
• 2.7 to 9.0mm Lens for 20 to 80° viewing
angle
• Power Over Ethernet
• Designed for Wall or Ceiling Mounting
• Suitable for indoor or outdoor use
X100T IP BODY CAMERA
• C/CS Mount Lens with Auto Iris Support
• Supplied with a 4.0mm lens as standard
for 50° viewing angle
• Optional lenses available for fixed or
varifocal viewing angles
• Power Over Ethernet
• Designed for Wall or Ceiling Mount
• Optional Accessories available for external
mounting
• Suitable for indoor use as supplied
X104S VANDAL RESISTANT IP SPEED
DOME
• Vandal Resistant
• 4.0mm lens for 50° viewing angle
• Motorised Pan (355°) and Tilt (100°)
• Power Over Ethernet
• Designed for Ceiling Mount
• Optional Wall Mount available
• Suitable for indoor or outdoor use
X100VS VIDEO SERVER
• Single Input Video Server
• Converts any type of analogue CCTV
camera into IP
• Power Over Ethernet
• SD Card Recording
• Audio Input
• Suitable for indoor use only
X100B IP BULLET CAMERA
• Features IR LEDs for 20m Night Vision
• 4.0mm Lens for 50° viewing angle
• Power Over Ethernet
• Designed for Wall or Ceiling Mounting
• Suitable for indoor or outdoor use
X100 Series Quick Guide 5
iii MINIMUM SYSTEM REQUIREMENTS
The following are the minimum system requirements for the X100 Series IP Camera Range:
Network Environment Wired Models Wireless Model (X100C, X104P)
Network Interface: 10/100MBase-TX Ethernet 10/100MBase-TX Ethernet
802.11b/g or n WLAN
Browser: Internet Explorer 6.0, Safari 5.0, FireFox 3.5 or later
System Hardware
CPU: Pentium 4, 2.0 GHz or higher
Memory: 512 MB or above
VGA Card Resolution: 1024 x 768 or above
Sound Card: for 2 Way Audio function (optional depending on model)
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
System Requirements for Viewing and Recording Software
Estimated Total
Display and
Recording FPS:
CPU:
RAM: 512 MB 1 GB 2 GB
Display:
OS:
Hard Drive: Minimum 60GB recommended
QVGA 120 120 to 360 360 to 540 540 to 960 960+
VGA 30 30 to 90 90 to 135 135 to 240 240+
SXGA 8 8 to 23 23 to 34 34 to 60 60+
Intel
Intel P4
2.4GHz
For Multi-channel recording, use 7200rpm or higher speed HDD
Intel P4
3.2GHz
1024 x 678 resolution or above
Intel 945G/965G or above
Pentium D
950
3.4GHz
DirectX 9.0c or above
Windows XP,
Windows Vista*
Windows 7
Intel Core 2
Duo
E8600
3.3GHz
Intel Core
2 Quad
Q9650
3.0GHz
Ethernet: 100 MBps 1 GBps
Chipset: Intel 945 or Intel 965 or above
*When using Vista it is recommended that extra memory is installed
6 X100 Series Quick Guide
iv NOTES ON INSTALLATION
• Please unpack all boxes carefully and identify that all the parts are present.
• Do not aim the camera at the sun or similar intense light.
• Treat the camera with care.
• Do not open the camera to make internal adjustments unless instructed to do so in this manual.
• Avoid using the camera in very hot or very cold temperatures or in areas of high humidity (unless the
camera is designed for outdoor use).
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
• Ensure the camera is well ventilated. It should not be placed near heated devices such as radiators or
heat elements.
• The camera should be installed on a firm and solid surface. Wall or Ceiling mounting the camera should
be done with care to ensure the camera weight can be supported safely.
• Do not cut the camera cables, this will void the warranty.
• Only use the supplied power adaptor. Using a different adaptor may cause the camera to malfunction,
heat up or catch fire. Any damage cause to the camera by using the incorrect power adaptor will void
the warranty.
• Do not tamper or open the power adaptor supplied.
X100 Series Quick Guide 7
1.1 X100C WIRELESS IP CUBE CAMERA
PACKAGE CONTENTS
• X100C IP Camera
• Wireless Antenna
• Camera Bracket
• Fixing Screws & Wall Plugs
• 12V DC Power Adaptor
• User’s Manual & Software CD
IDENTIFY PARTS

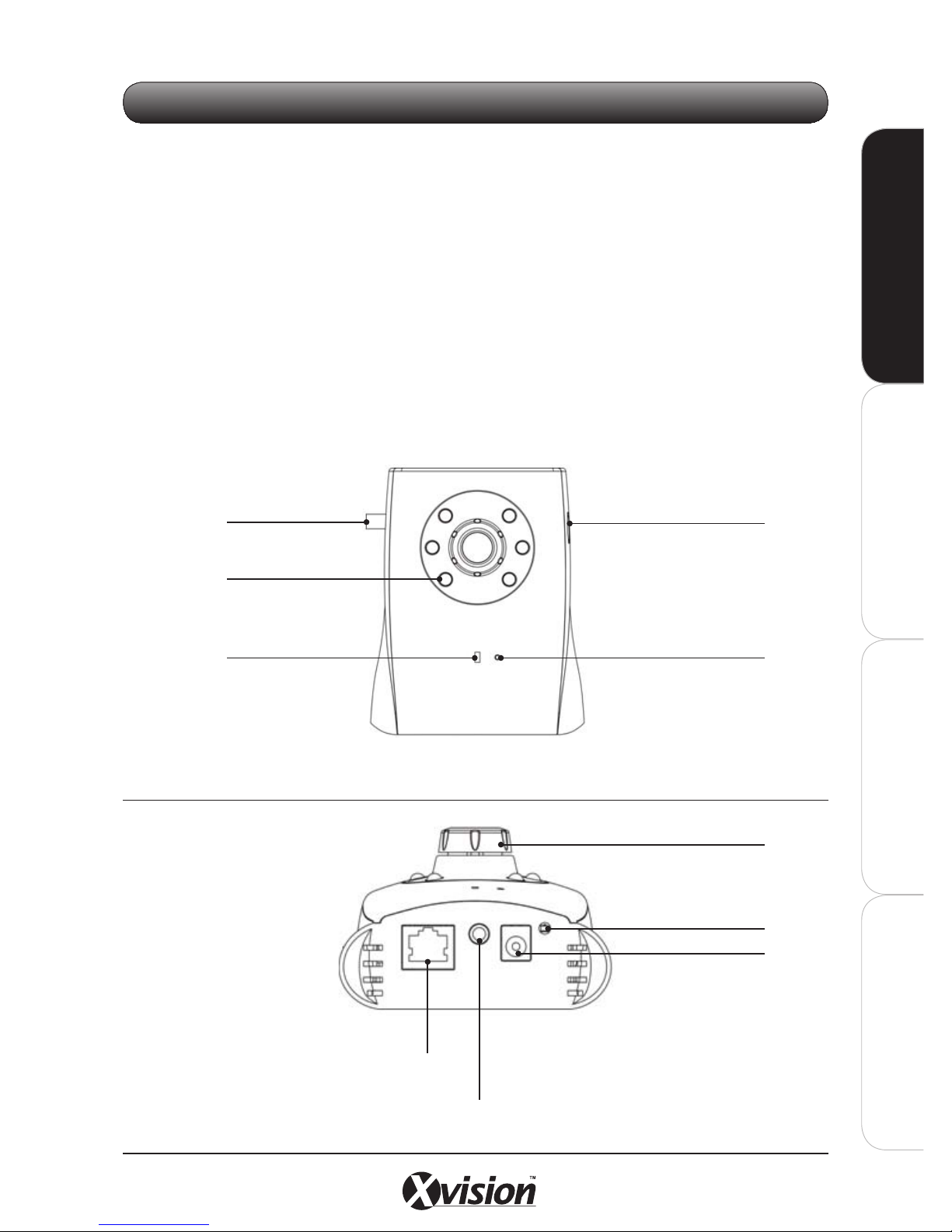

FRONT VIEW
Wireless Antenna
Connector
Night Vision LEDs
SD Card Slot
Insert SD Card for on
board recording
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT INSTALL & CONNECT
CONNECTIONS
Network Type LED
(Green/Orange)
Green LED indicates
Wired connection is
active. Orange LED
indicates Wireless
connection is active.
Network Port
Microphone
Focus Ring
Reset Button
12V DC Power Socket
Ensure only the 12V DC
Power Adaptor supplied
with the camera is used.
Audio Output Socket
8 X100 Series Quick Guide
INSTALLATION
The X100C IP Camera can be mounted on a Wall or Ceiling. It can also be desk mounted using the
bracket supplied.
1. For Wall or Ceiling mounting, make a hole where the camera is to be installed to insert the 12V DC
Power Adaptor and LAN cable.
2. Feed the 12V DC Power Adaptor, and LAN cables through the hole.
3. Use the screws and wall plugs supplied to fix the bracket on a wall or ceiling as shown.
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
Turn anti-clockwise to
loosen for adjustment
Focus Ring
To Power
To Network
4. Adjust the camera direction and angle of view as required using the bracket.
- Make any lens (focus) adjustments using the manual Focus Ring after you have connected the camera and have
setup live viewing via your PC.
5. Connect the 12V DC Power Adaptor and LAN cable to camera.
6. The camera is now ready for you to setup and configure using your PC.
- See SETUP on page 34.
For Wireless Connection
Attach the Wireless Antenna to the camera. Configure your camera’s IP settings using a Wired
connection before you start.
- See SETUP on page 34.
For Audio
Connect the 3.5mm microphone Audio Out Socket to an audio output device such as a speaker with an
amplifier for voice alerting or for enabling the 2 Way Audio function.
Resetting your camera
The Reset Button is used to restore the factory default settings. If you are experiencing problems
with the IP camera, sometimes restarting the device will make the system revert back to a normal state.
To reset, hold the button for at least 5 seconds. The camera will restore factory settings & reboot.
Note: Restoring the factory default setting will lose all the previous settings including the IP address.
You will need to run the IPWizard II program to re-configure the camera to enable it to work properly again.
X100 Series Quick Guide 9
1.2 X104P WIRELESS PAN TILT ZOOM IP CAMERA
PACKAGE CONTENTS
• X104P IP Camera
• Wireless Antenna
• L-Bracket with 2x Screws
IDENTIFY PARTS

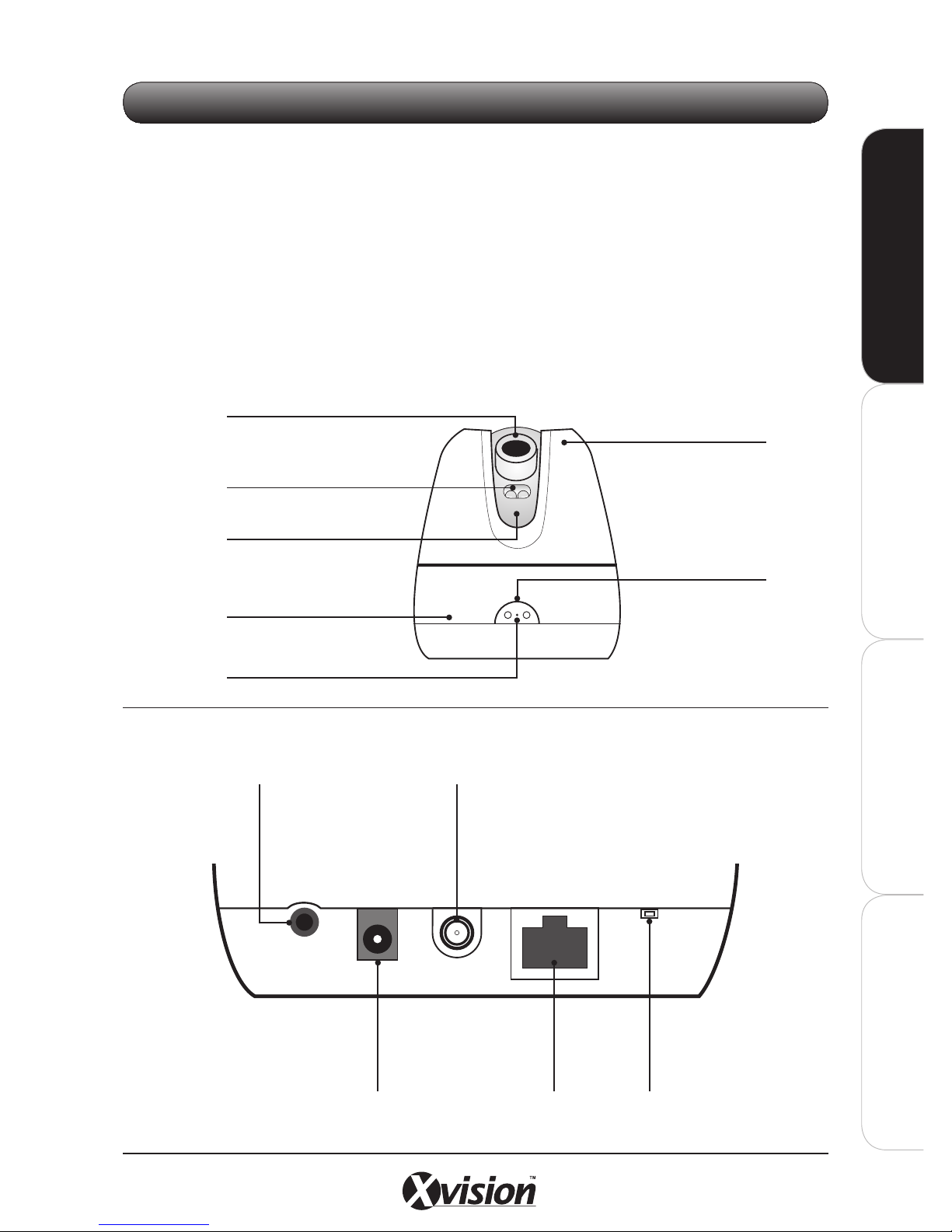

FRONT VIEW
Lens
Focus Ring
Night Vision LEDs
Lens Mechanism
The Lens Mechanism can tilt
(up & down) 100°.
Camera Base
Microphone
• Fixing Screws & Wall Plugs
• 12V DC Power Adaptor
• User’s Manual & Software CD
Camera Body
The body of the
camera can pan (left
to right) 355°.
Network Type LEDs
(Green/Orange)
Green LED indicates
Wired connection is
active. Orange LED
indicates Wireless
connection is active.
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT

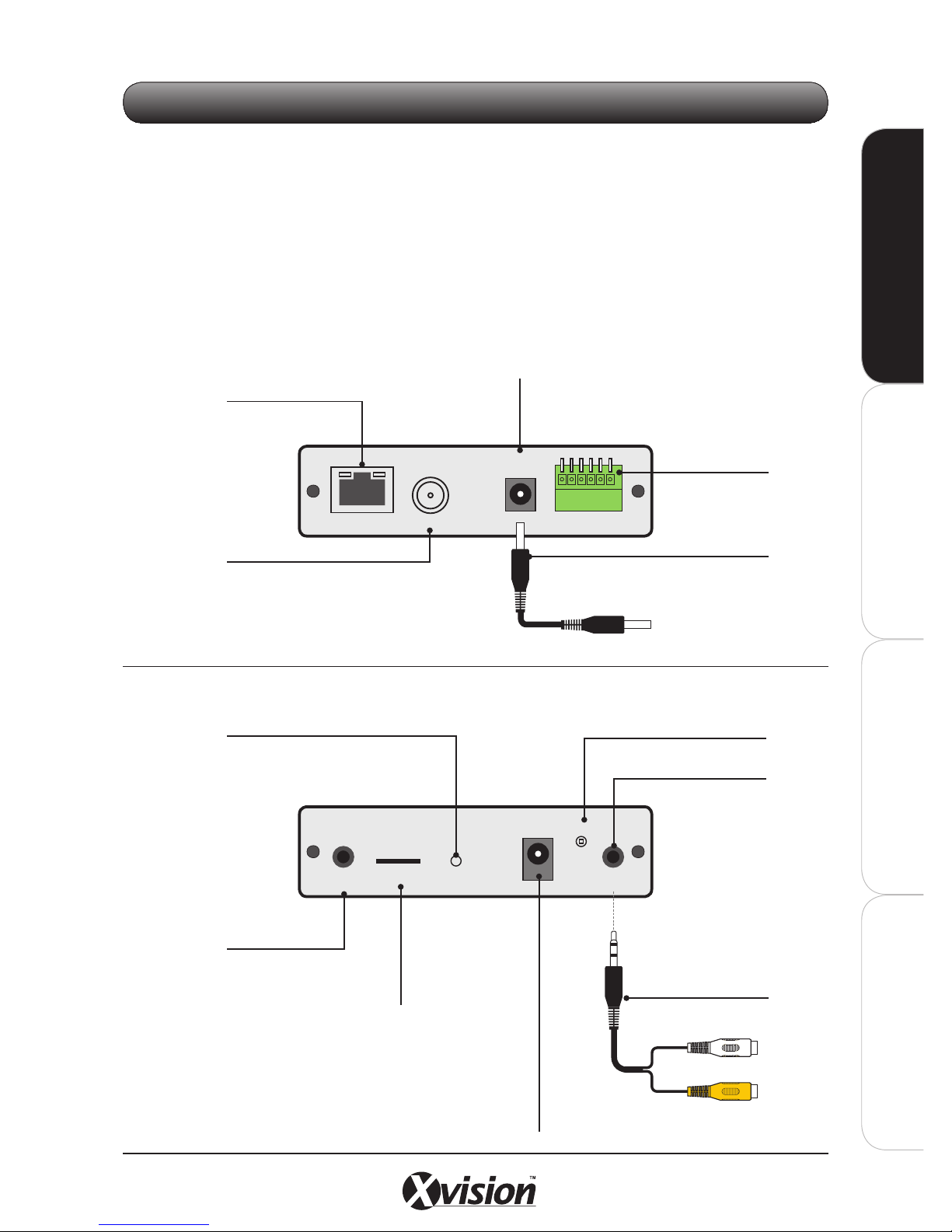

CONNECTIONS ON BASE SIDE
Audio Output
Socket
AUDIO
OUT
12V DC Power Socket
Ensure only the 12V DC
Power Adaptor supplied
with the camera is used.
Wireless Antenna
Connector
12V DC RESETLAN
Network Port
Reset Button
10 X100 Series Quick Guide
INSTALLATION
The X104P IP Camera can be mounted on a Wall or Ceiling using the L-Bracket provided. It is designed
for internal use only. It can also be desk mounted as supplied.
1. For Wall or Ceiling mounting, make a hole where the camera is to be installed to insert the 12V DC
Power Adaptor and LAN cable.
2. Feed the 12V DC Power Adaptor and LAN cables through the hole.
3. Use the screws and wall plugs supplied to fix the bracket to the camera, then to the ceiling as
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT

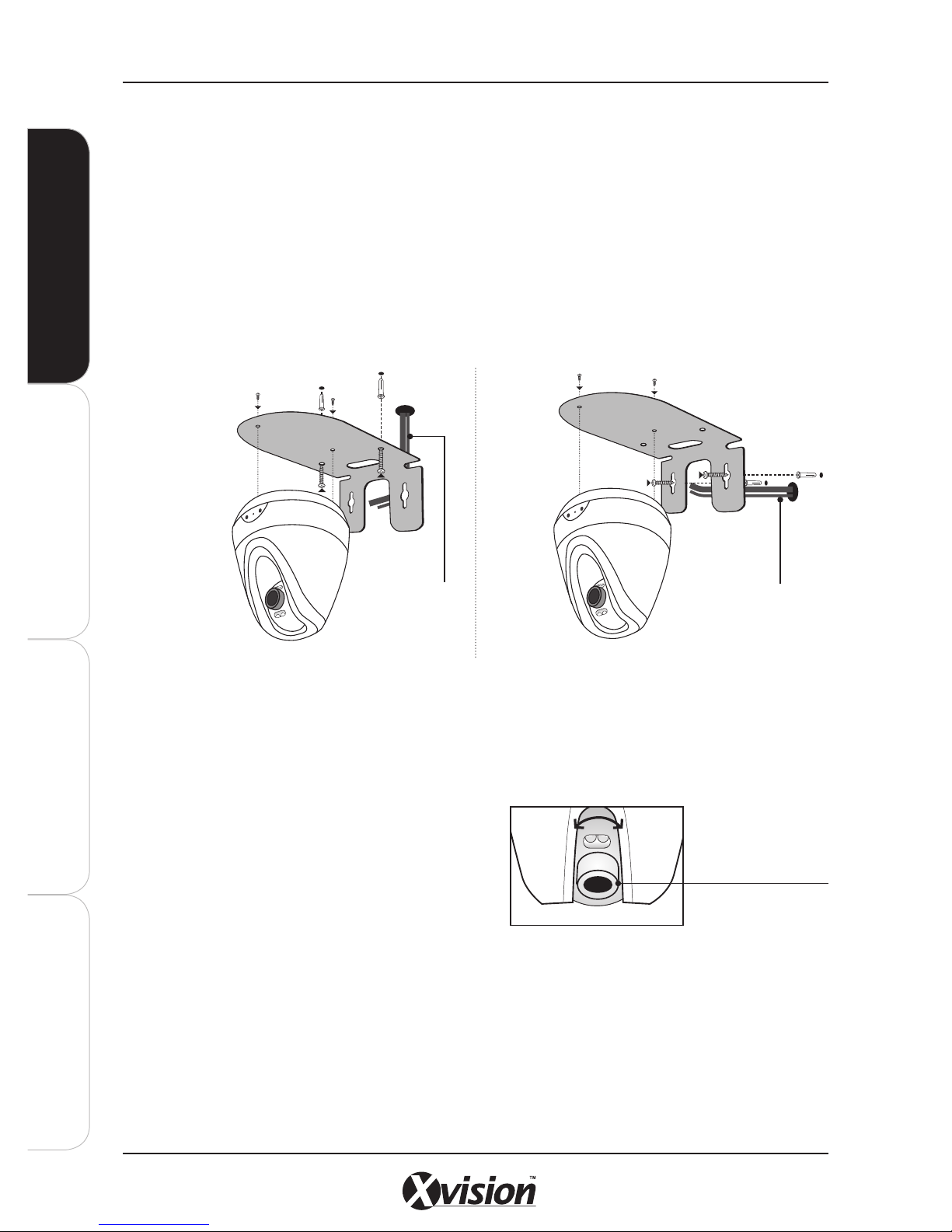

shown. For wall mounting, fix the bracket to the wall before mounting the camera to the bracket.
Power &
LAN cable

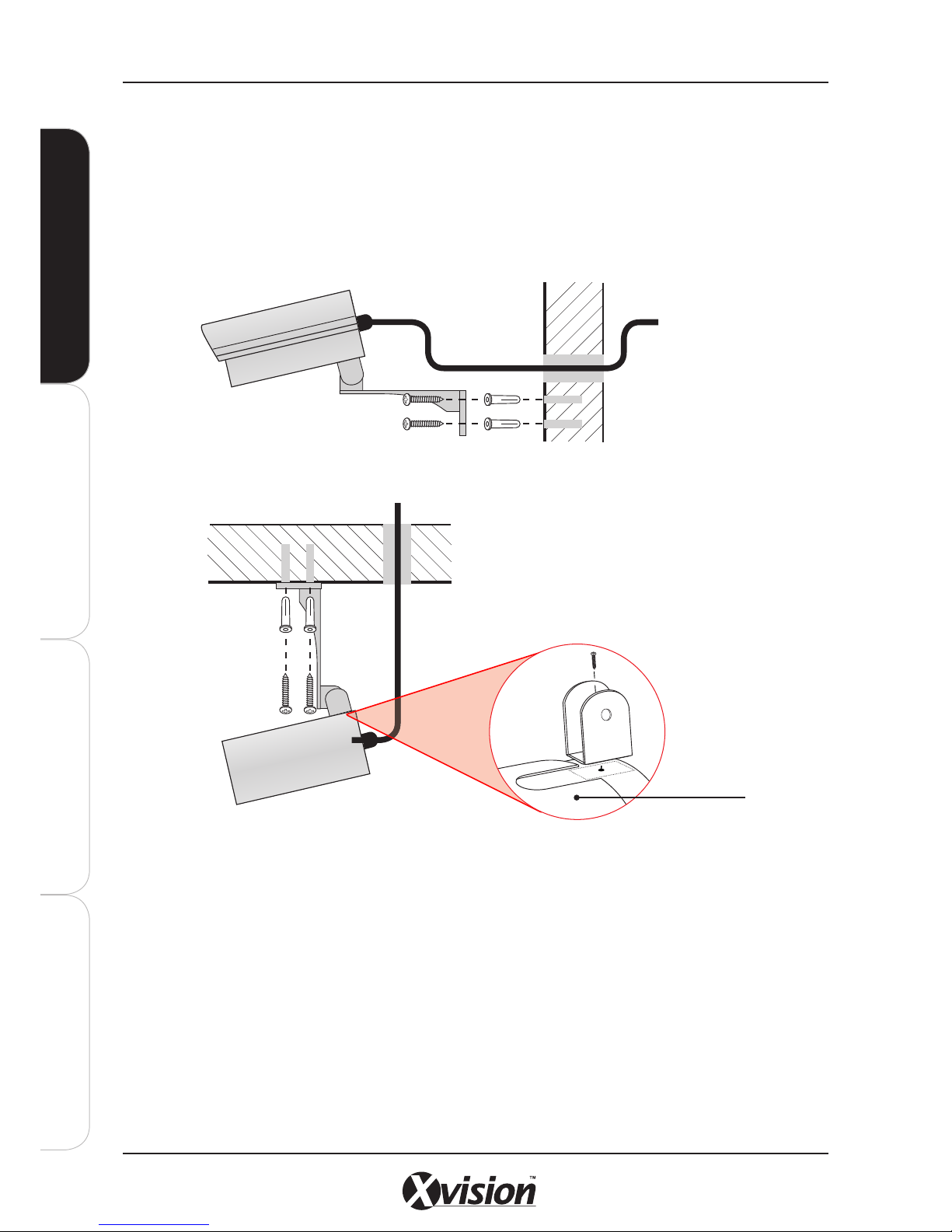

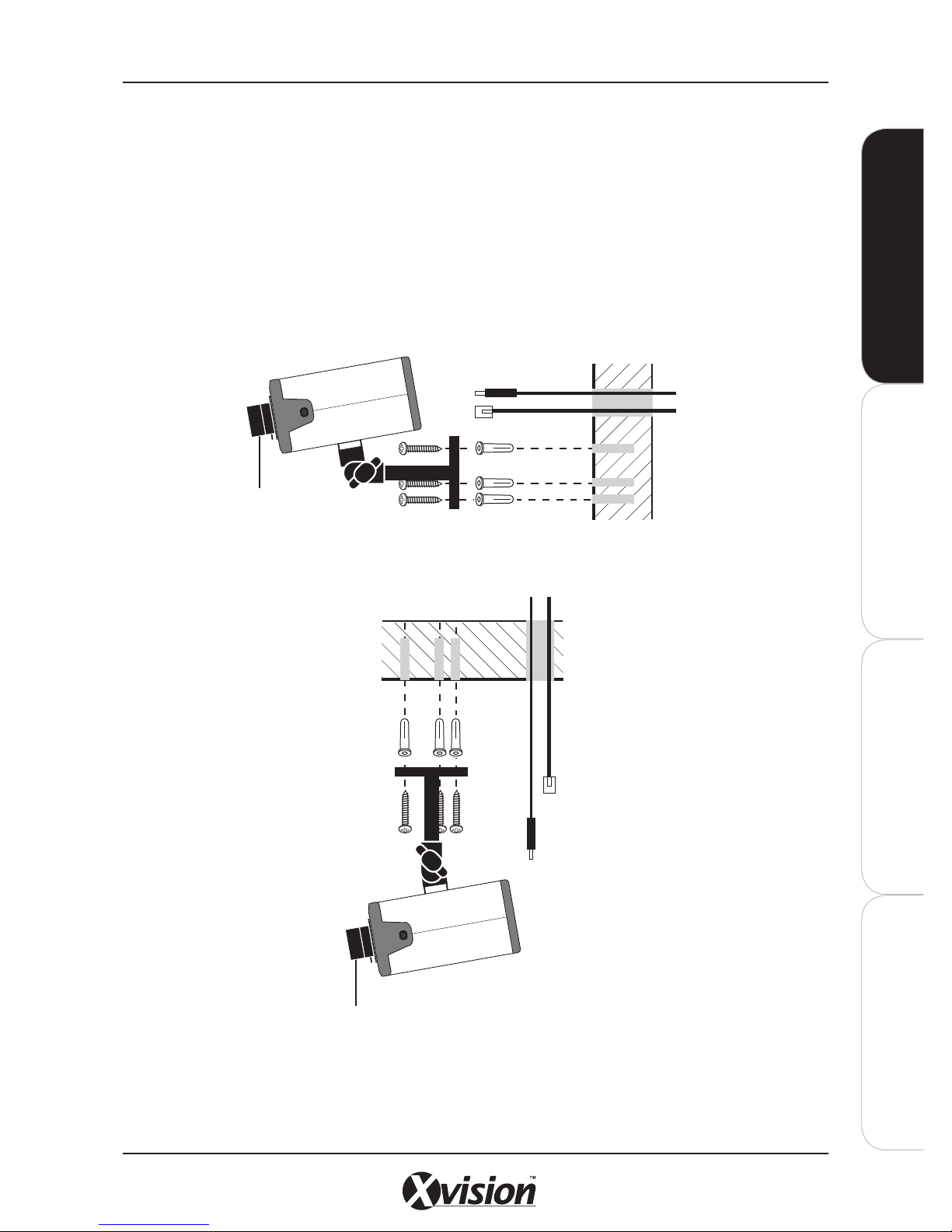

CEILING MOUNT
LAN cable
WALL MOUNT
Power &
4. Connect the 12V DC Power Adaptor and LAN cable to camera.

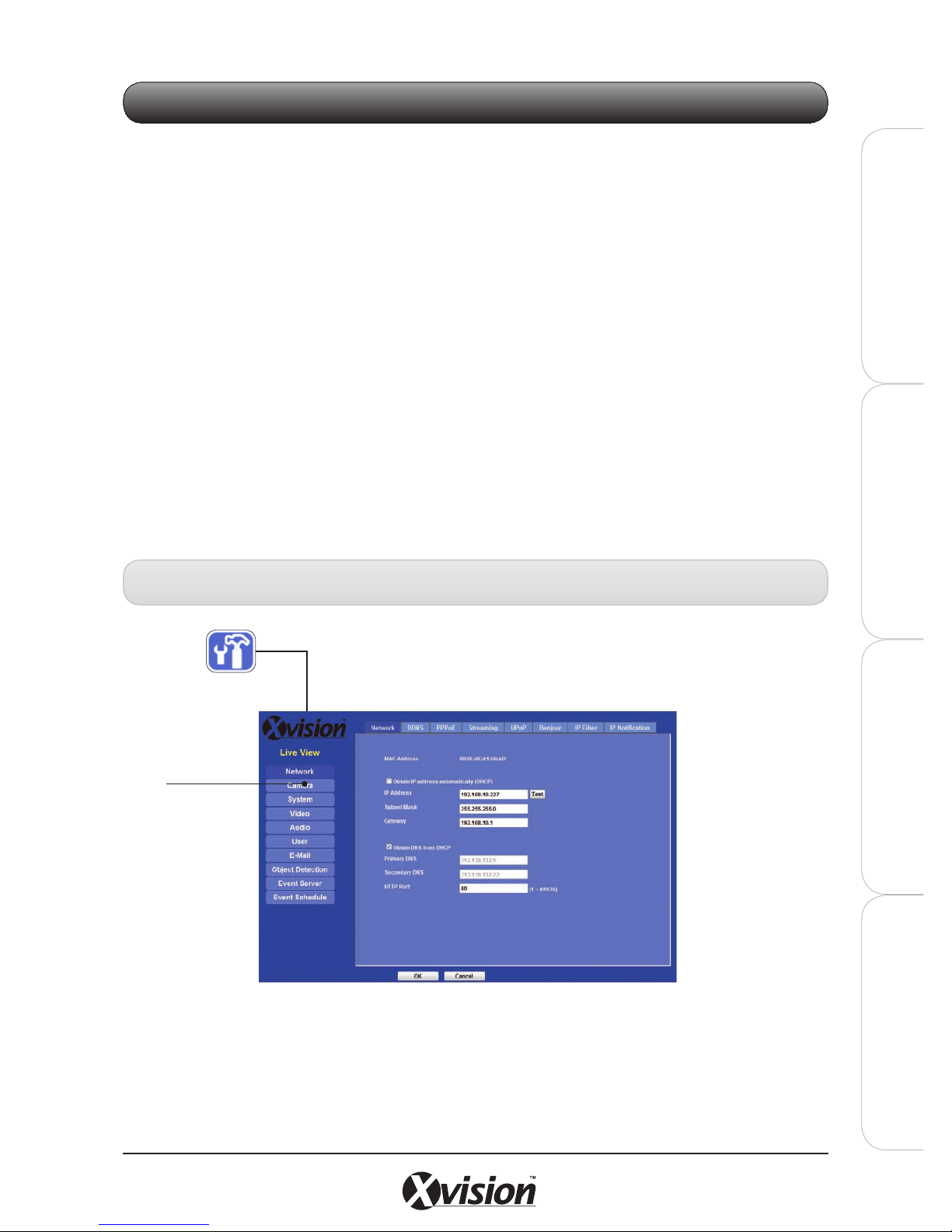

5. The camera is now ready for you to setup and configure using your PC.
- See SETUP on page 34.
Lens Adjustment
Make any lens (focus) adjustments after you have
connected the camera and have setup live viewing via
your PC.
To adjust the lens, open the Dome Cover by turning it
anti-clockwise and rotate the Focus Ring.
For Wireless Connection
Attach the Wireless Antenna to the camera. Configure your camera’s IP settings using a Wired
connection before you start.
- See SETUP on page 34.
For Audio
Connect the 3.5mm microphone Audio Out Socket to an audio output device such as a speaker with an
amplifier for voice alerting or for enabling the 2 Way Audio function.
Focus Ring
X100 Series Quick Guide 11
Resetting your camera
The Reset Button is used to restore the factory default settings. If you are experiencing problems
with the IP camera, sometimes restarting the device will make the system revert back to a normal state.
To reset, hold the button for at least 5 seconds. The camera will restore factory settings & reboot.
Note: Restoring the factory default setting will lose all the previous settings including the IP address.
You will need to run the IPWizard II program to re-configure the camera to enable it to work properly again.
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
12 X100 Series Quick Guide
1.3 X100D IP DOME CAMERA
PACKAGE CONTENTS
• X100D IP Camera
• Fixing Screws & Wall Plugs
• 12V DC Power Adaptor
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT

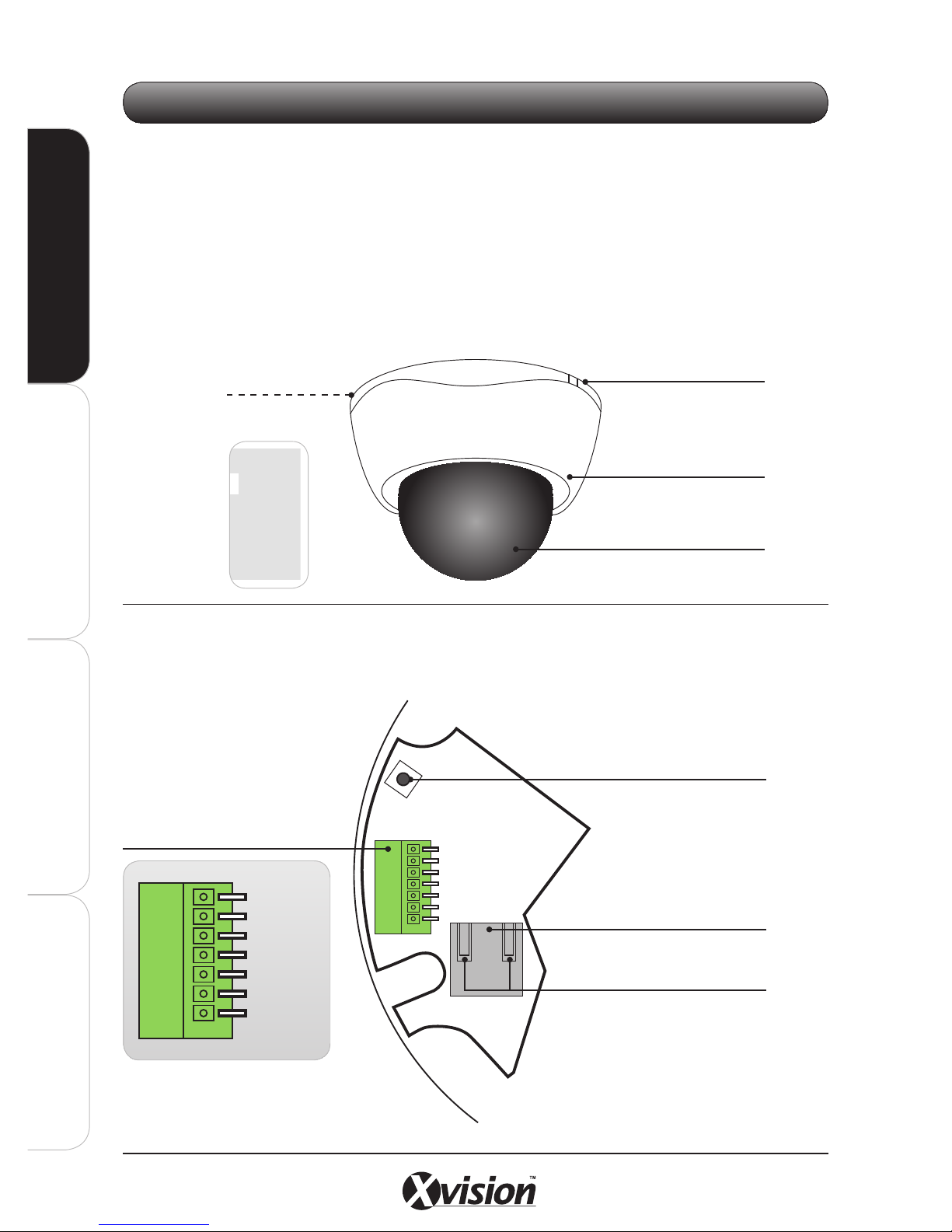

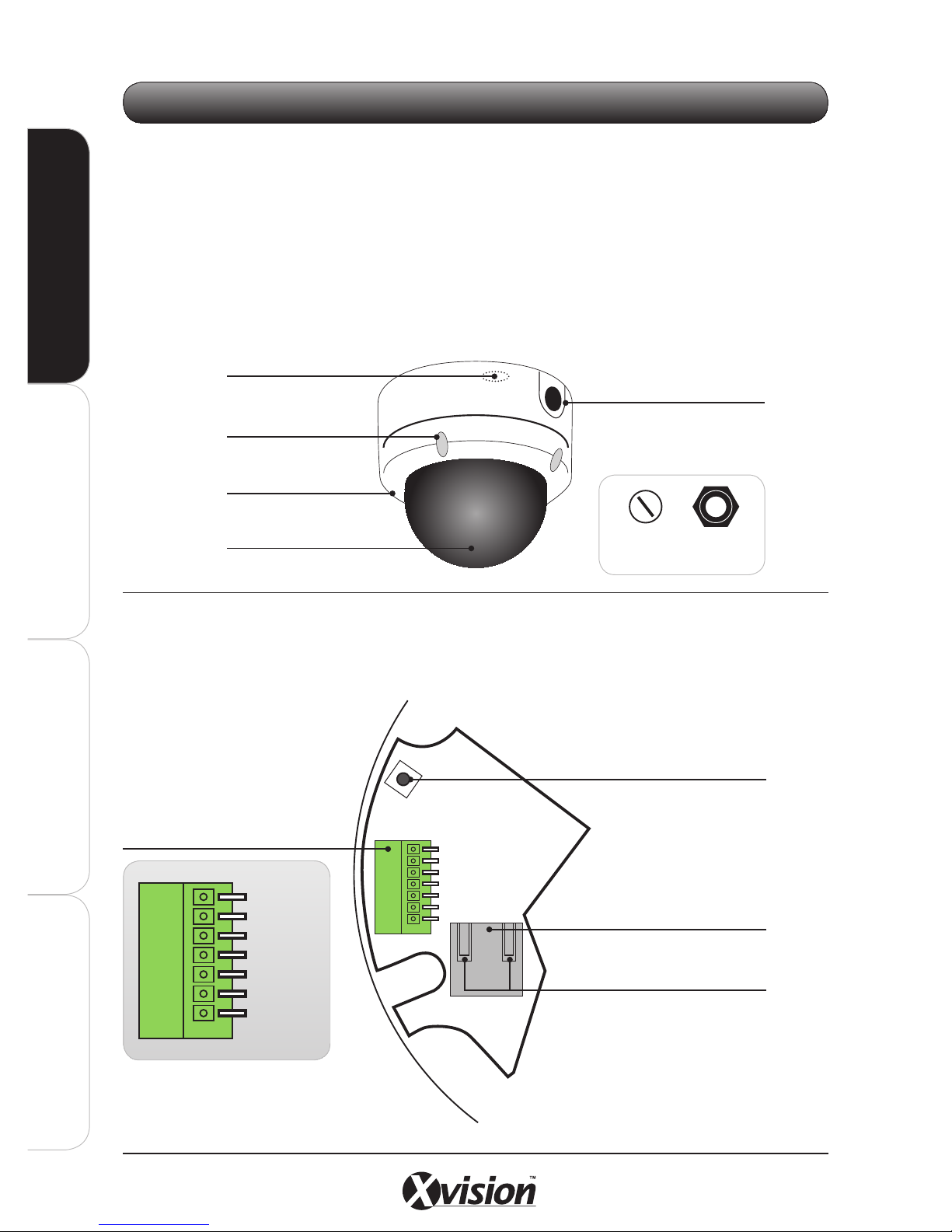

IDENTIFY PARTS
INTERNAL CONNECTIONS
Dome Base
Turn anti-clockwise
to remove
• Power Cable with terminal connections
• User’s Manual & Software CD
Side Cable Exit
Remove when inserting
cables through the side
of the dome
Dome Housing
Dome Cover
To access the internal connections, turn the dome base anti-clockwise to uncover the dome housing.
Reset Button
Terminal Block
VCC12
GND
DIGITAL_IN
ALARM_OUT
AUDIO_IN
AUDIO_OUT
AUDIO_GND
Network Port
Status LEDs
Green LED indicates
connection is active.
Orange LED indicates
power is ON.
X100 Series Quick Guide 13
INSTALLATION

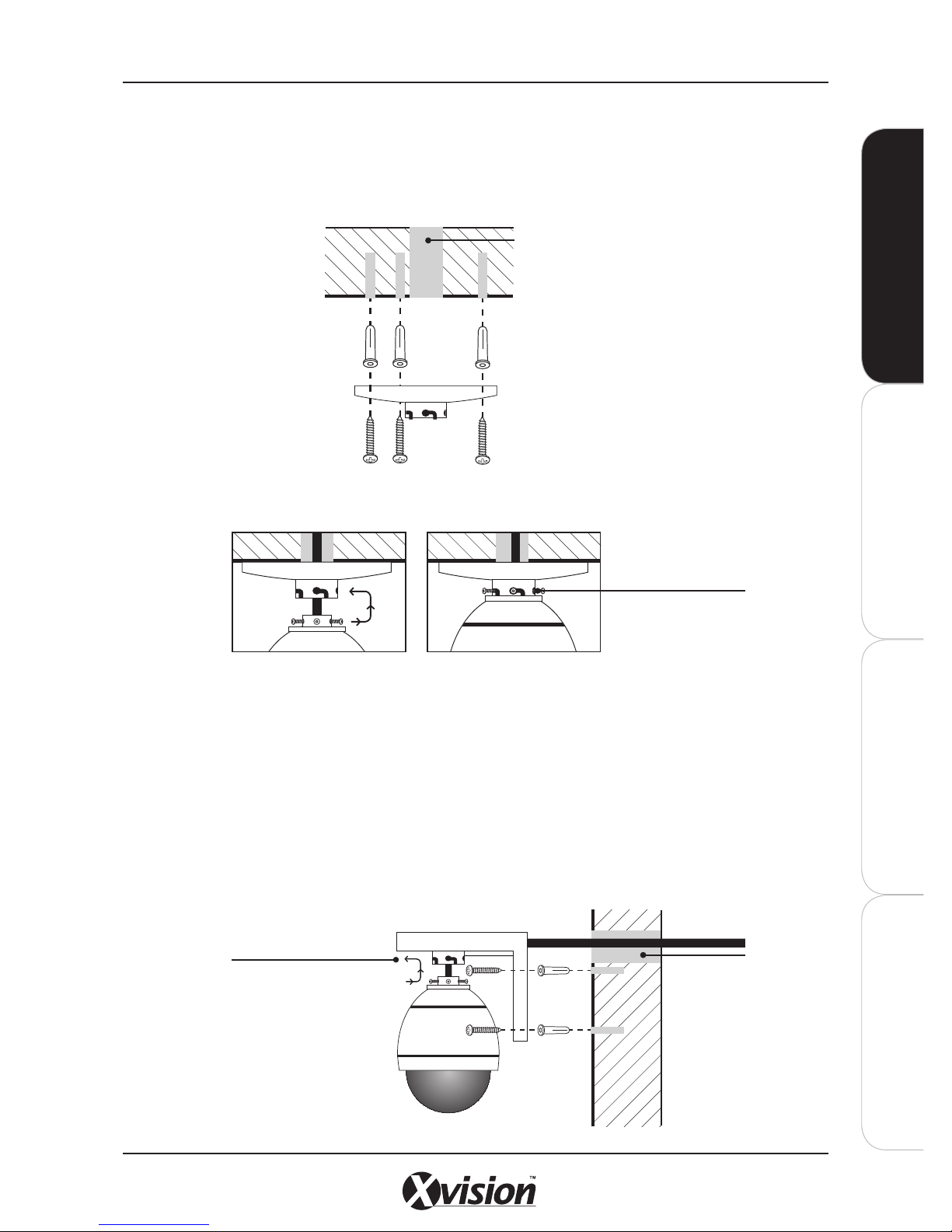

1. Select a mounting position on a wall or ceiling. Rotate the dome housing anti-clockwise to remove
the camera from the mounting base.
2. Use the mounting base to mark up screw positions and make a hole in the wall or ceiling to insert the
LAN cable and 12V DC Cable (if using Power over Ethernet, 12V DC Power is not required).
3. Feed the cables through the hole.
4. Use the screws and wall plugs supplied to fix the mounting base.
5. Insert the cables through the side cable exit or from the rear of the camera.

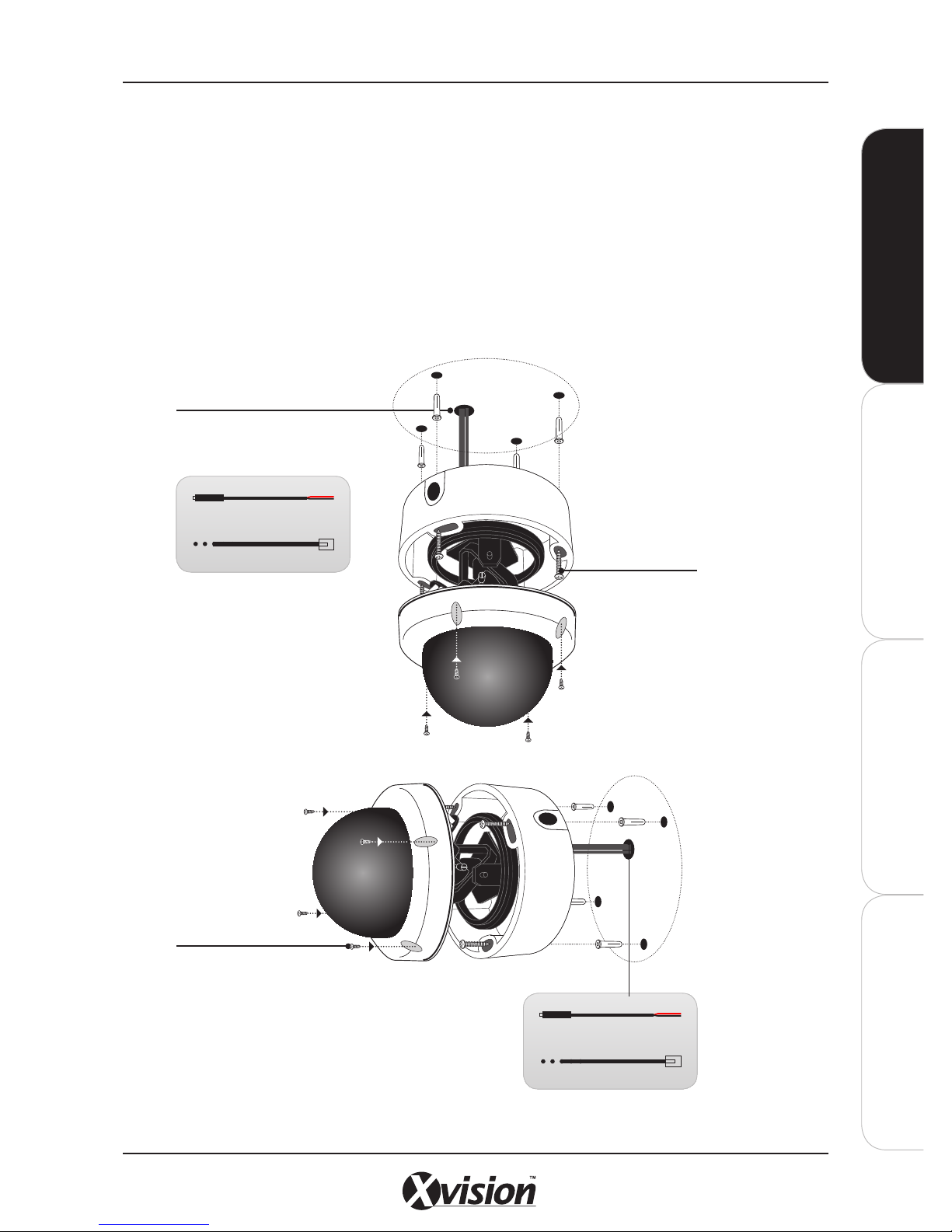

CEILING MOUNT
Push cables through
the side cable exit
Power Cable To Power Adaptor
To Network
Holes for
fixing base to
wall or ceiling
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
WALL MOUNT
Push cables through
the side cable exit
Power Cable To Power Adaptor
To Network
Holes for
fixing base to
wall or ceiling
14 X100 Series Quick Guide
6. Adjust the camera direction and angle of view as required using the camera bracket inside.
- Make any lens (focus) adjustments using the manual Focus Ring after you have connected the camera and have
setup live viewing via your PC.

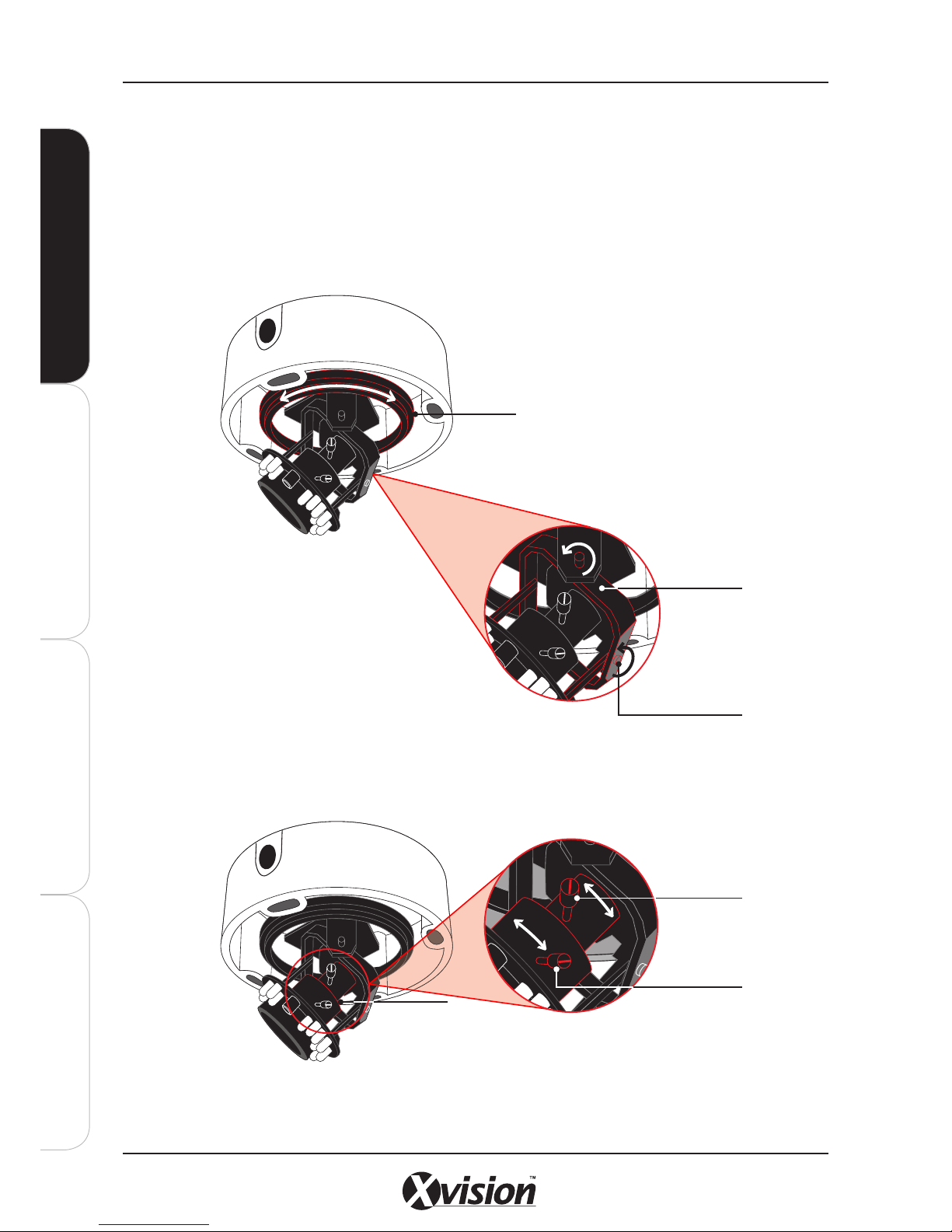

CAMERA DIRECTION ADJUSTMENT
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
Focus Ring
Camera bracket
For Horizontal
Adjustment
For Horizontal
(Left/Right) Board
Camera’s
Tilt bracket
For Vertical
Angle
Adjustment
Camera’s
Board hinge
Adjustment

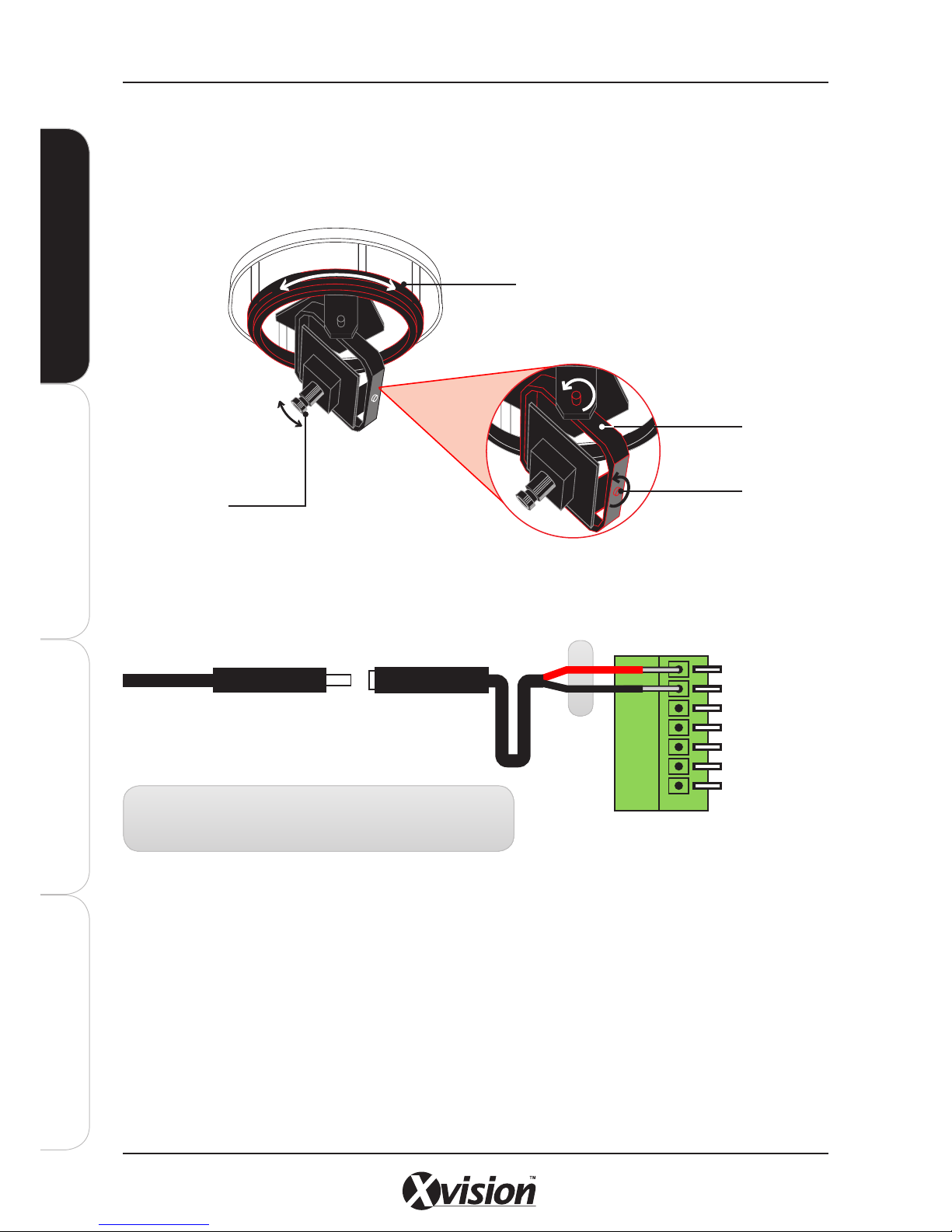

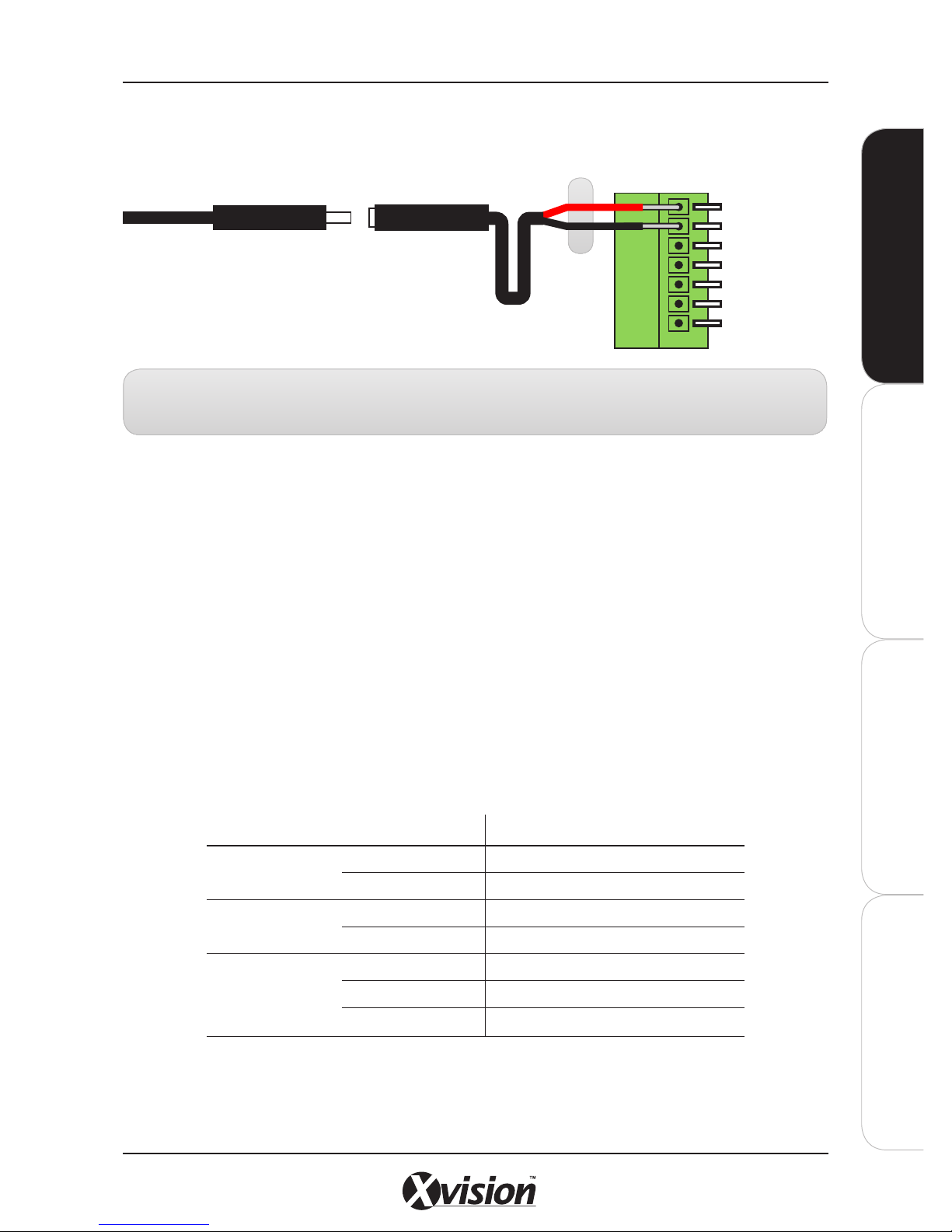

7. Connect the Power Cable to the correct terminals; attach Positive (+) to VCC12 and Negative (-) to
GND as shown (if using PoE this step is not required):
(to Mains Power)
Power CablePower Adaptor
Note: Incorrect wiring may cause damage to the camera.
Please ensure + and - terminal connections are fitted correctly.
+
-
VCC12
GND
DIGITAL_IN
ALARM_OUT
AUDIO_IN
AUDIO_OUT
AUDIO_GND
8. Connect the LAN cable to the Network Socket and the 12V DC Power Adaptor to the Power Cable.
9. Re-attached the dome housing to the dome base.
10. The camera is now ready for you to setup and configure using your PC.
- See SETUP on page 34.

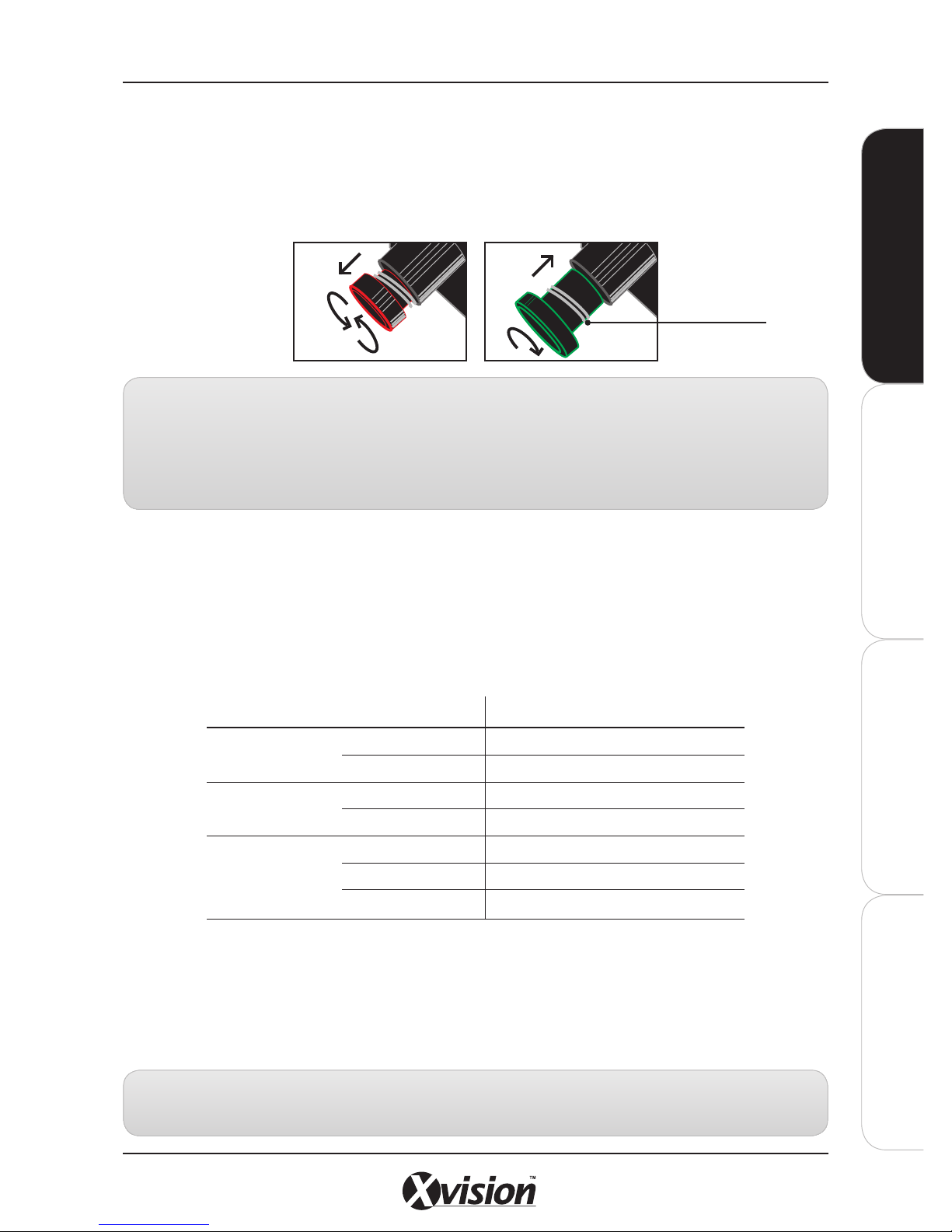

Using an Optional Lens
The X100D camera is supplied with a 4.0mm board lens for 50° viewing angle. The lens can be manually
replaced with an Xvision Megapixel Board Lens to achieve a different viewing angle. Any lens change
should be made after you have connected the camera and have set up live viewing via your PC so that
the focus can be set correctly.
X100 Series Quick Guide 15
To replace the lens:
1. Open the dome cover and carefully turn the lens to unscrew it from the board mount.
2. Once removed, slide off the small spring around the lens and place this onto the new lens.
3. Screw the new lens onto the board mount and set the required focus by turning the lens.
4. Replace the dome cover once all adjustments have been made.
Place spring on
new lens before
screwing back on
to board mount
Note: The following Xvision Megapixel lenses are compatible with the X100D IP camera:
• XL010P-PRO (1.55mm Fixed Iris Megapixel Lens, for 135° viewing angle)
• XL035P-PRO (3.5mm Fixed Iris Megapixel Lens, for 85° viewing angle)
• XL060P-PRO (6.0mm Fixed Iris Megapixel Lens, for 43° viewing angle)
• XL080P-PRO (8.0mm Fixed Iris Megapixel Lens, for 35° viewing angle)
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
For Audio
Connect an external Microphone for monitoring audio. Connect an audio output device such as a
speaker with an amplifier for voice alerting or for enabling the 2 Way Audio function.
See table below for details on connection.

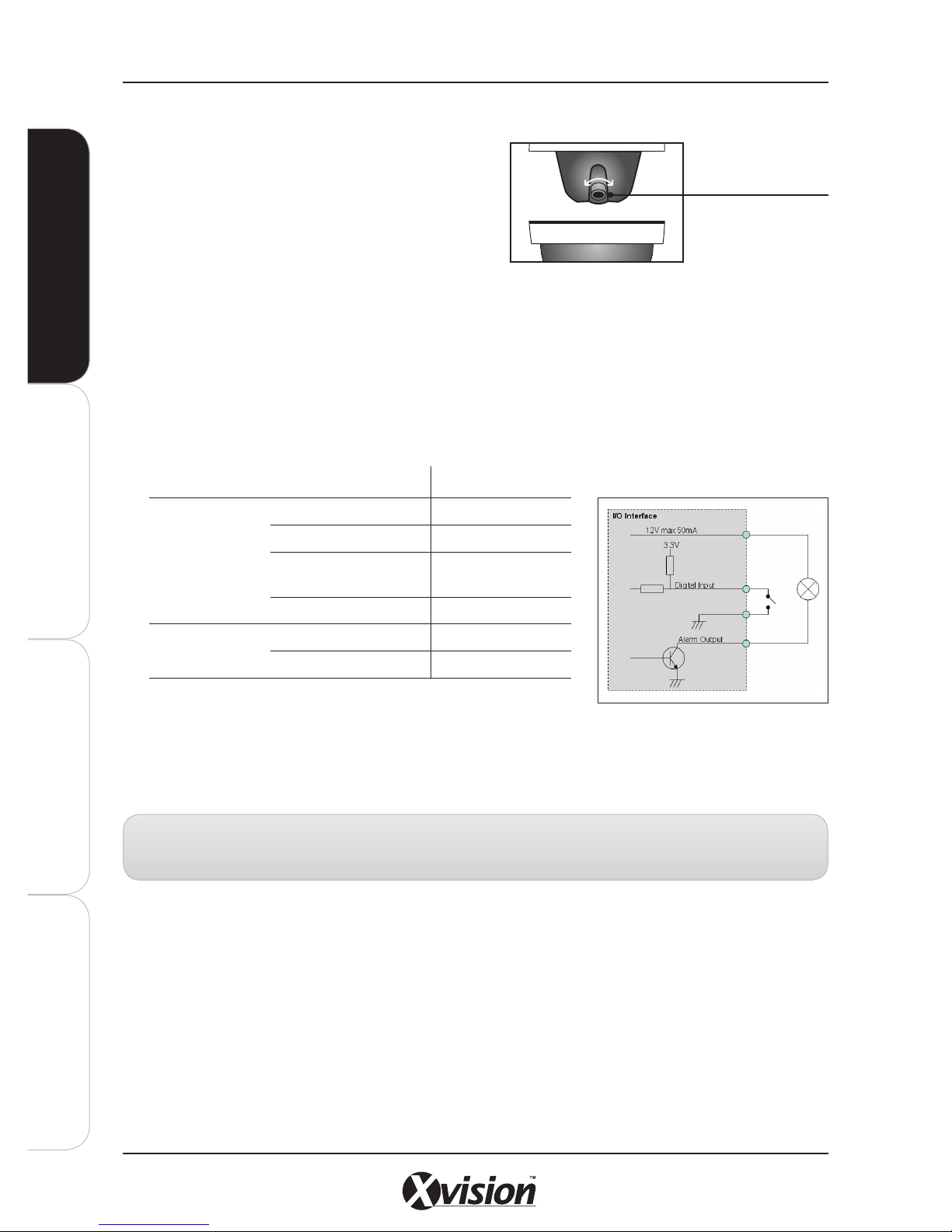

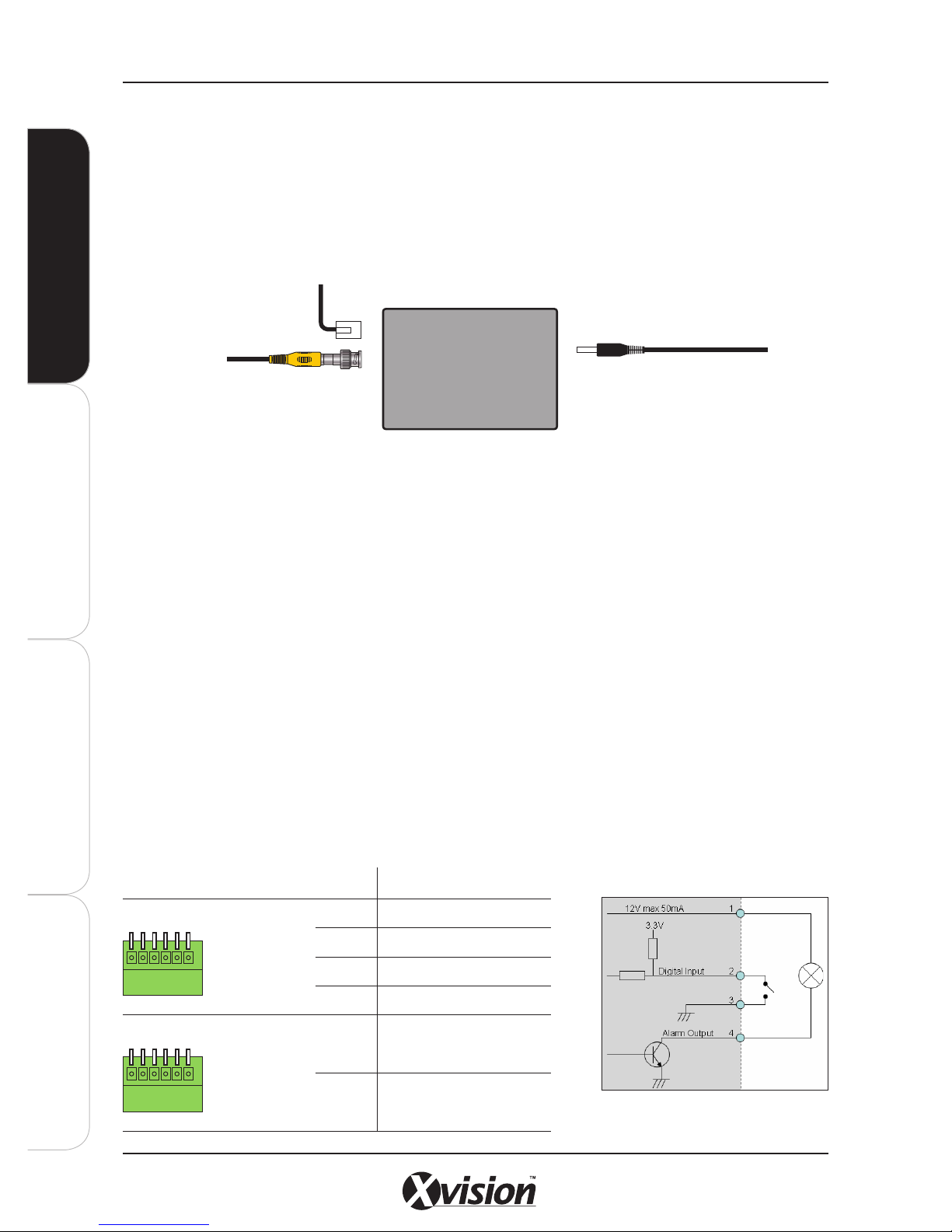

Audio and Alarm Connections
Grouping Terminal Name Connect to:
POWER
ALARM SENSOR
AUDIO
VCC12 Positive (+) Power Cable
GND Negative (-) Power Cable
DIGITAL_IN Alarm Sensor Input
ALARM_OUT Alarm Output
AUDIO_IN External Microphone / Audio Input
AUDIO_OUT External Speaker / Audio Out
AUDIO_GND Audio Ground
Resetting your camera
The Reset Button is used to restore the factory default settings. If you are experiencing problems
with the IP camera, sometimes restarting the device will make the system revert back to a normal state.
To reset, hold the button for at least 5 seconds. The camera will restore factory settings & reboot.
Note: Restoring the factory default setting will lose all the previous settings including the IP address.
You will need to run the IPWizard II program to re-configure the camera to enable it to work properly again.
16 X100 Series Quick Guide
1.4 X100V VANDAL RESISTANT IP DOME CAMERA
PACKAGE CONTENTS
• X100V IP Camera
• Fixing Screws
• Allen Key
• 12V DC Power Adaptor
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
IDENTIFY PARTS
INTERNAL CONNECTIONS
Top Cable Exit
Tamper Resistant
Screw Fittings
Dome Housing
Dome Cover
• Power Cable with terminal connections
• Side Exit Fitting
• Stopper
• User’s Manual & Software CD
Optional Side Cable Exit
Supplied with Side Exit
Fitting and Stopper (to block
off unused cable exit)
Stopper
Side Exit
Fitting
To access the internal connections, use the Allen Key to open the screws and uncover the dome housing.
Factory Default
Reset Button
Terminal Block
VCC12
GND
DIGITAL_IN
ALARM_OUT
AUDIO_IN
AUDIO_OUT
AUDIO_GND
Network Port
Status LEDs
Green LED indicates
Wired connection is
active. Orange LED
indicates power is ON.
X100 Series Quick Guide 17
INSTALLATION
1. Select a mounting position on a wall or ceiling. Decide whether the cables are to go through the
dome base or via the side cable exit and block off the unused exit with the stopper.
2. Remove the dome housing by unscrewing the tamper resistant screws with an Allen Key.
3. Use the mounting base to mark up screw positions and make a hole in the wall or ceiling to insert the
LAN cable and 12V DC Cable (if using Power over Ethernet, 12V DC Power is not required).
4. Feed the cables through the hole.
5. Use the screws and wall plugs supplied to fix the mounting base.

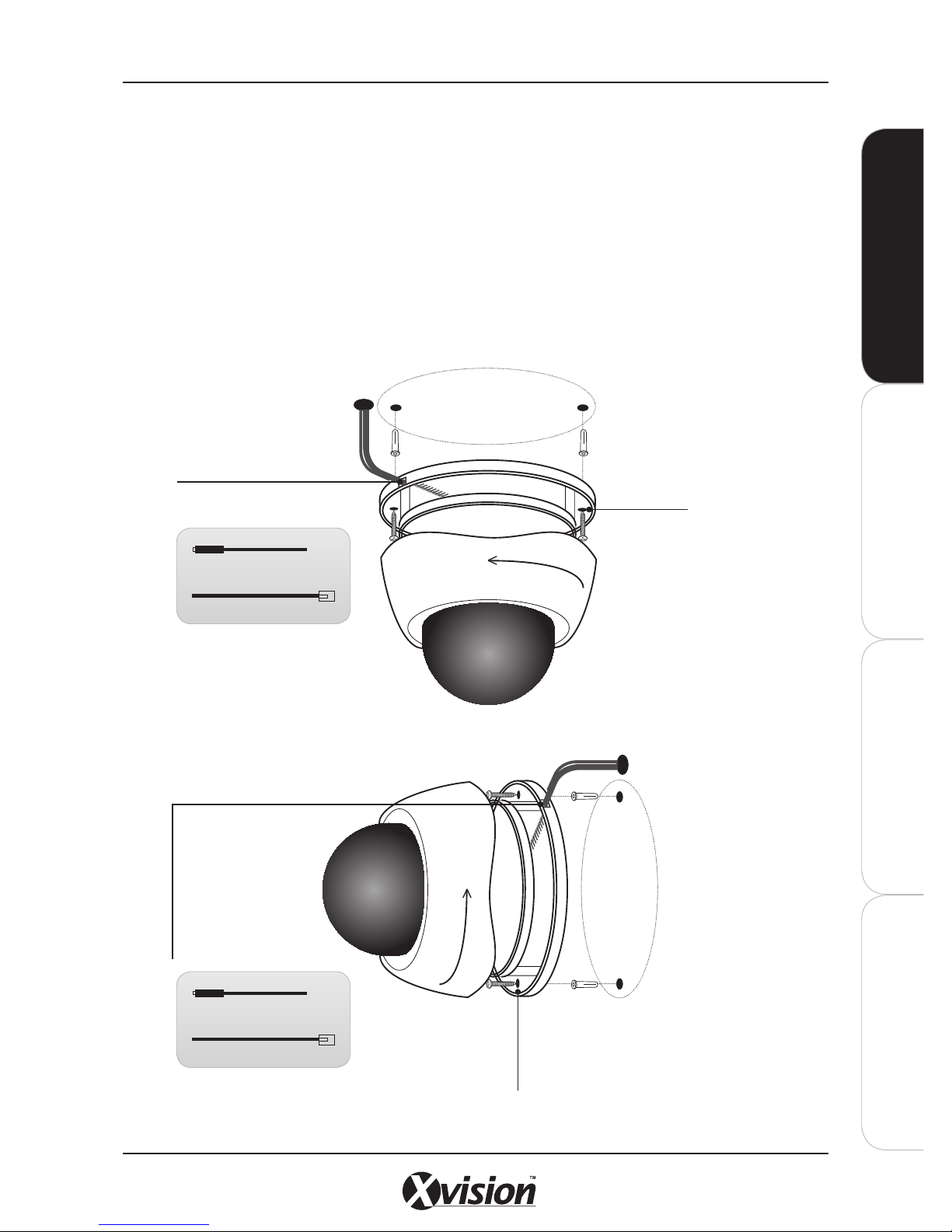

CEILING MOUNT
Position hole so cables can
be pushed through the top
or side cable exit
Power Cable To Power Adaptor
To Network
WALL MOUNT
Tamper Resistant
Screws for fixing
dome cover
Position hole so cables can
be pushed through the top
or side cable exit
Power Cable To Power Adaptor
To Network
Fixing Screws
for fixing base
to ceiling
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
6. Insert the cables through the top or side cable exit.
18 X100 Series Quick Guide
7. Adjust the camera direction and angle of view as required using the camera bracket inside.
- Make any lens (Zoom/Focus) adjustments after you have connected the camera & have setup live viewing via your PC.
- Make the Zoom Adjustment by rotating the screw anticlockwise for NEAR adjustment and clockwise for FAR
adjustment until you get the desired view. Next make the Focal Adjustment by rotating the screw anti-clockwise
for TELE adjustment and Clockwise for WIDE adjustment until you get the desired view.
- After adjustment, tighten both screws to set the Zoom and Focus Rings.
CAMERA DIRECTION ADJUSTMENT
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
LENS ADJUSTMENT
Camera bracket
For Horizontal
Adjustment
For Horizontal
(Left/Right) Board
Camera’s
Tilt bracket
For Vertical
Angle
Adjustment
Camera’s
Board hinge
Adjustment
Zoom
Adjustment
Screw
WIDE ~ TELE
Focus
Adjustment
Screw
NEAR ~ FAR
Zoom and
Focus Rings
X100 Series Quick Guide 19
8. Connect the 12V DC Power Adaptor to the Power Cable and attach the positive (+) to VCC12 and
the negative (-) to GND as shown (if using POE this step is not required):
(to Mains Power)
Power CablePower Adaptor
+
-
VCC12
GND
DIGITAL_IN
ALARM_OUT
AUDIO_IN
AUDIO_OUT
AUDIO_GND
Note: Incorrect wiring may cause damage to the camera. Please ensure + and - terminal connections are
fitted correctly.
9. Connect the LAN cable to the Network Socket.
10. Re-attach the dome housing to the dome base.
11. The camera is now ready for you to setup and configure your camera using your PC.
- See SETUP on page 34.
- The Auto Iris lens on the camera will require calibration before use. After you have setup and configured the
camera, please ensure you CALIBRATE the Auto Iris lens. See Appendix 1: HOW TO CALIBRATE AN AUTO IRIS LENS
on page 41.
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
For Audio
Connect an external Microphone for monitoring audio. Connect an audio output device such as a
speaker with an amplifier for voice alerting or for enabling the 2 Way Audio function.
See table below for details on connection.
Audio and Alarm Connections
Grouping Terminal Name Connect to:
POWER
ALARM SENSOR
AUDIO
VCC12 Positive (+) Power Cable
GND Negative (-) Power Cable
DIGITAL_IN Alarm Sensor Input
ALARM_OUT Alarm Output
AUDIO_IN External Microphone / Audio Input
AUDIO_OUT External Speaker / Audio Out
AUDIO_GND Audio Ground
20 X100 Series Quick Guide
Resetting your camera
The Reset Button is used to restore the factory default settings. If you are experiencing problems
with the IP camera, sometimes restarting the device will make the system revert back to a normal state.
To reset, hold the button for at least 5 seconds. The camera will restore factory settings & reboot.
Note: Restoring the factory default setting will lose all the previous settings including the IP address.
You will need to run the IPWizard II program to re-configure the camera to enable it to work properly again.
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
Auto Iris Lens
Remember to calibrate the Auto Iris lens once the camera has been set up and configured on the
network.
- See Appendix 1: HOW TO CALIBRATE AN AUTO IRIS LENS on page 41.
Note: Failure to calibrate the Auto Iris lens will result in the picture becoming dark over time.
1.5 X100B IP BULLET CAMERA
X100 Series Quick Guide 21
PACKAGE CONTENTS
• X100B IP Camera with Sun/Rain Shield
• Camera Bracket
• Fixing Screws & Wall Plugs
• 12V DC Power Adaptor
• User’s Manual & Software CD

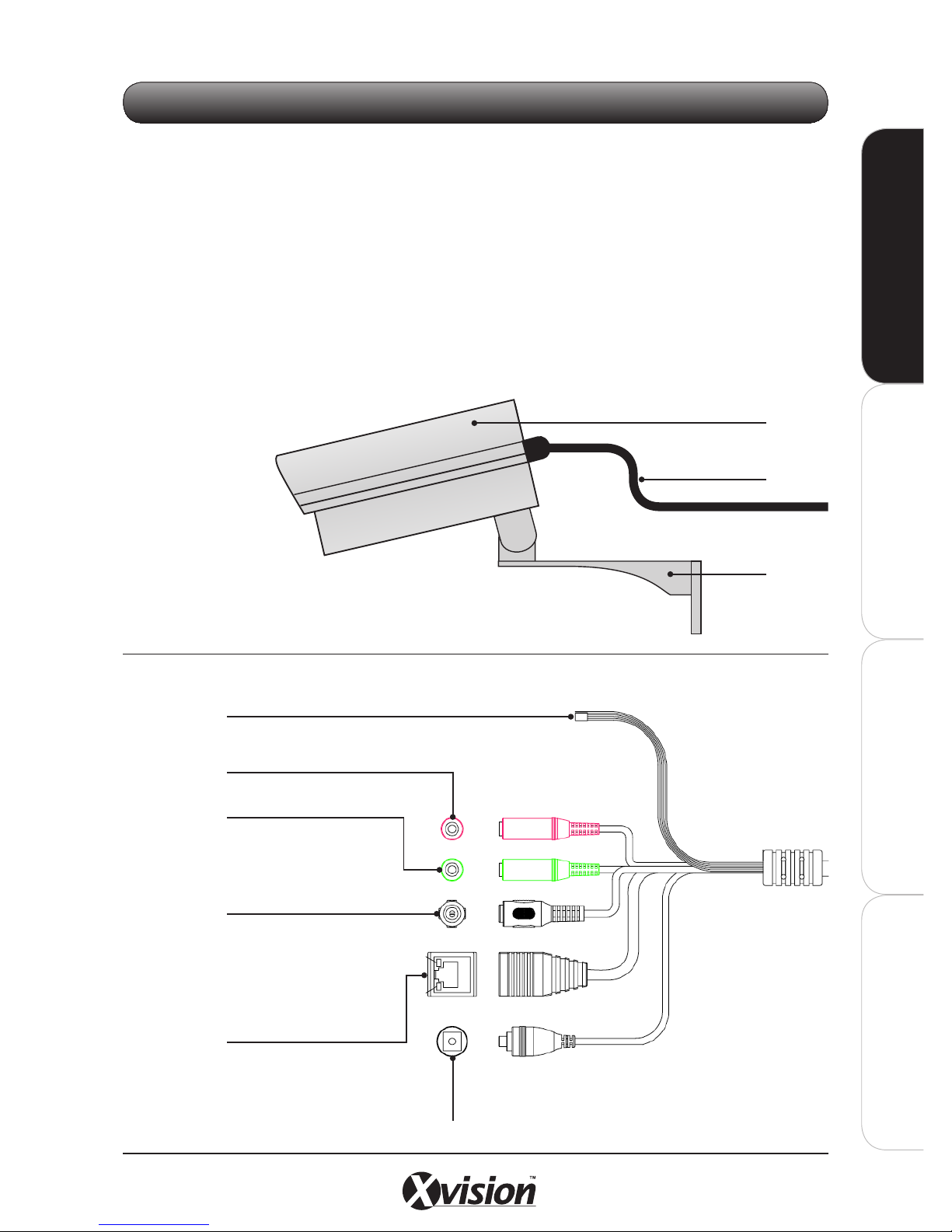

IDENTIFY PARTS
SIDE VIEW
Sun/Rain Shield
Trailing Lead
Bracket
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
CONNECTIONS ON TRAILING LEAD
Alarm I/O connections
Microphone In Socket
Audio Output Socket
12V DC Power Socket
Ensure only the 12V DC Power
Adaptor supplied with the
camera is used.
Network Port
(with Status LEDs)
Green LED indicates Wired
connection is active. Orange
LED indicates power is ON.
Reset Button
22 X100 Series Quick Guide
INSTALLATION

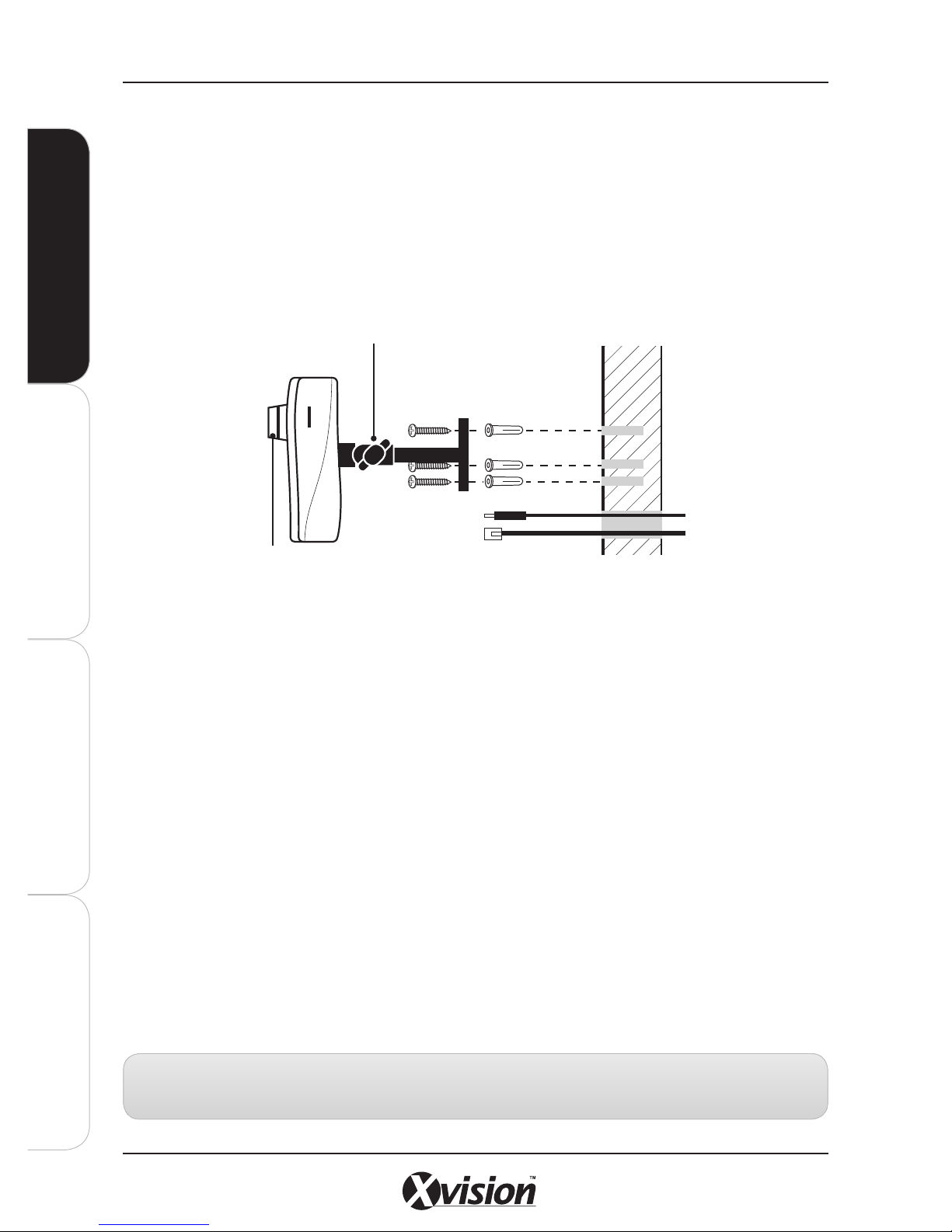

1. Select a mounting position and make a hole where the camera is to be installed
2. Use the screws and wall plugs supplied to fix the bracket on a wall or ceiling as shown.
WALL MOUNT
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
CEILING MOUNT
Feed trailing
lead through
ceiling
Feed trailing
lead through
wall
Slide
forward
sun/rain
shield to fix
bracket to
camera
3. Feed the trailing lead with connections through the hole.
4. Adjust the camera direction and angle of view as required using the bracket.
5. Connect the LAN cable and 12V DC Power Adaptor to camera (if using Power over Ethernet,
12V DC Power Adaptor is not required).
6. The camera is now ready for you to setup and configure your camera using your PC.
- See SETUP on page 34.
For Audio
Connect the 3.5mm microphone Audio In Socket to an external Microphone for audio monitoring.
Connect the 3.5mm microphone Audio Out Socket to an audio output device such as a speaker with an
amplifier for voice alerting or for enabling the 2 Way Audio function.

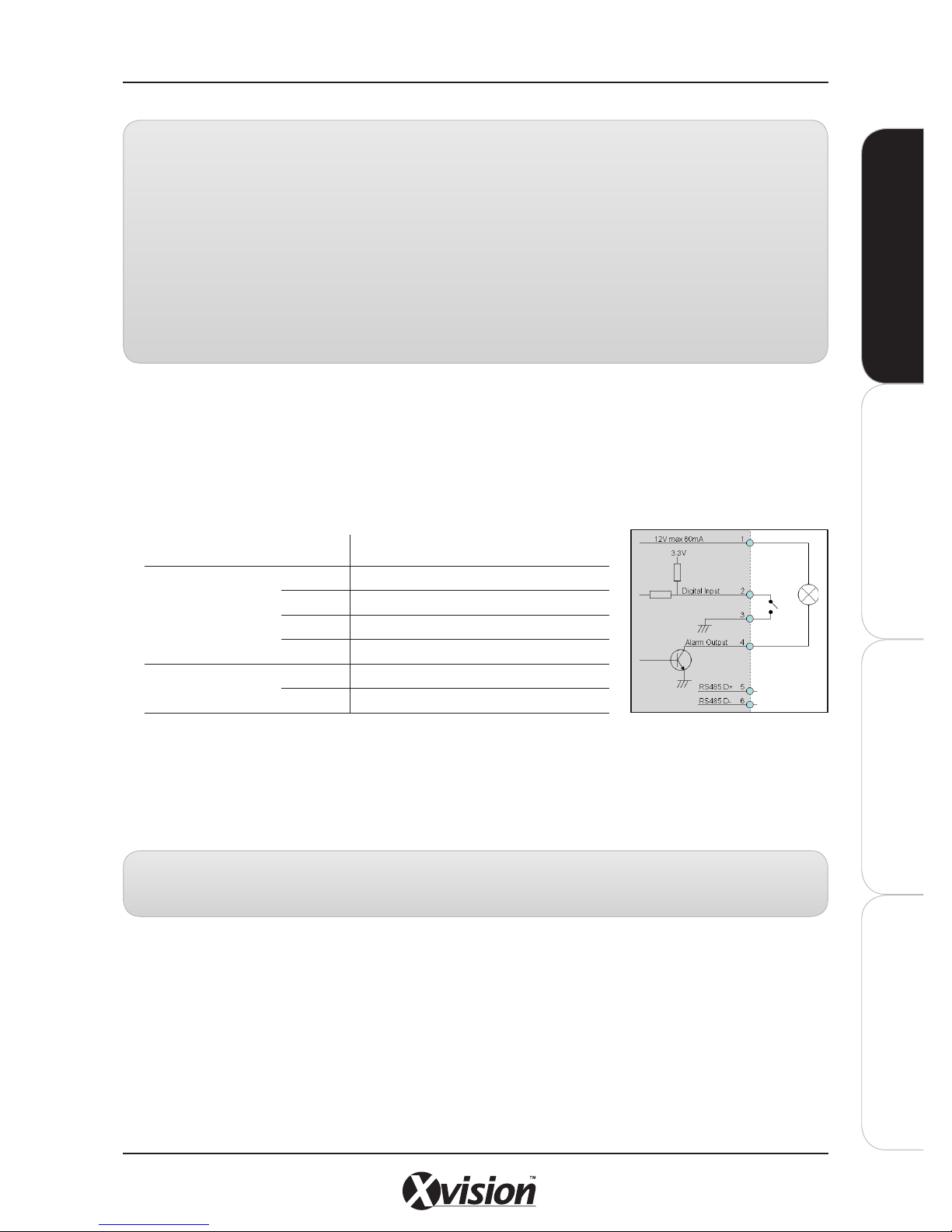

Alarm and RS485 Connections
Grouping Cable Name (Colour) Connect to:
DI (Green/White) Alarm Sensor Input
X100 Series Quick Guide 23
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
ALARM SENSOR
(Optional)
RS485
DO (Orange/White) Alarm Output
12V DC (Brown/White) Alarm Output Power (12V DC 50mA Max)
GND (Blue/White) Alarm Sensor Ground
RS485 + (Purple/White) Not used
RS485 - (Grey) Not used
Resetting your camera
The Reset Button is used to restore the factory default settings. If you are experiencing problems
with the IP camera, sometimes restarting the device will make the system revert back to a normal state.
To reset, hold the button for at least 5 seconds. The camera will restore factory settings & reboot.
Note: Restoring the factory default setting will lose all the previous settings including the IP address.
You will need to run the IPWizard II program to re-configure the camera to enable it to work properly again.
24 X100 Series Quick Guide
1.6 X100T IP BODY CAMERA
PACKAGE CONTENTS
• X100T IP Camera with Lens
• Camera Mount with 2x screws
• Camera Bracket
• Fixing Screws & Wall Plugs
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
IDENTIFY PARTS
SIDE VIEW
CONNECTIONS ON REAR
Lens
Focus Ring
Microphone
• CS Mount Lens Adaptor
• 12V DC Power Adaptor
• User’s Manual & Software CD
Auto Iris Lens
Connection
Alarm I/O
connections
Audio Output
Socket
1 2 3 4 5 6
DI/DO
AUDIO
LAN
Network Port
(with Network Type LEDs)
Green LED indicates Wired connection is
active. Orange LED indicates power is ON.
BRACKET MOUNT
Attach the Camera Mount to the top or bottom of the
camera and secure the bracket as shown.
OUT
12V DC
12V DC Power Socket
Ensure only the 12V DC
Power Adaptor supplied
with the camera is used.
RST
Reset Button
X100 Series Quick Guide 25
INSTALLATION
1. Select a mounting position on a wall or ceiling. Make a hole where the camera is to be installed to
insert the LAN cable and 12V DC Cable (if using Power over Ethernet, 12V DC Power is not
required).
2. Feed the cables through the hole.
3. Use the screws and wall plugs supplied to fix the bracket on a wall or ceiling as shown.
WALL MOUNT
CEILING MOUNT
Focus Ring
To Network
To Power
Focus Ring
To Power
To Network
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
4. Adjust the camera direction and angle of view as required using the bracket.
- Make any lens (focus) adjustments using the manual Focus Ring after you have connected the camera and have
setup live viewing via your PC.
26 X100 Series Quick Guide
5. Connect the LAN cable and 12V DC Power Adaptor to camera.
6. The camera is now ready for you to setup and configure your camera using your PC.
- See SETUP on page 34.
Using an Optional Lens
The X100T camera is supplied with a 4.0mm fixed lens for 50° viewing angle. The lens can be manually
replaced with an Xvision Megapixel Varifocal or Fixed Lens to achieve a different viewing angle. Any
lens change should be made after you have connected the camera and have set up live viewing via your
PC so that the focus can be set correctly.
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT

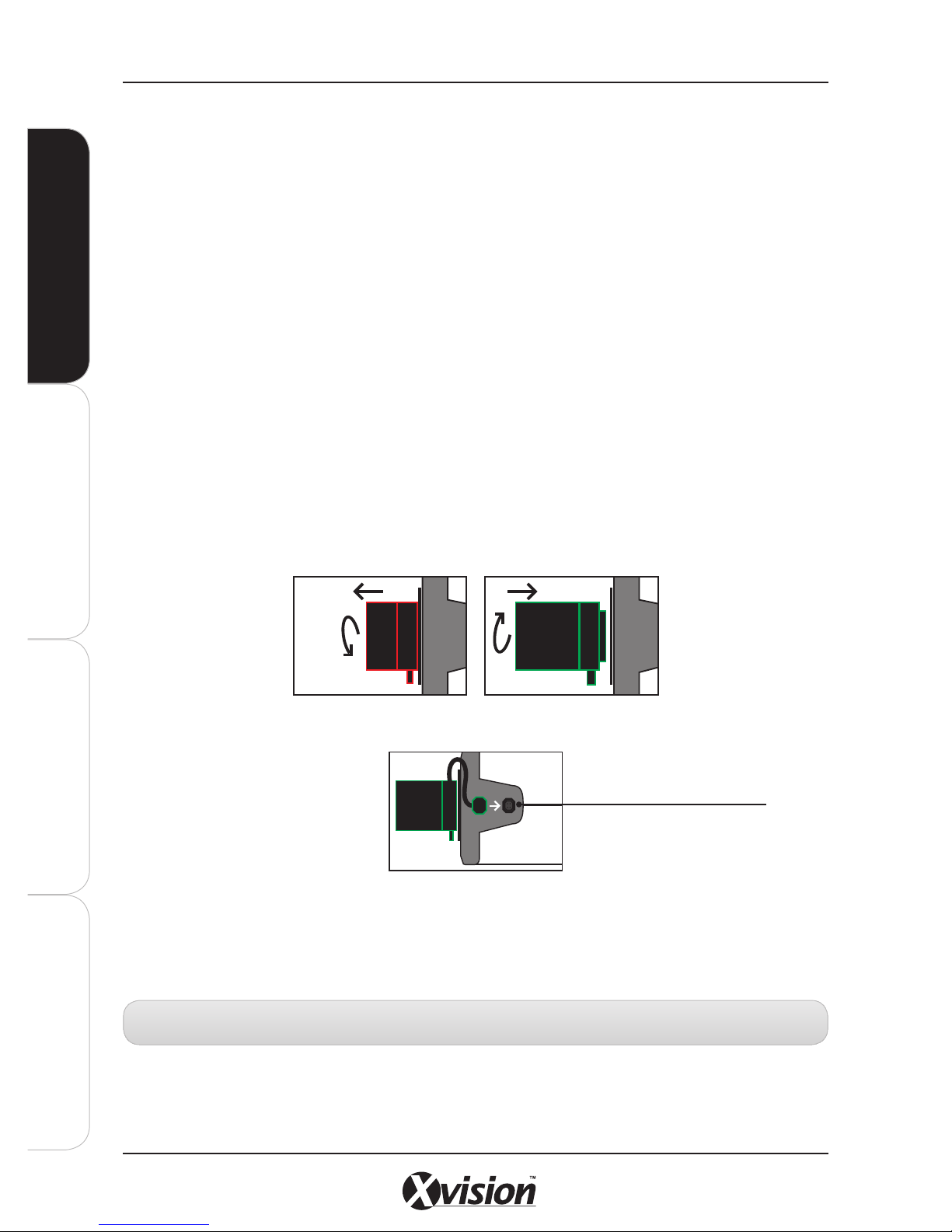

To replace the lens:
1. Carefully turn the lens to unscrew it from the camera body.
2. Screw the new lens onto the camera and set the required focus by turning the lens focus ring.
- If you are replacing the lens with a VARIFOCAL lens, the zoom and focus should be adjusted using the separate
zoom and focus rings.
- If you are replacing the lens with a AUTO IRIS lens, ensure the Auto Iris Lens cable is connected to the
corresponding connection on the camera’s side.
3. When all adjustments have been made, tighten any lens screws to ensure the zoom and focus are set.
REPLACING THE LENS
AUTO IRIS LENS CONNECTION
Ensure the Auto Iris cable
is connected here
4. If the lens is being replaced by an AUTO IRIS lens it will require calibration before use. Ensure the lens
is calibrated after the camera has been set up and configured on the network.
- See Appendix 1: HOW TO CALIBRATE AN AUTO IRIS LENS on page 41.
Note: Failure to calibrate the Auto Iris lens will result in the picture becoming dark over time.
X100 Series Quick Guide 27
Note: The following Xvision Megapixel lenses are compatible with the X100T IP camera:
• XL010M-PRO (1.55mm Fixed Iris Megapixel Lens, for 135° viewing angle)
• XL040M-PRO (4.0mm Fixed Iris Megapixel Lens, for 64° viewing angle)
• XL0550M-PRO (5.0 to 50.0mm Manual Iris Varifocal Megapixel Lens, for 6 to 49° viewing angle)
• XL0409A-PRO (4.0 to 9.0mm Auto Iris Varifocal Megapixel Lens, for 30 to 64° viewing angle)*
• XL4510A-PRO (4.5 to 10.0mm Auto Iris Varifocal Megapixel Lens, for 28 to 57° viewing angle)*
• XL0550A-PRO (5.0 to 50.0mm Auto Iris Varifocal Megapixel Lens, for 6 to 49° viewing angle)*
• XL1040A-PRO (10.0 to 40.0mm Auto Iris Varifocal Megapixel Lens, for 8 to 28° viewing angle)*
*Calibration required, see page 41.
For Audio
Connect the 3.5mm microphone Audio Out Socket to an audio output device such as a speaker with an
amplifier for voice alerting or for enabling the 2 Way Audio function.
Alarm and RS485 Connections
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
Grouping Pin Connect to:
1 12V DC Power (60mA Max)
ALARM SENSOR
(Optional)
RS485
2 Alarm Sensor Input
3 GND
4 Alarm Output
5 RS485 + (Not used)
6 RS485 - (Not used)
Resetting your camera
The Reset Button is used to restore the factory default settings. If you are experiencing problems
with the IP camera, sometimes restarting the device will make the system revert back to a normal state.
To reset, hold the button for at least 5 seconds. The camera will restore factory settings & reboot.
Note: Restoring the factory default setting will lose all the previous settings including the IP address.
You will need to run the IPWizard II program to re-configure the camera to enable it to work properly again.
28 X100 Series Quick Guide
1.7 X104S VANDAL RESISTANT IP SPEED DOME
PACKAGE CONTENTS
• X104S IP Camera
• Ceiling Mount with 4x Screws
• Fixing Screws & Wall Plugs

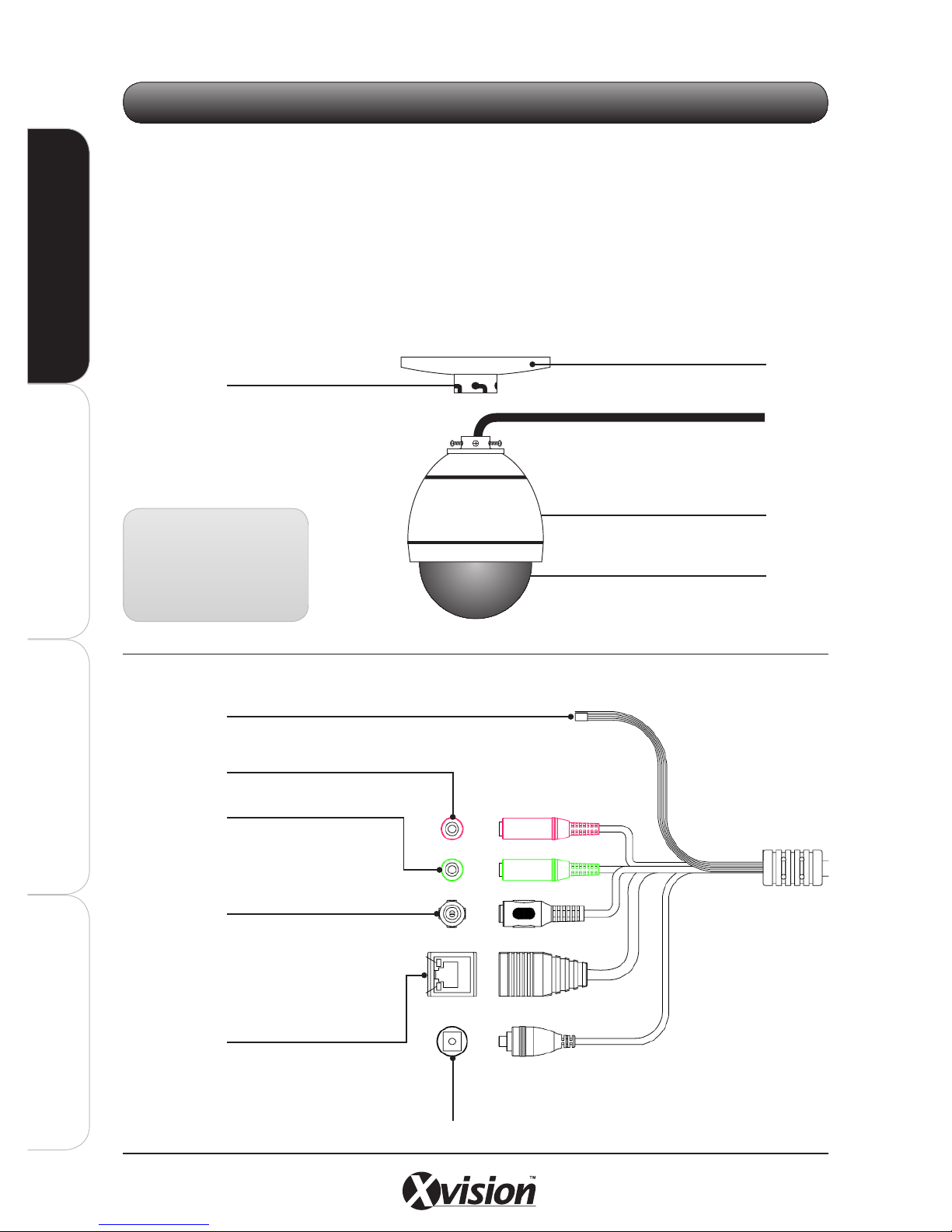

IDENTIFY PARTS
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
SIDE VIEW
Note: An optional Wall
mount bracket is available
for mounting the camera
against a wall.
• Allen Key
• 12V DC Power Adaptor
• User’s Manual & Software CD
Ceiling Mount
Fixing Slot for
mounting camera
Trailing Lead
Speed Dome Housing
Speed Dome Cover
CONNECTIONS ON TRAILING LEAD
Alarm I/O connections
Microphone In Socket
Audio Output Socket
12V DC Power Socket
Ensure only the 12V DC Power
Adaptor supplied with the
camera is used.
Network Port
(with Status LEDs)
Green LED indicates Wired
connection is active. Orange
LED indicates power is ON.
Reset Button
X100 Series Quick Guide 29
INSTALLATION
1. Make a hole in the ceiling where the camera is to be installed.
2. Use the screws and wall plugs supplied to fix the bracket on the ceiling.
Hole to feed
trailing lead
through
the ceiling
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
3. Feed the trailing lead through the Ceiling Mount and fix the camera to the bracket as shown:
Screw Dome Housing to
Ceiling Mount using the
Allen Key provided
4. Connect the LAN cable and 12V DC Power Adaptor to camera (if using Power over Ethernet,
12V DC Power Adaptor is not required).
5. The camera is now ready for you to setup and configure your camera using your PC.
- See SETUP on page 34.
Fitting the optional Wall Bracket
1. Make a hole in the wall where the camera is to be installed and use the screws and wall plugs
2. Feed the trailing lead through the Wall Mount and fix the camera to the bracket as shown, then
supplied to fix the bracket to the surface.
continue to wire the camera as described above.
Screw Dome Housing to
Ceiling Mount using the
Allen Key provided
Hole to feed
trailing lead
through
the wall
30 X100 Series Quick Guide
4 CAMERA INSTALLATION
Lens Adjustment
Make any lens (focus) adjustments after you have
connected the camera and have setup live viewing via
your PC.
To adjust the lens, open the Dome Cover by turning it
anti-clockwise and rotate the Focus Ring.
For Audio
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
Connect the 3.5mm microphone Audio In Socket to an external Microphone for audio monitoring.
Connect the 3.5mm microphone Audio Out Socket to an audio output device such as a speaker with an
amplifier for voice alerting or for enabling the 2 Way Audio function.
Alarm and RS485 Connections
Grouping Cable Name (Colour) Connect to:
Focus Ring
DI (Green/White) Alarm Sensor Input
ALARM SENSOR
(Optional)
RS485
DO (Orange/White) Alarm Output
12V DC (Brown/White)
GND (Blue/White) Alarm Sensor Ground
RS485 + (Purple/White) Not Used
RS485 - (Grey) Not Used
Alarm Output Power
(12V DC 50mA Max)
Resetting your camera
The Reset Button is used to restore the factory default settings. If you are experiencing problems
with the IP camera, sometimes restarting the device will make the system revert back to a normal state.
To reset, hold the button for at least 5 seconds. The camera will restore factory settings & reboot.
Note: Restoring the factory default setting will lose all the previous settings including the IP address.
You will need to run the IPWizard II program to re-configure the camera to enable it to work properly again.
X100 Series Quick Guide 31
1.8 X100VS VIDEO SERVER (CODEC)
PACKAGE CONTENTS
• X100VS Video Server
• 12V DC Power Adaptor
• User’s Manual & Software CD
IDENTIFY PARTS
FRONT VIEW
Network Port 12V DC Out Power
BNC Video Input
LAN
VIDEO IN
• Audio/Video Output Cable
• Power Cable for External Camera
• User’s Manual & Software CD
Socket
Alarm I/O
12V DC
OUT
DI/DO/ RS485
connections
Power Cable for External Camera
(optional) Used to power one camera.
12V DC 400mA Max.
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
REAR VIEW
Status LED
Green LED indicates Wired connection
is active. The LED will flash when a
user accesses the unit.
AUDIO
microSD
IN
Micro SD
Memory
Microphone In
Socket
Card Slot
Insert SD Card for
on board recording
12V DC Power Socket
Ensure only the 12V DC Power
Adaptor supplied with the
STATUS
camera is used.
12V DC
IN
RESET
AUDIO/VIDEO
Reset Button
Audio/Video
Output Socket
OUT
Audio/Video
Output Cable
Audio
Video
32 X100 Series Quick Guide
INSTALLATION
1. Attach Video lead from your analogue camera to the BNC Video Input
- Ensure the analogue camera is powered
2. Connect the LAN cable and 12V DC Cable to the Video Server (if using Power over Ethernet,
12V DC Power is not required).
To Network
From analogue camera
To Mains Power (not
required if Power over
Ethernet being used)
VIDEO SERVER
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
INSTALL & CONNECT
3. The unit is now ready for you to setup and configure using your PC.
- See SETUP on page 34.
Power an External Camera
Use the Power Cable provided to connect the 12V DC Out Power Socket to power one external camera.
The output power is 12V DC 400mA maximum. This is optional.
Connect an external Microphone
Connect the 3.5 microphone Audio In Socket to an external Microphone or your camera’s Audio Output
for audio monitoring.
Connect an A/V device
Use the Audio/Video Output Cable to connect Audio/Video Out to a Monitor, DVR or similar device.
The white connection is for Audio, the yellow connection is for Video. The Audio output can be used to
connect to a speaker with an amplifier for voice alerting or for enabling the 2 Way Audio function.
Alarm and RS485 Connections
Grouping Pin Connect to:
1 2 3 4 5 6
ALARM
SENSOR
1 12V DC Power (50mA Max)
2 Alarm Sensor Input
3 GND
1 2 3 4 5 6
RS485
(Connects to
RS485 on a
Zoom, Pan Tilt
Zoom or Speed
Dome Camera)
4 Alarm Output
5 RS485 +
6 RS485 -
X100 Series Quick Guide 33
Connecting an RS485 Zoom, Pan Tilt Zoom or Speed Dome
The Video Server supports the following functions when connected to a compatible Zoom, Pan Tilt Zoom
or Speed Dome:
- Pan Tilt Zoom,
- Set Presets
- Call Presets
- Configure camera via On Screen Menu
The protocols supported are:
- Pelco D
- Pelco P
Resetting your camera
The Reset Button is used to restore the factory default settings. If you are experiencing problems
with the IP camera, sometimes restarting the device will make the system revert back to a normal state.
To reset, hold the button for at least 5 seconds. The camera will restore factory settings & reboot.
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
INSTALL & CONNECT
Note: Restoring the factory default setting will lose all the previous settings including the IP address.
You will need to run the IPWizard II program to re-configure the camera to enable it to work properly again.
34 X100 Series Quick Guide
2.1 SETTING UP YOUR NETWORK
WHAT YOU NEED
1. Your X100 Series IP Camera(s)
2. LAN cable and Connection Equipment such as a hub or router suiting your network environment
- Use Cat5 STRAIGHT THROUGH cable to connect the IP Camera(s) to a network switch or hub.
- For more information on Connection Configuration, see Appendix A in the Main User Manual.
3. An ‘Administrator’ PC/Laptop running Internet Explorer 6.0 or higher
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
- This ‘Administrator’ computer is given all authorities for setting, operating and managing the functions of the IP
Camera
- Security passwords can be set to enable other users to access and control the system.
- More than one user’s PC can VIEW monitored images of one network camera

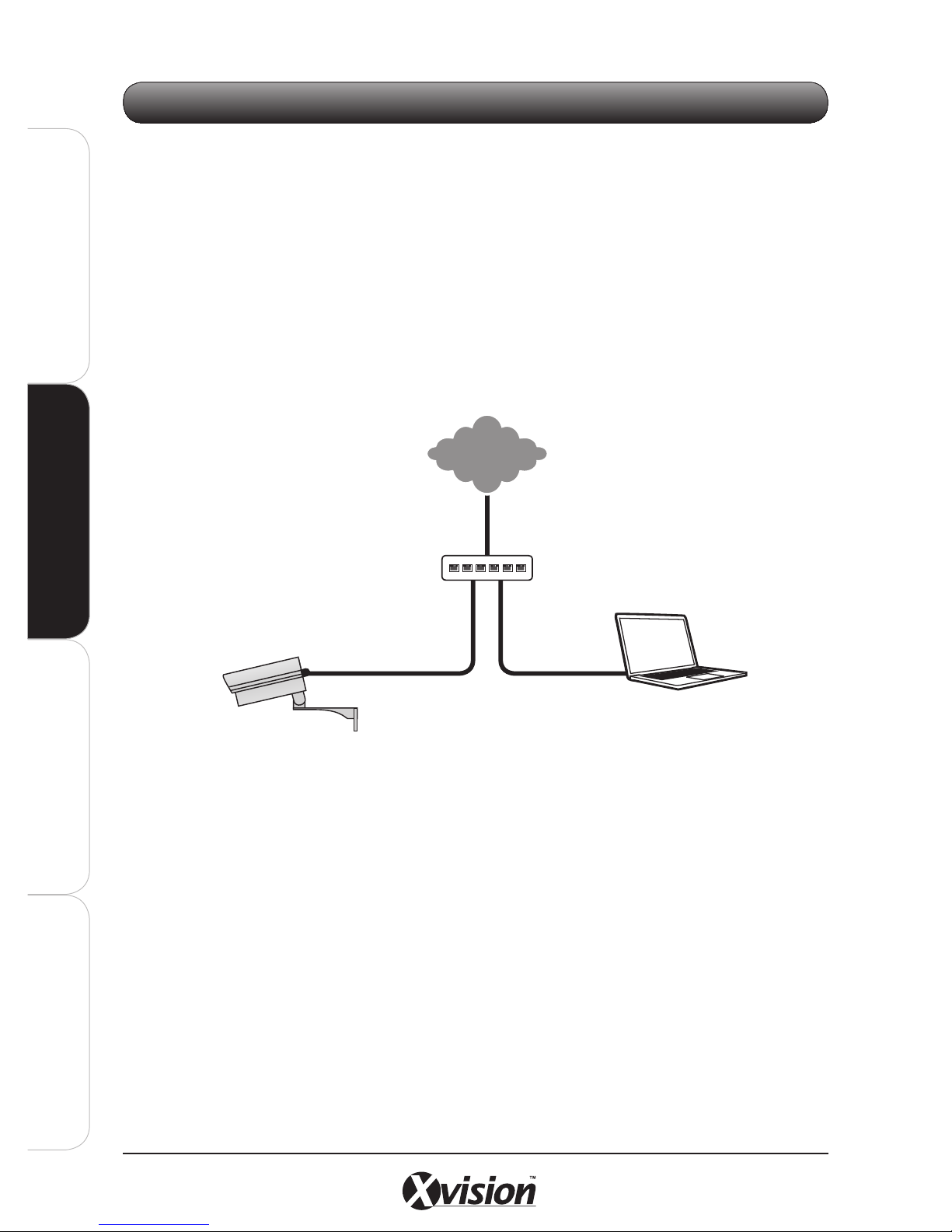

INTERNET
SETUP
Hub, Switch
or Router
Cat5 ‘Straight Through’ Cable
X100 IP Camera
SEARCH AND SETUP
When you have installed your IP camera, you have 2 easy ways to locate it on the network:
• By using the IP Camera finder software called IPWizard II (see page 35) which will assist you in
finding/setting your camera’s IP address; OR
• By UPnP (Universal Plug and Play) discovery via your PC’s Windows operating system (see details
in the USER MANUAL CD provided with your IP camera).
PC or Laptop
X100 Series Quick Guide 35
2.2 SEARCH AND SETUP BY IPWIZARD II
SETTING UP THE IPWIZARD II ON YOUR PC
1. Locate the IPWizard II Installer file inside the IPWizard II folder on the User Manual CD
2. Double click the file and follow the on screen instructions to install the software.
- An application shortcut icon will be placed on your PC’s desktop, double click to launch the software.

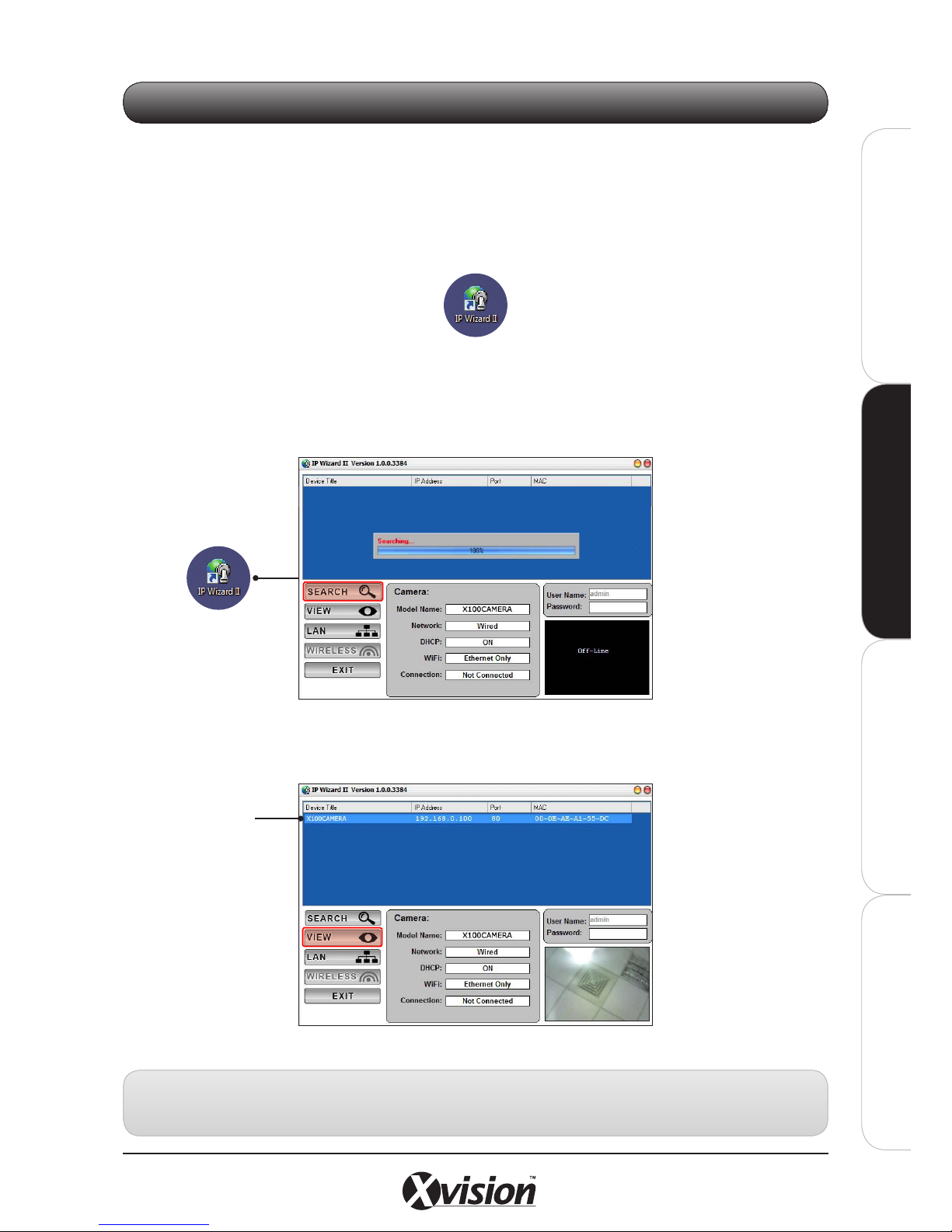

USING THE IPWIZARD II TO SEARCH FOR YOUR IP CAMERA
3. Launch the software. Click SEARCH. The software will search the network for any active IP devices.
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
SETUP
4. All active devices will be listed in the interface window. Find your camera and click VIEW.
- The camera image will appear in the lower right hand window.
Select IP camera
- Double click on the active device in the list to view your camera live in Internet Explorer.
Note: Make any final directional or lens adjustments to your camera once you can see live images from the IP
Camera. Check your adjustments on the PC to ensure the area you wish to view is covered and in focus.
36 X100 Series Quick Guide
CONFIGURE YOUR CAMERA’S NETWORK SETTINGS
5. Click LAN to configure your IP camera with your network settings.
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
- There are 2 options to set the IP address; Static IP or DHCP IP. Your option depends on how your network is setup.
Speak with your System Administrator or see the information box below for more information.
- When entering the IP address manually, select the STATIC IP option and enter the IP address, Subnet Mask,
SETUP
Gateway, primary DNS and secondary DNS.
- When using DHCP IP, select the DHCP IP option. Your hub, router or switch will assign an IP address automatically.
- To exit without saving any changes, click
- To enter details and continue to the next page, click
ABOUT IP ADDRESS SETTINGS
Static IP (default)
Using the Static IP option allows you to assign specific static addresses to each camera or device on a network.
A Static IP address does not change over time unless it is changed manually. It is often used in networks to
identify a device or location constantly.
- As default, your IP camera will be given a Static IP address: 192.168.0.100
- If another network device has the same IP address then it must be turned off until a new IP address is
assigned during configuration.
DHCP IP
Using ‘Dynamic Host Configuration Protocol’ IP means your camera’s IP address may be updated or changed
from time to time. Although this reduces the administrative burden of assigning specific static addresses to each
device on the network, it means your IP camera may not always connect due to an IP address change if the IP
camera is accessed using a previously set IP address.
• Knowing the IP address of your IP camera will allow you to logon to the camera’s online configuration page
• If the IP camera is installed on the LAN with a router, then it may get a dynamic IP address from the DHCP
server. However, if the device wants to be accessed from the WAN, its IP address needs to be setup as fixed
or ‘Static’ IP, also the port forwarding or Virtual Server function on the router needs to be setup.
FOR DETAILED INFORMATION ON NETWORK SETTINGS PLEASE REFER TO THE USER MANUAL CD.
X100 Series Quick Guide 37
6. On the next page in the LAN menu, configure your User Name and Password. (We recommend that
the default User Name and Passwords are left as they are until your camera has been configured.
The password security can be set up and changed later).
- To Change the User Name and Password, tick the box and enter your User Name and Password as required
- To go back to the previous window without saving any changes, click
- To save all the details, click
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
SETUP
Note: The default User Name is ‘admin’; the default password is blank (meaning there is no password set up).

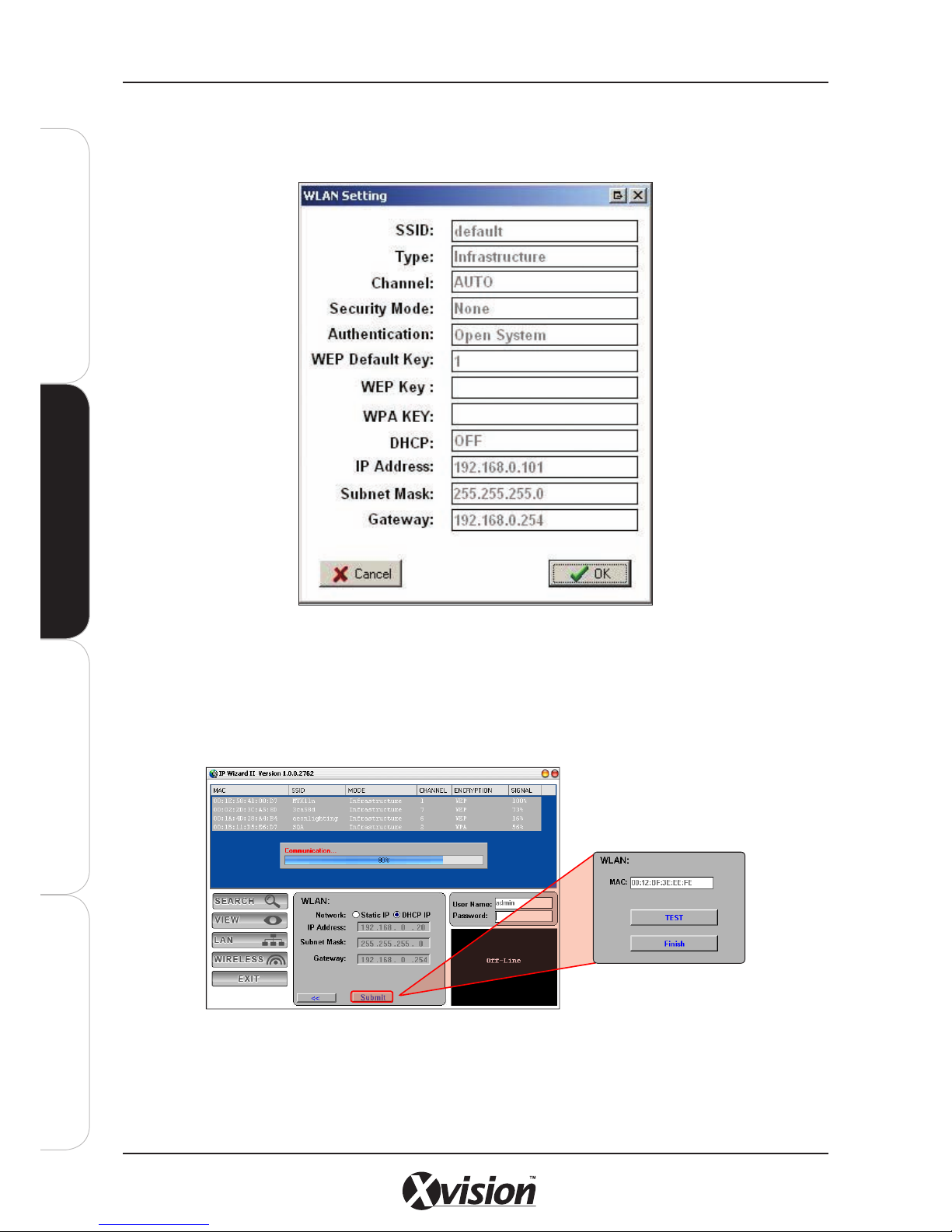

EDIT YOUR WIRELESS SETTINGS for X100C and X104P Wireless IP Cameras
All other IP cameras in the X100 Series are WIRED ONLY and these settings cannot be applied to them
(go to Step 10 on page 39 to continue with WIRED setup).
7. Click WIRELESS to change your wireless connection settings.
- You will need your Wireless Network and Security settings for this
Select your preferred network
type; either Static IP or DHCP IP
Configure your Wireless
Security Mode using the
drop down menu.
- To go exit or go back to the previous window without saving any changes, click
- To move to the next window click
- To save your changes click from the second settings window.
38 X100 Series Quick Guide
8. An information window will appear. Confirm your settings by clicking OK.
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
SETUP
- To change any details, click CANCEL and edit the information in the WIRELESS menu.
9. The IPWizard II will begin configuring the camera to your specifications then prompt you to unplug
the Ethernet cable to activate the wireless settings. Follow the on-screen instructions to TEST your
wireless settings.
EXIT IPWIZARD II
X100 Series Quick Guide 39
10. When you have finished, click EXIT to quit the program. You are now ready to access your IP
Camera’s web configuration page where you can adjust the camera settings.
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
SETUP
40 X100 Series Quick Guide

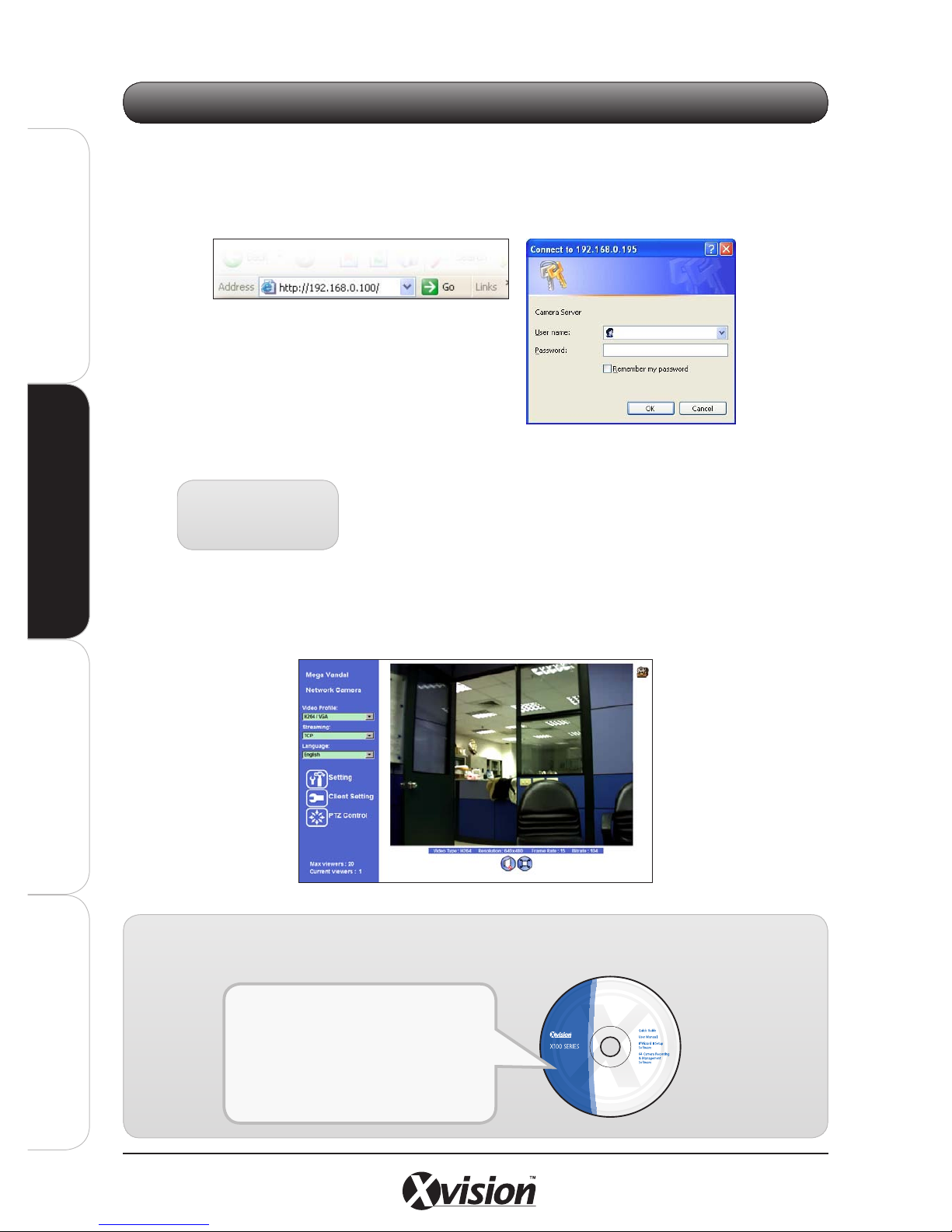

2.3 ACCESS YOUR CAMERA ON YOUR WEB BROWSER
1. Open your web browser
2. Type in your camera’s IP address in the format: http://192.168.0.100
- If you have set up your own IP address, replace 192.168.0.100 with the new address.
- The Login Window of the IP Camera will pop up as shown.
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
3. If you are logging in for the FIRST TIME input the following default details:
User Name: admin
SETUP
Password:
- Leave the PASSWORD field blank
- Depending on your browser’s security settings, the Web page may prompt a ‘Security Warning’ window. If so,
select YES to install and run the ActiveX control on your PC, otherwise the system will load the ActiveX silently.
- After the ActiveX control has installed and is running, the camera image will be displayed as shown.
Please now refer to the full USER MANUAL which can be found on the CD provided with
your IP Camera to continue configuring your camera.
You will find the following chapters:
• SET UP (full version)
• CONFIGURE
• RECORDING SOFTWARE
• Plus more information on connecting
your system and troubleshooting.
X100 Series Quick Guide 41
APPENDIX 1: HOW TO CALIBRATE AN AUTO IRIS LENS
- This information can also be found on page 61 of the Main User Manual located on the CD provided.
This procedure applies if you are configuring the X100V, and optionally, the X100T (if you have replaced
the standard lens with an Auto Iris lens).
The Auto Iris lens on the camera will require CALIBRATION before use. Please note, failure to calibrate
the lens will result in the picture becoming dark over time.
To do this follow the steps below:
1. Search and setup your camera on the network
- See Setting up your Network on page 34
2. Access your camera on your Web Browser
- See Access Your Camera on your Web Browser on page 40
3. Enter the Main Settings Menu and click on the CAMERA MENU located on the left side of the
screen.
Note: The Main Settings Menu is only available for user logged into the camera as an Administrator.
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
Camera
Menu
42 X100 Series Quick Guide
4. In the PICTURE TAB, locate the setting marked AUTO IRIS.
INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE
5. Click on the CALIBRATE button
- A popup window will appear to show the progress of calibration. It may take a few minutes for the camera to
calibrate the lens. Once the lens has calibrated the Auto Iris function of the camera should operate correctly.
Note: Failure to calibrate the Auto Iris lens will result in the picture becoming dark over time.
XVISION SUPPORT
X100 Series Quick Guide 43
At Xvision we provide quality products that perform to the highest standards, while being simple to
install and use.
If you have any difficulties setting up or using your product please visit our support pages at
www.xvision.com for assistance and for details of online and telephone support in your region.
WARRANTY
This product is supplied with a 1 Year warranty. The Warranty excludes products that have been misused
(including accidental damage) and damage caused by normal wear and tear. In the unlikely event that
you encounter a problem with this product, it should be returned to the place of purchase.
INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE
V1-2/2010-10
Loading...
