Model:
VIS238D
Colour Varifocal Dome Camera
• Please unpack the box carefully and identify that all the parts are present.
• Do not cut the camera cables, this will void the warranty.
• Make sure you use only the recommended power supply. Damage caused to the camera by
incorrect voltage or wiring is not covered by the warranty.
The camera is suitable for indoor or outdoor use. Please bear in mind the following points when
choosing a mounting position.
•The camera must be positioned so that it will not point directly into the sun (sunrise and
sunset) or any bright light, as this may cause damage to the camera.
•Avoid viewing areas where half the area is in bright sunlight and the other half is dark,
such as in the shadow of a building. All types of cameras have difficulty in ‘seeing’ with
such a large lux level variation.
Model: VIS200DX-2
Colour High Resolution
Vandal Dome Camera
Model:
VIS200DX-2
Colour High Resolution
Vandal Dome Camera
Before you begin
• Please unpack the box carefully and identify that all the parts are present.
• Do not cut the camera cables, this will void the warranty.
• Make sure you use only the recommended power supply. Damage caused to the camera by
incorrect voltage or wiring is not covered by the warranty.
The camera is suitable for indoor or outdoor use. Please bear in mind the following points when
choosing a mounting position.
•The camera must be positioned so that it will not point directly into the sun (sunrise and
sunset) or any bright light, as this may cause damage to the camera.
•Avoid viewing areas where half the area is in bright sunlight and the other half is dark,
such as in the shadow of a building. All types of cameras have difficulty in ‘seeing’ with
such a large lux level variation.
Shown with the chameleon cover
CCTVCCTV
THANK YOU VERY MUCH FOR PURCHASING OUR PRODUCT
The VIS200DX-2 Colour Vandal Dome camera is designed for medium
to high risk applications and is able to withstand a blow from a 10
pound sledgehammer. It offers very high resolution 480 TVL images
from its Sony 1/3" Super HAD CCD and has a high quality wide angle
lens. It will provide images in light levels as low as 0.1 lux. The camera
is designed for internal or external use and wall or ceiling mounting.
2. Product Description
1. Package Contents
1.Instruction
Manual
2. VIS200DX-2
Dome Camera
1 2
3. Chameleon Cover
3
2
3. Features
• Very High Resolution CCD sensor provides great quality Colour images
in light levels of 0.1 lux and above
• Sony 1/3" Super HAD CCD image sensor for 500 TVL resolution images
• Discreet styling for unobtrusive low profile use, includes paintable
chameleon cover
• Tamper and Vandal Resistant, can withstand a blow from a 10 pound
sledgehammer
• 3-Axis mechanism for flexible wall or ceiling mounting
• Xvision IXC1 Digital Signal Processing (DSP) chip which has been
optimised for internal viewing and features Automatic Gain Control,
Auto White Balance, Automatic Electronic Iris, Back Light Compensation,
Low Smear, Edge Enhancement and Zero Colour Rolling
• 3.6mm focus free Electronic Iris lens with 78° viewing angle lens for
super sharp images and easy selection of the optimum viewing angle
during installation
3
4. Adjust the camera viewing angle by first
tilting (STEP 1) then rotating the camera
module (STEP 2), and then turn the
horizontal adjustment ring (STEP 3) to
correct the image and achieve the required orientation (as shown in
Figure 2).
5. Place the dome cover on the camera and tighten it by turning it
clockwise.
Camera
Module
Horizontal
Adjustment
Ring
Top
Top
Top
Til
t
Rotate
Rotate
4
Figure 2
1. Select a suitable position on the wall or
ceiling to install the camera.
2. Rotate the dome cover by unscrewing
it counterclockwise to remove it from
the camera base.
3. Secure the camera in the desired
position with the three fixing screws
(as shown in Figure 1).
4. Installation
Figure 1
5
5. Dipswitch Setting
5.1 AES Function- The AES (Automatic Electronic Shutter) function
controls the brightness of the camera image, it should always be
in the AES position.
5.2 BLC Function- The BLC (Back Light Compensation) function makes
objects in front of a bright scene (such as a window on a bright
sunny day) clearer to see by increasing their brightness and
making the background darker. To turn on the BLC function flick
the dipswitch to the BLC position, to turn it off, flick the dipswitch
to the OFF position.
5.3 AGC Function- For better performance in low light conditions the
AGC (Automatic Gain Control) can be increased from the
standard 16db to 26db. This has the effect of making the picture
brighter (however it may also add more noise to the picture, as it
is amplifying all aspects of the video signal). To increase the AGC
flick the dipswitch to the AGC position, to turn leave it as normal,
flick the dipswitch to the OFF position.
5.4 Flickerless Function- The flickerless function is designed to
improve the images and colour balance when using the cameras
where Fluorescent Lighting is present. To turn on the flickerless
function flick the dipswitch to the F.L. position, to turn it off, flick
the dipswitch to the OFF position.

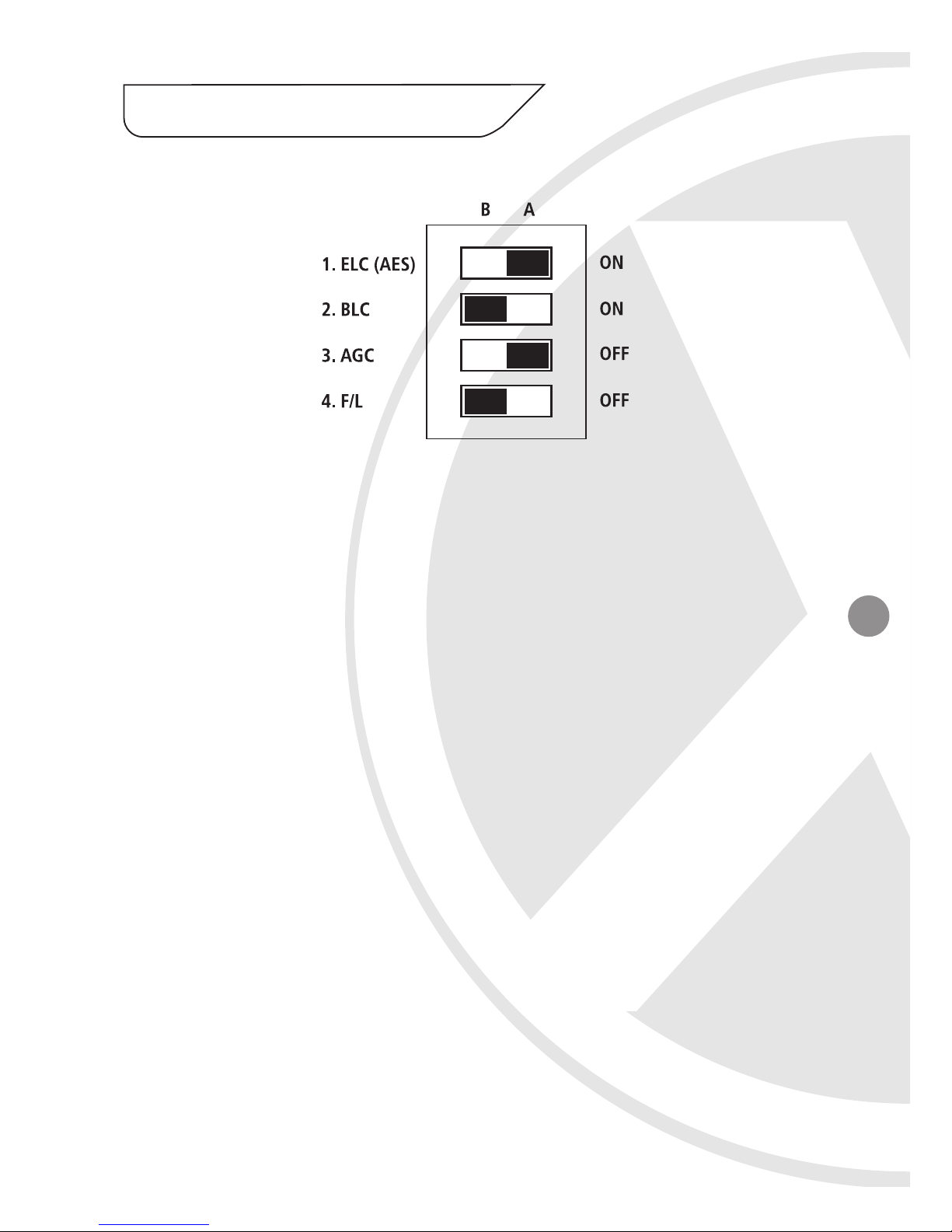

DIP Switches on the Camera Board
1. Connect the video output (Yellow BNC Connector) to a monitor or
other video device through a 75 Ohms type coaxial cable.
2. To connect the power source,
insert the DC Power plug
into the DC Jack (Red) on
the camera’s trailing lead.
(as shown in Figure 4).
7. Connection
Figure 4
1. Simply place the chameleon cover over the
dome and press down until your hear it
click (as shown in Figure 3).
2. The chameleon cover can be painted to
match the decor of any interior without
affecting the warranty of the camera.
Figure 3
6. Using the Chameleon Cover
8. Specifications
Model: VIS200DX-2
Picture Type: Colour
Image Sensor: Sony 1/3” Super HAD CCD
DSP: Xvision IXC1
Resolution: 480 TVL
Lens Viewing Angle: 78° (92° Diagonal)
Infra Red Nightvision: No
Minimum Illumination: 0.1 Lux
Audio: No
Operating Voltage: 12V DC 150mA
Suggested Power Supply: 12V DC 300mA Regulated
Mounting: Wall/Ceiling
Weatherproofing: Yes
Dimensions (ØxD): 110x70mm
7
CCTVCCTV
TECHNICAL SUPPORT:
For Technical Support for any Xvision product please contact your local
distributor.
LIMITED WARRANTY:
This product is supplied with a 2 Year warranty. The Warranty excludes
products that have been misused, (including accidental damage) and
damage caused by normal wear and tear. In the unlikely event that you
encounter a problem with this product, it should be returned to the place
of purchase.
