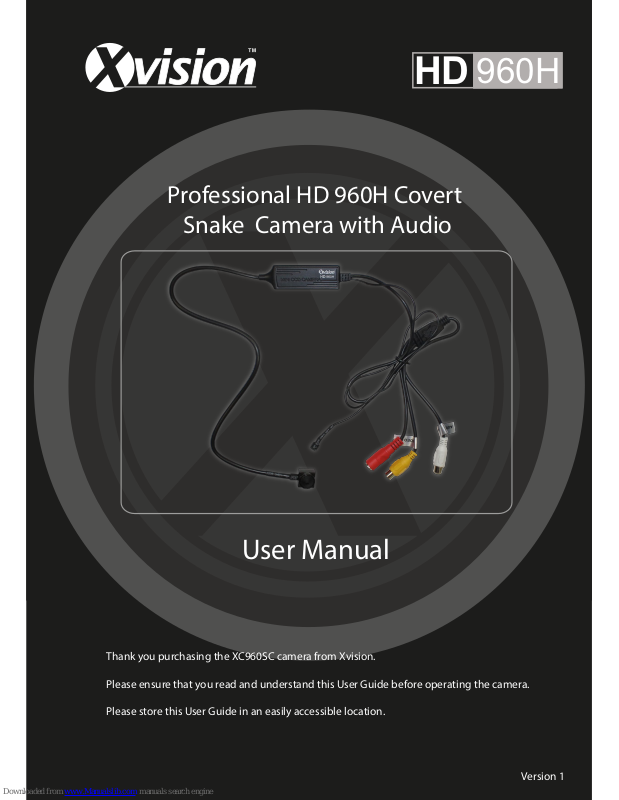

Page 1
Professional HD 960H Covert
Snake Camera with Audio
User Manual
Version 1
Thank you purchasing the XC960SC camera from Xvision.
Please ensure that you read and understand this User Guide before operating the camera.
Please store this User Guide in an easily accessible location.
HD
960H
Page 2
XC960SC
HD
960H
2
www.xvision.com
Contents
1. Product Overview .................................................................................. 4
1.2 Package Contents .......................................................................... 4
2. How to Operate the Camera .................................................................. 5
3. Specicaons ........................................................................................ 6
Page 3
XC960SC
HD
960H
3
www.xvision.com
Safety Precauons
1. Do not install the equipment in an environment with too much moisture, dust or smoke dust as this
may result in re or electric shock.
2. In the unlikely event that the equipment should malfuncon and emit an abnormal smell or smoke,
please immediately stop it, shut o the power and contact your supplier.
3. Please do not place this equipment near a heat source to avoid risk of re.
4. Please do not store, install and use this product in danger areas with inammable or explosive
substances.
5. Please make sure the power is turned o when installing the product.
6. Please ensure that you install the camera in an area with good venlaon.
7. When installing the camera, please make sure that it does not face any objects giving out strong lights
as this will damage the CCD of the camera.
Page 4
XC960SC
HD
960H
4
www.xvision.com
Thank you for purchasing the HD 960H XC960SC Covert Snake Camera from Xvision. Please read through
this manual carefully and make sure you understand before operang the camera.
1.1 Features
• High quality camera with pinhole cone lens that can see through a 2mm aperture
• Sony 960H CCD Sensor
• Xvision X1K DSP
• HD 960H (960x576) resoluon
• Xvision 3.7mm HD Megapixel Lens for a 78° viewing angle
• 0.01 low lux light level
• Automac Digital Noise Reducon
• Integrated microphone for high quality audio
• Designed to be hidden just about everywhere
1.2 Package Contents
The packaged box for the XC960SC comes with the following items:
Should any of these items be missing, please contact your local distributor.
1. Product Overview
1. Product Overview
XC960SC Camera Installaon Screws/
Wall Plugs
User Manual
Page 5
XC960SC
HD
960H
5
www.xvision.com
1. Product Overview
2. How to Operate the Camera
To operate the camera, rstly you will need to connect the BNC and DC sockets to the BNC and DC sockets
of a power supply and DVR or Monitor. If you wish to extend the cables, you can connect the DC and BNC
Sockets to the BNC/DC of a PNP cable/RG59 cable.
You can then connect the DC socket to a 12V DC Power Supply and the BNC socket to back of your
compable DVR or monitor.
To connect the Audio output to a DVR or monitor, connect the white audio lead to the corresponding input
on the DVR/monitor. If you wish to extend the cables, you can connect the AV cable to the AV cable of a
PNP cable/RG59 cable.
BNC Socket for
video
DC Socket for
power
AV Output for
Audio
Page 6
XC960SC
HD
960H
6
www.xvision.com
Model XC960SC
Style Covert Snake Camera
Weather Resistant No
Vandal Resistant No
Mounng Type Wall or Ceiling
Dimensions (WxHxD) in mm 74x23x12
Weight (Kg) 0.10
Warranty 1 Year Warranty (Extendable to 3 years)
Sensor Type Sony 1/3” Super HAD CCD
DSP Type Xvision X1K DSP
DSP Funcons
Automac Electronic Iris
Automac Gain Control
Digital Noise Reducon
Resoluon HD 960H
Minimum Illuminaon 0.1 Lux
Night Vision No
Lens Type Fixed
Lens Size 3.7mm
Viewing Angle 78°
Operang Voltage 12V DC 240mA
Suggested Power Supply 12V DC 300mA
Video Output Phono Socket
Audio Output Phono Socket
Power Input DC Socket
RS485 Control No
For more informaon, please contact our technical team. Contact details are on the back page.
1. Product Overview
3. Specicaons
Page 7
XC960SC
HD
960H
7
www.xvision.com
1. Product Overview

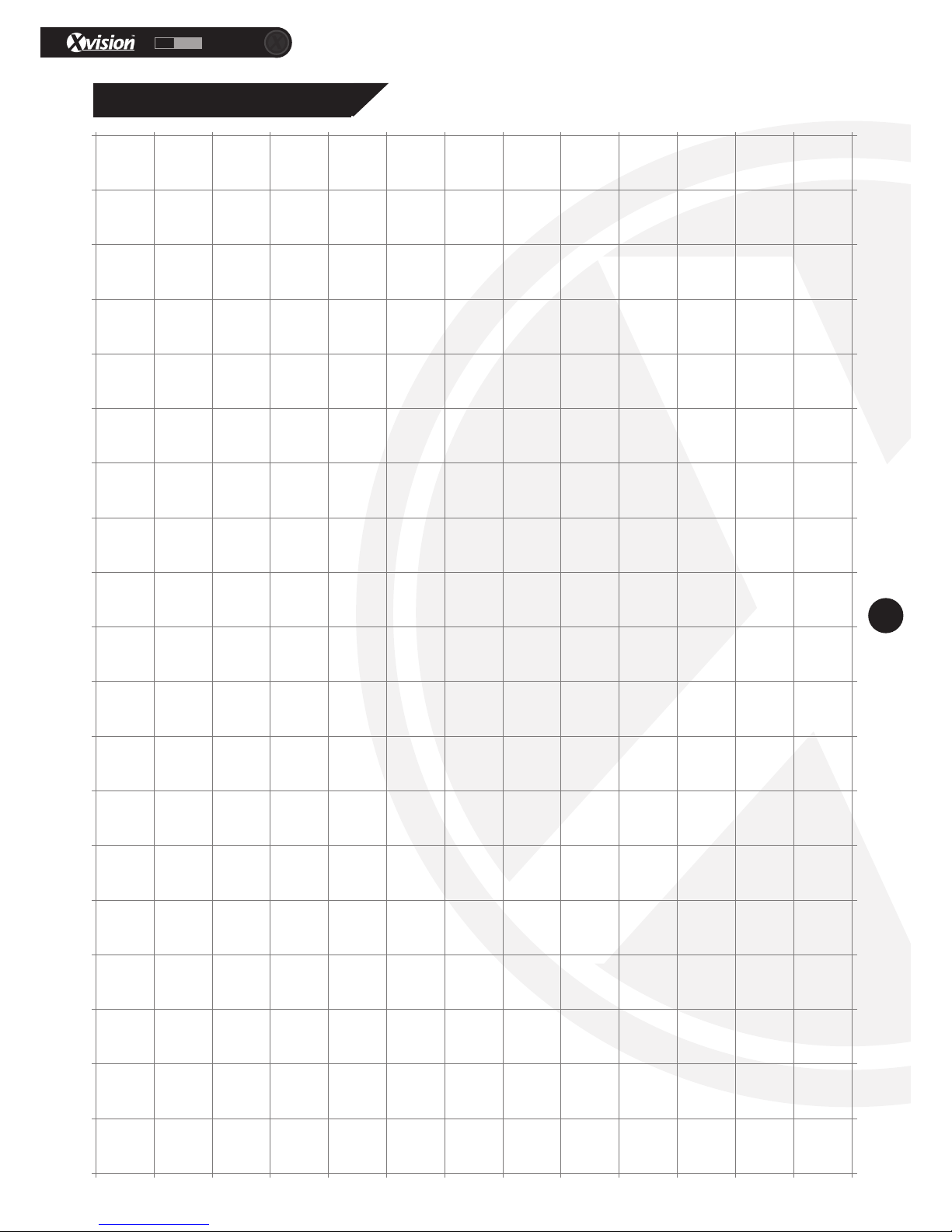

Notes
Page 8
TECHNICAL SUPPORT
For technical support, please contact your local distributor.
Alternatively, call 0871 222 1430.
LIMITED WARRANTY
This product is supplied with a 12 month warranty. The warranty excludes products
that have been misused (including accidental damage) and damage caused by
normal wear and tear. In the unlikely event that you encounter a problem with this
product, it should be returned to the place of purchase.
Manufactured exclusively for:
Xvision UK, Unit 2 Valley Point, Beddington Farm Road, Croydon, Surrey CR0 4WP
www.xvision.com
