XLDDS-018
Operating Instructions
18V
Drill Driver
Cordless
XU1 Power tools
1–23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: 1800 069 486
XLDDS-018 0119
Page 2
6 x Masonry
Drill Bits
8
7
6
5
1
2
3
4

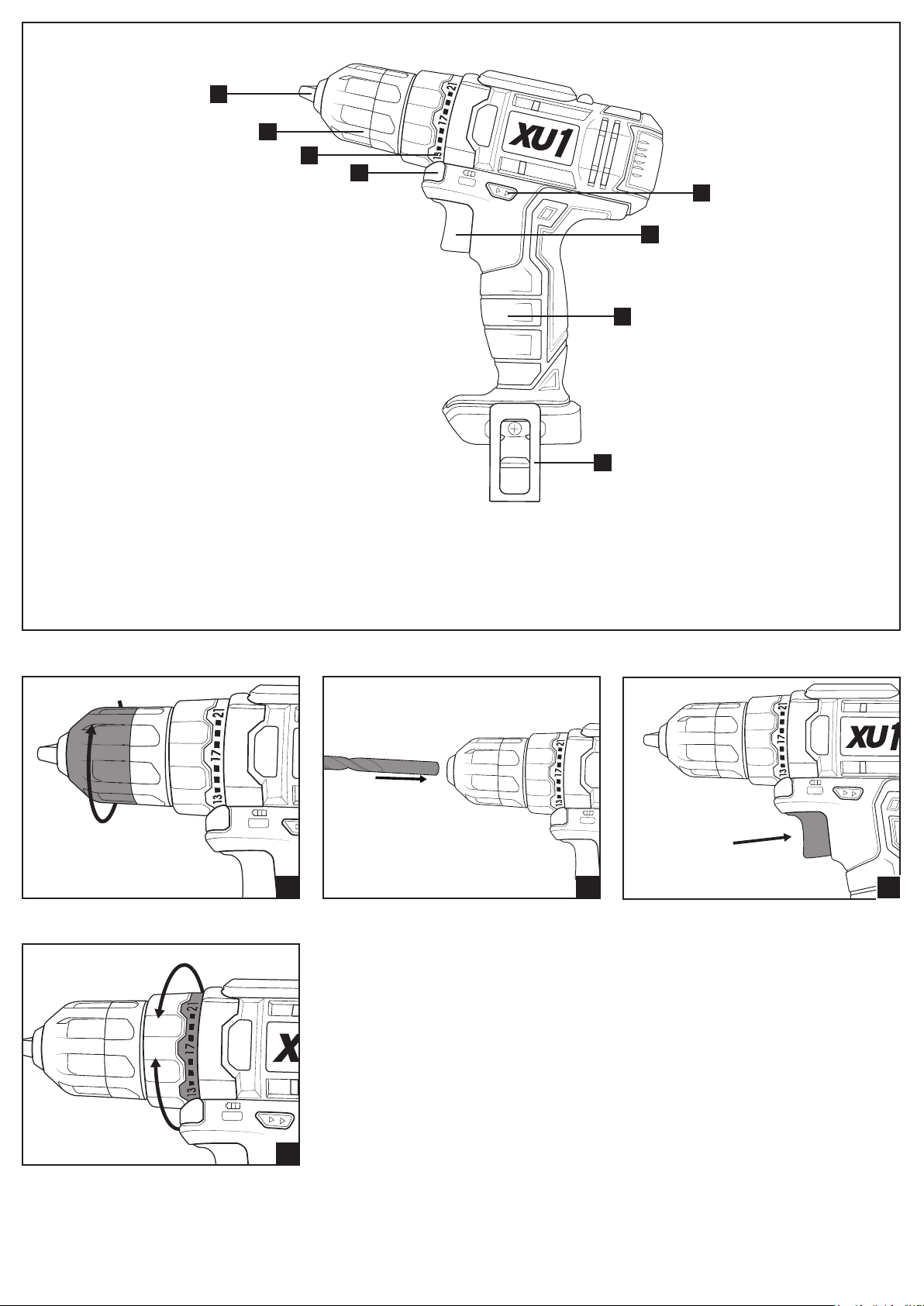

1 Forward/Reverse Selector
2 Variable Speed Trigger
3 Soft Grip Handle
4 Belt Clip
5 LED Worklight
7 Chuck Collar
8 10mm Keyless Chuck
6 Torque Adjustment Collar
A
B C
D
3
Page 3
SPECIFICATIONS
Voltage: 18V
No Load Speed: 0-700/min
Chuck Size: 10mm
Torque Settings: 21
Max. Torque: 16Nm
Tool Weight: 1.1kg
PROPER USE
This tool is intended for use in a DIY (Do It Yourself)
context or for hobbyist purposes. It is not built for
continuous daily use in a trade or professional capacity.
Before using the machine, carefully read these
instructions, especially the safety rules to help ensure
that your machine always operates properly.
Before attempting to operate the machine, familiarise
yourself with the controls and make sure you know how
to stop the machine quickly in an emergency.
Save these instructions and the other documents
supplied with this machine for future reference.
SETUP
CONTROLS
Forward/Reverse Selector
1. For forward rotation, push the Forward/Reverse
Selector towards the left side of the tool.
2. For reverse rotation, push the Forward/Reverse
Selector towards the right side of the tool.
Variable Speed Trigger
1. To start drilling, squeeze the Variable Speed Trigger.
Fig C
2. To stop drilling, release the Trigger.
NOTE: The more the Variable Speed Trigger is
depressed, the faster the driver will rotate.
Drill Driver Torque Settings
1. Rotate the Torque Adjustment Collar on your drill
driver to select the desired setting. Fig. D
NOTE: Selecting a higher torque setting will allow the
drill to use more torque to drive the screw in or out. To
prevent damaging the screw head, it is recommended
to start at a low torque setting and increase when
necessary.
MAINTENANCE
WARNING! Ensure the tool is turned off
and disconnected from the power supply
before performing any of the following
operations.
Cleaning
Your tool has been designed to operate over a long
period of time with a minimum of maintenance. That
said, continuous satisfactory operation depends upon
proper tool care and regular cleaning.
1. Regularly clean the ventilation channels in the tool
using a soft brush or cloth.
2. Keep ventilation slots of the tool clean at all times.
If possible prevent foreign matter from entering
the vents. After each use, blow air through the tool
housing to ensure it is free from all dust particles that
may build up.
WARNING! Excessive build up of dust
particles may cause the tool to overheat and
fail.
3. If the enclosure of the tool requires cleaning, use a
soft, damp cloth only. Do not use solvents or abrasive
cleaners..
WARNING! Never immerse any part of the
tool in liquid.
WARNING! Ensure the tool is turned off
and disconnected from the power supply
before performing any of the following
operations.
Installing a Bit Into Your Drill
1. Rotate the Chuck Collar anti-clockwise to open the
Chuck. Fig. A
2. Insert the drill bit, making sure it is centred in the
Chuck. Fig. B
3. Tighten the Chuck by turning the Collar clockwise.
4. Pull on the bit to ensure it is rmly secured.
Removing a Drill Bit
1. Rotate the Chuck Collar anti-clockwise to open the
Chuck
2. Remove the bit from the drill Chuck.
WARNING! Do not handle drill bits or other
accessories without gloves as they are sharp
and can become hot after use.
OPERATION
Usage Tips
1. Depress and release the Variable Speed Trigger to
ensure it is not locked.
2. Check the Forward/Reverse Selector is in the desired
setting.
3. Ensure the workpiece is secured to stop it turning
whilst fastening.
4. Hold the tool rmly and then press the Variable Speed
Trigger.
5. Once complete, release the Variable Speed Trigger.
NOTE: Do not force the tool or apply side pressure to
elongate the hole. Let the tool do all the work.
Carbon Brushes
Carbon brushes will wear out after many uses. When
the carbon brushes wear out the tool will spark and/or
stop. Discontinue use as soon as this happens. They
should be replaced prior to recommencing use of the
tool.
Carbon brushes are a wearing component of the
tool and are therefore not covered under warranty.
Continuing to use the tool when carbon brushes need to
be replaced may cause permanent damage to the tool.
When the carbon brushes need to be replaced, take
the tool to an electrician or a power tool repairer for a
replacement. Always replace both carbon brushes at the
same time.
Note: XU1 will not be responsible for any damage
or injuries caused by the repair of a tool by an
unauthorised person or by mishandling of the tool.
4
Page 4
WARRANTY
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A
CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR
WARRANTY. PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY
QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and remedies which are available to you at
law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to
a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have
suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by
contacting our customer service helpline above.
1 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 12 months from the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: driver bits.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specied on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
XU1
Australia/New Zealand (Head Ofce)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
5
Page 5
SAFETY
INSTRUCTIONS
DESCRIPTION OF SYMBOLS
Read instruction manual
Wear eye, breathing and hearing
protection
Warning
Regulatory Compliance Mark (RCM)
CARING FOR THE
ENVIRONMENT
Power tools that are no longer usable should
not be disposed of with household waste but
in an environmentally friendly way.
Please recycle where facilities exist. Check
with your local council authority for recycling
advice.
Recycling packaging reduces the need for
landll and raw materials.
Reuse of recycled material decreases
pollution in the environment. Please recycle
packaging where facilities
exist.
Check with your local council authority for recycling
advice.
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety
warnings and all instructions. Failure
to follow the warnings and instructions may
result in electric shock, re and/or serious
injury.
Save all warnings and instructions
for future reference. The term “power
tool” in all of the warnings refers to your
mains-operated (corded) power tool or batteryoperated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
and dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or
wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
drugs, alcohol or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment.
Always wear eye protection.
protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the o-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch
on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on.
Cluttered
Personal
A wrench
or a key left attached to a rotating part of the power
tool may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection
facilities, ensure these are connected and
properly used. Use of dust collection can reduce
dust-related hazards.
h) Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause severe
injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better and safer
at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and o.
that cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
Any power tool
e) Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may aect the power
tools operation. If damaged, have the
power tool repaired before use.
accidents are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories
and tool bits etc. in accordance with
these instructions and in the manner
intended for the particular type of power
tool, taking into account the working
conditions and the work to be performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected
situations.
5) Service
a) Have your power tool serviced by a
qualied repair person using only
identical replacement parts. This will ensure
that the safety of the power tool is maintained.
Many
1
Page 6
ADDITIONAL SAFETY
WARNINGS FOR DRILL
DRIVERS
WARNING! Hold power tool by
insulated gripping surfaces when
performing an operation where the
cutting accessory may contact hidden
wiring or its own cord. Cutting a ‘live’ wire may
make exposed metal parts of the power tool ‘live’ and
could give the operator an electric shock.
Safety Warnings Common for Drilling
Operations:
a) Before drilling into walls, ceilings, etc.,
ensure that there are no concealed power cables or
pipes in the cavity.
b) Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
c) Use auxiliary handle(s), if supplied with
the tool. Loss of control can cause personal injury.
WARNING! Some dust created by power
sanding, sawing, grinding, drilling and other
construction activities contain chemicals
known to cause cancer, birth defects or
other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks, cement and other
masonry products, and;
• Arsenic and chromium from chemically-treated timber.
The risk from such exposures vary depending on how
often you do this type of work. To reduce your exposure
to these chemicals; work in a well ventilated area, and
work with approved safety equipment, such as those
dust masks that are specically designed to lter out
microscopic particles.
WARNING!This appliance is not intended
for use by persons (including children)
with reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Young children should be supervised to
ensure that they do not play with the appliance.
2
Page 7
XLIDS-018
Operating Instructions
18V
Impact Driver
Cordless
XU1 Power tools
1–23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: 1800 069 486
XLIDS-018 0119
Page 8
6
5
4
3
1
2
1 Soft Grip Handle
2 Belt Clip
3 Variable Speed Trigger
4 Forward/Reverse Selector
5 LED Worklight
6 6.35mm Hex Drive Chuck
A B C
3
Page 9
SPECIFICATIONS
Voltage: 18V
No Load Speed: 0-2,000/min
Chuck Size: 6.35mm (1/4”) Hex
Impact Rate: 3,000bpm
Max. Torque: 110Nm
Tool Weight: 0.91kg
PROPER USE
This tool is intended for use in a DIY (Do It Yourself)
context or for hobbyist purposes. It is not built for
continuous daily use in a trade or professional capacity.
Before using the machine, carefully read these
instructions, especially the safety rules to help ensure
that your machine always operates properly.
Before attempting to operate the machine, familiarise
yourself with the controls and make sure you know how
to stop the machine quickly in an emergency.
Save these instructions and the other documents
supplied with this machine for future reference.
SETUP
WARNING! Ensure the tool is turned off
and disconnected from the power supply
before performing any of the following
operations.
Attaching Impact Bits
1. Pull and hold the sleeve of the Chuck forward. Fig A
2. Insert the hex shaft of the impact bit. Fig B
3. Release the sleeve of the Chuck then pull on the bit
to ensure it is attached correctly and cannot be pulled
out.
Removing Impact Bits
1. Pull the sleeve of the Chuck forward and remove the
impact bit.
CONTROLS
Forward/Reverse Selector
1. For forward rotation, push the Forward/Reverse
Selector towards the left side of the tool.
2. For reverse rotation, push the Forward/Reverse
Selector towards the right side of the tool.
Variable Speed Trigger
1. To start driving, squeeze the Variable Speed Trigger.
Fig C
2. To stop driving, release the Trigger.
NOTE: The more the Variable Speed Trigger is
depressed, the faster the driver will rotate.
OPERATION
Usage Tips
1. Depress and release the Variable Speed Trigger to
ensure it is not locked.
2. Check the Forward/Reverse Selector is in the desired
setting.
3. Ensure the workpiece is secured to stop it turning
whilst fastening.
4. Hold the tool rmly and then press the Variable Speed
Trigger.
5. Once complete, release the Variable Speed Trigger.
NOTE: Do not force the tool or apply side pressure to
elongate the hole. Let the tool do all the work.
MAINTENANCE
WARNING! Ensure the tool is turned off
and disconnected from the power supply
before performing any of the following
operations.
Cleaning
Your tool has been designed to operate over a long
period of time with a minimum of maintenance. That
said, continuous satisfactory operation depends upon
proper tool care and regular cleaning.
1. Regularly clean the ventilation channels in the tool
using a soft brush or cloth.
2. Keep ventilation slots of the tool clean at all times.
If possible prevent foreign matter from entering
the vents. After each use, blow air through the tool
housing to ensure it is free from all dust particles that
may build up.
WARNING! Excessive build up of dust
particles may cause the tool to overheat and
fail.
3. If the enclosure of the tool requires cleaning, use a
soft, damp cloth only. Do not use solvents or abrasive
cleaners..
WARNING! Never immerse any part of the
tool in liquid.
Carbon Brushes
Carbon brushes will wear out after many uses. When
the carbon brushes wear out the tool will spark and/or
stop. Discontinue use as soon as this happens. They
should be replaced prior to recommencing use of the
tool.
Carbon brushes are a wearing component of the
tool and are therefore not covered under warranty.
Continuing to use the tool when carbon brushes need to
be replaced may cause permanent damage to the tool.
When the carbon brushes need to be replaced, take
the tool to an electrician or a power tool repairer for a
replacement. Always replace both carbon brushes at the
same time.
Note: XU1 will not be responsible for any damage
or injuries caused by the repair of a tool by an
unauthorised person or by mishandling of the tool.
WARNING! Do not handle impact bits or
other accessories without gloves as they are
sharp and can become hot after use.
4
Page 10
WARRANTY
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A
CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR
WARRANTY. PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY
QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and remedies which are available to you at
law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to
a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have
suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by
contacting our customer service helpline above.
1 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 12 months from the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: driver bits.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specied on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
XU1
Australia/New Zealand (Head Ofce)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
5
Page 11
SAFETY
INSTRUCTIONS
DESCRIPTION OF SYMBOLS
Read instruction manual
Wear eye, breathing and hearing
protection
Warning
Regulatory Compliance Mark (RCM)
CARING FOR THE
ENVIRONMENT
Power tools that are no longer usable should
not be disposed of with household waste but
in an environmentally friendly way.
Please recycle where facilities exist. Check
with your local council authority for recycling
advice.
Recycling packaging reduces the need for
landll and raw materials.
Reuse of recycled material decreases
pollution in the environment. Please recycle
packaging where facilities
exist.
Check with your local council authority for recycling
advice.
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety
warnings and all instructions. Failure
to follow the warnings and instructions may
result in electric shock, re and/or serious
injury.
Save all warnings and instructions
for future reference. The term “power
tool” in all of the warnings refers to your
mains-operated (corded) power tool or batteryoperated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
and dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or
wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
drugs, alcohol or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment.
Always wear eye protection.
protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the o-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch
on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on.
Cluttered
Personal
A wrench
or a key left attached to a rotating part of the power
tool may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection
facilities, ensure these are connected and
properly used. Use of dust collection can reduce
dust-related hazards.
h) Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause severe
injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better and safer
at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and o.
that cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
Any power tool
e) Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may aect the power
tools operation. If damaged, have the
power tool repaired before use.
accidents are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories
and tool bits etc. in accordance with
these instructions and in the manner
intended for the particular type of power
tool, taking into account the working
conditions and the work to be performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected
situations.
5) Service
a) Have your power tool serviced by a
qualied repair person using only
identical replacement parts. This will ensure
that the safety of the power tool is maintained.
Many
1
Page 12
ADDITIONAL SAFETY
WARNINGS FOR IMPACT
DRIVERS
WARNING! Hold power tool by
insulated gripping surfaces when
performing an operation where the
cutting accessory may contact hidden
wiring or its own cord. Cutting a ‘live’ wire may
make exposed metal parts of the power tool ‘live’ and
could give the operator an electric shock.
Safety Warnings Common for Drilling
Operations:
a) Before drilling into walls, ceilings, etc.,
ensure that there are no concealed power cables or
pipes in the cavity.
b) Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
c) Use auxiliary handle(s), if supplied with
the tool. Loss of control can cause personal injury.
WARNING! Some dust created by power
sanding, sawing, grinding, drilling and other
construction activities contain chemicals
known to cause cancer, birth defects or
other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks, cement and other
masonry products, and;
• Arsenic and chromium from chemically-treated timber.
The risk from such exposures vary depending on how
often you do this type of work. To reduce your exposure
to these chemicals; work in a well ventilated area, and
work with approved safety equipment, such as those
dust masks that are specically designed to lter out
microscopic particles.
WARNING!This appliance is not intended
for use by persons (including children)
with reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Young children should be supervised to
ensure that they do not play with the appliance.
2
Page 13
XLBP-015
Operating Instructions
XU1 Power tools
1–23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: 1800 069 486
SAFETY
INSTRUCTIONS
DESCRIPTION OF SYMBOLS
Read instruction manual
18V
Battery
1.5Ah Lithium Ion
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic
injury and material damage.
Read the whole manual carefully and make sure you know how to
switch the tool off in an emergency, before operating the tool.
Save these instructions and other documents supplied with this
tool for future reference.
Note: The supply of 230V and 240V on Ozito tools are
interchangeable for Australia and New Zealand.
1. If the supply cord is damaged, it must be replaced by the
Note: Double insulation does not take the place of normal safety
precautions when operating this tool. The insulation system is for
added protection against injury resulting from a possible electrical
insulation failure within the tool.
2. Using an Extension Lead
3. To reduce the risk of electric shock, we recommend the use of a
XLBP-015 0119
4. This appliance is not intended for use by persons (including
Indoor use only
Do not incinerate
Do not use or store battery in
temperatures exceeding 40
MAX.40oC
Do not get battery wet
Do not put in the rubbish
Regulatory Compliance Mark (RCM)
safety precautions, including the following, should always
be followed to reduce risk of re, electric shock, personal
This tools charger is double insulated, therefore no earth
wire is required.
manufacturer, its service agent or similarly qualied persons in
order to avoid hazard.
Always use an approved extension lead suitable for the power
input of this tool. Before use, inspect the extension lead for
signs of damage, wear and ageing. Replace the extension lead
if damaged or defective.
When using an extension lead on a reel, always unwind the
lead completely. Use of an extension lead not suitable for the
power input of the tool or which is damaged or defective may
result in a risk of re and electric shock.
residual current device (rated 30mA or less).
0
C
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play
with the appliance.
BATTERY PACK SAFETY
WARNINGS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND
OPERATING INSTRUCTIONS FOR YOUR BATTERY.
1. Before using the charger read all instructions and cautionary
markings on the charger, battery pack and the product using
the battery pack.
2. This charger is not intended for any uses other than
charging rechargeable batteries. Any other use may result
in risk of re, electric shock or electrocution.
3. Only use the compatible XU1 charger to recharge this XU1
battery.
4. Do not place any object on top of the charger or place
the charger on a soft surface that may result in excessive
internal heat. Place the charger in a position away from any
heat source.
5. To reduce risk of damage to the electric plug and cord, pull
by the plug rather than the cord when disconnecting the
charger.
6. Make sure the cord is located so that it will not be stepped
on, tripped over, or otherwise subjected to damage or
stress.
7. An extension cord should not be used unless absolutely
necessary. Use of an improper extension cord could result in the
risk of re, electric shock or electrocution.
8. Do not operate the charger if it has received a sharp blow,
been dropped or otherwise damaged in any way. Have it
checked by an electrician or power tool repairer.
9. Do not disassemble charger. Take it to an electrician or
power tool repairer when service or repair is required.
Incorrect reassembly may result in a risk of electric shock,
electrocution or re.
10. To reduce risk of electric shock, unplug the charger from the
outlet before attempting any cleaning. Removing the battery
pack will not reduce this risk.
11. Never attempt to connect 2 chargers together.
12. DO NOT store or use the tool and battery pack in locations
where the temperature may reach or exceed 40ºC (such as
inside sheds or metal buildings in summer).
13. The charger is designed to operate on standard household
electrical power (240 volts). Do not attempt to use it on any
other voltage!
14. The battery pack is not fully charged out of the carton. First
read the safety instructions and then follow the charging
notes and procedures.
15. The longest life and best performance can be obtained if
the battery pack is charged when the air temperature is
between 18 - 24ºC. Do not charge the battery pack in an air
temperature below 10ºC or above 40ºC. This is important
and will prevent damage to the battery pack.
16. Do not incinerate the battery pack even if it is seriously
damaged or is completely worn out. The battery can explode
in a re.
17. Never attempt to open the battery pack for any reason. If
the plastic housing of the battery pack breaks or cracks,
immediately discontinue use and do not recharge.
18. During charging, the battery must be placed in a well
ventilated area.
Page 14
SPECIFICATIONS CONTROLS
Input Voltage: 18V
Battery Capacity: 1.5Ah Li-Ion
Power Consumption: 27Wh
Tool Weight: 0.350kg
PROPER USE
ALWAYS WEAR EYE, FACE AND
EAR PROTECTION
This tool is intended for use in a DIY (Do It Yourself) context
or for hobbyist purposes. It is not built for continuous daily
use in a trade or professional capacity.
Before using the machine, carefully read these instructions,
especially the safety rules to help ensure that your machine
always operates properly.
Before attempting to operate the machine, familiarise
yourself with the controls and make sure you know how to
stop the machine quickly in an emergency.
Save these instructions and the other documents supplied
with this machine for future reference.
WARNING! Ensure the tool is turned off and
disconnected from the power supply before
performing any of the following operations.
SETUP
Charging Your Battery
1. Insert the power plug of the charger into the mains socket
outlet.
2. To charge the battery, slide the battery pack onto the port
in the charger. Make sure the release latch on the rear
of the battery snaps into place and the battery is secure
before charging.
3. Remove the battery from the charger once fully charged
by pressing the battery release latch and pulling the
battery pack from the charger at the same time.
4. Disconnect the charger from the power supply.
Battery Capacity Indicator
There are battery capacity indicators on the battery pack.
Check the charge capacity of your battery before use and
charge if necessary.
1. To check the battery capacity, press the button to the side
of the indicator LEDs.
2. Indicator Status:
- 3 lit LEDs: Battery fully charged.
- 2 lit LEDs: Battery 60% charged.
- 1 lit LED: Battery almost discharged.
OPERATION
Fitting the Battery Pack
1. Slide the battery into the base of the tool until it clicks into
place.
2. To remove the battery, press and hold the battery release
tab down then remove the battery.
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should
not be disposed of with household waste but
in an environmentally friendly way.
Please recycle where facilities exist. Check
with your local council authority for recycling
advice.
Recycling packaging reduces the need for
landll and raw materials.
Reuse of recycled material decreases
pollution in the environment. Please recycle
packaging where facilities exist.
WARRANTY
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A CLAIM UNDER
THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR
BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY. PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A
CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE
RELATING TO THE WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have
suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting
our customer service helpline above.
1 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 12 months from the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes
consumable parts, for example: driver bits.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specied on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
XU1
Australia/New Zealand (Head Ofce)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
Check with your local council authority for recycling
advice.
Page 15
XLCG-035
Operating Instructions
SAFETY
INSTRUCTIONS
DESCRIPTION OF SYMBOLS
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play
with the appliance.
XU1 Power tools
1–23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: 1800 069 486
Read instruction manual
18V
Charger
Standard
Indoor use only
R.C.M. Regulatory compliance mark
Double insulated
Transformer energy rating (MEPS)
Polarity
Warning
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic
safety precautions, including the following, should always
be followed to reduce risk of re, electric shock, personal
injury and material damage.
Read the whole manual carefully and make sure you know how to
switch the tool off in an emergency, before operating the tool.
Save these instructions and other documents supplied with this
tool for future reference.
Note: The supply of 230V and 240V on Ozito tools are
interchangeable for Australia and New Zealand.
This tools charger is double insulated, therefore no earth
wire is required.
1. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid hazard.
Note: Double insulation does not take the place of normal safety
precautions when operating this tool. The insulation system is for
added protection against injury resulting from a possible electrical
insulation failure within the tool.
2. Using an Extension Lead
Always use an approved extension lead suitable for the power
input of this tool. Before use, inspect the extension lead for
signs of damage, wear and ageing. Replace the extension lead
if damaged or defective.
When using an extension lead on a reel, always unwind the
lead completely. Use of an extension lead not suitable for the
power input of the tool or which is damaged or defective may
result in a risk of re and electric shock.
3. To reduce the risk of electric shock, we recommend the use of a
residual current device (rated 30mA or less).
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
XLCG-035 1118
or lack of experience and knowledge, unless they have been
CHARGER SAFETY WARNINGS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND
OPERATING INSTRUCTIONS FOR YOUR CHARGER.
1. Before using the charger read all instructions and cautionary
markings on the charger, battery pack and the product using
the battery pack.
2. This charger is not intended for any uses other than
charging rechargeable batteries. Any other use may result
in risk of re, electric shock or electrocution.
3. Only use the compatible XU1 charger to recharge XU1
batteries.
4. Do not place any object on top of the charger or place
the charger on a soft surface that may result in excessive
internal heat. Place the charger in a position away from any
heat source.
5. To reduce risk of damage to the electric plug and cord, pull
by the plug rather than the cord when disconnecting the
charger.
6. Make sure the cord is located so that it will not be stepped
on, tripped over, or otherwise subjected to damage or
stress.
7. An extension cord should not be used unless absolutely
necessary. Use of an improper extension cord could result in the
risk of re, electric shock or electrocution.
8. Do not operate the charger if it has received a sharp blow,
been dropped or otherwise damaged in any way. Have it
checked by an electrician or power tool repairer.
9. Do not disassemble charger. Take it to an electrician or
power tool repairer when service or repair is required.
Incorrect reassembly may result in a risk of electric shock,
electrocution or re.
10. To reduce risk of electric shock, unplug the charger from the
outlet before attempting any cleaning. Removing the battery
pack will not reduce this risk.
11. Never attempt to connect 2 chargers together.
12. DO NOT store or use the tool and battery pack in locations
where the temperature may reach or exceed 40ºC (such as
inside sheds or metal buildings in summer).
13. The charger is designed to operate on standard household
electrical power (240 volts). Do not attempt to use it on any
other voltage!
14. The battery pack is not fully charged out of the carton. First
read the safety instructions and then follow the charging
notes and procedures.
15. The longest life and best performance can be obtained if
the battery pack is charged when the air temperature is
between 18 - 24ºC. Do not charge the battery pack in an air
temperature below 10ºC or above 40ºC. This is important
and will prevent damage to the battery pack.
16. Do not incinerate the battery pack even if it is seriously
damaged or is completely worn out. The battery can explode
in a re.
17. Never attempt to open the battery pack for any reason. If
the plastic housing of the battery pack breaks or cracks,
immediately discontinue use and do not recharge.
18. During charging, the battery must be placed in a well
ventilated area.
Page 16
SPECIFICATIONS
Charge Time: 4.7hours (1.5Ah)
5.8hours (2.0Ah)
11.7hours (4.0Ah)
Input: 100-240V ~ 50Hz, 15W
Output: 21V DC, 370mA
Protection Class: II
Tool Weight: 0.105kg
PROPER USE
ALWAYS WEAR EYE, FACE AND
EAR PROTECTION
This tool is intended for use in a DIY (Do It Yourself) context
or for hobbyist purposes. It is not built for continuous daily
use in a trade or professional capacity.
Before using the machine, carefully read these instructions,
especially the safety rules to help ensure that your machine
always operates properly.
Before attempting to operate the machine, familiarise
yourself with the controls and make sure you know how to
stop the machine quickly in an emergency.
Save these instructions and the other documents supplied
with this machine for future reference.
WARNING! Ensure the tool is turned off and
disconnected from the power supply before
performing any of the following operations.
CONTROLS
Power Supply Indicator
There is a LED light on the power supply adaptor. This will
light up and remain on when the charger is plugged into a
working power source.
Charge Status Indicators
There are green and red LED lights on the battery that will
indicate the charging status of the battery.
Red light ON: Battery is CHARGING.
Green light ON: Battery is FULLY CHARGED.
Green & Red light ON: The surrounding
temperature is too high or too low. Try again
when the temperature is between 10ºC & 40ºC.
Green & Red light FLASHING: The battery
is DAMAGED. Do not continue charging.
OPERATION
Charging Your Battery
1. Insert the power plug of the charger into the mains socket
outlet.
2. To charge the battery, slide the battery pack onto the port
in the charger. Make sure the release latch on the rear
of the battery snaps into place and the battery is secure
before charging.
3. Remove the battery from the charger once fully charged
by pressing the battery release latch and pulling the
battery pack from the charger at the same time.
4. Disconnect the charger from the power supply.
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should
not be disposed of with household waste but
in an environmentally friendly way.
Please recycle where facilities exist. Check
with your local council authority for recycling
advice.
Recycling packaging reduces the need for
landll and raw materials.
Reuse of recycled material decreases
pollution in the environment. Please recycle
packaging where facilities exist.
Check with your local council authority for recycling
advice.
WARRANTY
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A CLAIM UNDER
THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR
BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY. PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A
CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE
RELATING TO THE WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have
suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting
our customer service helpline above.
1 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 12 months from the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes
consumable parts, for example: driver bits.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specied on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
XU1
Australia/New Zealand (Head Ofce)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
Loading...
