Page 1
XDH-040
Operating Instructions
1600W
Hammer Kit
Demolition
XU1 Power tools
1–23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: 1800 069 486
XDH-040 0918
Page 2
3
1
2
7
8
4
5
6
9
10

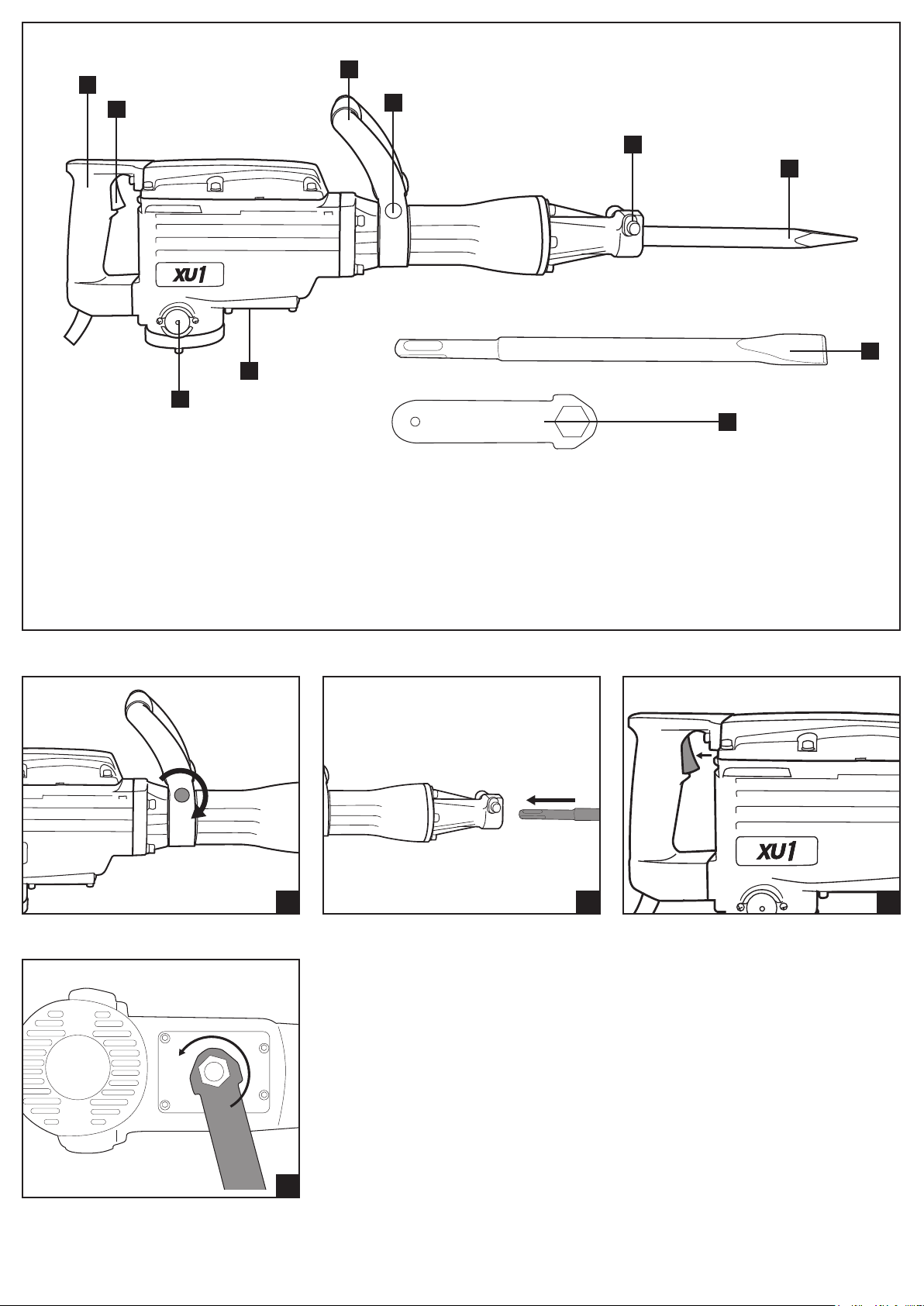

1 Rear Handle
2 On/Off Trigger
3 Adjustable Secondary Handle
4 Secondary Handle Securing Knob
A
5 Accessory Chuck
6 Pointed Chisel
7 Oil View Window
8 Carbon Brush Access Covers
9 Flat Chisel
10 Spanner
B C
D
3
Page 3
SPECIFICATIONS MAINTENANCE
Motor: 1600W
Impact Energy: 43J
Impact Rate: 1900/min
Chuck: 30mm Hex
Noise Level: 105dB
Tool Weight: 14.7kg
PROPER USE
This tool is intended for use in a DIY (Do It Yourself)
context or for hobbyist purposes. It is not built for
continuous daily use in a trade or professional capacity.
Before using the machine, carefully read these
instructions, especially the safety rules to help ensure
that your machine always operates properly.
Before attempting to operate the machine, familiarise
yourself with the controls and make sure you know how
to stop the machine quickly in an emergency.
Save these instructions and the other documents
supplied with this machine for future reference.
SETUP
WARNING! Ensure the tool is turned off,
disconnected from the power supply before
performing any of the following operations.
Secondary Handle
The secondary handle must be tted securely before
operating the demolition breaker. The handle can be
adjusted to suit all users by simply rotating into the
desired orientation.
1. Loosen the Secondary Handle Securing Knob by
rotating anti-clockwise.
2. Rotate the handle into the desired position.
3. Tighten the Secondary Handle Securing Knob to
secure in position. FIG. A
Fitting Accessories
IMPORTANT! Always lubricate the
accessory tment prior to inserting. Using
your nger apply grease sparingly to the shaft
of the accessory.
1. Pull the Accessory Chuck bolt out as far as possible
then rotate 180 degrees and release.
2. Insert the accessory into the chuck. FIG. B
3. Pull the Accessory Chuck bolt out and rotate 180
degrees to secure the accessory
4. Ensure the accessory is secure by trying to pull it out.
Note: The accessory should slide in the chuck but not
be able to be removed.
CONTROLS
WARNING! The power supply for this
product should be protected by a residual
current device (rated at 30mA or less).
On/O Switch
1. To turn the demolition breaker on, squeeze the On/Off
Trigger. FIG. C
2. To turn the tool off, release the On/Off Trigger.
WARNING! After use, hold the tool away
from your body until the demolition breaker
stops completely. This may help to prevent
serious injury.
OPERATION
IMPORTANT! Do not use the at chisel as
a “pry bar” as this will damage the at chisel
and potentially the demolition breaker. Such
damage will void your warranty.
Using the Demolition Breaker
For best penetration rates in concrete, run the
demolition breaker with a steady pressure, but do not
use excessive force as this will decrease the efciency
of the tool.
1. Ensure the accessory and secondary handle are
secure.
2. Position the tip of the tool in the desired starting
position.
3. Ensure you have a stable stance and hold the tool
rmly with both hands.
4. Press the On/Off Trigger to begin operation.
5. Apply steady pressure to allow the tool to break
through the material.
6. Once the tool has completed the rst pass through
the material, reposition and repeat.
WARNING! Ensure the tool is turned off
and disconnected from the power supply
before performing any of the following
operations.
CLEANING
CAUTION! Excessive build up of dust
particles may cause the tool to overheat and
fail.
1. Keep the ventilation slots of the tool clean at all times.
If possible prevent foreign matter from entering the
vents.
2. After each use, blow air through the tool housing to
ensure it is free from all dust particles that may build
up.
3. If the enclosure of the tool requires cleaning, use a
soft, moist cloth only. Do not use solvents.
CAUTION! Never immerse any part of the
tool in liquid.
Checking the Oil Level
The oil level should be checked before each use.
1. Lay the tool on its side with the base facing you.
2. Inspect the oil view window. The level should be half
way up the view window.
3. If the level is lower than this then you must add more
oil following the procedure below.
Adding Oil
The oil tank is approximately 45ml, therefore you should
add oil in small amounts.
Recommended Oil: SAE 15W/40 or an alternative
of the same quality.
1. Lay the tool upside down so that the view window is
facing up.
2. Unscrew the view window anti-clockwise using the
supplied spanner. FIG. D
3. Add a small amount of oil through the view window
hole.
4. Screw the view window back in and tighten using the
supplied spanner in a clockwise direction.
5. Recheck the oil level and repeat this process if
necessary.
Carbon Brushes
Carbon brushes will wear out after many uses, causing
the sander to spark and/or stop. The brushes are
a wearing component of the sander and should be
replaced prior to the carbon wearing out completely.
Take the sander to a suitably qualied electrician or
power tool repairer for replacement. Always replace
both brushes at the same time.
Note: XU1 will not be responsible for any damage
or injuries caused by the repair of the tool by an
unauthorised person or by mishandling of the tool.
4
Page 4
TROUBLESHOOTING
1. Not chiselling or low breaking power:
- Tool temperature is low;
- Accessories are not lubricated;
- Refer to the section ‘Cold Hammering’ below on how
to resolve this issue.
2. Accessory is jammed/stuck in concrete
during use:
- Release the accessory locking mechanism, allowing
the demolition breaker to be separated from the
accessory. The accessory should be easily removed
from the concrete once it is detached from the
demolition hammer.
3. Accessory repeatedly becomes stuck
while in use:
- Free the accessory as described above. Refrain
from penetrating too deeply with the chisel bit, as it
is prone to becoming stuck when demolishing large
pieces of concrete.
4. A small amount of sparking is visible
through the housing air vents:
- This is normal and does not indicate a problem.
5. Excessive sparking is visible through
the housing air vents and/or the
demolition breaker is failing to operate:
- This may indicate the carbon brushes have worn out
and need to be replaced. Carbon brushes should
only be replaced by a qualied electrician or power
tool repairer.
Cold Hammering
If the demolition hammer is stored for long periods
of time of at cold temperatures, the lubrication may
become stiff and the demolition hammer may not
hammer initially or the hammering may be weak.
Should this occur, insert an accessory into the
demolition hammer, turn the demolition hammer on
and apply the end of the accessory against a scrap
piece of concrete or timber. Turn the demolition
hammer on and off every few seconds. After 15
seconds to 2 minutes, the demolition hammer should
have started to hammer normally. The colder the
demolition hammer, the longer it may take to warm up
and function like normal.
WARRANTY
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A
CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR
WARRANTY. PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY
QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and remedies which are available to you at
law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to
a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have
suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by
contacting our customer service helpline above.
1 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 12 months from the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: driver bits.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specied on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
XU1
Australia/New Zealand (Head Ofce)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
Note: Always wait until the accessory has stopped
moving before putting down the demolition hammer.
5
Page 5
SAFETY
INSTRUCTIONS
WARNING! When using mains-powered
equipment, basic safety precautions, including
the following, should always be followed to
reduce risk of re, electric shock, personal
injury and material damage.
ALWAYS WEAR EYE, FACE AND
EAR PROTECTION
When operating the tool
Keep the mains cable away from any moving parts or
accessories.
Never cover the ventilation slots in the tool.
Electrical safety
The electric motor has been designed for 230-240V
only. Always check that the power supply corresponds
to the voltage on the rating plate.
This tool is double insulated; therefore no earth
wire is required.
The power supply for this product should be protected
by a residual current device (rated at 30mA or less).
A residual current device reduces the risk of electric
shock.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
Using an extension lead
Always use an approved extension lead suitable for
the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always
unwind the lead completely. Use of an extension lead
not suitable for the power input of the tool or which is
damaged or defective may result in a risk of re and
electric shock.
It is recommended that the extension lead is a
maximum of 25m in length. DO not use multiple
extension leads.
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety
warnings and all instructions. Failure
to follow the warnings and instructions may
result in electric shock, re and/or serious
injury.
Save all warnings and instructions
for future reference. The term “power
tool” in all of the warnings refers to your
mains-operated (corded) power tool or batteryoperated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b) Do not operate power tools in
explosive atmospheres, such as in the
presence of ammable liquids, gases or
dust.
Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away
while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the
outlet. Never modify the plug in any
way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodied
plugs and matching outlets will reduce risk of electric
shock.
b) Avoid body contact with earthed
or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or
wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
drugs, alcohol or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Personal
protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the o-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch
on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the power
tool may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of dust
collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better and safer
at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and o. Any power tool that
cannot be controlled with the switch is dangerous and
must be repaired.
c) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may aect the power tools operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories
and tool bits etc. in accordance with
these instructions and in the manner
intended for the particular type of power
tool, taking into account the working
conditions and the work to be performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected
situations.
5) Service
a) Have your power tool serviced by
a qualied repair person using only
identical replacement parts. This will ensure
that the safety of the power tool is maintained.
1
Page 6
ADDITIONAL SAFETY
WARNINGS FOR DEMOLITION
HAMMERS
WARNING! Hold power tool by
insulated gripping surfaces when
performing an operation where the
cutting accessory may contact hidden
wiring or its own cord. Cutting a ‘live’ wire may
make exposed metal parts of the power tool ‘live’ and
could give the operator an electric shock.
Safety Warnings Specic for Demolition
Hammer Operations:
a) Always use the side handle, this gives you greater
control if the accessory should become jammed.
b) Keep the cord clear of the accessory being used, do
not wrap the cord around your arm or wrist.
c) Use thick cushioned gloves and limit the exposure
time by taking frequent breaks.
d) Vibration caused by the hammer action may be
harmful to your hands and arms.
e) When removing an accessory from the tool avoid
contact with skin and use proper protective gloves
when grasping the bit or accessory. Accessories
may be hot after prolonged use.
Safety Warnings Common for Demolition
Operations:
a) Always wear eye protection and a dust
mask for dusty applications and when
sanding overhead. Sanding particles can be
absorbed by your eyes and inhaled easily and may
cause health complications.
b) Wear ear protectors. Exposure to noise can
cause hearing loss.
c) Use auxiliary handle(s), if supplied with
the tool. Loss of control can cause personal
injury.
d) Always use an approved extension lead suitable
for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and
ageing. Replace the extension lead if damaged or
defective.
e) When using an extension lead on a reel, always
unwind the lead completely. Use of an extension
lead not suitable for the power input of the tool or
which is damaged or defective may result in a risk
of re and electric shock.
f) It is recommended that the extension lead is a
maximum of 25m in length. Do Not use multiple
extension leads.
g) Before drilling into walls, ceilings etc, ensure there
are no concealed power cables or pipes in the
cavity.
•
such as those dust masks that are
specically designed to lter out microscopic
particles.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
Young children should be supervised to
ensure that they do not play with the appliance.
DESCRIPTION OF SYMBOLS
Read instruction manual
Wear eye, breathing and hearing
protection
R.C.M. Regulatory compliance mark
Do not put in the rubbish
Double insulated
V
Volts
Alternating current
Hz
Hertz
W
Watts
Revolutions, reciprocations or strokes
/min
per minute
n
No load speed
0
Warning
CARING FOR THE
ENVIRONMENT
Power tools that are no longer usable
should not be disposed of with household
waste but in an environmentally friendly
way.
Please recycle where facilities exist.
Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for
landll and raw materials.
Reuse of recycled material decreases
pollution in the environment. Please
recycle packaging where facilities
exist.
Check with your local council authority for
recycling advice.
WARNING! Some dust created by power
sanding, sawing, grinding, drilling and other
construction activities contain chemicals
known to cause cancer, birth defects or other
reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks, cement and
other masonry products, and;
• Arsenic and chromium from chemically-
treated timber.
The risk from such exposures vary
depending on how often you do this type
of work. To reduce your exposure to these
chemicals; work in a well ventilated area,
and work with approved safety equipment,
2
Loading...
