Page 1
1–23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: 1800 069 486 Website: www.xuone.com.au
XU1 Power tools
XDD-180 0916
Operating Instructions
XDD-180
18V
Cordless
Drill Driver
Page 2
1
2
3
4
5
6
9
8
7
A B

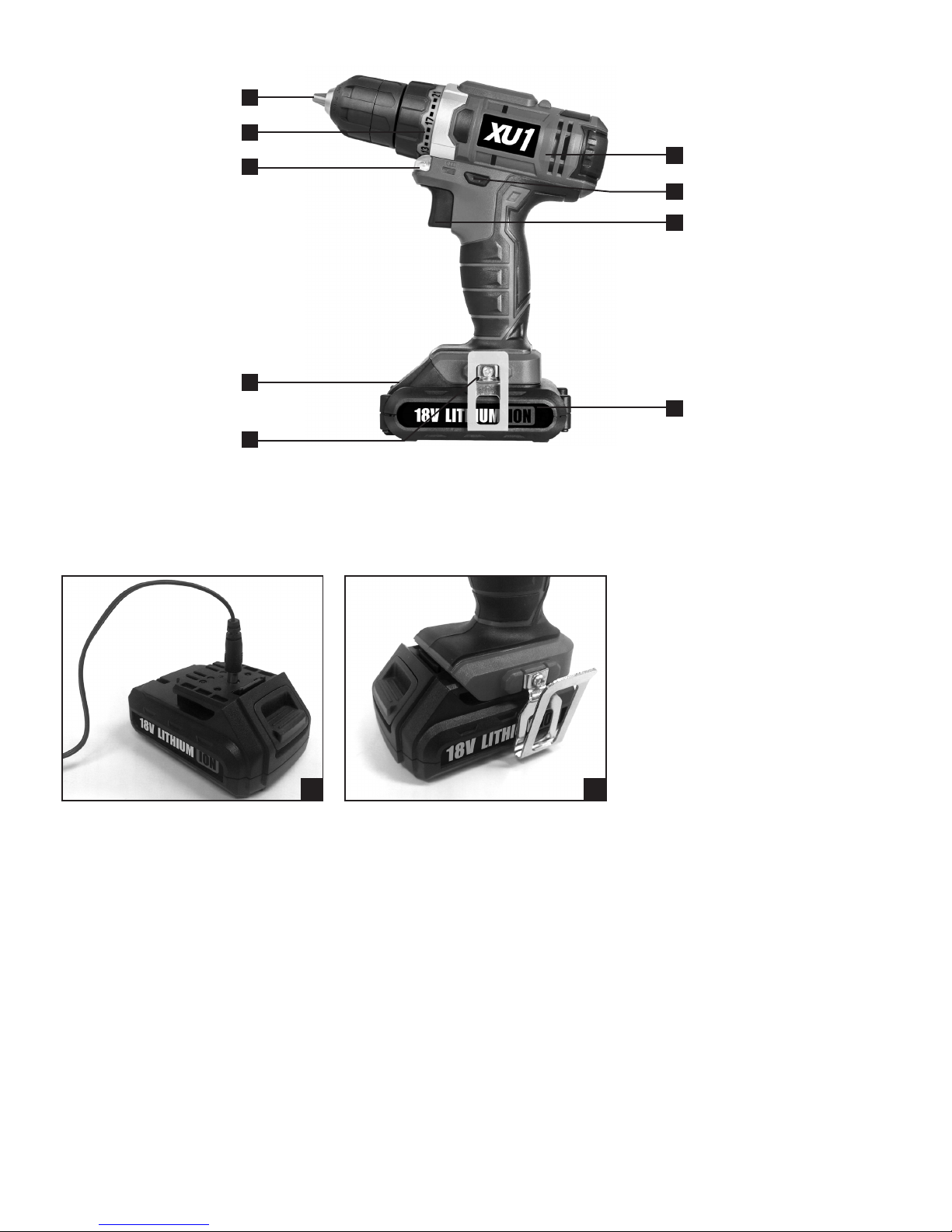

1 10mm Keyless Chuck
2 Torque Adjustement Collar
3 LED Worklight
4 Drill Driver
5 Forward / Reverse Selector
6 Variable Speed Trigger
7 Battery Release Tab
8 Belt Clip
9 18V Li-Ion Battery
3
Page 3
Input Voltage: 18V
Battery Capacity: 1.5Ah Li-Ion
Chuck Size: 10mm
No Load Speed: 0-700/min
Torque Settings: 21
Max. Torque: 16Nm
Charge Time: 3-5hours
Tool Weight: 1.1kg
SPECIFICATIONS
USING YOUR
DRILL DRIVER
DRILL DRIVER
OPERATION
OPERATING TIPS
Installing a Bit Into Your Drill
1. Rotate the chuck collar anti-clockwise to open the
chuck
2. Insert the drill bit, making sure it is centred in the
chuck
3. Tighten the chuck by turning the collar clockwise.
4. Pull on the bit to ensure it is rmly secured.
Removing a Drill Bit
1. Rotate the chuck collar anti-clockwise to open the
chuck
2. Remove the bit from the drill chuck.
Forward Reverse Selector
1. For forward rotation, push the fwd/rev selector
towards the left side of the tool.
2. For reverse rotation, push the fwd/rev selector
towards the right side of the tool.
Variable Speed Trigger
1. To start drilling, squeeze the variable speed trigger.
2. To stop drilling, release the trigger
Note: The more the variable speed trigger is depressed,
the faster the drill will rotate.
Drill Driver Torque Settings
1. Rotate the torque collar on your drill driver to select
the desired setting.
Note: Selecting a higher torque setting will allow the
drill to use more torque to drive the screw in or out. To
prevent damaging the screw head, it is recommended
to start at a low torque setting and increase when
necessary.
1. Depress and release the variable speed trigger to
ensure it is not locked.
2. Check the forward/reverse selector is in the desired
setting.
3. Ensure the workpiece is secured to stop it turning
whilst drilling or driving.
4. Hold the tool rmly and then press the variable speed
trigger.
5. Once complete, release the variable speed trigger.
Note: Do not force the tool or apply side pressure to
elongate the hole. Let the tool do all the work.
WARNING! Ensure the tool is turned off
and disconnected from the power supply
before performing any of the following
operations.
This tool is intended for use in a DIY (Do It Yourself)
context or for hobbyist purposes. It is not built for
continuous daily use in a trade or professional capacity.
Before using the machine, carefully read these
instructions, especially the safety rules to help ensure
that your machine always operates properly.
Before attempting to operate the machine, familiarise
yourself with the controls and make sure you know how
to stop the machine quickly in an emergency.
Save these instructions and the other documents
supplied with this machine for future reference.
Charging Your Battery
1. Plug the charging jack into the battery pack from the
top. FIG. A
2. Connect the charging adaptor to the power supply.
3. The red battery light will illuminate indicating the
battery is charging.
4. Once the battery is charged, the green battery light
will illuminate.
Fitting the Battery Pack
1. Slide the battery into the base of the tool until it clicks
into place. FIG. B
2. To remove the battery, press and hold the battery
release tab down then remove the battery.
4
CAUTION: Do not handle drill bits or other
accessories without gloves as they are sharp
and can become hot after use.
WARNING! The power supply for this
charger should be protected by a residual
current device (rated at 30mA or less).
Page 4
MAINTENANCE
Keep the ventilation slots of the tool clean at all times
using a soft brush or dry cloth. If possible prevent
foreign matter from entering the vents.
After each use, blow air through the tool housing to
ensure it is free from all dust particles that may build up.
If the enclosure of the tool requires cleaning, use a soft,
moist cloth only. Do not use solvents.
CAUTION: Never immerse any part of the
tool in liquid.
If the chargers supply cord is damaged, it must be
replaced by the manufacturer or an authorized service
agent in order to avoid a hazard.
Note: XU1 will not be responsible for any damage
or injuries caused by the repair of the tool by an
unauthorised person or by mishandling of the tool.
WARRANTY
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A
CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR
WARRANTY. PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY
QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and remedies which are available to you at
law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to
a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have
suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by
contacting our customer service helpline above.
1 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 12 months from the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: driver bits.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specied on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
XU1
Australia/New Zealand (Head Ofce)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
5
WARNING! Ensure the tool is turned off
and disconnected from the power supply
before performing any of the following
operations.
Page 5
SAFETY
INSTRUCTIONS
ALWAYS WEAR EYE, FACE
AND EAR PROTECTION

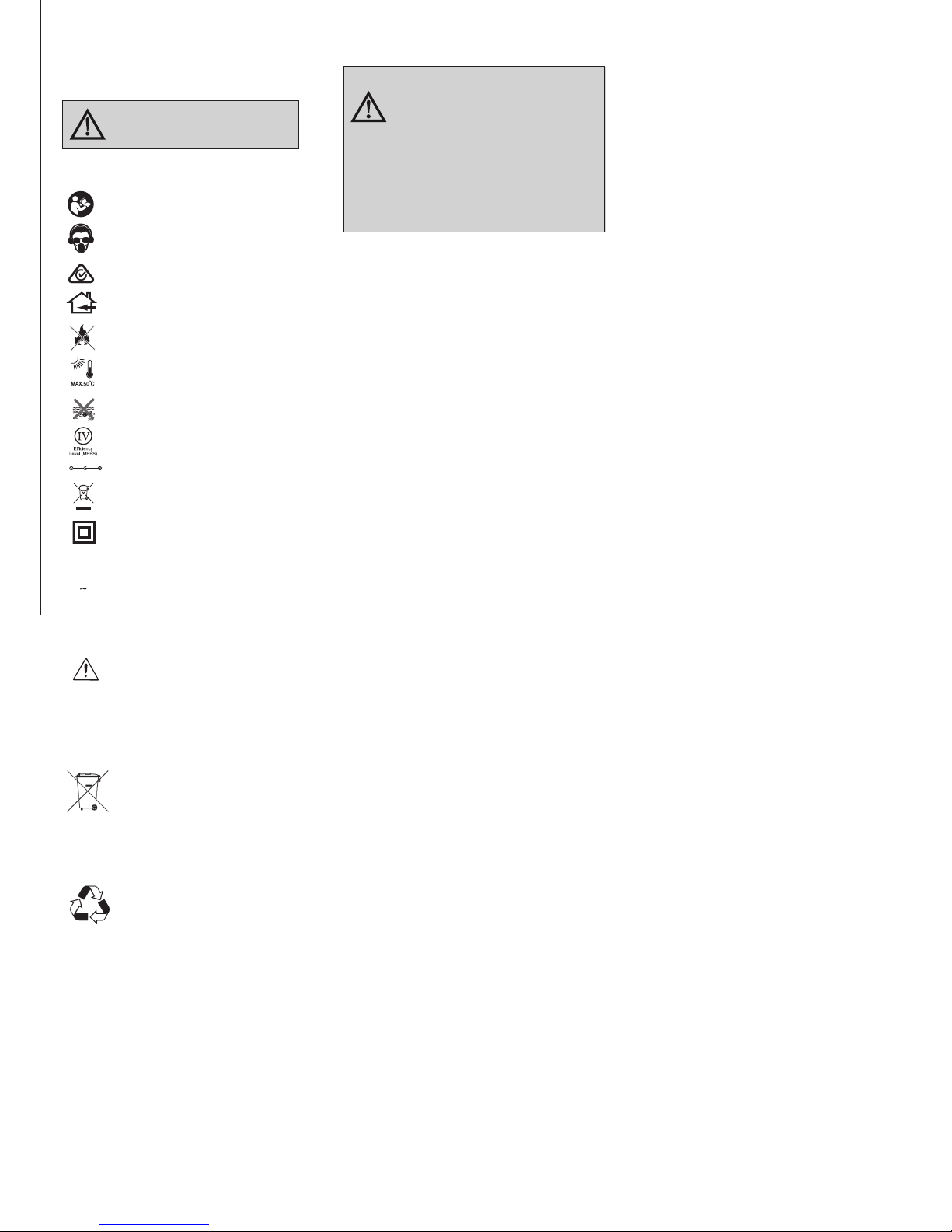

Description of symbols
Caring for the environment
General Power Tool Safety
Warnings
WARNING! Read all safety
warnings and all instructions. Failure
to follow the warnings and instructions may
result in electric shock, re and/or serious
injury.
Save all warnings and instructions
for future reference. The term “power
tool” in all of the warnings refers to your
mains-operated (corded) power tool or batteryoperated (cordless) power tool.
Power tools that are no longer usable
should not be disposed of with household
waste but in an environmentally friendly
way.
Please recycle where facilities exist.
Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for
landll and raw materials.
Reuse of recycled material decreases
pollution in the environment. Please
recycle packaging where facilities
exist.
Check with your local council authority for
recycling advice.
Read instruction manual
1) Work area safety
a) Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b) Do not operate power tools in
explosive atmospheres, such as in the
presence of ammable liquids, gases or
dust.
Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away
while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the
outlet. Never modify the plug in any
way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodied
plugs and matching outlets will reduce risk of electric
shock.
b) Avoid body contact with earthed
or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or
wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
drugs, alcohol or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Personal
protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch
on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the power
tool may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of dust
collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better and safer
at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tools operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories
and tool bits etc. in accordance with
these instructions and in the manner
intended for the particular type of power
tool, taking into account the working
conditions and the work to be performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by
a qualied repair person using only
identical replacement parts. This will ensure
that the safety of the power tool is maintained.
2
Do not incinerate
Do not use or store battery in
temperatures exceeding 500C
Do not get battery wet
Transformer energy rating (MEPS)
Polarity
Do not put in the rubbish
Wear eye, breathing and hearing
protection
Indoor use only
Double insulated
Volts
Hertz
Watts
Warning
Alternating current
V
Hz
W
R.C.M. Regulatory compliance mark
Page 6
Charger and battery pack
safety instructions
Drill Driver Safety
Warnings
This tools charger is double insulated; therefore
no earth wire is required.
2
1. Before using the charger read all instructions and
cautionary markings on the charger, battery pack
and the product using the battery pack.
2. This charger is not intended for any uses other
than charging rechargeable batteries. Any other
use may result in risk of re, electric shock or
electrocution.
3. Do not place any object on top of the charger or
place the charger on a soft surface that may result
in excessive internal heat. Place the charger in a
position away from any heat source.
4. To reduce risk of damage to the electric plug and
cord, pull by the plug rather than the cord when
disconnecting the charger.
5. Make sure the cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage or stress.
6. An extension cord should not be used unless
absolutely necessary. Use of an improper extension
cord could result in the risk of re, electric shock or
electrocution.
7. Do not operate the charger if it has received a
sharp blow, been dropped or otherwise damaged
in any way. Have it checked by an electrician or
power tool repairer.
8. Do not disassemble charger. Take it to an electri-
cian or power tool repairer when service or repair is
required. Incorrect reassembly may result in a risk
of electric shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger
from the outlet before attempting any cleaning.
Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in loca-
tions where the temperature may reach or exceed
40ºC (such as inside sheds or metal buildings in
summer).
12. The charger is designed to operate on standard
household electrical power (240 volts). Do not
attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the
carton. First read the safety instructions and then
follow the charging notes and procedures.
14. The longest life and best performance can be
obtained if the battery pack is charged when the air
temperature is between 18 - 24ºC. Do not charge
the battery pack in an air temperature below 10ºC
or above 40ºC. This is important and will prevent
damage to the battery pack.
15. Do not incinerate the battery pack even if it is
seriously damaged or is completely worn out. The
battery can explode in a re.
16. Never attempt to open the battery pack for any rea-
son. If the plastic housing of the battery pack breaks
or cracks, immediately discontinue use and do not
recharge.
17. During charging, the battery must be placed in a
well ventilated area.
WARNING! Wear ear protectors when
impact drilling Exposure to noise can cause
hearing loss.
Use auxiliary handle(s), if supplied with
the tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the
operator an electric shock.
Before drilling into walls, ceilings etc, ensure that there
are no concealed power cables or pipes in the cavity.
WARNING! Some dust created by
power sanding, sawing, grinding,
drilling and other construction
activities contain chemicals known to
cause cancer, birth defects or other
reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other
masonry products
• Arsenic and chromium from chemically treated timber
Your risk from exposure to these chemicals varies,
depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a
well ventilated area and work with approved safety
equipment, such as dust masks that are specially
designed to lter out microscopic particles.
This appliance is not intended for use by
young or inrm persons unless supervised by
a responsible person to ensure that they can use the
appliance safely. Young children should be supervised
to ensure that they do not play with the appliance.
Loading...
