Xtrons D717AL, D719A User Manual

Download

USER MANUAL

Thank you for buying this XTRONS product. Please read through these instructions so you will

know how to operate this unit properly. After you have finished reading the instructions, keep

this document in a safe place for future reference.

Contents

Precaution .........................................................................................................

Main Menu ........................................................................................................

Radio .....................................................................................................................

USB/SD ................................................................................................................

AUX Input ...........................................................................................................

Bluetooth ............................................................................................................

Bluetooth Music ..............................................................................................

Screen Mirroring ..............................................................................................

Navigation .........................................................................................................

Connect to the Internet ................................................................................

DVR .......................................................................................................................

DAB+ (Optional) ..............................................................................................

Settings ...............................................................................................................

Troubleshooting ..............................................................................................

TV (Optional) ....................................................................................................

Precaution

Before installing this product

- Use this unit with a 12-volt battery and negative grounding only. Failure to do so

Important safety information

WARNING

- Do not attempt to install or service this product by yourself. Installation or servicing

- To avoid shorts in the electrical system, be sure to disconnect the (-) battery cable

- Do not allow this product to come into contact with liquids. Electrical shock could

- If liquid or foreign matter should get inside this product, park your vehicle in a safe

- If you notice smoke, a strange noise or odor from this product, or any other

may result in a fire or malfunction.

before installation.

of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.

result. Also, damage to the product , smoke and overheating could result from contact with liquids.

place, turn the ignition switch off (ACC OFF) immediately and consult your dealer. Do not use this product in this condition because doing so may result in a fire, electric shock, or other failure.

abnormal signs on the screen, turn off the power immediately and consult your dealer. Using this product in this condition may result in permanent damage to the system.

- Do not disassemble or modify this product, as there are high-voltage components

- Do not operate this product or any applications if doing so will divert your

- Never set the volume of this product so high that you cannot hear outside traffic

- To promote safety, certain functions are disabled unless the vehicle is stopped

- Keep this manual handy as a reference for operating procedures and safety

- Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair

- Please remember to fasten your seat belt at all times while operating your

- Never use headphones while driving.

Before using this product , be sure to read and fully understand the following safety information:

inside which may cause an electric shock. Be sure to consult your dealer for internal inspection, adjustments or repairs.

attention in any way from the safe operation of your vehicle. Always observe safe driving rules and follow all existing traffic regulations. If you experience difficulty in operating this product or reading the display, park your vehicle in a safe location and apply the parking brake before making the necessary adjustments.

and emergency vehicles.

and/or the parking brake is applied.

information.

the performance of any of the vehicle’s operating systems or safety features, including air bags or hazard lamp buttons or (iii) impair the driver’s ability to safely operate the vehicle.

vehicle. If you are ever in an accident, your injuries can be considerably more severe if your seat belt is not properly buckled.

To ensure safe driving

- LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED

- Do not take any steps to tamper with or disable the parking brake interlock

- In some countries the viewing of video image on a display inside a vehicle even by

WARNING

Do not install this product in a vehicle that does not have an ACC wire or circuitry

available.

To avoid battery exhaustion

Be sure to run the vehicle engine while using this product. Using this product without running the engine can drain the battery.

STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.

system which is in place for your protection. Tampering with or disabling the parking brake interlock system could result in serious injury or death.

- To avoid the risk of damage and injury and the potential violation of applicable

laws, this product is not for use with a video image that is visible to the driver.

persons other than the driver may be illegal. Where such regulations apply, they be obeyed. If you attempt to watch video image while driving, the warning “Viewing of front seat video source while driving is strictly prohibited.” will appear on the screen. To watch video image on this display, stop the vehicle in a safe place and apply the parking brake. Please keep the brake pedal pushed down before releasing the parking brake.

Main Menu

Home

Back

3. Recent apps

Time

Date and time

6. Brightness

Display all apps

Use apps

Tap "Display all apps" icon to display all apps and tap an app to open it.

Customize the unit

Change the wallpaper

You can set an image or photo as wallpaper for the Home screen. You can choose from the preset Live Wallpapers (dynamic) and Wallpapers (stills), or choose from images or photos stored on a USB storage device or an SD memory card.

Adjust the screen brightness

Go to Settings > Brightness, then slide the pointer on the bar to adjust the brightness.

Change the wallpaper. Go to Settings > Device Settings > Wallpaper

Radio

Perform seek tuning or non-stop seek tuning

Preset channel list

Broadcast frequency slider

Band Chooser

Manual Scan

STERO (mono/stereo switch)

Use frequency slider to select a frequency you like, then touch and hold any of preset frequency keys to store it. Up to 18 FM stations and 12 AM stations can be stored in memory.

DX/LOC (Local seek tuning/Distant seek tuning switch)

Key Pad

9. EQ (Equalizer)

10. TA (Traffic Announcement))

11.

PTY (Program Type)

12. AF (Alternative Frequencies)

USB/SD

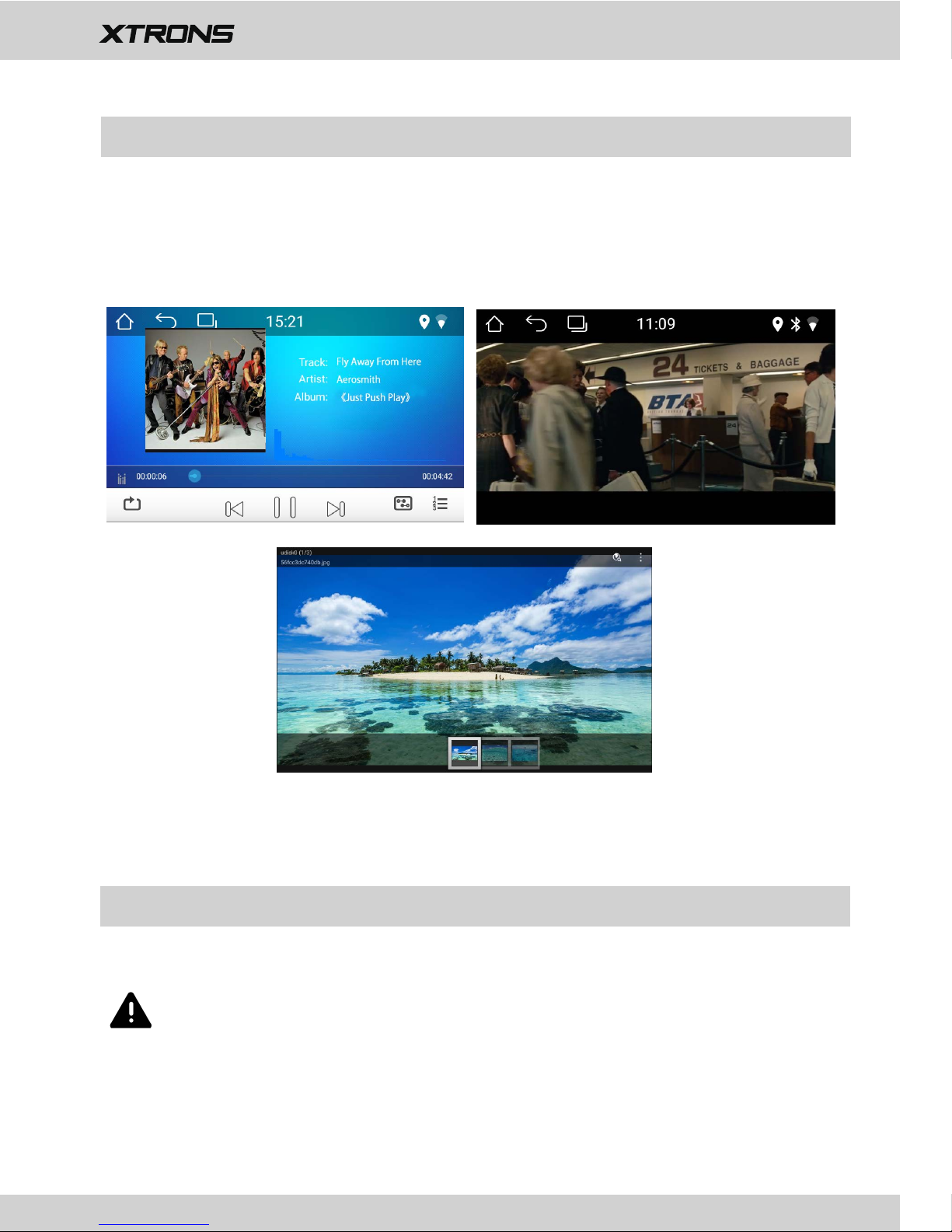

Plug a USB storage device or insert an SD memory card, then tap Music on the Home screen to play music, tap Video to play video files, or tap ES File Explorer to view images and photos.

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.

AUX Input

You can display the video image output by the device connected to this unit.

Bluetooth

Connect your mobile phone to this unit via Bluetooth and use an external microphone to make and receive hands-free calls.

CAUTION

For your safety, avoid talking on the phone as much as possible while driving.

＊Connect to a Bluetooth device Connection (Bluetooth pairing)

The Bluetooth device must be within 1 meter of this unit. Turn on Bluetooth on

the device.

You can find this unit in the devices list of your Bluetooth device.

If your Bluetooth device supports SSP (Secure Simple Pairing), a four-digit

number password will be required. The default password is 0000.

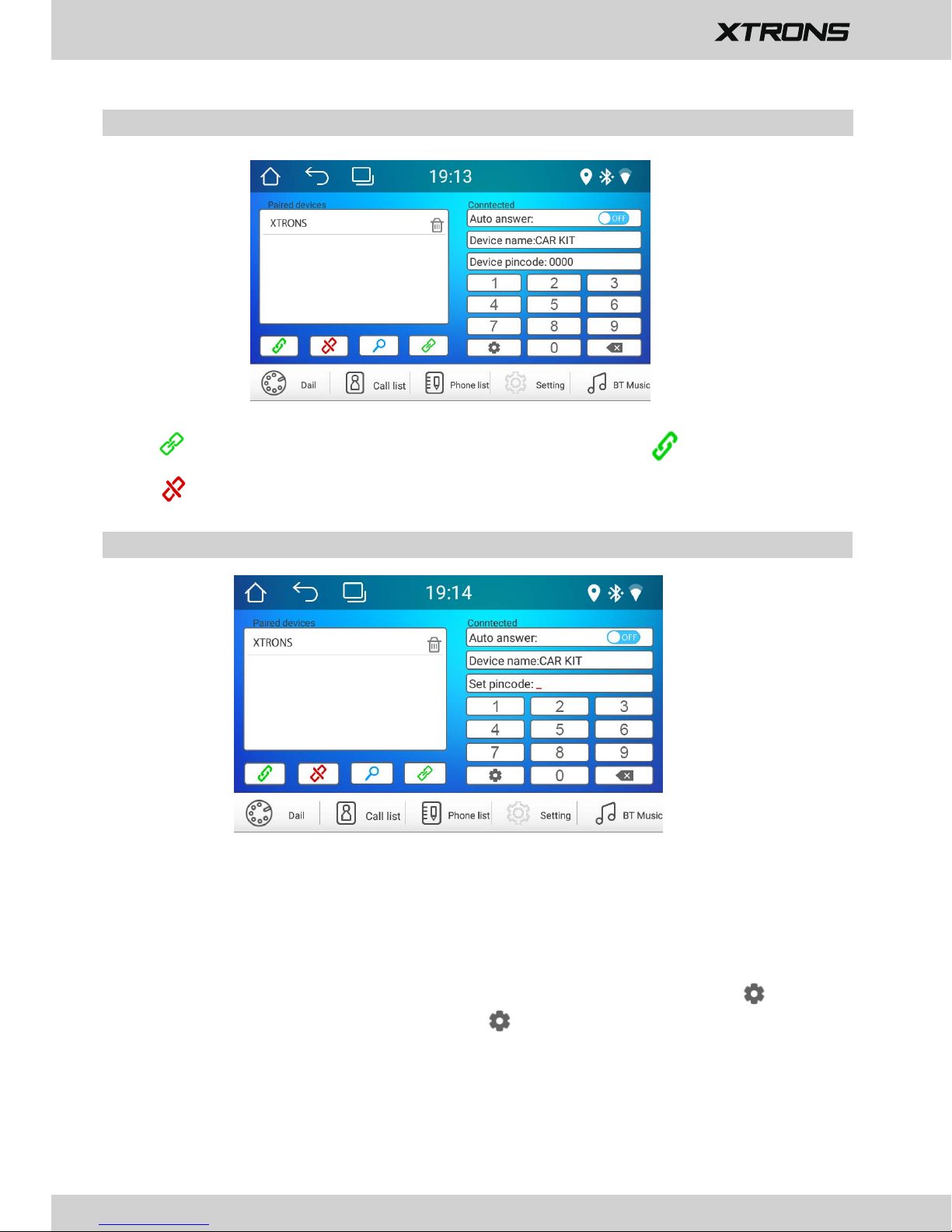

1. Pair a device Keypad

Disconnect a device

Scan

4. Paired devices list

Dail

Recent Calls

7. Phone book

Bluetooth music

Settings

Enter the number to make a call. You can also choose a contact from the phone book to make a call.

1. Phone calls

2. Phone book

Tap

to s

ynchronize the contacts from your Bluetooth device.

View recent o

utgoing calls, incoming calls or

missed calls

3. Recent calls

5. Bluetooth settings

Tap to check paired devices or available devices, then tap to pair the device.

Tap to unpair the device.

①

You can change the Device Name of this unit. Tap "Device name" to enter a

different name.

You can change the PIN Number (Bluetooth pairing password). Tap to enter another

four-digit number, then tap again to set the new password. The

default password is 0000.

②

You can turn AutoAnswer on or off.

③

4. Devices list

Bluetooth Music

After the Bluetooth connection is established, tap A2DP on the Home screen, then you can play music stored in your Bluetooth device on this unit.

※ At first, you need to operate the music playback on your Bluetooth device.

※ Please note that the unit may not support the Bluetooth music function

Then you can operate the Bluetooth music on the unit.

when some mobile phones are not quite compatible with the unit.

Screen Mirroring

Tap EasyConnected on the apps menu screen to enter screen mirroring mode. When you connect a mobile phone with compatible applications installed, you can control the applications for the mobile phone directly from this unit.

For Android smart phone:

Go to Settings > About Device, then tap Build number 7 times to enable

Developer options. Turn on USB debugging. A message Allow USB debugging? will pop up. Turn Always allow from this computer on, then tap OK.

b. Connect your Android smart phone to this unit via a USB cable.

※ Please note this function is only applicable for the smart phones

equipped with wireless mirroring function, and it only supports Android version above 4.0. Audio streaming requires a Bluetooth

connection.

For iPhone:

a. Go to Settings > Personal Hotspot, then turn Personal Hotspot on.

Tap iPhone WiFi, then select your iPhone name from the hotspot list. Enter

the password when prompted.

Tap AirDrop and choose "Everyone", then tap AirPlay in the Control Center

on your iPhone. Select EC-Mirror.

※ On iPhone 4/4s, only photos can be streamed wireless to this unit.

On iPhone 5 and other later iPhone models, both music and photos can be streamed wireless to this unit. Video streaming requires the appropriate Apple cable or adapter.

Connect via a USB cable

Go to Settings > Wireless & networks > More > Tethering & portable hotspot,

then turn Portable Wi-Fi hotspot on or tap Set up Wi-Fi hotspot.

Tap Android WiFi, then select your Android device name from the hotspot

list. Enter the password when prompted.

2. Connect via Wi-Fi

Navigation

Built-in navigation offers detailed, reliable route guidance information to help you get where you want to go.

You can actually download a range of GPS Navigation apps via Google Play and run them on the unit. You can download Sat Nav apps like TomTom, Navigon, Route 66, Sygic, iGO, Google Maps and many more.

Connect to the Internet

You can connect the unit to the Internet whenever necessary, using a Wi-Fi connection (if available) or 3G network (3G dongle is sold separately). You can browse the web, download apps via Google Play, play online games, etc. The possibilities are endless with the Internet in your car.

DVR

You can control a car DVR camera (sold separately) on this unit and use it to record all the events of a journey.

DAB+ (Optional)

With use of a DAB dongle (sold separately), DAB+ (Digital audio broadcasting) tuner lets you enjoy the convenience of digital radio, while Auto DAB+ Tuning makes sure there are less signal interruptions. DAB+ digital radio brings you highdetail, digital-quality sound, lots of stations, program information and more.

DAB antenna (sold separately) needs to be positioned on the windscreen of your vehicle. Tap DAB+ on the apps menu screen, then tap to search all available services automatically.

TV (Optional)

With use of a Digital TV tuner (sold separately), MPEG-4 Digital TV enables you to

watch DVB-T digital TV on this unit. Please check to ensure your country supports

MPEG-4 DVB-T.

※

Please note this feature is not supported on all models.

The Bluetooth reception is poor. Move the mobile phone closer to the product or

1.Common Settings

1. Navigation

Choose audio from user, classical, pop, rock, hall and movie . Tap any of them to adjust the equalizer.

2. Audio

Drag the slider to adjust the backlight.

Brightness

Settings

Choose wallpaper from Wallpaper / ES File Explorer / Gallery / Live Wallpaper

Device Settings

2.1 Wall paper

Automatic date & time: Use network provided time. Select time zone: Tap it and select time zone. Use 24-hour format: 12-hour format and 24-hour format switch

2.2 Date/Time

2.3 Language

Set the language for unit.

3.1.1 Reversing setting Turn Distance Line on or off Turn

Steering wheel track on or off

Mute

3.1.2 System settings Beep

Turn Brake Detect

on or off

Turn

Assistive Touch on or off

3. System Settings

3.1 Reversing Setting

3.2 System

Show system info.

3.3 Wheel

This allows you to use the steering wheel control of your vehicle to control the unit.

Wireless & networks

1.1 Wi-Fi

Turn Wi-Fi on or off. Choose a network: Tap one of the listed networks, then enter the password, if asked.

1.2 Bluetooth

Turn Bluetooth on or off.

Tap a device on the Paired devices or on the Available devices list to pair or unpair it.

1.3 Data Usage

Shows apps data usage.

1.4 More

You can set up Portable Wi-Fi hotspot or VPN.

More Settings

3.4 Reset

Tap "X" to restore to factory setting.

3.5 Factory Settings

Enter the password 7890 to go to Factory settings. Power logo: Select one of the preinstalled car manufacturer logos as your start up screen.

3.6 Multicolor settings

This enables you to change the illumination color of the buttons to your personal preference. You can choose from 7 colors.

2.Device

2.1 Display

2.1.1 Wallpaper

Set an image or photo as wallpaper for the Home screen.

2.1.2 Daydream

Choose different mode from Clock, Colors, Photos and Photo album for Screen Saver

2.2 Sound & notification

2.2.1 Sound Drag the slider to adjust Media volume, Alarm volume and Notification volume. Interruptions Set different ringtone for notifications. Other Sounds - Turn screen locking sounds on or off

Turn vibrate on touch on or off

2.2.2 Notifications Set apps notifications show or not when device is locked.

2.3 Storage

- Internal storage

- Total Spcae

- SD card

- USB storage

2.1.5 Cast Screen

2.1.3 Font Size

Font size: Small, Normal, Large and Huge

2.1.4 When device rotated

2.4 Apps

Manage all the apps downloaded on the unit or on an SD memory card.

2.5 Screenshot settings

- Select delay time to capture the screen Choose from 15 seconds, 30 seconds, 1 minute, 2 minutes, 3 minutes, 4 minutes, and 5 minutes later.

- Set the location of screenshot storage Choose from Nand Flash, SD Card, and USB Storage.

- Show the screenshot button in the status bar Turn this on or off.

3.2 Security

- Screen lock

- Owner info

- Encrypt device

- Make passwords visible

- Device administrators

- Unknown sources

- Storage type

- Trusted credentials

- Install certificates from SD card

- Clear credentials

- Trust agents

- Screen pinning

- Apps with usage access

3. Personal

3.1 Location

Turn Location on or off. Location mode: Choose from High accuracy, Battery saving, and Device only. Show recent location requests

3.4.6 Pointer speed

Drag the slider to adjust the pointer speed.

System

4.1 Date and time

Date & time settings include:

- Automatic date & time

- Set date

- Set time

- Select time zone

- Use 24-hour format

3.4.3 Personal dictionary

Add words in the user dictionary.

3.4.4 Keyboard & input methods

The default input method is English (US) - Android Keyboard.

3.4.5 Text-to-speech output

The supported languages are English, French, German, Italian and Spanish.

4.2 Accessibility

- CarDvr -Auxiliary Operation

- Captions

- Magnification gestures

- Large text

- High contrast text

- Auto-rotate screen

3.3 Accounts

Add account Add a Google account or other accounts.

3.4 Language & input

3.4.1 Language

Set the language for the unit. Choose from English, French, German, Spanish, and

many more.

3.4.2 Spell checker

Turn Spell checker on or off.

4.3 Printing Accessibility

4.4 About device

See information about the unit. The items you can view include:

- System updates

- Status

- Legal information

- Model number

- Android version

- Android security patch level

- Kernel Version

- Build number

- Speak passwords

- Accessibility shortcut

- Text-to-speech output

- Touch & hold delay

- Color inversion

- Color correction

Troubleshooting

If you have problems operating this product, refer to this section. The most common problems are listed below, along with likely causes and solutions.

- Car engine has not been started. Start the car engine.

- Incorrect wiring connection. Check the wiring.

- Fuse has been damaged. Replace fuse.

- Parking brake wire connect is incorrect. Check the parking wiring.

The disc is inserted upside down. Insert the disc with the label upward.

- The disc is dirty. Clean the disc.

- The disc is cracked or otherwise damaged. Insert a normal, round disc.

- The files on the discs are in an irregular file format. Check the file format.

- The disc format cannot be played back. Replace the disc.

- The loaded disc is a type this product cannot play. Check what type of disc it is.

- The parking brake lead is not connected or applied. Connect the parking brake lead correctly, and apply the parking brake.

- The parking brake interlock is activated. Park your vehicle in a safe place and apply

- Volume is too low. Adjust volume.

- Incorrect wiring connection. Check the wiring.

No power

- Video DVD settings do not match with the DVD. Adjust video DVD settings.

- Video connection is incorrect.

No sound

No image

Disc does not play

The screen is covered by a caution message and the video cannot be shown

Image flashes or distorted

the parking brake.

- Set the TV Signal settings (NTSC/PAL) of the iPod/iPhone correctly.

- The Bluetooth reception is poor. Move the mobile phone closer to the product or remove any obstacle between the mobile phone and the product.

- Some mobile phones may connect and disconnect constantly when you make or

end calls. This does not indicate any malfunction of the product.

- For some mobile phones, the Bluetooth connection may be deactivated

Signals are too weak. Select other stations with stronger signals.

- Check the connection of the vehicle antenna.

- Change broadcast from stereo to mono.

Noise in broadcasts

The paired mobile phone connects and disconnects constantly

Preset station lost

- Battery cable is not correctly connected. Connect the battery cable to the terminal

The iPod/iPhone’s video image is disturbed

that is always live.

automatically as a power-saving feature. This does not indicate any malfunction of the product.

www.xtrons.com

Xtrons D717AL, D719A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
