Introduction

Please read and save this manual!

Thank you for selecting this uninterruptible po wer system (UPS). It provides you
with a perfect protection for connected equipm ent. The manual is a guide to install
and use the UPS. It includes important safety instructions for operation and
correct installation of the UPS. If you should have any problems with the UPS,
please refer to this manual before calling customer service.

Please save or recycle the p ackaging materials!

The UPS‘s shipping materials are designed with great care to provide protection
within delivery. T hese materials are invaluable if you ever h ave to return the UPS
for service. Damage happened during transit is not covered under the warranty.

Intelligent microprocessor control

The UPS is a microprocessor-controlled unit. This means that it operates with the
newest technology, high performance and powerful function.

The UPS is an intelligent protector and provides pure, reliable AC power to the
critical loads - protecting them from utility power blackout, swells, sags and
interference.

4

Furthermore, in order to save the battery energy, the UPSs can automatically turn
it off under backup mode if none of the connected loads is operating.

Advanced battery management

The visual and audible indications of the UPS present the battery’s status. The
self-test function allows the UPS to detect a weak battery before it is put into
service. The UPS normally performs a self-test at power up condition.

1. Important Safety Instructions

● SAVE THESE INSTRUCTIONS - This Manual Contains Important

Instructions that should be Followed during Installation and Maintenance of
the UPS and Batteries.

● Intended for Installation in a Controlled Environment.

● Servicing of batteries should be performed or supervised by personnel

knowledgeable of batteries and their required precautions. Keep
unauthorized personnel away from batteries.

● When Replacing Batteries, replace With the Same Numb er and Type

●

CAUTION - Do Not Dispose of Battery or Batteries in a Fire, The Battery

May Explode.

●

CAUTION - Do Not Open or Mutilate the Battery or Batteries, Released

Electrolyte
is Harmful to the Skin and Eyes. It May be Toxic.

●

CAUTION - A Battery can present a Risk of Electrical Shock and High Short

Circuit Current. The Following Precautions Should be Observed When

Working on Batteries:
Remove watches, rings or other metal objects.
Use tools with insulated handles.
Wear rubber gloves and boots.
Do not lay tools or metal parts on top of batteries.
Disconnect charging source prior to connecting or disconnecting battery

terminals.

5

2. Presentation

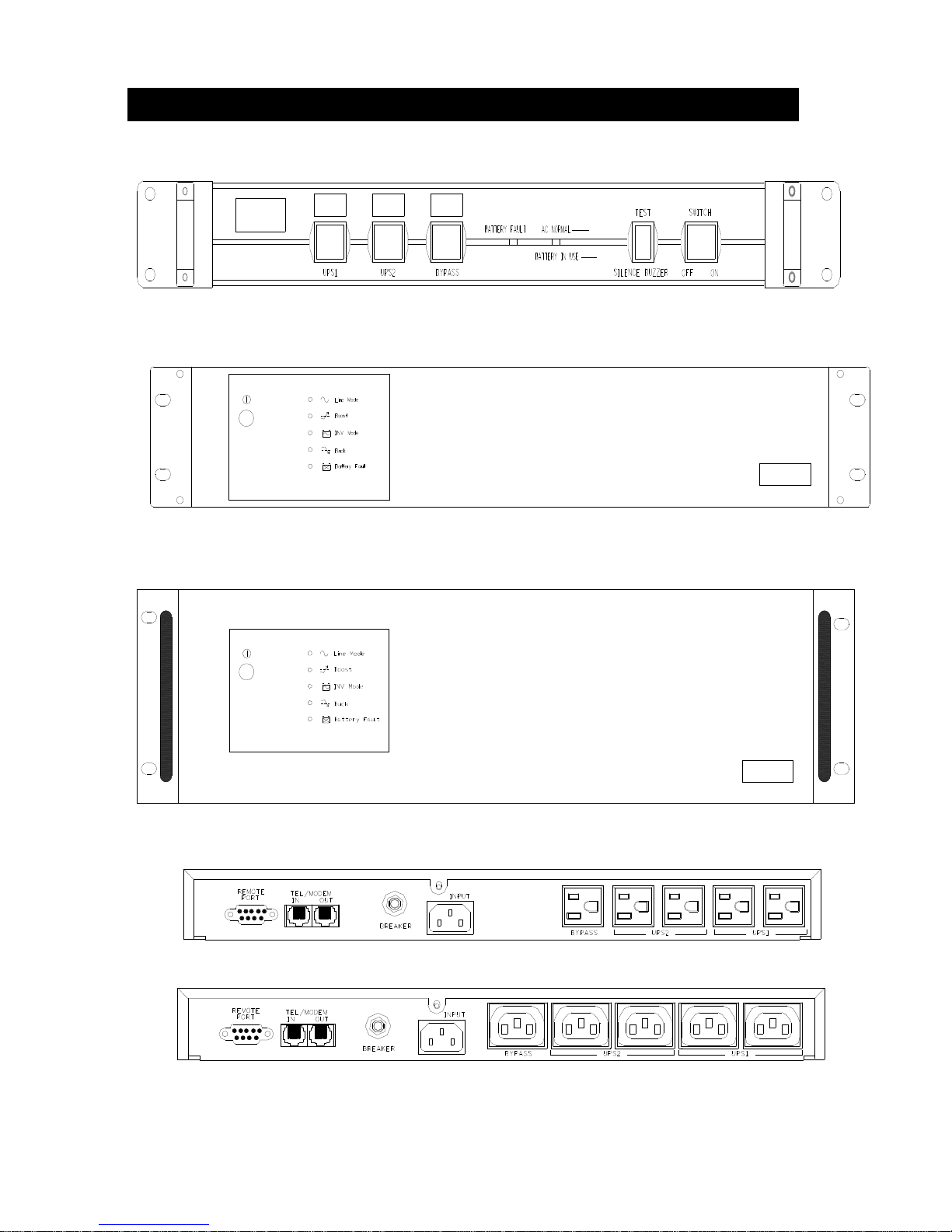

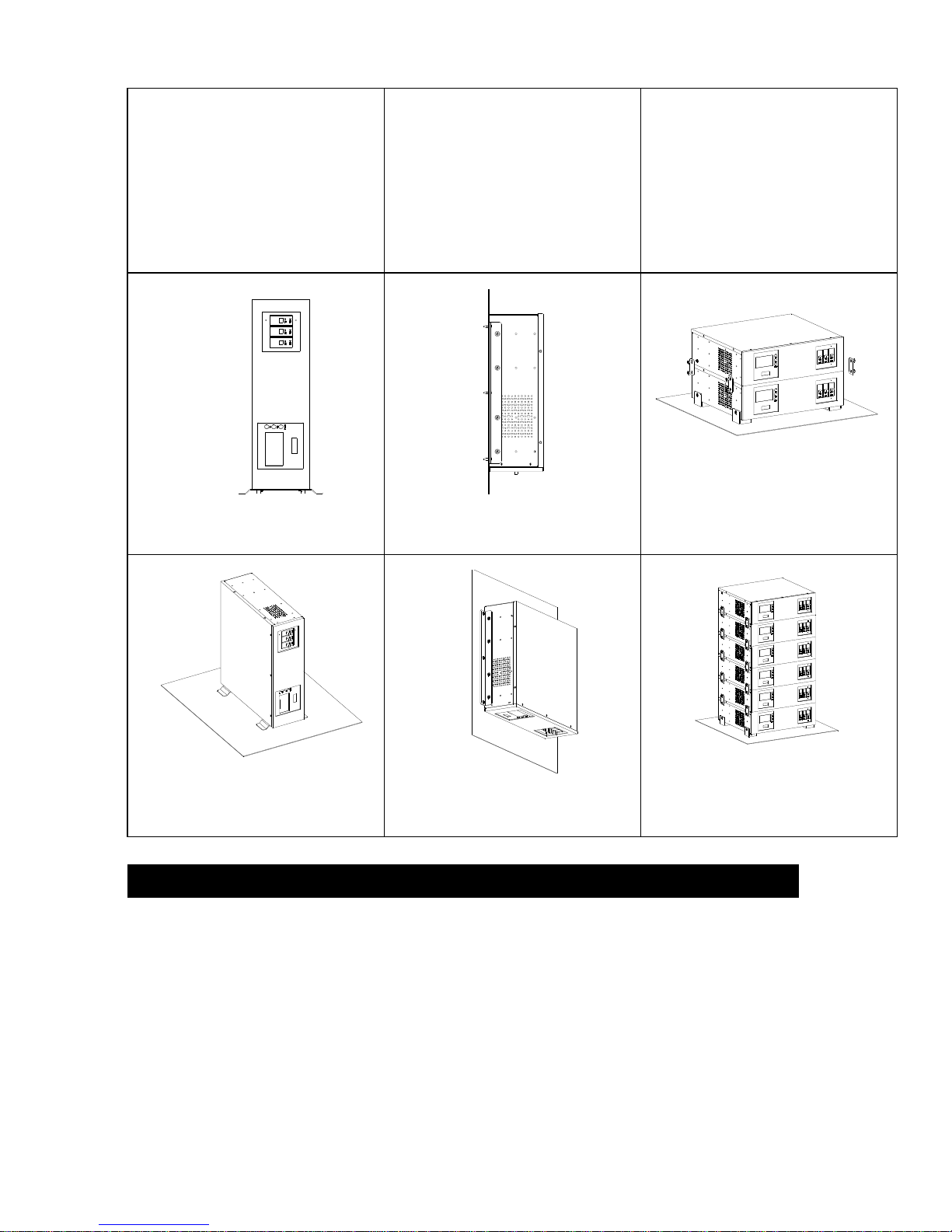

Front Panel (600VA/ 1000VA), 1U size

Front Panel (1200VA/ 1500VA), 2U size

Front Panel (2200VA/ 3000VA), 3U size

Back Panel (600VA/ 1000VA), 1U size

Back Panel (1200VA/ 1500VA), 2U SIZE

6

(1500VA/110V NO BYPASS OUTPUT)

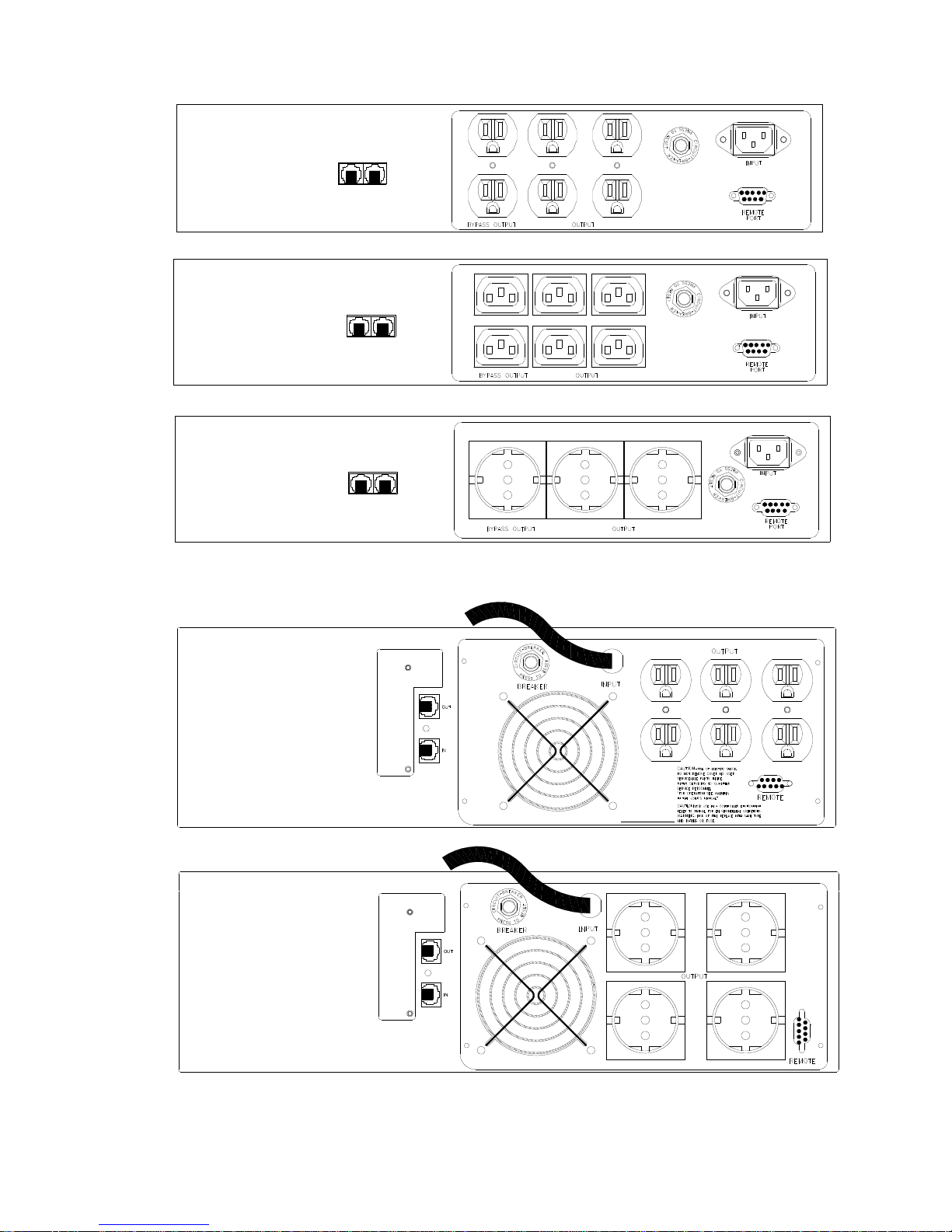

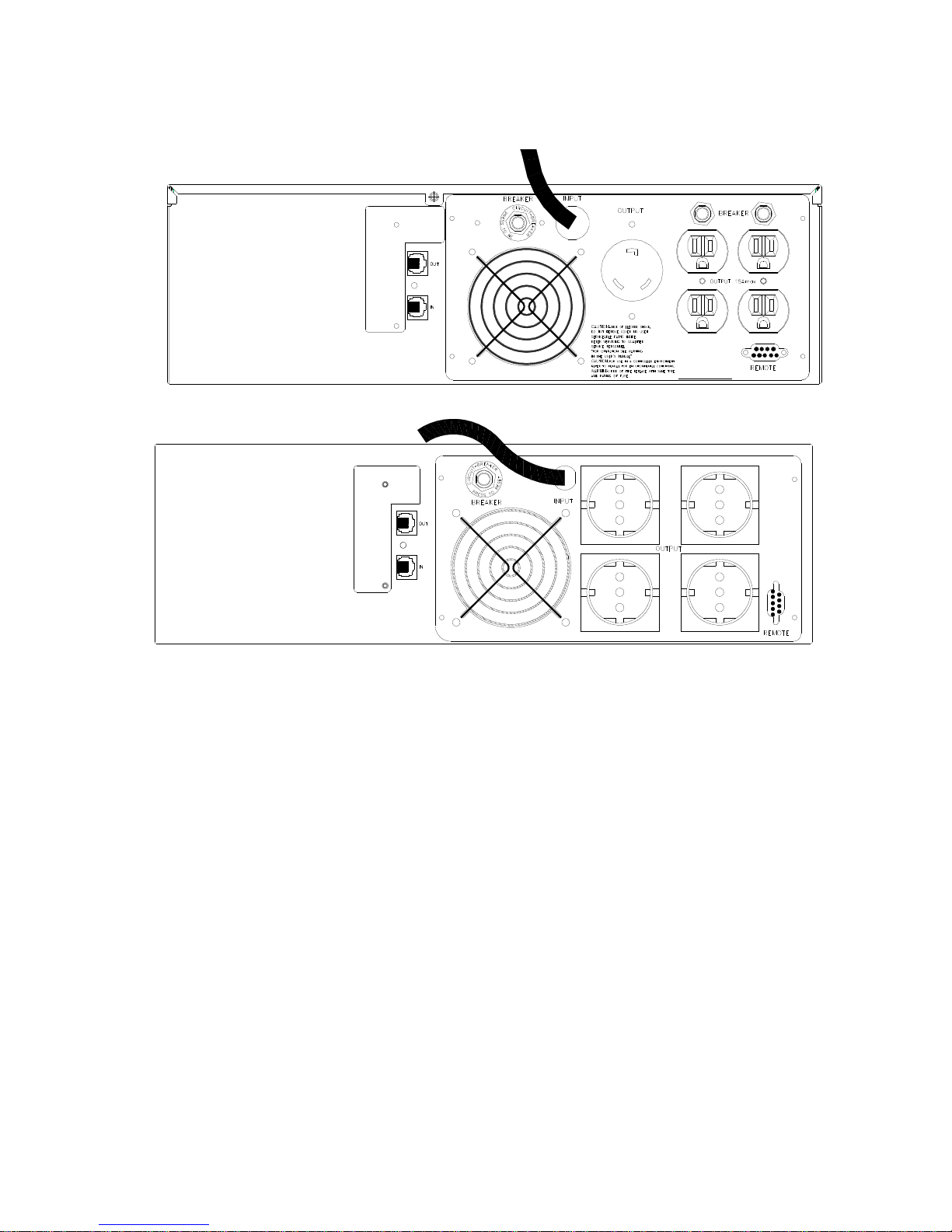

Back Panel (2200VA), 3U SIZE

7

Back Panel (3000VA), 3U SIZE

2.1 “Power On” Indicator

Power On indicator illuminates when utility power’s condition is normal.

2.2 “BACKUP” indicator

The indicator illuminates when the power is supplied from the batteries.

2.3 “Battery Fault” Indicator

This illuminates indicating weak battery. Recharge the battery for at least four
hours. If after recharging this is still illuminated, replace the battery by following
the instructions in the manual.(You can plug out then check battery)

2.4 Power Switch

Can be used as the master on/off switch of your equipment by leaving your
equipment connected to UPS and switched on.

2.5 UPS Outlets

Provide instantaneous back-up power protection to your equipment. Supply
temporary uninterrupted operation for your equipment during power failure.

2.6 Bypass Power Sag Outlets

Provides bypass power sag protection to your equipment. Prevent power

8

problems traveling through your system via unprotecte d peripherals.

2.7 Circuit Breaker Protection

Serves as an overload and fault protection. This is a critical component of the
advanced UPS

2.8 “Phone Jack” Communications Ports

Telecom transfer ports provide users to extend the applications.

● Caution: To reduce the risk of fire, use only No. 26AWG or larger

telecommunication line cord.

2.9 communication function

Provide RS-232 interface and UPSMON software to support NOVELL, UNIX,
DOS, WINDOWS and other operating systems.

3. Installation

Inspect the UPS upon receipt. The packaging is recyclable; keep it for reuse or
dispose of properly.

3.1 Recharge the battery

UPS may be used by anyone immediately upon receipt. The battery is fully
charged before shipping from the factory. However, the user is recomm ended to
recharge the battery for at least eight hours before using UPS. Energy loss may
occur during shipping or long duration storage. To recharge the battery, simply
plug in the UPS to a wall outlet and let it charge.

3.2 Connect the loads

Plug your primary equipment (e.g. computer, monitor and critical data storage
device, etc.) to the Battery Power-Supplied outlets. Plug your peripheral
equipment (e.g. printer, scanner, fax, or audio device) to the bypass outlets. Do
not plug a laser printer into the UPS output outlets, as its power demand is much
higher than typical peripherals and may cause the circuit breaker to trip. It is
suggested to connect similar heavy loads (like laser printer) to the bypass
outlets.

3.3 Connect the telephone

If you wish to protect a fax or a modem, connect the telephone c abl e from the wall
outlet to the “IN” jack. Connect the telephone cable (provided) from the “OUT” jack
to the fax or modem. To protect a10Base-T (UTP) net work interface, obtain a nd
use a UTP cable to connect the “OUT” jack to your computer.

3.4 Connect to the utility power

Plug UPS to a 2-pole, 3-wire grounding receptacle. Make sure the branch is
protected and does not service equipment requiring heavy electricity (e.g.
refrigerator, air conditioner, copier, etc.). Avoid using extension cords; if used,
make sure they are rated for at least 15 Amps (A).

Special Note:: concerning connection to utility power

. Size of Branch
Circuit Overcurrent Protection - "CAUTION - To reduce the
risk of fire, connect only to a circuit provided with 30
amperes maximum branch circuit overcurrent protection in
accordance with the National Electric Code, ANSI/NFPA 70".

3.5 UPS self-test

UPS will conduct a self-test once switched on it each time. Do not add or take off

9

any equipment while UPS conducts self-test; await it until the Power indicator
lights up. Besides this, switch on your equipment after the UPS is switched on..

3.6 Battery auto-charging

Once the power cord is connected, the battery of the UPS will be automatically
charged by the UPS..

3.7 Overload protection

If an overload situation is detected during the self-test, UPS audible alarm will
activate, emit a long beep and automatically shut down the system. Unplug at
least one piece of equipment from the Battery Supplied Outlets. Switch off UPS,
wait 5 seconds and check to make sure the circuit breaker is set then switch on,
again.

3.8 Optimal battery status

To maintain the optimal status of battery, make sure the UPS remains plugged in..

3.9 Self-protection feature

UPS is equipped with a self-protection feature preventing people users from
damaging the unit. It is programmed so that once switched off, the user must wait
5 seconds before switching UPS on again.

3.10 Storage

To store UPS, cover it and store it with the battery fully charged. During extend ed
storage, recharge the battery every three months to ensure battery life.

3.11 Power failure

When the event of power failure occurs after turning on UPS, and prior to the
self-test sequence, UPS will automatically shut down and not restart until utility
power is restored. This is necessary to check the qualit y of po wer that is delivered
to your connected equipment.

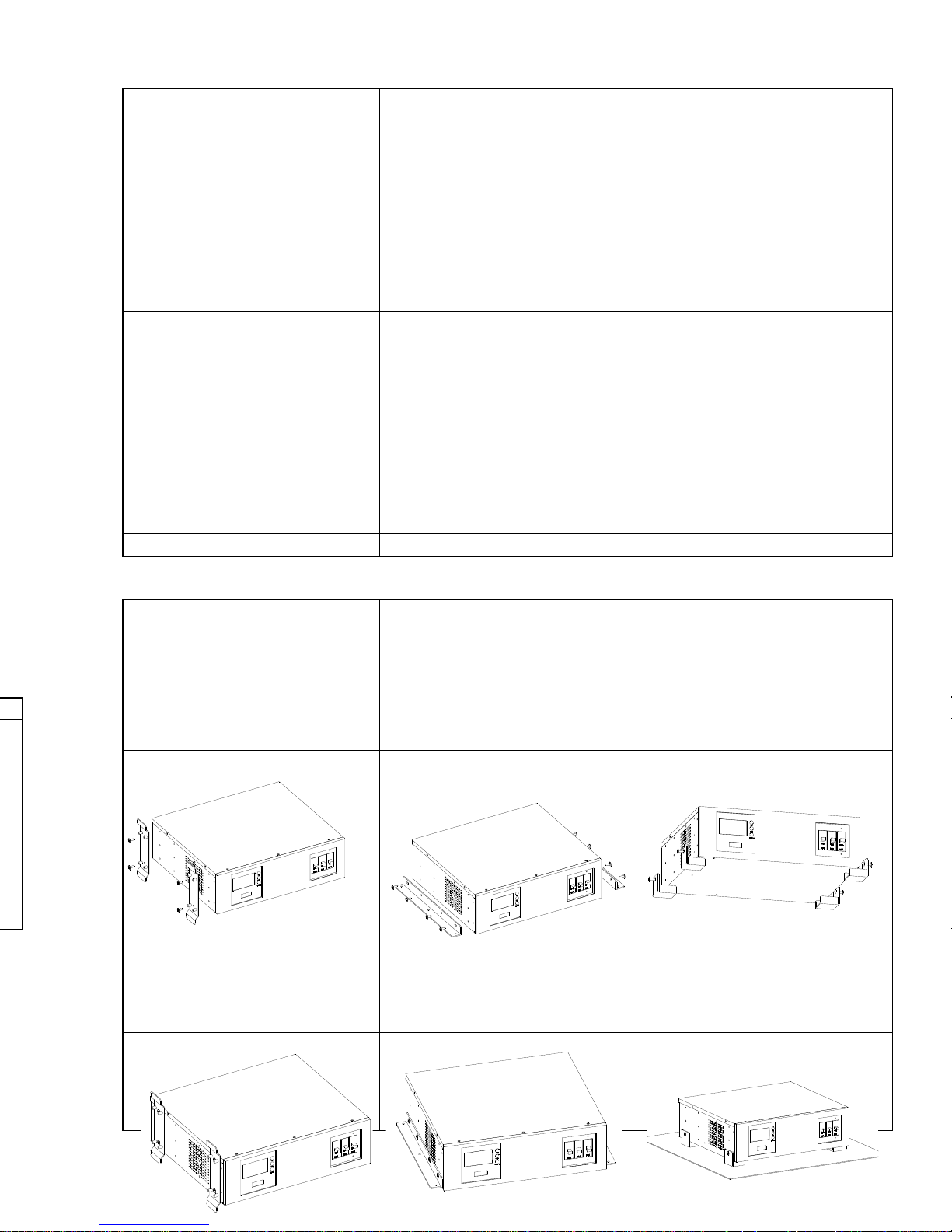

3.12 Installation with accessories of “Rack-mount” types:

Please install the rack-mount type units according to the following
illustration.

10

Installation with bottom plate.
Part
RMB-08 (1U),
RMB-09 (2U),
RMB-10 (3U),
RMB-11 (4U)
2 PCS.

Installation with bottom
bracket.
Part
RMB-12 (1U~4U)
2 PCS.

Installation with rear
bracket
Part
RMB-13,
RMB-14 (2U-4U)
4 PCS.

Step 1

Step 1

Step 1

11

Step 2

Step 2

Step 2

Step 3

Step 3

Step 3

Step 4

Step 4

Step 4

4. Operation

4.1 Simple test

It is recommended that the user perform a simulation test when using UPS for
the first time or when adding an additional piece of equipment. Conduct a
simulation-test: first, switch on UPS and wait for the power indicator to light up,
then simply unplug UPS to simulate the event of utility failure.

4.2 Check the power requirement of your equ ipment

4.2.1. Make sure the total power of your equipment does not exceed rating
capacity.

12

4.2.2. Also make sure the equipment you plugged into the Battery
Power-Supplied outlets does not require total power exceeding the capacity of
the UPS. Otherwise, overload may occur and cause the circuit breaker to trip. If
the power requirement of your equipment differs from VA, convert the
requirement power into VA by doing the calculations below:

4.2.3. If the power requirement of your equipment is listed other than VA,
convert the requirement into VA by doing the calculations below.

Watt (W) X 1.67 = VA, or Amps(A) X 120= VA (For
100-120V model)
Watt (W) X 1.67 = VA, or Amps(A) X 230= VA (For
220-240 model)

4.3 Limited rating power of UPS

When utility failure occurs, the UPS output outlets will supply power to your
equipment from its battery and the alarm will beep every 5 seconds. Be sure
that your equipment is running under the limited rating power. To restore the
utility by plugging UPS back in to the existing power source. Repeat the test a
few times to make sure UPS works properly and to find out the expected
runtime.

5. Software and Computer Interface

5.1 Power Monitoring Software

The UPSMON series software (or other power monitoring software) is applied
via a standard RS-232 interface to perform monitoring functions, and then
provides an orderly shutdown of a computer in the event of power failure.
Moreover, UPSMON displays all the diagnostic symptoms on the monitor, such as
Voltage, Frequency, Battery level and so on. The software is available for DOS,
Windows 3.1x, Windows 95/97/2000/ME/XP, Windows NT or later, Novell Netware,
Linux and others. Call your dealer for more information on computer OS
compatible solutions.

5.2 Interface Kits

A series of interface kits is available allowing UPS monitoring. Each interface kit
includes the special interface cable required to convert status signals from the
UPS into signals which individual operating system recognize. The interface cable
at UPS side must be connected to the REMOTE PORT, at computer side the
connection can be either COM 1 or COM 2. For other installati on instructions and
powerful features, please refer to READ.ME file contained within the UPSMON
software.

5.3 The characteristics of the computer interface port

The computer interface port has the following characteristics:
The communication port on the back of the UPS may be connected to host
computer. This port allows the computer to monitor the status of the UPS and
control the operation of the UPS in some cases. Its major functions normally

13

include some or all of the following:

To broadcast a warning when power fails.
To close any open file before the battery is exhausted.
To turn-off the UPS.

Some computers are equipped with a special connector to link with the
communication port. In addition, special plug-in cord may be needed. Some
computers may need special UPS monitoring software. Contact your dealer for the
details on the various interface Kits.

Attention: UPSMON software and interface port function just available for

model name
with “P” affix. The standard RS-232 cable (pin to pi n D-SUB 9 pin cable) can b e
connected
between UPS REMOTE PORT and computer COM port for the UPSMON series
software.
UPSMON software can be free download from www.xpcc.com

6. Battery Cabinet

6.1 Battery’s life of UPS

The battery’s life of UPS is about 3-6 years under normal usage.

6.2 Battery Replacement

Once the UPS’s battery is no longer useful and must b e replaced. Please call the
service personnel to replace it.

Appendix a Troubleshooting

UPS has a self-protect feature that prevents the UPS from being
damaged as a result of overheating. If the temperature is higher than
55°C, wait for a while and allow t the UPS to cool down..

MODEL 600VA 1000VA 1200VA

Input Capacity (On Battery) 600VA/360W 1000VA/600W 1200VA/720W

14

Problems Possible Cause Solution
Full-time Bypass
outlets stop providing
power to the
equipment

Circuit breaker button
popped up as a result of
overload.

Unplug at least one piece of
equipment from the Full-time Bypass
outlets.
Switch off UPS, wait 5 seconds, reset
the circuit breaker (press down

breaker button), then switch on UPS.
Battery undercharged or
depleted due to frequent
power outages.

Recharge the battery by leaving the

UPS plugged in and switched on.

The power required by your
equipment slightly exceeds
the capacity of the UPS.

Unplug at least one piece of

equipment from the UPS outlets.

UPS doesn’t perform
to its expected
runtime.

The battery is slightly
worn-out.

Call the service personnel to replace

the battery.
Special UPS is designed to
prevent damage from
flipping.

Switch UPS off, wait for 5 seconds,

then switch UPS on.

The battery is worn-out. Replace the battery by following the

instructions in this manual.

UPS cannot be
turned on.

Mechanical problem. Contact your sales representative.

Appendix b Specifications

MODEL 600VA 1000VA 1200VA

Input Capacity (On Battery) 600VA/360W 1000VA/600W 1200VA/720W

(Surge
protection)

500VA 500VA 500VA

Voltage +/-25% at line input
Frequency 50 or 60 Hz +/-10% (auto sensing)
Voltage (on battery) Simulated sine wave at 100V/115V/230V +/- 5% Output
Frequency (on battery) 50 or 60 Hz +/- 0.5%

15

Voltage Regulation
(AVR)

AVR automatically increase output voltage 15% above input voltage

if –9% to –25% of nominal. AVR decrease output voltage 13% below

input voltage if +9% to +25% of nominal
Transfer Time 2/4 milliseconds, including detection time
Spike Protection 320 Joules, 2ms
EMI/RFI filter 10Db at 0.15MHz,50dB at 30MHz
Overload Protection

UPS automatic shutdown if overload exceeds 110% of nominal at 60

seconds and 130% at 3 seconds
Unit Input For overload & Short circuit protection
10Base-T Cable Port Network (UTP, RJ-45) compatible jacks

Protection
and
Filtering

Short Circuit UPS output cut off immediately or input fuse protection
Type Sealed, Maintenance-free lead acid
Typical Recharge Time 8 hours (to 90% of full capacity)
Protection Automatic self-test & discharge protection, Replace battery indicator

Battery

Back-up Time 3– 180 min (depending on computer load)

MODEL

1500VA 2200VA 3000VA

Input Capacity (On Battery) 1500VA/900W 2200VA/1320W 3000VA/1800W

(Surge
protection)

500VA for 220~240V

Models only

N/A N/A

Voltage +/-25% at line input
Frequency 50 or 60 Hz +/-10% (auto sensing)
Voltage (on battery) Simulated sine wave at 100V/115V/230V +/- 5%
Frequency (on battery) 50 or 60 Hz +/- 0.5%

Output

Voltage Regulation
(AVR)

AVR automatically increase output voltage 15% above input voltage

if –9% to –25% of nominal. AVR decrease output voltage 13% below

input voltage if +9% to +25% of nominal

Protection
and
Filtering

Battery

MAXIMUM Ambient Temperature
For Operation

16

Transfer Time 2/4 milliseconds, including detection time
Spike Protection 320 Joules, 2ms
EMI/RFI filter 10Db at 0.15MHz,50dB at 30MHz
Overload Protection UPS automatic shutdown if overload exceeds 110% of nominal at 60

seconds and 130% at 3 seconds
Unit Input For overload & Short circuit protection
10Base-T Cable Port Network (UTP, RJ-45) compatible jacks

Protection
and
Filtering

Short Circuit UPS output cut off immediately or input fuse protection
Type Sealed, Maintenance-free lead acid
Typical Recharge Time 8 hours (to 90% of full capacity)
Protection Automatic self-test & discharge protection, Replace battery indicator

Battery

Back-up Time 3– 180 min (depending on computer load)

MAXIMUM Ambient Temperature
For Operation

0-35C for Ambient operation

All trademarks are property of their respective owners. Specifications
subject to change without notice.

O

BTAINING SERVICE English

If the UPS requires Service:

1. Use the TROUBLESHOOTING section to eliminate obvious
causes.

2. Verify there are no circuit breakers tripped

3. Call your dealer for assistance. If you cannot reach your
dealer, or if they cannot resolve the problem call or fax Xtreme
Power Technical Support at the following numbers; Voice
phone_, Fax line_ or Contact Xtreme Power at 800-582-4524.

17

Please have the following information available BEFORE calling
the Technical Support Department:
A. Your name and address.

B. Where and when the unit was purchased.
C. All of the model information about your UPS.
D. Any information on the failure, including LEDs that may not
be illuminated.
E. A description of the protected equipment, including model
numbers if possible.
F. A technician will ask you for the above information and, if
possible, help solve your problem over the phone. In the event
that the unit requires factory service, the technician will issue
you a Return Material Authorization Number (RMA #).
G. If the UPS is under warranty, the repairs will be done at no
charge. If not, there will be a charge for repair.

4. Pack the UPS in its original packaging. If the original
packaging is no longer available, ask the Technical Support
Technician about obtaining a new set. It is important to pack
the UPS properly in order to avoid damage in transit. Never
use Styrofoam beads for a packing material.
A. Include a letter with your name, address, daytime phone
number, RMA number, a copy of your original sales receipt, and
a brief description of the problem.

5. Mark the RMA # on the outside of all packages. The factory
cannot accept any package without the RMA # marked on the
outside.

6. Return the UPS by insured, prepaid carrier to: Call Xtreme
Power at 800-582-4524

18

Limited Three Year Warranty

XVRT Series UPS products are warranted free from defects in
material and workmanship for three years from date of purchase.
This warranty is limited to repairing or replacing, at Xtreme
Power’s sole option, any defective component, circuit board or
module contained within the product, only when it is returned with
an Xtreme Power Return Material Authorization (RMA) number to
Xtreme Power. Xtreme Power may, at its sole discretion, offer field
repairs with warranty coverage limited to parts and labor only.

Batteries

Batteries, included in this product are warranted for two years.
Batteries are deemed defective by Xtreme Power’s sole discretion

Limitations of Warranty

This limited warranty does not cover any losses or damage
resulting from shipment to or from the customer, or from improper
installation, inappropriate environment, abuse, modifications,
adjustments, or unauthorized repair. Policies & Procedures

Exclusive Remedies

Except as set forth herein and except as to title, there are no
warranties, express or implied, or any affirmations of fact or
promises by Xtreme Power for the products, their merchantability,
or fitness for any particular purpose. In no event shall Xtreme
Power be liable for lost profits, goodwill, or any other special or

19

consequential damages. Any changes to this must be approved by
an Xtreme Power corporate officer.I. Life Critical Applications

Life Support Disclaimer

Xtreme Power power protection products are not designed,
intended or authorized for use in systems intended to support or
sustain life, or for any other application in which the failure of the
Xtreme Power product could create a situation where personal
injury or death may occur. Under no circumstances should the
Buyer purchase or use Xtreme Power products for any such
unintended or unauthorized application, if the Buyer does not
comply with this, the Buyer shall indemnify and hold Xtreme Power
and its officers, employees, affiliates, resellers, partners and
distributors harmless against all claims, costs, damages and
expenses, and reasonable attorney fees arising out of, directly or
indirectly, any claim or personal injury or death associated with
such unintended or unauthorized use, even if such claim alleges
that Xtreme Power was negligent regarding the design or
manufacture of the product..

Term of Service

Logistics and Shipping

Unless otherwise stated, the warranty period begins on the date
the Xtreme Power product is shipped to the customer when shipped
from an Xtreme Power owned facility. In cases in which products
are purchased through and shipped from a Distributor or a Reseller,
the warranty period begins 60 days from the date of shipment from
Xtreme Power. If a Xtreme Power product is found to be defective,
Xtreme Power will, at its sole discretion either ship the customer a

20

new replacement product or repair the returned product. The
customer must return the defective unit to Xtreme Power within 30
days of issuance of the RMA or will be charged full price for the
replacement unit.
