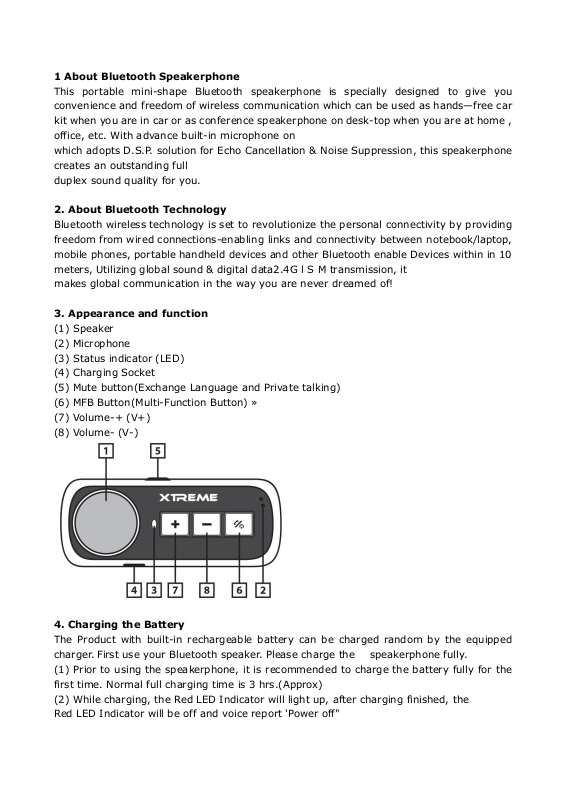

Xtreme 51870 User Manual

1 About Bluetooth Speakerphone

This portable mini-shape Bluetooth speakerphone is specially designed to give you
convenience and freedom of wireless communication which can be used as hands—free car
kit when you are in car or as conference speakerphone on desk-top when you are at home ,
office, etc. With advance built-in microphone on
which adopts D.S.P. solution for Echo Cancellation & Noise Suppression, this speakerphone
creates an outstanding full
duplex sound quality for you.

2. About Bluetooth Technology
Bluetooth wireless technology is set to revolutionize the personal connectivity by providing
freedom from wired connections-enabling links and connectivity between notebook/laptop,
mobile phones, portable handheld devices and other Bluetooth enable Devices within in 10
meters, Utilizing global sound & digital data2.4G l S M transmission, it
makes global communication in the way you are never dreamed of!

3. Appearance and function
(1) Speaker
(2) Microphone
(3) Status indicator (LED)
(4) Charging Socket
(5) Mute button(Exchange Language and Private talking)
(6) MFB Button(Multi-Function Button) »
(7) Volume-+ (V+)
(8) Volume- (V-)

4. Charging the Battery
The Product with built-in rechargeable battery can be charged random by the equipped
charger. First use your Bluetooth speaker. Please charge the speakerphone fully.
(1) Prior to using the speakerphone, it is recommended to charge the battery fully for the
first time. Normal full charging time is 3 hrs.(Approx)
(2) While charging, the Red LED Indicator will light up, after charging finished, the
Red LED Indicator will be off and voice report 'Power off"

important Notice:
(1) Charging indication will be delayed for a few minutes if the
speakerphone has not been used for a longtime or the battery is
drained.
(2) To prolong durability of battery and ensure the stability of
Speakerphones functioning, it’s recommended to charge the
speakerphone immediately whenever low battery voltage Appear
the red LED will flash on every 3 seconds. It will shut down soon
under very low battery condition.
(3) The red LED will flash every 3 seconds whenever the battery low and
turn off in 30 seconds.

5.Power On/off the Speakerphone

Power on: hands-free shutdown state long press "MFB" (Multi Function Button) button for 2
seconds, until you hear a short beep, voice prompt "Power on" Will be automatically
connected to the mobile phone recently connected
Power off: In standby mode, press and hold the "MFB“ button for 3 seconds until you hear
three beep sound and red LED flash 3 times, also voice report "Power off”

6.Pairing

Automatic or manual connection after searching will apply to the mobile phone’s
configuration. Prior to use the speakerphone for the first time, you must pair it manually
with Bluetooth-enabled mobile phones .The paring process is as following:
(1)Place the speakerphone and mobile phone no farther than 1 meter apart.
(2) Ensure the speakerphone is under OFF mode.
(3) Press and hold the 'MFB' button for 6 seconds until you hear voice
report "Ready to pair", The LED indicator will flash between red and blue alternately. It is now
ready for pairing.
(4) Activate your mobile phone’s Bluetooth function and search for available
Bluetooth devices by referring to your mobile phone user manual for details:
(5) Select “BT Speakerphone” from the list.
(6) Enter the pre-programmed code"0000" to pair the mobile phone with the
speakerphone. When pairing is completed, you may hear a long beep and blue LED indicator
will flash slowly for3 times, it means successful paring ,also the Voice Prompt
“Phone connected” ,then the speakerphone will go to standby mode in blue LED indicator
will flash every 3 seconds.
(7) Ensure your Hands-free Bluetooth and mobile phone is placed within 10meters-Bluetooth
sensing distance and there is no much interference around.

IMPORTANT NOTICE:
During the paring process, if you cannot get successful paring within 2 minutes, the
speakerphone will power off. Please repeat the above steps to pair again.
