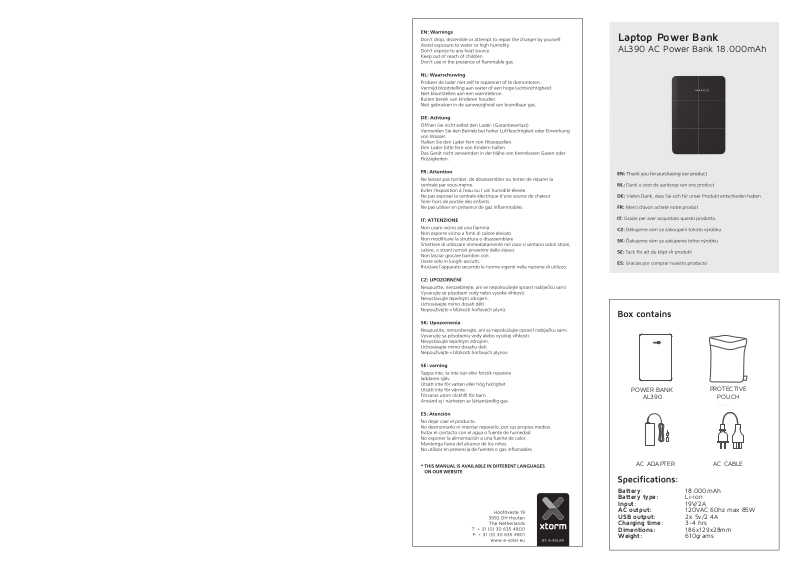

Xtorm AL390 User guide

Laptop Power Bank

AL390 AC Power Bank 18.000mAh

POWER BANK

AL390

AC ADAPTER

Battery: 18.000mAh
Battery type: Li-ion
Input: 19V/2A
AC output: 120VAC 60hz max 85W
USB output: 2x 5v/2.4A
Charging time: 3-4 hrs
Dimentions:
Weight: 610grams

PROTECTIVE

POUCH

AC CABLE

186x129x28mm

1. Product overviews 2. Quick start/ first use 3. Charging the Power Bank

Charging USB device

Use the USB cable to connect
the power bank with the
device and press the power
ON/OFF button.

4. Charging a device with AC power output max. 120V/85W

Step 1

Use your own AC adapter witch is supplied with the device you want to
charge. Connect the adapter to the powerbank

Step 2

Switch the AC output switch towards the power plug andpress the
“Power” button on top of the power bank for 1 or 2 seconds. The
charging wil begin and the LEDs wil indicate the power level.

Charging a AC device

Use your own AC adapter to
connect the power bank with
the device and press the power
ON/OFF button.

Charging the power bank

The power bank is charged with the suppleid AC adapter. Connecht the
AC adapter to the power bank and use the AC cable tot connect the
AC adapter to apower socket.

Charging will thake around 3 to 4 hours.

5. Charging a device with USB power output

Step 1

Use the supplied USB cable or your own USB cable to the USB port of
the power bank.

Step 2

Switch the AC output switch towards the USB ports and press the
“Power” button on top of the power bank for 1 or 2 seconds. The
charging wil begin and the LEDs wil indicate the power level.
