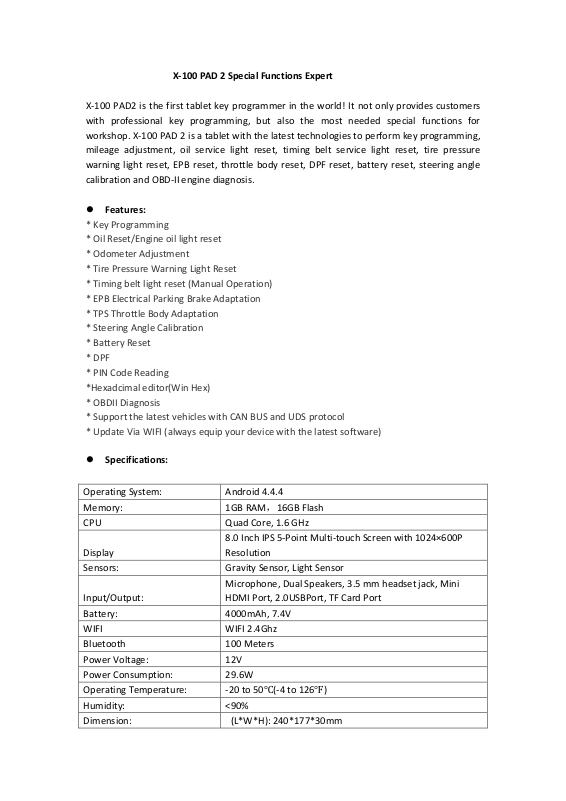

X-100 PAD 2 Special Functions Expert
X-100 PAD2 is the first tablet key programmer in the world! It not only provides customers
with professional key programming, but also the most needed special functions for
workshop. X-100 PAD 2 is a tablet with the latest technologies to perform key programming,
mileage adjustment, oil service light reset, timing belt service light reset, tire pressure
warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle
calibration and OBD-II engine diagnosis.
⚫ Features:
* Key Programming
* Oil Reset/Engine oil light reset
* Odometer Adjustment
* Tire Pressure Warning Light Reset
* Timing belt light reset (Manual Operation)
* EPB Electrical Parking Brake Adaptation
* TPS Throttle Body Adaptation
* Steering Angle Calibration
* Battery Reset
* DPF
* PIN Code Reading
*Hexadcimal editor(Win Hex)
* OBDII Diagnosis
* Support the latest vehicles with CAN BUS and UDS protocol
* Update Via WIFI (always equip your device with the latest software)
⚫ Specifications:
Operating System:
Android 4.4.4
Memory:
1GB RAM，16GB Flash
CPU
Quad Core, 1.6 GHz
Display
8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P
Resolution
Sensors:
Gravity Sensor, Light Sensor
Input/Output:
Microphone, Dual Speakers, 3.5 mm headset jack, Mini
HDMI Port, 2.0USBPort, TF Card Port
Battery:
4000mAh, 7.4V
WIFI
WIFI 2.4Ghz
Bluetooth
100 Meters
Power Voltage:
12V
Power Consumption:
29.6W
Operating Temperature:
-20 to 50℃(-4 to 126℉)
Humidity:
<90%
Dimension:
(L*W*H): 240*177*30mm
Page 2

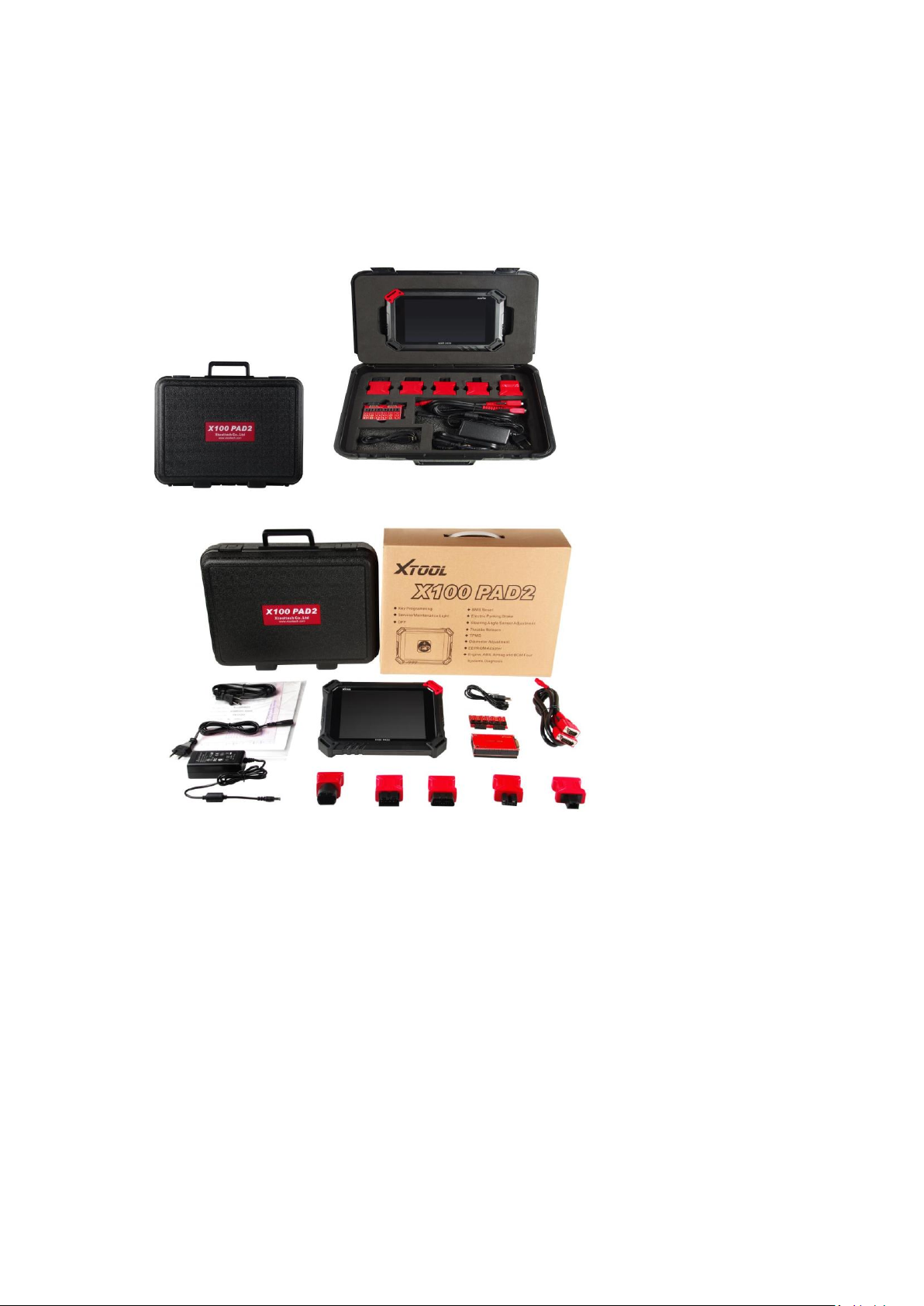

⚫ Packing list:
Type
Name
QTY
Test Connectors
OBD II-16
1
HONDA-3
1
KIA-20
1
MAZDA-17R
1
HYUNDAI/KIA-10
1
Main Cable（DB15_Male To VGA_Male）
1
Main Units
X-100 PAD 2
1
DC12V(AC100~240V) 3ACharger
1
US Power Adapter
1
EU Power Adapter
1
EEPROM
1
USB Type-C to Mini USB cable
1
Type-C cable
1
Accessories
Certificate of Quality
1
Packing List
1
User Manual
1
⚫ More details：
Layout of X-100 PAD 2
① DC Charging port: Battery charging
Page 3
② DB15 Port: Supports wired connection with car by the cable
③ USB Type C Port: Compatible with HDMI TV port
④ Power Button: Power on or off
① Earphone jacket
② USB 2.0 Port: data synchronization with PC
③ Mini HDMI Port
Front View of X-100 PAD 2
Page 4
Back View of X-100 PAD 2
X-100 PAD2 Exploded Diagram
Page 5
Easy registration with X-100 PAD 2 connected to WIFI. Don’t bother to use PC for registration.
Connect to vehicle directly with cable
Diagnosis interface for choosing vehicles’ model
Page 6

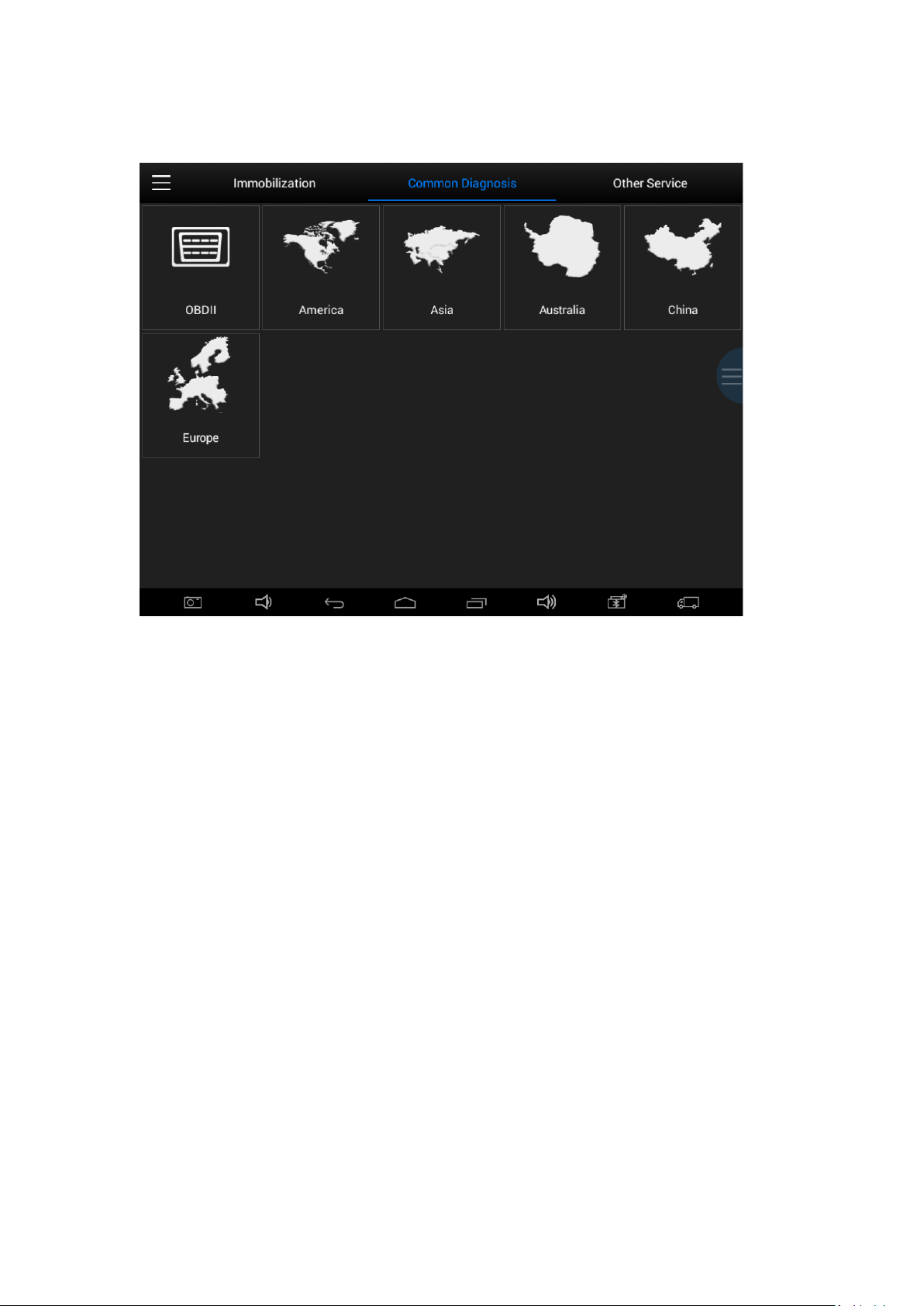

You can choose your area before you start
Each area will contain the all the brand this device can do, here is the list:
America:
Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford
Asia:
Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong,
Subaru, Suzuki, Toyota
China：
BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery
Europe:
Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault,
Romeo, Seat, Skoda, Smart, VW
Page 7

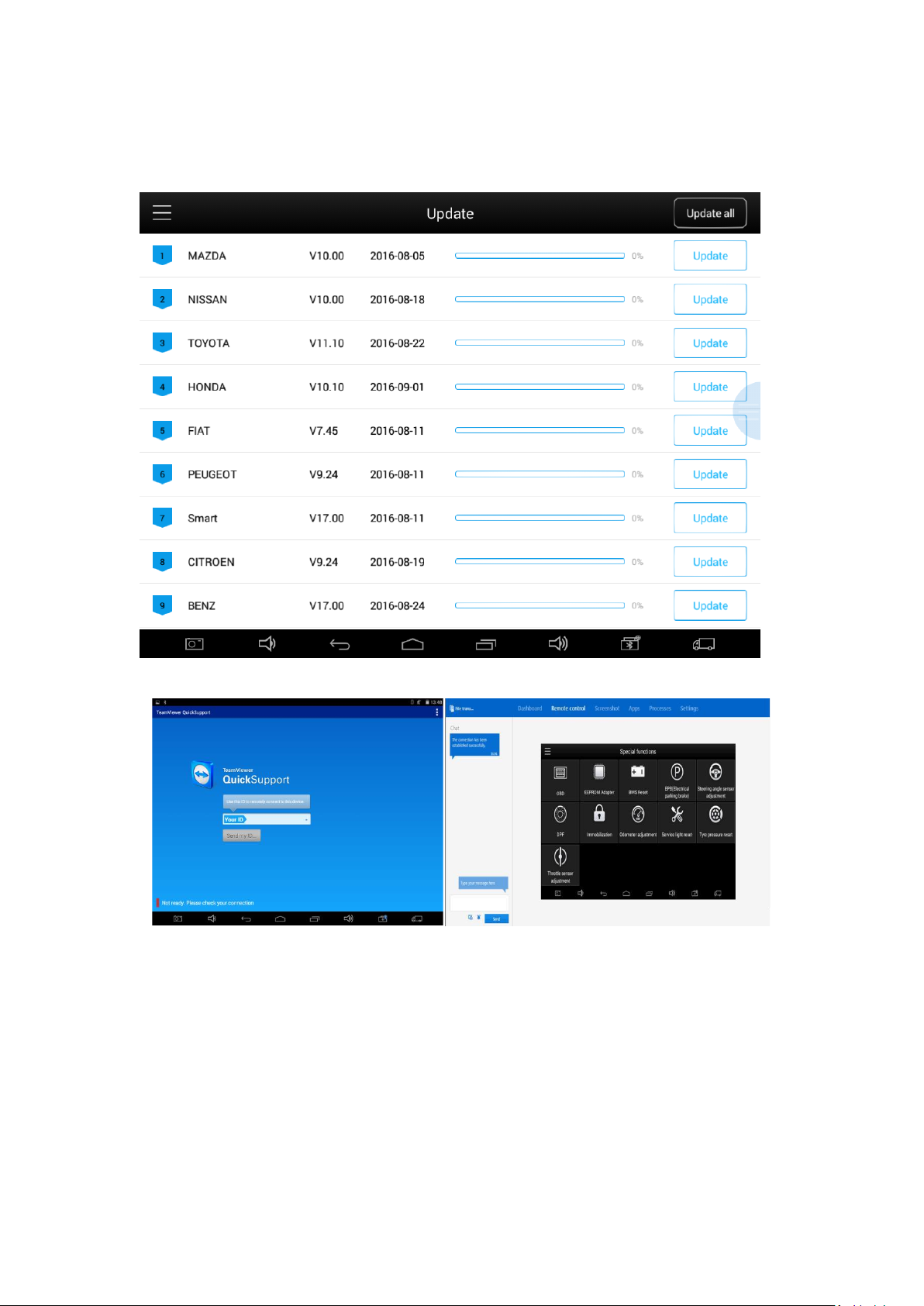

One-click update via WIFI. Get the latest software whenever you want! Never miss the
update with pop-up update reminder!
Remote access, which is perfect for training, demonstration and even remote diagnosis.
Page 8

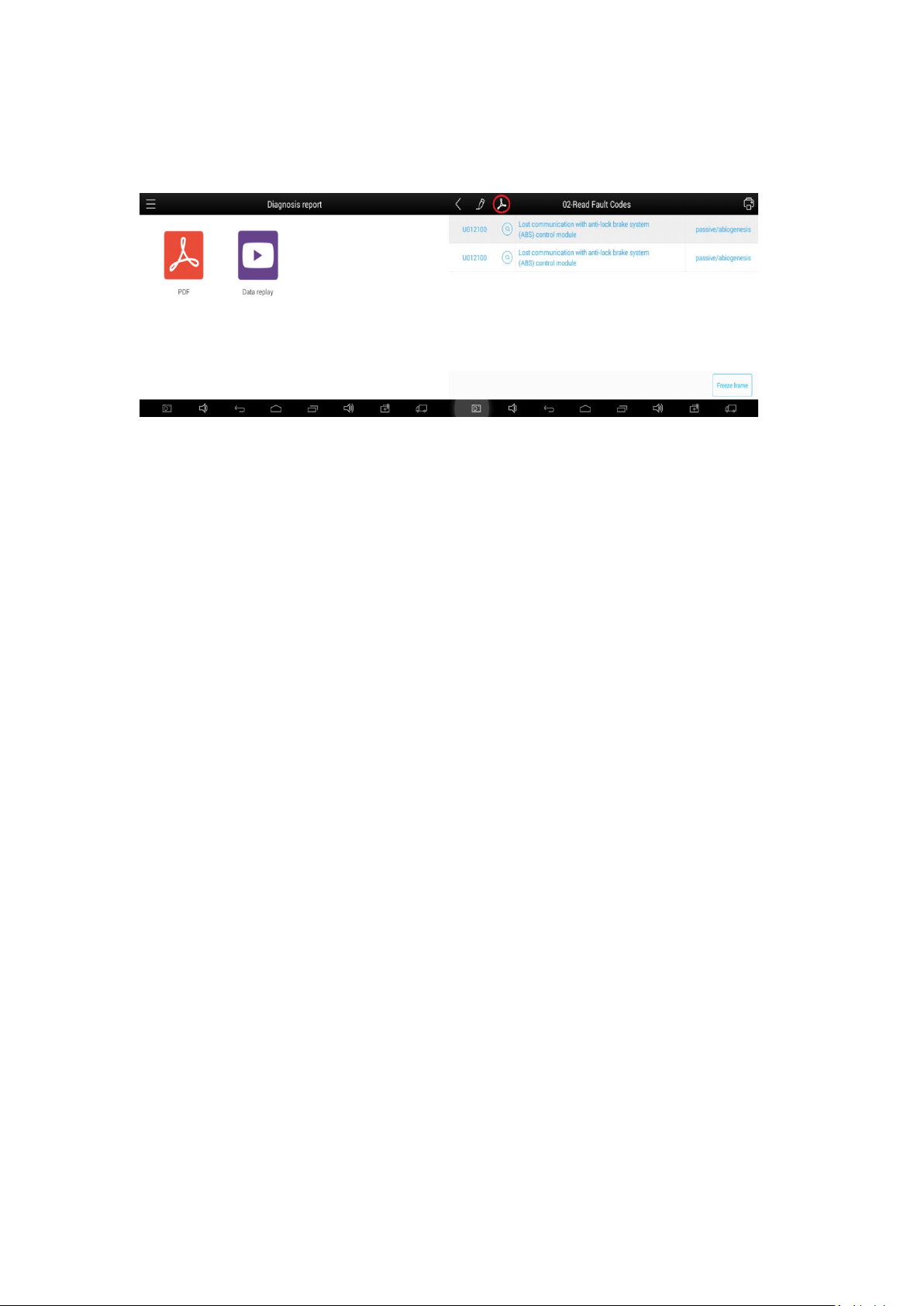

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when
they come and fetch their cars. They will be really happy knowing what kinds of problems
have been fixed for their cars.

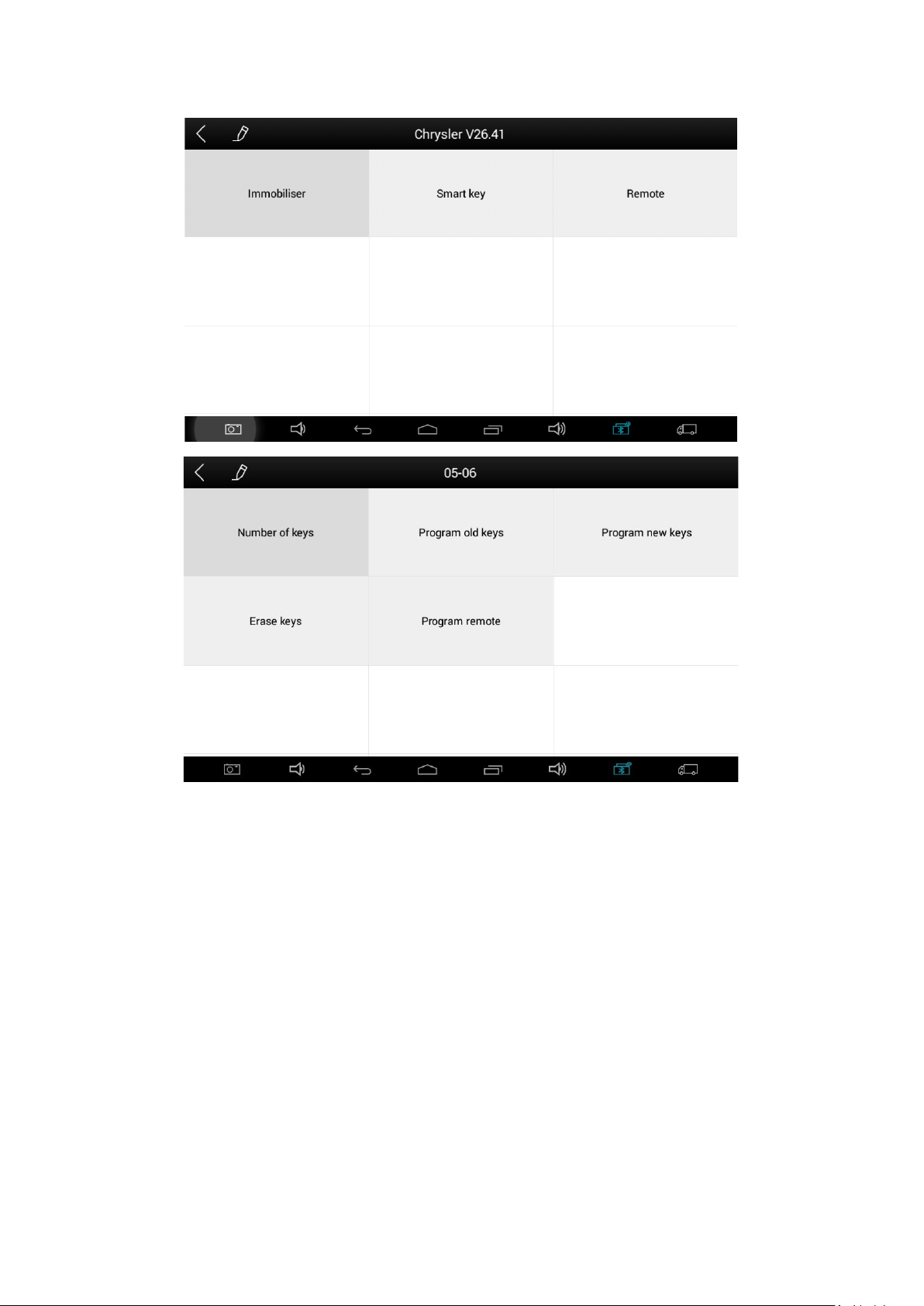

Key Programming Features:
1.New keys programming
2. PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
2.Reads keys from immobilizer's memory
3.New immobilizer programming
4.Vehicle Identification Number programming
5.Reset ECM & reset immobilizer
6.New remote controller programming
7.With full and strong database for the most important vehicle makes
Page 9

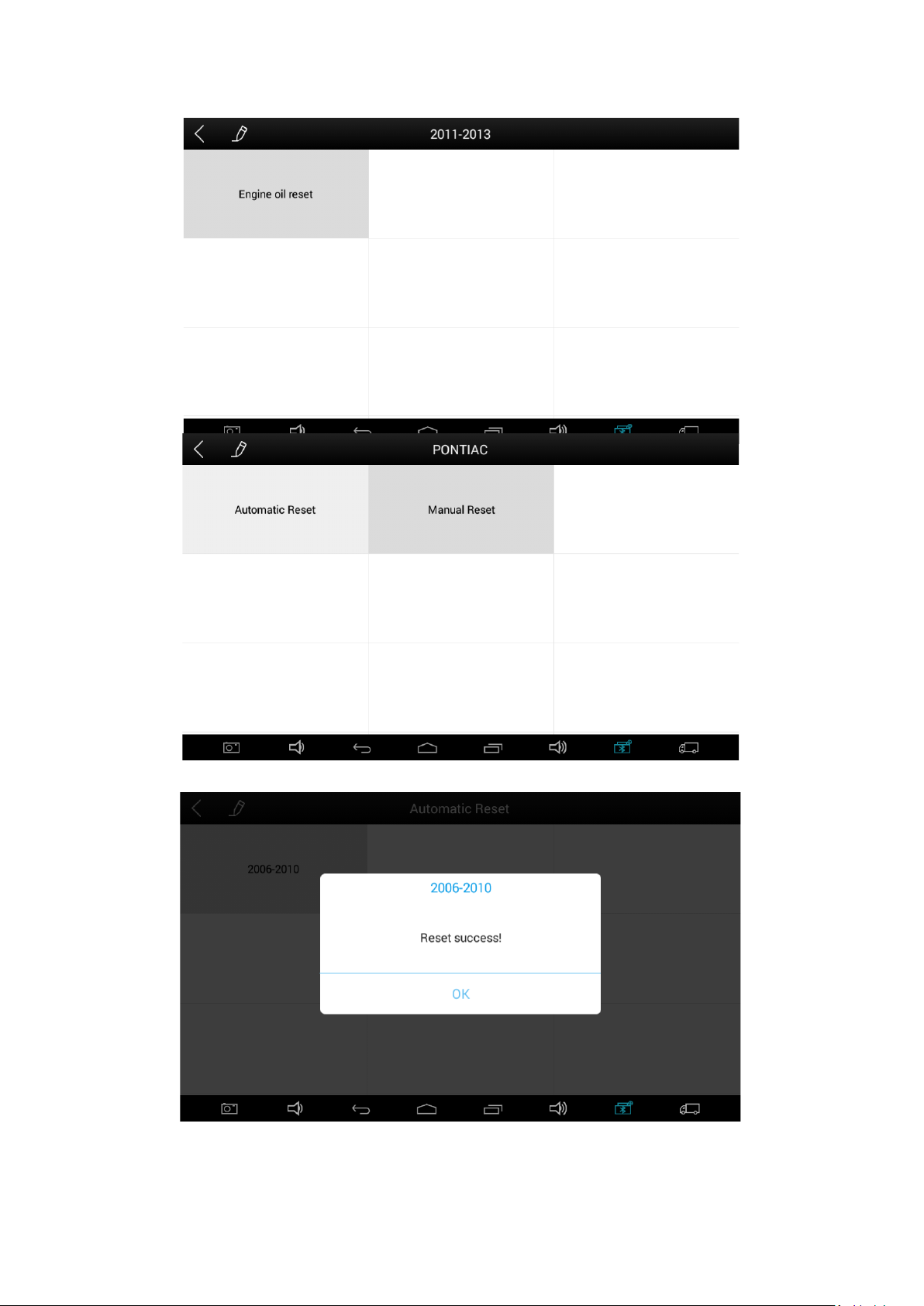

Oil Reset Functions Features:
* Innovative one-click oil reset for VW, Audi, BMW, Mercedes Seat, Skoda, Volvo, etc.
*Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake
liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported BMW
models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
*Support Mercedes Benz new C Class, E Class models and Mercedes Benz
VITO/VIANO/SPINTER.
* Support the lifespan percentage resetting of engine oil for Buick, Cadillac etc.
* Support Porsche Cayenne, Panamera till 2012
* Support maintenance light reset for Volvo, Land Rover.
Page 10
Page 11

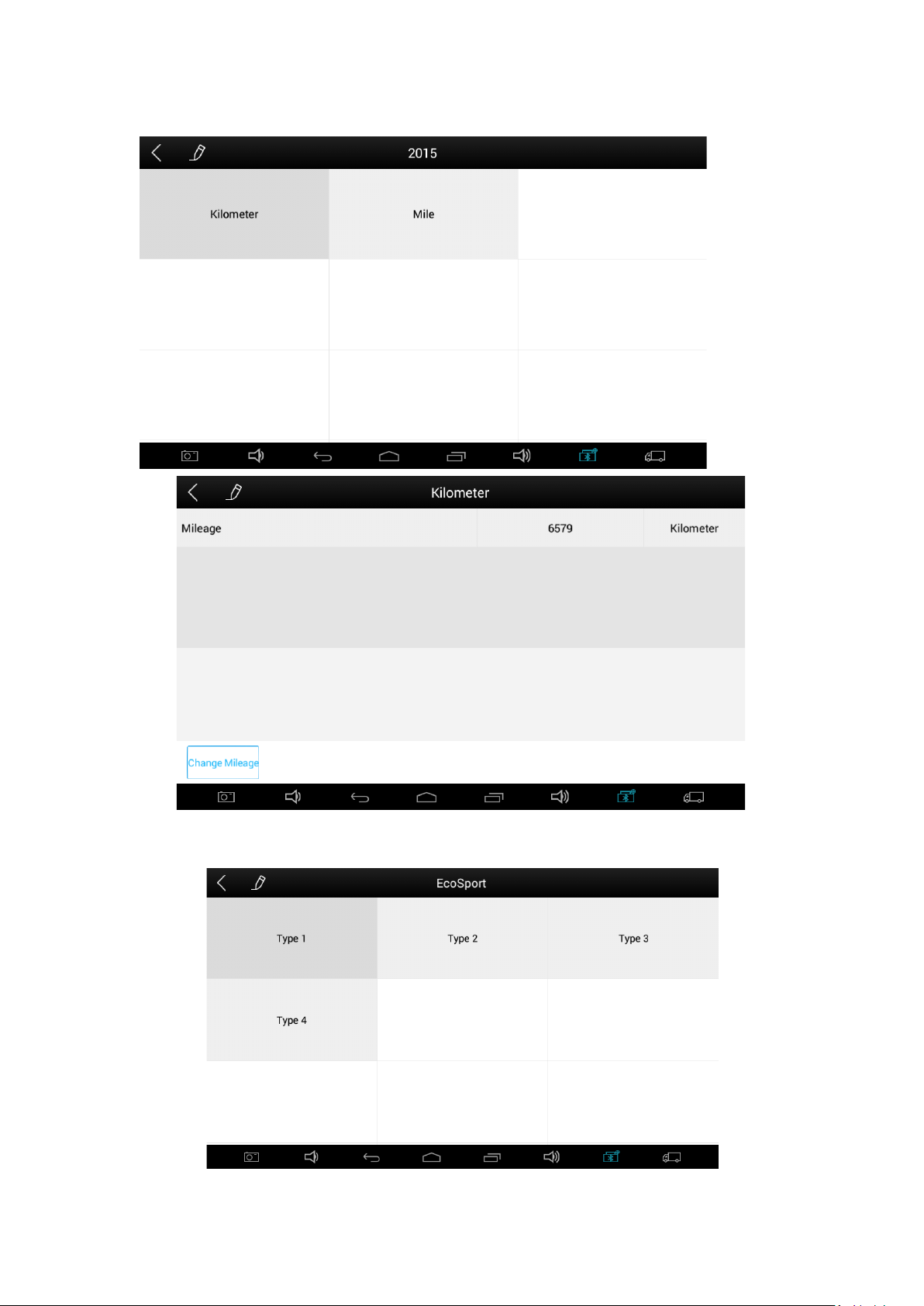

Odometer Adjustment
:
TPS Throttle Body Adaptation:
Page 12

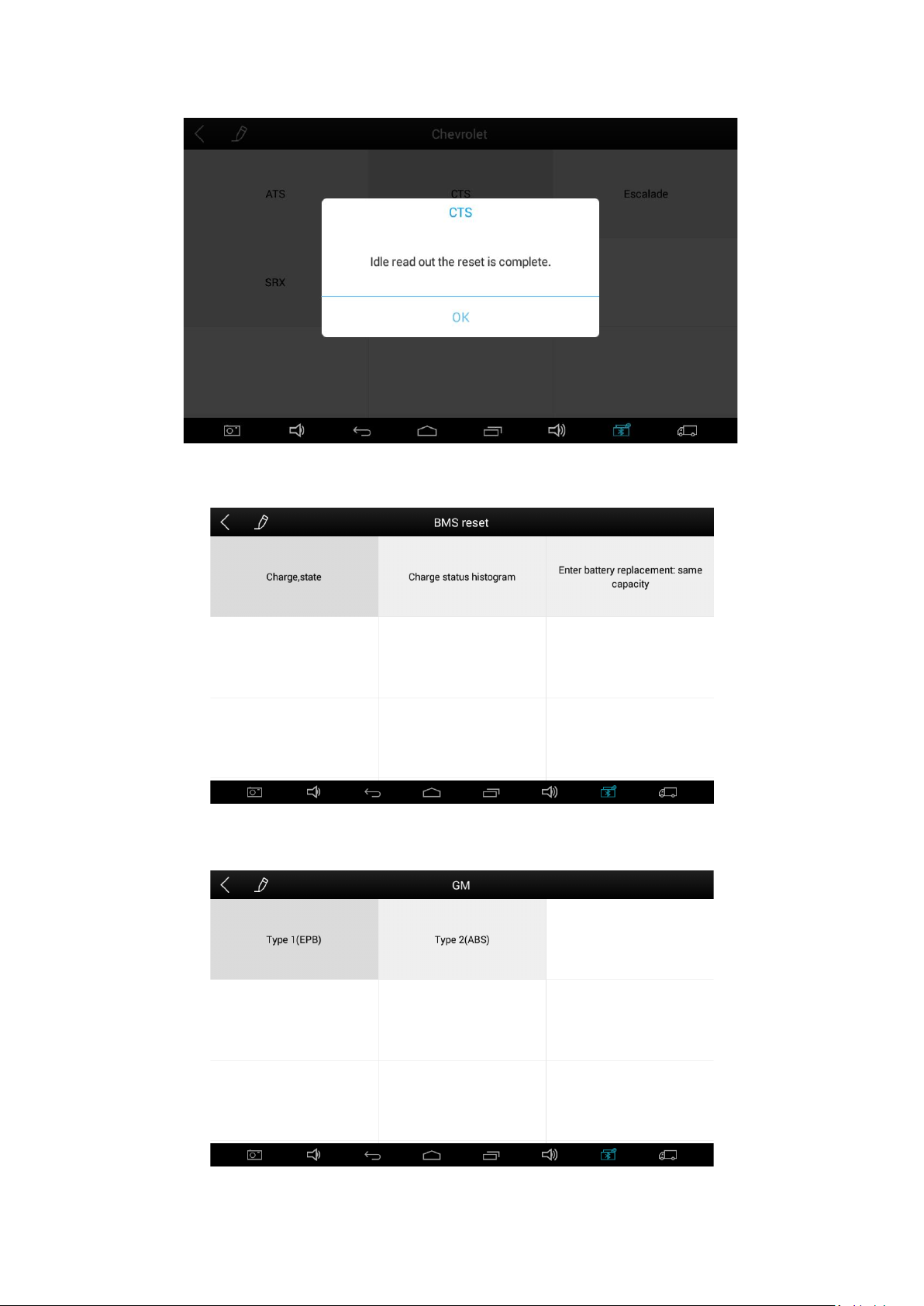

BMS Reset (Battery Reset):
EPB Electrical Parking Brake Adaptation:
Page 13

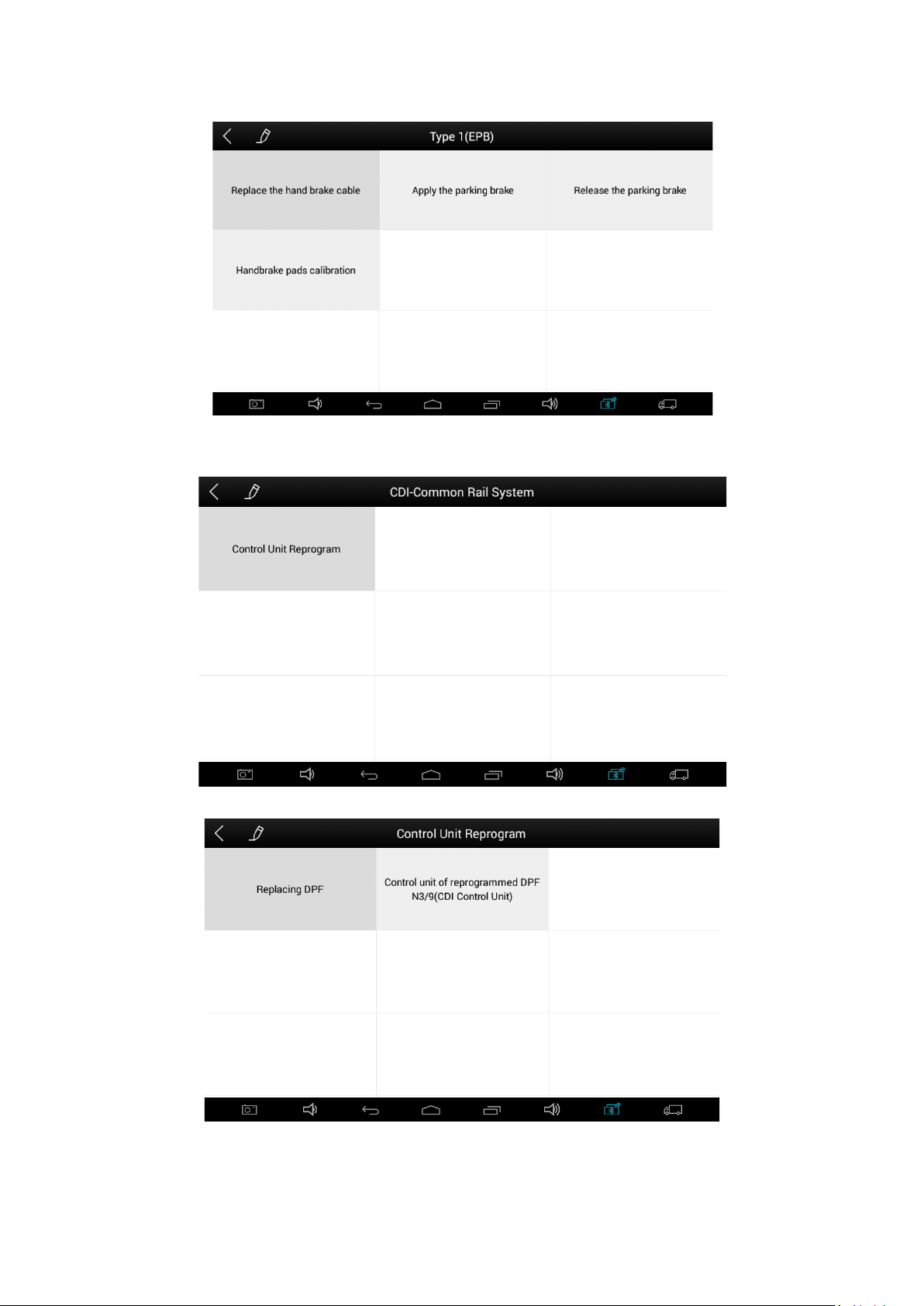

DPF:
Page 14

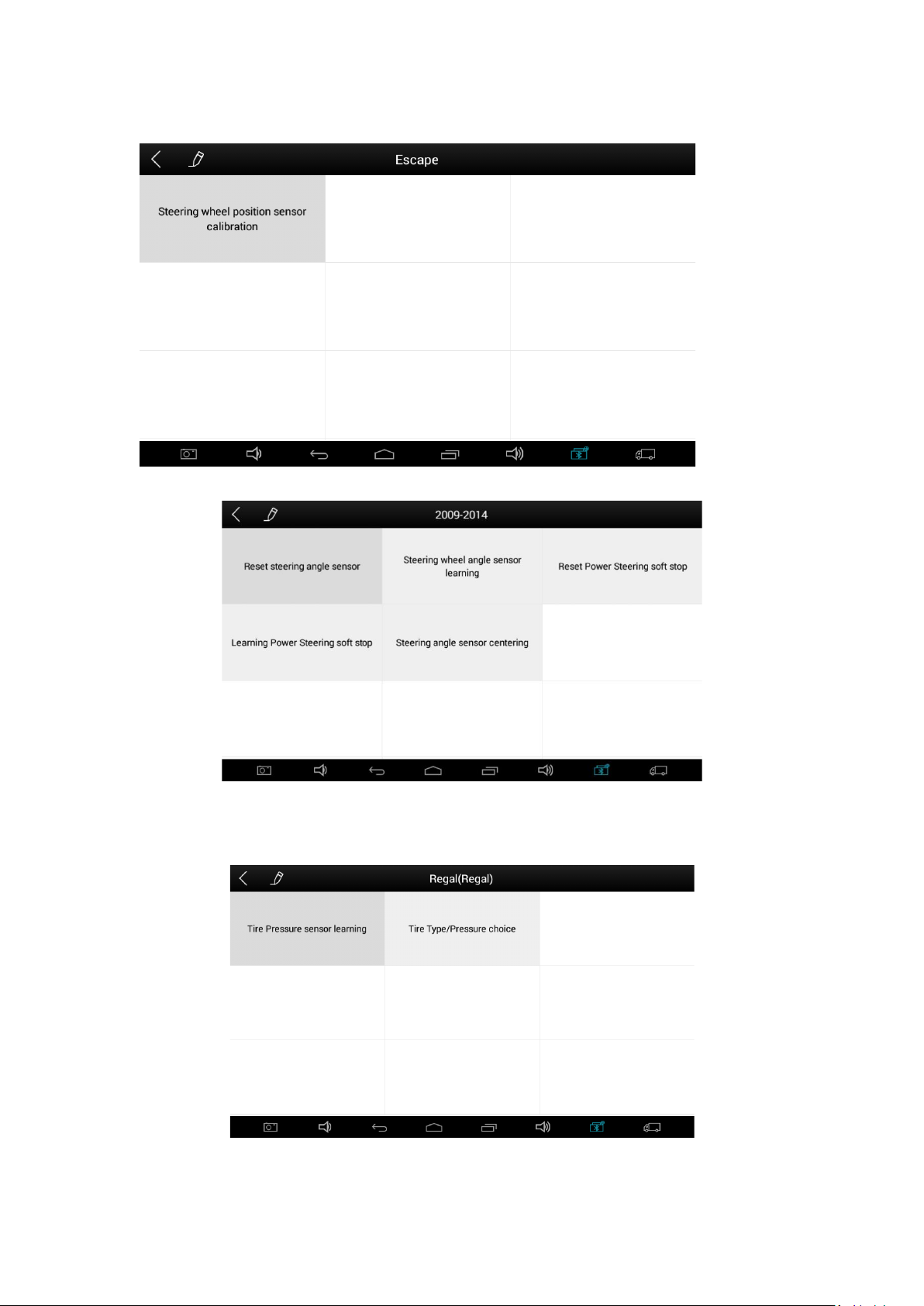

Steering Angle Calibration:
Tire Pressure Warning Light Reset (Manual Operation)
Page 15

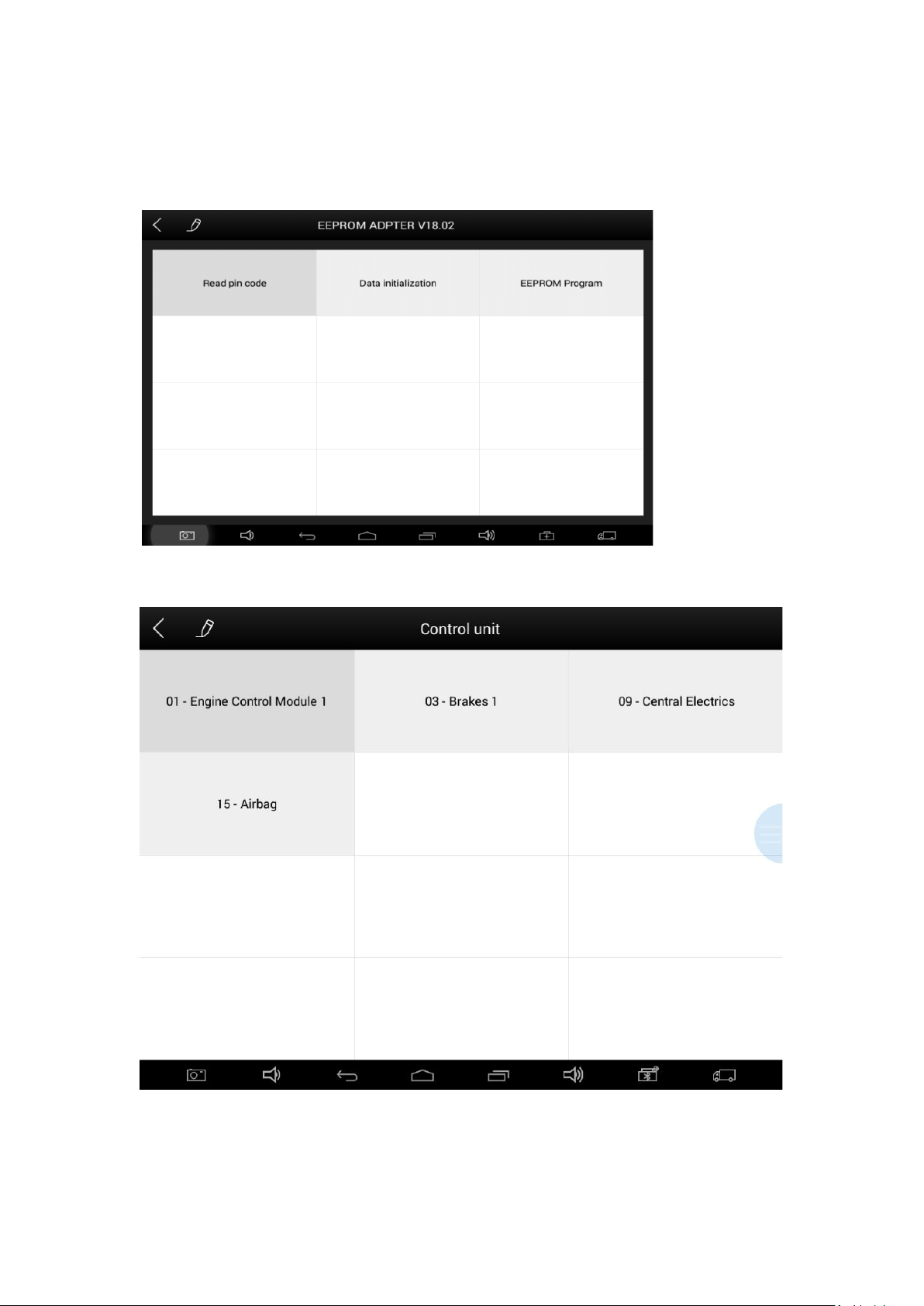

EEPROM Adapter Features:
1. PIN Code Reading
2. ECU Initializing
3. Chip Programming
Four system diagnosis：
Page 16
Packing:
Dimensions: 365*270*100mm
Gross weight: 3.85KG
Net weight: 3KG
