XL-PBW224CW
Coaxial Integrated Access System
User's manual
V1.2
2
- -
Statement
All rights reserved
By the written permission of the Company and no unit or individual will be allowed to
extract the contents of this book to copy some or all of any form is not able to
disseminate
As the product version upgrades or other reasons for the content of this manual will be
updated from time to time unless otherwise agreed by the parties to use this manual
only as a guide. The manual recommends that all statements of information and does
not constitute any express or implied guarantees.
Safety Notice
1. Please use the product specified power supply. If special circumstances need to use
other vendors to provide the power supply, make sure that provide voltage and current
in line with the provisions of this product, at the same time recommend the use of
certified products through the security, otherwise, may result in fire or electric shock.
In using this product, do not damage the power cord to forcibly distorted, stretching
Pull and banding, and they mus t not be under heavy pressure in the folder in goods
between or, otherwise, may result in the power cord is damaged, resulting in fire or
electric shock.
2. In the use of the former make sure that the environment of temperature and
humidity in accordance with the products required. (Since the air-conditioned room to
move this product to the natural temperature may cause the product surface or internal
components have condensed water vapor, please be the product of natural dry before
using the power to open.)
3. Non-technical service personnel not to demolish or repair, or repair or failure may
be caused by improper electric shock, fire and so on, resulting in injuries, but also
result in failure of your product warranty.
4. Do not use fingers, pin, wire and other metal items, foreign bodies into the air vents
and cracks inside. May result in current through the metal or foreign body, causing an
electric shock and lead to injury, if the body down into the foreign body or a similar
object should be to stop using.
5. Do not be packed in plastic bags discarded or stored in places where young children
get to be that if young children in their trap the head, nose and mouth may occur the
Department of obstruction, which led to suffocation.
6. Please follow the instructions of the manual method of use, it could result in
damage to this product.
3
- -
Cont
ent s
1WelcometocoaxXL-PBW224CWIntegratedAccessSystem
1.1 Recognizing
1.2 XL-PBW224CW system
XL-PBW224CW
products
..........................................
...................................
.1
1
1
1.2.1 XL-PBW224CW End pr
1.2.2
Ports............................................................................... 3
oducts......................................2
2Connection
2.1 Connect power and
2.1.1 Connect net
2.1.2 Connect the
work............................................................4
power......................................................... 4
network
............................................
3XL-PBW224CWInformationInterface
3.1 Login
Page
..........................................................................
3.2 The basic configuration system i
nformation
...................
3
4
5
5
6
3.2.1 System
information....................................................... 6
3.2.2 ETH system equipment i
3.2.3 PLC System Equipment
3.3 Basic
Settings
.....................................................................
3.3.1 IP Address setti
3.3.2 Data
3.3.3 Traffic
forwarding............................................................. 8
control................................................................ 9
nformation...............................7
Information............................ 7
8
ngs.........................................................8
4
- -
3.4 Advanced
3.4.1 Vlan
3.4.2 QOS
3.5 Equipment Di
Settings
.............................................................
Setting................................................................... 9
Settings............................................................... 10
agnostics
3.6 Account setting---change
3.6.1
3.6.2
3.7 Save &
3.7.1 Save &
3.7.2 Reset
Guest............................................................................ 11
Administrator............................................................... 11
Restart
.................................................................
Restart............................................................. 12
factory................................................................ 12
4Attachment
4.1
Specification
4.1.1 Products
4.1.2 Environmental
4.1.3 Application
4.1.4 Manage and
4.1.5
Modulation.................................................................. 14
4.1.6 Instruction and
4.2 Frequency
.....................................................................
Specification................................................. 13
Characteristics..................................... 14
Characteristics..........................................14
Maintain.................................................. 14
Ports.................................................... 14
Question Answer
...................................................
Keywords
..............................
...........................................
9
10
11
12
.13
13
15
1
- -
1 Welcome to coax XL-PBW224CW
Integrated
Access System
1.1 Recognizing XL-PBW224CW
Today's cable networks in households, by telephone twisted pair, power lines and the
most common CATV coaxial cable. Also among the coaxial cable which, with its large
bandwidth, shielding is good, the high rate of households, business is rich in resources
and become an ideal medium for broadband Internet access. However, the existing
CATV HFC network is a one-way broadcast, in the rapid development of technology
and the demand today, as digital television, digital voice, online games, IPTV and
other emerging business and promotion, the user demand for bandwidth keeps to
climb, one-way broadcast networks can not meet the new business requirements,
upgrading the network will be inevitable. XL-PBW224CW in the existing HFC
network based on the construction of a residential area to meet the multi-user (MDU)
to use a new type of coaxial cable Integrated Access Ethernet access technology. Its
working principle is to use existing coaxial cable network, in its RF spectrum to add
Ethernet data channels, without prejudice to the normal work of the existing CATV
system, not to the existing network of large-scale changes, the Data CATV signal and
the signal with the original transmission, for carrying IP-based data, voice and video
and other multimedia services. The transformation of the less cost and engineering will
be the original one-way CATV network into a two-way, digital, and can carry
multimedia broadband networking platform.
Its advantages in
• the need to upgrade the current coaxial network
• no need to re-erection of the new cable to the user's home
• able to provide the same coaxial port RF video signals and Ethernet business
• rapid establishment of a two-way interactive TV business communications reverse
transmission channel
• Support for VoIP and IPTV and other IP service access network for data
transmission
XL-PBW224CW system to bring in the enjoyment of your video / data multiple
experience before you recognize your system XL-PBW224CW.
2
- -
1.2 XL-PBW224CW system products
XL-PBW224CW system includes headend equipment and terminal equipment. Its
powerful network carrying capacity makes a head-end equipment to support 31 or
63 or even
127 * terminal equipment business. Their applications are as follows topology
*: The actual load with a concrete model version shall prevail
1.2.1 XL-PBW224CW End Products
Appearance
3
- -
Adaptive connected computer
Indicator
Item
POWER
System
Data
Ethernet
1.2.2 Ports
Meaning
Power Indicator Light Always have electricity, you can start using the
System Indicator The system to start successfully.
Data Indicator
LAN network
Interface
Indicator
Description
XL-PBW224CW.
Successfully connected to the network. Flicker: There
are data transmission
LAN port connected to the network. Flicker: There are
data transmission.
Item
POWER
Ethernet
RF IN
RF＋DATA OUT
XL-PB224C terminal equipment connected diagram as shown above, insert the power
Meaning
Power port
Network Port
TV Signal port Connect TV Signal
Synthesis of
signal output
Input:100V～265V
10/100M
Connect terminal equipment
Description
4
- -
supply before you carefully read the manual on the "safe
Notes. "
2 Connection
Before you begin using XL-PB224C before the installation of the following:
2.1 Connect power and network
2.1.1 Connect network
XL-PB224C
XL-PB224C
XL-PB224C
Coax cable
XLPBW224CW
Coax
Cable
Ethernet
cable
CATV
Centre
Network
Access
2.1.2 Connect the power
1.In this step, please confirm your power connector and the power outlet
XL-PBW224CW line voltage and current at the same time is also in line with
XL-PBW224CW work.
2. The exchange received a power outlet plugs, XL-PBW224CW to boot.
3. Boot after the POWER indicator light, about 10 seconds after the System indicator
will begin to flicker, the system began to self-test, and then after about 10 seconds,
such as monitoring systems are completed and normal, System indicator will Always.
4. At this point in accordance with the network if you have completed these steps, both
5
- -
through the terminal equipment (XL-PB224C) watching television or surfing the
Internet.XL-PBW224CW Information Interface
6
- -
XL-PBW224CW easy to set up, simple operation, users do not need to carry out any
operation XL-PBW224CW. XL-PBW224CW random will be attached to one for the
equipment condition monitoring of private IP addresses, you can use a web browser
through the IP address of the page to enter the state of the state of observation
equipment.
3 XL-PBW224CW Information Interface
XL-PBW224CW
carry out any operation
easy to set up, simple operation, users do not need to
XL-PBW224CW. XL-PBW224CW
random will be
attached to one for the equipment condition monitoring of private IP addresses,
you can use a web browser through the IP address of the page to enter the
state of the state of observation equipment.

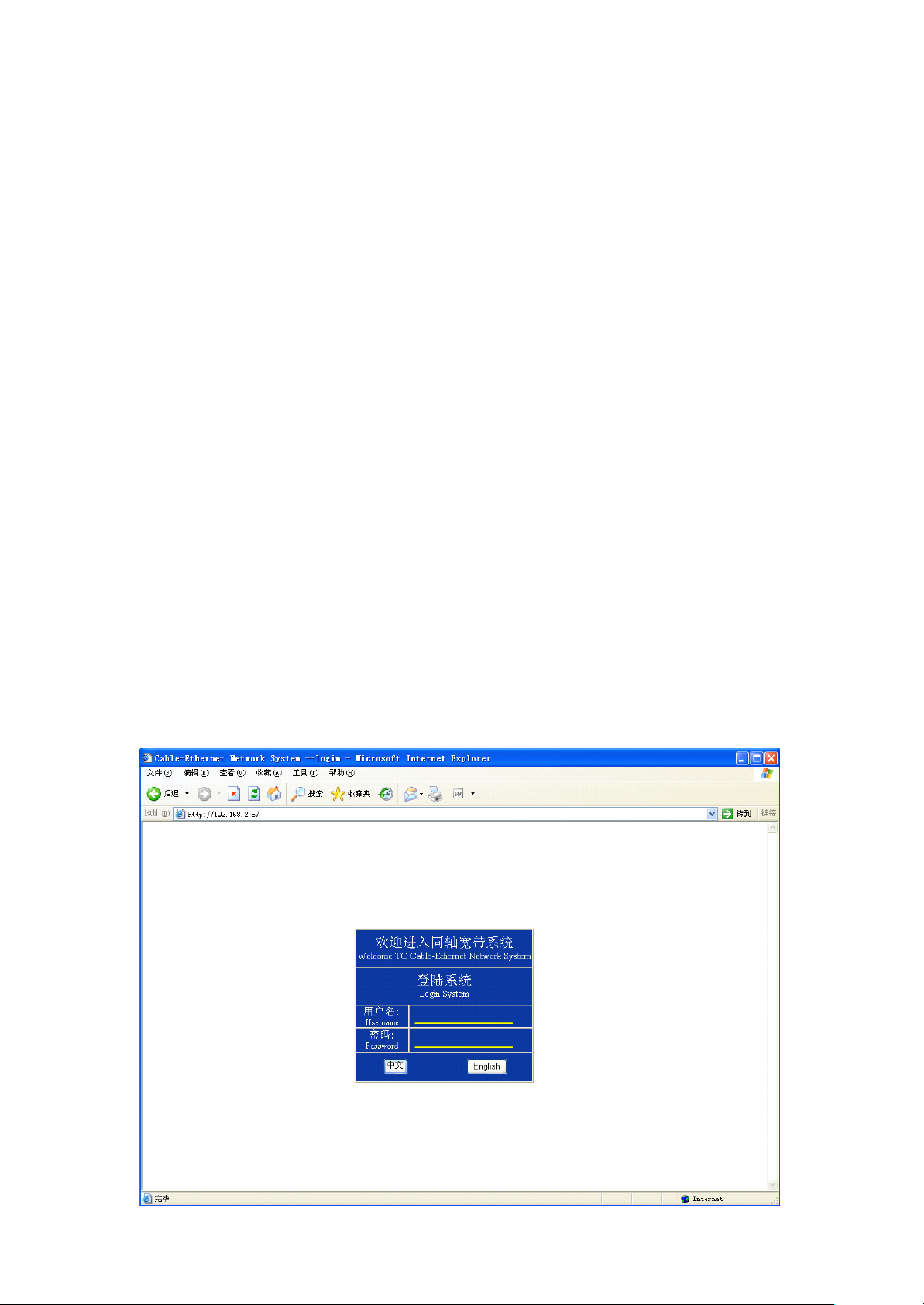

3.1 Login Page
(In this case to use the IE browser, IP address 192.168.2.5 as an example), enter in the address bar
192.168.2.5, landing interface appears, enter your user name and password, as shown in Figure 3-1
7
- -
3.2 The basic configuration system information
8
- -

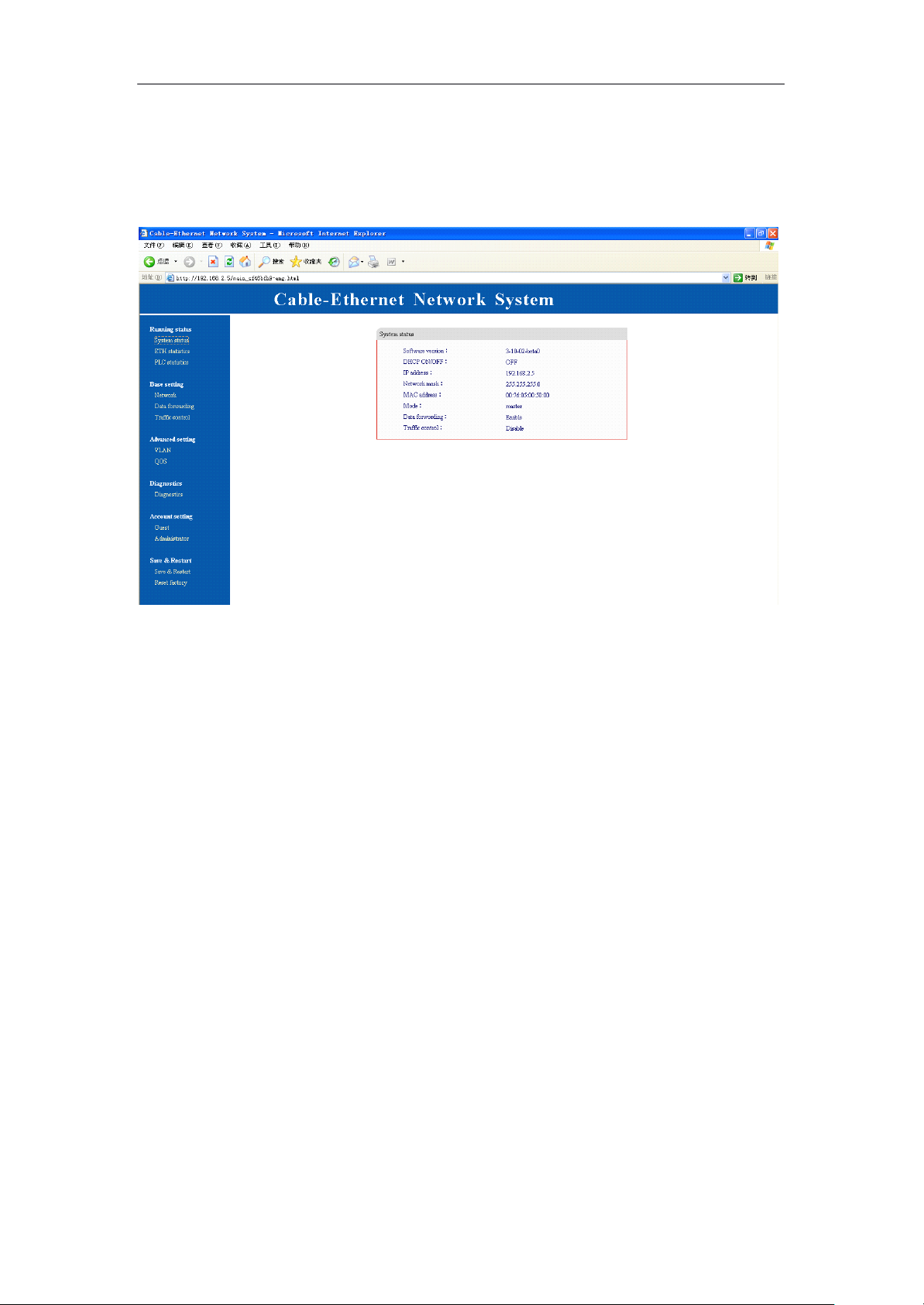

3.2.1 System information
3.2.2 ETH system equipment information
9
- -

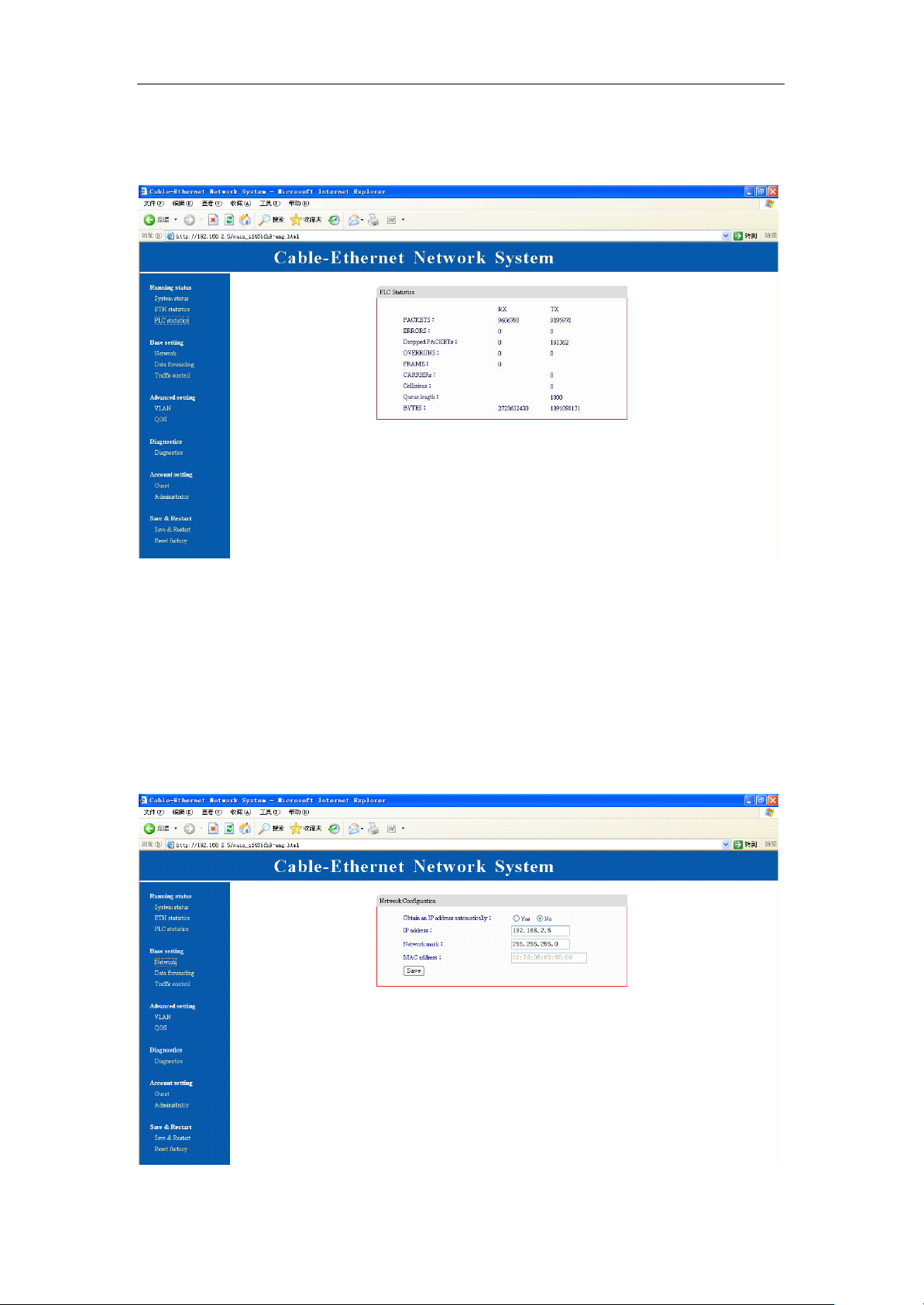

3.2.3 PLC System Equipment Information
3.3 Basic Settings
3.3.1 IP Address
Entry this interface you can change the IP address
settings
1
- -

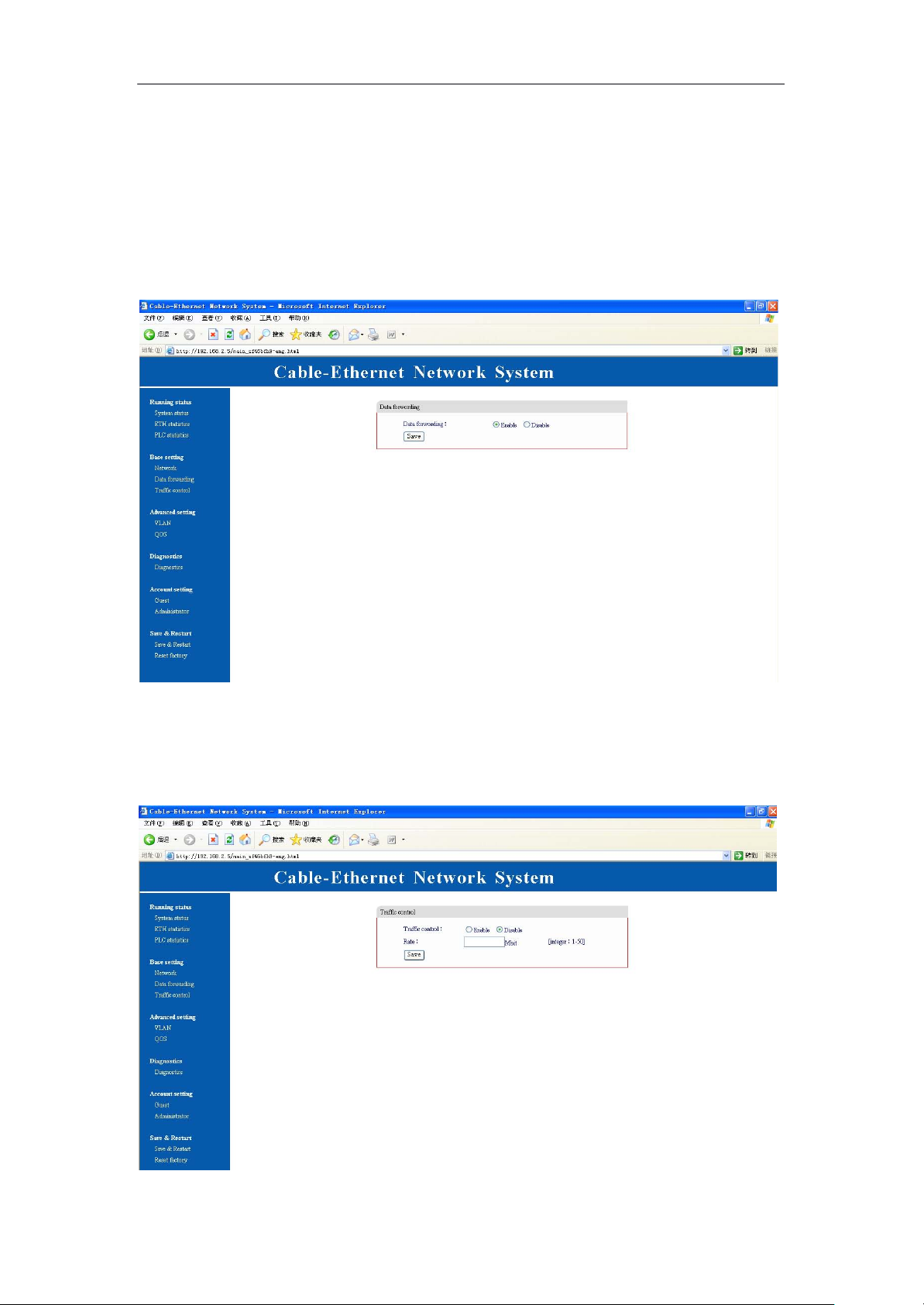

3.3.2 Data forwarding
Entry this interface you can setup the data exchange switch, please choose Enable during
normal state.
3.3.3 Traffic control
Entry this interface you can setup the speed of the device (Range 1-50M)
