XL-ICA-306M2R

HD IR Waterproof Fixed IP Camera

Uesr's Manual

XL-ICA-106M2R

Welcome

Thank you for purchasing our IP camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series product!

Please keep this user’s manual well for future reference!

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited

power source is rated 12V DC or 24V AC in the IEC60950-1. This series product can not support these

two modes at the same time.

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

We are not liable for any problems caused by unauthorized modification or attempted repair.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the camera before completing installation.

Please install the proper power cut-off device during the installation connection.

Always follow the instruction guide the manufacturer recommended.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series IP camera should be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc.

Please keep it away from the electromagnetic radiation object and environment.

Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.

Otherwise it may result in CCD (CMOS) optical component damage.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

Thunder-proof device is recommended to be adopted to better prevent thunder.

The grounding studs of the product are recommended to be grounded to further enhance the reliability

of the camera.

6. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens

surface.

Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to

dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the

device.

Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.

7. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

Accessory Name Amount

IPC Unit 1

Quick Start Guide 1

12V to 24V Conversion Cable

(For AC 24V series product only)

Installation Accessories Bag 1

CD 1

iii

Table of Contents

1 General Introduction ..................................................................................................................1

1.1 Overview........................................................................................................................1

1.2 Features.........................................................................................................................1

1.3 Specifications................................................................................................................2

1.3.1 Performance...........................................................................................................2

1.3.2 Factory Default Setup...........................................................................................4

2 Structure ....................................................................................................................................11

2.1 Multiple-function Combination Cable ......................................................................11

2.2 Framework and Dimension.......................................................................................12

2.3 Bidirectional talk .........................................................................................................13

2.3.1 Device-end to PC-end ........................................................................................13

2.3.2 PC-end to the Device-end..................................................................................13

2.4 Alarm Setup.................................................................................................................13

3 Device Installation ....................................................................................................................15

4 Quick Configuration Tool.........................................................................................................16

4.1 Overview......................................................................................................................16

4.2 Operation .....................................................................................................................16

5 Web Operation..........................................................................................................................19

5.1 Network Connection...................................................................................................19

5.2 Login and Logout........................................................................................................19

6 FAQ ............................................................................................................................................22

Appendix Toxic or Hazardous Materials or Elements ...............................................................23

1 General Introduction

1.1 Overview

This series IP camera integrates the traditional camera and network video technology. It adopts audio

and video data collection, transmission together. It can connect to the network directly without any

auxiliary device.

This series IPC uses standard H.264 video compression technology and G.711a audio compression

technology, which maximally guarantee the audio and video quality.

It supports the IR night vision function. In the night environments, the device can use the IR light to

highlight the object which is suitable for the surveillance function in the low illumination environments.

The built-in protection enclosure and waterproof design conforms to the IP 66 level. It has the sound

waterproof function suitable for use in the outdoor environments.

It supports real-time monitor and listening at the same time. It supports analog video output and dual-

way bidirectional talk.

It can be used alone or used in a network area. When it is used lonely, you can connect it to the

network and then use a network client-end. Due to its multiple functions and various uses, this series

IPC is widely used in many environments such office, bank, road monitor and etc.

1.2 Features

User

Management

Storage

Function

Alarm

Function

Network

Monitor

Network

Management

Power

Assistant

Function

z Different user rights for each group, one user belongs to one group. z The user right shall not exceed the group right.

z Support central server backup function in accordance with your configuration and

z Support record via Web and the recorded file are storage in the client-end PC. z Support built-in SD card. z Do not support local SD card hot swap storage function. Support short-time

z Support network storage function such as FTP. z Real-time respond to external on-off alarm input, and video detect as user pre-

z Real-time video detect: motion detect, camera masking. z IPC supports one-channel audio/video data transmit to network terminal and then

z Max supports 20 connections. z Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,

z Support web access. z Realize IPC configuration and management via Ethernet. z Support device management via web or client-end.

z External power adapter DC12V/AC 24V. You can select according to your actual

z Log function z Support system resource information and running status real-time display. z Day/Night mode auto switch.

setup in alarm or schedule setting

storage when encounter disconnection.

defined activation setup and generate corresponding message in screen and audio prompt(allow user to pre-record audio file)

decode. Delay is within 270ms (network bandwidth support needed)

MULTICAST, RTP/RTCP, RTSP and etc.

environments. Please note system can not support these two types of power supplying at the same time.

z Built-in IR light. Support IR night vision. z Support picture parameter setup such as electronic shutter and gain setup. z Backlight compensation: screen auto split to realize backlight compensation to

adjust the bright.

z Support video watermark function to avoid vicious video modification. z The enclosure conforms to the IP 66 protection. Has the waterproof function.

1.3 Specifications

1.3.1 Performance

Please refer to the following sheet for IPC performance specification.

Model Parameter

System

Video Parameter

Main Processor TI Davinci high performance DSP OS Embedded LINUX System

Resources User Interface Remote operation interface such as WEB, DSS, PSS

System Status SD card status, bit stream statistics, log, and software version. Image Sensor Pixel 2080(H)*1553(V) 1920(H)*1080(V) 1280(H)*960(V) 1280(H)*960(V) Day/Night Mode

Auto Aperture DC drive Gain Control Fixed/Auto

XL-ICA-306M2R

Support real-time network, local record, and remote operation at the same time.

1/2.8-inch CMOS

Support day/night mode switch and IR-CUT at the same time. (The lens has built-in IR-CUT mechanical component.).

XL-ICA-106M2R

1/2.8-inch CMOS 1/3-inch CMOS 1/3-inch CMOS

White Balance Manual/Auto

BLC On/Off On/Off On/Off

Manual/Auto

Exposure Mode

Video Compression Standard

Video Frame Rate

PAL: It ranges from 1/3 to 1/10000 NTSC: It ranges from 1/4 to 1/10000

H.264/JPEG/MJPG

PAL: Main stream （3M@15fps,10 80P@25fps,SXG A@25fps,

1.3M@25fps、 720P@25fps、 704*576@25fps ） Extra stream

(704*576@25fp, 352*288@25fps)

PAL: Main stream （1080P@25fps, SXGA@25fps,

1.3M@25fps, 720P@25fps, 704*576@25fps ）， Extra stream (704*576@25fps, 352*288@25fps) ）

PAL： Main stream （1.3M@25f， 720P@25fps， 704*576@25fp s） Extra stream (704*576@25fp

s， 352*288@25f ps)

Off/BLC/WD （Value:1100）

PAL： Main stream （1.3M@25fps, 720P@25fps， 704*576@25fp s） Extra stream (704*576@25fp

s， 352*288@25f ps)

NTSC: Main stream （3M@15fps ,10 80P@30fps, SXGA@30fps,

1.3M@30fps, 720P@30fps, 704*480@30fps ）， Extra stream （704*480@30f ps,352*240@30f ps）

H.264: 56Kbps-8192Kbps. ＭJPEG is adjustable and bit rate is adjustable. Support customized setup. Support mirror. Support flip function.

Channel title, time title, motion detect, camera masking.

Φ14 interface. Lens is the default accessories 1-channel. RCA 1-channel. RCA

Reuse the first audio input channel

G.711a/G.711u/PCM

396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The 6th level has the highest sensitivity) Activation event: alarm device, audio/video storage, image snapshot, log, email function and etc.

Audio

Video

Video Bit Rate

Video Flip Snapshot Max 1f/s snapshot. File extension name is JPEG.

Privacy Mask Supports max 4 privacy mask zones Video Setup Support parameter setup such as bright, contrast.

Video Information

Lens 3.3-12mm@F1.4 Lens Interface

Audio Input Audio Output

Bidirectional Talk Input

Audio Bit Rate 16kbps 16BIT Audio

Compression Standard

Motion Detect

NTSC: Main stream （1080P@30fps, SXGA@30fps,

1.3M@30fps, 720P@30fps, 704*480@30fps ），

Extra stream （704*480@30fp

s,352*240@30fps ）

NTSC: Main stream：（1.3M@30fps, 720P@30fps, 704*480@30fp s） Extra stream （704*480@30f ps,352*240@3 0fps）

NTSC: Main stream：（1.3M@30fps, 720P@30fps, 704*480@30fp s） Extra stream （704*480@30 fps,352*240@3 0fps）

2.812mm@F1.4

Alarm Input

Record and

Backup

Record Priority Manual>External alarm >Video detect>Schedule Local Storage Support Micro SD card storage

Storage Management

Network

Interfac

Wire Network 1-channel wire Ethernet port, 10/100 Base-T Ethernet Network Protocol

Remote Operation

AUX

Video Output Restore Default

Setup

2-channel input，1-channel output

Support display local storage status

Standard HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP,UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP.

Monitor, PTZ control, system setup, file download, log information, maintenance , upgrade and etc.

1-channel analog video output，BNC port.

Reset button

Power

General Parameter

Power Consumption Working Temperature Working Humidify

Dimensions(mm) Weight Installation Bracket is included in the accessories bag.

Support AC24V/DC12V power. (Can not support these two modes at the same time.)

8W MAX (10W MAX when ICR switch)

-10℃~+60℃

10%~90%

φ104*306.7 1250g（Excluding box）

1.3.2 Factory Default Setup

Please refer to the following sheet for factory default setup information.

Default Setup

Setup Item

Conditions

Camera

Brightness 50

Contrast 50

Hue 50

Saturation 50

Gain Mode Auto

Gain Adjust 80

Exposure Mode Auto

Auto Iris On

Scene Mode Auto

Day/night Mode Auto

XL-ICA-306M2R

XL-ICA-106M2R

BLC Off Off Off WDR

Mirror Off

Flip Off

Video

Video bit stream

Main Stream

Bit stream type

Encode mode

Resolution

Frame Rate （FPS）

Bit Rate Type

Recommen ded Bit

Bit Rate 8192

I Frame 50

Watermark

General

H.264

1080P

（1920*1080

）

PAL:25 NTSC:30

CBR

3584-8192 Kb/S

Enable

1080P

（1920*1080

）

1.3M

（1280*960 ）

720P

（1280*720 ）

Default Setup

Setup Item

XL-ICA-306M2R XL-ICA-106M2R

Sub Stream

Snapshot

Watermark character

Enable Enable

Bit stream type

Encode mode

Resolution

Frame Rate （FPS）

Bit Rate Type

Recommen ded Bit

Bit Rate 1024

I Frame 50

Snapshot Type

Image Size

DigitalCCTV

General

H.264

PAL:CIF(352*288) NTSC:CIF(352*240)

PAL:25 NTSC:30

CBR

192-1024Kb/S

General

1080P

（1920*1080 ）

1080P

（1920*1080 ）

1.3M

（1280*960 ）

720P

（1280*720 ）

Audio

Network

Video Overlay

Path

Main Stream

Sub Stream

TCP/IP

Quality 5

Interval 1s

Privacy Mask

Channel Title

Time Title Enable

Snapshot Path

Record Path C:\RecordDownload

Enable Enable

Encode Mode

Enable Disable

Encode Mode

Host Name IPC

Ethernet Card

Mode Static

Mac Address

Disable

Enable

C:\PictureDownload

G.711A

Wire(Default)

Device MAC address when it is shipped out of the factory

Default Setup

Setup Item

IP Version IPV4

IP Address 192.168.1.108

Subnet Mask

Default Gateway

255.255.255.0

192.168.1.1

Connection

PPPoE

Preferred DNS

Alternate DNS

Enable ARP/Ping set device IP address service

Max Connection

TCP Port 37777

UDP Port 37778

HTTP Port 80

RTSP Port 554

Enable Disable

Username none

Password N/A

Server Type Disable，CN99 DDNS

8.8.8.8

Enable

DDNS

IP Filter

SMTP(Email)

Server IP none

Server Port 80

Domain Name

User none

Password N/A

Update Period

Trusted sites

SMTP Server

Port 25

Anonymity Disable

User Name anonymity

none

5 minutes

Disable

none

Default Setup

Setup Item

Password N/A

Sender none

Authenticati on (Encryption mode)

N/A

UPnP

SNMP

Title (Subject)

Attachment N/A

Mail Receiver

Email Test Disable，interval=60 minutes

Enable UPnP

SNMP v1 Disable

SNMP v2 Disable

SNMP Port 161

Read Community

Write Community

Trap Address

Trap Port 162

IPC Message

seconds

Disable

public

private

N/A

Event

Bonjour

Multicast

QoS

Video detect

Motion Detect

Enable Enable

Server Name

Multicast Address

Port 36666

Real-time Monitor

Command 0

Enable Disable

Anti-dither 5 seconds

Sensitivity 3

Record Channel

Record Delay

Relay out Enable

MAC

239.255.42.42

Enable

10 seconds

Default Setup

Setup Item

Alarm Delay 10 seconds

Send Email Disable

Snapshot Disable

Enable Disable

Record Channel

Record

Video Masking

Alarm

Alarm Activation

Relay output 1

Abnormity

No SD Card

Capacity Warning

SD Card Error

Delay

Relay out Enable

Record Delay

Send Email Disable

Snapshot Disable

Enable Disable

Relay in Alarm 1

Anti-dither 0 seconds

Sensor Type

Record Channel

Record Delay

Relay out Enable

Alarm Delay 10 seconds

Send Email Disable

Snapshot Disable

Enable Disable

Relay out Enable

Relay out Delay

Send email Disable

Enable Disable

Capacity Limit

Relay out Enable

Relay out Delay

Send Email Disable

Enable Disable

Relay out Enable

Relay out Delay

Enable

10 seconds

Enable

10 seconds

10%

10 seconds

Default Setup

Setup Item

Send email Disable

Enable Disable

Record Enable

Storage

Record Control

Disconnectio n

IP Conflict

FTP

Record Delay

Relay out

Relay out Delay

Enable Disable

Record Enable

Record Delay

Relay out Enable

Relay out Delay

Enable FTP Disable

Server IP N/A

Port 21

Username anonymity

Password N/A

Remote path

Emergency (Local)

Pack Duration

Pre-record 5 seconds

Disk Full Overwrite

Record Mode

10 seconds

Enable

10 seconds

Disable

8 minutes

Auto

System

General

Local Host

Date and time

Record Stream

Device No Device MAC

Language English

Video Standard

Date Format Y-M-D

Time Format

Time Zone GMT+08:00

System Time

Main stream

PAL

24H

Sync

Default Setup

Setup Item

DST Disable

DST Type Week

Start Time 00:00:00 of the first Sunday of the month

End Time 00:00:00 of the second Monday of the month

NTP Disable

NTP Server clock.isc.org

Port 37

Auto Maintenance

Update Period

Auto Reboot Enable

Auto Delete Old Files

10 minutes

Disable

2 Structure

2.1 Multiple-function Combination Cable

You can refer to the following figure for multiple-function combination cable information. See Figure

2-1

Figure 2-1

Please refer to the following sheet for detailed information.

Port Name Function Connection Note

VIDEO OUT

AUDIO IN

AUDIO OUT

DC 12V/AC 24V

I/O I/O port / Connect to I/O port.

LAN Network port

Reset Reset port /

Video output port

Audio input port

Audio output port

Power input port

BNC

RCA

Ethernet port

Output analog video signal. It can connect to the TV monitor to view the video.

Input audio signal. It can receive the analog audio signal from the pickup.

Output audio signal to the devices such as the sound box.

Power port. Input DC 12V/AC 24V (Please use the provided conversion cable)

Connect to standard Ethernet cable.

Hardware reset function. Press it for 3 to 5 seconds; system hardware can restore default setup.

Please refer to the follow sheet for detailed I/O port information.

Port Name SN Name Note

1 ALARM_COM Alarm output public port.

2 ALARM_NO

I/O Port

Alarm output port. It is to output the alarm signal to the alarm device.

NO: normal open alarm output port.

It works with the ALARM_COM port.

3 ALARM_IN1

4 ALARM_IN2

5 GND Ground port

Alarm input port 1. It is to receive the on-off signal from the external alarm source.

Alarm input port 2. It is to receive the on-off signal from the external alarm source.

2.2 Framework and Dimension

Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2 and

Figure 2-3.

Figure 2-2

Figure 2-3

2.3 Bidirectional talk

2.3.1 Device-end to PC-end Device Connection

Please connect the speaker or the MIC to the audio input port of the device. Then connect the

earphone to the audio output port of the PC.

You can see the button becomes orange after you enabled the audio talk function.

Click Audio button again to stop the bidirectional talk function.

Listening Operation

At the device end, speak via the speaker or the pickup, and then you can get the audio from the

earphone or sound box at the pc-end.

2.3.2 PC-end to the Device-end Device Connection

Connect the speaker or the MIC to the audio input port of the PC and then connect the earphone to

the audio output port of the device.

You can see the button becomes orange after you enabled the audio talk function.

Click Audio button again to stop the bidirectional talk function.

Please note the listening operation is null during the bidirectional talk process.

Listening Operation

At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone

or sound box at the device-end.

2.4 Alarm Setup

The alarm interface is shown as in Figure 2-4. Please follow the steps listed below for local alarm input

and output connection.

1) Connect the alarm input device to the alarm input port (No.3 pin or No.4 pin) of the I/O cable.

2) Connect the alarm output device to the alarm output port (No.2 pin) and alarm output public port

(No.1 pin). The alarm output port supports NO (normal open) alarm device only.

3) Open the Web, go to the Figure 2-4. Please set the alarm input 01 port for the first channel of the

I/O cable (No.3 pin). The alarm input 02 is for the 2

select the corresponding type (NO/NC.)

4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is the

No.2 pin of the I/O cable.

channel of I/O cable (No.4 pin). Then you can

Figure 2-4

Please refer to the following figure for alarm input information. See Figure 2-5.

Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of

the alarm input port. When the input signal is connected to the 5V or is idle, the device collects the

logic “1”. When the input signal is grounded, the device collects the logic “0”.

Figure 2-5

Please refer to the following figure for alarm output information. See Figure 2-6.

Port NO and Port C composes an on-off button to provide the alarm output.

If the type is NO, this button is normal open. The button becomes on when there is an alarm output.

If the type is NC, this button is normal off. The button becomes off when there is an alarm output.

Figure 2-6

3 Device Installation

Please follow the steps listed below to install the device. Please refer to Figure 3-1 for reference.

z Please draw the installation holes in the installation surface and then mark three expansion

bolts holes in the surface. Insert three bolts in the hole and secure firmly.

z Please line up the installation holes of the bottom of the pendant mount bracket to the

installation holes in the surface. Then insert the three bolts to the holes of the bottom of the

bracket. Finally fasten the device on the installation surface.

Figure 3-1

4 Quick Configuration Tool

4.1 Overview

Quick configuration tool can search current IP address, modify IP address. At the same time, you can

use it to upgrade the device.

Please note the tool only applies to the IP addresses in the same segment.

4.2 Operation

Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1.

In the device list interface, you can view device IP address, port number, subnet mask, default

gateway, MAC address and etc.

Figure 4-1

Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.

Figure 4-2

Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure

4-3.

Figure 4-3

If you want to modify the device IP address without logging in the device web interface, you can go to

the configuration tool main interface to set.

In the configuration tool search interface (Figure 4-1), please select a device IP address and then

double click it to open the login interface. Or you can select an IP address and then click the Login

button to go to the login interface. See Figure 4-4.

In Figure 4-4, you can view device IP address, user name, password and port. Please modify the

corresponding information to login.

Please note the port information here shall be identical with the port value you set in TCP port in Web

Network interface. Otherwise, you can not login the device.

If you are use device background upgrade port 3800 to login, other setups are all invalid.

Figure 4-4

After you logged in, the configuration tool main interface is shown as below. See Figure 4-5.

Figure 4-5

5 Web Operation

This series IPC product support the Web access and management via PC.

Web includes several modules: monitor channel preview, PTZ control, system configuration, alarm and

etc.

5.1 Network Connection

Please follow the steps listed below for network connection.

z Make sure the IPC has connected to the network properly.

z Please set the IP address, subnet mask and gateway of the PC and the IPC respectively. IPC

default IP address is 192.168.1.108. Subnet mask is 255.255.255.0. Gateway is 192.168.1.1

z Use order ping ***.***.***.***(* IP camera address) to check connection is OK or not.

5.2 Login and Logout

Open IE and input IP camera address in the address bar.

For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address

bar. See Figure 5-1.

Figure 5-1

The login interface is shown as below. See Figure 5-2.

Please input your user name and password.

Default factory name is admin and password is admin.

Note: For security reasons, please modify your password after you first login.

Input your IP

address here

Figure 5-2

If it is your first time to login in, system pops up warning information to ask you whether install control

webrec.cab or not after you logged in for one minute. Please click OK button, system can

automatically install the control. When system is upgrading, it can overwrite the previous Web too.

If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable

the control download. Or you can lower the IE security level. See Figure 5-3.

Figure 5-3

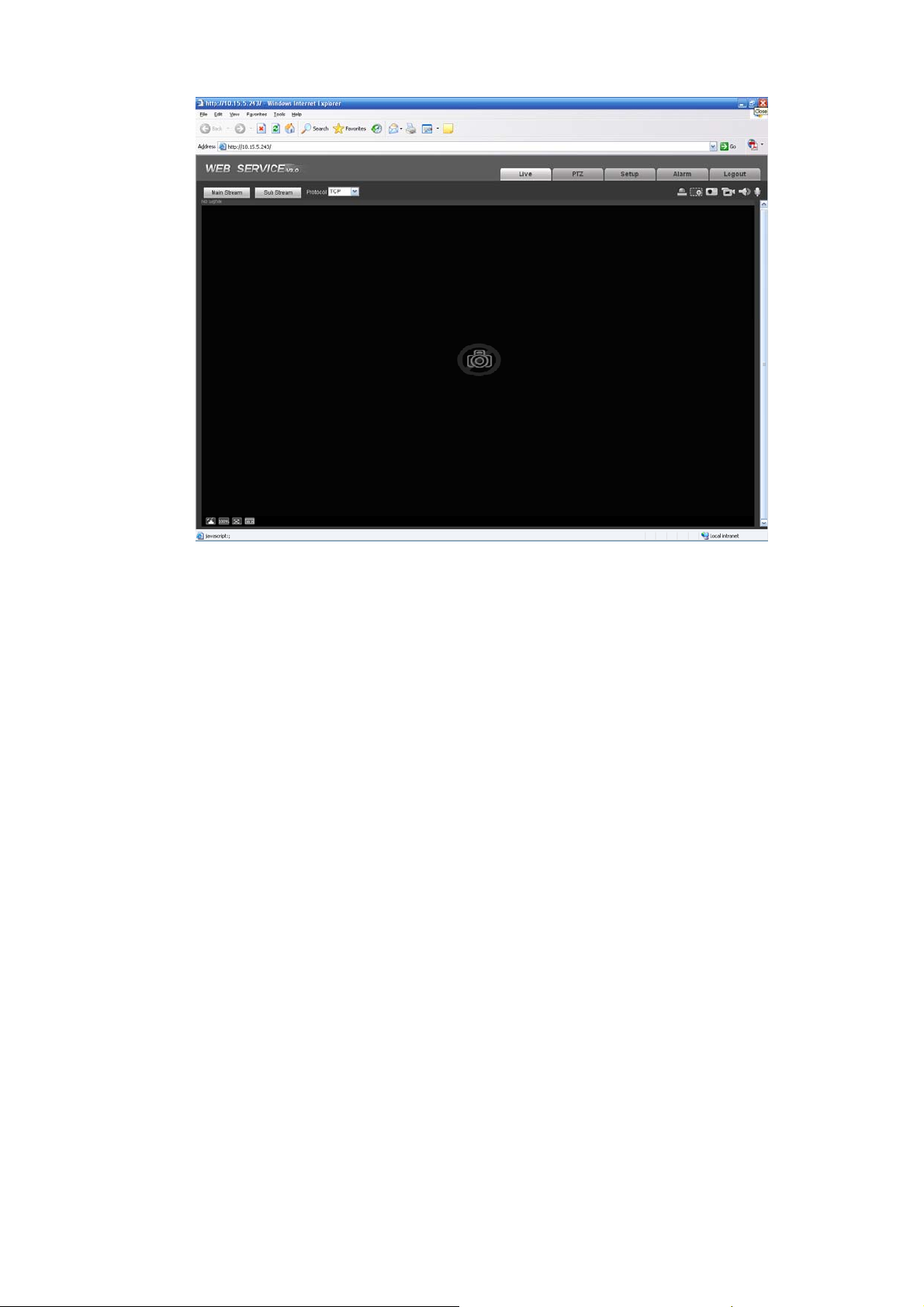

After you logged in, you can see the main window. See Figure 5-4.

Figure 5-4

Please refer to the Web Operation Manual included in the resource CD for detailed operation

instruction.

6 FAQ

Bug

I can not boot up the device.

SD card write times

I can not use the disk as the storage media.

I can not upgrade the device via network.

Recommended SD card brand

Audio function Please use active device for the audio monitor input, otherwise there

To guarantee setup update

Please click RESET button for at least five seconds to restore factory default setup.

Do not set the SD card as the storage media to storage the schedule record file. It may damage the SD card duration.

When disk information is shown as hibernation or capacity is 0, please format it first (Via Web).

When network upgrade operation failed, you can use port 3800 to continue upgrade.

Kingston 4GB, Kingston 1GB, Kingston 16GB, Transcend 16GB, SanDisk 1G, SanDisk 4G

Usually we recommend the 4GB (or higher) high speed card in case the slow speed results in data loss.

is no audio in the client-end.

After you modified the important setup, please reboot the device via the software to make sure the setup has been updated to the storage medium.

Power adapter The power adapter included in the accessories bag can work

ranging from 0℃ to 40 ℃. The device may result in unstable power supply when the temperature exceeds the working temperature.

Please replace an industry-level power adapter if you are using in the harsh environments.

I can not fix the bracket firmly.

Please use the S3 inner hex wrench to secure the rear bracket firmly. Please use your hands to test the camera is firm or not after the installation.

Appendix Toxic or Hazardous Materials or Elements

Component

Name

Circuit Board

Component

Device

Construction

Material

Wire and Cable

Packing

Components

Accessories ○ ○ ○ ○ ○ ○

O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the

parts is below the relevant threshold of the SJ/T11363-2006 standard.

X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous

materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the

environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements

contained in products will not leak or mutate so that the use of these (substances or elements) will not

result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer

is not authorized to process such kind of substances or elements, please return to the corresponding local authorities to process according to your local government statutes。

Note

Pb Hg Cd Cr VI PBB PBDE

○ ○ ○ ○ ○ ○

○

○ ○ ○ ○ ○ ○

Toxic or Hazardous Materials or Elements

○ ○ ○ ○ ○

z This user’s manual is for reference only. Slight difference may be found in user interface. z All the designs and software here are subject to change without prior written notice. z All trademarks and registered trademarks are the properties of their respective owners. z If there is any uncertainty or controversy, please refer to the final explanation of us. z Please visit our website for more information.

XtendLan XL-ICA-106M2R, XL-ICA-306M2R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
