XtendLan XL-GRT-402SB User Manual

Download

XL-GRT-402SB

Bridge/router G.SHDSL bis/Ethernet

User’s Guide

G.shdsl.bis Router User Manual V.004

ABLE OF CONTENTS

1 DESCRIPTIONS...............................................................................................................4

1.1 F

1.2 S

1.3 A

EATURES

PECIFICATION

PPLICATIONS

....................................................................................................................4

.............................................................................................................4

.............................................................................................................6

2 YOURS FIREWALL......................................................................................................... 7

2.1 T

YPES OF FIREWALL

....................................................................................................7

2.1.1 Packet Filtering .................................................................................................. 7

2.1.2 Circuit Gateway.................................................................................................. 9

2.1.3 Application Gateway ..........................................................................................9

2.2 D

ENIAL OF SERVICE ATTACK

.....................................................................................10

3 YOURS VLAN (VIRTUAL LOCAL AREA NETWORK)..........................................12

3.1 S

3.2 F

3.3 A

PECIFICATION

RAME SPECIFICATION

PPLICATIONS

...........................................................................................................12

...........................................................................................................13

..............................................................................................12

4 GETTING TO KNOW ABOUT THE ROUTER .........................................................15

4.1 F

RONT PANEL

............................................................................................................15

4.2 R

4.3 SHDSL.

4.4 C

EAR PANEL

ONSOLE CABLE

..............................................................................................................16

BIS LINE CONNECTOR

..................................................................................17

.......................................................................................................17

5 CONFIGURATION TO THE ROUTER ......................................................................18

5.1 S

5.2 S

5.3 S

5.4 S

5.5 S

TEP

1: C

HECK THE ETHERNET ADAPTER IN

2: C

HECK THE WEB BROWSER IN

3: C

HECK THE TERMINAL ACCESS PROGRAM

4: D

ETERMINE CONNECTION SETTING

5: I

NSTALL THE

SHDSL.

BIS ROUTER

NB ............................................18

NB.....................................................18

....................................................18

..............................................................18

................................................................19

6 CONFIGURATION VIA WEB BROWSER.................................................................21

7 BASIC SETUP.................................................................................................................23

7.1 B

7.2 R

RIDGE MODE

OUTING MODE

...........................................................................................................23

........................................................................................................24

7.2.1 DHCP Server....................................................................................................25

7.2.2 DHCP Client.....................................................................................................26

7.2.3 DHCP relay ......................................................................................................26

7.2.4 PPPoE or PPPoA ............................................................................................. 27

G.shdsl.bis Router User Manual V.004

7.2.5 IPoA or EoA......................................................................................................29

8 ADVANCED SETUP....................................................................................................... 31

8.1 SHDSL.

BIS

................................................................................................................31

8.2 WAN ......................................................................................................................... 33

8.3 B

RIDGE

......................................................................................................................35

8.4 VLAN ....................................................................................................................... 36

8.5 E

8.6 R

THERNET

OUTE

.................................................................................................................37

.......................................................................................................................38

8.7 NAT/DMZ ................................................................................................................40

8.8 V

8.9 F

IRTUAL SERVER

IREWALL

..................................................................................................................43

.......................................................................................................42

8.10 IP QOS ......................................................................................................................48

9 ADMINISTRATION.......................................................................................................50

9.1 S

ECURITY

..................................................................................................................50

9.2 SNMP .......................................................................................................................51

9.3 T

IME SYNC

................................................................................................................52

10 UTILITY .......................................................................................................................... 54

10.1 S

10.2 C

10.3 U

10.4 L

10.5

YSTEM INFO

ONFIG TOOL

PGRADE

OGOUT

ESTART

...................................................................................................................55

.....................................................................................................................55

....................................................................................................................55

.............................................................................................................54

............................................................................................................54

11 STATUS............................................................................................................................56

12 LAN-TO-LAN CONNECTION WITH BRIDGE MODE...........................................57

12.1 CO

12.2 CPE S

SIDE

.....................................................................................................................57

IDE

..................................................................................................................58

13 LAN TO LAN CONNECTION WITH ROUTING MODE ........................................59

13.1 CO S

13.2 CPE

IDE

....................................................................................................................59

SIDE

...................................................................................................................60

14 CONFIGURATION VIA SERIAL CONSOLE OR TELNET WITH MANU

DRIVEN INTERFACE ..........................................................................................................61

14.1 S

14.2 T

14.3 O

ERIAL CONSOLE

ELNET

......................................................................................................................61

PERATION INTERFACE

.......................................................................................................61

..............................................................................................61

G.shdsl.bis Router User Manual V.004

14.4 W

INDOW STRUCTURE

................................................................................................62

14.5 M

14.6 M

14.7 C

14.8 S

14.9 S

14.10 W

14.11 R

14.12 P

14.13 A

ENU DRIVEN INTERFACE COMMANDS

ENU TREE

ONFIGURATION

TATUS

HOW

RITE

EBOOT

ING

DMINISTRATION

...............................................................................................................63

........................................................................................................65

......................................................................................................................66

........................................................................................................................67

...................................................................................................................68

.................................................................................................................69

......................................................................................................................70

..................................................................................................71

.....................................................................63

14.13.1 User Profile ..................................................................................................71

14.13.2 Security ......................................................................................................... 72

14.13.3 SNMP............................................................................................................72

14.13.4 Supervisor Password and ID........................................................................73

14.13.5 SNTP.............................................................................................................73

14.14 U

14.15 E

14.16 S

TILITY

XIT

ETUP

.................................................................................................................75

......................................................................................................................75

....................................................................................................................75

14.16.1 Mode ............................................................................................................. 76

14.16.2 SHDSL.bis ....................................................................................................76

14.16.3 WAN ..............................................................................................................77

14.16.4 Bridge ...........................................................................................................78

14.16.5 VLAN ............................................................................................................79

14.16.6 802.11Q VLAN..............................................................................................79

14.16.7 STP ...............................................................................................................80

14.16.8 Route.............................................................................................................80

14.16.9 LAN...............................................................................................................82

14.16.10 IP share.........................................................................................................82

14.16.11 NAT...............................................................................................................82

14.16.12 PAT................................................................................................................ 84

14.16.13 DMZ.............................................................................................................. 85

14.16.14 Firewall......................................................................................................... 86

14.16.15 Packet Filtering............................................................................................86

14.16.16 DoS Protection.............................................................................................. 87

14.16.17 IPQoS ...........................................................................................................87

14.16.18 DHCP ...........................................................................................................88

14.16.19 DNS proxy.....................................................................................................89

14.16.20 Host name.....................................................................................................90

14.16.21 Default .......................................................................................................... 90

G.shdsl.bis Router User Manual V.004

1 Descriptions

The SHDSL.bis (Symmetric High Speed Digital Subscriber Loop) routers comply with G.991.2(2004) standard with 10/100 Base-T auto-negotiation. It provides business-class, multi-range from 192Kbps to

5.696Mbps (for 2-wire mode) and 384Kbps to 11.392Mbps (4-wire router) payload rates over exiting single-pair copper wire. The SHDSL.bis routers are designed not only to optimize the service bit rate from central office to customer premises also it integrates high-end Bridging/Routing capabilities with advanced functions of Multi-DMZ, virtual server mapping and VPN pass-through.

Because of rapid growth of network, virtual LAN has become one of the major new areas in internetworking industry. The SHDSL.bis routers support port-based and IEEE 802.1q VLAN over ATM network.

The firewall routers provide not only advanced functions, Multi-DMZ, virtual server mapping and VPN pass-through but advanced firewall, SPI, NAT, DoS protection serving as a powerful firewall to protect from outside intruders of secure connection.

The 4-port routers support four ports 10Base-T /100Base-T auto-negotiation and auto-MDIX switching ports to meet the enterprise need.

The SHDSL.bis routers allow customers to leverage the latest in broadband technologies to meet their growing data communication needs. Through the power of SHDSL.bis products, you can access superior manageability and reliability.

1.1 Features

 Easy configuration and management with password control for various application environments  Efficient IP routing and transparent learning bridge to support broadband Internet services  VPN pass-through for safeguarded connections  Virtual LANs (VLANs) offer significant benefit in terms of efficient use of bandwidth, flexibility,

performance and security

 Build-in advanced SPI firewall (Firewall router)  Four 10/100Mbps Auto-negotiation and Auto-MDIX switching port for flexible local area network

connectivity (4-port router)

 DMZ host/Multi-DMZ/Multi-NAT enables multiple workstations on the LAN to access the Internet

for the cost of IP address

 Fully ATM protocol stack implementation over SHDSL.bis  PPPoA and PPPoE support user authentication with PAP/CHAP/MS-CHAP  SNMP management with SNMPv1/SNMPv2 agent and MIB II  Getting enhancements and new features via Internet software upgrade

1.2 Specification

Routing

 Support IP/TCP/UDP/ARP/ICMP/IGMP protocols  IP routing with static routing and RIPv1/RIPv2 (RFC1058/2453)  IP multicast and IGMP proxy (RFC1112/2236)  Network address translation (NAT/PAT) (RFC1631)  NAT ALGs for ICQ/Netmeeting/MSN/Yahoo Messenger  DNS relay and caching (RFC1034/1035)  DHCP server, client and relay (RFC2131/2132)  IP precedence (RFC 791) (Firewall router)

Bridging

 IEEE 802.1D transparent learning bridge  IEEE 802.1q VLAN  Port-based VLAN (4-port router)  Spanning tree protocol

G.shdsl.bis Router User Manual V.004

Security

 DMZ host/Multi-DMZ/Multi-NAT function  Virtual server mapping (RFC1631)  VPN pass-through for PPTP/L2TP/IPSec tunneling  Natural NAT firewall  Advanced Stateful packet inspection (SPI) firewall (Firewall Router)  Application level gateway for URL and keyword blocking (Firewall Router)  User access control: deny certain PCs access to Internet service (Firewall Router)

Management

 Easy-to-use web-based GUI for quick setup, configuration and management  Menu-driven interface/Command-line interface (CLI) for local console and Telnet access  Password protected management and access control list for administration  SNMP management with SNMPv1/SNMPv2 (RFC1157/1901/1905) agent and MIB II

(RFC1213/1493)

 Software upgrade via web-browser/TFTP server

ATM

 Up to 8 PVCs  OAM F5 AIS/RDI and loopback  AAL5

ATM QoS

 UBR (Unspecified bit rate)  CBR (Constant bit rate)  VBR-rt (Variable bit rate real-time)  VBR-nrt (Variable bit rate non-real-time)

AAL5 Encapsulation

 VC multiplexing and SNAP/LLC  Ethernet over ATM (RFC 2684/1483)  PPP over ATM (RFC 2364)  Classical IP over ATM (RFC 1577)

PPP

 PPP over Ethernet for fixed and dynamic IP (RFC 2516)  PPP over ATM for fixed and dynamic IP (RFC 2364)  User authentication with PAP/CHAP/MS-CHAP

WAN Interface

 SHDSL.bis: ITU-T G.991.2 (2004) Annex A/B/F/G  Encoding scheme: 16-TCPAM, 32-TCPAM,  Data Rate: N x 64Kbps ,N=3~89, 0 for adaptive, 89 as default (2-wire mode)  Data Rate: N x 128kbps (N= 3 ~ 89, 89 as default) (4-wire Router)  Impedance: 135 ohms

LAN Interface

 4-ports switching hub (4-port router)  10/100 Base-T auto-sensing and auto-negotiation  Auto-MDIX (4-port router)

Hardware Interface

 WAN: RJ-45  LAN: RJ-45 x 4 (4-port router) or RJ-45 x 1 (1-port router)  Console: RS232 female  RST: Reset button for factory default

Indicators

 General: PWR  WAN: LNK, ACT  LAN: 10M/ACT, 100M/ACT (1-port router)

G.shdsl.bis Router User Manual V.004

 LAN: 1, 2, 3, 4 (4-port router)  SHDSL.bis: ALM

Physical/Electrical

 Dimensions: 18.7 x 3.3 x 14.5cm (WxHxD)  Power: 100~240VAC (via power adapter)  Power consumption: 9 watts max  Temperature: 0~45。C

 Humidity: 0%~95%RH (non-condensing)

Memory

 2MB Flash Memory, 8MB SDRAM

Products’ Information G.shdsl.bis 2-wire router/bridge with 1-port LAN G.shdsl.bis 2-wire router/bridge with 1-port LAN VLAN and business class firewall G.shdsl.bis 2-wire router/bridge with 4-port switching hub LAN G.shdsl.bis 2-wire router/bridge with 4-port switching hub LAN, VLAN and business class firewall G.shdsl.bis 4-wire router/bridge with 4-port switching hub LAN G.shdsl.bis 4-wire router/bridge with 4-port switching hub LAN, VLAN and business class firewall

1.3 Applications

G.shdsl.bis Router User Manual V.004

2 Yours Firewall

A firewall protects networked computers from intentional hostile intrusion that could compromise confidentiality or result in data corruption or denial of service. It must have at least two network interfaces, one for the network it is intended to protect, and one for the network it is exposed to. A firewall sits at the junction point or gateway between the two networks, usually a private network and a public network such as the Internet.

A firewall examines all traffic routed between the networks. The traffic is routed between the networks if it meets certain criteria; otherwise, it is filtered. A firewall filters both inbound and outbound traffic. Except managing the public access to private networked resources such as host applications, the firewall is capable of log all attempts to enter the private network and trigger alarms when hostile or unauthorized entry is attempted. Firewalls can filter packets based on their IP addresses of source and destination. This is known as address filtering. Firewalls can also filter specific types of network traffic by port numbers, which is also known as protocol filtering because the decision of traffic forwarding is dependant upon the protocol used, for example HTTP, ftp or telnet. Firewalls can also filter traffic by packet attribute or state.

An Internet firewall cannot prevent the damage from the individual users with modems dialing into or out of the network, which bypass the firewall altogether. The misconduct or carelessness of employee is not in the control of firewalls either. Authentication Policies, which is involved in the use and misuse of passwords and user accounts, must be strictly enforced. The above management issues need to be settled during the planning of security policy, but cannot be solved with Internet firewalls alone.

Firewall

Unknown Traffic

Specified Allowed Traffic

Out to Internet

Internet

Local User

Access to Specific

Destination

Allowed Traffic

Restricted Traffic

2.1 Types of Firewall

There are three types of firewall:

2.1.1 Packet Filtering

In packet filtering, firewall will examine the protocol and the address information in the header of each packet and ignore Its contents and context (its relation to other packets and to the intended application). The firewall pays no attention to applications on the host or local network and it "knows" nothing about the sources of incoming data. Filtering includes the examining on incoming and outgoing packets, and determines the packet dropping or not by a set of configurable rules. Network Address Translation (NAT) routers offer the advantages of packet filtering firewalls but can also hide the IP addresses of computers behind the firewall, and offer a level of circuit-based filtering.

G.shdsl.bis Router User Manual V.004

Level 5: Application

Protocol

Level 4: TCP

Level 3: IP

Source/Destination address Source/destination port IP options connection status

Level 2: Data Link

Level 1: Physical

Stateful Inspection

Filter remember this

information

192.168.0.5 SP=3264 SA=192.168.0.5 DP=1525 DA=172.16.3.4

Matches outgoing so allows in

UDP SP=1525 SA=172.16.3.4 DP=3264 DA=192.168.0.5

Nomatches so disallows in

UDP SP=1525 SA=172.168.3.4 DP=2049 DA=192.168.0.5

172.16.3.4UDP

NAT (Network Address Translation)

Firewall

192.168.0.10

192.168.0.11

Internal/Protected Network External/Unprotected Network

192.120.8.5

Internal IP External IP

192.168.0.10

192.168.0.11

192.120.8.5

Internet

G.shdsl.bis Router User Manual V.004

PAT (Port Address Translation)

Firewall

192.168.0.10:1025

192.168.0.11:4406

Internal/Protected Network External/Unprotected Network

192.120.8.5

192.120.8.5:2205

192.120.8.5:2206

Client IP Internal Port External Port

192.168.0.10

192.168.0.11

1025

4406

2205

2206

Internet

2.1.2 Circuit Gateway

Also called a "Circuit Level Gateway," this is a firewall approach, which validates connections before allowing data to be exchanged. What this means is that the firewall doesn't simply allow or disallow packets but also determines whether the connection between both ends is valid according to configurable rules, then opens a session and permits traffic only from the allowed source and possibly only for a limited period of time.

Level 5: Application

destination IP address and/or port

Level 4: TCP

Level 3: IP

source IP address and/or port time of day protocol user password

Level 2: Data Link

Level 1: Physical

2.1.3 Application Gateway

The Application Level Gateway acts as a proxy for applications, performing all data exchanges with the remote system in their behalf. This can render a computer behind the firewall invisible to the remote system. It can allow or disallow traffic according to very specific rules, for instance permitting some commands to a server but not others, limiting file access to certain types, varying rules according to authenticated users and so forth. This type of firewall may also perform very detailed logging of traffic and monitoring of events on the host system; furthermore can often be instructed to sound alarms or notify an operator under defined conditions. Application-level gateways are generally regarded as the most secure type of firewall. They certainly have the most sophisticated capabilities.

G.shdsl.bis Router User Manual V.004

Level 5: Application

Level 4: TCP

Level 3: IP

Level 2: Data Link

Level 1: Physical

Internal

Host PC

Request Page

Return Page

Interface

Proxy Application

External

Interface

Proxy Server

Check URL

Filter Content

Telnet FTP Http SMTP

Public Server

Request Page

Return Page

2.2 Denial of Service Attack

Typically, Denial Of Service (DoS) attacks result in two flavors: resource starvation and system overloading. DoS attacks happen usually when a legitimate resource demanding is greater than the supplying (ex. too many web requests to an already overloaded web server). Software weakness or system incorrect configurations induce DoS situations also. The difference between a malicious denial of service and simple system overload is the requirement of an individual with malicious intent (attacker) using or attempting to use resources specifically to deny those resources to other users.

Ping of death- On the Internet, ping of death is a kind of denial of service (DoS) attack caused by

deliberately sending an IP packet which size is larger than the 65,536 bytes allowed in the IP protocol. One of the features of TCP/IP is fragmentation, which allows a single IP packet to be broken down into smaller segments. Attackers began to take advantage of that feature when they found that fragmented packets could be added up to the size more than the allowed 65,536 bytes. Many operating systems don’t know what to do once if they received an oversized packet, then they freeze, crash, or reboot. Other known variants of the ping of death include teardrop, bonk and nestea.

Ping of Death Packet (112,000 bytes)

Hacker 's

System

Normal IP Packet (Maximun 65,536 bytes)

Inturruption

Target

System

G.shdsl.bis Router User Manual V.004

Normal reassembled Packets

bytes from 1~1500 bytes from 1501~3000 bytes from 3000~4500

Reassembled teardrop packets

bytes from 1~1700

bytes from 1300~3200 bytes from 2800~4800

SYN Flood- The attacker sends TCP SYN packets, which start connections very fast, leaving the victim

waiting to complete a huge number of connections, causing it to run out of resources and dropping legitimate connections. A new defense against this is the “SYN cookies”. Each side of a connection has its own sequence number. In response to a SYN, the attacked machine creates a special sequence number that is a “cookie” of the connection then forgets everything it knows about the connection. It can then recreate the forgotten information about the connection where the next packets come in from a legitimate connection.

TCP SYN

requests

Hacker 's

System

Internet

Backing

quene

TCP SYN-ACK

Packets

Target

System

ICMP Flood- The attacker transmits a volume of ICMP request packets to cause all CPU resources to

be consumed serving the phony requests.

UDP Flood- The attacker transmits a volume of requests for UDP diagnostic services, which cause all

CPU resources to be consumed serving the phony requests.

Land attack- The attacker attempts to slow your network down by sending a packet with identical

source and destination addresses originating from your network.

Smurf attack- The source address of the intended victim is forged in a broadcast ping so that a huge

number of ICMP echo reply back to victim indicated by the address, overloading it.

Broadcast ping

request from spoofed

IP address

Hacker 's

System

Internet

Target Router

Ping response

Multiple network

Subnet

Fraggle Attack- A perpetrator sends a large amount of UDP echo packets at IP broadcast addresses,

all of it having a fake source address.

IP Spoofing- IP Spoofing is a method of masking the identity of an intrusion by making it appeared that

the traffic came from a different computer. This is used by intruders to keep their anonymity and can be used in a Denial of Service attack.

G.shdsl.bis Router User Manual V.004

3 Yours VLAN (Virtual Local Area Network)

Virtual LAN (VLAN) is defined as a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same wire, when in fact they are located on a number of different LAN segments. Because VLAN is based on logical instead of physical connections, it is extremely flexible.

The IEEE 802.1Q defines the operation of VLAN bridges that permit the definition, operation, and administration of VLAN topologies within a bridged LAN infrastructure. VLAN architecture benefits include:

1. Increased performance

2. Improved manageability

3. Network tuning and simplification of software configurations

4. Physical topology independence

5. Increased security options

As DSL (over ATM) links are deployed more and more extensively and popularly, it is rising progressively to implement VLAN (VLAN-to-PVC) over DSL links and, hence, it is possible to be a requirement of ISPs.

We discuss the implementation of VLAN-to-PVC only for bridge mode operation, i.e., the VLAN spreads over both the COE and CPE sides, where there is no layer 3 routing involved.

3.1 Specification

1. The unit supports up to 8 active VLANs with shared VLAN learning (SVL) bridge out of 4096 possible VLANs specified in IEEE 802.1Q.

2. Each port always belongs to a default VLAN with its port VID (PVID) as an untagged member. Also, a port can belong to multiple VLANs and be tagged members of these VLANs.

3. A port must not be a tagged member of its default VLAN.

4. If a non-tagged or null-VID tagged packet is received, it will be assigned with the default PVID of the ingress port.

5. If the packet is tagged with non-null VID, the VID in the tag will be used.

6. The look up process starts with VLAN look up to determine whether the VID is valid. If the VID is not valid, the packet will be dropped and its address will not be learned. If the VID is valid, the VID, destination address, and source address lookups are performed.

7. The VID and destination address lookup determines the forwarding ports. If it fails, the packet will be broadcasted to all members of the VLAN, except the ingress port.

8. Frames are sent out tagged or untagged depend on if the egress port is a tagged or untagged member of the VLAN that frames belong.

9. If VID and source address look up fails, the source address will be learned.

3.2 Frame Specification

An untagged frame or a priority-tagged frame does not carry any identification of the VLAN to which it belongs. Such frames are classified as belonging to a particular VLAN based on parameters associated with the receiving port. Also, priority tagged frames, which, by definition, carry no VLAN identification information, are treated the same as untagged frames. A VLAN-tagged frame carries an explicit identification of the VLAN to which it belongs; i.e., it carries a tag header that carries a non-null VID. This results in a minimum tagged frame length of 68 octets. Such a frame is classified as belonging to a particular VLAN based on the value of the VID that is included in the tag header. The presence of the tag header carrying a non-null VID means that some other device, either the originator of the frame or a VLAN-aware bridge, has mapped this frame into a VLAN and has inserted the appropriate VID.

The following figure shows the difference between a untagged frame and VLAN tagged frame, where the Tag Protocol Identifier (TPID) is of 0x8100 and it identifies the frame as a tagged frame. The Tag Control Information (TCI) consists of the following elements: 1) User priority allows the tagged frame to

G.shdsl.bis Router User Manual V.004

carry user priority information across bridged LANs in which individual LAN segments may be unable to signal priority information (e.g., 802.3/Ethernet segments). 2) The Canonical Format Indicator (CFI) is used to signal the presence or absence of a Routing Information Field (RIF) field, and, in combination with the Non-canonical Format Indicator (NCFI) carried in the RIF, to signal the bit order of address information carried in the encapsulated frame. 3) The VID uniquely identifies the VLAN to which the frame belongs.

3.3 Applications

Port-based VLAN

WANLAN1 LAN2 LAN3 LAN4

1 8

Group 1

Group 3

Group 2

G.shdsl.bis Router User Manual V.004

4 Getting to know about the router

This section will introduce hardware of the router.

4.1 Front Panel

The front panel contains LED which show status of the router.

LED status of 4-wire/4-port router

LEDs Active

PWR On Power on

WAN

LAN

WAN

LAN

LNK

ACT

ALM

LEDs Active

PWR On Power adaptor is connected to the router

10M/ACT

100M/ACT

ALM

On SHDSL.bis line connection is established

Blink SHDSL.bis handshake

On Transmit or received data over SHDSL.bis link On Ethernet cable is connected to LAN 1

Blink Transmit or received data over LAN 1

On Ethernet cable is connected to LAN 2

Blink Transmit or received data over LAN 2

On Ethernet cable is connected to LAN 3

Blink Transmit or received data over LAN 3

On Ethernet cable is connected to LAN 4

Blink Transmit or received data over LAN 4

On SHDSL.bis line connection is dropped

Blink SHDSL.bis self test

LED status of 2-wire/1-port router

LNK

ACT Blink Transmit or received data over SHDSL.bis link

On SHDSL.bis line connection is established

Blink SHDSL.bis handshake

On LAN port connect with 10M NIC

Blink LAN port acts in 10M

On LAN port connect with 100M NIC

Blink LAN port acts in 100M

On SHDSL.bis line connection is dropped

Blink SHDSL.bis self test

Description

G.shdsl.bis Router User Manual V.004

4.2 Rear Panel

The rear panel of SHDSL.bis router is where all of the connections are made.

Connectors Description of 2-wire/1-port router

DC-IN Power adaptor inlet: Input voltage 9VDC LAN Ethernet 10BaseT for LAN port (RJ-45)

or LAN (1,2,3,4) 10/100BaseT auto-sensing and auto-MDIX for LAN port (RJ-45) (4-port Router) CONSOLE RS- 232C (DB9) for system configuration and maintenance LINE shdsl.bis interface for WAN port (RJ-45) RST Reset button for reboot or load factory default

Connectors Description of 4-wire/4-port router

DC-IN Power adaptor inlet: Input voltage 9VDC CONSOLE RS- 232C (DB9) for system configuration and maintenance LINE SHDSL.bis interface for WAN port (RJ-45) RST Reset button for reboot or load factory default

The reset button can be used only in one of two ways. (1) Press the Reset Button for one second will cause system reboot. (2) Pressing the Reset Button for four seconds will cause the product loading the factory

default setting and losing all of yours configuration. When you want to change its configuration but forget the user name or password, or if the product is having problems connecting to the Internet and you want to configure it again clearing all configurations, press the Reset Button for four seconds with a paper clip or sharp pencil.

G.shdsl.bis Router User Manual V.004

4.3 SHDSL.bis Line Connector

4.4 Console Cable

Pin Number

1 No connection 2 RxD (O) 3 TxD (I) 4 No connection 5 GND 6 No connection 7 CTS (O) 8 RTS (I) 9 No connection

Description Fuigure

12345

6789

G.shdsl.bis Router User Manual V.004

5 Configuration to the router

This guide is designed to lead users through Web Configuration of G.shdsl.bis Router in the easiest and quickest way possible. Please follow the instructions carefully.

Note: There are three methods to configure the router: serial console, Telnet and Web Browser. Only

one configuration application is used to setup the Router at any given time. Users have to choose one method to configure it. For Web configuration, you can skip step 3. For Serial Console Configuration, you can skip step 1 and 2.

5.1 Step 1: Check the Ethernet Adapter in PC or NB

Make sure that Ethernet Adapter had been installed in PC or NB used for configuration of the router. TCP/IP protocol is necessary for web configuration, so please check the TCP/IP protocol whether it has been installed.

5.2 Step 2: Check the Web Browser in PC or NB

According to the Web Configuration, the PC or NB need to install Web Browser, IE or Netscape. Note: Suggest to use IE5.0, Netscape 6.0 or above and 800x600 resolutions or above.

5.3 Step 3: Check the Terminal Access Program

For Serial Console and Telnet Configuration, users need to setup the terminal access program with VT100 terminal emulation.

5.4 Step 4: Determine Connection Setting

Users need to know the Internet Protocol supplied by your Service Provider and determine the mode of setting.

Protocol Selection

RFC1483 RFC1577 Classical Internet Protocol over ATM RFC2364 Point-to-Point Protocol over ATM RFC2516 Point-to-Point Protocol over Ethernet

Ethernet over ATM

G.shdsl.bis Router User Manual V.004

VPI:

VCI:

VPI:

VCI:

VPI:

VCI:

VPI:

VCI:

VPI:

VCI:

The difference Protocol need to setup difference WAN parameters. After knowing the Ptorocol provided by ISP, you have to ask the necessary WAN parameters to setup it.

Bridge EoA

Encapsulation: Gateway: Host Name:(if applicable)

IPoA

Encapsulation: IP Address: Subnet Mask: Gateway: DNS Server: Host Name:(if applicable)

PPPoE

Encapsulation: IP Address: Subnet Mask: Gateway: DNS Server: Host Name:(if applicable)

Encapsulation: User Name: Password: DNS Server: Host Name: (if applicable) IP Address: (if applicable)

Route EoA

PPPoA

Encapsulation: User Name: Password: DNS Server: Host Name:(if applicable) IP Address:(if applicable)

5.5 Step 5: Install the SHDSL.bis Router

To avoid possible damage to this Router, do not turn on the router before Hardware Installation.



Connect the power adapter to the port labeled DC-IN on the rear panel of the product.



Connect the Ethernet cable.

Note: The 1-port router and 4-port router both supports auto-MDIX switching hub so both straight

through and cross-over Ethernet cable can be used.



Connect the phone cable to the product and the other side of phone cable to wall jack.



Connect the power adapter to power source.



Turn on the PC or NB, which is used for configuration the Router.

G.shdsl.bis Router User Manual V.004

Power

Adpater

Pass

Cable

DB-9

Mobile

Wireless LAN

Power

Adapter

Cross

Cable

DB-9

G.shdsl

.bis

G.shdsl

.bis

Server

Over Ethernet

Cable

Direct Connection with PC or NB for 1-port router

Connection with Hub/Switch for 1-port router

File Server

Workstation

HUB/Switch

Wall Jack

Device

Through Ethernet

Wall Jack

Cable

4-port router with complex network topology

G.shdsl.bis Router User Manual V.004

6 Configuration via Web Browser

Step. 1 For Win85, 98 and Me, click the start button. Select setting and control panel.

Step. 2 Double click the network icon.

In the Configuration window, select the TCP/IP protocol line that has been associated with your network card and then click property icon.

G.shdsl.bis Router User Manual V.004

Choose IP address tab. Select Obtain IP

address automatically. Click OK button.

The window will ask you to restart the PC. Click Yes button.

After rebooting your PC, open IE or Netscape Browser to connect the Router. Type

http://192.168.0.1 The default IP address and sub net-mask of the Router is 192.168.0.1 and 255.255.255.0. Because the router acts as DHCP server in your network, the router will automatically assign IP address for PC or NB in the network.

Type User Name root and Password root and

then click OK.

The default user name and password both is

For the system security, suggest changing them

after configuration.

Note: After changing the User Name and

Password, strongly recommend you to save them because another time when you login, the User Name and Password have to be used the new one you changed.

root

G.shdsl.bis Router User Manual V.004

VPI:

VCI:

7 Basic Setup

The Basic Setup contains LAN, WAN, Bridge and Route operation mode.

User can use it to completely setup the router. After successfully

completing it, you can access Internet. This is the easiest and possible

way to setup the router.

Note: The advanced functions are only for advanced users to setup

advanced functions. The incorrect setting of advanced function will affect the performance or system error, even disconnection.

Click Basic for basic installation.

7.1

Bridge Mode

IP: 192.168.0.1 Netmask: 255.255.255.0 Gateway: 192.168.0.254

Bridge BAS

IP: 192.168.0.254

IP: 192.168.0.2 Netmask: 255.255.255.0 Gateway: 192.168.0.254

DSLAM

VPI:0, VCI:32 Encapsulation: LLC

Before configuring the router in bridge mode, please check with your ISP about this information.

Click Bridge and CPE Side to setup Bridging mode of the Router and then click Next for the next setting. This product can be setup as two SHDSL.bis working mode: CO (Central Office) and CPE

(Customer Premises Equipment). For connection with DSLAM, the SHDSL.bis working mode is CPE. For “LAN to LAN” connection, one side must be CO and the other side must be CPE.

ISP

Encapsulation: Gateway: Host Name:(if applicable)

G.shdsl.bis Router User Manual V.004

Enter Parameters in BASIC – STEP2:

LAN IP: 192.168.0.1 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.254

(The Gateway IP is provided by ISP.)

Host Name: SOHO

Some of the ISP requires the Host Name as identification. You may check with ISP to see if your Internet service has been configured with a host name. In most cases, this field can be ignored.

WAN1 VPI: 0 VCI: 32

Click LLC, Click Next

The screen will prompt the new configured parameters. Checking the parameters and Click Restart The router will reboot with the new setting or Continue to configure another parameters.

7.2 Routing Mode

G.shdsl.bis Router User Manual V.004

Routing mode contains DHCP server, DHCP client, DHCP relay, Point-to-Point Protocol over ATM and Ethernet and IP over ATM and Ethernet over ATM. You have to clarify which Internet protocol is provided by ISP. Click ROUTE and CPE Side then press Next. This product can be setup as two SHDSL.bis working mode: CO (Central Office) and CPE (Customer Premises Equipment). For connection with DSLAM, the SHDSL.bis working mode is CPE. For “LAN to LAN” connection, one side must be CO and the other side must be CPE.

7.2.1 DHCP Server

Dynamic Host Configuration Protocol (DHCP) is a communication protocol that lets network administrators to manage centrally and automate the assignment of Internet Protocol (IP) addresses in an organization's network. Using the Internet Protocol, each machine that can connect to the Internet needs a unique IP address. When an organization sets up its computer users with a connection to the Internet, an IP address must be assigned to each machine.

Without DHCP, the IP address must be entered manually at each computer. If computers move to another location in another part of the network, a new IP address must be entered. DHCP lets a network administrator to supervise and distribute IP addresses from a central point and automatically sends a new IP address when a computer is plugged into a different place in the network. If the DHCP server is “Enable,” you have to setup the following parameters for processing it as DHCP server.

The embedded DHCP server assigns network configuration information at most 253 users accessing the Internet in the same time.

IP type: Fixed IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0 Host Name: SOHO

Some of the ISP requires the host name as identification. You may check with ISP to see if your Internet service has been configured with a host name. In most cases, this field can be ignored.

Trigger DHCP Service: Server

The default setup is Enable DHCP server. If you want to turn off the DHCP service, choose Disable.

For example: If the LAN IP address is

192.168.0.1, the IP range of LAN is

192.168.0.2 to 192.168.0.51. The DHCP server assigns the IP form Start IP Address to End IP Address. The legal IP address range is form 0 to 255, but 0 are reserved as network name and 255 are reserved for broadcast. It implies the legal IP address range is from 1 to 254. That means you cannot assign an IP greater than 254 or less then 1. Lease time 72 hours indicates that the DHCP server will reassign IP information in every 72 hours.

G.shdsl.bis Router User Manual V.004

DNS Server: Your ISP will provide at least one Domain Name Service Server IP. You can type the router IP in this field. The router will act as DNS server relay function.

You may assign a fixed IP address to some device while using DHCP, you have to put this device’s MAC address in the Table of Fixed DHCP Host Entries.

Press Next to setup WAN1 parameters.

7.2.2 DHCP Client

Some of the ISP provides DHCP server service by which the PC in LAN can access IP information automatically. To setup the DHCP client mode, follow the procedure.

LAN IP Type: Dynamic

Click Next to setup WAN1 parameters.

7.2.3 DHCP relay

If you have a DHCP server in LAN and you want to use it for DHCP services, the product provides DHCP relay function to meet yours need.

IP Type: Fixed IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0 Host Name: SOHO

Some of the ISP requires the host name as identification. You may check with ISP to see if your Internet service has been configured with a host name. In most cases, this field can be ignored. Trigger DHCP Service: Relay Press Next to setup DHCP server parameter.

Enter DHCP server IP address in IP address field.

Press Next

G.shdsl.bis Router User Manual V.004

VPI:

VCI:

7.2.4 PPPoE or PPPoA

PPPoA (point-to-point protocol over ATM) and PPPoE (point-to-point protocol over Ethernet) are authentication and connection protocols used by many service providers for broadband Internet access. These are specifications for connecting multiple computer users on an Ethernet local area network to a remote site through common customer premises equipment, which is the telephone company's term for a modem and similar devices. PPPoE and PPPoA can be used to office or building. Users share a common Digital Subscriber Line (DSL), cable modem, or wireless connection to the Internet. PPPoE and PPPoA combine the Point-to-Point Protocol (PPP), commonly used in dialup connections, with the Ethernet protocol or ATM protocol, which supports multiple users in a local area network. The PPP protocol information is encapsulated within an Ethernet frame or ATM frame.

IP: 192.168.0.1 Netmask: 255.255.255.0 Gateway: 192.168.0.254

Bridge BAS

IP: 192.168.0.254

IP: 192.168.0.2 Netmask: 255.255.255.0 Gateway: 192.168.0.254

VPI:0, VCI:32 Encapsulation: LLC

Before configure the router, check with your ISP about this information.

Enter Parameters in BASIC – STEP2. WAN1 parameters:

VPI: 0 VCI: 33 AAL5 Encap: LLC Protocol: PPPoA + NAT or PPPoE + NAT

Click Next to setup User name and password.

For more understanding about NAT, review NAT/DMZ at page 40.

DSLAM

ISP

Encapsulation: User Name: Password: DNS Server: Host Name: (if applicable) IP address:(if applicable)

Type the ISP1 parameters.

Username: test Password: test Password Confirm: test

Your ISP will provide the user name and password.

Idle Time: 10

You want your Internet connection to remain on at all time, enter “0” in the Idle Time field.

G.shdsl.bis Router User Manual V.004

IP Type: Dynamics.

The default IP type is Dynamic. It means that ISP PPP server will provide IP information including dynamic IP address when SHDSL.bis connection is established. On the other hand, you do not need to type the IP address of WAN1. Some of the ISP will provide fixed IP address over PPP. For fixed IP address:

IP Type: Fixed IP Address: 192.168.1.1

Click Next.

Note: For safety, the password will be prompt as star symbol.

The screen will prompt the parameters that will be written in EPROM. Check the parameters before writing in EPROM.

Press Restart to restart the router working with new parameters or press continue to setup another parameter.

G.shdsl.bis Router User Manual V.004

VPI:

VCI:

7.2.5 IPoA or EoA

LAN

IP: 192.168.0.1

Netmask: 255.255.255.0

Router

IP: 10.1.2.1 Netmask: 255.255.255.0 Gateway: 10.1.2.2 DNS: 168.95.1.1

Netmask: 255.255.255.0

DSLAM

WAN

BAS

IP: 10.1.2.2

ISP

IP: 192.168.0.2~51 Netmask: 255.255.255.0 Gateway: 192.168.0.1

Encapsulation: LLC

Before configuration the router, check with your ISP about this information.

Enter Parameters in BASIC – STEP2 Wan Parameters;

VPI: 0 VCI: 33 AAL5 Encap: LLC Protocol: IPoA , EoA , IPoA + NAT or EoA

+ NAT Click Next to setup the IP parameters.

For more understanding about NAT, review NAT/DMZ at page 40.

IP Address: 10.1.2.1

It is router IP address like from Internet. Your ISP will provide it and you need to specify here.

Subnet mask: 255.255.255.0

This is the router subnet mask seen by external users on Internet. Your ISP will provide it to you.

Gateway: 10.1.2.2

Your ISP will provide you the default gateway.

DNS Server 1: 168.95.1.1

Your ISP will provide at least one DNS (Domain Name System) Server IP address. Click Next

VPI:0, VCI:33

Encapsulation: IP Address: Subnet Mask: Gateway: DNS Server: Host Name:(if applicable)

G.shdsl.bis Router User Manual V.004

The screen will prompt the parameters that will be written in EPROM. Check the parameters before writing in EPROM.

Press Restart to restart the router working with new parameters or press continue to setup another parameter.

G.shdsl.bis Router User Manual V.004

8 Advanced Setup

Advanced setup contains SHDSL.bis, WAN, Bridge, Route, NAT/DMZ, Virtual SERVER and

FIREWALL parameters.

8.1 SHDSL.bis

You can setup the Annex type, data rate and SNR margin for SHDSL.bis parameters in SHDSL.bis. Click SHDSL.bis

Annex Type: There are

foure Annex types, Annex

A (ANSI), Annex B (ETSI), AnnexAF and Annex BG

in SHDSL.bis. Check with your ISP about it.

TCPAM Type: the default

option is Auto. You may assign the different type manually by click the caption TPCAM-16 or

TPCAM-32

Data Rate (2W): you can setup the SHDSL.bis data rate in the multiple of 64kbps.

The default data rate is 5696Kbps (n=89). Under Annex F/G TCPAM32 ; data rate is 768Kbps ~ 5696Kbps (Nx64kbps, N=12~89) TCPAM16 ; data rate is 192Kbps ~ 3840Kbps (Nx64kbps, N=3~60) Under Annex A/B TCPAM16 ; 192Kbps ~ 2304Kbps (Nx 64kbps, N=3~36) For adaptive mode, you have to setup n=0. The router will adapt the data rate according to the line status.

G.shdsl.bis Router User Manual V.004

Data Rate (4W): you can setup the SHDSL.bis data rate in the multiple of 128kbps.

The default data rate is 11392Kbps (n=89). Under Annex F/G TCPAM32 ; data rate is 1536Kbps ~ 11392Kbps (Nx128kbps, N=12~ 89) TCPAM16 ; data rate is 384Kbps ~ 7680Kbps (Nx128kbps, N=3~60) Under Annex A/B TCPAM16 ; 384Kbps ~ 4608Kbps (Nx 128kbps, N=3~36) For adaptive mode, you have to setup n=0. The router will adapt the data rate according to the line status.

SNR margin is an index of line connection quality. You can see the actual SNR margin in STATUS SHDSL.bis. The larger is SNR margin; the better is line connection quality.

If you set SNR margin in the field as 2, the SHDSL.bis connection will drop and reconnect when the SNR margin is lower than 2. On the other hand, the device will reduce the line rate and reconnect for better line connection quality.

The screen will prompt the parameters that will be written in EPROM. Check the parameters before writing in EPROM.

Press Restart to restart the router working with new parameters or press continue to setup another parameter.

G.shdsl.bis Router User Manual V.004

8.2 WAN

The SHDSL.bis router supports up to 8 PVCs. WAN 1 was configured via BASIC except QoS. If you want to setup another PVCs, 2 to 7, the parameters are setup in the page of WAN under ADVANCED. On the other hand, you do not need to setup WAN except you apply two or more Internet Services with ISPs.

The parameters in WAN Number 1 has been setup in Basic Setup. If you want to setup another PVC, you can configure in WAN 2 to WAN 8.

Enter the parameters: If WAN Protocol is PPPoA or PPPoE with dynamic IP, leave the default WAN IP Address and Subnet Mask as default setting. The system will ingore the IP Address and Subnet Mask information, but erasion or blank in default setting will cause system error.

If the WAN Protocol is IPoA or EoA, leave the ISP parameters as default setting. The system will ingore the information, but erasion or blank in default setting will cause system error.

QoS (Quality of Service): The Traffic Management Specification V4.0 defines ATM service cataloges that describe both the traffic transmitted by users onto a network as well as the Quailty of Service that the network need to provide for that traffic.

UBR (Unspecified Bit Rate) is the simplest service provided by ATM networks. There is no guarantee of anything. It is a primary service used for transferring Internet traffic over the ATM network.

CBR (Constant Bit Rate) is used by connections that requires a static amount of bandwidth that is avilable during the connection life time. This bandwidth is characterized by Peak Cell Rate (PCR). Based on the PCR of the CBR traffic, specific cell slots are assigned for the VC in the schedule table. The ATM always sends a signle cell during the CBR connection’s assigned cell slot.

VBR-rt (Varible Bit Rate real-time) is intended for real-time applications, such as compressed voice over IP and video comferencing, that require tightly constrained delays and delay variation. VBR-rt is characterized by a peak cell rate (PCR), substained cell rate (SCR), and maximun burst rate (MBR).

VBR-nrt (Varible Bit Rate non-real-time)

PCR (Peak Cell Rate) in kbps: The maximum rate at which you expect to transmit data, voice and video. Consider PCR and MBS as a menas of reducing lantency, not increasing bandwidth. The range of PCR is 64kbps to 2400kbps

G.shdsl.bis Router User Manual V.004

SCR (Substained Cell Rate): The sustained rate at which you expect to transmit data, voice and video. Consider SCR to be the true bandwidth of a VC and not the lone-term average traffic rate. The range of SCR is 64kbps to 2400kbps.

MBS (Maximum Burst Size): The amount of time or the duration at which the router sends at PCR. The range of MBS is 1 cell to 255 cells.

Press Finish to finish setting.

The screen will prompt the parameters that will be written in EPROM. Check the parameters before writing in EPROM.

Press Restart to restart the router working with new parameters or press continue to setup another parameter.

G.shdsl.bis Router User Manual V.004

8.3 Bridge

If you want to setup advanced filter function while router is working in bridge mode, you can use BRIDGE menu to setup the filter function, blocking function.

Click Bridge to setup.

Press Add in the bottom of web page to add the static bridge information.

If you want to filter the address of LAN PC to access Internet, press Add to establish the filtering table. Put the MAC address in MAC Address field and select Filter in LAN field.

If you want to filter the address of WAN PC to access LAN, press Add to establish the filtering table. Key the MAC address in MAC Address field and select Filter in WAN field. For example: if your VC is setup at WAN 1, select WAN 1 Filter.

The screen will prompt the parameters that will be written in EPROM. Check the parameters before writing in EPROM.

Press Restart to restart the router working with new parameters or press Continue to setup another parameter.

designated

MAC

G.shdsl.bis Router User Manual V.004

8.4 VLAN

Click VLAN to configure VLAN.

The product support two types of VLAN:

802.1Q Tag-Based VLAN Port-Based VLAN.

User can configure one of them to the router.

For setting 802.1Q VLAN click the 802.1Q Tag-Based VLAN. The screem will prompt as follow.

VID: Virtual LAN ID. It is an definite number of ID which number is from 1 to 4094.

PVID: Port VID which is an untagged member of default VLAN.

Link Type: Access means the port can receive or send untagged packets.

Trunk means that the prot can receive or send tagged packets.

G.shdsl.bis Router User Manual V.004

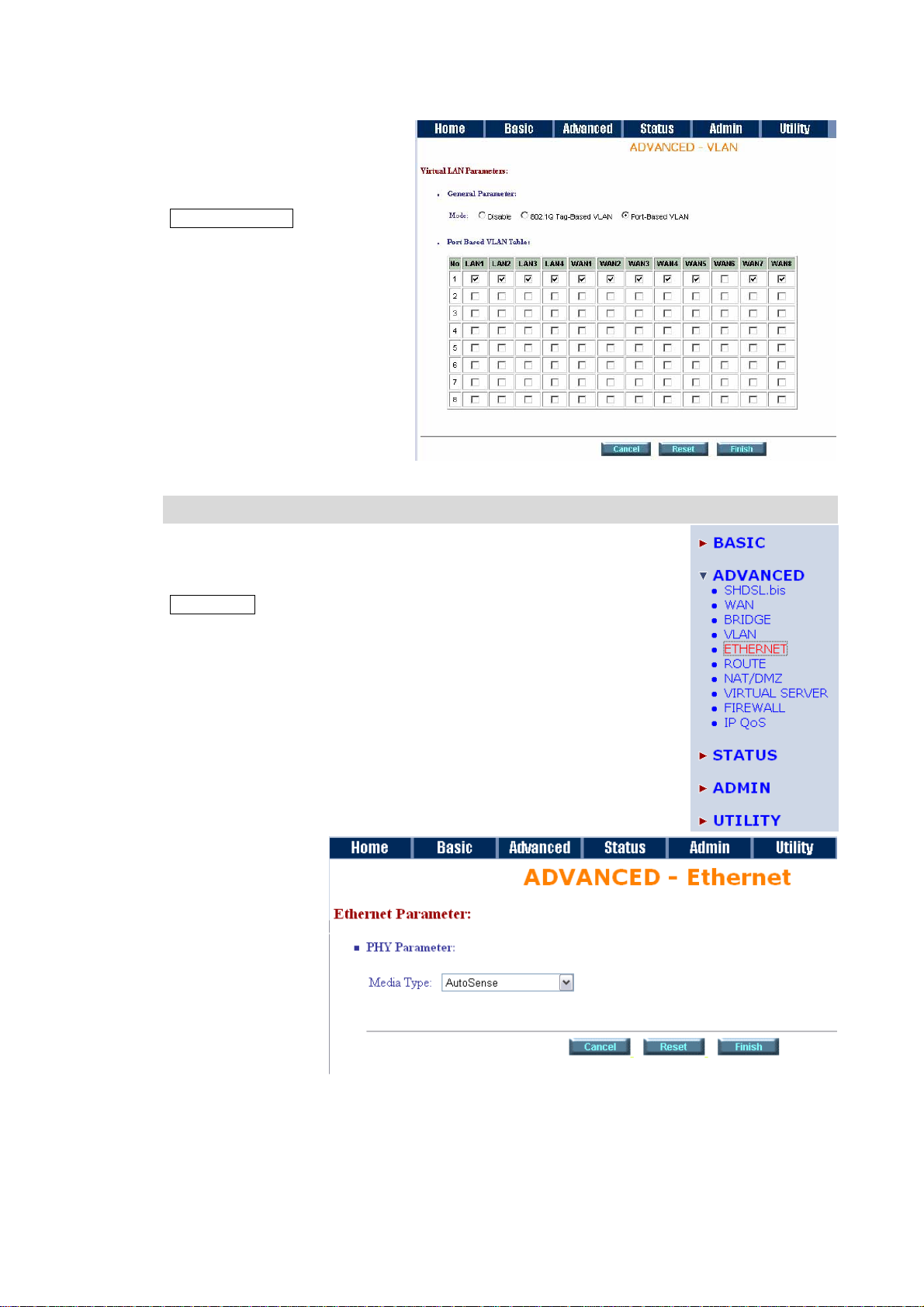

Port-Based VLANs are VLANs where the packet forwarding decision is based on the destination MAC address and its associated port.

Click Port-Based VLAN to configure the router.

8.5 Ethernet

This page of function let user configure the media type of Ethernet.

Click ETHERNET to configure Ethernet.

Here are several options: AutoSense, 100Base-TX

G.shdsl.bis Router User Manual V.004

8.6 Route

If the Router is connected to more than one network, it may be necessary to set

up a static route between them. A static route is a pre-determined pathway that

network information must travel to reach a specific host or network.

With Dynamic Routing, you can enable the Router to automatically adjust to

physical changes in the network’s layout. The Router, using the RIP protocol,

determines the network packets’ route based on the fewest number of hops

between the source and the destination. The RIP protocol regularly broadcasts

routing information to other routers on the network.

Click Route to modify the routing information.

To modify the RIP (Routing information

protocol) Parameters:

RIP Mode: Enable

Auto RIP Summary: Enable

Press Modify

G.shdsl.bis Router User Manual V.004

RIP Mode: this parameter determines how the

product handle RIP (Routing information

protocol). RIP allows it to exchange routing

information with other router. If set to Disable,

the gateway does not participate in any RIP

exchange with other router. If set Enable, the

router broadcasts the routing table of the

router on the LAN and incoporates RIP

broadcast by other routers into it’s routing

table. If set silent, the router does not

broadcast the routing table, but it accepts RIP

broadcast packets that it receives.

RIP Version: It determines the format and

broadcasting method of any RIP

transmissions by the gateway.

RIP v1: it only sends RIP v1 messages only.

RIP v2: it send RIP v2 messages in multicast

and broadcast format.

Authentication required.

None: for RIP, there is no need of

authentication code.

Password: the RIP is protected by password,

authentication code.

MD5: The RIP will be decoded by MD5 than

protected by password, authentication code.

Poison Reserve is for the purpose of promptly

broadcast or multicast the RIP while the route

is changed. (ex shuting down one of the

routers in routing table)

Enable: the gateway will actively broadcast or

multicast the information.

Disable: the gateway will not broadcast or

multicast the information.

After modifying the RIP parameters, press

finish.

The screen will prompt the modified parameter. Check the parameters and perss Restart to restart the

router or press Continue to setup another parameters.

G.shdsl.bis Router User Manual V.004

8.7 NAT/DMZ

NAT (Network Address Translation) is the translation of an Internet Protocol

address (IP address) used within one network to a different IP address known

within another network. One network is designated the inside network and the

other is the outside. Typically, a company maps its local inside network

addresses to one or more global outside IP addresses and reverse the global IP

addresses of incoming packets back into local IP addresses. This ensure

security since each outgoing or incoming request must go through a translation

process, that also offers the opportunity to qualify or authenticate the request or

match it to a previous request. NAT also conserves on the number of global IP

addresses that a company needs and lets the company to use a single IP

address of its communication in the Internet world.

DMZ (demilitarized zone) is a computer host or small network inserted as a

“neutral zone” between a company private network and the outside public

network. It prevents outside users from getting direct access to a server that has

company private data.

In a typical DMZ configuration for an enterprise, a separate computer or host receives requests from

users within the private network to access via Web sites or other companies accessible on the public

network. The DMZ host then initiates sessions for these requests to the public network. However, the

DMZ host is not able to initiate a session back into the private network. It can only forward packets that

have already been requested.

Users of the public network outside the

company can access only the DMZ host.

The DMZ may typically also have the

company’s Web pages so these could serve

the outside world. However, the DMZ

provides access to no other company data.

In the event that an outside user penetrated

the DMZ host’s security, the Web pages

might be corrupted, but no other company

information would be exposed.

Press NAT/DMZ to setup the parameters.

If you want to enable the NAT/DMZ

functions, click Enable. Enable the DMZ

host Function is used the IP address

assigned to the WAN for enabling DMZ

function for the virtual IP address.

Multi-DMZ: Some users who have two or

more global IP addresses assigned by ISP

can be used the multi DMZ. The table is for

the mapping of global IP address and virtual

IP address.

G.shdsl.bis Router User Manual V.004

Multi-NAT: Some of the virtual IP addresses (eg: 192.168.0.10 ~ 192.168.0.50) collectively use two of

the global IP addresses (eg: 69.210.1.9 and 69.210.1.10). The Multi-NAT table will be setup as;

Virtual Start IP Address: 192.168.0.10

Count: 40

Global Start IP Address: 69.210.1.9

Count: 2

Press Finish to continue.

The screen will prompt the parameters that will be written in EPROM. Check the parameters before

writing in EPROM. Press Restart to restart the router working with new parameters or Continue to

configure another parameter.

G.shdsl.bis Router User Manual V.004

8.8 Virtual Server

For example: Specific ports on the WAN interface are re-mapped to services

inside the LAN. As only 69.210.1.8 (e.g., assigned to WAN from ISP) is visible to

the Internet, but does not actually have any services (other than NAT of course)

running on gateway, it is said to be a virtual server. Request with TCP made to

69.210.1.8:80 are remapped to the server 1 on 192.168.0.2:80 for working days

from Monday to Friday 8 AM to 6PM, other requests with UDP made to

69.210.1.8:25 are remapped to server 2 on 192.168.0.3:25 and always on.

You can setup the router as Index 1, protocol TCP, interface WAN1, service

name test1, private IP 192.168.0.2, private port 80, public port 80, schedule

from Day Monday to Friday and time 8:0 to 16:0 and index 2, protocol UDP,

interface WAN1, service name test2, private IP 192.168.0.3, private port 25,

public port 25, schedule always.

Click Virtual Server to configure the parameters.

Press Modify for modify 1.

Type the necessary parameters then click Finish.

Press Restart to restart the router or press

Continue to setup another function.

G.shdsl.bis Router User Manual V.004

8.9 Firewall

A firewall is a set of related programs that protects the resources of a private

network from other networks. It is helpful to users that allow preventing hackers

to access its own private data resource accidentally.

Click Basic Firewall Security.

This level only enables the NAT

firewall and the remote

management security. The NAT

firewall will take effect if NAT

function is enabled. The remote

management security is default

to block any WAN side

connection to the device.

Non-empty legal IP pool in

ADMIN will block all remote

management connection except

those IPs specified in the pool.

Press Finish to finish setting of

firewall

The screen will prompt the parameters, which

router will record in EPROM. Check the

parameters.

Press Restart to restart the router or press

Continue to setup another function.

G.shdsl.bis Router User Manual V.004

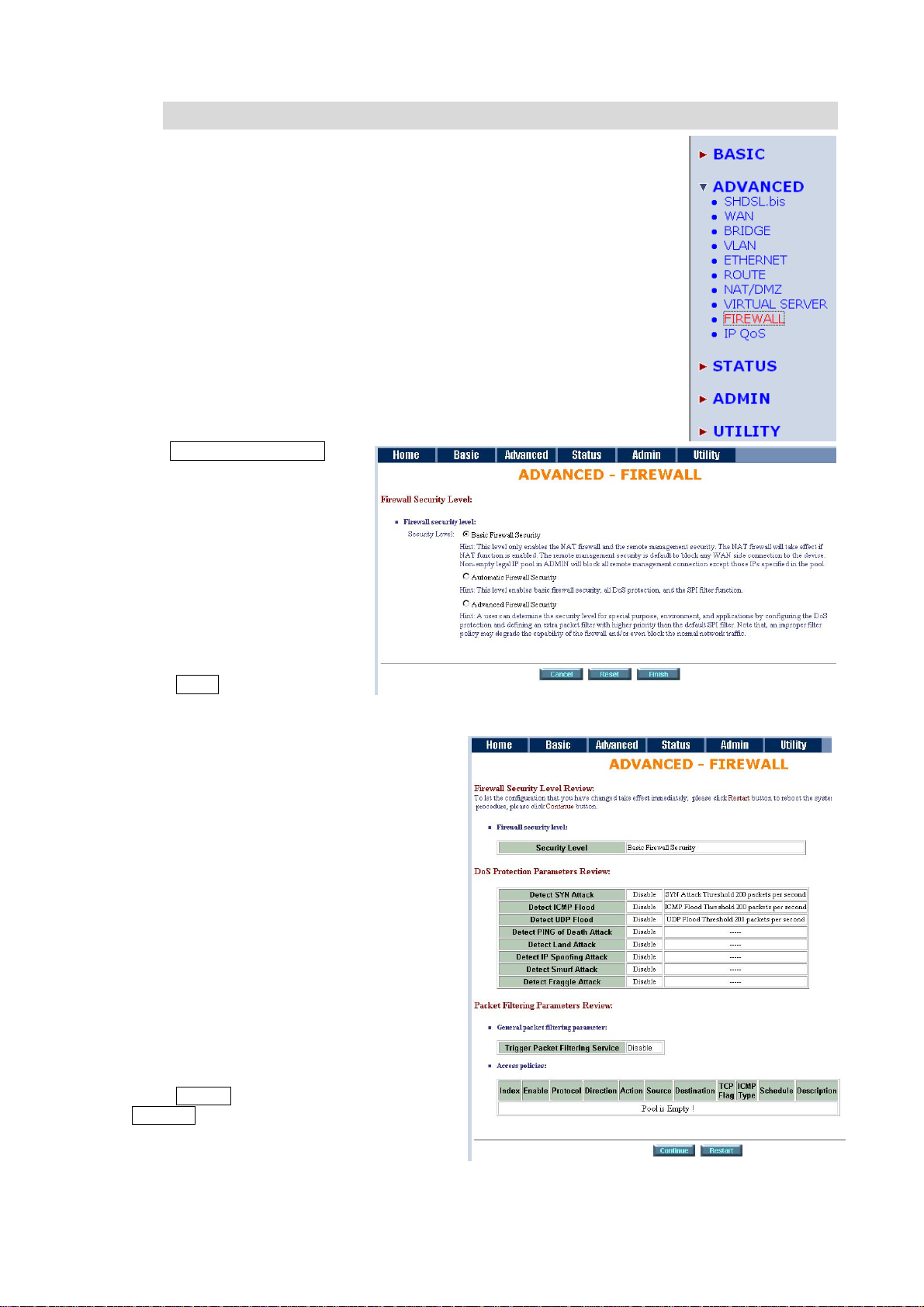

Click Automatic Firewall

Security. This level enables

basic firewall security, all DoS

protection, and the SPI filter

function.

Press Finsih to finish setting

firewall.

The screen will prompt the parameters, which will

be written in EPROM. Check the parameters.

Press Restart to restart the router or press

Continue to setup another function.

User can determine the security level for special

purpose, environment, and applications by

configuring the DoS protection and defining an

extra packet filter with higher priority than the

default SPI filter. Note that, an improper filter policy

may degrade the capability of the firewall and/or

even block the normal network traffic.

Click Advanced Firewall Security

and then press Finish.

A SYN flood attack attempts to

slow your network by requesting

new connections but not

completing the process to open

the connection. Once the buffer

for these pending connections is

full a server will not accept any

more connections and will be

unresponsive.

ICMP Flood: A sender transmits a volume of ICMP request packets to cause all CPU resources to be

consumed serving the phony requests.

UDP Flood: A sender transmits a volume of requests for UDP diagnostic services which cause all CPU

resources to be consumed serving the phony requests.

G.shdsl.bis Router User Manual V.004

A ping of death attack attempts to crash

your system by sending a fragmented

packet, when reconstructed is larger than

the maximum allowable size. Other known

variants of the ping of death include

teardrop, bonk and nestea.

A land attack is an attempt to slow your

network down by sending a packet with

identical source and destination addresses

originating from your network.

IP Spoofing is a method of masking the

identity of an intrusion by making it appeared that the traffic came from a different computer. This is

used by intruders to keep their anonymity and can be used in a Denial of Service attack.

A smurf attack involves two systems. The attacker sends a packet containing a ICMP echo request

(ping) to the network address of one system. This system is known as the amplifier. The return address

of the ping has been faked (spoofed) to appear to come from a machine on another network (the victim).

The victim is then flooded with responses to the ping. As many responses are generated for only one

attack, the attacker is able use many amplifiers on the same victim.

IP Spoofing: Falsify the IP header information to deceive the destination host.

Traditional firewall is stateless meaning they have no memory of the connections of data or packets that

pass through them. Such IP filtering firewalls simply examine header information in each packet and

attempt to match it to a set of define rule. If the firewall finds a match, the prescribe action is taken. If no

match is found, the packet is accepted into the network, or dropped, depending on the firewall

configuration.

A stateful firewall maintains a memory of

each connection and data passing

through it. Stateful firewall records the

context of connections during each

session, continuously updating state

information in dynamic tables. With this

information, stateful firewalls inspect

each connection traversing each

interface of the firewall, testing the

validity of data packets throughout each

session. As data arrives, it is checked

against the state tables and if the data is

part of the session, it is accepted. Stateful firewalls enable a more intelligent, flexible and robust

approach to network security, while defeating most intrusion methods that exploit state-less IP filtering

firewalls.

If you want to configure the Packet Filtering Parameters, choose Enable and press Add.

Select the Protocol and configure the

parameter.

If you want to ban all of the protocol from

the IP (e.g.: 200.1.1.1) to access the all

G.shdsl.bis Router User Manual V.004

PCs (e.g.: 192.168.0.2 ~ 192.168.0.50) in the LAN, key in the parameter as;

Protocol: ANY

Direction:

INBOUND (INBOUND is from WAN to LAN, and OUTBOUND is LAN to WAN.)

Description: Hacker

Src. IP Address: 200.1.1.1

Dest. IP Address: 192.168.0.2-192.168.0.50

Press OK to finish.

The screen will prompt the configured

parameters. Check the parameters.

Click Restart to restart the gateway or

Continue to configure another

parameters.

Filtering Rule for SMTP connection

Filtering rule will be configured as follow

Index Protocol Direction Action Source Destination Dest. Port Schedule

1 TCP Inbound Permit External Internal 25 Always

2 TCP Outbound Permit Internal External >1023 Always

3 TCP Outbound Permit Internal External 25 Always

4 TCP Inbound Permit External Internal >1023 Always

5 Any Either Deny Any Any Any Always

Packet Direction Source Destination Protocol Dest. Port Action (Rule)

1 Inbound 192.168.3.4 172.16.1.1 TCP 25 Permit (A)

2 Outbound 172.16.1.1 192.168.3.4 TCP 1234 Permit (B)

172.16.1.1:25 192.168.3.4:1234

Internet

SMTP Server

Firewall

SMTP Client

Packet Direction Source Destination Protocol Dest. Port Action (Rule)

3 Outbound 172.16.1.1 192.168.3.4 TCP 25 Permit (C)

4 Inbound 192.168.3.4 172.16.1.1 TCP 1357 Permit (D)

172.16.1.1:1357 192.168.3.4:25

Internet

SMTP Server

SMTP Client

Firewall

G.shdsl.bis Router User Manual V.004

Packet Direction Source Destination Protocol Dest. Port Action (Rule)

5 Inbound 10.1.2.3 171.16.3.4 TCP 6000 Deny (E)

6 Outbound 171.16.3.4 10.1.2.3 TCP 5150 Deny (E)

171.16.3.4:6000 10.1.2.3:5150

Internet

X11 Server

Firewall

Attacker

Update Filtering Rule

Index Protocol Direction Action Source Destination Source Port Dest. Port

1 TCP Inbound Permit External Internal >1023 25

2 TCP Outbound Permit Internal External 25 >1023

3 TCP Outbound Permit Internal External >1023 25

4 TCP Inbound Permit External Internal 25 >1023

5 Any Either Deny Any Any Any Any

Filtering Result

Index Protocol Direction Action Source Destination Source Port Dest. Port

1 TCP Inbound Permit(A) 192.168.3.4 171.16.1.1 1234 25

2 TCP Outbound Permit(B) 171.16.1.1 192.168.3.4 25 1234

3 TCP Outbound Permit(C) 171.16.1.1 192.168.3.4 1357 25

4 TCP Inbound Permit(D) 192.168.3.4 171.16.1.1 25 1357

5 TCP Inbound Deny(E) 10.1.2.3 171.16.3.4 5150 6000

6 TCP Outbound Deny(E) 171.16.3.4 10.1.2.3 6000 5150

Rule Order

The rules order affects the filtering result. The filtering process will proceed from top to bottom,

changing the order as the different result of filtering.

Rule Source Address Destination Address Action

A 10.0.0.0 172.16.6.0 Permit

B 10.1.99.0 172.16.0.0 Deny

C Any Any Deny

Where “0” at the last eight bits indicates “from 1 to 254”, “0” at any eight bits preceding “0”, “0.0” or

“0.0.0” indicates “from 1 to 254”. On the other hand, “0” and all “0” successive with “0” represents any.

When the rule is ordered as ABC:

Index Source Address Destination Address Action

1 10.1.99.1 172.16.1.1 Deny (B)

2 10.1.99.1 172.16.6.1 Permit (A)

3 10.1.1.1 172.16.6.1 Permit (A)

4 10.1.1.1 172.16.1.1 Deny (C)

5 192.168.3.4 172.16.6.1 Deny (C)

The rule order will permit 10.1.99.1 to access 172.16.6.1.

G.shdsl.bis Router User Manual V.004

When the rule is ordered as BAC:

Index Source Address Destination Address Action

1 10.1.99.1 172.16.1.1 Deny (B)

2 10.1.99.1 172.16.6.1 Deny (B)

3 10.1.1.1 172.16.6.1 Permit (A)

4 10.1.1.1 172.16.1.1 Deny (C)

5 192.168.3.4 172.16.6.1 Deny (C)

The rule order will deny 10.1.99.1 to access 172.6.6.1.

8.10 IP QoS

IP QoS is a good function to decide which PCs can get the priorities to pass

though router once if the bandwidth is exhausted or fully saturated.

Click Enable at item Trigger IP QoS Service

in General IP QoS Parameter, which turn on

this function if you want to enable it.

Click Add in the bottom of web page to

begin a new entry in Policy table.

G.shdsl.bis Router User Manual V.004

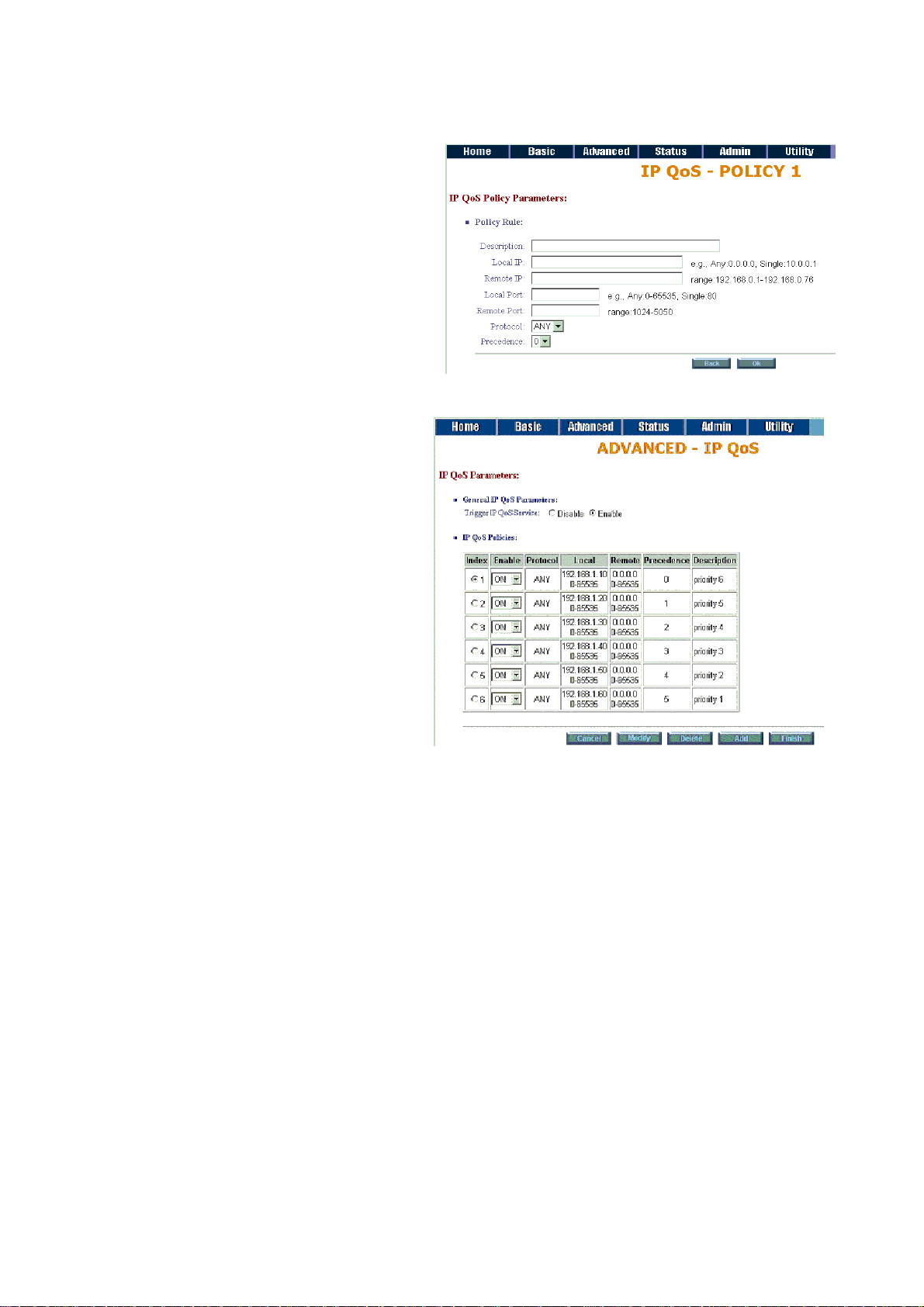

Set the policy to action.

Description: A brief statement describe this

policy

Local IP: type IP address of local host in

prioritized session.

Remote IP: type IP address of remote host

in prioritized session.

Local Port: type the service port number of

local host in prioritized session.

Remote Port: type the service port number

of remote host in prioritized session.

Protocol: identify the transportation layer

protocol type you want to prioritize, ex:

TCP or UDP. The default is ANY.

Precedence: type the session’s prioritized level you classify, “0” is lowest priority, “5” is highest priority.

This is an example for your reference,

192.168.1.60 is the highest priority to

undergo the over full bandwidth situation.

192.168.1.50 is the second high priority;

192.168.1.40 is the third high priority and

so on.

G.shdsl.bis Router User Manual V.004

9 Administration

This session introduces security and simple network management protocol

(SNMP) and time synchronous.

9.1 Security

For system secutiry, suggest to change the default user name and password in

the first setup otherwise unauthorized persons can access the router and

change the parameters.

There are three ways to configure the router, Web browser, telnet and serial

console.

Press Security to setup the parameters.

For greater security, change the Supervisor

ID and password for the gateway. If you don’t

set them, all users on your network can be

able to access the gateway using the default

IP and Password root.

You can authorize five legal users to access

the router via telnet or console. There are two

UI modes, menu driven mode and command

mode to configure the router.

Legal address pool will setup the legal IP

addresses from which authorized person can

configure the gateway. This is the more

secure function for network administrator to

setup the legal address of configuration.

G.shdsl.bis Router User Manual V.004

Configured 0.0.0.0 will allow all hosts on

Internet or LAN to access the router.

Leaving blank of trust host list will cause

blocking all PC from WAN to access the router.

On the other hand, only PC in LAN can

access the router.

If you type the excact IP address in the filed,

only the host can access the router.

Click Finish to finish the setting.

The browser will prompt the configured parameters and check it before writing into EPROM.

Press Restart to restart the gateway working with the new parameters and press Continue to setup

other parameters.

9.2 SNMP

Simple Network Management Protocol (SNMP) provides for the exchange of

messages between a network management client and a network management

agent for remote management of network nodes. These messages contain

requests to get and set variables that exist in network nodes in order to obtain

statistics, set configuration parameters, and monitor network events. SNMP

communications can occur over the LAN or WAN connection.

The router can generate SNMP traps to indicate alarm conditions, and it relies

on SNMP community strings to implement SNMP security.

This router support both MIB I and MIB II.

Click SNMP to configure the parameters.

In the table of current community pool, you can setup

the access authority.

In the table of current trap host pool, you can setup

the trap host.

Press Modify to modify the community pool.

G.shdsl.bis Router User Manual V.004

SNMP status: Enable

Access Right: Deny for deny all access

Read for access read only Write for access read and

write.

Community: it serves as password for

access right.

After configuring the community pool, press

OK.

SNMP trap is an informational message sent

from an SNMP agent to a manager. Click

Modify to modify the trap host pool.

Version: select version for trap host. (Version 1

is for SNMPv1; Version 2 for SNMPv2).

IP Address: type the trap host IP address

Community: type the community password.

The community is setup in community pool.

Press OK to finish the setup.

The browser will prompt the configured parameters and check it before writing into EPROM.

Press Restart to restart the gateway working with the new parameters and press Continue to setup

other parameters.

9.3 Time Sync

G.shdsl.bis Router User Manual V.004

Time synchronization is an essential element for any business, which relies on

the IT system. The reason for this is that these systems all have clock that is

the source of timer for their filing or operations. Without time synchronization,

these system’s clocks vary and cause the failure of firewall packet filtering

schedule processes, compromised security, or virtual server working in wrong

schedule.

Click TIME SYNC.

Synchronization modes (SYNC method):

SNTP v4.0., Simple Network Time Protocol

Sync with PC, synchronization with PC.

For synchronization with PC,

select Sync with PC. The gateway will

synchronize the time with the connecting PC.

SNTP is the acronym for Simple Network

Time Protocol, which is an adaptation of the

Network Time Protocol (NTP) used to

synchronize computer clocks in the Internet.

SNTP can be used when the ultimate

performance of the full NTP implementation.

For SNTP, select SNTP v4.0.

Service: Enable

Time Server 1: All of the time server around

the world can be used but suggest to use the

timeserver nearby.

Time Zone: you have to choose the right

time zone.

Press Finish to finish the setup. The browser will prompt the configured parameters and check it before

writing into EPROM.

G.shdsl.bis Router User Manual V.004

10 Utility

This section will describe the utility of the product including:

SYSTEM INFO: system information,

CONFIG TOOL: load the factory default configuration,

UPGRADE: upgrade the firmware

LOGOUT: logout the system

RESTART: restart the router.

10.1 System Info

Click System Info for review the information.

The browser will prompt the system information.

10.2 Config Tool

This configuration tool has three functions: load Factory Default, Restore

Configuration, and Backup Configuration.

Press CONFIG TOOL.

Choose the function and then press Finish.



Load Factory Default: it will load the factory default parameters to the gateway.

Note: This action will change all of the settings to factory default. On the other

hand, you will lose all the existing configured parameters.



Restore Configuration: Sometime the configuration crushed occasionally. it will help you to recover the backup configuration easily.



Click Finish after selecting Restore Configuration.



Browse the route of backup file then press finish. The router will automatically restore the saved configuration.



Backup Configuration: After configuration, suggest using the function to backup your router parameters in the PC. Select the Backup Configuration and then press Finish. Browse the place of backup file named backup. Press Finish. The router will automatically backup the configuration.

G.shdsl.bis Router User Manual V.004

10.3 Upgrade

You can upgrade the gateway using the upgrade function. Press Upgrade in UTILITY.

Browse the file and press OK button to upgrade. The system will reboot automatically after finishing.

10.4 Logout

To logout the router, press LOGOUT in UTILITY.

10.5 Restart

For restarting the router, click the Restart in UTILITY.

Press Restart to reboot the router.

G.shdsl.bis Router User Manual V.004

11 Status

You can monitor the SHDSL.bis status including mode, Tx power and Bitrate and Performance information including SNR margin, atteunation and CRC error

count.

LAN status will prompt the MAC address, IP address, Subnet mask and DHCP

client table.

WAN status will display the WAN interface information.

You can view the routing table in the status of ROUTE.

INTERFACE status inculdes LAN and WAN statistics information.

FIREWALL status display DoS protection status and dropped packets statistics.

G.shdsl.bis Router User Manual V.004

12 LAN-to-LAN connection with bridge Mode

STU-C (CO)

IP: 192.168.0.1

Netmask: 255.255.255.0

IP: 192.168.0.100

Netmask: 255.255.255.0

Gateway: 192.168.0.1

Bridge

VPI:0, VCI:32

Encapsulation: LLC

STU-R (CPE)

IP: 192.168.0.2 Netmask: 255.255.255.0

IP: 192.168.0.200

Netmask: 255.255.255.0

Gateway: 192.168.0.2

12.1 CO side

Click Bridge and CO Side to setup Bridging mode of the Router and then click Next.

Enter LAN Parameters

IP: 192.168.0.1 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 Host Name: SOHO

Enter WAN1 Parameters

VPI: 0 VCI: 32

Click LLC Click Next

The screen will prompt the new configured parameters. Check the parameters and Click Restart The router will reboot with the new setting.

G.shdsl.bis Router User Manual V.004

12.2 CPE Side

Click Bridge and CO Side to setup Bridging mode of the Router and then click Next.

Enter LAN Parameters

IP: 192.168.0.2 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.2 Host Name: SOHO

Enter WAN1 Parameters

VPI: 0 VCI: 32

Click LLC Click Next

The screen will prompt the new configured parameters. Check the parameters and Click Restart The router will reboot with the new setting.

G.shdsl.bis Router User Manual V.004

13 LAN to LAN Connection with Routing Mode

STU-C (CO)

Router

IP: 192.168.20.1

Netmask: 255.255.255.0

Encapsulation: LLC

IP: 192.168.30.1

Netmask: 255.255.255.0

Gateway: 192.168.30.2

IP: 192.168.20.100 Netmask: 255.255.255.0 Gateway: 192.168.20.1

13.1 CO Side

Click ROUTE and CO Side, then Next.

Type LAN parameters:

IP Address: 192.168.20.1 Subnet Mask: 255.255.255.0 Host Name: SOHO DHCP Service: Disable or Enable

For more DHCP service, review DHCP Service on page 25.

Type the WAN1 Parameters;

VPI: 0 VCI: 32 AAL5 Encap: LLC Protocol: IPoA , EoA , IPoA + NAT or EoA

+ NAT

Note: The Protocol used in CO and CPE have to be the same.

Click Next to setup the IP parameters.

For more understanding about NAT, review NAT/DMZ on page 40.

IP Address: 192.168.20.1

IPoA or EoA

VPI:0, VCI:32

STU-R (CPE)

Router

IP: 192.168.30.2 Netmask: 255.255.255.0 Gateway: 192.168.30.1

IP: 192.168.10.1 Netmask: 255.255.255.0

IP: 192.168.10.200

Netmask: 255.255.255.0

Gateway: 192.168.10.1

G.shdsl.bis Router User Manual V.004

Subnet Mask: 255.255.255.0 Gateway: 192.169.30.2

Click Next

The screen will prompt the parameters that we will write in EPROM. Check the parameters before writing in EPROM.

Press Restart to restart the router working with new parameters or press continue to setup another parameter.

13.2 CPE side

Click ROUTE and CPE Side then press Next.

Type LAN parameters:

IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Host Name: SOHO DHCP Service: Disable or Enable

For more DHCP service, review DHCP Service on page 25..

Type the WAN Parameters;

VPI: 0 VCI: 32 AAL5 Encap: LLC Protocol: IPoA , EoA , IPoA + NAT or EoA +

NAT

Note: The Protocol used in CO and CPE have to be the same.

Click Next to setup the IP parameters.

For more understanding about NAT, review NAT/DMZ on page 40.

IP Address: 192.168.30.2 Subnet mask: 255.255.255.0 Gateway: 192.169.30.1

Click Next

The screen will prompt the parameters that we will write in EPROM. Check the parameters before writing in EPROM.

Press Restart to restart the router working with new parameters or press continue to setup another parameter.

G.shdsl.bis Router User Manual V.004

14 Configuration via Serial Console or Telnet with Manu

Driven Interface

14.1 Serial Console

Check the connectivity of the RS-232 cable from your computer to the serial port of ROUTER. Start your terminal access program by VT100 terminal emulation with the following parameters:

Parameter Value

Baudrate Data Bits 8 Parity Check No Stop Bits 1 Flow-control No

Press the SPACE key until the login screen appears. When you see the login screen, you can logon to Router.

Note: Only SPACE key invoke the login prompt. Pressing other keys does not work.

User: admin Password: *****

Note: The factory default User and Password are “admin” both.

9600

14.2 Telnet

Make sure the correct Ethernet cable connected the LAN port of your computer to ROUTER. The LAN LNK indicator on the front panel shall light if a correct cable is used. Starting your Telnet client with VT100 terminal emulation and connecting to the management IP of Router, wait for the login prompt appears. Input User and Password after login screen pop up,

User: admin Password: *****

Note: The default IP address is 192.168.0.1.

14.3 Operation Interface

For serial console and Telnet management, the ROUTER implements two operational interfaces: Command Line Interface (CLI) and menu driven interface. The CLI mode provides users a simple interface, which is better for working with script file. The menu driven interface is a user-friendly interface to general operations. The command syntax for CLI is the same as that of the menu driven interface. The only difference is that the menu driven interface shows you all of available commands for you to select. You don’t need to remember the command syntax and save your time on typing the whole command line.

The following figure gives you an example of the menu driven interface. In the menu, you scroll up/down by pressing key I / K, select one command by key L, and go back to a higher level of menu by key J. For example, to show the system information, just logon to the ROUTER, move down the cursor by pressing key K twice and select “show” command by key L, you shall see a submenu and select “system” command in this submenu, then the system will show you the general information.

G.shdsl.bis Router User Manual V.004

bars means that you must choose exactly one of the items. If the item

bold with leading capital letter, it is a command

14.4 Window structure

From top to bottom, the window is divided into four parts:

1. Product name

2. Menu field: Menu tree prompts on this field. Symbol “>>” indicates the cursor place.

3. Configuring field: You will configure the parameters in this field. < parameters > indicates the parameters you can choose and < more…> indicates that there have submenu in the title.

4. Operation command for help

The following table shows the parameters in the brackets.

Command Description

<ip>

<Route|Bridge>

[1~1999] [1~65534|-t]

An item enclosed in brackets is required. If the item is shown in lower case bold, it represents an object with special format. For example,

<ip>

may be

Two or more items enclosed in brackets and separated by vertical

is shown in lower case parameter. For example,

<Route|Bridge>.

An item enclosed in brackets is optional. Two or more items enclosed in brackets and separated by vertical bars means that you can choose one or none of the items.

192.168.0.3.

Route

is a command parameter in

G.shdsl.bis Router User Manual V.004

14.5 Menu Driven Interface Commands

Before changing the configuration, familiarize yourself with the operations list in the following table. The operation list will be shown on the window.

Menu Driven Interface Commands

Keystroke Description

[UP] or I Move to above field in the same level menu. [DOWN] or K Move to below field in the same level menu. [LEFT] or J Move back to previous menu. [RIGHT] or L Move forward to submenu. [ENTER] Move forward to submenu. [TAB] To choose another parameters. Ctrl + C To quit the configuring item. Ctrl + Q For help

14.6 Menu Tree

The menu three are as following figures. All of the configuration commands are placed in the subdirectories of Enable protected by supervisor password. On the other hand, unauthorized user cannot change any configurations but viewing the status and configuration of the router and using ping command to make sure the router is working.

G.shdsl.bis Router User Manual V.004

”

14.7 Configuration

To setup the router, move the cursor “ >>” to enable and press enter key. While the screen appears, type the supervisor password. The default supervisor password is root. The password will be prompted as “ * “ symbol for system security.

----------------------------------------------------------------------

Command: enable <CR> Message: Please input the following information.

Supervisor password: ****

----------------------------------------------------------------------

In this sub menu, you can setup management features and upgrade software, backup the system configuration and restore the system configuration via utility tools.

For any changes of configuration, you have to write the new configuration to EPROM and reboot the router to work with new setting.

The screen will prompt as follow.

>> enable Modify command privilege setup Configure system status Show running system status show View system configuration write Update flash configuration reboot Reset and boot system ping Packet internet groper command admin Setup management features utility TFTP upgrade utility exit Quit system

Command Description:

Command Description

enable Modify command privilege. When you login via serial console or Telnet, the

router defaults to a program execution (read-only) privileges to you. To change the configuration and write changes to nonvolatile RAM (NVRAM), you must

work in enable mode. setup To configure the product, you have to use the setup command. status View the status of product. show Show the system and configuration of product. write Update flash configuration. After you have completed all necessary setting,

make sure to write the new configuration to NVRAM by “write” command and

reboot the system, or all of your changes will not take effect. reboot Reset and boot system. After you have completed all necessary setting, make

sure to write the new configuration to NVRAM and reboot the system by

“reboot” command, or all of your changes will not take effect. ping Packet internet groper command. admin You can setup management features in this command. utility

exit Quit system

Upgrade software and backup and restore configuration are working via “utility

command.

G.shdsl.bis Router User Manual V.004

14.8 Status

You can view running system status of SHDSL.bis, WAN, route and interface via status command.

Move cursor “ >> “ to status and press enter.

>> shdsl.bis Show SHDSL.bis status wan Show WAN interface status route Show routing table interface Show interface statistics status firewall Show firewall status

Command Description

shdsl.bis The SHDSL.bis status includes line rate, SNR margin, TX power, attenuation,

and CRC error of the product, and SNR margin, attenuation and CRC error of remote side. The product access remote side information via EOC (embedded

operation channel). wan WAN status shows the 8 PVC information route You can see the routing table via route command. interface The statistic status of WAN and LAN interface can be monitor by interface

command. firewall The current and history status of firewall are shown in this command.

G.shdsl.bis Router User Manual V.004

14.9 Show

You can view the system information, configuration, and configuration in command script by show command.

Move cursor “ >> “ to show and press enter.

>> system Show general information config Show all configuration script Show all configuration in command script

Command Description

system The general information of the system will show in system command. config Config command can display detail configuration information. script Configuration information will prompt in command script.

G.shdsl.bis Router User Manual V.004

14.10 Write

For any changes of configuration, you must write the new configuration to EPROM using write command and reboot the router to take affect.

Move cursor to “ >> “ to write and press enter.

---------------------------------------------------------------------Command: write <CR> Message: Please input the following information.

Are you sure? (y/n): y

----------------------------------------------------------------------

G.shdsl.bis Router User Manual V.004

14.11 Reboot

To reboot the router, please use “reboot” command. Move cursor to “ >> “ to write and press enter.

---------------------------------------------------------------------Command: reboot <CR> Message: Please input the following information.

Do you want to reboot? (y/n): y

----------------------------------------------------------------------

G.shdsl.bis Router User Manual V.004

14.12 Ping

Ping command will be used to test the connection of router. Move cursor “ >> “ to ping and press enter.

---------------------------------------------------------------------Command: ping <ip> [1~65534|-t] [1~1999] Message: Please input the following information.

IP address <IP> : 10.0.0.1 Number of ping request packets to send (TAB select): -t Data size [1~1999]: 32

----------------------------------------------------------------------

There are 3 types of number of ping request packet to send, default, 1~65534 and –t. Default will send 4 packet and –t continuous packet until you key in Ctrl+c to stop.

G.shdsl.bis Router User Manual V.004

14.13 Administration

You can modify the user profile, telnet access, SNMP (Sample Network Management Protocol), supervisor information and SNTP (Simple Network Time Protocol) in admin. The route is enable

admin.

For configuration the parameters, move the cursor “ >> “ to admin and press enter.

>> user Manage user profile security Setup system security snmp Configure SNMP parameter passwd Change supervisor password id Change supervisor ID sntp Configure time synchronization



14.13.1 User Profile

You can use user command to clear, modify and list the user profile. You can setup at most five users to access the router via console port or telnet in user profile table however users who have the supervisor password can change the configuration of the router. Move the cursor “ >> “ to user and press enter key.

>> clear Clear user profile modify Modify the user profile

list

You can delete the user by number using clear command. If you do not make sure the number of user, you can use list command to check it. Modify command is to modify an old user information or add a new user to user profile.

To modify or add a new user, move the cursor to modify and press enter.

---------------------------------------------------------------------Command: admin user modify <1~5> <more...> Message: Please input the following information.

Legal access user profile number <1~5> : 2

----------------------------------------------------------------------

The screen will prompt as follow.

>> Attrib UI mode Profile User name and password

There are two UI mode, command and menu mode, to setup the product. We will not discuss command mode in this manual.

List the user profile

G.shdsl.bis Router User Manual V.004

14.13.2 Security

Security command can be configured sixteen legal IP address for telnet access and telnet port number.

Move the cursor “ >> “ to security and press enter. The default legal address is 0.0.0.0. It means that there is no restriction of IP to access the router via telnet.

>> port Configure telnet TCP port ip_pool Legal address IP address pool

list

Show security profile

14.13.3 SNMP

Simple Network Management Protocol (SNMP) is the protocol not only governing network management, but also the monitoring of network devices and their functions.

The router can generate SNMP traps to indicate alarm conditions, and it relies on SNMP community strings to implement SNMP security. This router support MIB I & II.

Move the cursor “ >> “ to snmp and press enter.

>> community Configure community parameter trap Configure trap host parameter

5 SNMP community entry can be configured in this system. Move the cursor to community and press enter.

---------------------------------------------------------------------Command: admin snmp community <1~5> <more...> Message: Please input the following information.

Community entry number <1~5> : 2

----------------------------------------------------------------------

The screen will prompt as follow:

>> edit Edit community entry list Show community configuration

5 SNMP trap entry can be configured in this system. Move the cursor to trap and press enter.

---------------------------------------------------------------------Command: admin snmp trap <1~5> <more...> Message: Please input the following information.

Trap host entry number <1~5> : 2

----------------------------------------------------------------------

G.shdsl.bis Router User Manual V.004

The screen will prompt as follow:

>> edit Edit trap host parameter list Show trap configuration

14.13.4 Supervisor Password and ID

The supervisor password and ID is the last door for security but the most important. Users who access the router via web browser have to use the ID and password to configure the router and users who access the router via telnet or console mode have to use the password to configure the router. Suggest to change the ID and password after the first time of configuration, and save it. At next time when you access to the router, you have to use the new password.

---------------------------------------------------------------------Command: admin passwd <pass_conf> Message: Please input the following information.

Input old Supervisor password: **** Input new Supervisor password: ******** Re-type Supervisor password: ********

----------------------------------------------------------------------

---------------------------------------------------------------------Command: admin id <pass_conf> Message: Please input the following information.

Legal user name (Enter for default) <root> : test

----------------------------------------------------------------------

14.13.5 SNTP

Time synchronization is an essential element for any business that relies on an IT system. The reason for this is that these systems all have clocks, which are the source of time for files or operations they handle. Without time synchronization, time on these systems varies with each other or with the correct time and this can cause- virtual server schedule processes to fail and system log exposures with wrong data.

There are two methods to synchronize time, synchronize with PC or SNTPv4. If you choose synchronize with PC, the router will synchronize with PC. If you choose SNTPv4, the router will use the protocol to synchronize with the time server. Synchronization with time server, SNTP v4, needs to configure service, time_server and time_zone. Synchronization with PC does not need to configure the above parameters.

Move the cursor “ >> “ to sntp and press enter.

>> method Select time synchronization method service Tigger SNTP v4.0 service time_server1 Configure time server 1 time_server2 Configure time server 2 time_server3 updaterate Configure update period

Configure time server 3

G.shdsl.bis Router User Manual V.004

time_zone Configure GMT time zone offset list Show SNTP configuration

To configure SNTP v4 time synchronization, follow the below procedures.

move the cursor to method and press enter.

---------------------------------------------------------------------Command: admin sntp method <SNTPv4|SyncWithPC> Message: Please input the following information.

SYNC method (Enter for default) <SyncWithPC> : SNTPv4

----------------------------------------------------------------------

Move the cursor to service and press enter.

---------------------------------------------------------------------Command: admin sntp service <Disable|Enable> Message: Please input the following information.

Active SNTP v4.0 service (Tab Select) <Enable> : Enable

----------------------------------------------------------------------

Move the cursor to time_server1 and press enter.

---------------------------------------------------------------------Command: admin sntp time_server1 <string> Message: Please input the following information.

Time server address(Enter for default) <ntp-2.vt.edu> : ntp-2.vt.edu

----------------------------------------------------------------------

You can configure three time servers in this system.

Move the cursor to update_rate and press enter.

---------------------------------------------------------------------Command: admin sntp update_rate <10~268435455> Message: Please input the following information.

Update period (secs) (Enter for default) : 86400

----------------------------------------------------------------------

Move the cursor to time_zone and configure where your router is placed. The easiest way to know the time zone offset hour is from your PC clock. Double click the clock at the right corner of monitor and check the time zone.

---------------------------------------------------------------------Command: admin sntp time_zone <-12~12> Message: Please input the following information.

GTM time zone offset (hours) (Enter for default) : -8

----------------------------------------------------------------------

Move the cursor to list and review the setting.

G.shdsl.bis Router User Manual V.004

14.14 Utility

There are three utility tools, upgrade, backup and restore, embedded in the firmware. You can update the new firmware via TFTP upgrade tools and backup the configuration via TFTP backup tool and restore the configuration via TFTP restore tool. For upgrade, TFTP server with the new firmware will be supported by supplier but for backup and restore, you must have your own TFTP server to backup and restore the file.

Move the cursor “ >> “ to utility and press enter.

>> upgrade Upgrade main software backup Backup system configuration Restore Restore system configuration

14.15 Exit

If you want to exit the system without saving, use exit command to quit system.

14.16 Setup

All of the setup parameters are located in the subdirectories of setup. Move the cursor “ >> “ to setup

G.shdsl.bis Router User Manual V.004

and press enter.

>> mode Switch system operation mode shdsl.bis Configure SHDSL.bis parameters wan Configure WAN interface profile bridge Configure transparent bridging vlan Configure virtual LAN paramters route Configure routing parameters lan Configure LAN interface profile ip_share Configure NAT/PAT parameters firewall Configure Firewall parameters dhcp Configure DHCP parameters dns_proxy Configure DNS proxy parameters hostname Configure local host name default Restore factory default setting

14.16.1 Mode

The product can act as routing mode or bridging mode. The default setting is routing mode. You can change the system operation mode by using mode command. Move the cursor “ >> “ to mode and press enter.

---------------------------------------------------------------------Command: setup mode <Route|Bridge> Message: Please input the following information.

System operation mode (TAB select) <Route>: Route

----------------------------------------------------------------------

14.16.2 SHDSL.bis

You can setup the SHDSL.bis parameters by the command shdsl.bis. Move the cursor “ >> “ to shdsl.bis and press enter.

>> mode Configure SHDSL.bis mode

Link Configure SHDSL.bis link n*64 Configure SHDSL.bis data rate type Configure SHDSL.bis annex type clear Clear current CRC error count margin Configure SHDSL.bis SNR margin

There are two types of SHDSL.bis mode, STU-R and STU-C. STU-R means the terminal of central office and STU-C customer premise equipment.

Link type will be 2-wire or 4-wire mode according to the product. 4-wire product can be worked under 2-wire mode.

You can setup the data rate by the multiple of 64Kbps where n is from 3 to 89.

There are four types of SHDSL.bis Annex type, Annex-A, Annex-B, Annex-F, and Annex-G.

Clear command can clear CRC error count.

G.shdsl.bis Router User Manual V.004

Generally, you cannot need to change SNR margin, which range is from 0 to 10. SNR margin is an index of line connection. You can see the actual SNR margin in STATUS SHDSL.bis. The larger is SNR margin; the better is line connection quality. If you set SNR margin in the field as 2, the SHDSL.bis connection will drop and reconnect when the SNR margin is lower than 2. On the other hand, the device will reduce the line rate and reconnect for better line connection.

14.16.3 WAN

The router supports 8 PVC, private virtual circuit, and so you can setup eight WAN, WAN1 to WAN8. Move the cursor “ >> “ to wan and press enter. To setup WAN1, type 1.

---------------------------------------------------------------------Command: setup wan <1~8> Message: Please input the following information.

Interface number <1~8>: 1

----------------------------------------------------------------------

>> protocol Link type protocol address IP address and subnet mask vpi_vci Configure VPI/VCI value encap Configure encapsulation type qos Configure VC QoS isp Configure account name, password and idle time ip_type Configure IP type in PPPoA and PPPoE list WAN interface configuration

There are four types of protocols, IPoA, EoA, PPPoA and PPPoE, which you can setup.

For dynamic IP of PPPoA and PPPoE, you do not need to setup IP address and subnet mask.

There is an unique VPI and VCI value for Internet connection supported by ISP. The range of VIP is from 0 to 255 and VCI from 0 to 65535.

There are two types of encapsulation types, VC-Mux and LLC.

You can setup virtual circuit quality of service, VC QoS, using qos command. The product supports UBR, CBR, VBR-rt and VBR-nrt. The peak cell rate can be configured from 64kbps to 2400kbps. Move the cursor to qos and press enter.

>> class Configure QoS class pcr Configure peak cell rate (kbps) scr Configure sustainable cell rate (kbps) mbs Configure max. burst size (cell)

ISP command can configure account name, password and idle time. Idle time are from 0 minute to 300

G.shdsl.bis Router User Manual V.004

minutes.

Most of the ISP use dynamic IP for PPP connection but some of the ISP use static IP. Configure the IP type, dynamic or fixed, via ip_type command.

You can review the WAN interface configuration via list command.

14.16.4 Bridge

You can setup the bridge parameters in bridge command. If the product is configured as a router, you do not want to setup the bridge parameters. Move the cursor “ >> “ to

>> gateway Default gateway static Static bridging table

You can setup default gateway IP via gateway command.

You can setup 20 sets of static bridge in static command. After entering static menu, the screen will prompt as below:

>> add Add static MAC entry delete Delete static MAC entry modify Modify static MAC entry list Show static bridging table

After enter add menu, the screen will prompt as follow

>> mac Configure MAC address lan_port Configure LAN interface bridging type wan1_port Configure WAN1 interface bridging type wan2_port Configure WAN2 interface bridging type wan3_port Configure WAN3 interface bridging type wan4_port Configure WAN4 interface bridging type wan5_port Configure WAN5 interface bridging type wan6_port Configure WAN6 interface bridging type wan7_port Configure WAN7 interface bridging type wan8_port Configure WAN8 interface bridging type list Show static bridging table

bridge

and press enter.

G.shdsl.bis Router User Manual V.004

14.16.5 VLAN

You can setup the Virtual LAN (VLAN) parameters in vlan command. The router support the implementation of VLAN-to-PVC only for bridge mode operation, i.e., the VLAN spreads over both the COE and CPE sides, where there is no layer 3 routing involved. The unit supports up to 8 active VLANs with shared VLAN learning (SVL) bridge out of 4096 possible VLANs specified in IEEE 802.1Q.

Move the cursor “ >> “ to vlan and press enter.

>> mode Trigger virtual LAN function modify Modify virtual LAN rule pvid Modify port default ID link_mode Modify port link type list Show VLAN configuration

To active the VLAN function, move the cursor “ >> “ to mode and press enter. The products support two types of VLAN, 802.11q and Port-Based. The IEEE 802.1Q defines the operation of VLAN bridges that permit the definition, operation, and administration of VLAN topologies within a bridged LAN infrastructure. Port-Based VLANs are VLANs where the packet forwarding decision is based on the destination MAC address and its associated port.

14.16.6 802.11Q VLAN

Follow the following steps to configure 802.11q VLAN.

---------------------------------------------------------------------Command: setup vlan active <Disable|8021Q|Port> Message: Please input the following information.

Tigger VLAN function (Tab select) <Disable>: 8021Q

----------------------------------------------------------------------

To modify the VLAN rule, move the cursor “ >> “ to modify and press enter.

---------------------------------------------------------------------Command: setup vlan modify <1~8> <1~4094> <string> Message: Please input the following information.

Rule entry index <1~8>: 1 VLAN ID (Enter for default) <1>: 10 VLAN port status (Enter for default): 11001

----------------------------------------------------------------------

For each VLAN, VLAN ID is a unique number among 1~4095.

VLAN port status is a 12-digit binary number whose bit-1 location indicates the VLAN port membership in which 4MSBs and 8MSB represents LAN ports and WAN port, respectively. For example: the above setting means that the VID 20 member port includes LAN1, LAN2 and WAN. The member ports are

G.shdsl.bis Router User Manual V.004

tagged members. Use PVID command to change the member port to untagged members

To assign PVID (Port VID), move the cursor “>>” to PVID and press enter. The port index 1 to 4 represents LAN1 to LAN4 respectively and port index 5 to 12 represents WAN1 to WAN8. VID value is the group at which you want to assign the PVID of the port. PVID is

---------------------------------------------------------------------Command: setup vlan pvid <1~12> <1~4094> Message: Please input the following information.

Port index <1~12>: 1 VID Value (Enter for default) <10>: 10

----------------------------------------------------------------------

To modify the link type of the port, move the cursor to link mode and press enter. There are two types of link: access and trunk. Trunk link will send the tagged packet form the port and access link will send un-tagged packet form the port. Port index 1 to 4 represents LAN1 to LAN4 respectively. According to the operation mode of the device, link type of WAN port is automatically configured. If the product operates in bridge mode, the WAN link type will be trunk, and in routing mode, access.

---------------------------------------------------------------------Command: setup vlan link_mode <1~12> <Access|Trunk> Message: Please input the following information.

Port index <1~12>: 1 Port link type (Tab select) <Trunk>: Access

----------------------------------------------------------------------

To view the VLAN table, move the cursor to list and press enter.

14.16.7 STP

IEEE 802.1d to implement this feature for avoiding a storm in a redundant network environment The default is disable.

>> active Trigger Bridge STP function

Once you enable the STP feature, you can see the STP status will follow IEEE 802.1d standard to work. The working steps are Blocking, Listening, Learning and forwarding.

It will send BPDU, a hello packet to make sure if the network is still stable. Once it can’t receive the hello packet over the max. 20 sec., it will restart to process the above 4 steps.

14.16.8 Route

You can setup the routing parameters in route command. If the product is configured as a bridge, you do not want to setup the route parameters. Move the cursor “ >> “ to route and press enter.

>> static Configure static routing table rip Configure RIP tool

If the Router is connected to more than one network, it may be necessary to set up a static route

G.shdsl.bis Router User Manual V.004

between them. A static route is a pre-determined pathway that network information must travel to reach a specific host or network.

With Dynamic Routing, you can enable the Router to automatically adjust to physical changes in the network’s layout. The Cable/DSL Firewall Router, using the RIP protocol, determines the network packets’ route based on the fewest number of hops between the source and the destination. The RIP protocol regularly broadcasts routing information to other routers on the network.

You can setup 20 sets of static route in static command. After entering static menu, the screen will show as follow:

>> add Add static route entry delete Delete static route entry list Show static routing table

You can add 20 sets of static route entry by using add command. Type the IP information of the static route including IP address, subnet mask and gateway.

You can delete the static route information via delete command.

You can review the static route entry by using list command.

To configure Routing Information Protocol (RIP), you can use rip command to setup the parameters. Move the cursor “>>” to rip and press enter.

>> generic Configure operation and auto summery mode lan Configure LAN interface RIP parameters wan Configure WAN interface RIP parameters list Show RIP configuration

Generic command can setup RIP mode and auto summery mode.

If there are any routers in your LAN, you can configure LAN interface RIP parameters via lan command.

The product supports 8 PVCs and you can configure the RIP parameters of each WAN via wan command. Move the cursor “>>” to wan and press enter.

---------------------------------------------------------------------Command: setup route rip wan <1~8> <more...> Message: Please input the following information.

Active interface number <1~8>: 1

----------------------------------------------------------------------

The screen will prompt as follow:

>> attrib Operation, authentication and Poison reverse mode version RIP protocol version authe Authentication code

G.shdsl.bis Router User Manual V.004

Attrib command can configure RIP mode, authentication type and Poison reverse mode.

Version command can configure RIP protocol version.

Authe command can configure authentication code.

You can review the list of RIP parameters via list command.

14.16.9 LAN

LAN interface parameters can be configured LAN IP address, subnet mask and NAT network type.

>> address LAN IP address and subnet mask attrib NAT network type

14.16.10 IP share

You can configure Network Address Translation (NAT), Port Address Translation (PAT) and Demilitarized Zone parameters in ip_share menu. Move the cursor “>>” to ip_share then press enter.

>> nat Configure network address translation pat Configure port address translation dmz Configure DMZ host function

NAT (Network Address Translation) is the translation of an Internet Protocol address (IP address) used within one network to a different IP address known within another network. One network is designated the inside network and the other is the outside. Typically, a company maps its local inside network addresses to one or more global outside IP addresses and reverse the global IP addresses of incoming packets back into local IP addresses. This ensure security since each outgoing or incoming request must go through a translation process, that also offers the opportunity to qualify or authenticate the request or match it to a previous request. NAT also conserves on the number of global IP addresses that a company needs and lets the company to use a single IP address of its communication in the Internet world.

DMZ (demilitarized zone) is a computer host or small network inserted as a “neutral zone” between a company private network and the outside public network. It prevents outside users from getting direct access to a server that has company private data.

14.16.11 NAT

You can configure NAT parameters in nat menu.

>> virtual Virtual IP address pool

G.shdsl.bis Router User Manual V.004

global Global IP address pool fixed Fixed IP address mapping

The virtual menu contains range of virtual IP address, delete virtual IP address and show virtual IP address.

>> range Edit virtual IP address pool delete Delete virtual IP address pool list Show virtual IP address pool

You can create five virtual IP address pool range in range command.

---------------------------------------------------------------------Command: setup ip_share nat virtual range <1~5> <ip> <1~253> Message: Please input the following information.

NAT local address range entry number <1~5>: 1 Base address: 192.168.0.2 Number of address: 49

----------------------------------------------------------------------

You can delete virtual IP address range- from 1 to 5- by using delete command.

You can view the virtual IP address range via list command. To setup global IP address pool, move the cursor “>>” to global command and press enter.

>> range Edit global IP address pool interface Bind address pool to specific interface delete Delete global IP address pool list Show global IP address pool

You can create five global IP address pool range via range command.

---------------------------------------------------------------------Command: setup ip_share nat global range <1~5> <ip> <1~253> Message: Please input the following information.

NAT global IP address range entry number <1~5>: 1 Base address: 122.22.22.2 Number of address: 3

----------------------------------------------------------------------

After configuration global IP address range, you can bind address pool to specific interface via bind command.

---------------------------------------------------------------------Command: setup ip_share nat global interface <1~5> <1~8> Message: Please input the following information.

NAT global ddress range entry number <1~5>: 1 Active interface number <1~8>: 1

----------------------------------------------------------------------

You can delete global IP address range- from 1 to 5- by using delete command.

G.shdsl.bis Router User Manual V.004

You can view the global IP address range via list command.

To modify fixed IP address mapping, move the cursor “>>” to fixed command and press enter.

>> modify Modify fixed NAT mapping interface Bind address pair to specific interface delete Delete fixed NAT mapping list Show fixed IP address mapping

You can create up to 10 fixed NAT mapping entry via range command.

---------------------------------------------------------------------Command: setup ip_share nat fixed modify <1~1o> <ip> <ip> Message: Please input the following information.

Fixed NAT mapping entry number <1~10>: 1 Local address: 192.168.0.250 Global address: 122.22.22.2

----------------------------------------------------------------------

After configuration fixed IP address entry, you can bind the entry to specific interface via interface command.

---------------------------------------------------------------------Command: setup ip_share nat fixed interface <1~5> <1~8> Message: Please input the following information.

Fixed NAT mapping entry number <1~5>: 1 Active interface number (Enter for default) <1~8>: 1

----------------------------------------------------------------------

You can delete fixed NAT mapping entry- from 1 to 5- by using delete command.

You can view the fixed NAT mapping entry via list command.

14.16.12 PAT

To configure Port Address Translation, move the cursor “>>” to pat and press enter.

>> clear Clear virtual server mapping modify Modify virtual server mapping list Show virtual server mapping pool

You can delete virtual server mapping entry- from 1 to 10- by using clear command.

You can create up to 10 virtual server mapping entry via modify command.

---------------------------------------------------------------------Command: setup ip_share pat modify <1~10> Message: Please input the following information.

G.shdsl.bis Router User Manual V.004

Virtual server entry number <1~10>: 1

----------------------------------------------------------------------

After key in enter, the screen will prompt as below.

>> interface Active interface port TCP/UDP port number server Host IP address and port number protocol Transport protocol name Service name begin The schedule of beginning time end The schedule of ending time

Set the active interface number via interface command.

You can configure the global port number by using port command.

The local server, host, IP address and port number are configured via server command.

The authorized access protocol is setup via protocol command.

Name command can be used to configure the service name of the host server.

Begin and end command is used to setup the local server schedule to access.

You can view the fixed NAT mapping entry via list command.

14.16.13 DMZ

To setup demilitarized zone, move the cursor “>>” to dmz and press enter.

>> active Tigger DMZ host function address Configure virtual IP address and interface

You can enable the demilitarized zone via active command.

After enabling the DMZ, shift the cursor to address and press enter.

---------------------------------------------------------------------Command: setup ip_share dmz address <ip> <1~10> Message: Please input the following information.

Virtual IP address: 192.168.0.251 Active interface number (Enter for default) <1>: 1

----------------------------------------------------------------------

G.shdsl.bis Router User Manual V.004

14.16.14 Firewall

The product supports advanced firewall. To setup the advanced firewall, you can use firewall to configure.

>> Level Configure firewall security level pkt_filter Configure packet filter dos_protection Configure DoS protection

There are three level of firewall, which you can setup in this product. Level one, basic, only enables the NAT firewall and the remote management security. The NAT firewall will take effect if NAT function is enabled. The remote management security is default to block any WAN side connection to the device. Non-empty legal IP pool in ADMIN will block all remote management connection except those IPs specified in the pool.

Level two, automatic, enables basic firewall security, all DoS protection, and the SPI filter function. Level three, advanced, is an advanced level of firewall where user can determine the security level for special purpose, environment, and applications by configuring the DoS protection and defining an extra packet filter with higher priority than the default SPI filter. Note that, an improper filter policy may degrade the capability of the firewall and/or even block the normal network traffic.

The firewall security level can configure via level command.

14.16.15 Packet Filtering

Packet filtering function can be configured by pkt_filter command. Move the cursor to pkt_filter and press enter.

>> active Tigger packet filtering function drop_flag Drop fragment packets add Add packet filtering rule delete Delete packet filtering rule modify Modify packet filtering rule exchange Exchange the filtering rule list Show packet filtering table

To enable the packet filtering function, you can use active command.

Add the packet filtering rule via add command.

>> protocol Configure protocol type direction Configure direction mode src_ip Configure source IP parameter dest_ip Configure destination IP parameter port Configure port parameter (TCP and UDP only) tcp_flag Configure TCP flag (TCP only) icmp_type Configure ICMP flag (ICMP only) description Packet filtering rule description

G.shdsl.bis Router User Manual V.004

enable Enable the packet filtering rule begin The schedule of beginning time end The schedule of ending time action Configure action mode

14.16.16 DoS Protection

DoS protection parameters can be configured in dos_protection menu. Move the cursor to

dos_protection and press enter.

>> syn_flood Enable protection SYN flood attack icmp_flood Enable protection ICMP flood attack udp_flood Enable protection UDP flood attack ping_death Enable protection ping of death attack land_attack Enable protection land attack ip_spoff Enable protection IP spoofing attack smurf_attack Enable protection smurf attack fraggle_attack Enable protection fraggle attack

A SYN flood attack attempts to slow your network by requesting new connections but not completing the process to open the connection. Once the buffer for these pending connections is full a server will not accept any more connections and will be unresponsive.

ICMP Flood: A sender transmits a volume of ICMP request packets to cause all CPU resources to be consumed serving the phony requests.

UDP Flood: A sender transmits a volume of requests for UDP diagnostic services which cause all CPU resources to be consumed serving the phony requests.

A ping of death attack attempts to crash your system by sending a fragmented packet, when reconstructed is larger than the maximum allowable size. Other known variants of the ping of death include teardrop, bonk and nestea.

A land attack is an attempt to slow your network down by sending a packet with identical source and destination addresses originating from your network.

IP Spoofing is a method of masking the identity of an intrusion by making it appeared that the traffic came from a different computer. This is used by intruders to keep their anonymity and can be used in a Denial of Service attack.

A smurf attack involves two systems. The attacker sends a packet containing a ICMP echo request (ping) to the network address of one system. This system is known as the amplifier. The return address of the ping has been faked (spoofed) to appear to come from a machine on another network (the victim). The victim is then flooded with responses to the ping. As many responses are generated for only one attack, the attacker is able use many amplifiers on the same victim.

14.16.17 IPQoS

IP QoS is a function to decide the priorities of setting IPs to transfer packets under the situation of overloading bandwidth.

G.shdsl.bis Router User Manual V.004

To configure IP QoS function, move the cursor to IPQoS and press enter.

>> Active Trigger IP QoS function Add Add IP QoS policy Delete Delete IP QoS policy Modify Modify IP QoS policy list Show IP QoS policy table

You can enable the IPQoS function via active command.

The add parameters of IPQoS can be configured via add command

>> Protocol Configure protocol local_ip Configure local IP parameter remote_ip Configure remote IP parameter Port Configure port parameter description Policy description Enable Enable the policy Precedence Configure precedence parameter

The port type is configured by protocol command.

The local ip range is configured by local_ip command.

The remote ip range is configured by remote_ip command.

The port range is configured by port command.

To define the description of policy is configured by description command.

To enable the policy is configured by enable command.

To define the priority of the policy is configured by precedence command

To delete the policy is configured by delete command.

To modify the policy is configured by modify command.

You can view the IPQoS configuration via list command.

14.16.18 DHCP

G.shdsl.bis Router User Manual V.004

Internet, an IP address must be assigned to each machine.

To configure DHCP server, move the cursor to dhcp and press enter.

>> generic Configure generic DHCP parameters fixed Configure fixed host IP address list list Show DHCP configuration

The generic DHCP parameters can be configured via generic command.

>> active Tigger DHCP function gateway Default gateway for DHCP client netmask Subnet mask for DHCP client ip_range Dynamic assigned IP address range lease_time Configure max lease time name_server1 Domain name server1 name_server2 Domain name server2 name_server3 Domain name server3

Active the DHCP function with active command.

Set the default gateway vie gateway command.

The subnet mask for DHCP client is configured by netmask command.

Ip_range command is to configure dynamic assigned IP address range.

The dynamic IP maximum lease time is configured by lease_time command.

You can setup 3 domain name servers via name_server commands.

Fixed Host IP Address list are setup via fixed command.

>> add Add a fixed host entry delete Delete a fixed host entry

You can view the DHCP configuration via list command.

14.16.19 DNS proxy

You can setup three DNS servers in the product. The number 2 and 3 DNS servers are option. Move

G.shdsl.bis Router User Manual V.004

cursor “ >> “ to dns_proxy and press enter.

---------------------------------------------------------------------Command: setup dns_proxy <IP> [IP] [IP] Message: Please input the following information.

DNS server 1 (ENTER for default) <168.95.1.1>: 10.0.10.1 DNS server 2: 10.10.10.1 DNS server 3:

----------------------------------------------------------------------

14.16.20 Host name

Enter local host name via hostname command. Move cursor “ >> “ to hostname and press enter.

---------------------------------------------------------------------Command: setup hostname <name> Message: Please input the following information.

Local hostname (ENTER for default) <SOHO>: test

----------------------------------------------------------------------

14.16.21 Default

If you want to restore factory default, first move the cursor “ >> “ to default and then press enter.

---------------------------------------------------------------------Command: setup default <name> Message: Please input the following information.

Are you sure? (Y/N): y

----------------------------------------------------------------------

XtendLan XL-GRT-402SB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
