XtendLan XL-DSP-183C, XL-DSP-183C-W, XL-DSP-183CSM, XL-DSP-183CSM-W, XL-DSP-183CSMH User Manual

Digital Signage Player

User’s Guide

XL-DSP-183C series

For models:
XL-DSP-183C basic model
XL-DSP-183C-W with WiFi
XL-DSP-183CS with scheduler
XL-DSP-183CS-W with scheduler and WiFi
XL-DSP-183CSM with scheduler and multiple display zones
XL-DSP-183CSM-W with scheduler and multiple display zones and WiFi
XL-DSP-183CSMH with scheduler and multiple display zones and HDMI input

Digital Signage Player User’s Guide ww.xtendlan.com

FCC Notices
It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to
the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired
operation. Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential installation. This
equipment generated uses and can radiate radio frequency energy and if not installed and used in
accordance with the instruction manual may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio of television reception, which can be determined by
turning the equipment off or on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio TV technician for help.

CE Declaration
This device complies with CE class B.
EN55022 IEC 61000-4-4
EN61000-3-2 IEC 61000-4-5
EN61000-3-3 IEC 61000-4-6
EN55024 IEC 61000-4-8
IEC 61000-4-2 IEC 61000-4-11
IEC 61000-4-3

- 2 -

Digital Signage Player User’s Guide ww.xtendlan.com

CONTENT

1. PACKAGE CONTENTS.................................................................................................................... 4

2. INTRODUCTION .............................................................................................................................. 4

3. FEATURES ........................................................................................................................................ 5

4. HARDWARE OVERVIEW ............................................................................................................... 6

5. REMOTE CONTROL ........................................................................................................................ 7

5.1. ENTERING TEXT OR IP ADDRESS....................................................................................... 7

6. START THE DEVICE ....................................................................................................................... 8

7. SETTING UP...................................................................................................................................... 9

7.1. NETWORK SETUP ................................................................................................................... 9

7.1.1. Setting the Network from the OSD Menu .......................................................................... 9

7.1.2. Setting the Network from the IP Detect Tool................................................................... 11

7.2. FTP SETUP .............................................................................................................................. 13

7.3. VIDEO SETUP......................................................................................................................... 15

7.4. OTHER SETUP ........................................................................................................................ 16

7.4.1. Scrolling Text Setup ......................................................................................................... 17

8. USING DEVICE............................................................................................................................... 18

8.1. PLAY MEDIA FILES ON THE CF CARD............................................................................. 18

8.1.1. Using the Remote Control When Media File Is Playing .................................................. 20

8.2. MULTIPLE DISPLAY ZONES ............................................................................................... 21

8.3. FTP AUTO DOWNLOAD FUNCTION.................................................................................. 22

8.4. RS-232 FUNCTION (RS-232 cable is optional)...................................................................... 26

9. WEB MANAGEMENT.................................................................................................................... 27

9.1. CONTROL................................................................................................................................ 27

9.2. NETWORK............................................................................................................................... 28

9.3. SERVER ................................................................................................................................... 29

9.4. TIME......................................................................................................................................... 30

9.5. FEATURES .............................................................................................................................. 31

10. SCHEDULE FUNCTION ............................................................................................................ 32

10.1. INSTALL THE SCHEDULE SOFTWARE......................................................................... 32

10.2. START THE SCHEDULE SOFTWARE............................................................................. 32

10.2.1. Basic Schedule.................................................................................................................. 33

10.2.2. Advance Schedule............................................................................................................. 34

10.2.3. Explanation of the Warning Message............................................................................... 36

10.3. APPLY THE SCHEDULE FILE ON THE DEVICE........................................................... 36

11. OPTIONAL AUXILIARY EQUIPMENT ................................................................................... 37

11.1. PLAY-BUTTON BOX ......................................................................................................... 37

11.2. IR Cable ................................................................................................................................ 38

11.3. PIR SENSOR ........................................................................................................................ 38

11.3.1. Using the PIR Sensor ........................................................................................................ 38

11.4. TOUCH-SENSOR BUTTONS............................................................................................. 39

- 3 -

Digital Signage Player User’s Guide ww.xtendlan.com

1. PACKAGE CONTENTS

1. Player device

2. Remote Control

3. CF Card Protective Cover

4. Video & Audio Cable

5. RS-232 Cable (optional)

6. VGA to Y.Pb.Pr Cable (optional)

7. Power Adapter

8. Quick Guide

9. CD with software

- Schedule Software

- IP Detect Tool

- User Manual

2. INTRODUCTION

The XL-DSP-183C Series is a high-class Digital Signage with high-end performance (40Mbps). The
advanced technology provides the smoothest and clearest image for playing advertising contents. The
XL-DSP-183C Series is one of the best stand-alone Digital Signage in the world.

The XL-DSP-183C is a full HD digital signage that plays media files from CF memory card without a
computer. The media files can be automatically updated at the specific time from an FTP server. What’s
more, the XL-DSP-183CSM supports multiple display zones, you can play movie, picture and scrolling
text on the screen simultaneously, and the text color can be changed (white/ yellow/ green).

By connecting to Video, Y.Pb.Pr, VGA (resolution up to 1360 x 768), HDMI (1920 x 1080P) and Audio,
you can play the media contents on any display device for advertising, presentations, training and other
media applications.

- 4 -

Digital Signage Player User’s Guide ww.xtendlan.com

3. FEATURES

 High-performance and high stability: With the same resolution and bit rate as Blu-ray players’.
 The source of HD WMV9 MP@HL (Main Profile / High Level) supports resolution up to

1920x1080 (1080P) and the maximum bit rate is 40Mbps.

 Supports multiple file formats: WMV9 and WMA.
 Supports Video, Y.Pb.Pr, HDMI, VGA and Audio output.
 HDMI Output: 480P/ 720P/ 1080i/ 1080P.
 HDMI 1.1, 1.2 and 1.3 compliant.
 VGA output supports resolution: 640x480/ 800x600/ 1024x768/ 1280x1024/ 1360x768.
 Supports RS-232 port for computer control with ASCII command (play, stop, pause…etc).
 Supports Multiple Display Zones: Displays the movies, picture (supports png format/size:

213x641/ 96DPI) and scrolling text on the screen simultaneously (model XL-DSP-183CS CSM)

 The display speed of scrolling text can be adjusted, and scrolling text supports multi languages

(Latin1/ Latin2/ Japanese/ Greek).

 The text color can be changed (white/yellow/green)
 Schedule Function: The XL-DSP-183CS and CSM will auto play the specific file at the specific

date.

 Supports Log Function which can record the file and time that was be played.
 Connect using an Ethernet network cable at up to 100Mbps.
 Supports CF memory cards. Suggest using the high speed (150x) CF card.
 Supports HTTP Control Function
 Supports Auto Key Lock Function
 Exports the Configuration Value: You can export the configuration value to the CF card. The

configuration value can be modified on your PC, and can be applied to the other devices of same
series.

 Supports FTP Auto Download Function: Connect to Remote FTP server and download data to

the CF card automatically.

 Play files and FTP Auto Download Simultaneously. Can play files while downloading.
 Embedded FTP Server.
 Supports NTP Network (G.M.T) Timer.
 Supports Universal Plug and Play (UPnP) and DHCP.
 Supports SLIDE SHOW Function.

 Power Switch: Toggle between main power on & off.
 DC Input: For the power adapter. (DC 12V / 1.5A)
 IR Input: Connects to PIR Sensor (optional) or IR Cable (optional).

- 5 -

Digital Signage Player User’s Guide ww.xtendlan.com

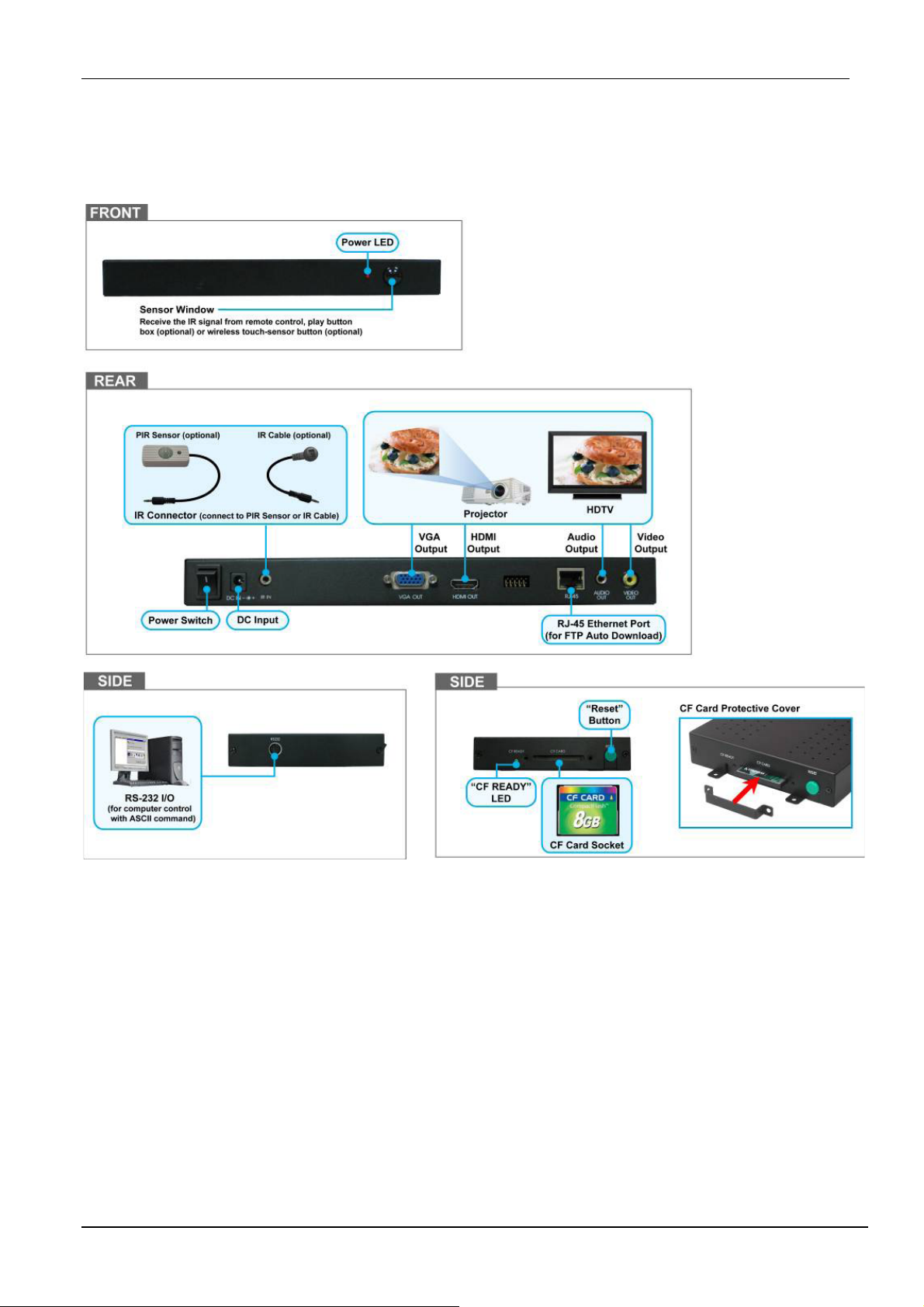

4. HARDWARE OVERVIEW

 VGA Output: Connects to devices that support VGA input. (LCD、projector)
 HDMI Output: Connects to devices that support HDMI input.

 HDMI Input: Can play simultaneously video from other sources (only models with HDMI input)
 RJ-45 Ethernet Connector: Connects to router or PC by RJ-45 Cable.
 Audio Output: Connects to sound input. (HDTV with amplified speaker)

 Video Output: Connects to devices that support Video input. (HDTV、projector)
 RS-232 Connector: Used for computer control with ASCII command.

 “CF READY” LED: Steady green confirms that the CF card is inserted correctly.
 CF Card Socket: For CF memory card.
 “RESET” Button: To restart device.

- 6 -

Digital Signage Player User’s Guide ww.xtendlan.com

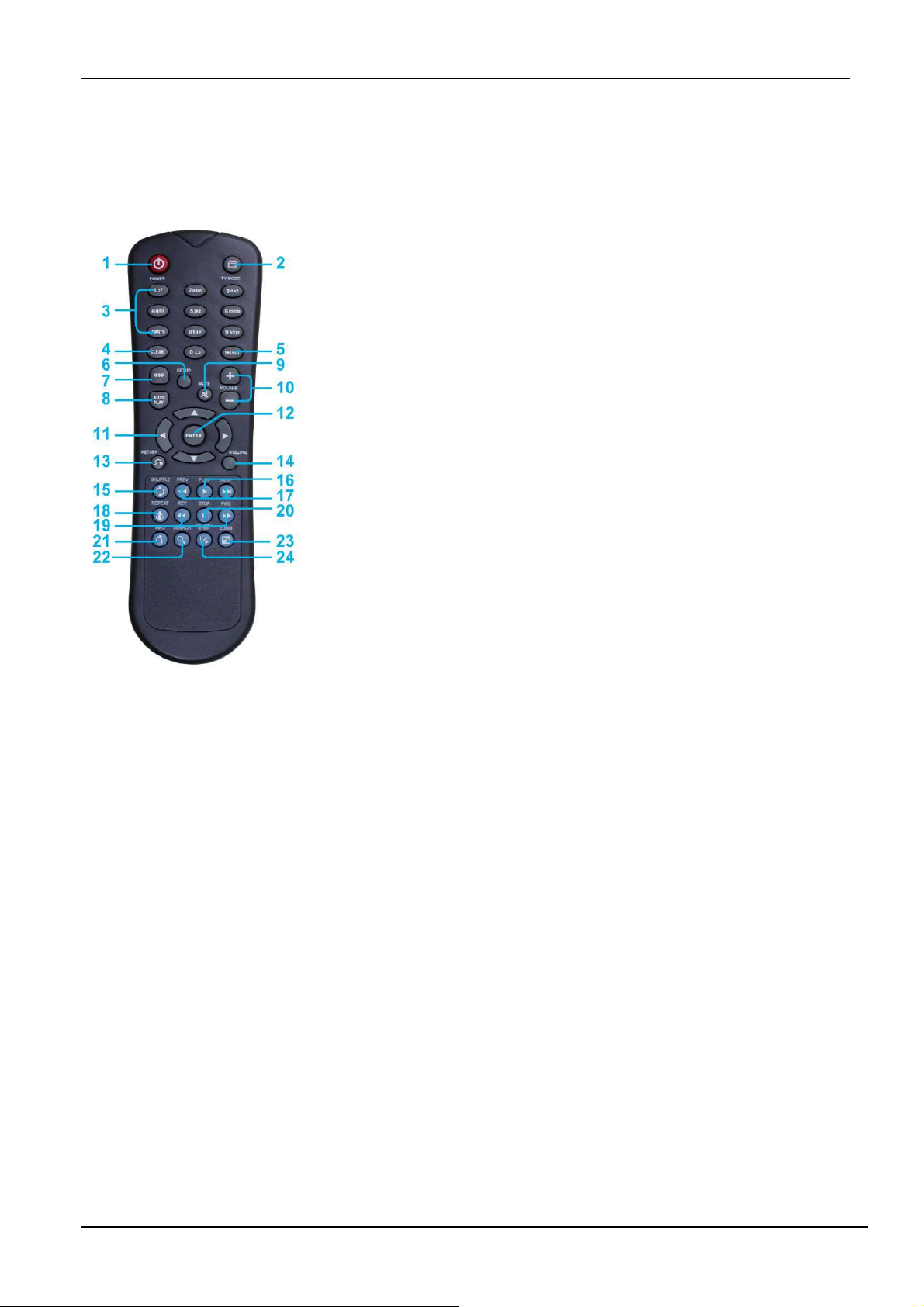

5. REMOTE CONTROL

1 Power on/ off
2 Select the output mode
3 Numeric Key
4 Delete last entry
5 Select a function or to play the selected file
6 Open the setup menu Mute sound
7 OSD display function on/ off
8 Auto-play function on/ off
9 Mute sound
10 Volume up/ down
11 Move the cursor
12 Confirm the selection/ entry
13 Go back one layer
14 Select the TV type (NTSC/ PAL)
15 Shuffle on & off
16 Play the file selected
17 View the previous/ next file
Play the previous/ next file if in playback
18 Select the repeat mode
19 Rewind/ forward movie or music files
20 Stop playback
21 Show the information of the file selected
22 Search video (movie) timeframe
23 Zoom in/ out on the movie or picture
24 Pause the playback or play frame by frame

5.1. ENTERING TEXT OR IP ADDRESS

 Keys need to be pressed multiple times to enter the letter corresponding to that key. For

Example: To enter the letter “a”. You would press the button “2” twice.

 Enter The IP Address For Example: To enter the IP address”192.168.100.100”,.

Step 1: Press “1” once, then “1” is displayed, and the color of “1” is orange.
Step 2: When the color of “1”turns white, press “9” once, then “9” is displayed.
Step 3: Repeat steps 1 and 2 to enter and complete the IP address.

- 7 -

Digital Signage Player User’s Guide ww.xtendlan.com

6. START THE DEVICE

Power On

 Insert the CF memory card that has Picture, Music, Movie or WMV9 files.
 Press the “POWER” button to power on the XL-DSP-183C, and then press the “TV MODE”

button to select the output mode.

Status After Power On

 Status 1: If the “AUTOPLAY (Movie/ Picture/ All Files/ MultiLayer)” function is enabled and

there are media files on the CF card or the XL-DSP-183C is already connected to the display
device, the XL-DSP-183C will auto play media files after power on.

 Status 2: If the “AUTOPLAY” function is disabled, after power on the main menu will appear as

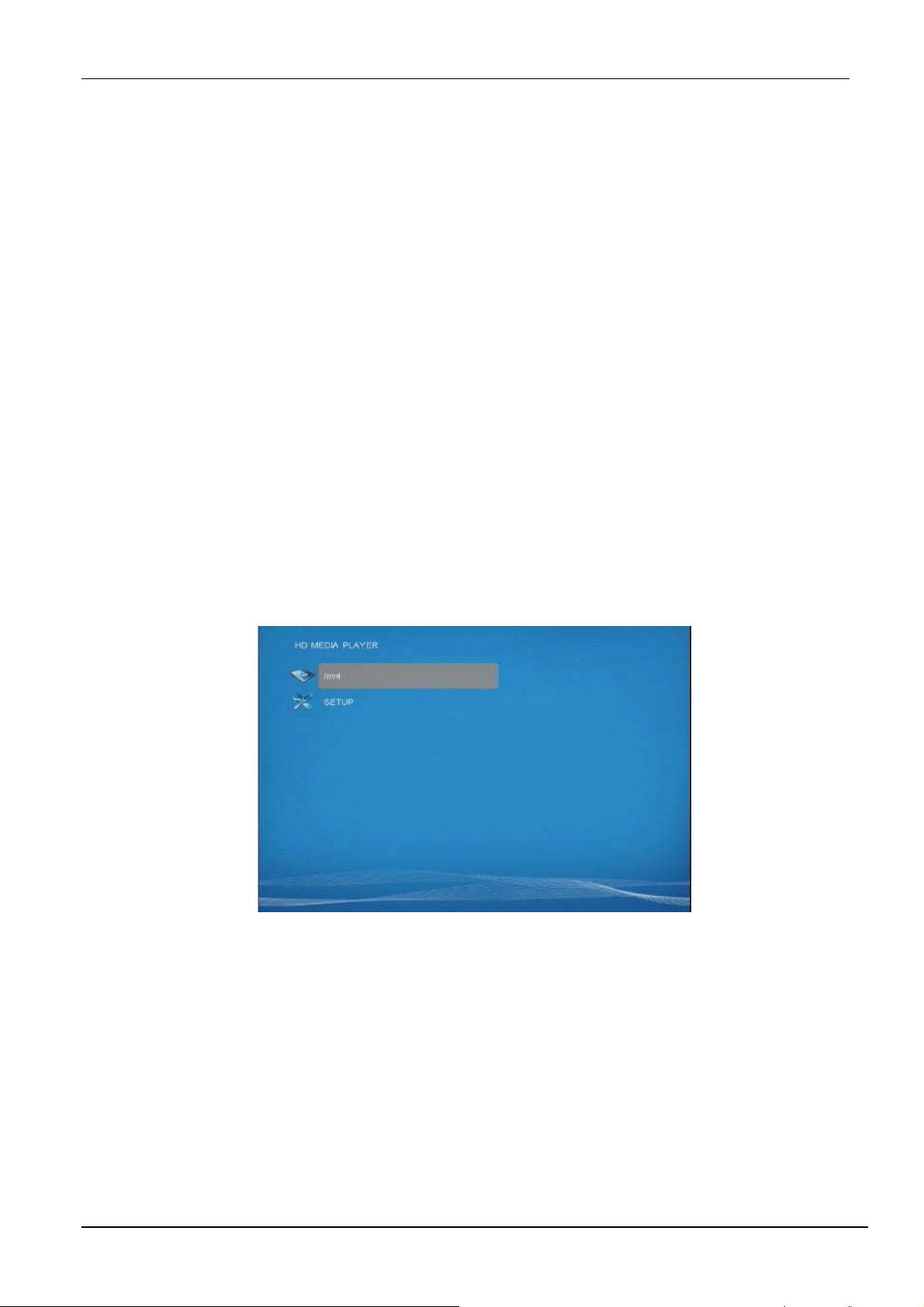

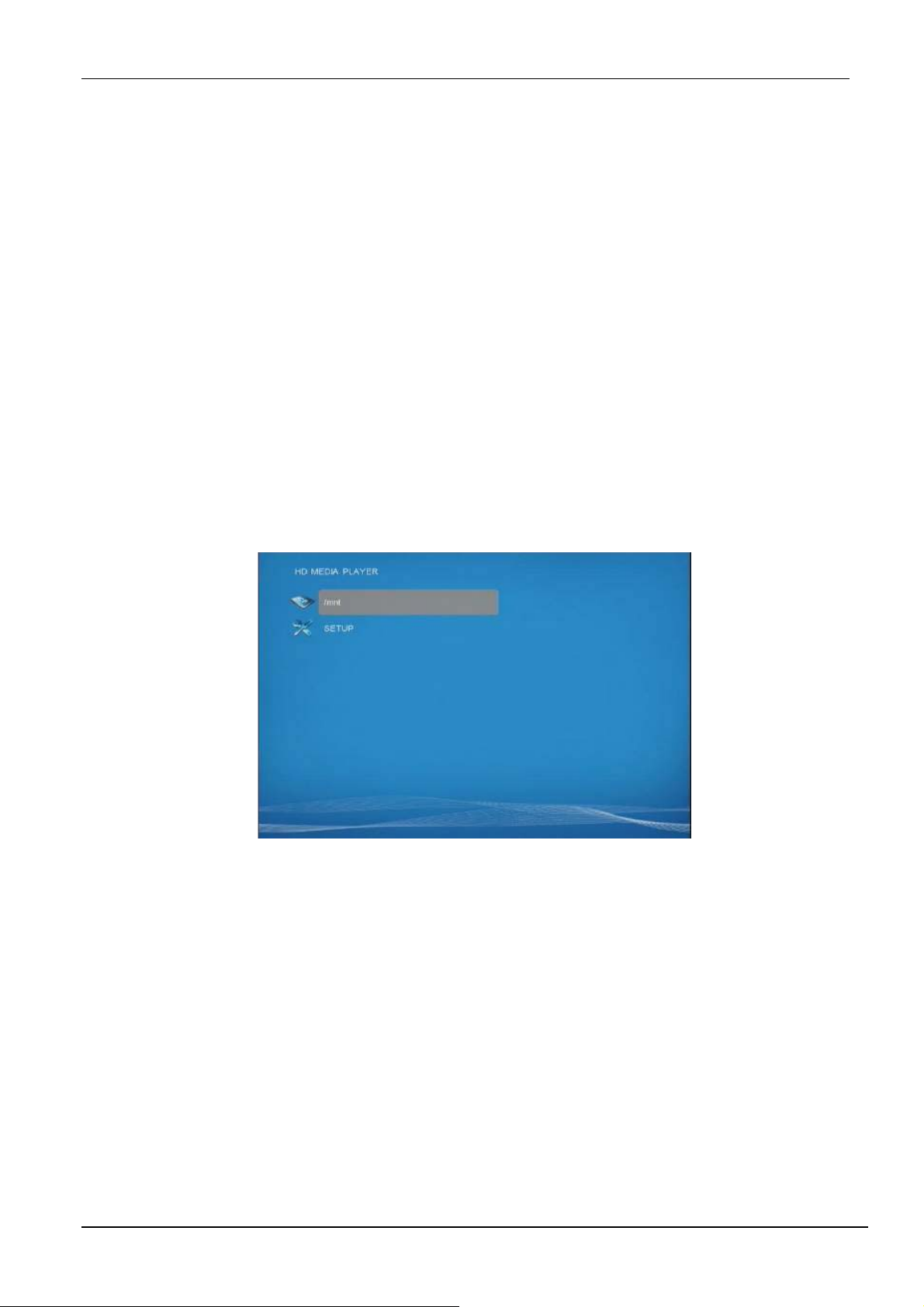

shown in the following figure. There are two groups in the main menu (“/mnt/CF” and
“SETUP”).

Power Off

 Press the “POWER” button again to power off

- 8 -

Digital Signage Player User’s Guide ww.xtendlan.com

7. SETTING UP

 In the main menu, using the “▼” button on remote control to select the “SETUP” item, and then

press the “ENTER” button. You will be presented with the XL-DSP-183C settings screen.

 You can also press the “SETUP” button on remote control to directly open the settings screen. (If

there is file that is being play, please stop first.)

 There are five groups of sub-menu in the main menu (“Network Setup”, “FTP Setup”, “Video

Setup”, “Other Setup” and “Scrolling Setup”).

 In the settings screen, you can use the “▲、▼、▲、▼ ” buttons to select an item, and press

the and “ENTER” button to confirm the selection.

 Press the “SETUP” button on remote control to save and quit the settings screen.

7.1. NETWORK SETUP

7.1.1. Setting the Network from the OSD Menu

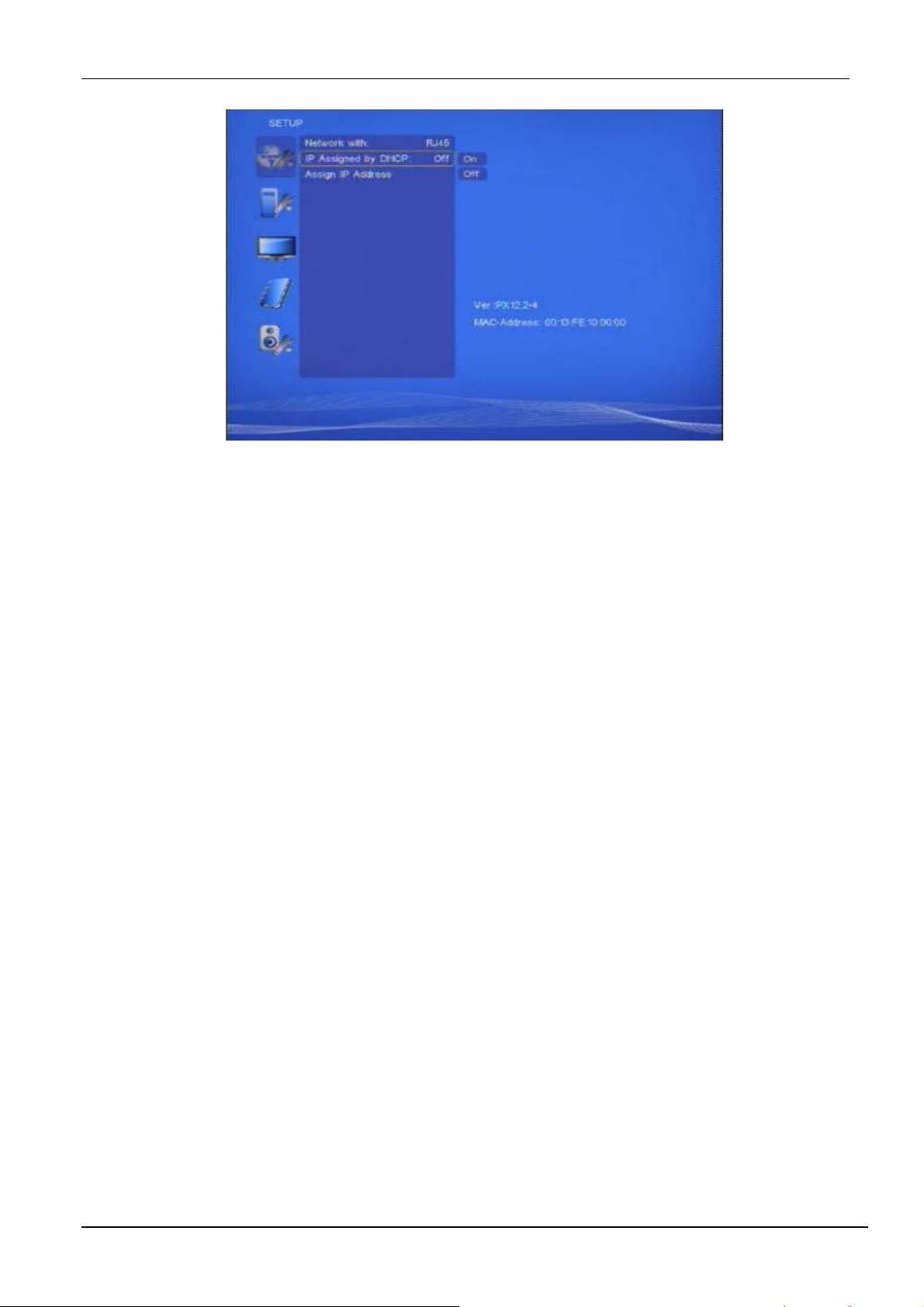

 Network with: Select your network connection Disable/ RJ45.
 IP Assigned by DHCP: If you have a DHCP-enabled router, please select “On”, and then the

router will automatically assigns an IP address to the XL-DSP-183C. If you don’t have a DHCP
–enabled router, select “Off” and type the network information in “Assign IP Address”.

 Assign IP Address: If the XL-DSP-183C is connected to a network without a DHCP server or

you want to use Local FTP Server function, enter the fixed IP address, Mask, Gateway and DNS
for the XL-DSP-183C.

- 9 -

Digital Signage Player User’s Guide ww.xtendlan.com

Note: Refer to 5.1 for how to enter IP address by remote control.

Before setting the IP address, Mask, Gateway and DNS, check the network information of your PC.
Please follow the steps below to get the network information of your PC.

Step 1: Click on “Start” → “Run” and type in “cmd”, then press “ENTER”. The MS-DOS window will
appear, type in “ipconfig” then press “ENTER” to get the network information.

Step 2: Assign IP Address, Mask (Subnet Mask) and Gateway (Default Gateway) for the XL-DSP-183C.
Enter the same values of the Subnet Mask and Gateway, and be careful not to enter the values of IP
address that are already used by other devices on the network.

- 10 -

Digital Signage Player User’s Guide ww.xtendlan.com

7.1.2. Setting the Network from the IP Detect Tool

With the bundle tool “IP Detect”, user could search XL-DSP-183C on the local area network. User
could also change the IP setting via this tool. For example, user might assign a static IP to XL-DSP­183C by the steps as below:

 Step1: Insert the driver CD into your CD-ROM drive, then the autorun function will start up the

shell program. If the autorun window does not display, please execute the Autorun.exe program
to bring out the autorun screen.

 Step2: Click on the Install IP Detect to install the IP detect tool. Create a desktop icon and click

Next to continue. Click Next to continue Select the installation folder and click Next to continue
Click Install to start the installation. Installing Click Finish to complete the installation

 Step3: Double click on the icon and start the tool.

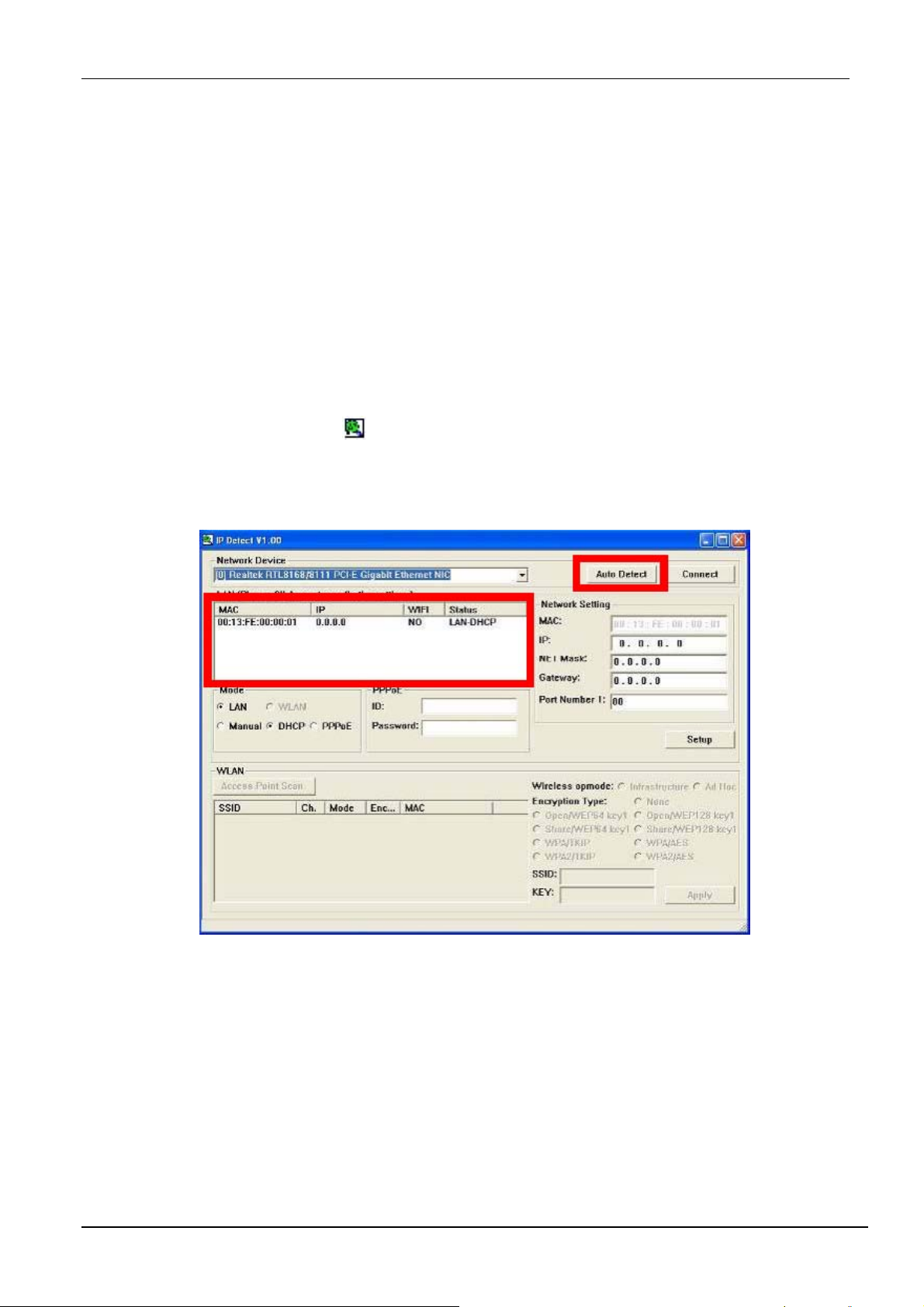

 Step4: Click on the “Auto Detect” button, then the tool will show all available XL-DSP-183C in

the local area network.

NOTE: When use XL-DSP-183C under a DHCP-enabled network, user sometimes does not know

which IP address is assigned to XL-DSP-183C. User could also use this tool as a “Finder”, for locating
the IP address of XL-DSP-183C. By pressing the “Connect” button, IE browser will show up and access
to the build-in web of XL-DSP-183C automatically.

 Step5: Select the XL-DSP-183C that you want to configure (by identifying the MAC address).

- 11 -

Digital Signage Player User’s Guide ww.xtendlan.com

 Step6: The default IP mode of XL-DSP-183C is DHCP. User should change the mode to

“Manual”, if wants to assign a static IP address to XL-DSP-183C. Then enter the preferred “IP”,
“Net Mask” and “Gateway” in the “Network Setting”. Finally, click on the “Setup” button for
completing the setting.

NOTE: The IP setting will not show on the OSD menu instantly, but it should be available after

pressing “Setup” button. The prefer IP address will show on the OSD menu when XL-DSP-183C restart.

- 12 -

Digital Signage Player User’s Guide ww.xtendlan.com

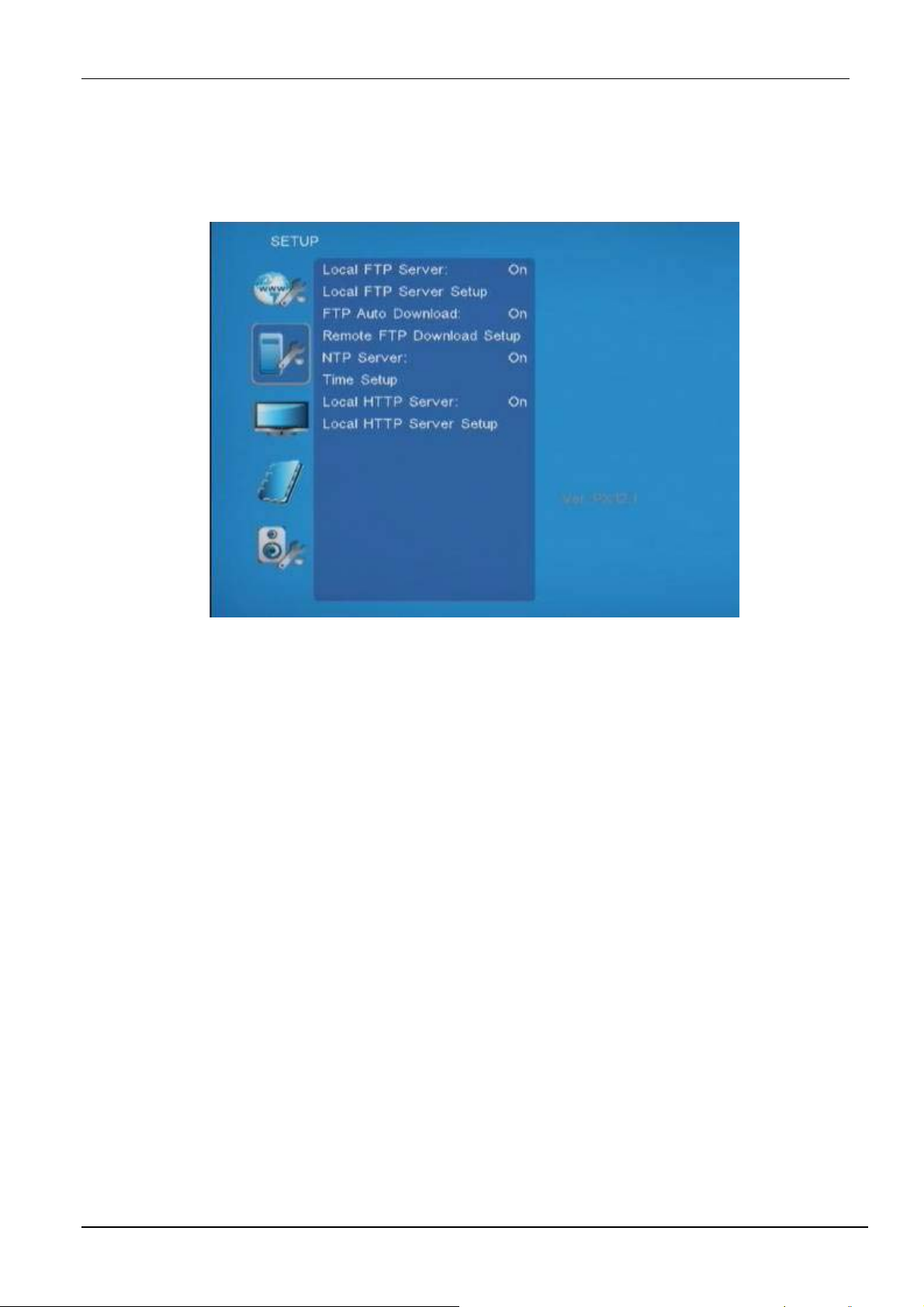

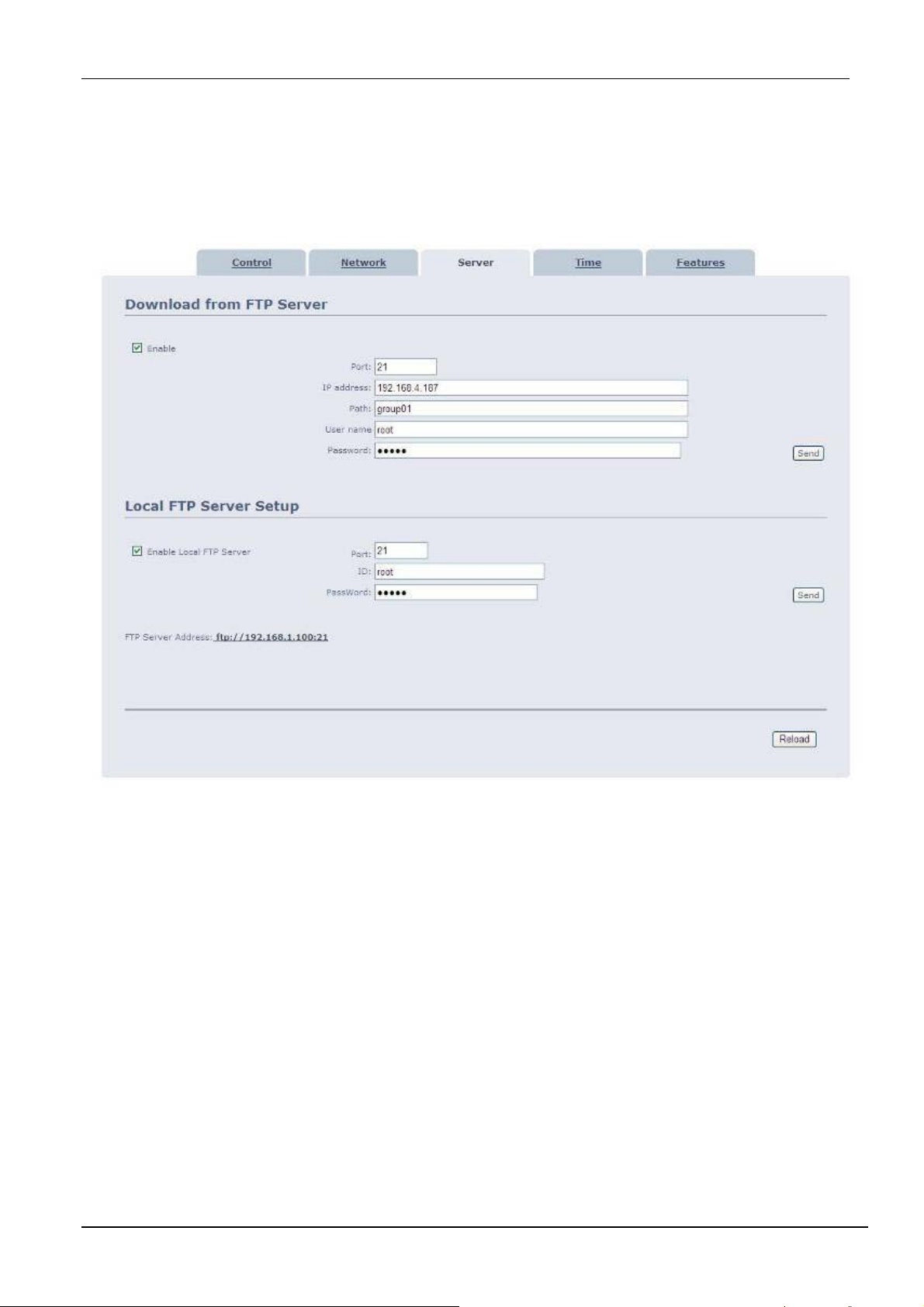

7.2. FTP SETUP

Local FTP Server: Turn on/ off the XL-DSP-183C server. (If you use the XL-DSP-183C server, please

disable the DHCP function and input a fixed IP address, Mask, Gateway and DNS of the XL-DSP­183C)

Local FTP Server Setup: Set the “Port”, “User ID” and “Password” of the XL-DSP-183C. (The

Default Port: 21, User ID: root, Password: admin)

FTP Auto Download: Enable/ Disable the FTP auto download function.

Remote FTP Download Setup

Server IP: Enter the domain name or IP address of the FTP as was given to you by your Web

hosting provider.

Port: The default port for FTP is 21. In most cases you should not change this number. If the

FTP site uses a port other than 21, you should enter the correct port.

User ID: Enter the user name of the Remote FTP server.
Password: Enter the Password of the Remote FTP server.
FTP Path: Enter the folder path that you want to share.

NTP Server: Enable/ Disable the NTP server function. (if the XL-DSP-183C isn’t connect to internet,

please disable the NTP Server function)

Time Setup: Set the NTP Server and Local Time here.

- 13 -

Digital Signage Player User’s Guide ww.xtendlan.com

In mode NTP Server the XL-DSP-183C must be already connected to the network.

NTP Server: Enter the NTP server IP address like: 204.152.184.72.
G.M.T: After XL-DSP-183C get the time from NTP server, it will update the G.M.T field.
Time Zone: Use the Volume +, - and Numeric Key to set the time zone of your location.

(time zone must be set properly for the Auto-Download and Schedule functions)

Local Time: Set the system time manually.

NOTE: If the NTP Server and Local Time have been set, the NTP Server will be the first priority (the

XL-DSP-183C is already connected to the network).

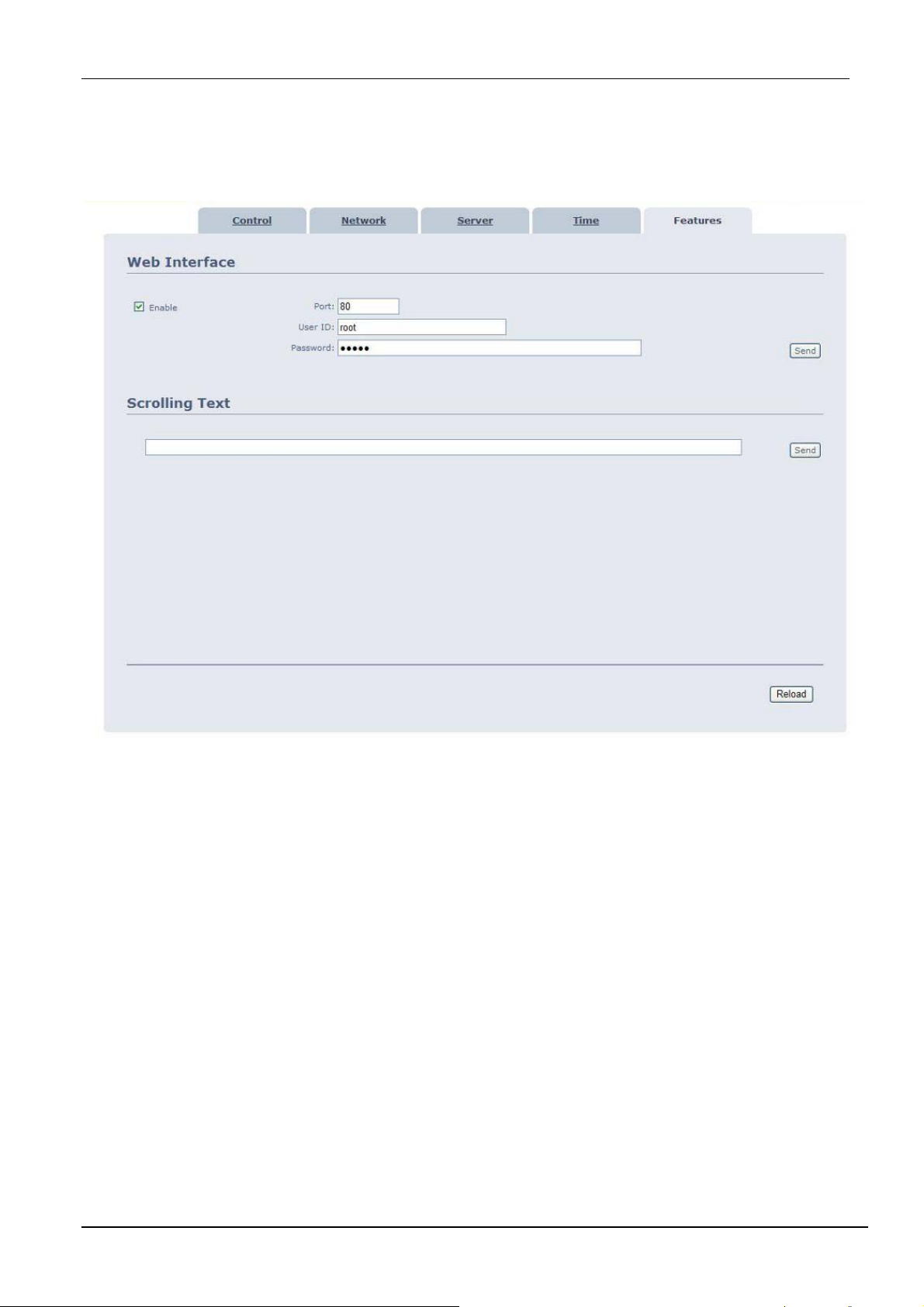

Local HTTP Server: Enable/ Disable the HTTP command function.
Local HTTP Server Setup: To set the “Port”, “User ID” and “Password” of the XL-DSP-183C. (The

Default Port: 80, User ID: root, Password: admin)

NOTE: Press the “SETUP” button on the remote control to save the settings, and it will auto exit the

settings screen, then restart the XL-DSP-183C.

- 14 -

Digital Signage Player User’s Guide ww.xtendlan.com

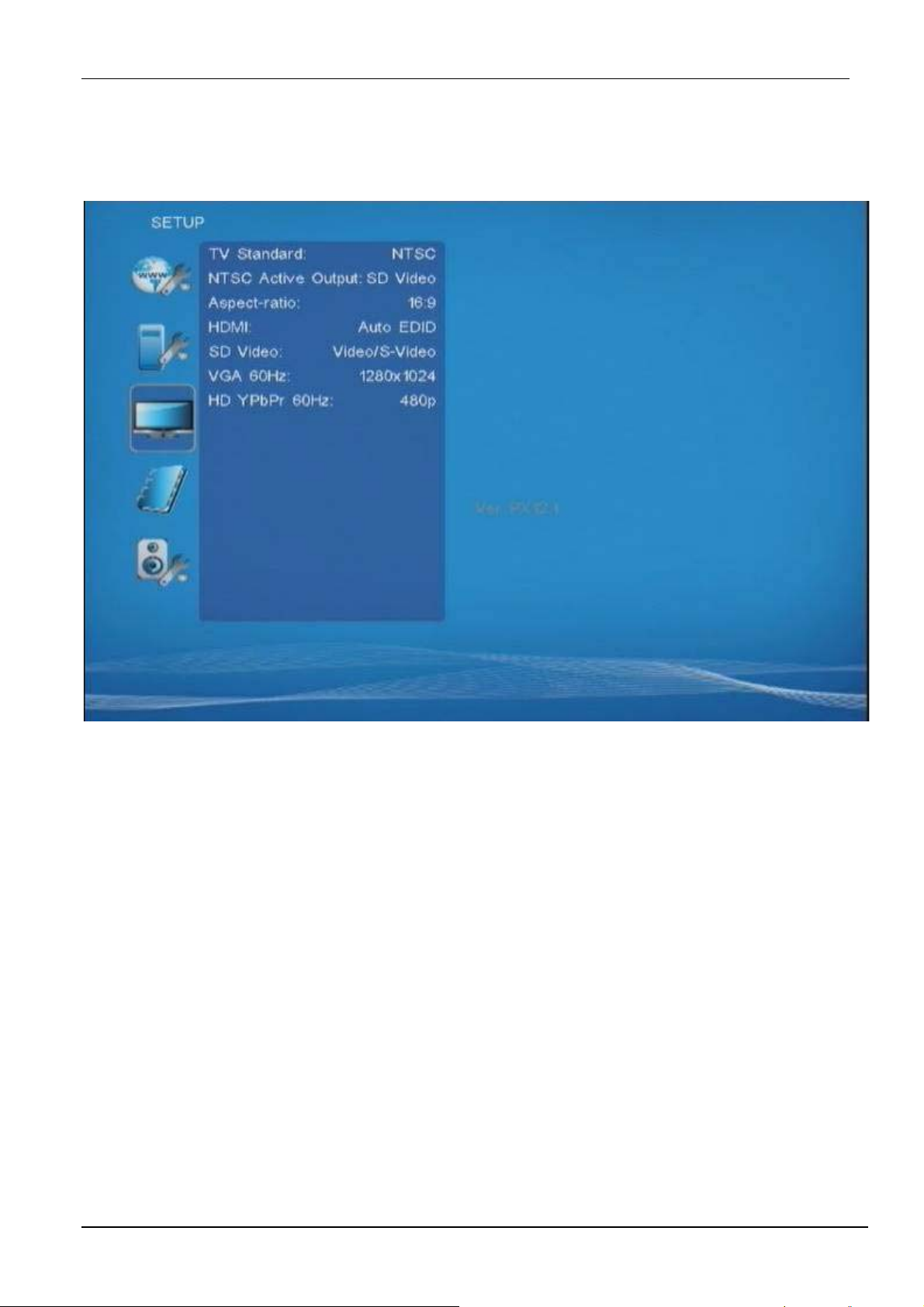

7.3. VIDEO SETUP

 TV Standard: Select the output TV video format (NTSC / PAL).
 NTSC Active Output: Select the output mode. (HDMI/ SD Video/ VGA/ HD Y.Pb.Pr) You can

also press directly the “TV MODE” button on the remote controller to select output mode.

 Aspect-ratio: Select TV mode 4:3, 16:9 or 16:10.
 HDMI: Select the HDMI output resolution among 480i / 480p/ 720p / 1080i/ 1080p. Select the

“Auto EDID”, the XL-DSP-183C will scan the display device connected and set the correct
resolution automatically.

 SD Video: Select the SD output mode. (“Video/ S-Video” or “Y.Cb.Cr”)
 VGA 60Hz: Select the VGA output resolution. (640*480 / 800*600/ 1024*768/ 1280*1024/

1360*768)

 HD Y.Pb.Pr 60Hz: Select the Y.Pb.Pr output resolution among 480p / 720p / 1080i.

- 15 -

Digital Signage Player User’s Guide ww.xtendlan.com

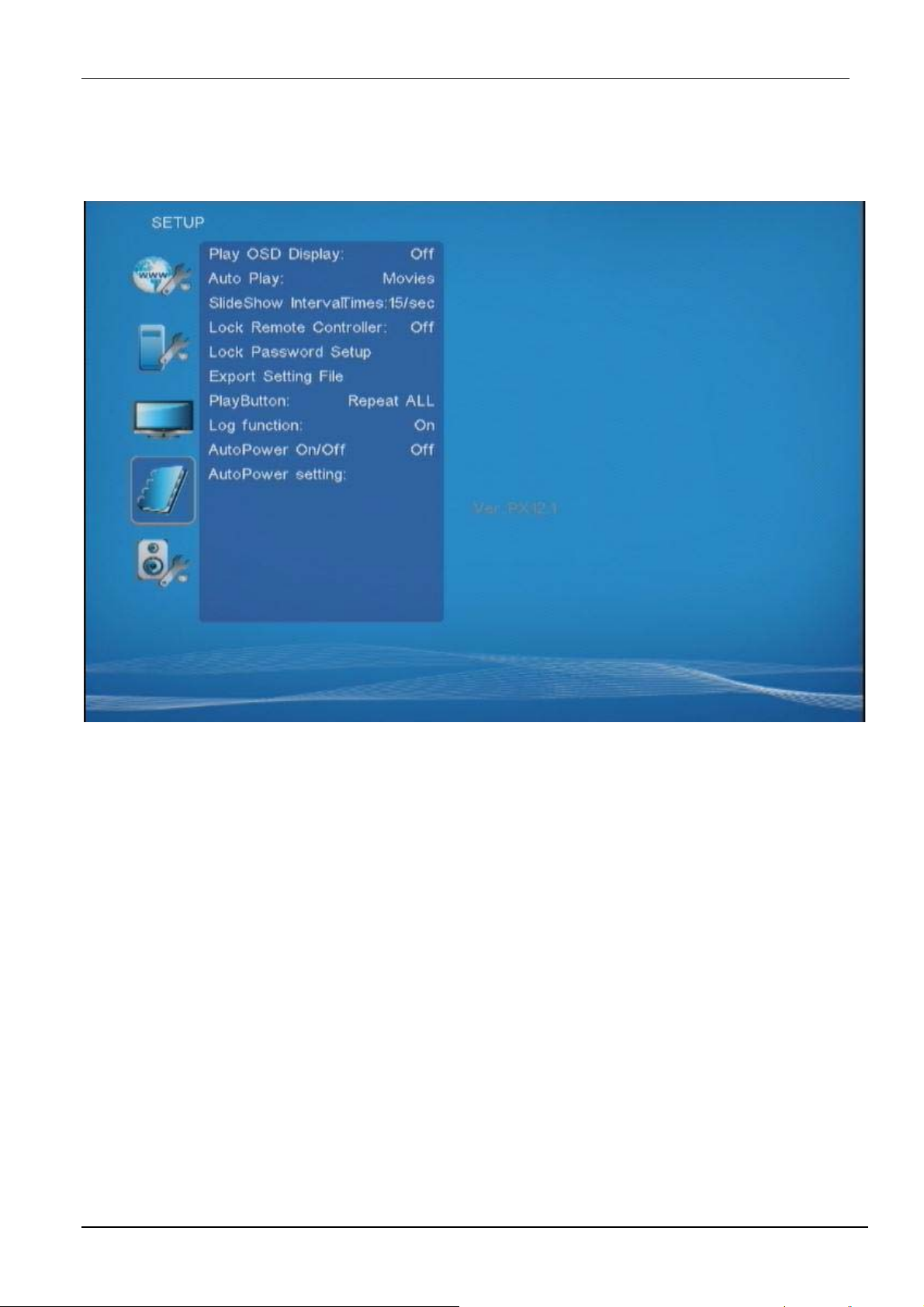

7.4. OTHER SETUP

 Play OSD Display: Enable or disable the OSD display.
 Auto Play

o Movies: Auto play movie files on the CF card after power on.
o Pictures: Auto play picture files on the CF card after power on (slideshow function).
o All Files: Auto play all files (movie and picture files) on the CF card after power on.
o MultiLayer: Directly execute Multiple Display function after power on.
o Off: Turn off the Auto Play function.

 SlideShow Interval: Set the time each photo is shown to 10, 15, 30 seconds or 1, 10, 15, 30

minutes or 1 hour.

 Lock Remote Controller: Enable/ disable the auto key lock function. (The XL-DSP-183C will

auto lock when there is no further input for 1 minute.)

 Lock Password Setup: Press the “Enter” button to open the “Set Password” window. Enter the

password with numeric buttons and press the “Enter” button to save the new password (The
default password: 123).

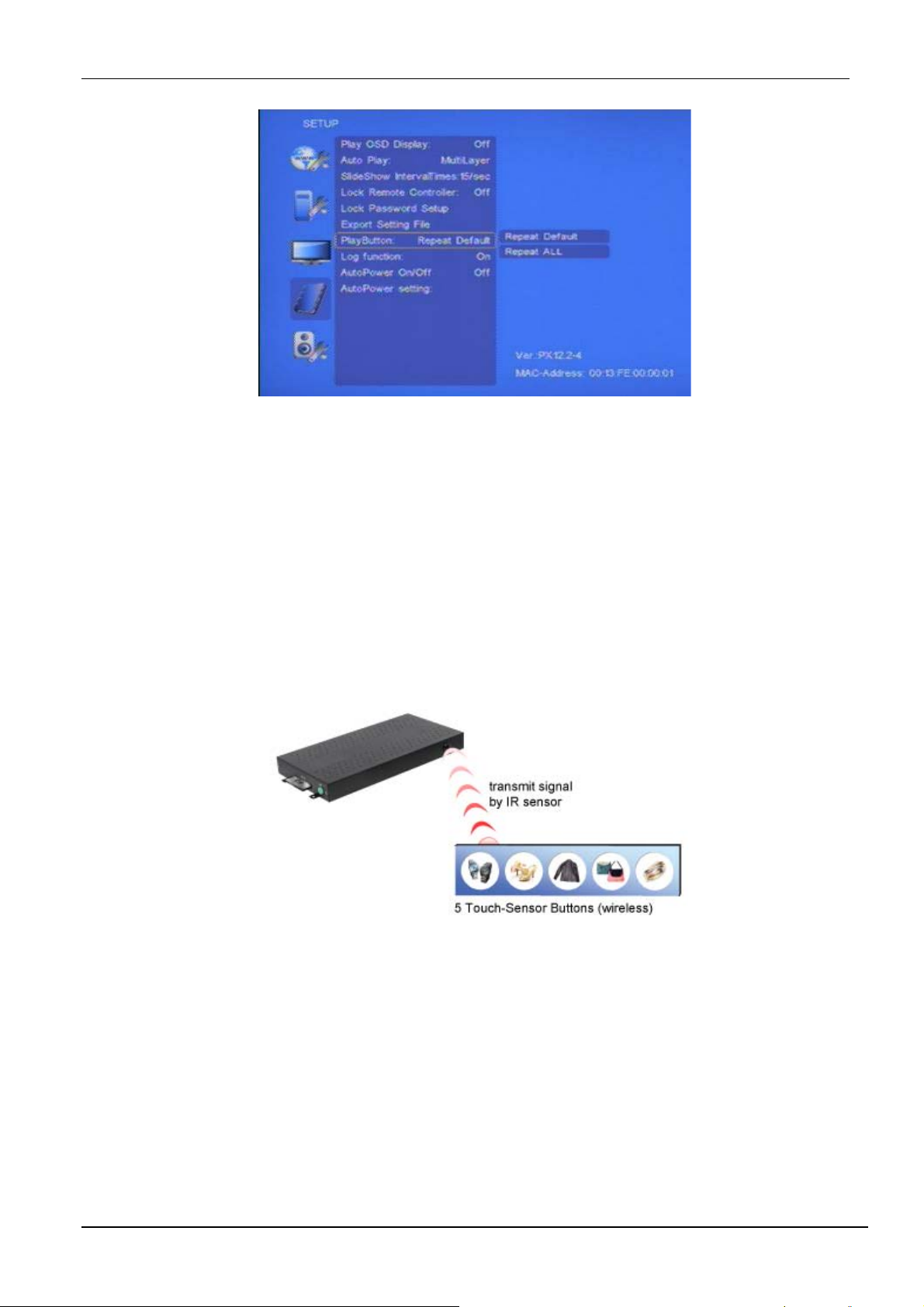

 Play Button: Only for used with play buttons. The XL-DSP-183C supports two options (Repeat

Default / Repeat All) when the demo file finishes playing.

 Log Function: Enable or disable the Log function.
 Auto Power: Enable or disable the Auto Power function. If this function is enabled, user might

set a definite time for XL-DSP-183C to power on/off automatically.

- 16 -

Digital Signage Player User’s Guide ww.xtendlan.com

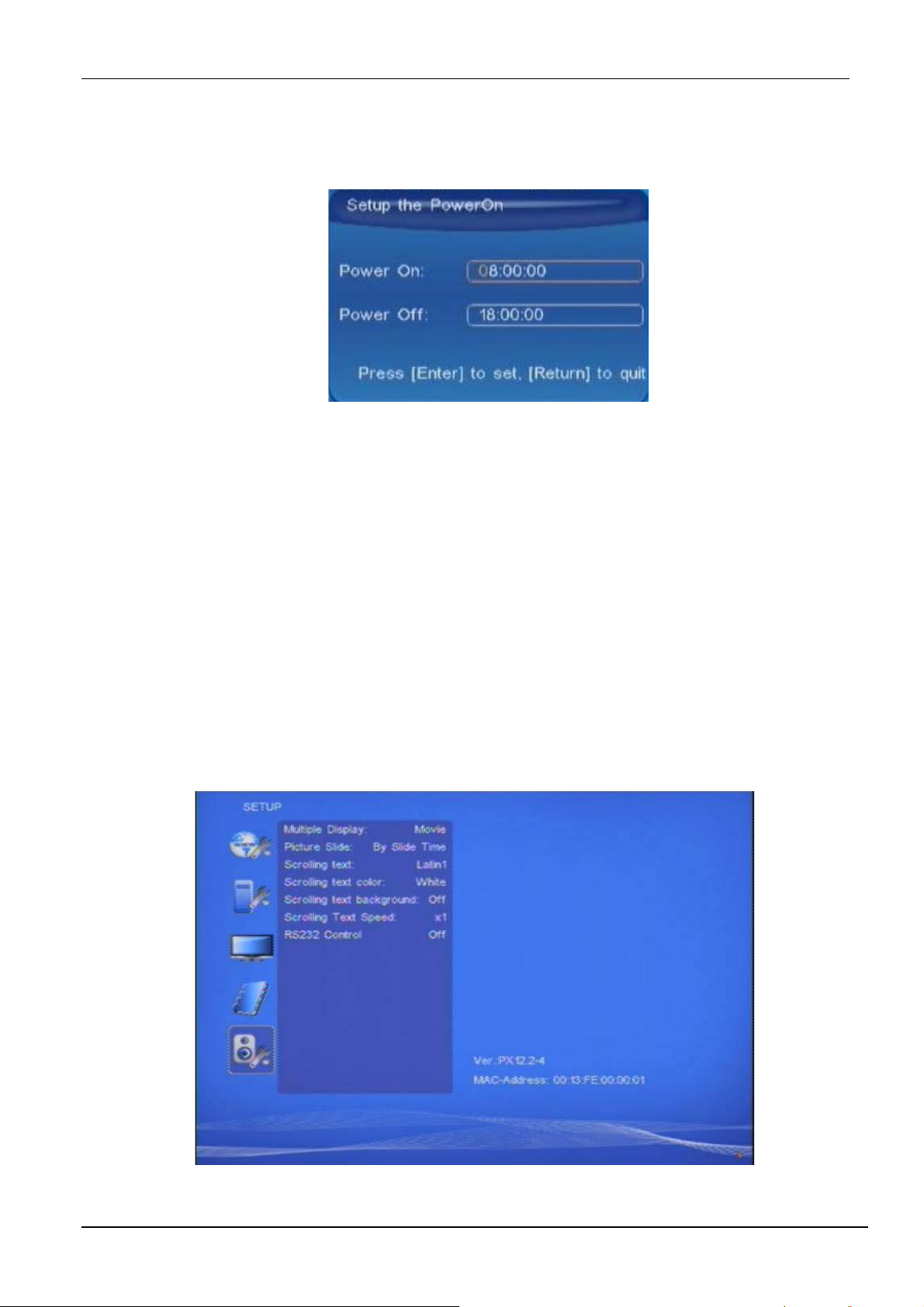

 AutoPower Setting: Press “Enter” button on the remote controller, the “PowerOn” setting

window will pop up. User could set the power on/off time here

 Export Setting File: Press the “Enter” button to export the configuration value to the CF card.

Step1: Copy the file “HDPlayerSetting.txt” on CF card to your PC. Use the “Wordpad” to open the

file, and you can see all the configuration value of XL-DSP-183C.

Step2: You can modify directly the configuration value on your PC. Example: [NETWORK]

Disable Options: Disable, RJ45, WiFi The “Network” function is disabled, you can directly change
the mode to RJ45.

Step3: Copy the completed file “HDPlayerSetting.txt” from PC to CF card. Insert the CF card to the

XL-DSP-183C, the XL-DSP-183C will apply the new settings automatically.

7.4.1. Scrolling Text Setup

Note: All those features available on models with support for Multiple Display

- 17 -

Digital Signage Player User’s Guide ww.xtendlan.com

 Multiple Display :

o Movie: Display stored videos with scrolling text.
o Movie + PIC (L): Display stored video and pictures with scrolling text, and the pictures

are on the left.

o Movie + PIC (R): Display stored video and pictures with scrolling text, and the pictures

are on the right.

 Picture Slide: Set the mode of picture slideshow (By Slide Time/ Match Video).
 Scrolling text: Select the font that the user wants to use in the scrolling text. Supported fonts are

Latin1, Latin2, Japanese and Greek.

 Scrolling text color: Select the color of the text; user might select white, yellow and green.
 Scrolling text background: Turn on or off the background of the scrolling text.
 Scrolling text speed: Adjust the speed of the scrolling text.

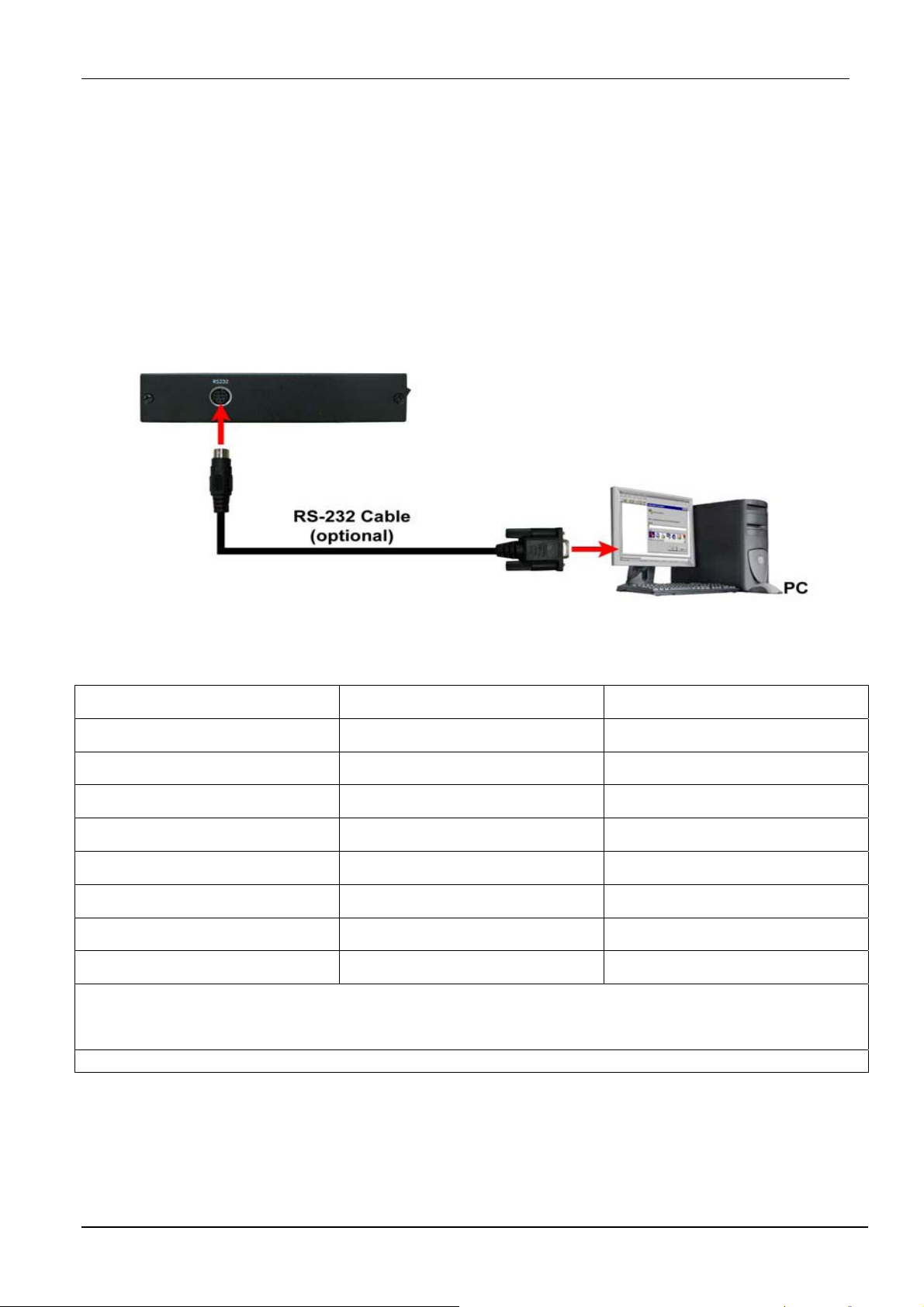

 RS232 Control: Enable or disable the RS232 control function.

8. USING DEVICE

8.1. PLAY MEDIA FILES ON THE CF CARD

Step 1: Insert the CF card with media files, then turn on the XL-DSP-183C and press the “ENTER”
button on the remote control when “’mnt/CF” is highlighted to take you into the CF card.

Step 2: Select the type of data (VIDEO/ AUDIO/ PICTURES) you want to play, and then press the
“ENTER” button on remote control to take you into the “VIDEO LIBRARY”, “AUDIO LIBRARY” or
“PICTURE LIBRARY”.

- 18 -

Digital Signage Player User’s Guide ww.xtendlan.com

Note: If the symbol (return) appears on the screen, you can use “RETURN” button of the remote
control to go back one layer.

Step 3: Select the file you want to play, and press “ENTER” or “PLAY” button on the remote control to
play the file.

- 19 -

Digital Signage Player User’s Guide ww.xtendlan.com

8.1.1. Using the Remote Control When Media File Is Playing

 SETUP: Press the button to adjust the brightness, contrast or saturation while the video or picture

o First Press: Adjust the brightness.
o Second Press: Adjust the contrast.
o Third Press: Adjust the saturation.

 PAUSE/STEP: Pause the playback or play frame by frame.
 ZOOM: Zoom in/ out on the movie or picture.
 MUTE: Mute the sound while the movie or music is playing.
 + VOLUME -: Increase/ decrease the volume while the video or music is playing.
 SHUFFLE: Turn on/ off the shuffle function.
 PREV / NEXT: Play the previous/ next file.
 REPEAT: Select the repeat mode.
 REV / FWD: Rewind/ forward movie or music file.
 STOP: Stop playing, and go back one layer.

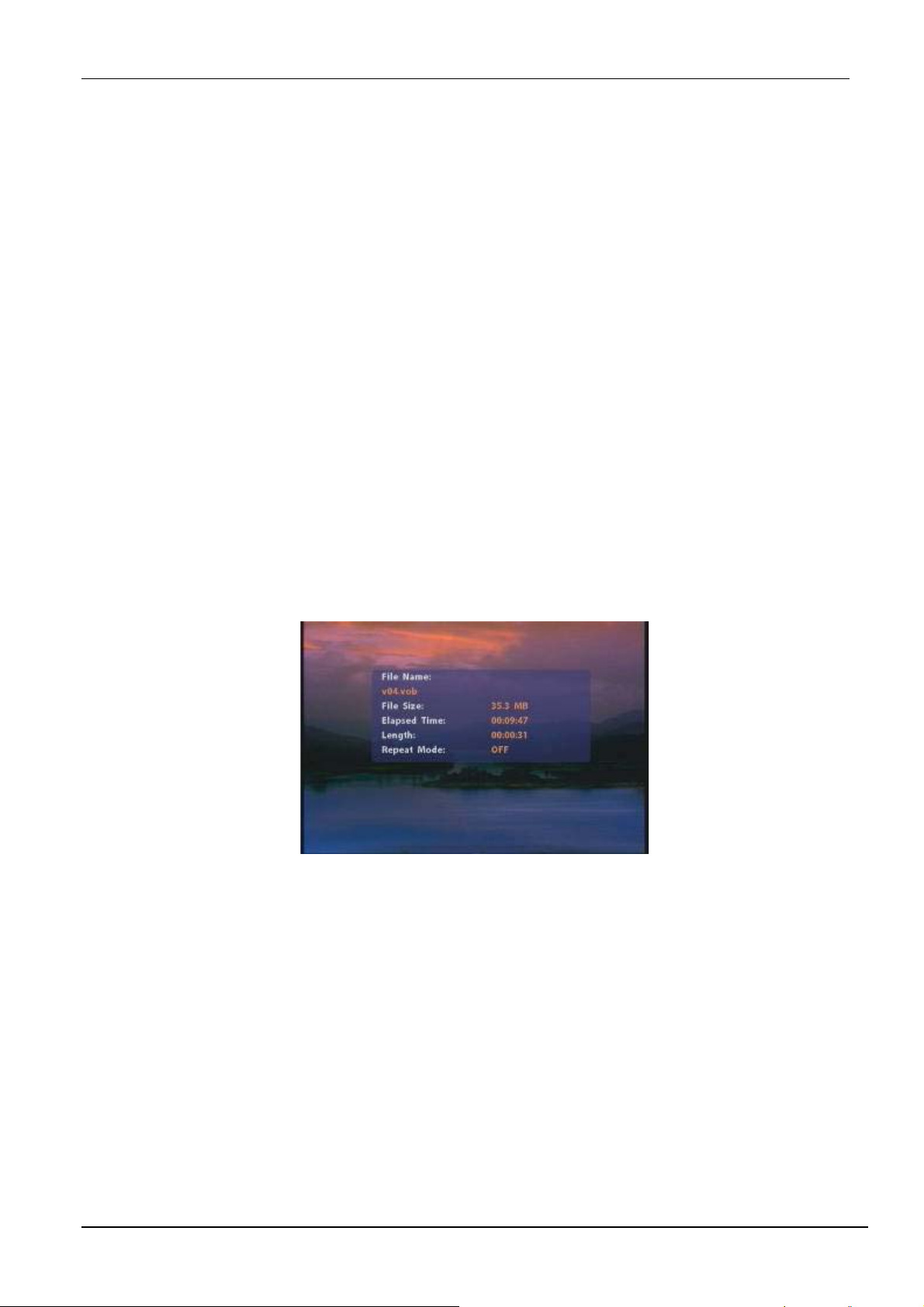

 INFO: Display the file information.
 SEARCH: Search video (movie) timeframe Press the “SEARCH” button, and enter the initial

time that you want to start at, then press the “ENTER” button to play.

- 20 -

Digital Signage Player User’s Guide ww.xtendlan.com

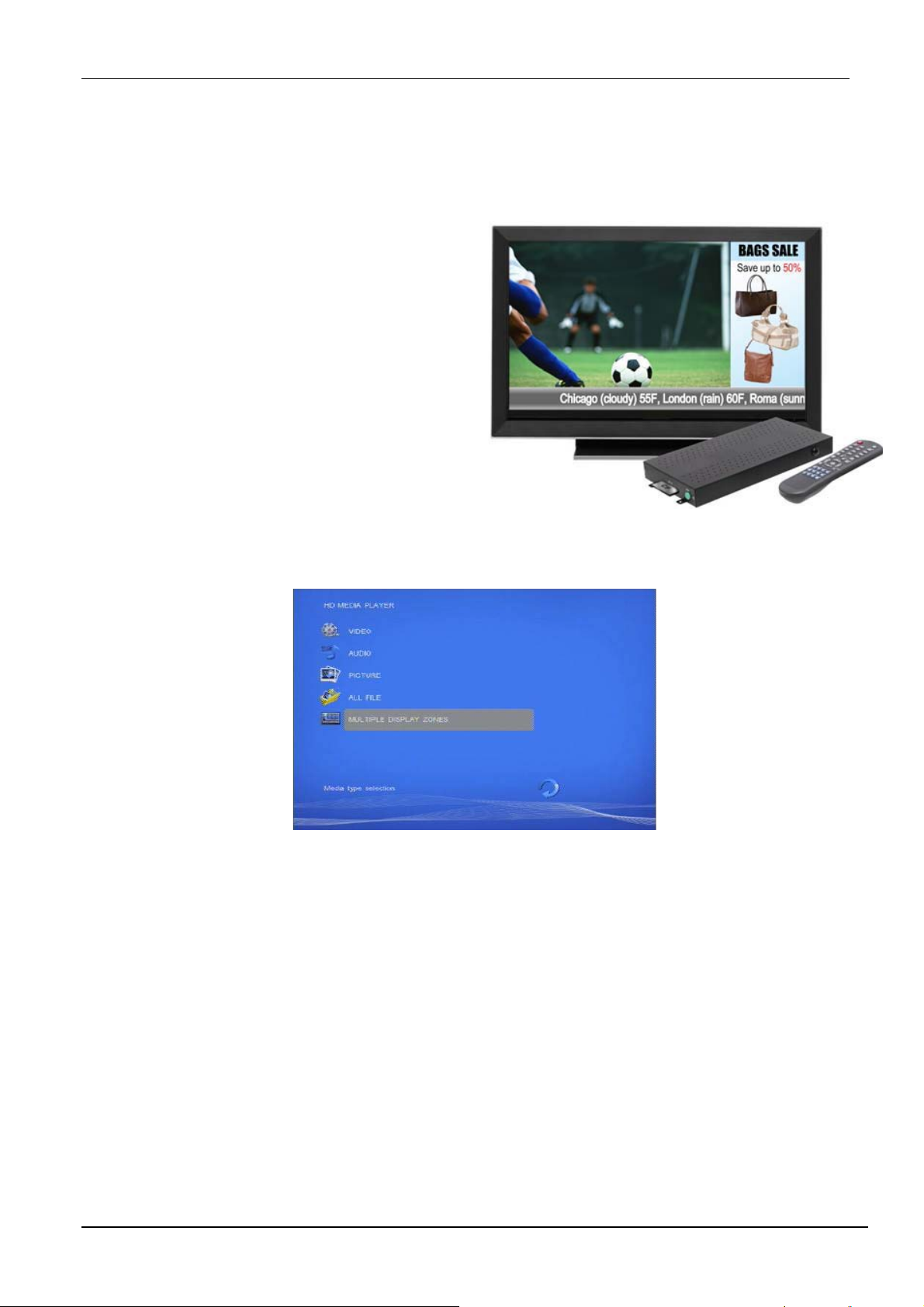

8.2. MULTIPLE DISPLAY ZONES

Step 1: Put movies, pictures (only supports PNG

format/ size: 213x641/ 96DPI) and text file on CF
card.

Picture Files

 If you select the “By Slide Time” item of

the picture slide mode; please name the
picture files 0.png ~9.png.

 If you select the “Match Video” item of the

picture slide mode, the file name of the
picture must be the same of the
corresponding movie file.

Text File

Use the “Notepad” to create a text file on your PC.
Enter the message that you want to display and
named the file “message.txt”.

Step 2: Select the Multiple Display Zones item to display the movies and pictures with scrolling text

immediately.

- 21 -

Digital Signage Player User’s Guide ww.xtendlan.com

8.3. FTP AUTO DOWNLOAD FUNCTION

Step1: Use the “Notepad” to create a commands file on your PC as shown below (you can refer to the
sample file (d0013fe100000) on the provided CD):

Sample:

Step2: Remember to save the file after editing, and named the command file d + MAC address.txt.

Example: The MAC address of XL-DSP-183C is 0013fe100000, and named the file d0013fe100000.txt.
NOTE: The MAC address of XL-DSP-183C will be displayed in the setup menu.

Step3: Put all the files (included media files/ command file (ex. d0013fe100000.txt/ schedule.ini/
message1.txt) to the FTP server. The XL-DSP-183C will read the command file (ex. d0013fe100000.txt),
and download the specified files.

NOTE: The filename of the media files in FTP server cannot have any spaces.

- 22 -

Digital Signage Player User’s Guide ww.xtendlan.com

Blinking Green Light – FTP connection ok and downloading

Blinking Red Light – FTP connection failed

Step4: The download status will be displayed in lower right corner of the screen
Blinking Green Light: Indicate connection to FTP is ok and device is downloading.
Blinking Red Light: Indicate the connection to the FTP server has failed.

- 23 -

Digital Signage Player User’s Guide ww.xtendlan.com

Commands description of file d + MAC address.txt.

[Interval]
30 1

[dlplay]
0

[time]
2009/08/21
10:40:01

[del]
on

[file]

001.mpg

002.mpg


schedule.ini
message1.txt

Initial time and interval time setting (for connecting to the FTP server and checking
whether the commands file is in the FTP server).
The first value is the Initial Time (unit: minutes)
The second value is Interval Time (unit: minutes)

Example 1: the current time of the device is 00:00 and the entered value is 25 6. The
device will connect to the FTP server and check whether the commands file in the
FTP server at 00:25, than again every 6 minutes (00:31, 00:37, 00:43, 00:49,
00:55…).

Example 2: the current time of the device is 00:10 and the entered value is 45 15. The
device will connect to the FTP server and check whether the commands file in the
FTP server at 00:45, than again every 6 minutes (01:00, 01:15, 01:30, 01:45,
02:00…).
Enable or disable the function (play files & FTP auto download simultaneously)

0: Disable the function (the speed of download will be faster)
1: Enable the function (the speed of download will be slower)

Set the time to restart the device after finish downloading (replace the downloaded
files).

NOTE:

1. Format: yyyy/mm/dd hh/mm/ss

2. This field can not be blank; otherwise device won’t restart nor play the downloaded
files.

Delete the original files on the CF card after finish downloading.
on: Delete the original files on the CF card
off: Keep the original files. Fines will be overwriten by a file of the same name.

Enter the filename you want to download.
Note: The length of file name and extension cannot exceed 20 characters.

The file schedule.ini is created by the Schedule Maker software.

The file message1.txt is a text file that can change scrolling text settings. Use the
“Notepad” to
create the text file on your PC as shown below, and named the file message1.txt (you
can refer to
the text file (message1.txt) on the provided CD).

- 24 -

Digital Signage Player User’s Guide ww.xtendlan.com

Commands description of file message1.txt.

[speed]
X1
[color]
White
[language]
Latin1
[background]
Off

[model]
Model1

[Slide]
ByTime

[png]
02



[text]
Welcome!!!

Set the display speed of the scrolling text.
Please enter X1, X2 or X3.
Set the scrolling text color.
Please enter White, Yellow, Green or Rotation.
Set the font of scrolling text.
Please enter Latin1, Latin2, Japanese or Greek.
Enable or disable the scrolling text
background.
On: Enable the background.
Off: Disable the background.
Set the model of the multiple display zone.

Model1: Play videos with scrolling text.
Model2: Play videos, pictures and scrolling text simultaneously, and the pictures are
on the left.
Model3: Play videos, pictures and scrolling text simultaneously, and the pictures are
on the right.

Set the picture slideshow mode.
ByTime: Change the pictures with the internal time.
MatchVideo: Change the pictures with the videos.
Enter the quantity and filename of pictures.
The first value is the quantity of picture.

Example: If there are two pictures. Please enter 02, and then enter the filename of the
two pictures (0.png and 1.png).

Enter the message that you want to display.

- 25 -

Digital Signage Player User’s Guide ww.xtendlan.com

8.4. RS-232 FUNCTION (RS-232 cable is optional)

Use the serial communication terminal tool “Tera Term” or other tools to control the XL-DSP-183C
with ASCII command.

NOTE:

1. The available baud rates is “19200”.

2. The reaction time of XL-DSP-183C is around three seconds.

3. Make sure the RS232 function is enabled (refer to section 7.5).

using the RS-232 cable (optional) to connect the XL-DSP-183C to your PC

Controling symbols:

q：POWER +：VOL + w：SLOW

R：RETURN -：VOL - >：NEXT

!：REPEAT *：MUTE <：PREW

~：SETUP S：SELECT u：UP

#：TV MODE p：PLAY p：PLAY

%：AutoPlay P：PAUSE/STEP l：LEFT

i：INFO x：STOP r：RIGHT

m：NTSC/PAL f：FFW s：ENTER

$：SEARCH b：REW C：CLEAR

(XXXXX.XXX)：Play The File (xxxxx.xxx is the file name)

NOTE：Must include the round brackets.
[number]: Play the file by index. (numbers < upper case letters < lowercase letter)

- 26 -

Digital Signage Player User’s Guide ww.xtendlan.com

9. WEB MANAGEMENT

To be able use web management of device please make sure that the XL-DSP-183C is already connected
to the network. (Refer to 7.1)

Confirm the “Local HTTP Server” function has been enabled, and the “Local HTTP Server Setup” set
has been completed (refer to 7.2).

Set your router or firewall, and open a port 80 for the XL-DSP-183C. The following figure is an
example, please refer to your user’s manual of router for opening ports.

Start Internet Explorer Browser on PC and type the HTTP site or IP:
In the local PC, please type “http://192.168.1.100”.
In the remote PC, please type “http://61.30.13.40:80”.
Type the “User Name”, “Password” and click “OK” to log on. (Default User Name: root Default
Password: admin)

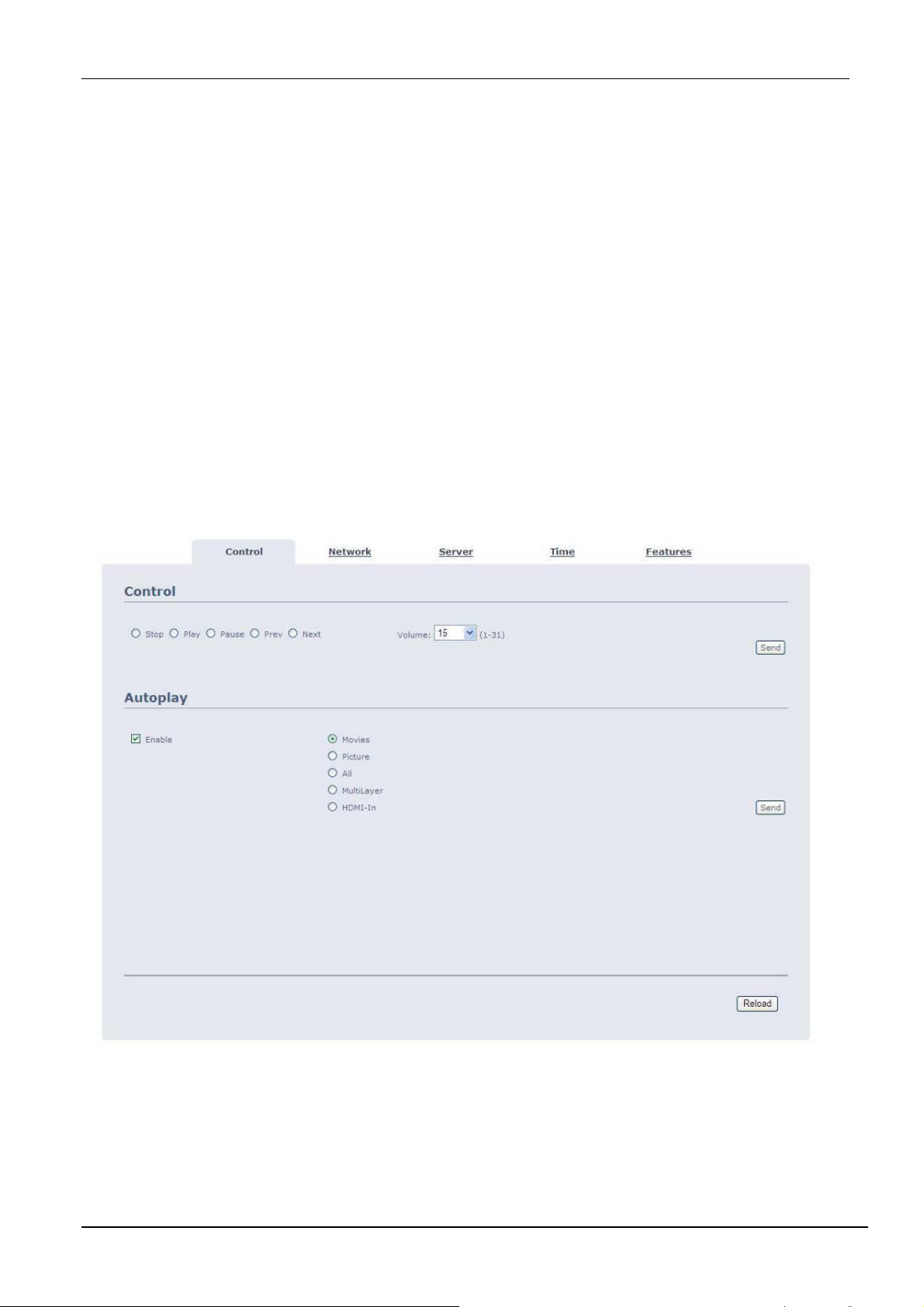

9.1. CONTROL

Control: Select one of the control command s, and press the “Send” to control the device immediately.

 Stop: Stop playback
 Play: Start playback.
 Pause: Pause the playback.

- 27 -

Digital Signage Player User’s Guide ww.xtendlan.com

 Prev: Play the previous file.
 Next: Play the next file.
 Volume: Adjust the volume.
 Autoplay: Select the auto play mode.
 Enable: Enable or disable the auto play function.
 Movies: Auto play movie files on the CF card after power on.
 Pictures: Auto play picture files on the CF card after power on (slideshow function).
 All: Auto play all the media files on the CF card after power on.
 Multi Layer: Directly execute Multiple Display function after power on
 HDMI In: Auto play the video from HDMI source after power on (only for model with HDMI

input XL-DSP-183CSMH).

9.2. NETWORK

 Network:

o Enable: Enable or disable the network function.
o Interface: Select your network connection Ethernet (wired) or Wireless.

 General Setup

o Enable DHCP: Enable or disable the DHCP function.
o IP/ Subnet/ Gateway/ DNS server: Enter the fixed IP address, Subnet, Gateway and DNS

for the XL-DSP-183C.

o Wireless Setup (only for models with wireless interface)

- 28 -

Digital Signage Player User’s Guide ww.xtendlan.com

o SSID: Enter the SSID.
o Encryption mode: Select an encryption mode.
o Key/ Passphrase: The key you enter here must match the password of the device exactly.

9.3. SERVER

 Download from FTP Server

o Enable: Enable or disable the FTP auto download function.
o Port: The default port for FTP is 21. In most cases you should not change this number. If

the FTP site uses a port other than 21, you should enter the correct port.

o IP address: Enter the domain name or IP address of the remote FTP server.
o Path: Enter the folder path that you want to share.
o User name: Enter the user name of the remote FTP server.
o Password: Enter the password of the remote FTP server.

 Local FTP Server Setup

o Enable: Turn on/ off the XL-DSP-183C server.
o Port: Enter the port of the XL-DSP-183C
o ID: Enter the user name of the XL-DSP-183C (default ID: root).
o Password: Enter the password of the XL-DSP-183C (default password: admin).

 FTP Server Address: Click on the address to directly connect to the XL-DSP-183C server. Enter

the user name and password (Default User Name: root, Default Password: admin) to log on.

- 29 -

Digital Signage Player User’s Guide ww.xtendlan.com

After logging on all the media files on the CF card will be listed. You can download and upload the

media files between CF card and your PC

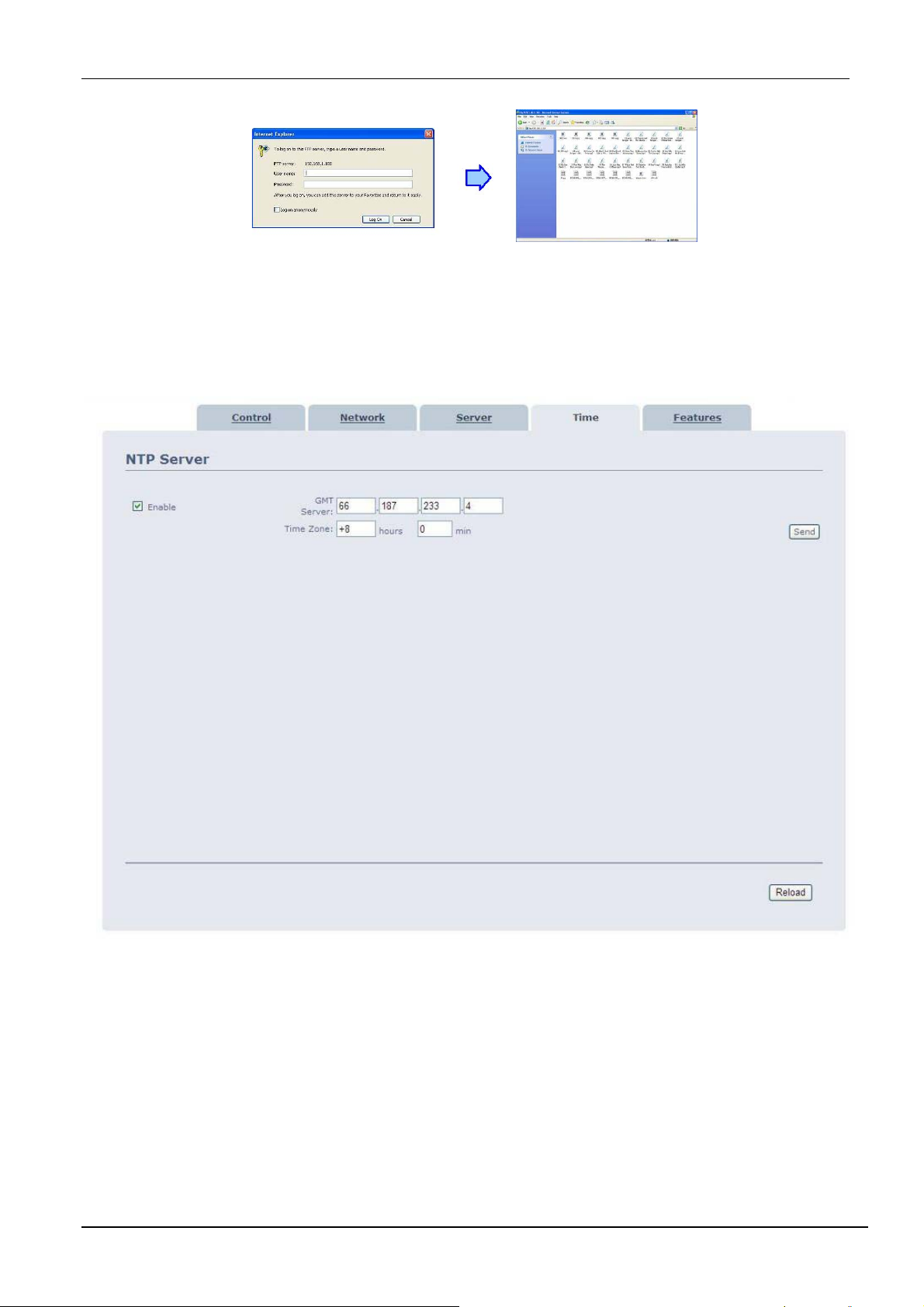

9.4. TIME

 NTP Server

o Time Zone: Set the time zone of your location.
o GMT Server: Enter the NTP server IP address like: 66.187.233.4.
o Enable: Enable or disable the NTP server function.

- 30 -

Digital Signage Player User’s Guide ww.xtendlan.com

9.5. FEATURES

 Web Interface

o Enable: Enable or disable the HTTP command function.
o Port: Enter the port of the XL-DSP-183C (default port: 80)
o User ID: Enter the user name of the XL-DSP-183C (default ID: root).
o Password: Enter the password of the XL-DSP-183C (default password: admin).

 Scrolling Text: Enter the message that you want to display, and press “Send” to display the

scrolling text message on the screen immediately (the message you entered through the http
function will not be stored on CF card).

- 31 -

Digital Signage Player User’s Guide ww.xtendlan.com

10. SCHEDULE FUNCTION

NOTE: The “NTP Server” or “Local Time” must be set before using the Schedule Function. (refer to

7.2)

10.1. INSTALL THE SCHEDULE SOFTWARE

Step1: Insert the CD into your CD-ROM drive, then the autorun function will start up the shell program.
If the autorun window does not display, please execute the Autorun.exe program to bring out the autorun
screen.

Step2: Click on the Install Schedule Maker to install the schedule software. Select the installation folder
and click Install to continue Installing Click Finish to complete the installation

Step3: After installing the schedule software, the “Schedule Maker” icon should appear on your
desktop. Or you could also find the shortcut of “Schedule Maker” by click on < Start > → < Programs >
→ < Schedule Maker 20090217 > → < Schedule Maker >.

10.2. START THE SCHEDULE SOFTWARE

You might double click the “Schedule Maker” icon on your desktop for opening the “Schedule
Generator”. Or you might click on <Start> → <Programs> → <Schedule Maker 20090217> → <
Schedule Maker > for starting the program.

There are two parts of program: “Basic Schedule” and “Advance Schedule” in the window.

- 32 -

Digital Signage Player User’s Guide ww.xtendlan.com

10.2.1. Basic Schedule

In the “Basic Schedule” mode, you could arrange a basic schedule that instructs the player to play
specified video files in the ordinary time. You could also set up the play times of each video file on the
schedule.

o Add: Click this button to choose a video file. The following diagram appears:

o Click on “Add Video In” button for instructing the player to play the HDMI input only (only

for XL-DSP-183C-4).

o Click the “Browser” button to search for files that you want to add. You can also set up the

“Play Times” and “Volume” of the file in this window. Click the “OK” button to complete
the setup.

o Click the “Add” button again to add other file. If you choose “Video In” in the previous step,

the “Add” button will be blank. That means you want the player to play the “Video In” in the
ordinary time. And if you’d like the player switching between the “Video In” and video files
in the specific time, you might combine a Video In Basic Schedule with an Advance
Schedule function.

o COPY Function: Click the “Copy to…” button to copy directly the added file to the memory

card.

o Modify: Click this button to modify the file in the list.

o Select the file that you want to modify in the list, and press the “Modify” button.
o Remove: Click this button to remove the file from the list. Select the file that you want to

remove from the list, and press the “Remove” button to delete.

o Move Up / Move Down: Click these buttons to change the order that the files are played.
o Press the “SAVE” button and a pop-up window will appear. Select the path, then click the

“SAVE” button to save your setup.

- 33 -

Digital Signage Player User’s Guide ww.xtendlan.com

NOTE: Do not rename the file (schedule.ini), otherwise the XL-DSP-183C will not be able to read
the file.

10.2.2. Advance Schedule

In the “Advance Schedule” mode, you can select files that you want to play, and can also set up the play
times, and the initial and end time of each file. There are “Time Setup” and “File Setup” in the
“Advance Schedule”.

Step 1: Click the “Add” button in the “Time Setup” section to open the “Advance Schedule Editor”
window. Set up the Start and Stop Date, Start and Stop Time and the Week Day, then click “OK” to quit
the window.

- 34 -

Digital Signage Player User’s Guide ww.xtendlan.com

Step 2: Click the “Add” button in the “File Setup” section to open the “Schedule File Editor” window.
Click the “Browser” button to select a file that you want to play. You can also set up the “Play Times”
of the file in the window. Click the “OK” button to complete the setup.

Step 3: Repeat the steps 1 and 2 to add other files.

- 35 -

Digital Signage Player User’s Guide ww.xtendlan.com

Step 4: After finishing all setup, press the “SAVE” button and a pop-up window will appear. Select the
path, then click the “SAVE” button to save.

NOTE: Do not rename the file (schedule.ini), otherwise the XL-DSP-183C will not be able to read
the file.

10.2.3. Explanation of the Warning Message

No any schedule!！Can’t Save!

There is no schedule file in the “Basic Schedule” or “Advance Schedule” can be saved. Please add and
edit a new schedule file first.

Date Setup Error!

There are some errors in the “Advance Schedule”. Check the date/ time of the schedule for conflict or
error.

No any schedule file in advance schedule!！Can’t Save!！

There is no schedule file in the advance schedule. Please add files that you want to play in the advance
schedule.

10.3. APPLY THE SCHEDULE FILE ON THE DEVICE

Put the “schedule.ini” file and the associated media files on the memory card, and insert the memory

card to the XL-DSP-183C. The XL-DSP-183C will auto play the files at the designated time.

- 36 -

Digital Signage Player User’s Guide ww.xtendlan.com

11. OPTIONAL AUXILIARY EQUIPMENT

11.1. PLAY-BUTTON BOX

The Play Button Box supports up to 12 play-button inputs. Press one of the play buttons to play the
corresponding file.

Hardware Connection

Play the Media File By the Play-Button

Example: 5 Play-Buttons (supports up to 12 play buttons)

o Step 1: Put 6 demo files on CF card. (1 default file and 5 demo files)

NOTE: The files are sorted by filename in ascending order alphanumerically (numbers < upper
case letters < lowercase letter). Each button is mapped to a file by this order.

It means for example： There are 6 demo files on the CF card. The file names are a01.xxx,

33.xxx, b55.xxx, 1abc.xxx, 07.xxx and A01.xxx. (xxx is extension of the file)

Default File：07.xxx

Demo File 1：1abc.xxx

Demo File 2：33.xxx

Demo File 3：A01.xxx

Demo File 4：a01.xxx

Demo File 5：b55.xxx

o Step 2: Insert the CF card to the XL-DSP-183C, and the XL-DSP-183C will play the default file

automatically while powered on.

o Step 3: Press one of the buttons 1-5 to play the corresponding demo file.
o Step 4: The XL-DSP-183C supports two options (Repeat Default / Repeat All) when the demo

file finishes playing. The functions can be set in the setup menu. (Other Setup → Play Button)

- 37 -

Digital Signage Player User’s Guide ww.xtendlan.com

o Repeat Default: The XL-DSP-183C will automatically play the default file when the

demo file finishes playing.

o Repeat All: The XL-DSP-183C will automatically play all the demo files when the demo

file finishes playing.

11.2. IR Cable

The IR cable is an external remote control receiver. Connect the IR Cable to the IR input.

11.3. PIR SENSOR

Application 1: The PIR Sensor is an external remote control receiver.
Application 2: The PIR Sensor is a motion detector.

11.3.1. Using the PIR Sensor

o Step 1: Set the repeat mode to the “Repeat Default”.

- 38 -

Digital Signage Player User’s Guide ww.xtendlan.com

o Step 2: Insert the CF card to the XL-DSP-183C, and the XL-DSP-183C will play the default file

automatically while powered on.

o Step 3: After sensing approaching subjects, the XL-DSP-183C will play all the demo files once.

11.4. TOUCH-SENSOR BUTTONS

o The number of touch-sensor buttons can be customized to 12, 24 or 36 for customer project.
o Used with various operating environment (glass, plastics and acrylic material, except metal

material), the thickness supports 3mm -5mm, and it can be customized to 5cm for customer
project.

- 39 -
