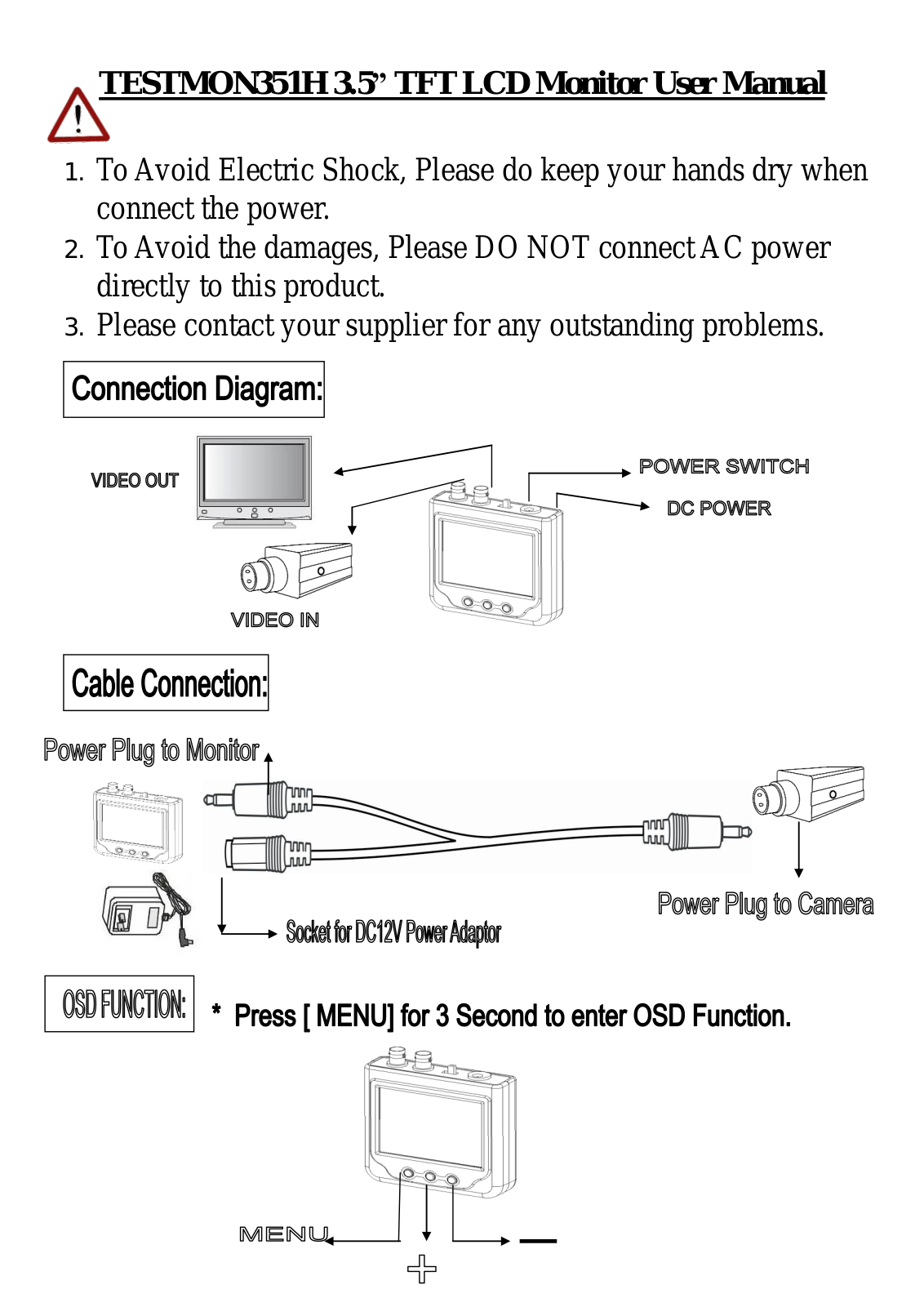

TESTMON351H 3.5” TFT LCD Monitor User Manual
1. To Avoid Electric Shock, Please do keep your hands dry when
connect the power.
2. To Avoid the damages, Please DO NOT connect AC power
directly to this product.
3. Please contact your supplier for any outstanding problems.

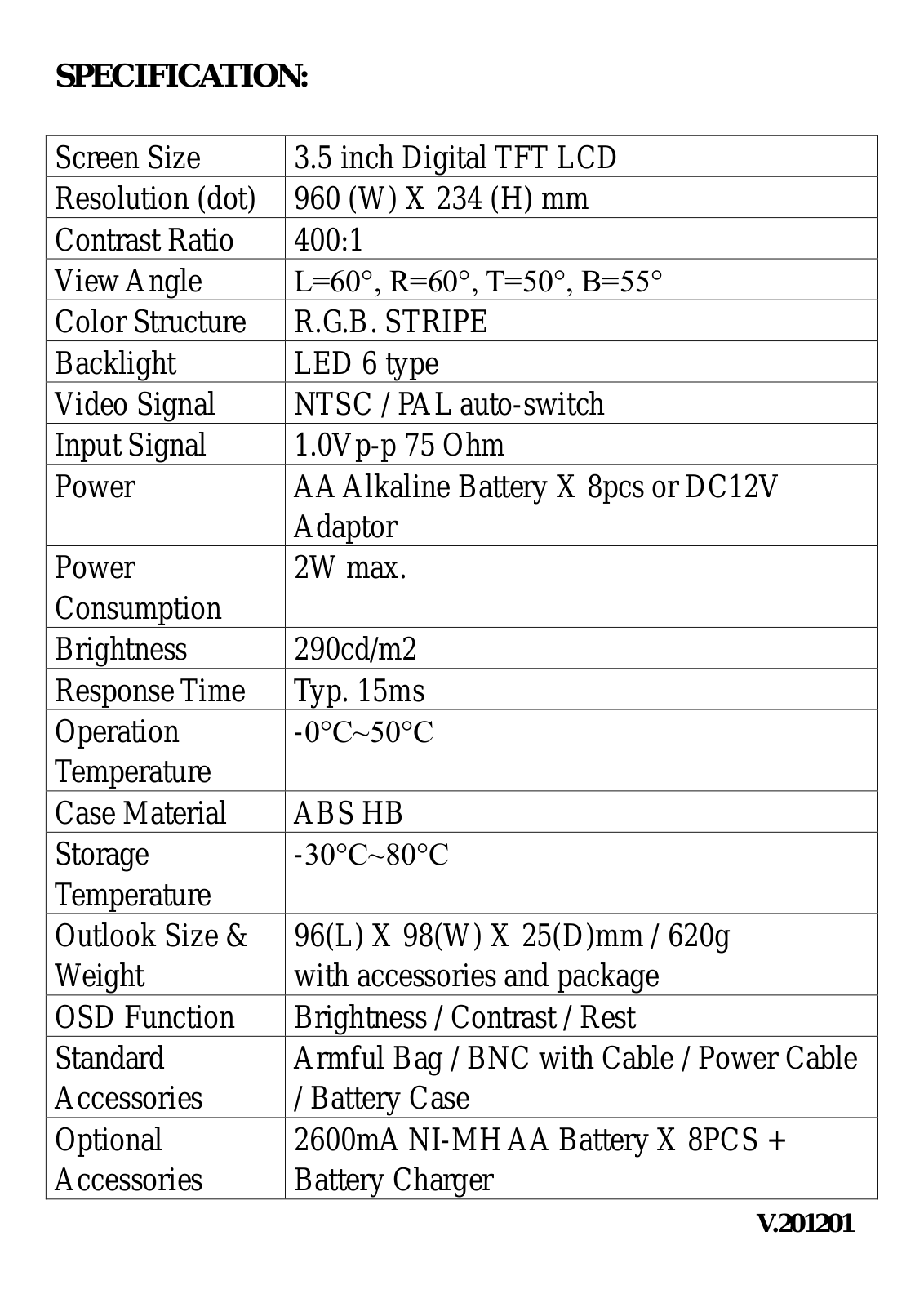

SPECIFICATION:
Screen Size
3.5 inch Digital TFT LCD
Resolution (dot)
960 (W) X 234 (H) mm
Contrast Ratio
400:1
View Angle
L=60°, R=60°, T=50°, B=55°
Color Structure
R.G.B. STRIPE
Backlight
LED 6 type
Video Signal
NTSC / PAL auto-switch
Input Signal
1.0Vp-p 75 Ohm
Power
AA Alkaline Battery X 8pcs or DC12V
Adaptor
Power
Consumption
2W max.
Brightness
290cd/m2
Response Time
Typ. 15ms
Operation
Temperature
-0°C~50°C
Case Material
ABS HB
Storage
Temperature
-30°C~80°C
Outlook Size &
Weight
96(L) X 98(W) X 25(D)mm / 620g
with accessories and package
OSD Function
Brightness / Contrast / Rest
Standard
Accessories
Armful Bag / BNC with Cable / Power Cable
/ Battery Case
Optional
Accessories
2600mA NI-MH AA Battery X 8PCS +
Battery Charger
V.201201
