Extensive HD-SDI Video Signal Accessory
MI2HD-101
HD2MI-101
HD-SDI Video
Signal Accessories
User`s Manual
The List of Configuration
MI2HD-101
(HDMI to HD-SDI
Converter)
HD2MI-101
(HD-SDI to HDMI
Converter)
MI2HD-101
Introduction
MI2HD-101 is HD signal converter which converts video signal between HDMI and HD-SDI. It converts the high
resolution of HDMI sources to SMPTE 292M, standard HD-SDI signal.
Features
Convert HDMI to HD-SDI
Convert HDMI and component input to HD-SDI SMPTE 292M
Full HDMI Support Including Embedded Audio
Equalized HDMI Input Supports Long HDMI Cables Up to 30m, 24 gauge
HDMI v1.3 Standard
HD-SDI SMPTE 292M Support(1080p, 1080i or 720p)
Low Power Consumption: Free Voltage 12VDC, 1A
Compact Size & Light Weight
Technical Specification
Model
MI2HD-101
Input
HDMI
Component Input
Input Formats
1080p 24/25/30
1080i 50/60
720p 50/60
Output
HD-SDI SMPTE 292M
Output Formats
1080p 24/25/30
1080i 50/60
720p 50/60
Power Consumption
Free Voltage 12VDC, 1A
Dimension
83.75mm x 31.75mm x 87.07mm / 3.35inch x 1.27 x 3.48 inch
HDMI Connector
HDMI Female
HD-SDI Connector
BNC Female
Unpacking
This equipment is an electronic appliance, so it should be handled with special care.
Service
If there is any problem in the product, please refer to the supplier or the distributor with qualified service personnel.
System Dimension Diagram
HDMI In/Out and HD-SDI In/Out Connections
Connect a „HDMI OUT‟ from the device to ‘HDMI IN’ of MI2HD-101 using by HDMI cable.
Connect a „HD-SDI OUT‟ from MI2HD-101 to „HD-SDI IN‟ of HD-SDI device using by 75 ohm coaxial cable.
Video Component Input
If users wish to link video component input (e.g. Divx, etc), assure that video component input and “COMPONENT IN”
connections are connected properly with same colors.
Power Supply Connections
Plug the power supply adapter (DC 12V, 3.33A) which is included in this product to ’DC12V’ connector and plug another
side to power source and Input voltage is a free volt (100 VAC ~ 240 VAC).
Cable
75 ohm coaxial cable
HDMI cable
Component cable
LEDs
KEYS
Operating mode
Power LED
(Red)
• Light off: Converter off
• Light on: Converter on
Connection LED
(Green)
• Light off: Not connected
• Light on: Connected
HD2MI-101
Introduction
HD2MI-101 is HD signal converter which converts video signal between HD-SDI and HDMI. It converts the HD-SDI video
to HDMI signal.
Features
Convert HD-SDI to HDMI
Equalized HDMI input supports long HDMI cables up to 30m, 24 gauge
HDMI v1.3 standard
HD-SDI SMPTE 292M support(1080p, 1080i or 720p)
Free voltage 12VDC, 1A
Compact Size & Light weight
Technical Specification
Model
HD2MI-101
Input
HD-SDI SMPTE 292M
Input Formats
1080p 24/25/30
1080i 50/60
720p 50/60
Output
HDMI
HD-SDI Loop Output
Output Formats
1024 x 768
720p 60
1080p 30/60
Power Consumption
Free Voltage 12VDC, 1A
Dimension
83.75mm x 31.75mm x 87.07mm / 3.35inch x 1.27 x 3.48 inch
HDMI Connector
HDMI Female
HD-SDI Connector
BNC Female
Unpacking
This equipment is an electronic appliance, so it should be handled with special care.
Service
If there is any problem in the product, please refer servicing to a supplier or a distributor with qualified service personnel.

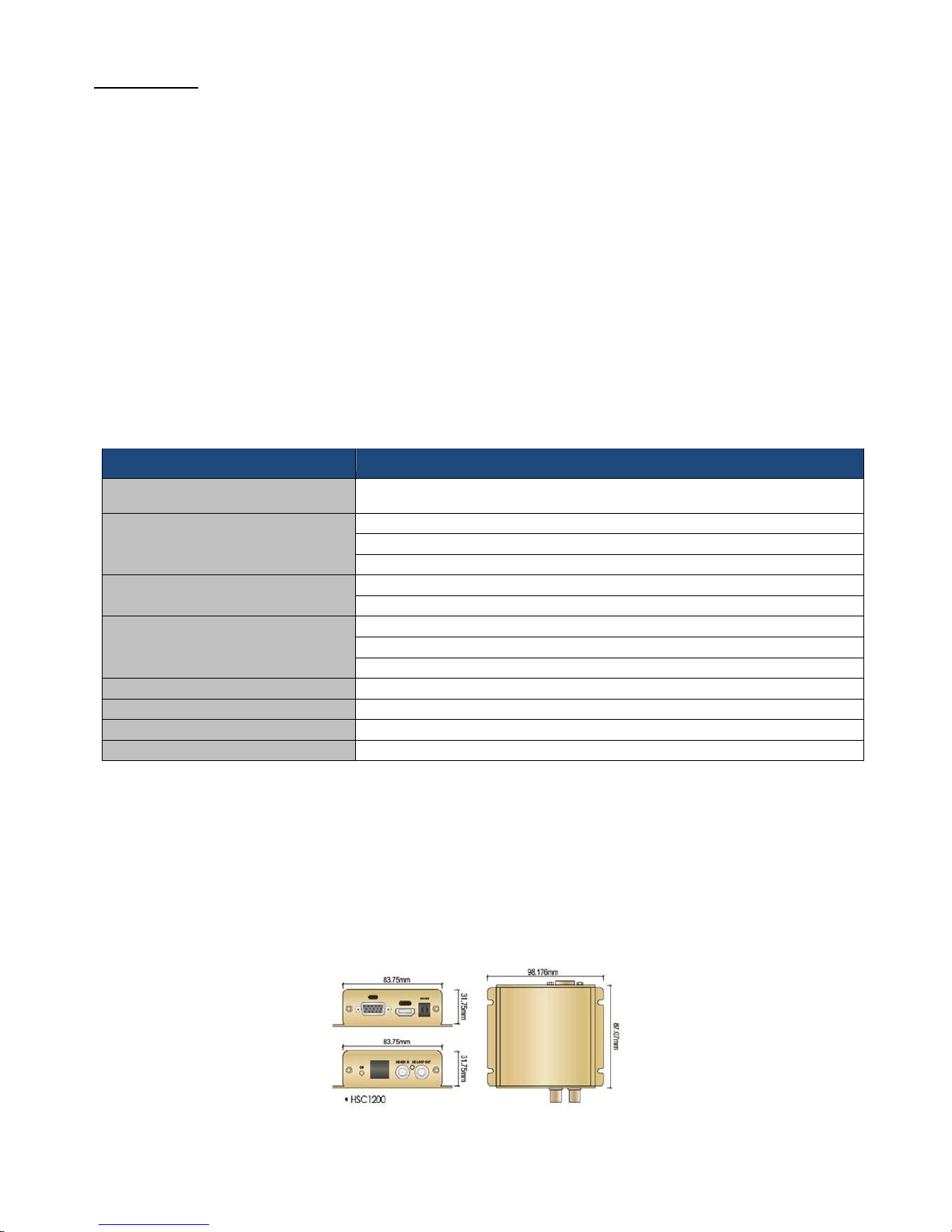

System Dimension Diagram
Connector Wiring
HD-SDI In/Out and HDMI In/Out Connections
Connect a „HD-SDI OUT‟ of HD-SDI device to „HD-SDI IN‟ of HSC 1200 using by 75ohm coaxial cable
Connect a „HDMI OUT‟ of HSC 1200 to „HDMI IN‟ of device with HDMI output using by HDMI cable’
Video Component Input
If users wish to link video component input (e.g. Divx, etc), assure that video component input and “COMPONENT IN”
connections are connected properly with same colors.
Power Supply Connections
Plug the power supply adapter (DC 12V, 3.33A) which is included in this product to ’DC12V’ connector and plug another
side to power source and Input voltage is a free volt (100 VAC ~ 240 VAC).
Cable
75 ohm coaxial cable
HDMI cable
VGA cable
NO TE
The cables above are not included in the package.
Operation Key and Screen Display Information
Operation Button
(No. of pushing times)
First Digit No. Output resolution
2 1 OUT_1024x768
3 2 OUT_1280x720p_60Hz
4 3 OUT_1920x1080_30Hz
Initial Status
4
OUT_1920x1080_60Hz, (default)
1
5
OUT_1920x1080_60Hz_RB
(NO TE)
Operation button: When operation button is pressed, output resolution is changed. Please note that the number shown in the
operation button is the time that users need to press the button.
Second Digit No.
Input resolution
-
No input detected
1
IN_1280x720p (max. 60 frames)
2
IN_1920x1080i(50 or 60 field)
3
IN_1920x1080p(30 frame only, doesn’t support 60 frame)
(NO TE)
Input resolution depends on the input signal
(NO TE)
Please note that this device has the same function as HD-SDI repeater that extends the signal transmission distance up to
150m.
