XtendLan DVR-HE401 User Manual

Download

DVR-HE401

client software manual

Content

1 Brief Introduction ························································ 4

1.1 System Requirements ····················································· 4

1.2 Agreements: ·································································· 4

2 Install and Uninstall ······················································ 4

2.1 Install ··········································································· 4

2.2 Uninstall ······································································· 7

3 Software Running························································· 8

3.1 Running and Login ························································· 8

3.2 Software Interface Introduction ········································· 10

4 Device Management ···················································· 11

4.1 Device Tree Configuration ··············································· 12

4.2 Group Tree Configuration ················································ 17

5 Image Preview ··························································· 20

5.1 Preview by Non- cruise in Turn ········································· 20

5.2 Preview by Cruise in Turn ··············································· 21

5.3 Preview Control ···························································· 21

5.4 Sound Control ······························································ 21

5.5 Other Functions: ··························································· 22

6 PTZ Control ····························································· 22

6.1 PTZ Control ································································· 22

6.2 Track ·········································································· 22

6.3 Preset Point Setting ······················································· 22

6.4 Cruise ········································································· 23

6.5 Screen Adjustment ························································ 23

7 Recording and Playback··············································· 23

7.1 Client Local Recording ··················································· 23

7.2 Remote Playback ·························································· 24

7.3 Local Playback ····························································· 27

8 Server-side Configuration ············································· 27

8.1 System Information Configuration ····································· 29

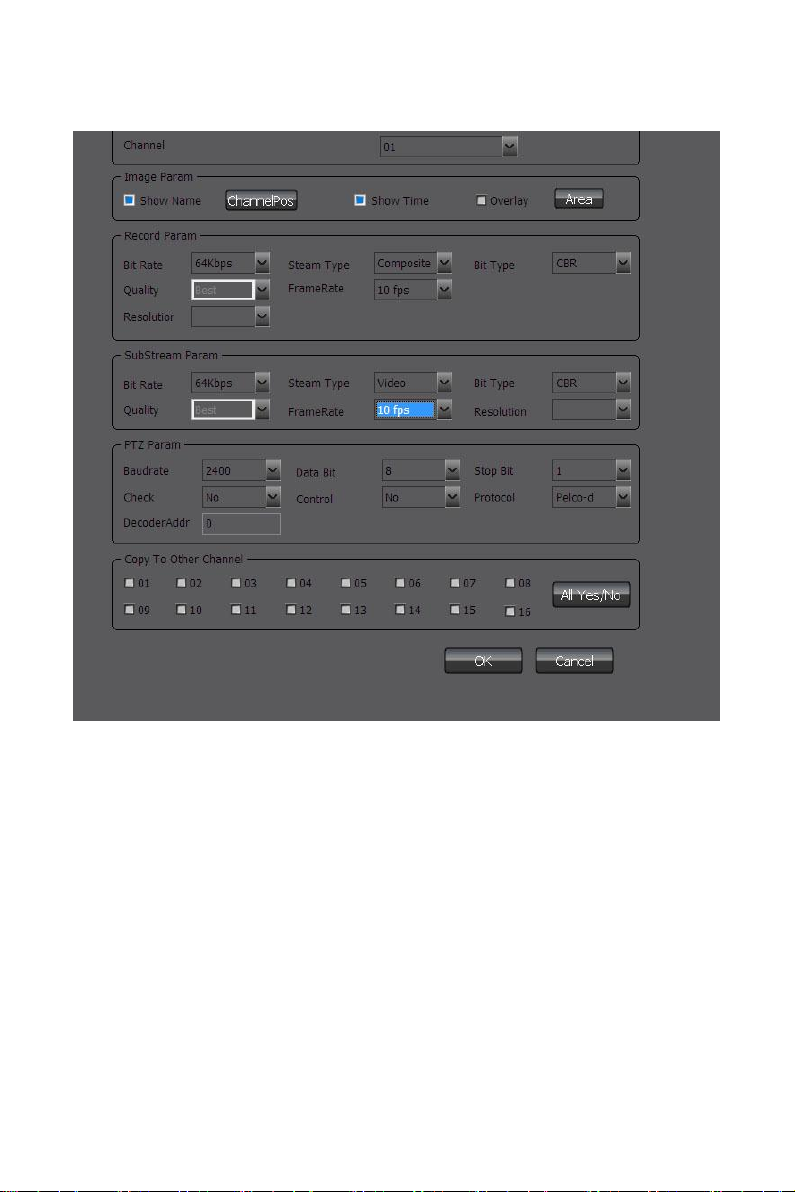

8.2 Channel Information Configuration ···································· 30

8.3 Alarm Information Configuration ······································· 31

8.4 User Management Configuration ······································ 32

8.5 Recording Defnce·························································· 33

8.6 Video Detection Configuration ·········································· 34

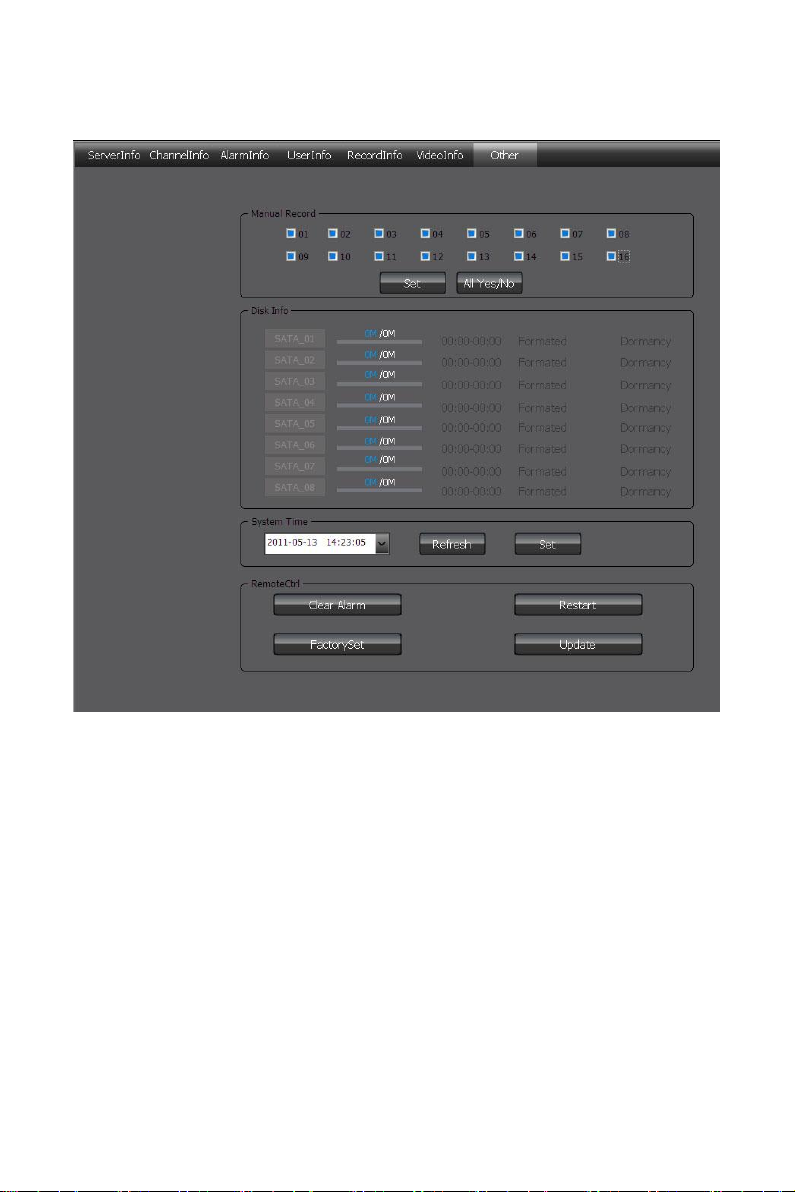

8.7 Other Configuration ······················································· 35

9 Client Configuration ··················································· 36

9.1 Local Configuration ························································ 36

9.2 Recording Configuration ················································· 37

9.3 Alarm Link ··································································· 38

10 Log ······································································· 38

1 Brief Introduction

1.1 System Requirements

 Operating System: window 2000 and above  CPU：Intel Pentium 2.4G and above  Internal Memory: 512M and above  Display: Support 1024*768 and higher resolution  Video Card: Support direct draw acceleration and start

1.2 Agreements:

 In order to simplify the descriptions in this manual, some

descriptions are described as follows:

 Client software is described as software  DVR, DVS are collectively referred to as device  Click is left mouse button click  Double-click is left mouse button double-click  Right mouse single-click is right mouse button click

2 Install and Uninstall

2.1 Install

 Double-click “DVRClientSetup.exe” procedure,  click “OK” button,

 Click “Next” button,

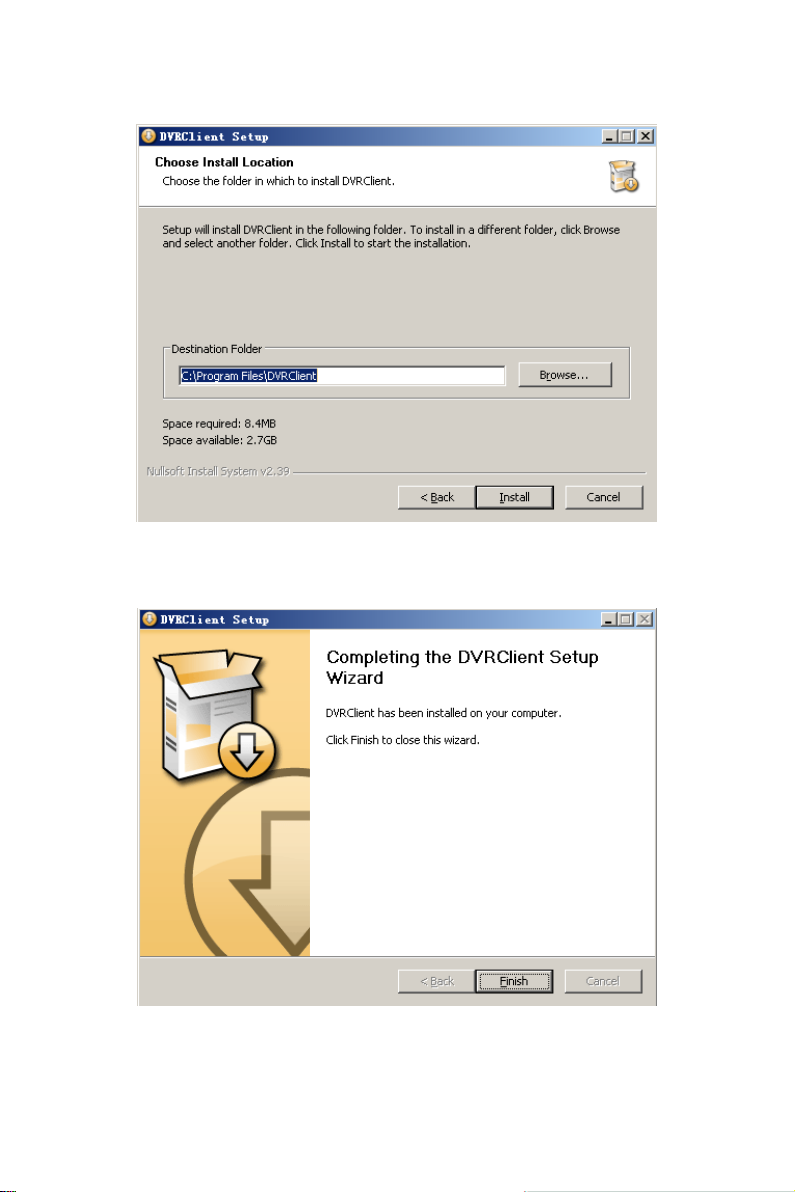

 Click “Install”

 Click “Finish”. Successfully install.

2.2 Uninstall

 Click “Start”  “Procedure”  “DVRclient”  “Uninstall” in the

lower left corner of the computer.

 Click “OK” button.

 Click "Uninstall" button.

 Click “Close” button. Uninstallation is complete.

3 Software Running

3.1 Running and Login

3.1.1 Run the Software

 Double-click the “DVRclient” shortcut to run the software.

3.1.2 Register Super User

 When using the software for the first time, you need to register a

super-user. A dialogue box will be displayed as follow:

 Input user name, user password and confirm password. The

password is at least 6 digits and must match with the confirm password, and then click “OK”.

 A dialogue box will pop-up if the registration is successful.

3.1.3 Login

 Choosing the user name and inputting the password and then

clicking “OK”, you will enter the procedure. Ticking off “Auto logon”, the login window will not appear next time.

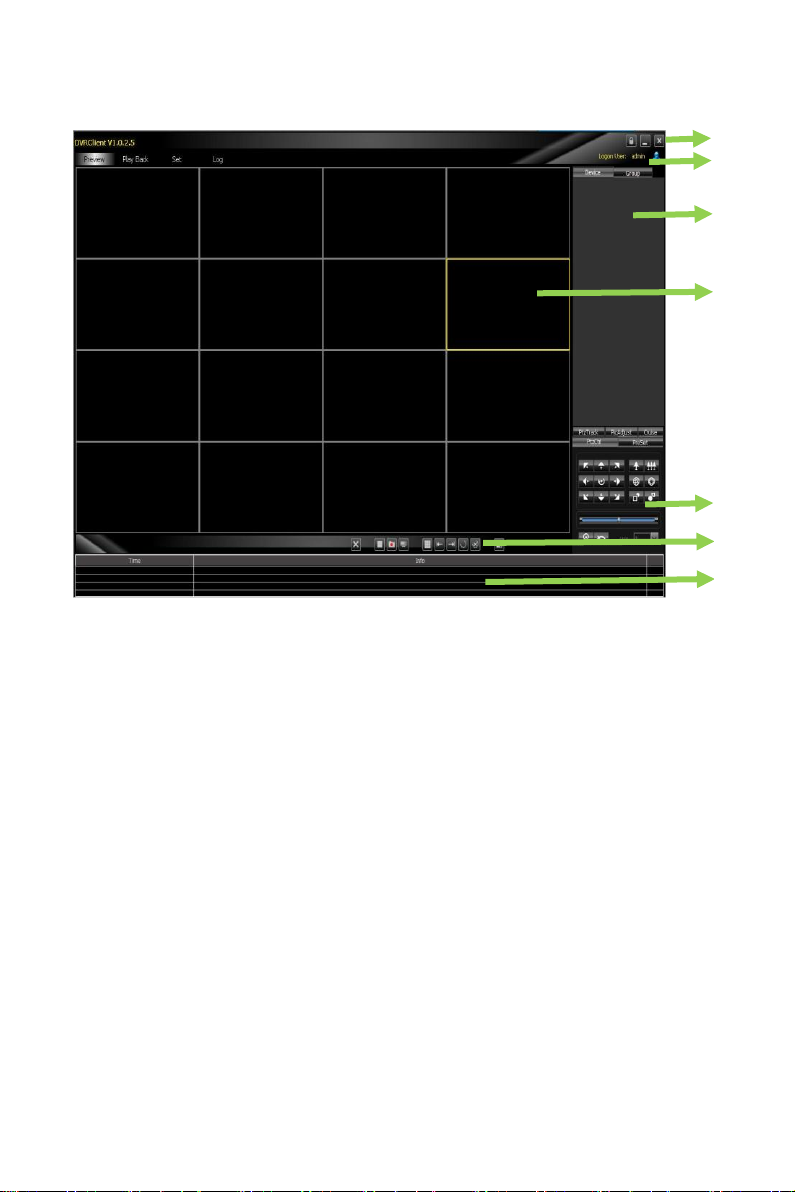

3.2 Software Interface Introduction

②

③

⑤

④

⑦

⑥

①

Software Interface Instruction

 ① System Button Bar: You can lock the interface, minimize

the window to the task bar and close the procedure.

 ② Tab Bar: Includes each functional module of the software

 Preview: You can preview the device in real time.  Playback: Remote playback and local video playback.  Configuration: Device management, remote device

configuration and local parameter setting

 Log: Local and remote log search.  Map: E-map

 ③ Device Tree: Display each device and group which is used to

add management.

 ④ Preview Display Window: Preview display window of each

device channel in real time.

 ⑤ PTZ Control Window: You can control the PTZ and adjust

the image.

 ⑥ Preview Control Bar: Controls preview stop, client recording,

screenshot, switching screen mode, full screen display, rotation training, etc..

 ⑦ Alarm Information List: Displays the short line information

of the device and other alarm information

4 Device Management

 Before operating by using the software, you need to operate

adding and configuration on the device. Click “Configuration” on the tab bar and enter the configuration mode.

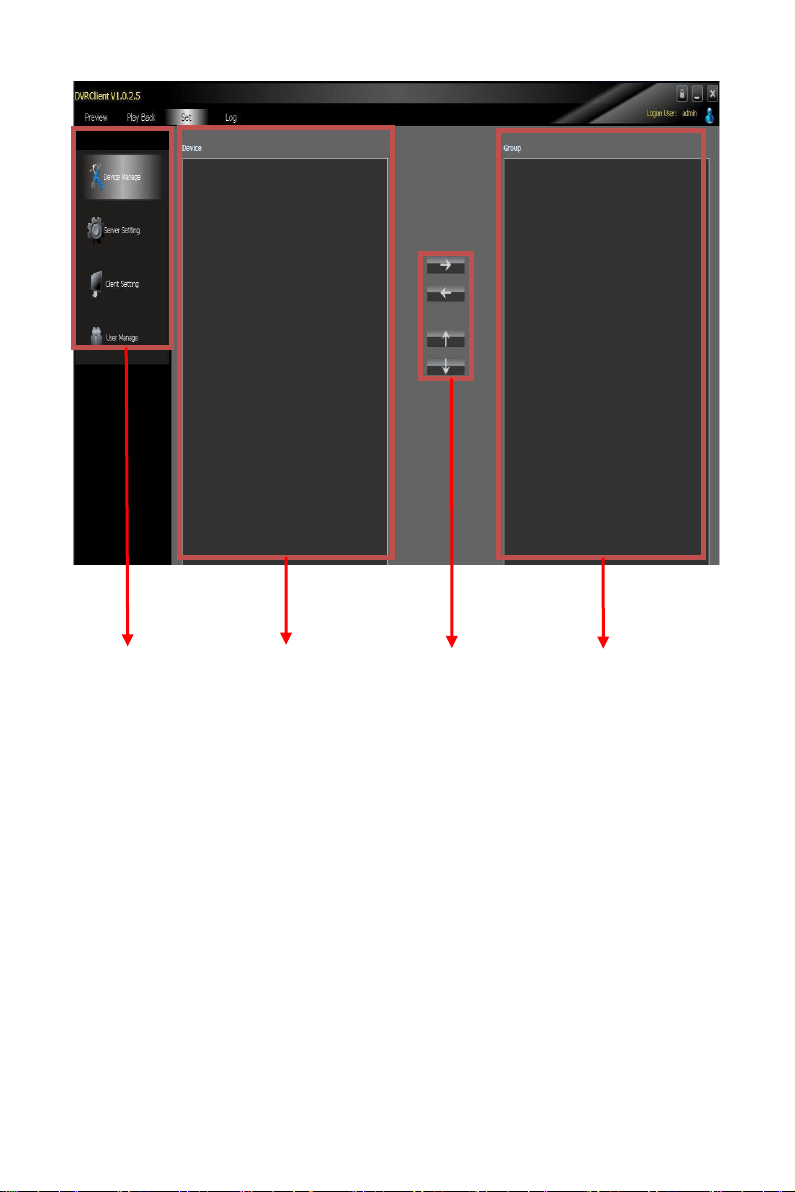

 Click “Device Manage” on the left navigation bar and you can

enter the device management interface.

① ② ③

④

Interface Instruction:

① Navigation Bar ② Device Tree ③ Group Control ④ Group Tree

4.1 Device Tree Configuration

 When the software runs at the first time, the list tree is empty by

default. Right-clicking any blank area on the list tree, you can add area.

 Fill in the name on the area name bar and click “OK”, you can add

an area to the list tree. As the area added is the first area, there is no superior area in this area, so the superior area name bar is empty.

 When adding the area is complete, right-clicking the nodal point of

the area, you can add sub-area and device.

 Right-click the area added and pop-up the area management

menu.

 Choose “Add Sub-area”, you can add sub-area.  Choose “Delete Area”, the selected area will be deleted.

Note: If there are other areas, devices and channels under the delete area, the delete operation will not only delete the selected area but also delete all the areas, devices or channels under this area; if there is any channel which is previewing or recording under this area, a warning message will send out.

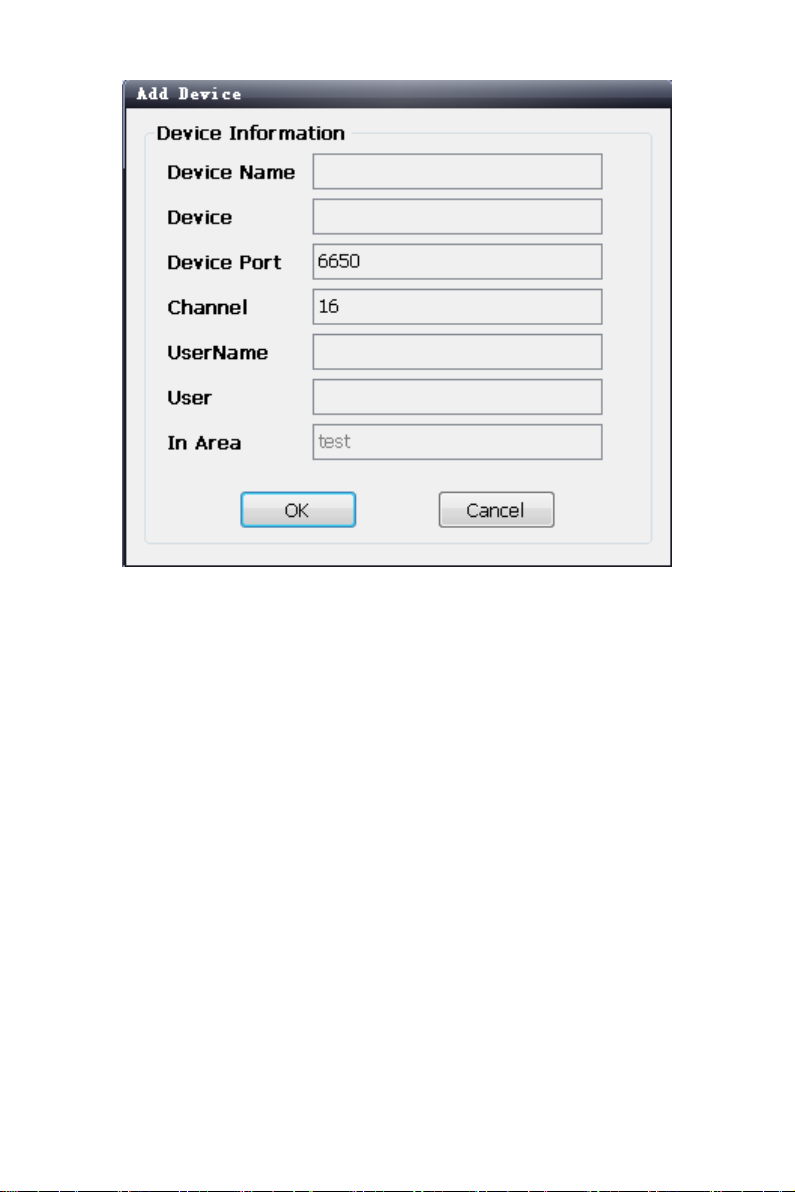

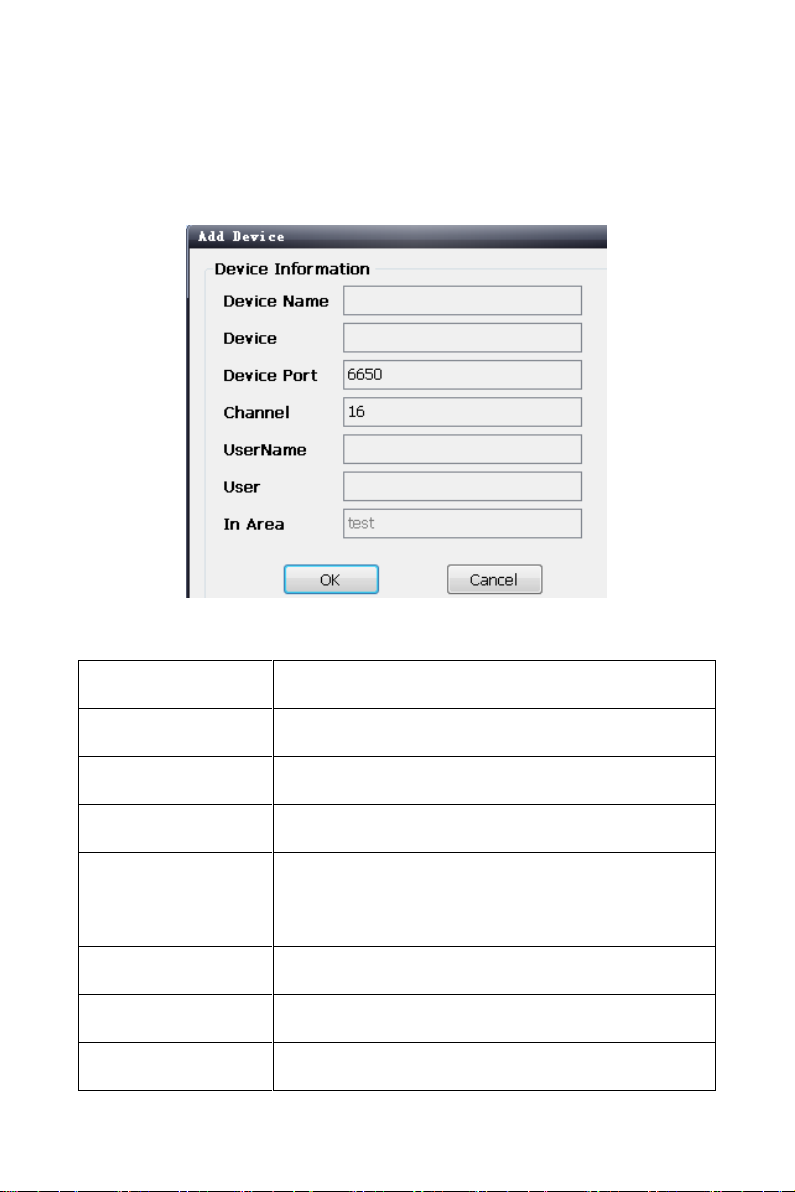

4.1.1 Add Device Manually

Option

Instruction

Device Name

The device name added can be user-defined

Device Address

The IP or domain address of the device

Device Port

The number of the device port

Channel Number

Please fill in the channel number of the device according to the actual situation

User Name

The registered user name of the device

User Password

The user name and password of the device

Area

The area name where the device exists

 Right-click the area added, pop-up the area management menu,

and choose “Add Device”.

4.1.2 Search the Online Device within the LANs

 Right-click in any area/ nodal point of the sub-area, click

“Search Device” on the menu item, search the online device with the same LANs.

 Choose one device, click “Add Device”

 Modify the device name in the pop-up device information box

so that the device name will not appear repeatedly.

 Fill in the user name and password of the device which will

 Then add other devices continuously.

4.2 Group Tree Configuration

 If there is no any nodal point on the group tree, you need to

add the nodal point first.

 Right-click the display group management menu on the blank

area of the group bar, click “Add Group”.

 Fill in the group name, click “OK” to add group.

 After successfully adding the group, you can add the nodal

point of the channel on the list tree to the selected group.

 Select the nodal point of the channel on the list tree; clicking

“Add” on the configurable button bar of the device configuration window will add the selected channel to the selected group of the group tree. The channel name will display in the form of “Device Channel Name”. After a channel added successfully, the list tree will select the nodal point of the next channel automatically.

 Select the device on the list tree; clicking “Add” on the

configurable button bar of the device configuration window will

 add all the channels of the selected device to the selected

group. After add all the channels of device successfully, select

the window and then select the next nodal point of the device of the list tree.

 Use the “Up” and “Down” button on the configurable button bar

of the device configuration window to adjust the order of the nodal point of the channel under the group.

 Select the nodal point of the channel on the group tree; clicking

“Delete” button on the configurable button bar of the device configuration window will delete the selected channel from the group. After the channel is deleted, the group tree will select the next channel of the group automatically.

 Select the nodal point of the group on the group tree, click

“Delete” button on the configurable button bar of the device

configuration window to display warning message dialog box.

Click “OK”, then the nodal points of all the channels of the

selected group will be deleted.

Note: A group cannot add a same channel repeatedly, but can be added to different groups at the same time.

5 Image Preview

5.1 Preview by Non- cruise in Turn

 Double-click to Start Preview: Clicking a play window on the

play panel, the frame of the selected window will become light blue. Double-click a channel on the device list or group; this channel will play on this window.

 Drag to Start Preview: Drag a channel on the device list or

group to any play window, this channel will play on this window and it will be under selected status.

 Stop Preview: Right-clicking play window, the menu appears,

click “Stop Preview” or click “Stop” button on the preview control bar.

5.2 Preview by Cruise in Turn

 Drag the nodal point of the device or the group directly to the

play window to start playing by cruise in turn.

 Whether start cruise in turn and time of cruise in turn are set on

the client setting page.

5.3 Preview Control

 Stop: Stop the preview of the current selected window.

 Recording: Click the recording button and start the client

recording of the current selected play window, click again to stop recording.

 Screenshot: Save the screenshot of the current selected play

window.

5.4 Sound Control

 Right-click on the play window, pop-up the play menu;

choosing “Turn on Sound”, the audio preview of this window will be opened. Right-clicking and choosing “Turn off Sound” will close the preview.

Note: The software can only open the audio of one window at the same time. If turning on the sound of the next window, the audio of the last window will be turned off automatically.

5.5 Other Functions:

 Double-click to Enlarge: Under the multi-screen mode,

double-clicking the play window will enlarge the window; clicking again will return.

 Screen Mode: Can switch multi-screen mode.

 Full Screen: Hide part of the program in order to maximize

the panel of the play window.

 Last Page, Next Page: Displays the remaining windows under

the current window mode. There are 64 preview windows totally. One page displays each time. The number of the window on each page depends on the screen mode.

6 PTZ Control

6.1 PTZ Control

 Controls the auxiliary functions including the PTZ rotation

direction, speed, aperture, focal length, focus, light and windshield wiper etc.

6.2 Track

 Set and control the PTZ track

6.3 Preset Point Setting

 Set PTZ preset point

6.4 Cruise

 Set the PTZ cruise point and path

6.5 Screen Adjustment

 Set the screen brightness, contrast ratio, chromaticity and

saturation

7 Recording and Playback

7.1 Client Local Recording

 Client recording includes manual client recording and plan

recording

 Client Manual Recording: Click recording on the preview

control bar will start recording.

 Plan Recording: Set the plan recording time on the client

configuration page.

 Set the path and package size of all the client recording on the

client setting page.

7.2 Remote Playback

 Clicking the “Playback” button on the software tab bar,

choosing “Remote Playback”, you will enter the remote playback interface.

7.2.1 Remote Video File Search

 Selecting the device to be searched from the right device tree,

and selecting the channel to be searched on the below search panel, then choosing the recording type and start time, clicking

“File Search”, the file search result will appear. On the right of

the search result, you can control page turning and jumping.

7.2.2 Remote File Playback

 Select the window which will play playback file. Selecting file in

the search result, double-clicking or clicking the “File Playback” on the right, the file will start to playback.

 Choosing the search condition, clicking “Playback by Time”,

the video can playback by time.

Note: Maximum support 4 channels when playback by time. When switching to playback from the start time, all the playback windows will be stopped and it will start playing back again.

7.2.3 Remote File Download

 Selecting file in the search result, clicking the “File Download”

on the right, the file will start downloading. The progress bar will appear below.

7.2.4 Playback Control

 Selecting the window to be controlled, the playback control bar

will display the current progress and rate of the current video. Drag, pause, stop, screenshot, mute, rate control can be operated on the selected playback file. Clicking “Stop All” will stop all the playback windows.

7.3 Local Playback

 Clicking the “Play Back” button on the software tab bar,

choosing “Local Playback”, you will enter the local playback interface. Search playback and control are consistent with the remote playback operation. Local playback file cannot download and the file type is not optional.

8 Server-side Configuration

 Click “Configuration”-“Server-side Configuration” and enter the

server-side configuration interface.

 Select the page to be configured on the right device tree. After
