XtendLan DVR-3270PKD User Manual

Download

DVR-3270PKD

DVR

User’s Guide

Table of Contents

1 FEATURES AND SPECIFICATIONS.................................................................. 1

1.1 Overview .................................................................................................................................................1

1.2 Features..................................................................................................................................................1

1.3 Specifications .........................................................................................................................................2

1.3.1 1.5U Series ........................................................................................................................................ 2

1.3.2 2U & 3U Series.................................................................................................................................. 5

2 OVERVIEW AND CONTROLS .........................................................................10

2.1 Front Panel ...........................................................................................................................................10

2.1.1 1.5U series.......................................................................................................................................10

2.1.2 2U series .......................................................................................................................................... 11

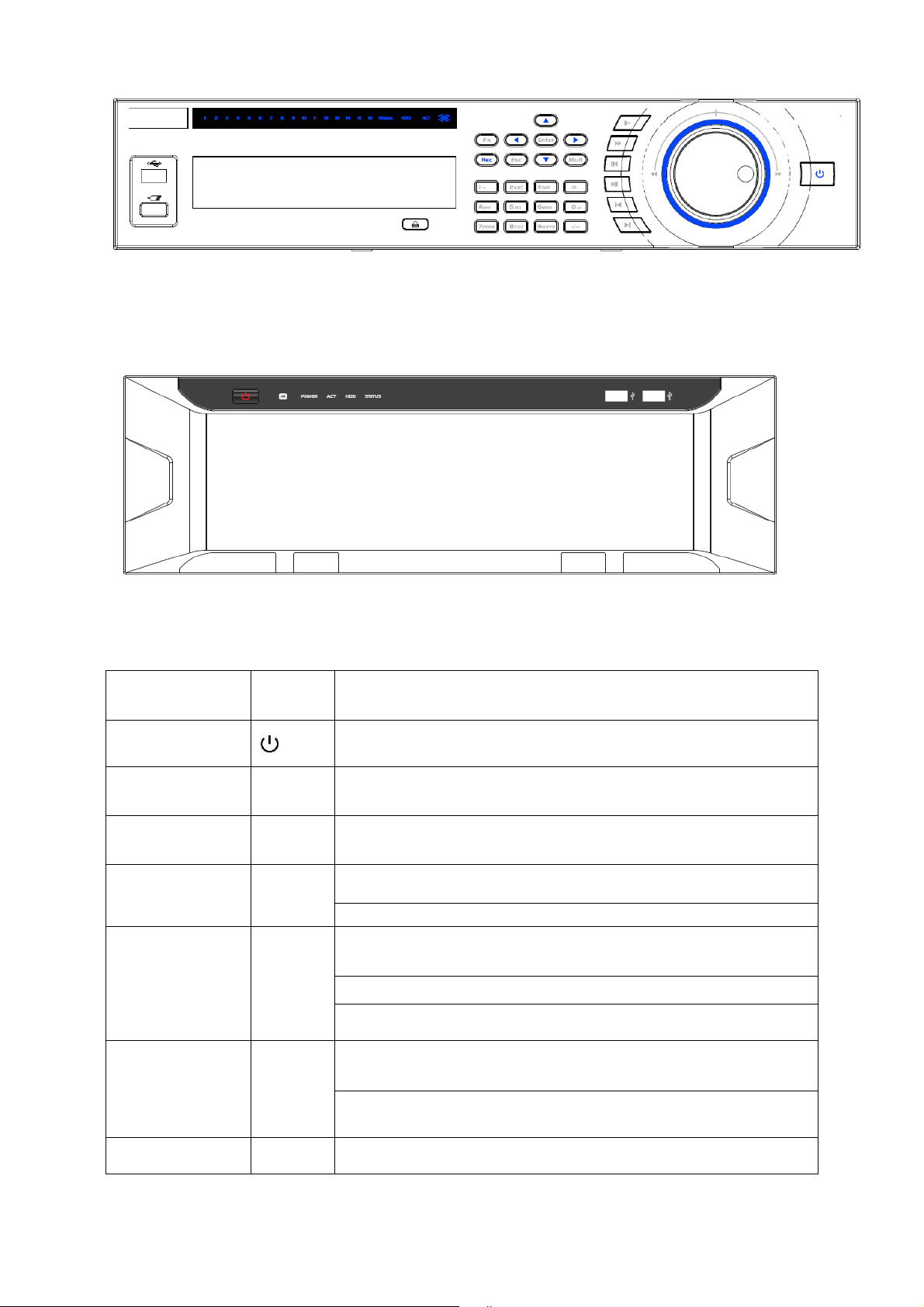

2.1.3 3U series .......................................................................................................................................... 12

2.2 Rear Panel............................................................................................................................................14

2.2.1 1.5U series.......................................................................................................................................14

2.2.2 2U series .......................................................................................................................................... 15

2.2.3 3U series .......................................................................................................................................... 15

2.3 Connection Sample.............................................................................................................................16

2.4 Remote Control....................................................................................................................................17

2.5 Mouse Control......................................................................................................................................19

2.6 Virtual Keyboard & Front Panel.........................................................................................................21

2.6.1 Virtual Keyboard.............................................................................................................................. 21

2.6.2 Front Panel ......................................................................................................................................21

3 INSTALLATION AND CONNECTIONS............................................................. 22

3.1 Check Unpacked DVR........................................................................................................................22

3.2 About Front Panel and Real Panel ...................................................................................................22

3.3 HDD Installation...................................................................................................................................22

3.4 Rack Installation ..................................................................................................................................23

3.5 Connecting Power Supply..................................................................................................................23

3.6 Connecting Video Input and Output Devices ..................................................................................23

3.6.1 Connecting Video Input.................................................................................................................. 24

3.6.2 Connecting Video Output...............................................................................................................24

3.7 Connecting Audio Input & Output, Bidirectional Audio ..................................................................24

3.7.1 Audio Input.......................................................................................................................................24

3.7.2 Audio Output.................................................................................................................................... 24

3.8 Alarm Input and Output Connection .................................................................................................25

3.8.1 Alarm Input and Output Details..................................................................................................... 25

3.8.2 Alarm Input Port .............................................................................................................................. 27

3.8.3 Alarm Output Port ........................................................................................................................... 27

3.9 RS232....................................................................................................................................................28

3.10 RS485....................................................................................................................................................28

3.11 Other Interfaces ...................................................................................................................................28

4 OVERVIEW OF NAVIGATION AND CONTROLS ............................................29

4.1 Login, Logout & Main Menu ...............................................................................................................29

4.1.1 Login ................................................................................................................................................. 29

4.1.2 Main Menu .......................................................................................................................................30

4.1.3 Logout............................................................................................................................................... 30

4.1.4 Auto Resume after Power Failure ................................................................................................ 31

4.1.5 Replace Button Battery .................................................................................................................. 31

4.2 Live Viewing .........................................................................................................................................31

4.3 Manual Record.....................................................................................................................................32

4.4 Search & Playback ..............................................................................................................................35

4.5 Schedule ...............................................................................................................................................39

4.4.1 Schedule Menu .................................................................................................................................... 39

4.5.2 Snapshot .......................................................................................................................................... 41

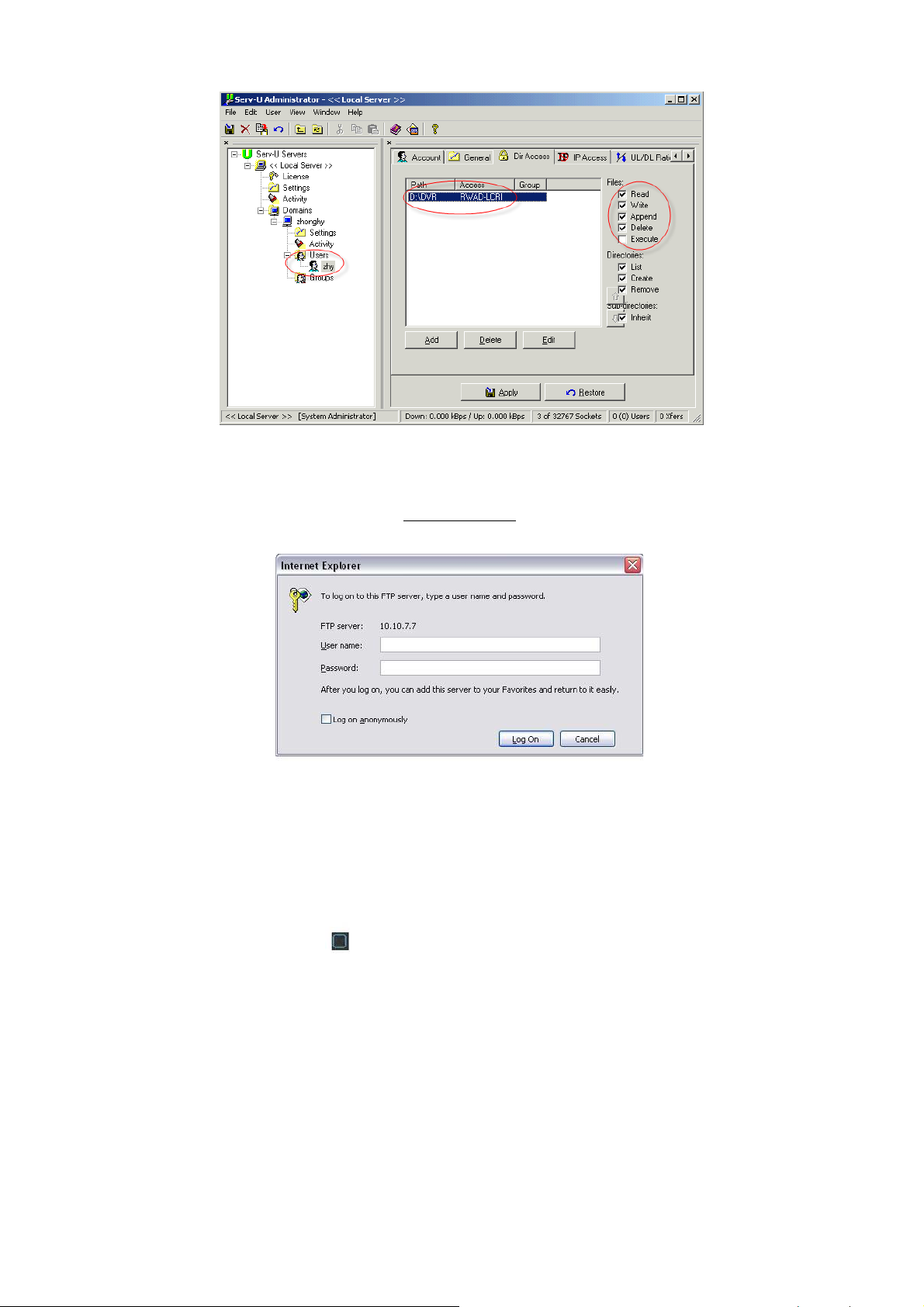

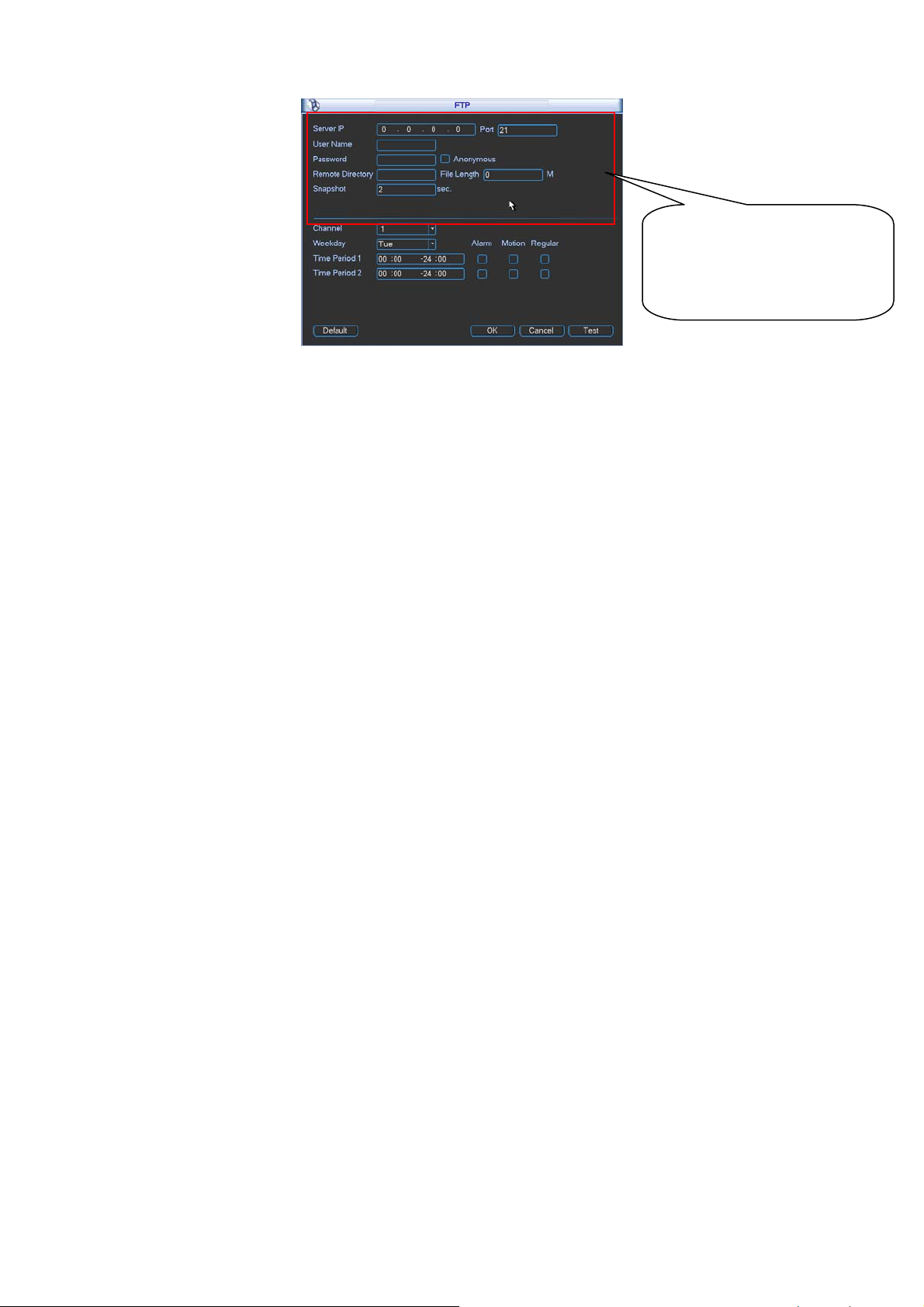

4.5.3 Image FTP .......................................................................................................................................43

4.6 Detect ....................................................................................................................................................44

4.5.1 Go to Detect Menu............................................................................................................................... 44

4.5.2 Motion Detect........................................................................................................................................ 44

4.5.3 Video Loss.............................................................................................................................................47

4.5.4 Camera Masking..................................................................................................................................48

4.7 Alarm Setup and Alarm Activation ....................................................................................................49

4.7.1 Go to alarm setup interface ........................................................................................................... 49

4.7.2 Alarm setup...................................................................................................................................... 49

4.8 Backup ..................................................................................................................................................52

4.7.1 Detect Device....................................................................................................................................... 52

4.8.1 Backup.............................................................................................................................................. 52

4.9 PTZ Control and Color Setup ............................................................................................................55

4.8.1 Cable Connection ................................................................................................................................55

4.8.2 PTZ Setup.............................................................................................................................................55

4.8.3 3D Intelligent Positioning Key............................................................................................................ 56

4.10 Preset/ Patrol/Pattern/Scan................................................................................................................57

4.9.1Preset Setup .........................................................................................................................................58

4.9.2 Activate Preset..................................................................................................................................... 58

4.9.3 Patrol setup (Tour Setup)................................................................................................................... 58

4.9.4 Activate Patrol (tour) ........................................................................................................................... 59

4.9.5 Pattern Setup....................................................................................................................................... 59

4.9.6 Activate Pattern Function...................................................................................................................59

iii

4.9.7 Auto Scan Setup .................................................................................................................................59

4.9.8 Activate Auto Scan.............................................................................................................................. 59

4.11 Flip .........................................................................................................................................................59

5 UNDERSTANDING OF MENU OPERATIONS AND CONTROLS ................... 61

5.1 Menu Tree ............................................................................................................................................61

5.2 Main Menu ............................................................................................................................................61

5.3 Setting ...................................................................................................................................................62

5.3.1 General............................................................................................................................................. 62

5.3.2 Encode .............................................................................................................................................64

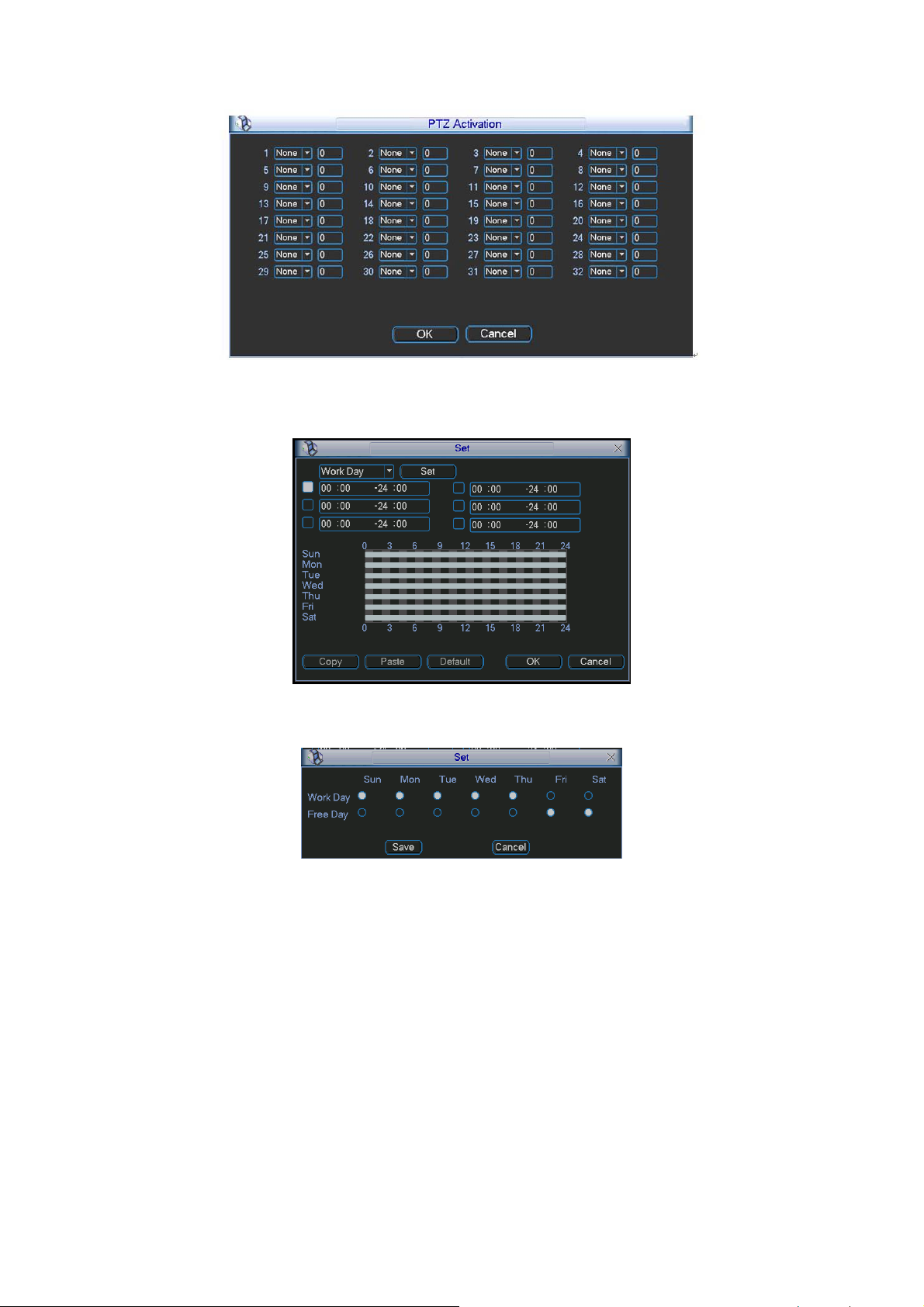

5.3.3 Schedule .......................................................................................................................................... 65

5.3.4 RS232............................................................................................................................................... 65

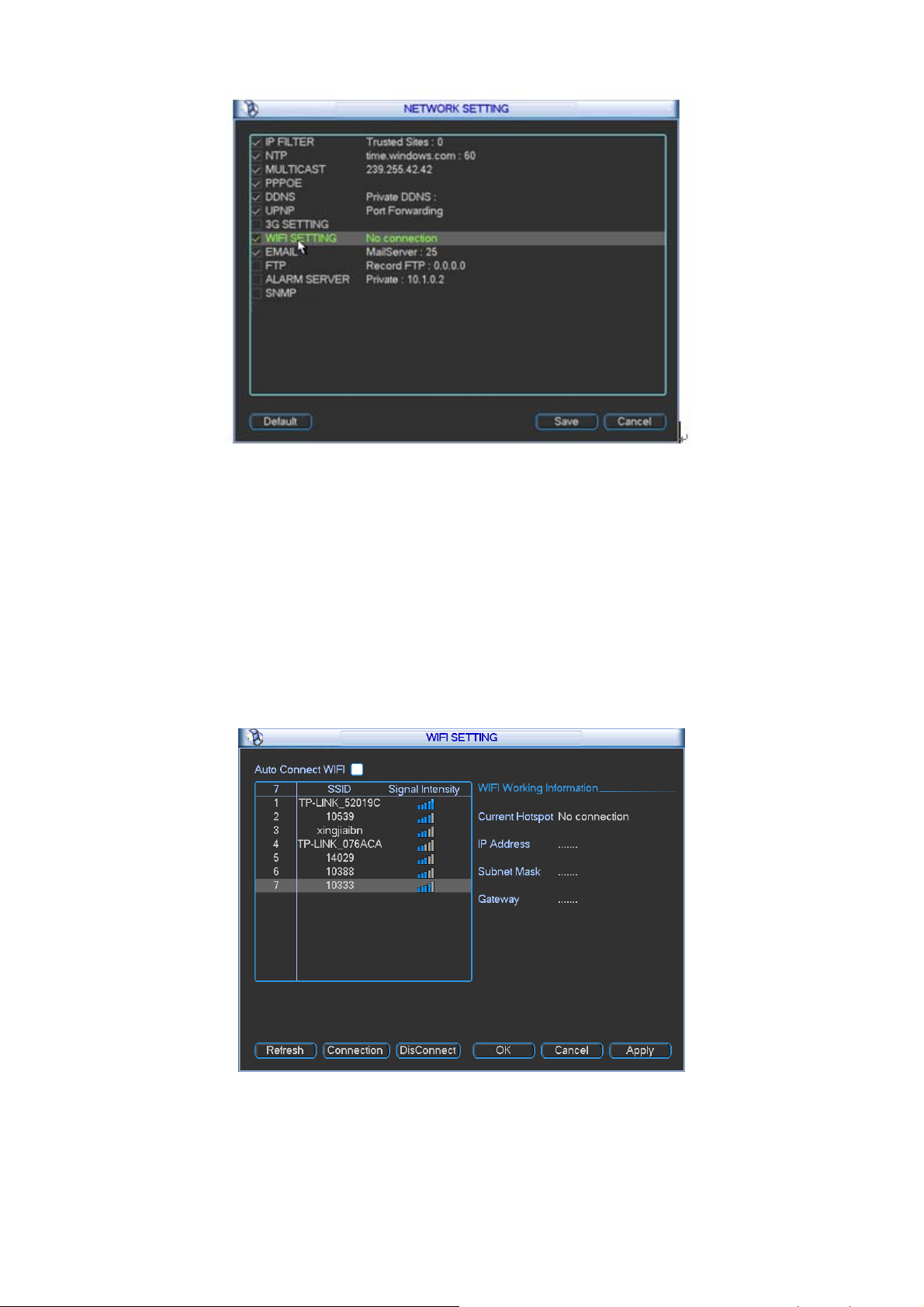

5.3.5 Network ............................................................................................................................................ 66

5.3.6 Alarm.................................................................................................................................................80

5.3.7 Detect ...............................................................................................................................................80

5.3.8 Pan/Tilt/Zoom .................................................................................................................................. 80

5.3.9 Display..............................................................................................................................................81

5.3.10 Default.......................................................................................................................................... 83

5.4 Search ...................................................................................................................................................84

5.5 Advanced ..............................................................................................................................................84

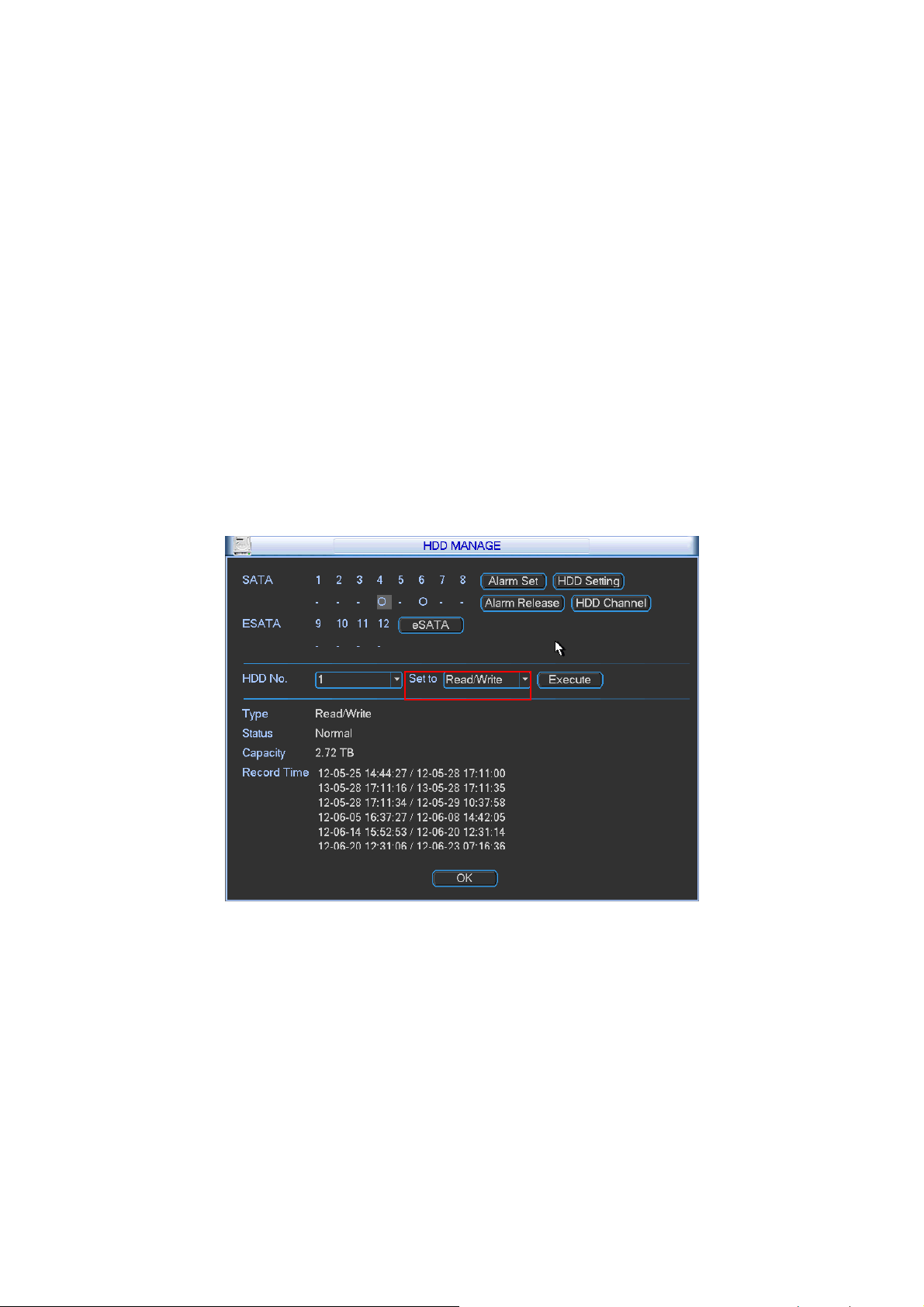

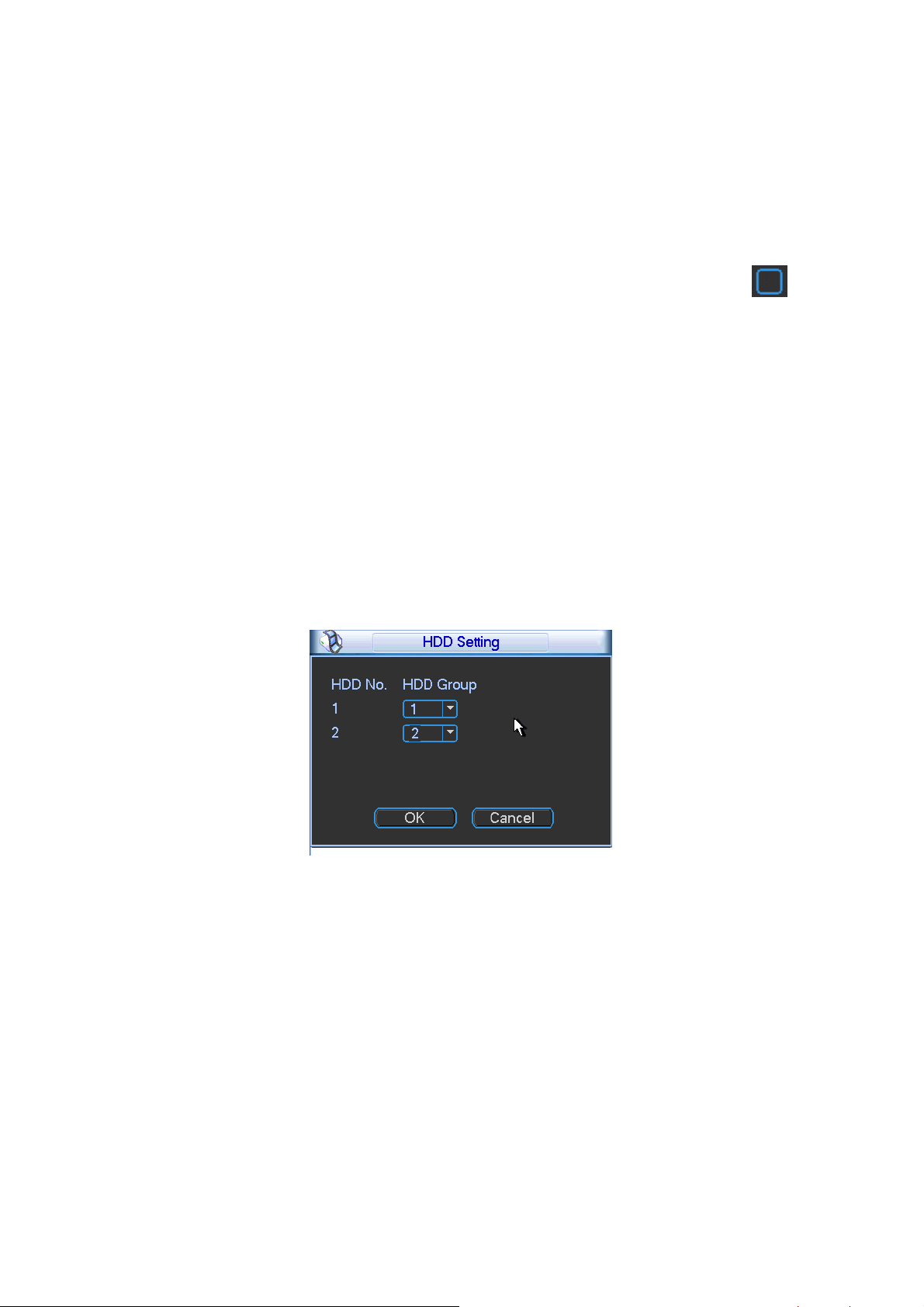

5.5.1 HDD Management..........................................................................................................................84

5.5.2 Abnormity ......................................................................................................................................... 87

5.5.3 Alarm Output....................................................................................................................................88

5.5.4 Manual Record................................................................................................................................89

5.5.5 Account.............................................................................................................................................89

5.5.6 Auto Maintain................................................................................................................................... 91

5.5.7 TV Adjust.......................................................................................................................................... 92

5.5.8 Video Matrix.....................................................................................................................................92

5.5.9 Card Overlay....................................................................................................................................93

5.5.10 Config File Backup.....................................................................................................................95

5.6 Information............................................................................................................................................95

5.6.1 HDD Information ............................................................................................................................. 96

5.6.2 BPS...................................................................................................................................................96

5.6.3 Log .................................................................................................................................................... 97

5.6.4 Version .............................................................................................................................................98

5.6.5 Online Users....................................................................................................................................98

5.7 Shutdown..............................................................................................................................................99

6 ABOUT AUXILIARY MENU ............................................................................100

6.1 Go to Pan/Tilt/Zoom Menu ...............................................................................................................100

6.1.1 3D Intelligent Positioning Key ..................................................................................................... 101

6.2 Preset /Patrol / Pattern /Border Function.....................................................................................101

6.2.1 Preset Setup.................................................................................................................................. 102

6.2.2 Activate Preset .............................................................................................................................. 102

6.2.3 Patrol Setup ................................................................................................................................... 102

6.2.4 Activate Patrol ............................................................................................................................... 102

6.2.5 Pattern Setup................................................................................................................................. 102

6.2.6 Activate Pattern Function............................................................................................................. 103

6.2.7 Border Setup.................................................................................................................................. 103

6.2.8 Activate Border Function .............................................................................................................103

6.2.9 Flip ..................................................................................................................................................103

7 WEB CLIENT OPERATION ............................................................................105

7.1 Network Connection..........................................................................................................................105

7.2 Login....................................................................................................................................................105

7.3 LAN Mode...........................................................................................................................................107

7.3.1 Real-time Monitor.......................................................................................................................... 108

7.3.2 PTZ .................................................................................................................................................110

7.3.3 Color ...............................................................................................................................................113

7.3.4 Picture Path and Record Path ....................................................................................................113

7.4 WAN Login..........................................................................................................................................114

7.5 Configure ............................................................................................................................................116

7.5.1 System Information....................................................................................................................... 116

7.5.2 System Configuration...................................................................................................................119

7.5.3 Advanced ....................................................................................................................................... 140

7.5.4 Additional Function ....................................................................................................................... 147

7.6 Search .................................................................................................................................................150

7.7 Alarm ...................................................................................................................................................153

7.8 About ...................................................................................................................................................154

7.9 Log out ................................................................................................................................................154

7.10 Un-install Web Control......................................................................................................................154

8 PROFESSIONAL SURVEILLANCE SYSTEM ................................................155

9 FAQ.................................................................................................................156

APPENDIX A HDD CAPACITY CALCULATION .................................................161

APPENDIX B COMPATIBLE BACKUP DEVICE LIST........................................ 162

APPENDIX C COMPATIBLE CD/DVD DEVICE LIST............................................166

APPENDIX D COMPATIBLE DISPLAYER LIST .................................................167

APPENDIX E COMPATIBLE SWITCHER LIST ..................................................168

APPENDIX F COMPATIBLE WIRELESS MOUSE LIST ..................................... 169

APPENDIX G EARTHING.................................................................................... 170

APPENDIX H TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS................175

vii

Welcome

Thank you for purchasing our DVR!

This user’s manual is designed to be a reference tool for the installation and operation of your

system.

Here you can find information about this series DVR features and functions, as well as a detailed

menu tree.

Before installation and operation please read the following safeguards and warnings carefully!

viii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

We assume no liability or responsibility for all the fires or electrical shock caused by improper

handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Keep upwards. Handle with care.

Do not apply power to the DVR before completing installation.

Do not place objects on the DVR

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

The DVR should be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc. This series product shall be transported, storage and used in the environment ranging from 0℃ to 55 ℃

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

7. Lithium battery

Improper battery use may result in fire, explosion, or personal injury!

When replace the battery, please make sure you are using the same model!

1 FEATURES AND SPECIFICATIONS

1.1 Overview

This series product is an excellent digital monitor product designed for security field. It adopts

embedded Linux OS to maintain reliable operation. Popular H.264 compression algorithm and

G.711 audio compression technology realize high quality, low bit stream. Unique frame by frame

play function is suitable for detail analysis. It has various functions such as record, playback,

monitor at the same time and can guarantee audio video synchronization. This series product

has advanced technology and strong network data transmission function.

This series device adopts embedded design to achieve high security and reliability. It can work in

the local end, and at the same time, when connecting it to the professional surveillance software

(PSS), it can connect to security network to realize strong network and remote monitor function.

This series product can be widely used in various areas such as banking, telecommunication,

electric power, interrogation, transportation, intelligent resident zone, factory, warehouse,

resources, and water conservancy.

1.2 Features

This series product has the following features:

z Real-time monitor

It has analog output port, VGA port and HDMI port. You can use monitor or displayer to realize

surveillance function.

System supports TV/VGA/HDMI output at the same time.

z Storage function

Special data format to guarantee data security and can avoid vicious data modification.

z Compression format

Support multiple-channel audio and video. An independent hardware decodes the audio and

video signal from each channel to maintain video and audio synchronization.

z Backup function

Support backup operation via USB port (such as flash disk, portable HDD, burner).

Client-end user can download the file to local HDD to backup via network.

z Record playback function

Support each channel real-time record independently, and at the same time it can support search,

forward play, network monitor, record search, download and etc.

Support various playback modes: slow play, fast play, backward play and frame by frame play.

Support time title overlay so that you can view event accurate occurred time

Support specified zone enlargement.

z Network operation

Support network remote real-time monitor, remote record search and remote PTZ control.

z Alarm activation function

Several relay alarm outputs to realize alarm activation and on-site light control.

The alarm input port and output has the protection circuit to guarantee device safety.

z Communication port

RS485 port can realize alarm input and PTZ control.

RS232 port can connect to keyboard to realize central control, and can also connect to PC COM

to upgrade system and realize maintenance, and matrix control.

Standard Ethernet port can realize network access function.

Dual Ethernet ports support configuration modes such as multiple access, Fault-tolerance and

load balancing.

z PTZ control

Support PTZ decoder via RS485.

Support various decode protocols to allow the PTZ to control the speed dome.

z Intelligent operation

Mouse operation function

In the menu, support copy and paste setup function

z UPnP

It is to establish the mapping relationship between the LAN and the WAN via the UPnP protocol.

Slight function differences may be found due to different series.

1.3 Specifications

1.3.1 1.5U Series

System

Compression Standard

Parameter

Main Processor

OS System

Resources Interface Input

Devices Input Method Shortcut Function Video Compressio n

24-ch 32-ch

High-performance industrial embedded micro controller

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously User-friendly graphical user interface

Front panel, USB mouse, remote control

Arabic number, English character, donation and extension Chinese (optional) Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.

H.264

Audio

G.711A

24-CH composite video input: (NTSC/PAL) BNC (1.0V 1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output. 1-ch HDMI output. 1-ch matrix output. Support TV/VGA/HDMI video output at the same time.

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

Video monitor

Compressio n

Video Input

Video Output

Video Standard

Record Speed

P- P,

B75Ω)

32-CH composite video input: (NTSC/PAL) BNC (1.0VB

P- P,

B75Ω)

Audio

Hard disk

Video

1/4/8/9 /16/25windows 1/4/8/9 /16/25/36windows Partition Monitor Touring

Support monitor tour functions such as alarm, motion detection, and

schedule auto control.

PAL/NTSC

Real-time monitor：

D1 704×576/704×480

Resolution (PAL/NTSC )

Playback：

Each channel supports: D1 704×576/704×480 , CIF 352×288/

352×240 , QCIF 176×144/176×120

Default resolution is 2CIF (25/30fps). Support D1and HD1(6/7fps)

Support dual streams: extra stream resolution CIF 352×288/ 352×240,

QCIF 176×144/176×120. Image

6-level image quality (Adjustable) Quality Privacy mask Image Information

Support one privacy mask of user-defined size in full screen.

Support max 4 zones.

Channel information, time information and privacy mask zone.

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock

Cover secret channel with black screen though system is encoding

normally.

Screen-lock function to prevent unauthorized user seeing secret video. Channel Information

Channel name, recording status, screen lock status, video loss status

and motion detection status are shown on the bottom left of display

screen. Color

Hue, brightness, contrast, saturation and gain setup for each channel. Configuratio n

Audio Input

Audio Output

Bidirectional Audio

Hard Disk Hard Disk

Occupation

4-ch 200-2000mv 10KΩ(BNC)

1-ch audio output 200-3000mv 5KΩ(BNC)

1-ch audio talk input 200-3000mv 10KΩ(BNC)

1-ch audio talk output 200-3000mv 5KΩ(BNC)

4 built-in SATA port. Support 4 HDDs.

Audio：G711 27.5MByte/h

Video：56-900MByte/h

Record and playback

Backup function

Network Function

Motion Detection and Alarm

Recording Mode

Recording Length Playback Repeat Way Record Search Playback Mode Various File Switch Ways

Multichannel Playback Window Zoom Partial Enlargemen t

Backup Mode

Network control

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay

Manual recording, motion detection recording, schedule recording and

alarm recording

Priority: Manual recording> alarm recording>motion detection

recording>schedule recording.

1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various search engines such as time, type and channel.

Various fast play, slow play speeds, manual frame by frame playback

and reverse play mode.

Can switch to previous or next file or any file in current play list.

Can switch to file on other channel of the same time. (If there is a file)

Support file continuous play, when a file is end system auto plays the

next file in the current channel

There is 1/4/9/16-channel playback mode.

(It may vary due to different series.)

Switch between self-adaptive screen/full screen when playback

When in one-window full-screen playback mode, you can select any zone

to activate partial enlargement function.

HDD backup

Support peripheral USB backup device. (Flash disk, portable disk, USB

burner and etc.)

Support peripheral eSATA backup device.

Support network download and backup

View monitor channel remotely.

DVR configuration through client-end and web browser

Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and

video loss via client.

Support network PTZ lens control

File download backup and playback

Multiple devices share information via corresponding software such as

professional surveillance software (PSS)

Duplex transparent COM

Network alarm input and output

Bidirectional audio.

Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection

zones.

Various sensitivity levels.

Alarm can activate record or external alarm or screen message prompt.

Support record activation function or activate external alarm or screen

message in specified period.

Enable or disable alarm input channel

Support analog alarm signal to specific alarm output channel.

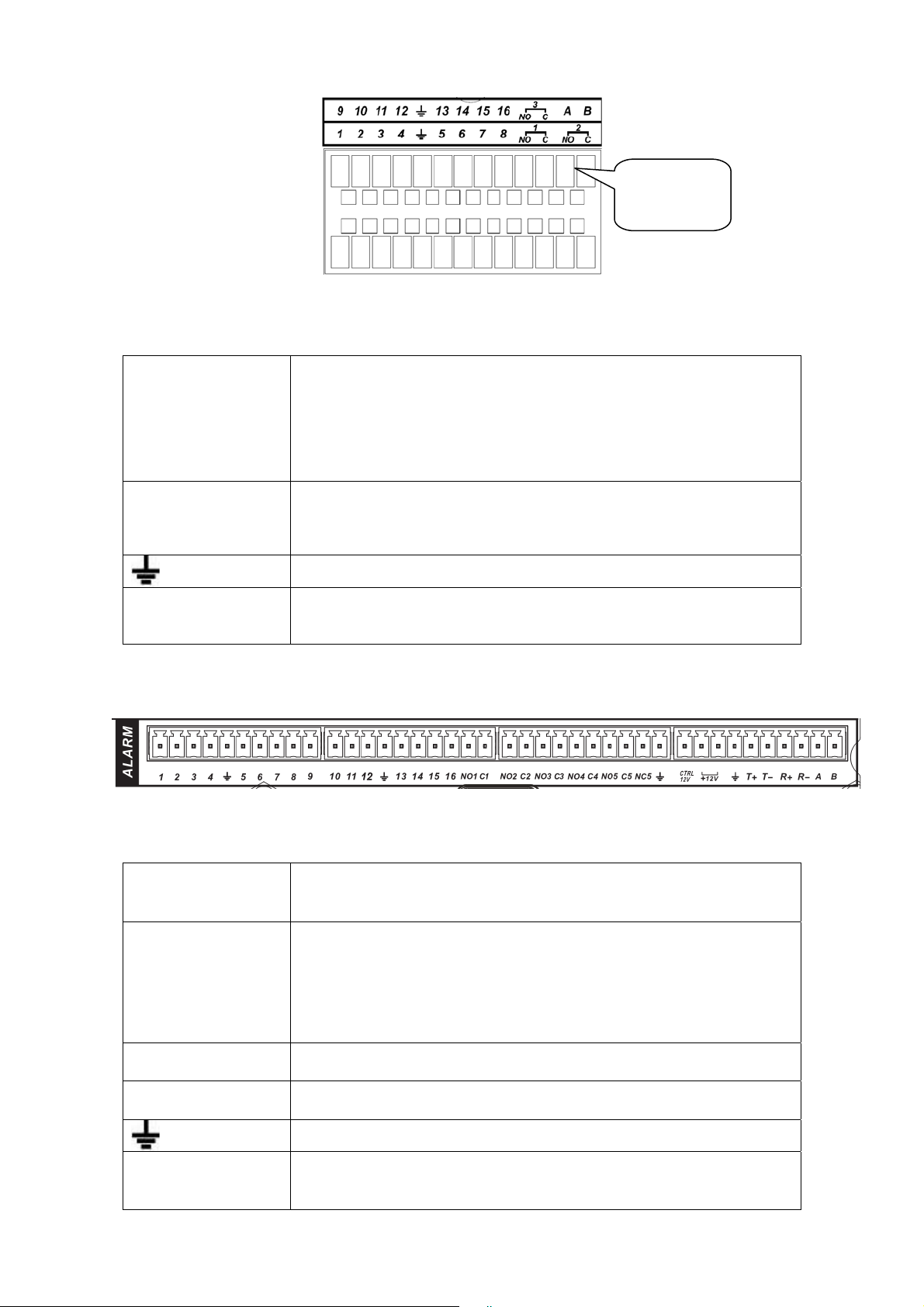

16-ch alarm input（You can set normal open or normal close type to

select the alarm type. ）

6-channel relay output, including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ）

Interface

System Information

User Management

Upgrade

General Parameter

USB Interface Network connection

RS485

RS232

Hard Disk Information Data Stream Statistics Log statistics

Version

On-line user Display current on-line user

User Manageme nt

Password Authenticati on

Power Power

Consumptio n Working Temperatur e Working Humidity Air Pressure

Dimension Weight 4.5-5.5KG(Exclude HDD)

Installation Mode

2 USB 2.0 ports.

RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port

Support various PTZ control protocols.

Ordinary COM (Debug),keyboard connection and transparent serial

port(COM input and output via network )

Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files.

Support various search engines such as time and type.

Display version information: channel amount, alarm input and output

amount, system version and release date.

Multi-lever user management; various management modes

Integrated management for local user, serial port user and network user.

Configurable user power.

Support user /group and its corresponding rights modification.

No limit to the user or group amount.

Password modification

Administrator can modify other user’s password.

Account lock strategy

Five times login failure in thirty minutes may result in account lock.

Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout

/shutdown/ restart.

Right authentication when shut down to make sure only those proper

people can turn off DVR

AC90~264V 50+2% Hz （Max 75W）

25W (Exclude HDD)

0℃－＋55℃

10%－90%

86kpa－106kpa

1.5U standard industrial case. 440(W) x410 (D) x70mm(H)

Desktop/rack installation

1.3.2 2U & 3U Series

System

Parameter

Main Processor

24-ch 32-ch 64-ch

High-performance industrial embedded micro controller

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback

and network operation simultaneously

User-friendly graphical user interface

Front panel, USB mouse, remote control

Arabic number, English character, donation and extension Chinese

(optional)

Copy/paste operation, USB mouse right-key shortcut menu, double click

USB mouse to switch screen.

H.264

G.711A

24-CH composite

video input:

(NTSC/PAL) BNC

P- P,

B75Ω)

(1.0V

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output.

1-ch VGA output.

1-ch HDMI output.

Support TV/VGA/HDMI video output at the same time.

PAL (50f/s), NTSC (60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s

per channel

Compression Standard

Video monitor

System Resources

Interface Input

Devices Input Method Shortcut Function Video Compressio n Audio Compressio n

Video Input

Video Output

Video Standard

Record Speed

32-CH composite video input: (NTSC/PAL) BNC

P- P,

B75Ω)

(1.0V

64-CH composite video input: (NTSC/PAL) BNC

P- P,

B75Ω)

(1.0V

Video Partition Monitor Touring

1/4/8/9/16/25 windows 1/4/8/9/16/25/36

windows Support monitor tour functions such as alarm, motion detection, and schedule auto control.

1/4/8/9/16/25/36/64 windows

PAL/NTSC Real-time monitor： D1 704×576/704×480

Resolution (PAL/NTSC )

Playback： Each channel supports:: D1 704×576/704×480 , CIF 352×288/ 352×240 , QCIF 176×144/176×120 Default resolution is 2CIF (25/30fps). Support D1and HD1(6/7fps)

Support dual streams: extra stream resolution CIF 352×288/ 352×240, QCIF 176×144/176×120.


6-level image quality (Adjustable)

Quality Privacy mask Image Information

Support one privacy mask of user-defined size in full screen. Support max 4 zones.

Channel information, time information and privacy mask zone.

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock

Cover secret channel with black screen though system is encoding normally. Screen-lock function to prevent unauthorized user seeing secret video.

Channel Information

Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen.

Hue, brightness, contrast, saturation and gain setup for each channel.

16-ch 200-2000mv 10KΩ(BNC) 1-ch audio output 200-3000mv 5KΩ(BNC)

1-ch audio talk input 200-3000mv 10KΩ(BNC) 1-ch audio talk output 200-3000mv 5KΩ(BNC) 8 built-in SATA port. Support 8 HDDs.

Audio：G711 27.5MByte/h Video：56-3600MByte/h Manual recording, motion detection recording, schedule recording and

alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording. 1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various search engines such as time, type and channel.

Various fast play, slow play speeds, manual frame by frame playback and reverse play mode. Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when a file is end system auto plays the next file in the current channel There is 1/4/-channel playback mode.

Switch between self-adaptive screen/full screen when playback

When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function.

HDD backup Support peripheral USB backup device. (Flash disk, portable disk, USB burner and etc.) Support peripheral eSATA backup device. Support network download and backup View monitor channel remotely.

DVR configuration through client-end and web browser Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and video loss via client. Support network PTZ lens control File download backup and playback Multiple devices share information via corresponding software such as professional surveillance software (PSS) Duplex transparent COM Network alarm input and output Bidirectional audio.

Audio

Hard disk

Record and playback

Backup function

Network Function

Color Configuratio n

Audio Input

Audio Output

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length Playback Repeat Way

Record Search Playback Mode Various File Switch Ways

Multichannel Playback Window Zoom Partial Enlargemen t

Backup Mode

Network control

Motion Detection and Alarm

Interface

System Information

User Management

Upgrade

General Parameter

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay USB

Interface Network connection

RS485

RS232

Hard Disk Information Data Stream Statistics Log statistics

Version

On-line user Display current on-line user

User Manageme nt

Password Authenticati on

Power Power

Consumptio n Working Temperatur e Working Humidity

Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.

Support record activation function or activate external alarm or screen message in specified period. Enable or disable alarm input channel Support analog alarm signal to specific alarm output channel.

16-ch alarm input（You can set normal open or normal close type to select the alarm type. ） 6-channel relay output, including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ） 3 USB 2.0 ports.

RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port Support various PTZ control protocols. Ordinary COM (Debug),keyboard connection and transparent serial port(COM input and output via network ) Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files. Support various search engines such as time and type. Display version information: channel amount, alarm input and output amount, system version and release date.

Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power. Support user /group and its corresponding rights modification. No limit to the user or group amount. Password modification Administrator can modify other user’s password. Account lock strategy Five times login failure in thirty minutes may result in account lock. Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout /shutdown/ restart. Right authentication when shut down to make sure only those proper people can turn off DVR

AC90~264V 50+2% Hz （Max 220W）

25W (Exclude HDD) 48W (Exclude HDD)

0℃－＋55℃

10%－90%

Air Pressure

Dimension

Weight Installation

Mode

86kpa－106kpa

2U standard industrial case. 440(W) x460 (D) x89mm(H)

6.5－7.5KG (Exclude HDD) Desktop/rack installation

3U standard industrial case：440 mm(W)× 460 mm(D)× 133mm(H)

8.5KG (Exclude HDD)

2 Overview and Controls

This section provides information about front panel and rear panel. When you install this series

DVR for the first time, please refer to this part first.

2.1 Front Panel

2.1.1 1.5U series

The front panel is shown as below. See Figure 2-1.

Figure 2-1

Please refer to the following sheet for front panel button information.

Name Icon Function

Power button

Shift Shift

Up/1 Down/4

Left/2 Right/3

ESC ESC

S、T

W X

Power button, press this button for three seconds to boot up or shut down DVR.

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Activate current control, modify setup, and then move up and down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

In text mode, input number 1/4 (English character G/H/I)

Shift current activated control,

When playback, click these buttons to control playback bar. In text mode, input number 2(English character A/B/C) /3(English character D/E/F)

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Confirm current operation

Enter ENTER

Record REC

Go to default button

Go to menu

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel. Click this button for at least 1.5 seconds, system can go to the Record interface.

Slow play/8

Assistant Fn

Fast play/7

Play previous/0

Reverse/Pau se/6

Play Next/9



W

Multiple slow play speeds or normal playback. In text mode, input number 8 (English character T/U/V).

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

Realize other special functions.

Various fast speeds and normal playback. In text mode, input number 7 (English character P/Q/R/S).

In playback mode, playback the previous video In text mode, input number 0.

In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback. In text mode, input number 6 (English character M/N/O)

In playback mode, playback the next video In menu setup, go to down ward of the dropdown list. In text mode, input number 9 (English character W/X/Y/Z)

In normal playback click this button to pause playback

Play/Pause /5

USB port

Network abnormal indication light

HDD abnormal indication light

Record light 1-16 It becomes on when system is recording.

IR Receiver IR

f

Net

HDD

In pause mode, click this button to resume playback. In text mode, input number 5(English character J/K/L).

To connect USB storage device, USB mouse.

Network error occurs or there is no network connection, the light becomes red to alert you.

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

It is to receive the signal from the remote control.

2.1.2 2U series

The front panel of 24/32 series is shown as in Figure 2-2.

Figure 2-2

2.1.3 3U series

The front panel of the 64-channel is shown as below. See Figure 2-3.

Figure 2-3

Please refer to the following sheet for front panel button information.

Name Icon Function

Power button

Number button 0-9

Input number more than 10

Shift

Up/ Down

-/--



S、T

Power button, press this button for three seconds to boot up or shut down DVR.

Input Arabic number Switch channel

If you want to input a number more than 10, please click this button and then input.

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Enable or disable tour. Activate current control, modify setup, and then move up and

down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

Left/ Right

ESC ESC

W X

Shift current activated control, and then move left and right.

When playback, click these buttons to control playback bar.

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Confirm current operation

Enter ENTER

Record REC

Slow play

Assistant Fn

Go to default button

Go to menu

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel.

Multiple slow play speeds or normal playback.

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

In HDD management interface, you can click it to switch HDD record information and other information (Menu prompt)

Realize other special functions.

Fast play

Play previous

Reverse/Pause

Play Next

Play/Pause

Window switch Mult Click it to switch one-window/multiple-window.

Shuttle(outer ring)

Jog(inner dial)



W

f

Various fast speeds and normal playback.

In playback mode, playback the previous video

In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback.

In playback mode, playback the next video In menu setup, go to down ward of the dropdown list.

In normal playback click this button to pause playback In pause mode, click this button to resume playback.

In real-time monitor mode it works as left/right direction key. Playback mode, counter clockwise to forward and clock wise to backward. Up/down direction key. Playback mode, turn the inner dial to realized frame by frame playback. (Only applies to some special versions.)

USB port

Remote control indication light

Status indication light

Power indication light

Record light 1-32

IR Receiver IR It is to receive the signal from the remote control.

ACT Remote control indication light

Status If there is Fn indication light, current status indication light is null.

PWR Power indication light.

To connect USB storage device, USB mouse.

It becomes on when system is recording. For 32-channel series When the light flashes slowly, it means the corresponding channel of 1-16 channel is recording now. When the light flashes fast, it means the corresponding channel of 17-32 channel is recording now. When the light becomes on, It means the corresponding 2-channel is recoding now.

2.2 Rear Panel

2.2.1 1.5U series

The rear panel of 24/32-ch series product is shown as in Figure 2-4.

Figure 2-4

Please refer to the following sheet for detailed information.

1 Video input 2 RS232 port 3 Video VGA output 4 Network port 5 USB port 6 SPOT output 7 HDMI output 8 Alarm input/Alarm output/RS485 port 9 Power socket 10 Video output 11 Audio/Bidirectional talk output port

12 Bidirectional talk input port

13 Power on/off button

14 GND port

2.2.2 2U series

This series DVR rear panel is shown as below. See Figure 2-5.

Please note the following figure is based on the 24/32-channel series product.

Figure 2-5

Please refer to the following sheet for detailed information.

1 GND port 2 Power input port 3 Power button 4 Fan 5 1st to 4th-channel audio input 6 DB25 port ( 5th to 16th-channel audio input port) 7 Video input 8 Video CVBS output 9 Matrix video output 10 Audio output 11 Bidirectional talk input port 12 Bidirectional talk output port

13 Alarm input/Alarm output/RS485 port

14 Network port 15 HDMI port

16 RS232 port

17 eSATA port

18 USB port 19 Video VGA output

2.2.3 3U series

The 64-channel series DVR rear panel is shown as below. See Figure 2-6.

Figure 2-6

Please refer to the following sheet for detailed information.

1 GND port 2 1st to 4th-channel audio input 3 DB25 port ( 5th to 16th-channel audio input

port ) 4 Audio output 5 Bidirectional talk input port 6 Bidirectional talk output port 7 Alarm input/Alarm output/RS485 port 8 Network port 9 HDMI port 10 RS232 port 11 eSATA port 12 USB port

13 Video VGA output

14 Video input 15 Video output

16 Matrix video output

When connect the Ethernet port, please use crossover cable to connect the PC and use the

straight cable to connect to the switcher or router.

2.3 Connection Sample

Please refer to Figure 2-7 for connection sample.

Please note the following figure is based on the 32-channel 2U series product.

Figure 2-7

2.4 Remote Control

The remote control interface is shown as in Figure 2-8.

Please note remote control is not our standard accessory and it is not included in the accessory

bag.

Figure 2-8

Please refer to the following sheet for detailed information.

Serial Number Name Function 1 Power button Click it to boot up or shut down

the device.

2 Address Click it to input device number,

so that you can control it.

3 Forward Various forward speeds and

normal speed playback.

4 Slow play Multiple slow play speeds or

normal playback.

6 7 Play/Pause

Next record In playback mode, playback the

next video.

Previous record In playback mode, playback the

previous video. In pause mode, click this button to realize normal playback. In normal playback click this button to pause playback. In real-time monitor mode, click this button to enter video search menu.

Reverse/pause

Reverse playback pause mode, click this button to realize normal playback. In reverse playback click this button to pause playback.

10 Record Start or stop record manually

11 Direction keys Switch current activated control,

12 Confirm /menu key go to default button

13 Multiple-window switch Switch between multiple-window

14 Auxiliary key

15 0-9 number key

Cancel Go back to previous menu or

cancel current operation (close upper interface or control)

In record interface, working with the direction buttons to select the record channel. Click this button for at least 1.5 seconds, system can go to the Manual Record interface.

go to left or right. In playback mode, it is to control the playback process bar. Aux function(such as switch the PTZ menu)

go to the menu

and one-window. In 1-ch monitor mode: pop up assistant function：PTZ control and Video color. Switch the PTZ control menu in PTZ control interface. In motion detection interface, working with direction keys to complete setup. Input password, channel or switch channel. Shift is the button to switch the input method.

2.5 Mouse Control

Left click mouse

System pops up password input dialogue box if you have not logged in. In real-time monitor mode, you can go to the main menu. When you have selected one menu item, left click mouse to view menu content. Implement the control operation.

Modify checkbox or motion detection status. Click combo box to pop up drop down list

In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character (small/capitalized). Here ← stands for backspace button. ＿ stands for space button.

In English input mode: _stands for input a backspace icon and ← stands for deleting the previous character.

Double left click mouse

Right click mouse

In numeral input mode: _ stands for clear and ← stands for deleting the previous numeral.

When input special sign, you can click corresponding numeral in the front panel to input. For example, click numeral 1 you can input“/” , or you can click the numeral in the on-screen keyboard directly.

Implement special control operation such as double click one item in the file list to playback the video. In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. In real-time monitor mode, pops up shortcut menu: one-window, four-window, nine-window and sixteen-window, Pan/Tilt/Zoom, color setting, search, record, alarm input, alarm output, main menu. Among which, Pan/Tilt/Zoom and color setting applies for current selected channel. If you are in multiple-window mode, system automatically switches to the corresponding channel.

Press middle button

Move mouse

Exit current menu without saving the modification. In numeral input box: Increase or decrease numeral value. Switch the items in the check box. Page up or page down Select current control or move control

Select motion detection zone Drag mouse

Select privacy mask zone.

2.6 Virtual Keyboard & Front Panel

2.6.1 Virtual Keyboard

The system supports two input methods: numeral input and English character (small and

capitalized) input.

Move the cursor to the text column, the text is shown as blue, input button pops up on the right.

Click that button to switch between numeral input and English input (capitalized and small), Use > or < to shift between small character and capitalized character.

2.6.2 Front Panel

Move the cursor to the text column. Click Fn key and use direction keys to select number you

wanted. Please click enter button to input.

3 Installation and Connections

Note: All the installation and operations here should conform to your local electric safety rules.

3.1 Check Unpacked DVR

When you receive the DVR from the forwarding agent, please check whether there is any visible

damage. The protective materials used for the package of the DVR can protect most accidental

clashes during transportation. Then you can open the box to check the accessories.

Please check the items in accordance with the list. (Remote control is optional). Finally you can

remove the protective film of the DVR.

Note

Remote control is not a standard accessory and it is not included in the accessory bag.

3.2 About Front Panel and Real Panel

The model label in the front panel is very important; please check according to your purchase

order.

The label in the rear panel is very important too. Usually we need you to represent the serial

number when we provide the service after sales.

3.3 HDD Installation

You can refer to the Appendix for recommended HDD brand. The 1.5U series product supports 2

HDDs and the 2U series product supports 8 HDDs. It has no requirement for HDD capacity.

Please use HDD of 7200rpm or higher. Usually we do not recommend the PC HDD.

Please follow the instructions below to install hard disk.

1. Loosen the screws of the

er cover.

2. Remove the HDD upper

bracket

3. Now you can see the bottom

bracket

4. Line up the HDD to the

four holes of the HDD

bracket.

7. Unfasten the HDD power

cable.

5. Use screws to fix HDD.

8. Insert the HDD power

cable.

Note:

z You can connect the HDD data cable and the power cable first and then fix the HDD in the

device.

z Please pay attention to the front cover. It adopts the vertical sliding design. You need to

push the clip first and then put down.

6. Install the upper bracket and then

Use screws to fix HDD in the

bracket.

9. Use the special data cable to

connect the HDD and the SATA

port. Close the chassis and fix

the screws to secure firmly.

3.4 Rack Installation

Please follow the steps listed below.

z Use twelve screws to fix the unit z Please make sure the indoor temperature is below 35℃ (95°f).

z Please make sure there is 15cm (6 inches) space around the device to guarantee sound

ventilation.

z Please install from the bottom to the top.

z If there are more accessories connected in the rack, please take precaution measures in

case the rack power is overload.

3.5 Connecting Power Supply

Please check input voltage and device power button match or not.

We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral

equipments operation such as cameras.

3.6 Connecting Video Input and Output Devices

3.6.1 Connecting Video Input

The video input interface is BNC. The input video format includes: PAL/NTSC BNC（1.0VB

B75Ω.）.

The video signal should comply with your national standards.

The input video signal shall have high SNR, low distortion; low interference, natural color and

suitable lightness.

Guarantee the stability and reliability of the camera signal:

The camera shall be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc.

The camera and the DVR should have the same grounding to ensure the normal operation of the

camera.

Guarantee stability and reliability of the transmission line

BTTTB

Please use high quality, sound shielded BNC. Please select suitable BNC model according to the

transmission distance.

If the distance is too long, you should use twisted pair cable, and you can add video

compensation devices or use optical fiber to ensure video quality.

You should keep the video signal away from the strong electromagnetic interference, especially

the high tension current.

Keep connection lugs in well contact

BTTTB

The signal line and shielded wire should be fixed firmly and in well connection. Avoid dry joint,

lap welding and oxidation.

BTTTB

P- P ，

3.6.2 Connecting Video Output

Video output includes a BNC(PAL/NTSC1.0V

System supports BNC, VGA and HDMI output at the same time.

When you are using pc-type monitor to replace the monitor, please pay attention to the following

points:

z To defer aging, do not allow the pc monitor to run for a long time.

z Regular demagnetization will keep device maintain proper status.

z Keep it away from strong electromagnetic interference devices.

Using TV as video output device is not a reliable substitution method. You also need to reduce

the working hour and control the interference from power supply and other devices. The low

quality TV may result in device damage.

，75Ω）output ,a VGA output and HDMI output.

P-P

3.7 Connecting Audio Input & Output, Bidirectional Audio

3.7.1 Audio Input

These series products audio input port adopt BNC port.

Due to high impedance of audio input, please use active sound pick-up.

Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose

contact and it shall be away from high tension current.

3.7.2 Audio Output

The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly connect to

low impedance earphone, active sound box or amplifier-drive audio output device.

If the sound box and the pick-up cannot be separated spatially, it is easy to arouse squeaking. In

this case you can adopt the following measures:

z Use better sound pick-up with better directing property.

z Reduce the volume of the sound box.

z Using more sound-absorbing materials in decoration can reduce voice echo and improve

acoustics environment.

z Adjust the layout to reduce happening of the squeaking.

3.8 Alarm Input and Output Connection

Please refer to the following sheet for alarm input and output connection.

There are two alarm input types for you to select: normal open (NO) and normal close (NC).

1. Alarm input

a. Please make sure alarm input mode is grounding alarm input.

b. Grounding signal is needed for alarm input.

c. Alarm input needs the low level voltage signal.

d. Alarm input mode can be either NC (normal Open) or NO (Normal Close)

e. When you are connecting two DVRs or you are connecting one DVR and one other device,

please use a relay to separate them,

2. Alarm output

The alarm output port should not be connected to high power load directly (It shall be less than

1A) to avoid high current which may result in relay damage. Please use the co contactor to

realize the connection between the alarm output port and the load.

3. How to connect PTZ decoder

a. Ensure the decoder has the same grounding with DVR, otherwise you may not control the PTZ.

Shielded twisted wire is recommended and the shielded layer is used to connect to the grounding.

b. Avoid high voltage. Ensure proper wiring and some thunder protection measures. c. For too long signal wires, 120Ω should be parallel connected between A, B lines on the far end

to reduce reflection and guarantee the signal quality.

d. “485 A, B” of DVR cannot parallel connect with “485 port” of other device.

e. The voltage between of A,B lines of the decoder should be less than 5v.

4. Please make sure the front-end device has soundly earthed.

Improper grounding may result in chip damage.

3.8.1 Alarm Input and Output Details

You can refer to the following sheet X for alarm input and output information.

Important Please refer to the specifications for the alarm input and output channel amount. Do not merely count the alarm input and out channel amount according to the ports on the rear panel.

3.8.1.1 1.5U Series

The interface is shown as in Figure 3-1.

AB cable

connection

Figure 3-1

Please refer to the following sheet and Figure 3-1 for detailed information.

1，2，3，4，5， 6，7，8.and the first line from the left to the right : 9，10， 11，12，13，14， 15，16 NO1 C1， NO2 C2， NO3 C3，

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

There are three groups of normal open activation output (on/off button)

Earth cable.

485 A/B 485 communication port. They are used to control devices such as

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

3.8.1.2 2U Series

The 2U series product interface is shown as in Figure 3-2.

Figure 3-2

You can refer to the following sheet and Figure 3-2 for alarm input and output information.

1，2，3，4,, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 NO1 C1， NO2 C2， NO3 C3， NO4 C4, NO5 C5 NC5

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

The first four are four groups of normal open activation output (on/off button) NO5 C5 NC5 is a group of NO/NC activation output (on/off button)

CTRL 12V Control power output. You need to close the device power to cancel

the alarm.

+12V It is external power input. Need the peripheral equipment to provide

+12V power (below 1A). Earth cable.

T+, T-, R+, R- Four-wire full-duplex RS485 port.

T+, T- is the output cable and R+, R- is the input cable.

485 A/B 485 communication port. They are used to control devices such as

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

3.8.2 Alarm Input Port

Please refer to the following sheet for more information.

z Normal open or Normal close type.

z Please parallel connect COM end and GND end of the alarm detector (Provide external

power to the alarm detector).

z Please parallel connect the Ground of the DVR and the ground of the alarm detector.

z Please connect the NC port of the alarm sensor to the DVR alarm input(ALARM)

z Use the same ground with that of DVR if you use external power to the alarm device.

Figure 3-3

3.8.3 Alarm Output Port

z Provide power to peripheral alarm device.

z To avoid overloading, please read the following relay parameters sheet carefully.

z RS485 A/B cable is for the A/B cable of the PTZ decoder.

Relay Specification

Model:

Material of the touch

Rating （Resistance Load）

Insulation

JRC-27F

Silver

Rated switch capacity 30VDC 2A, 125VAC 1A

Maximum switch power 125VA 160W

Maximum switch voltage 250VAC, 220VDC

Maximum switch currency 1A Between touches with same

polarity

Between touches with different polarity

1000VAC 1minute

Surge voltage

Length of open time

Length of close time

Between touch and winding 1000VAC 1minute Between touches with same

polarity 3ms max

3ms max

1500V (10×160us)

Longevity

Temperature

Mechanical 50×106 times (3Hz)

Electrical 200×103 times (0.5Hz)

-40℃ ~+70℃

3.9 RS232

You can connect the DVR with POS or Keyboard through RS232.

With POS system, the DVR can communicate through RS232 and network. For the POS system, the

DVR can integrate the text content and even search the record through the info.

The series DVR also support NKB operation. You can operate the DVR from the keyboard controls

instead of using the control pad on the front panel of the unit.

To connect a NKB keyboard to the DVR:

1. Assemble the KBD keyboard according to the instructions in its accompanying installation manual.

2. Connect the KBD keyboard into one of the RS232 ports on the DVR or through network.

3.10 RS485

When the DVR receives a camera control command, it transmits that command up the coaxial cable

to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any data to the

unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on the DVR. See

X289H289H289HFigure 3-8X.

Since RS485 is disabled by default for each camera, you must enable the PTZ settings first. This

series DVRs support multiple protocols such as Pelco-D, Pelco-P.

To connect PTZ devices to the DVR:

1. Connect RS485 A,B on the DVR rear panel.

2. Connect the other end of the cable to the proper pins in the connector on the camera.

3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR.

3.11 Other Interfaces

There are still other interfaces on the DVR, such as USB ports.

4 Overview of Navigation and Controls

Note: All the operations listed below are based on the 24-channel 2U series product.

Before operation, please make sure:

z You have properly installed HDD and all the cable connections.

z The provided input power and the device power are matched.

z The external power shall be AC90~264V 50+2% Hz.

z Always use the stable current, if necessary UPS is a best alternative measure.

4.1 Login, Logout & Main Menu

4.1.1 Login

After system booted up, system pops up the startup wizard.

Click the Cancel button; you can go to the system login interface.

Click the Next Step button; you can go to the startup wizard interface. Here you can set the

system basic information. See Figure 4-1.

Figure 4-1

The system login interface is shown as in Figure 4-2.

System consists of four accounts:

z Username: admin. Password: admin. (administrator, local and network) z Username: 888888. Password: 888888. (administrator, local only) z Username: 666666. Passwords: 666666(Lower authority user who can only monitor, playback,

backup and etc.)

z Username: default. Password: default(hidden user)

You can use USB mouse, front panel, remote control or keyboard to input. About input method:

Click

Note: For security reason, please modify password after you first login.

Within 30 minutes, three times login failure will result in system alarm and six times login failure

will result in account lock!

to switch between numeral, English character (small/capitalized) and denotation.

Figure 4-2

4.1.2 Main Menu

After you logged in, the system main menu is shown as below. See Figure 4-3.

There are total six icons: search, information, setting, backup, advanced and shutdown.

You can move the cursor to highlight the icon, and then double click mouse to enter the sub-

menu.

Figure 4-3

4.1.3 Logout

There are two ways for you to log out.

One is from menu option:

In the main menu, click shutdown button, you can see an interface is shown as below. See

Figure 4-4.

Figure 4-4

There are several options for you. See Figure 4-5.

Figure 4-5

The other ways is to press power button on the front panel for at least 3 seconds, system will

stop all operations. Then you can click the power button in the rear panel to turn off the DVR.

4.1.4 Auto Resume after Pow er Failure

The system can automatically backup video and resume previous working status after power

failure.

4.1.5 Replace Button Battery

Please make sure to use the same battery model if possible.

We recommend replace battery regularly (such as one-year) to guarantee system time

accuracy.

Note:

Before replacement, please save the system setup, otherwise, you may lose the data

completely!

4.2 Live Viewing

After you logged in, the system is in live viewing mode. You can see system date, time and

channel name. If you want to change system date and time, you can refer to general settings

(Main Menu->Setting->General). If you want to modify the channel name, please refer to the

display settings (Main Menu->Setting->Display).

Preview Control

The preview control function has the following features.

z Support preview playback.

 In the preview desktop, system can playback previous 5-60 minutes record of

 Support drag and play function. You can use your mouse to select any playback

 Support playback, pause and exit function.

 Right now, system does not support slow playback and backward playback function.

z Support digital zoom function.

z Support real-time backup function.

You can follow the contents listed below for the operation instruction.

Preview control interface

Move you mouse to the top centre of the video of current channel, you can see system pops

up the preview control interface. See Figure 4-6. If your mouse stays in this area for more

than 6 seconds and has no operation, the control bar automatically hides.

Recording status

Motion detection

current channel. Please go to the Main Menu->General to set real-time playback

time.

start time.

1 2 3 4

Video loss

Camera lock

Figure 4-6

You can refer to the following sheet for detailed information.

SN Name Function 1 Realtime playback It is to playback the previous 5-60 minutes

record of current channel. Please go to the Main Menu->General to set real-time playback time. System may pop up a dialogue box if there is no such record in current channel.

2 Digital zoom It is to zoom in specified zone of current

channel. It supports zoom in function of multiplechannel.

The selected area has an icon as

free area is shown as an icon as .

3 Real-time backup

function

It is to backup the video of current channel to the USB device. System can not backup the video of multiple-channel at the same time. Current selected backup channel has an icon as

and the free channel is shown as an icon as

and the

..

Once the backup started, you can see the free

channel is shown as an icon as

4 Exit

Playback control

The playback control has the following features.

z Support play, pause, and exit and drag function.

z During the preview playback process, you can not see the channel title and record status

of current channel. It will display the channel title and the record status once you exit the

preview playback.

z During the preview playback, you can not switch the displayed channel or change

current window-display mode.

z Please note, the tour function has the higher priority than the preview playback. System

automatically exits the preview playback function and its corresponding interface when

the tour function started. You can not control the preview playback until the tour function

ended.

4.3 Manual Record

Note:

You need to have proper rights to implement the following operations. Please make sure the

HDD has been properly installed.

4.3.1.1 Manual record menu

There are two ways for you to go to manual record menu.

z Right click mouse or in the main menu, Advanced->Manual Record.

z In live viewing mode, click record button in the front panel or record button in the remote

control.

Manual record menu is shown as in Figure 4-7.

4.3.1.2 Basic operation

There are three statuses: schedule/manual/stop. Please highlight icon“○” to select

corresponding channel.

z Manual: The highest priority. After manual setup, all selected channels will begin ordinary

recording.

z Schedule: Channel records as you have set in recording setup (Main Menu->Setting-

>Schedule)

z Stop: All channels stop recording.

Figure 4-7

4.3.1.3 Enable/disable record

Please check current channel status: “○” means it is not in recording status, “●” means it is in

recording status.

You can use mouse or direction key to highlight channel number. See Figure 4-8.

Figure 4-8

4.3.1.4 Enable all channel recording

Highlight ○ below All, you can enable all channel recording.

z All channel schedule record

Please highlight “ALL” after “Schedule”. See Figure 4-9.

When system is in schedule recording, all channels will record as you have previously set

(Main menu->Setting->Schedule).

The corresponding indication light in front panel will turn on.

Figure 4-9

z All channel manual record

Please highlight “ALL” after “Manual.” See Figure 4-10.

When system is in manual recording, all scheduled set up you have set in will be null ((Main

menu->Setting->Schedule)).

You can see indication light in front panel turns on, system begins manual record now.

Figure 4-10

4.3.1.5 Stop all channel recording

Please highlight “ALL” after “Stop”. See Figure 4-11.

System stops all channel recording no matter what mode you have set in the menu (Main

menu->Setting->Schedule)

Figure 4-11

The interface of 64-channel series product is shown as below. See Figure 4-12 and Figure

4-13.

Figure 4-12

Figure 4-13

4.4 Search & Playback

Click search button in the main menu, search interface is shown as below. See Figure 4-14.

Usually there are three file types:

z R: Regular recording file.

z A: External alarm recording file.

z M: Motion detection recording file.

7 8

12 9

Figure 4-14

56 10

Please refer to the following sheet for more information.

SN Name Function

3 Calendar

Display window

Search type

Playback mode and channel selection pane.

zHere is to display the searched picture or file. zSupport 1/4/9/16-window playback.

zHere you can select to search the picture or the recorded file. zYou can select to play from the read-write HDD or the connected external

device.

zThe blue highlighted date means there is picture or file. Otherwise, there is no

picture or file.

zIn any play mode, click the date you want to see, you can see the corresponding

record file trace in the time bar.

zPlayback mode：1/4/9/16. (It may vary due to different series.)  In 1-window playback mode: you can select any channel.  In 4-window playback mode: you can select 4 channels according to your

requirement such as 1-4 channel and 5-8 channel.

 In 9-window playback mode, you can switch between such as 1-8 and 9-16

channels.

 In 16-window playback mode, you can switch between such as 1-16 and 17-

32 channels. zThe time bar will change once you modify the playback mode or the channel option.

zDouble click it, you can view the picture/record file list of current day. zThe file list is to display the first channel of the record file. zThe system can display max 128 files in one time. Use the S/T or the mouse to

view the file. Select one item, and then double click the mouse or click the ENTER button to playback.

zYou can input the period in the following interface to begin accurate search. zFile type：R—regular record； A—external alarm record； M—Motion detect

record.

File list switch button

Card number search

Playback control pane.

zLock file. Click the file you want to lock and click the button

you locked will not be overwritten.

zSearch locked file: Click the button zReturn: Click button , system goes back to the calendar and channel setup

interface. Please note: zSystem max locks 16 files. The size of the locked file shall be less than the 1/4 of

the HDD total space. The first 16G of each partition can not be locked. zSystem can only lock one file at one time and can not lock the extra stream. For

the file that is writing or overwriting, it can not be locked. The card number search interface is shown as below. Here you can view card

number/field setup bar. You cam implement advanced search.

Play/Pause There are three ways for you to begin playback.

►/

■ Stop

z The play button z Double click the valid period of the time bar. z Double click the item in the file list.

In slow play mode, click it to switch between play/pause.

Backward play In normal play mode, left click the button, the file begins backward play. Click it again to pause current play. In backward play mode, click ►/ to restore normal play.

to view the locked file.

to lock. The file

│W/ X│

W│/ │X

►



Note: The actual play speed has relationship with the software version.

In playback mode, click │W/X│ on the front panel or the remote control, you can play the previous section or the next section. You can click continuously when you are watching the files from the same channel.

In normal play mode, when you pause current play, you can click W│ and │X to begin frame by frame playback. In frame by frame playback mode, click ►/ to restore normal playback. For multiple-channel frame by frame playback mode, system only supports I frame playback.

Slow play In playback mode, click it to realize various slow play modes such as slow play 1, slow play 2, and etc.

Fast forward In playback mode, click to realize various fast play modes such as fast play 1,fast play 2 and etc.

Smart search

The volume of the playback

Click the snapshot button in the full-screen mode, the system can snapshot 1 picture per second.

zIt is to display the record type and its period in current search criteria.

zIn 4-window playback mode, there are corresponding four time bars. In other

playback mode, there is only one time bar. zUse the mouse to click one point of the color zone in the time bar, system begins

8 Time bar

10 Backup

11 Clip

Time bar unit

Record type

playback.

zThe time bar is beginning with 0 o'clock when you are setting the configuration.

The time bar zooms in the period of the current playback time when you are

playing the file. zThe green color stands for the regular record file. The red color stands for the

external alarm record file. The yellow stands for the motion detect record file.

●The option includes: 24H, 12H, 1H and 30M. The smaller the unit, the larger the zoom rate. You can accurately set the time in the time bar to playback the record.

zThe time bar is beginning with 0 o'clock when you are setting the configuration.

The time bar zooms in the period of the current playback time when you are

playing the file. Select the file(s) you want to backup from the file list. System max supports files from four channels. Then click the backup button, now you can see the backup menu. Click the start button to begin the backup operation. Check the file again you can cancel current selection. System max supports to display 32 files from one channel. zIt is to edit the file.

●Please play the file you want to edit and then click this button when you want to edit. You can see the corresponding slide bar in the time bar of the corresponding channel. You can adjust the slide bar or input the accurate time to set the file end time. Click this button again and then save current contents in a new file. .

In any play mode, the time bar will change once you modify the search type.

Smart search

Click the PAL) and 330(22*15 NTSC) zones. See Figure 4-15.

button, system begins smart search. System supports 396(22*18

Figure 4-15

Click the smart search playback.

Please note:

z When system is playing, you can select a zone in the window to begin motion

, you can go to the smart search playback. Click it again, system stops

detect. Click the motion detect button to begin play.

z Once the motion detect play has begun, click button again will terminate

current motion detect file play.

z The system will take the whole play zone as the motion detect region by

default.

z If you select to play other file in the file list, system switches to motion detect

play pf other file.

z During the motion detect play process, you can not implement operations such

as change time bar, begin backward playback or frame by frame playback. .

Important System does not support motion detect zone setup during the full-screen mode.

Other Functions

Other channel

15 Digital zoom

Note:

All the operations here (such as playback speed, channel, time and progress) have

relationship with hardware version. Some series DVRs do not support some functions or

playback speeds.

synchronization switch to play when playback

When playing the file, click the number button, system can switch to the same period of the corresponding channel to play. When the system is in full-screen playback mode, left click the mouse in the screen. Drag your mouse in the screen to select a section and then left click mouse to realize digital zoom. You can right click mouse to exit.

4.5 Schedule

After system booted up, it is in default 24-hour regular mode. You can set record type and

time in schedule interface.

4.4.1 Schedule Menu

In the main menu, from setting to schedule, you can go to schedule menu. See Figure 4-16.

z Channel: Please select the channel number first. You can select “all” if you want to set for

the whole channels.

z Week day: There are eight options: ranges from Saturday to Sunday and all.

z Pre-record: System can pre-record the video before the event occurs into the file. The value

ranges from 1 to 30 seconds depending on the bit stream.

z Redundancy: System supports redundancy backup function. It allows you backup recorded

file in two disks. You can highlight Redundancy button to activate this function. Please note,

before enable this function, please set at least one HDD as redundant. (Main menu-

>Advanced->HDD Management) Please refer to chapter 4.4.1.2 for detailed information.

Please note this function is null if there is only one HDD and the 64-channel series product max supports redundancy records from 4 channels.

z Snapshot: You can enable this function to snapshoot image when alarm occurs.

z Record types: There are four types: regular, motion detection (MD), Alarm, MD & alarm.

z Holiday setting: Click it you can see an interface shown as in Figure 4-17. Here you can set

holiday date. Check the box, it means current channel shall record as your holiday setup.

Please go to the Period interface to set the holiday date record setup.

Please highlight icon to select the corresponding function. After completing all the setups

please click save button, system goes back to the previous menu.

At the bottom of the menu, there are color bars for your reference. Green color stands for

regular recording, yellow color stands for motion detection and red color stands for alarm

recording. The white means the MD and alarm record is valid. Once you have set to record

when the MD and alarm occurs, system will not record neither motion detect occurs nor the

alarm occurs.

Figure 4-16

Figure 4-17

4.5.1.1 Quick Setup

This function allows you to copy one channel setup to another. After setting in channel 1, you can

click paste button and turn to channel 2 and then click copy button. You can finish setting for one

channel and then click save button or you can finish all setup and then click save button to

memorize all the settings.

4.5.1.2 Redundancy

Redundancy function allows you to memorize record file in several disks. When there is file

damage occurred in one disk, there is a spare one in the other disk. You can use this

function to maintain data reliability and safety.

In the main menu, from Setting to Schedule, you can highlight redundancy button to enable

this function. See Figure 4-16.

In the main menu, from Advanced to HDD management, you can set one or more disk(s) as

redundant. You can select from the dropdown list. See Figure 4-18. System auto overwrites

old files once hard disk is full.

Please note only read/write disk or read-only disk can backup file and support file search

function, so you need to set at least one read-write disk otherwise you can not record video.

Note About redundancy setup:

z If current channel is not recording, current setup gets activated when the channel begin

recording the next time.

z If current channel is recording now, current setup will get activated right away, the current file

will be packet and form a file, then system begins recording as you have just set.

After all the setups please click save button, system goes back to the previous menu.

Figure 4-18

Playback or search in the redundant disk.

There are two ways for you to playback or search in the redundant disk.

z Set redundant disk(s) as read-only disk or read-write disk (Main menu->Advanced->HDD

management). See Figure 4-18.System needs to reboot to get setup activated. Now you can

search or playback file in redundant disk.

z Dismantle the disk and play it in another PC.

4.5.2 Snapshot

Please note the 24/32-channel series product supports 2 4/32-chann el snapshot function. The 64-channel series p roduct supports 1-16- channel snapshot fun ction only.

4.5.2.1 Schedule Snapshot

In Encode interface, click snapshot button to input snapshot mode, size, quality and

frequency. See the interface on the left of Figure 4-19.

In FTP (Main Menu->Network->Network Setting) interface, please input upload interval. See

the interface in the middle of Figure 4-19.

In Schedule interface, please enable snapshot function. See interface on the right of Figure

4-19.

Please refer to the following figure for detailed information. See Figure 4-19.

Figure 4-19

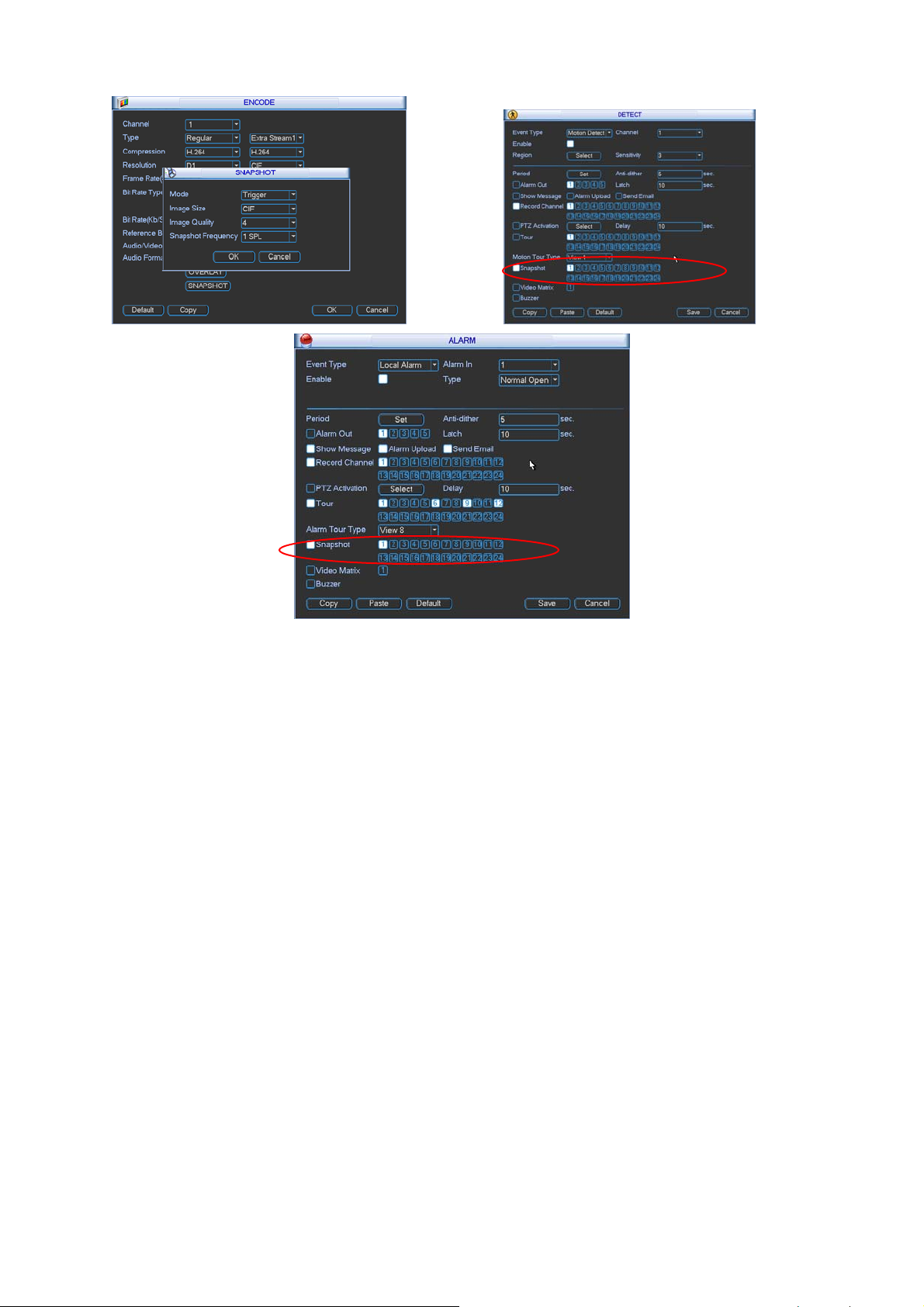

4.5.2.2 Activation Snapshot

Please follow the steps listed below to enable the activation snapshot function. After you

enabled this function, system can snapshot when the corresponding alarm occurred.

z In Encode interface, click snapshot button to input snapshot mode, size, quality and

frequency. See the interface on the left of Figure 4-20.

z In FTP interface please input upload interval. See the interface in the middle of Figure

4-19.

z In Detect interface please enable snapshot function for specified channels (interface in

the middle of Figure 4-20). Or in alarm interface (interface on the right of Figure 4-20)

please enable snapshot function for specified channels.

Please refer to the following figure for detailed information. See Figure 4-20.

Figure 4-20

4.5.2.3 Priority

Please note the activation snapshot has the higher priority than schedule snapshot. If you

have enabled these two types at the same time, system can activate the activation snapshot

when alarm occurs, and otherwise system just operates the schedule snapshot.

4.5.3 Image FTP

In Network interface, you can set FTP server information. Please enable FTP function and

then click save button. See Figure 4-21.

Please boot up corresponding FTP server.

Please enable schedule snapshot (Chapter 4.4.2.1) or activation snapshot (Chapter 4.4.2.2)

first, now system can upload the image file to the FTP server.

Please input the

corresponding information

here, if you just upload the

image FTP.

Figure 4-21

4.6 Detect

4.5.1 Go to Detect Menu

In the main menu, from Setting to Detect, you can see motion detect interface. See Figure

4-22.There is three detection types: motion detection, video loss, camera masking.

4.5.2 Motion Detect

Detection menu is shown as below. See Figure 4-22

z Event type: from the dropdown list you can select motion detection type.

z Channel: select the channel to activate recording function once alarm occurred. Please make

sure you have set MD record in encode interface(Main Menu->Setting->Schedule) and

schedule record in manual record interface(Main Menu->Advanced->Manual Record)

z Latch: when motion detection complete, system auto delays detecting for a specified time.

The value ranges from 10-300(Unit: second)

z Region: Click select button, the interface is shown as in Figure 4-23. Here you can set

motion detection zone. There are 396(PAL)/330(NTSC) small zones. The green zone is

current cursor position. Grey zone is the motion detection zone. Black zone is the disarmed

zone. You can click Fn button to switch between the arm mode and disarm mode. In arm

mode, you can click the direction buttons to move the green rectangle to set the motion

detection zone. After you completed the setup, please click ENTER button to exit current

setup. Do remember click save button to save current setup. If you click ESC button to exit

the region setup interface system will not save your zone setup.

z Sensitivity: System supports 6 levels. The sixth level has the highest sensitivity.

z Show message: System can pop up a message to alarm you in the local host screen if you

enabled this function.

z Alarm upload: System can upload the alarm signal to the network (including alarm centre)

if you enabled current function.

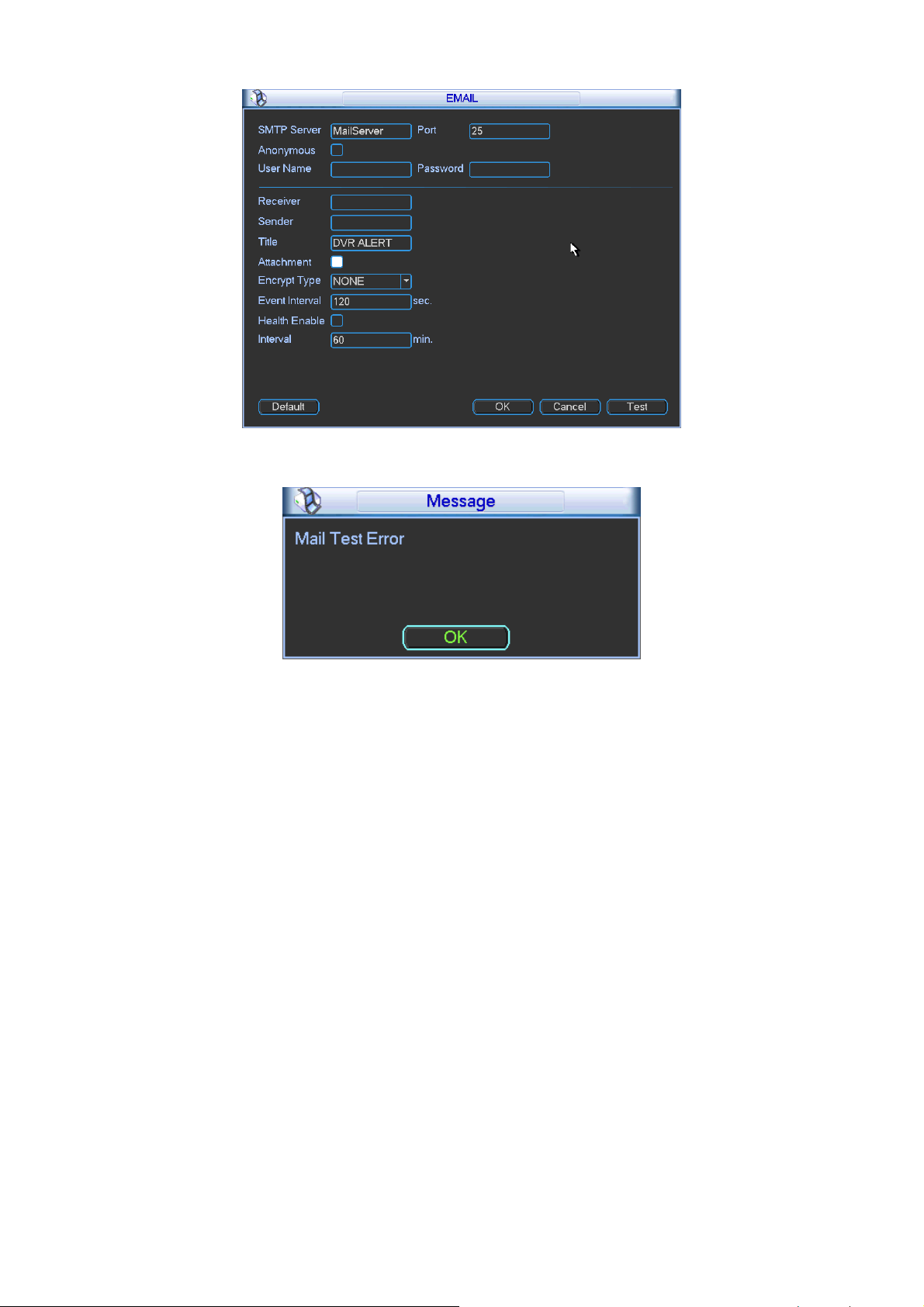

z Send email: System can send out email to alert you when alarm occurs.

z PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go to preset,

tour &pattern when there is an alarm. Click “select” button, you can see an interface is

shown as in

X305H305H305HFigure 4-24X.

z Period: Click set button, you can see an interface is shown as in Figure 4-25. Here you can

set for business day and non-business day. In Figure 4-25 click set button, you can see an

interface is shown as in Figure 4-26. Here you can set your own setup for business day and

non-business day.

z Anti-dither: Here you can set anti-dither time.

z Alarm output: when alarm occurred, system enables peripheral alarm devices.

z Tour: Here you can enable tour function when alarm occurs. System one-window tour.

Please go to chapter 5.3.9 Display for tour interval setup.

z Snapshot: You can enable this function to snapshoot image when alarm occurs.

Please highlight icon to select the corresponding function. After all the setups please click

save button, system goes back to the previous menu.

Note:

In motion detection mode, you can not use copy/paste to set channel setup since the video in

each channel may not be the same.

In Figure 4-23, you can left click mouse and then drag it to set a region for motion detection.

Click Fn to switch between arm/withdraw motion detection. After setting, click enter button to exit.

Figure 4-22

Figure 4-23

Figure 4-24

Figure 4-25

Figure 4-26

For the 64-channel series product, the interface is shown as in Figure 4-27 and Figure 4-28.

Figure 4-27

Figure 4-28

4.5.3 Video Loss

In Figure 4-22, select video loss from the type list. You can see the interface is shown as in

Figure 4-29.This function allows you to be informed when video loss phenomenon occurred.

You can enable alarm output channel and then enable show message function.

Tips:

You can enable preset activation operation when video loss occurs.

Please refer to chapter 4.5.2 motion detection for detailed information.

Figure 4-29

4.5.4 Camera Masking

When someone viciously masks the lens, or the output video is in one-color due to the

environments light change, the system can alert you to guarantee video continuity. Camera

masking interface is shown as in Figure 4-30.

Tips:

You can enable preset/tour/pattern activation operation when video loss occurs.

Please refer to chapter 4.5.2 motion detection for detailed information.

Note:

In Detect interface, copy/paste function is only valid for the same type, which means you can

not copy a channel setup in video loss mode to camera masking mode.

Figure 4-30

4.7 Alarm Setup and Alarm Activation

Before operation, please make sure you have properly connected alarm devices such as

buzzer.

4.7.1 Go to alarm setup interface

In the main menu, from Setting to Alarm, you can see alarm setup interface. See Figure 4-31.

4.7.2 Alarm setup

Alarm interface is shown as below. See Figure 4-31.

z Alarm in: Here is for you to select channel number.

z Event type: There are two types. One is local input and the other is network input.

z Type: normal open or normal close.

z PTZ activation: When an alarm occurred, system can activate the PTZ operation. The PTZ

activation lasts an anti-dither period.

 In the Pan/Tilt/Zoom interface (Main menu->Setting-> Pan/Tilt/Zoom), please set video

channel, speed dome protocol and etc.

 Select the channel of current speed dome as current monitor video and the right click

mouse to select Pan/Tilt/Zoom item. Now you can set preset, tour pattern.

 In Figure 4-31, click “select” button, you can see an interface is shown as in Figure 4-32.

Here you can set the activation operation such as preset tour, pattern and enable.

z Period: Click set button, you can see an interface is shown as in Figure 4-33. Here you can

set for business day and non-business day. In Figure 4-33, click set button, you can see an

interface is shown as in Figure 4-34. Here you can set your own setup for business day and

non-business day.

z Anti-dither: Here you can set anti-dither time. The value ranges from 5 to 600s. The anti-

dither time refers to the alarm signal lasts time. It can be seem as the alarm signal activation

stays such as the buzzer, tour, PTZ activation, snapshot, channel record. The stay time

here does not include the latch time. During the alarm process, the alarm signal can begin

an anti-dither time if system detects the local alarm again. The screen prompt, alarm upload,

email and etc will not be activated. For example, if you set the anti-dither time as 10 second,

you can see the each activation may last 10s if the local alarm is activated. During the

process, if system detects another local alarm signal at the fifth second, the buzzer, tour, PTZ activation, snapshot, record channel will begin another 10s while the screen prompt,

alarm upload, email will not be activated again. After 10s, if system detects another alarm

signal, it can generate an alarm since the anti-dither time is out.

z Show message: System can pop up a message to alarm you in the local host screen if you

enabled this function.

z Alarm upload: System can upload the alarm signal to the network (including alarm centre)

if you enabled current function.

z Send email: System can send out email to alert you when alarm occurs.

z Record channel: you can select proper channel to record alarm video (Multiple choices).

 You need to set alarm record mode as Schedule in Record interface (Main Menu-

>Advanced->Record). Please note the manual record has the highest priority. System

record all the time no matter there is an alarm or not if you select Manual mode.

 Now you can go to the Schedule interface (Main Menu->Setting->Schedule) to set the

record type, corresponding channel number, week and date. You can select the record

type:Regular/MD/Alarm/MD&Alarm. Please note, you can not select the MD&Alarm and

MD(or Alarm) at the same time.

 Now you can go to the Encode interface to select the alarm record and set the encode

parameter (Main Menu->Setting->Encode).

 Finally, you can set the alarm input as the local alarm and then select the record

channel. The select channel begins alarm record when an alarm occurred. Please note

system begins the alarm record instead of the MD record if the local alarm and MD

event occurred at the same time.

z Latch: When the anti-dither time ended, the channel alarm you select in the alarm output

may last the specified period. The value ranges from 1 to 300 seconds. This function is not

for other alarm activation operations. The latch is still valid even you disable the alarm event

function directly. .

z Tour: Here you can enable tour function when alarm occurs. System supports one-window

tour. Please go to chapter 5.3.9 Display for tour interval setup.

z Snapshot: You can enable this function to snapshoot image when alarm occurs.

z Video matrix: Check the box to enable this function. The video matrix output can display the

alarm video of current channel when there is an alarm signal.

z Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.

z Snapshot: For snapshot operation, please refer to chapter 4.4.2.

Note: The network alarm means the alarm signal from the TCP/IP. You can enable the network

alarm function via the net SDK. The network alarm does not have the device type; anti-dither and

alarm upload function. The rest items are the same.

Please highlight icon

please click save button, system goes back to the previous menu.

to select the corresponding function. After setting all the setups

Figure 4-31

Figure 4-32

Figure 4-33

Figure 4-34

4.8 Backup

DVR support USB device backup and network download. Here we introduce USB backup.

You can refer to Chapter 7 Web Client Operation for network download backup operation.

4.7.1 Detect Device

Click backup button, you can see an interface is shown as in Figure 4-35. Here is for you to

view devices information.

You can view backup device name and its total space and free space. The device includes

USB burner, flash disk, SD card, and portable HDD.

Figure 4-35

4.8.1 Backup

In Figure 4-35, click Backup button, you can go to the following interface. See Figure 4-36.

Figure 4-36

Select backup device and then set channel, file start time and end time.

Click add button, system begins search. All matched files are listed below. System

automatically calculates the capacity needed and remained. See Figure 4-37. system only backup files with a √ before channel name. You can use Fn or cancel button to delete √ after file serial number.

Click backup button, you can backup selected files. There is a process bar for you reference.

When the system completes backup, you can see a dialogue box prompting successful

backup.

Figure 4-37

Click backup button, system begins burning. At the same time, the start button becomes stop

button. You can view the remaining time and process bar at the left bottom. See Figure 4-38.

You can see the corresponding dialogue box if the backup succeeded or failed.

Figure 4-38

z File format: Click the file format; you can see there are two options: DAV/ASF.

z Picture backup: Please set the corresponding time, channel and then select the type as

PIC from the dropdown list. See Figure 4-39. Please click the Add button and then select

the pictures. Click the Start button; you can copy the specified pictures to the selected

portable devices.

Figure 4-39

z One key backup: It includes three steps: the search, select all, start the backup. You can

skip the above three steps and then copy all the searched files directly.

The file name format usually is: SN_CH+channel number+time Y+M+D+H+M+S. In the file

name, the YDM format is the same as you set in general interface. (Main Menu ->Setting -

>General).File extension name is .dav.

Tips:

During backup process, you can click ESC to exit current interface for other operation. The

system will not terminate backup process.

Note:

When you click stop button during the burning process, the stop function becomes activated

immediately. For example, if there are ten files, when you click stop system just backup five

files, system only save the previous 5 files in the device (But you can view ten file names).

4.9 PTZ Control and Color Setup

Note: All the operations here are based on PELCOD protocol. For other protocols, there

might be a little difference.

4.8.1 Cable Connection

Please follow the procedures below to go on cable connection

z Connect the dome RS485 port to DVR 485 port.

z Connect dome video output cable to DVR video input port.

z Connect power adapter to the dome.

4.8.2 PTZ Setup

Note: The camera video should be in the current screen. Before setup, please check the

following connections are right:

z PTZ and decoder connection is right. Decoder address setup is right.

z Decoder A (B) line connects with DVR A (B) line.

Boot up the DVR, input user name and password.

In the main menu, click setting, and then click Pan/Tilt Control button. The interface is shown

as in Figure 4-40. Here you can set the following items:

z Channel: select the current camera channel.

z Protocol: select corresponding PTZ protocol(such as PELCOD)

z Address: default address is 1.

z Baud rate: select corresponding baud rate. Default value is 9600.

z Data bits: select corresponding data bits. Default value is 8.

z Stop bits: select corresponding stop bits. Default value is 1.

z Parity: there are three options: odd/even/none. Default setup is none.

Figure 4-40

After completing all the setting please click save button.

In one window display mode, right click mouse (click “Fn” Button in the front panel or click

“Fn” key in the remote control). The interface is shown as in Figure 4-41.

Figure 4-41

Click Pan/Tilt/Zoom, the interface is shown as below. See Figure 4-42.

Here you can set the following items:

z Step: value ranges fro 1 to 8.

z Zoom

z Focus

z Iris

Please click icon

and to adjust zoom, focus and iris.

Figure 4-42

In Figure 4-42, please click direction arrows (See Figure 4-43) to adjust PTZ position. There are

total 8 direction arrows.

4.8.3 3D Intelligent Positioning Key

Figure 4-43

In the middle of the eight direction arrows, there is a 3D intelligent positioning key. SeeFigure

4-44.

X Please make sure your protocol supports this function and you need to use mouse to

control.

Click this key, system goes back to the single screen mode. Drag the mouse in the screen to

adjust section size. The dragged zone supports 4X to 16X speeds. It can realize PTZ

automatically. The smaller zone you dragged, the higher the speed.

Figure 4-44

Here is a sheet for you reference.

Name Function

key Zoom Focus Iris

function Shortcut

key Near Near close

│_

W

Function key

function Shortcut

Key Far Far Open



│

►

f

4.10 Preset/ Patrol/Pattern/Scan

In Figure 4-42, please click the “set” button. The interface is shown as below. See Figure 4-45.

Here you can set the following items:

z Preset

z Tour

z Pattern

z Border

Figure 4-45

In X328H328H328H Figure 4-42, click page switch button, the interface is shown as in Figure 4-46.

Here you can activate the following functions:

z Preset

z Tour

z Pattern

z Auto scan

z Auto pan

z Flip

z Reset

z Page switch

Figure 4-46

Note:

z Preset, tour and pattern all need the value to be the control parameter. You can define it as

you require.

z You need to refer to your speed dome user’s manual for Aux definition. In some cases, it

can be used for special process.

z The following setups are usually operated in the

X332H332H332HFigure 4-42, Figure 4-45 and Figure 4-46.

4.9.1Preset Setup

In Figure 4-42, use eight direction arrows to adjust camera to the proper position.

In Figure 4-45, click preset button and input preset number. The interface is shown as in Figure

4-47.

Now you can add this preset to one tour.

Figure 4-47

4.9.2 Activate Preset

In Figure 4-46, please input preset number in the No. blank, and click preset button.

4.9.3 Patrol setup (Tour Setup)

In Figure 4-38, click patrol button. The interface is shown as in Figure 4-48.Input preset number

and add this preset to a patrol (tour). For each patrol (tour), you can input max 80 presets.

Figure 4-48

4.9.4 Activate Patrol (tour)

In X341H341H341H Figure 4-45, input patrol (tour) number in the No. blank and click patrol button

4.9.5 Pattern Setup

In Figure 4-45, click pattern button and then click “begin” button. The interface is shown as in

Figure 4-49. Then you can go to Figure 4-42 X to modify zoom, focus, and iris.

Go back to Figure 4-49 and click “end” button. You can memorize all these operations as pattern

Figure 4-49

4.9.6 Activate Pattern Function

In X346H346H346H Figure 4-39, input mode value in the No. blank, and click pattern button.

4.9.7 Auto Scan Setup

In X347H347H347H Figure 4-38, click border button. The interface is shown as in X348H348H348H Figure 4-43.

Please go to

Then please go to

Repeat the above procedures to set right limit.

X349H349H349H X349H349H349HFigure 4-35, use direction arrows to select camera left limit

X350H350H350H Figure 4-43X and click left limit button

Figure 4-50

4.9.8 Activate Auto Scan

In Figure 4-46, click “Auto Scan” button, the system begins auto scan. Correspondingly, the auto

scan button becomes Stop button. Click stop button to terminate scan operation.

4.11 Flip

In Figure 4-46, click page switch button, you can see an interface is shown as below. See Figure

4-51. Here you can set auxiliary function. The aux value has relation ship with the Aux button of

the decoder.

Click page switch button again, system goes back to Figure 4-42.

Figure 4-51

5 Understanding of Menu Operations and Controls

5.1 Menu Tree

This series DVR menu tree is shown as below.

Backup

Information

HDD Info BPS Log Version Online Users

Setting General Encode

Schedule RS232

Menu Network

Alarm Detect Pan/ Tilt/Zoom Display

Default Search Advanced HDD Management

Alarm Output

Abnormity Manual Record Account Auto Maintain TV Adjust Video Matrix Title Overlay Config Backup

Shutdown

5.2 Main Menu

After you logged in, the system main menu is shown as below. See Figure 5-1.X There are total

six icons: search, Information, setting, backup, advanced and shutdown. Move the cursor to

highlight the icon, then double click mouse to enter the sub-menu.

Figure 5-1

5.3 Setting

In main menu, highlight setting icon and double click mouse. System setting interface is shown

as below. See Figure 5-2.

Figure 5-2

5.3.1 General

General setting includes the following items. See X357H357H357HFigure 5-3X.

z System time: Here is for you to set system time

z Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or DD-MM-YYYY.

z Date separator: There are three denotations to separate date: dot, beeline and solidus.

z DST: Here you can set DST time and date. Please enable DST function and then click set

button. You can see an interface is shown as in Figure 5-4. Here you can set start time and

end time by setting corresponding week setup. In Figure 5-4, enable date button, you can

see an interface is shown as in Figure 5-5. Here you can set start time and end time by

setting corresponding date setup.

z Time format: There are two types: 24-hour mode or 12-hour mode.

z Language: System supports various languages: Chinese (simplified), Chinese (Traditional),

English, Italian, Japanese, French, Spanish (All languages listed here are optional. Slight

difference maybe found in various series.)

z HDD full: Here is for you to select working mode when hard disk is full. There are two options:

stop recording or rewrite. If current working HDD is overwritten or the current HDD is full

while the next HDD is no empty, then system stops recording, If the current HDD is full and

then next HDD is not empty, then system overwrites the previous files.

z Pack duration: Here is for you to specify record duration. The value ranges from 60 to 120

minutes. Default value is 60 minutes.

z DVR No: When you are using one remote control (not included in the accessory bag) to

control several DVRs, you can give a name to each DVR for your management.

z Video standard: There are two formats: NTSC and PAL.

z Auto logout: Here is for you to set auto logout interval once login user remains inactive for a

specified time. Value ranges from 0 to 60 minutes.

z Startup wizard: Once you check the box here, system will go to the startup wizard directly

when the system restarts the next time. Otherwise, it will go to the login interface.

z Device ID: Please input a corresponding device name here.

z Real-time playback: It is to set playback time you can view in the preview interface (chapter

4.2 Live Viewing). The value ranges from 5 to 60 minutes.

z Startup wizard: Check the box here, system goes to the startup wizard when the device

boots up the next time. Otherwise, it goes to the system login interface directly.

z Navigation bar: Check the box here, system displays the navigation bar on the interface.

Note:

Since system time is very important, do not modify time casually unless there is a must!

Before your time modification, please stop record operation first!

After completing all the setups please click save button, system goes back to the previous menu.

Figure 5-3

Figure 5-4

Figure 5-5

5.3.2 Encode

Encode setting includes the following items. See Figure 5-6.

Please note some series do not support extra stream.

z Channel: Select the channel you want.

z Type: Please select from the dropdown list. There are three options: regular/motion

detect/alarm. You can set the various encode parameters for different record types.

z Compression: System supports H.264.

z Resolution: System supports various resolutions, you can select from the dropdown list. The

main stream supports D1/HD1/2CIF/CIF/QCIF and the extra stream supports CIF/QCIF.

Please note the 64-channel series product extra stream supports non-real time CIF and it max supports 1-16-channel extr a strea m function.

z Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.

¾ The 24/32-channel series product: for each 4-channel, there is one channel supports

D1/HD1 (25/30fps) such as the channel-1/5/9/13…/25 and etc. For the rest channel, it

supports D1/HD1 (6/7fps).

¾ The 64-channel series product: for each 8-channel, there is one channel supports

D1/HD1 (25/30fps) such as the channel-1/9/17…/57 and etc. For the rest channel, it

supports D1/HD1 (6/7fps). For channel- channel-1/9/17…/57, the main stream default

resolution is D1 and the rest channels are CIF.

z Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video

quality.

z Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image

quality.

z Video/audio: You can enable or disable the video/audio.

z Copy: This function allows you to copy one channel setup to another. After setting in channel

1, you can click paste button and turn to channel 2 and then click copy button. You can finish

setting for one channel and then click save button or you can finish all setup and then click

save button to memorize all the settings.

z Overlay: Click overlay button, you can see an interface is shown in Figure 5-7.

 Cover area (Privacy mask): Here is for you to set privacy mask section. You can drag you

mouse to set proper section size. In one channel video, system max supports 4 zones in one

channel.

 Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means the

privacy mask zone can not be viewed by user when system is in preview status. Monitor

means the privacy mask zone can not be view by the user when system is in monitor status.

 Time display: You can select system displays time or not when you playback. Please click

set button and then drag the title to the corresponding position in the screen.

 Channel display: You can select system displays channel number or not when you playback.

Please click set button and then drag the title to the corresponding position in the screen.

 Copy： This function allows you to copy one channel setup to another. After setting in

channel 1, you can click paste button and turn to channel 2 and then click copy button. You

can finish setting for one channel and then click save button or you can finish all setup and

then click save button to memorize all the settings.

Figure 5-6

Figure 5-7

5.3.3 Schedule

Please refer to chapter 4.4 schedule.

5.3.4 RS232

RS232 interface is shown as below. There are five items. See Figure 5-8.

z Function: There are various devices for you to select. Console is for you to use the COM or

mini-end software to upgrade or debug the program. The control keyboard is for you to

control the device via the special keyboard. Transparent COM (adapter) is to connect to the

PC to transfer data directly. Protocol COM is for card overlay function. Network keyboard is

for you to use the special keyboard to control the device. PTZ matrix is to connect to the

peripheral matrix control.

z Baud rate: You can select proper baud rate.

z Data bit: You can select proper data bit. The value ranges from 5 to 8.

z Stop bit: There are three values: 1/1.5/2.

z Parity: there are five choices: none/odd/even/space mark.

System default setup is:

z Function: Console

z Baud rate:115200

z Data bit:8

z Stop bit:1

z Parity: None

After completing all the setups please click save button, system goes back to the previous menu.

Figure 5-8

5.3.5 Network

Here is for you to input network information. See Figure 5-9.

z MAC address: The host in the LAN can get a unique MAC address. It is for you to access in the

LAN. It is read-only.

z IP address: Here you can use up/down button (

input IP address. Then you can set the corresponding subnet mask the default gateway.

z Subnet prefix: The input value ranges from 0 to 128. It is to mark a specified network MAC

address. Usually it includes an organization of multiple-level.

z Default gateway: Here you can input the default gateway. Please note system needs to

check the validity of all IPv6 addresses. Th e IP addre ss and the def ault gatew ay shall be in the same IP section. That is to say, th e speci fied length of the subnet pr efix shall have the same string.

ST) or input the corresponding number to

z DHCP: It is to auto search IP. When enable DHCP function, you can not modify IP/Subnet

mask /Gateway. These values are from DHCP function. If you have not enabled DHCP

function, IP/Subnet mask/Gateway display as zero. You need to disable DHCP function to

view current IP information. Besides, when PPPoE is operating, you can not modify

IP/Subnet mask /Gateway.

z TCP port: Default value is 37777. You can change if necessary.

z UDP port: Default value is 37778. You can change if necessary.

z HTTP port: Default value is 80.

z RTSP port: Default value is 554.

Important: System needs to reboot after you changed and saved any setup of the above four ports. Please make sure the port values here do not conflict.

z Max connection: system support maximal 20 users. 0 means there is no connection limit.

z Preferred DNS server: DNS server IP address.

z Alternate DNS server: DNS server alternate address.

z Transfer mode: Here you can select the priority between fluency/video qualities.

z LAN download: System can process the downloaded data first if you enable this function.

The download speed is 1.5X or 2.0X of the normal speed.

Important For the IP address of IPv6 version, def ault gatew ay, pref erred DNS and alterna te DNS, the input value shall be 128-digit. It shall not be left in bl ank.

After completing all the setups please click save button, system goes back to the previous menu.

Figure 5-9

5.3.5.1 Network Setting

Network setting interface is shown as in Figure 5-10. Please check the box to enable

corresponding function and then double click current item to go to setup interface.

Figure 5-10

5.3.5.2 IP Filter

IP filter interface is shown as in Figure 5-11 (IPv4) and Figure 5-12 (IPv6). You can add IP in the

following list. The list supports max 64 IP addresses.

Please note after you enabled this function, only the IP listed below can access current DVR.

If you disable this function, all IP addresses can access current DVR.

The system supports IPv4 and IPv6 address format.

Please note:

z If you input the IPv4 address format, system can change it to the IPv6 address format. For

example, it can switch the IP:”10.6.2.230” to “::ffff:10.6.2.230”.

z If you input the IPv6 address format, system needs to check its validity and optimize its

format. For example, it can optimize IP:”fe80::0054:0cff:fefa:1682” to ”fe80::54:cff:fefa:1682”.

Figure 5-11

Figure 5-12

5.3.5.3 NTP Setup

You need to install SNTP server (Such as Absolute Time Server) in your PC first. In Windows XP

OS, you can use command “net start w32time” to boot up NTP service.

NTP setup interface is shown as in Figure 5-13.

z Host IP: Input your PC address.

z Port: This series DVR supports TCP transmission only. Port default value is 123.

z Update interval: minimum value is 1. Max value is 65535. (Unit: minute)

z Time zone: select your corresponding time zone here.

z Manual update: It allows you to synchronize the time with the server manually.

Here is a sheet for your time zone setup.

City /Region Name Time Zone

London GMT+0 Berlin GMT+1 Cairo GMT+2 Moscow GMT+3 New Deli GMT+5 Bangkok GMT+7 Beijing (Hong Kong) GMT+8 Tokyo GMT+9 Sydney GMT+10 Hawaii GMT-10 Alaska GMT-9

Pacific Time(P.T) GMT-8 American Mountain Time(M.T) GMT-7 American Central Time(C.T) GMT-6 American Eastern Time(E.T) GMT-5 Atlantic Time GMT-4 Brazil GMT-3 Middle Atlantic Time GMT-2

Figure 5-13

5.3.5.4 Multiple Cast Setup

Multiple-cast setup interface is shown as in Figure 5-14.

Figure 5-14

Here you can set a multiple cast group. Please refer to the following sheet for detailed

information.

z IP multiple cast group address

-224.0.0.0-239.255.255.255

-“D” address space

z The higher four-bit of the first byte=”1110”

z Reserved local multiple cast group address

-224.0.0.0-224.0.0.255

-TTL=1 When sending out telegraph

-For example

224.0.0.1 All systems in the sub-net

224.0.0.2 All routers in the sub-net

224.0.0.4 DVMRP router

224.0.0.5 OSPF router

224.0.0.13 PIMv2 router

z Administrative scoped addressees

-239.0.0.0-239.255.255.255

-Private address space

z Like the single broadcast address of RFC1918

z Can not be used in Internet transmission

z Used for multiple cast broadcast in limited space.

Except the above mentioned addresses of special meaning, you can use other addresses. For

example:

Multiple cast IP: 235.8.8.36

Multiple cast PORT: 3666.

After you logged in the Web, the Web can automatically get multiple cast address and add it to

the multiple cast groups. You can enable real-time monitor function to view the view.

Please note multiple cast function applies to special series only.

5.3.5.5 PPPoE

PPPoE interface is shown as in Figure 5-15.

Input “PPPoE name” and “PPPoE password” you get from your ISP (Internet service provider).

Click save button, you need to restart to activate your configuration.

After rebooting, DVR will connect to internet automatically. The IP in the PPPoE is the DVR

dynamic value. You can access this IP to visit the unit.

Figure 5-15

5.3.5.6 DDNS Setup

DDNS setup interface is shown as in Figure 5-16.

You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In

other words, this PC is a DNS (domain name server).

In network DDNS, please select DDNS type and highlight enable item. Them please input your

PPPoE name you get from you IPS and server IP (PC with DDNS ) . Click save button and then

reboot system.

Click save button, system prompts for rebooting to get all setup activated.

After rebooting, open IE and input as below: http：//(DDNS server IP)/(virtual directory name)/webtest.htm e.g.: http：//10.6.2.85/DVR _DDNS/webtest.htm.)

Now you can open DDNSServer web search page.

Figure 5-16

Please note NNDS type includes: CN99 DDNS, NO-IP DDNS, Private DDNS and Dyndns DDNS.

All the DDNS can be valid at the same time, you can select as you requirement.

Private DDNS function shall work with special DDNS server and special Professional

Surveillance Software (PSS).

5.3.5.7 UPNP

The UPNP protocol is to establish a mapping relationship between the LAN and the WAN.

Please input the router IP address in the LAN in Figure 5-17. Double click the UPNP item in

Figure 5-10, you can see the following interface. See Figure 5-17.

z UPNP on/off ：Turn on or off the UPNP function of the device.

z Status: When the UPNP is offline, it shows as “Unknown”. When the UPNP works it shows

“Success”

z Router LAN IP: It is the router IP in the LAN.

z WAN IP: It is the router IP in the WAN. z Port Mapping list： The port mapping list here is the one to one relationship with the router’s

port mapping setting.

z Enable Switch

: ：It shows that the function of port mapping is enabled in this port.

z List：

 Service name：Defined by user.

 Protocol： Protocol type

 Internal port：Port that has been mapped in the router.

 External port：Port that has been mapped locally.

z Default: UPNP default port setting is the HTTP, TCP and UDP of the DVR.

z Add to the list: Click it to add the mapping relationship.

z Delete: Click it to remove one mapping item.

Double click one item; you can change the corresponding mapping information. See Figure 5-18.

Important: When you are setting the router external port, please use 1024~5000 port. Do not use wellknown port 1~255 and the system port 256~1023 to avoid conflict. For the TCP and UDP, please make sure the internal port and external port are the same to guarantee the proper data transmission.

Figure 5-17

Figure 5-18

5.3.5.8 WIFI Setting

You can view the WIFI connection status in the Network Setting interface. See Figure 5-19.

You can view current connection status and IP address if there is a connection.

Figure 5-19

The WIFI interface is shown as below. See Figure 5-20.

z Auto connect WIFI: Check the box here, system automatically connects to the previous WIFI

hotspot.

z Refresh: You can click it to search the hotspot list again. It can automatically add the

information such as the password if you have set it before.

z Disconnect: Here you can click it to turn off the connection.

z Connect: Here you can click it to connect to the hotspot. System needs to turn off current

connection and then connect to a new hotspot if there is connection of you selected one.

See Figure 5-21.

Figure 5-20

Figure 5-21

After successfully connection, you can see the following interface. You can see it is connected

now. See Figure 5-21.

Figure 5-22

z WIFI working status: Here you can view current connection status.

Please note:

z After successful connection, you can see WIFI connection icon at the top right corner of the

preview interface.

z When the hotspot verification type is WEP, system displays as AUTO since the device can

not detect its encryption type.

z System does not support verification type WPA and WPA2. The display may become

abnormal for the verification type and encryption type.

After device successfully connected to the WIFI, you can view the hotspot name, IP address,

subnet mask, default gateway and etc. See Figure 5-23.

Figure 5-23

5.3.5.9 Email

The email interface is shown as below. See Figure 5-24.

z SMTP server: Please input your email SMTP server IP here.

z Port: Please input corresponding port value here.

z User name: Please input the user name to login the sender email box.

z Password: Please input the corresponding password here.

z Sender: Please input sender email box here.

z Title: Please input email subject here. System support English character and Arabic number.

Max 32-digit.

z Receiver: Please input receiver email address here. System max supports 3 email boxes.

z SSL enable: System supports SSL encryption box.

z Interval: The send interval ranges from 0 to 3600 seconds. 0 means there is no interval.

z Health email enable: Please check the box here to enable this function. This function allows

the system to send out the test email to check the connection is OK or not.

z Interval: Please check the above box to enable this function and then set the corresponding

interval. System can send out the email regularly as you set here. Click the Test button, you

can see the corresponding dialogue box to see the email connection is OK or not. See

Figure 5-25.

Please note system will not send out the email immediately when the alarm occurs. When the

alarm, motion detection or the abnormity event activates the email, system sends out the email

according to the interval you specified here. This function is very useful when there are too many

emails activated by the abnormity events, which may result in heavy load for the email server.

Figure 5-24

Figure 5-25

5.3.5.10 FTP

You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP

service.

Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-

U Administator. Now you can set user password and FTP folder. Please note you need to grant

write right to FTP upload user. See Figure 5-26.

Figure 5-26

You can use a PC or FTP login tool to test setup is right or not.

For example, you can login user ZHY to

folder or not. See Figure 5-27.

H140H140H140HTUFTP://10.10.7.7UTH and then test it can modify or delete

Figure 5-27

System also supports upload multiple DVRs to one FTP server. You can create multiple folders

under this FTP.

In Figure 5-179, select FTP and then double click mouse. You can see the following interface.

See Figure 5-28.

z Please highlight the icon

z Here you can input FTP server address, port and remote directory. When remote directory is

null, system automatically create folders according to the IP, time and channel.

z User name and password is the account information for you to login the FTP.

z Now you can set upload file length, picture upload interval, upload file channel, time and

type.

 File length is upload file length. When setup is larger than the actual file length, system

will upload the whole file. When setup here is smaller than the actual file length, system

only uploads the set length and auto ignore the left section. When interval value is 0,

system uploads all corresponding files.

 At the same time, you can set two periods, three record files for different channels.

in front of Enable to activate FTP function.

z Click the Test button, you can see the corresponding dialogue box to see the FTP

connection is OK or not. See Figure 5-29.

Figure 5-28

Figure 5-29

5.3.5.11 Alarm Centre

This interface is reserved for you to develop.

5.3.5.12 SNMP

SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network

management frame of the network management system. The SNMP widely used in many

environments. It is used in many network device, software and system.

You can set in the following interface. See Figure 5-30.

Figure 5-30

Please enable the SNMP function. Use the corresponding software tool (MIB Builder and MG-

SOFT MIB Browser.

Please follow the steps listed below to configure.

In Figure 5-30, check the box to enable the SNMP function. Input the IP address of the PC

than is running the software in the Trap address. You can use default setup for the rest

items.

z Compile the above mentioned two MIB file via the software MIB Builder.

Run MG-SOFT MIB Browser to load the file from the previous step to the software.

z Input the device IP you want to manage in the MG-SOFT MIB Browser. Please set the

corresponding version for your future reference.

z Open the tree list on the MG-SOFT MIB Browser; you can get the device configuration. Here

you can see the device has how many video channels, audio channels, application version

and etc.

5.3.6 Alarm

Please refer to chapter 4.6 Alarm Setup and Activation.

5.3.7 Detect

Please refer to chapter 4.5 Detect.

5.3.8 Pan/Tilt/Zoom

The pan/tilt/zoom setup includes the following items. Please select channel first. See Figure 5-31.

z Protocol: Select corresponding PTZ protocol such as PELCOD.

z Address: input corresponding PTZ address.

z Baud rate: Select baud rate.

z Data bit: Select data bit.

z Stop bit: Select stop bit.

z Parity: There are three choices: none/odd/even.

After completed all the setups please click save button, system goes back to the previous menu.

For detailed setup, please refer to chapter 4.9 preset/patrol/pattern/scan.

Figure 5-31

5.3.9 Display

Display setup interface is shown as below. See Figure 5-32.

z Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255.

z Channel name: Here is for you to modify channel name. System max support 25-digit (The

value may vary due to different series). Please note all your modification here only applies to

DVR local end. You need to open web or client end to refresh channel name.

z Time display: You can select to display time or not when system is playback.

z Channel display: You can select to channel name or not when system is playback.

z Resolution: There are four options: 1280×1024(default),1280×720,1024×768,800×600.

Please note the system needs to reboot to activate current setup.

z Image enhanced: Check the box; you can optimize the margin of the preview video.

z Enable tour: Activate tour function.

z Interval: System supports 1/4/8/9/16-window tour. Input proper interval value here. The

value ranges from 5-120 seconds. In tour process, you can use mouse or click Shift to turn

on window switch function.

switch function.

z Monitor tour type: System support 1/8-window tour.

z Alarm tour type: System support 1/8-window tour.

Stands for opening switch function, stands for closing

Please highlight icon

After completing all the setups please click save button, system goes back to the previous menu.

to select the corresponding function.

Figure 5-32

In Figure 5-32, click modify button after channel. You can see an interface is shown as in Figure

5-33. Please note all your modification here applies to local end only. You need to refresh web or

client-end to get the latest channel name. System max support 25-digital character.

Figure 5-33

In tour mode, you can see the following interface. On the right corner, right click mouse or click

shift button, you can control the tour. There are two icons:

and

stands for disabling window function. See Figure 5-34.

stands for enabling window switch

Figure 5-34

5.3.10 Default

Click default icon, system pops up a dialogue box. You can highlight to restore default factory

setup. See

z Select all

z General

z Encode

z Schedule

z RS232

z Network

z Alarm

z Detect

z Pan/tilt/zoom

z Display

z Channel name

X381H381H381HFigure 5-26.

Please highlight icon

After all the setups please click save button, system goes back to the previous menu.

Warning!

System menu color, language, time display mode, video format, IP address, user account will not

maintain previous setup after default operation!

to select the corresponding function.

Figure 5-35

5.4 Search

Please refer to chapter 4.3 Search.

5.5 Advanced

Double click advanced icon in the main window, the interface is shown as below. See Figure

5-36.There are total eight function keys: HDD management, alarm output, abnormity, manual

record, account, auto maintenance, TV adjust and video matrix.

Figure 5-36

5.5.1 HDD Management

Here is for you to view and implement hard disk management. See Figure 5-37.

You can see current HDD type, status, capacity and record time. When HDD is working properly,

system is shown as O. When HDD error occurred, system is shown as X.

z Alarm set: Click alarm set button, the interface is shown as below. See Figure 5-38. (This

interface is just like the abnormity setup). Please refer to chapter 5.5.2 for detailed

information.

z HDD operation: You can select HDD mode from the dropdown list such as read-only or you

can erase all data in the HDD. Please note system needs to reboot to get all the modification

activated.

Figure 5-37

Please highlight icon to select the corresponding function.

Figure 5-38

For the HDD group setup operation, please note:

z Each channel’s records can be stored into the specified HDD Group.

z Each HDD Group is corresponding to several hard disks, while one hard disk is only

included in one HDD Group.

z Each channel is only corresponding with one HDD Group, while one HDD Group can

store records from several channels.

z HDD Group is only available for read-write HDD and self-defined disks, other types of

hard disks cannot be set as HDD Group.

Important:

z Current series software version can only set the HDD group operation of the read-write

HDDs. It is not for the redundancy HDD or read-only HDD.

HDD Setting

Click the button “HDD Settings” at the top right corner of the Figure 5-37, system will pop up an

interface as below. See Figure 5-39.

z HDD: Here you can view the HDD amount the device can support. If there is a mark in

the front of the number, it means current position has installed a HDD.

z HDD Group: It lists the HDD Group number of current hard disk.

When you are setting the HDD Group, please check the box of the hard disk, and then choose

the corresponding HDD Group number and save the settings.

Please note, one HDD is corresponding to one group, while one group can have many HDDs.

The HDD group No. is corresponding HDD port, the HDD group No. may vary if you change the

HDD.

In Figure 5-39, you can see the system has two working hard disks at the first and second

position, and the first hard disk belongs to HDD Group 1, the second hard disk belongs to HDD

Group 2.

Important

Once you change the HDD Group settings, system will reboot!

Figure 5-39

Channels Setting

Click the button named with “Channels Settings” at the top right corner of the Figure 5-37,

system will pop up an interface shown as in Figure 5-40.

Channel: Here you can view the actual channel amount of the device.

Group No.:It is the SN in the HDD group management. Here we can set HDD 1 and HDD 2 sets

to as HDD group 1 and HDD group 2 respectively. You can see the HDD group option has only

two options 1 and 2 when you set corresponding HDD group of the channel.

When you set the channel setup, please select the corresponding channel such as 1 and 2, and

then select the HDD group such as 1. Click the Save button, you can complete the setup.

In the Figure 5-40, you set channel 1 and channel 3 to the corresponding HDD group2 and set

channel 2 and channel 4 to channel 16 to HDD group 1. In this setup, the records from channel 1

and channel 3 are both saved in HDD of the group 2. The records from channel 2 and channel 4

to channel 32 are all saved in HDD of the group 1.

When you are setting the configurations of the channels setting, please select relevant channels

first (such as channel 1 to 16), and then select the HDD Group NO. Please click the Save button

to save current setup.

Important

z Please make sure you have set HDD group for each channel, otherwise you can not save

current setup!

z Once you change the HDD Group settings, system will pack the records and then reboot!

Tips

There is an easy way for you to test whether the records from the corresponding channel is

saved in the specified HDD. You can remove the HDD and then check the channel can record or

not. You can see the channel does not record and you can not search the previous record now.

Figure 5-40

5.5.2 Abnormity

Abnormity interface is shown as in Figure 5-41 and Figure 5-42.

z Event type: There are several options for you (Multiple choices) such as disk error, no

disk, disconnection, IP conflict, MAC conflict and etc.

z Less than: You can set the threshold here. When the HDD space is less than the

percentage you set here, system can generate an alarm.

z Alarm output: Please select alarm activation output port (multiple choices).

z Latch: Here you can set corresponding delaying time. The value ranges from 10s-300s.

System automatically delays specified seconds in turning off alarm and activated output after

external alarm cancelled.

z Show message: system can pop up the message in the local screen to alert you when

alarm occurs.

z Alarm upload: System can upload the alarm signal to the network (including alarm centre)

if you enabled current function.

z Send email: System can send out email to alert you when alarm occurs.

z Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.

Figure 5-41

5.5.3 Alarm Output

Here is for you to set proper alarm output.

Figure 5-42

Please highlight icon to select the corresponding alarm output.

After all the setups please click OK button, system goes back to the previous menu. See Figure

5-43.

Figure 5-43

5.5.4 Manual Record

Please refer to chapter 4.2.2 manual record.

5.5.5 Account

Here is for you to implement account management. See Figure 5-44. Here you can:

z Add new user

z Modify user

z Add group

z Modify group

z Modify password.

For account management please note:

z For the user account name and the user group, the string max length is 6-byte. The

backspace in front of or at the back of the string is invalid. There can be backspace in the

middle. The string includes the valid character, letter, number, underline, subtraction sign,

and dot.

z System account adopts two-level management: group and user. No limit to group or user

amount.

z For group or user management, there are two levels: admin and user.

z The user name and group name can consist of eight bytes. One name can only be used

once. There are four default users: admin/888888/666666 and hidden user “default”. Except

user 6666, other users have administrator right.

z Hidden user “default” is for system interior use only and can not be deleted. When there is

no login user, hidden user “default” automatically login. You can set some rights such as

monitor for this user so that you can view some channel view without login.

z One user should belong to one group. User right can not exceed group right.

z About reusable function: this function allows multiple users use the same account to login.

After all the setups please click save button, system goes back to the previous menu.

Figure 5-44

5.5.5.1 Modify Password

Click password button, the interface is shown as in Figure 5-45.

Here you can modify account password.

Please select the account from the dropdown list, input the old password and then input the new

password twice. Click the Save button to confirm current modification.

For the users of user account right, it can modify password of other users.

Figure 5-45

5.5.5.2 Add/Modify Group

Click add group button, the interface is shown as below. See Figure 5-46.

Here you can input group name and then input some memo information if necessary.
