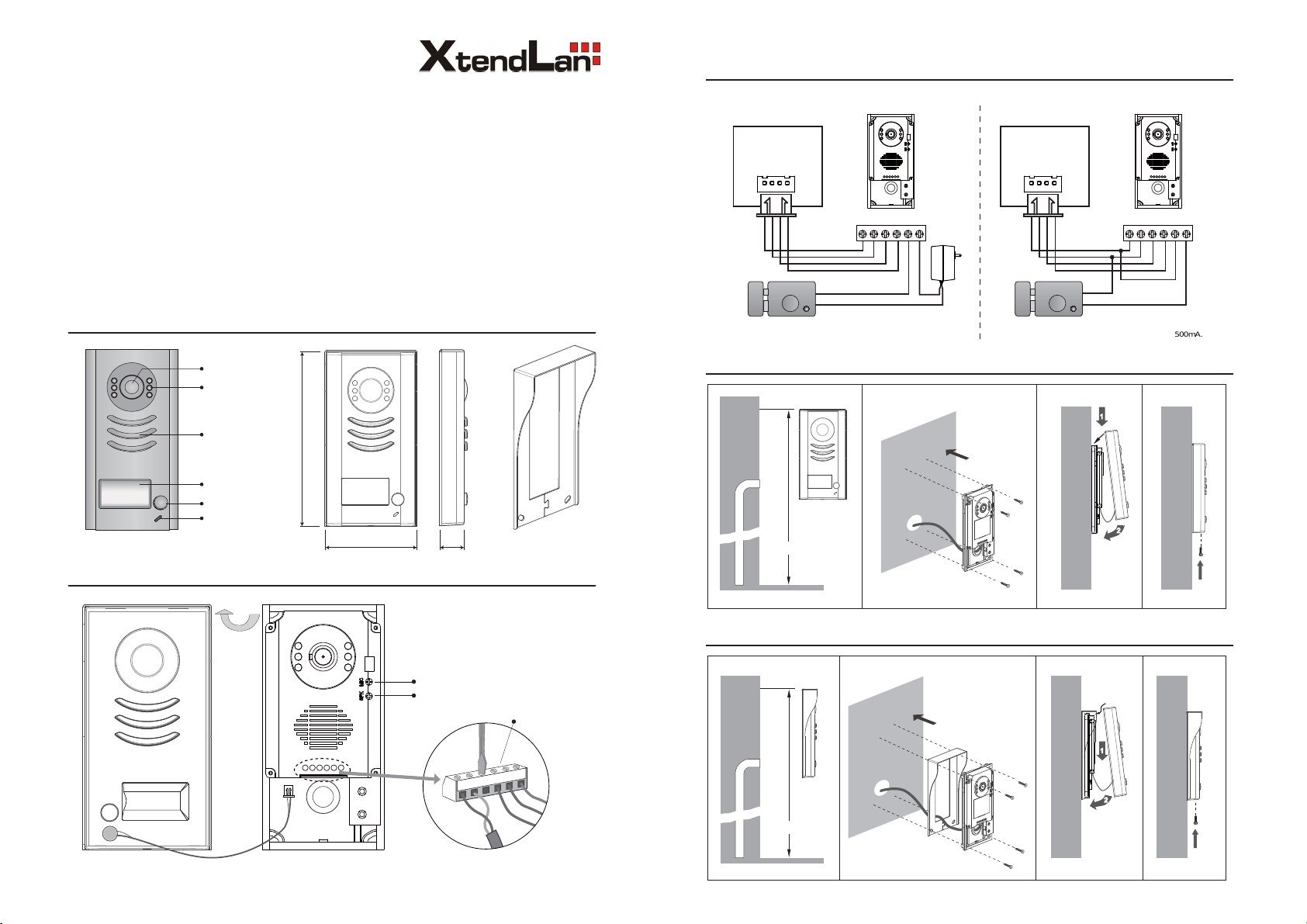

DPC-441
User's manual
System and Lock Connection
Use Additional Power Supply Power Supply From Monitor
Precautions: Do not install camera/bell where there would be a bright light behind the visitor (or where there
would be a bright background), or in a place where the camera lens would be directly exposed to sunlight or a
bright light. If light shines directly into the outdoor camera lens, the image will be over-exposed; it will look white or
silhouetted. Take precautions against this. Do not install the unit in places where is constant vibration, extreme heat
or unusual external interference.
Important: Connect the 1R/2W/3Y/4B of Camera to 1R/2W/3Y/4B of Monitor. ONLY one type of electronic
lock, which is Power-On-To-Open(Power-to-Unlock) type, can be connected to the Camera.
Parts and functions
Camera Lens
Night View LED
Speaker
176 mm
Name
Nameplate
Call Button
Microphone
90 mm
23 mm
Terminal Descriptions
Indoor Monitor
Connection Port
1R 2W 3Y 4B
1R 2W 3Y 4B 2 1
+
Safety Type: Power-on-to-open
The lock consumption must not
greater than 48V 1.5A.
Mounting Without Rain Cover
1234
160-165cm
Indoor Monitor
Connection Port
1R 2W 3Y 4B
1R 2W 3Y 4B 2 1
--+
+
Safety Type: Power-on-to-open
The lock consumption must not
greater than 12V 500mA.
1
2
Mounting With Rain Cover
MIC adjustment
SPK adjustment
Connection Port
160-165cm
1234
1
2
