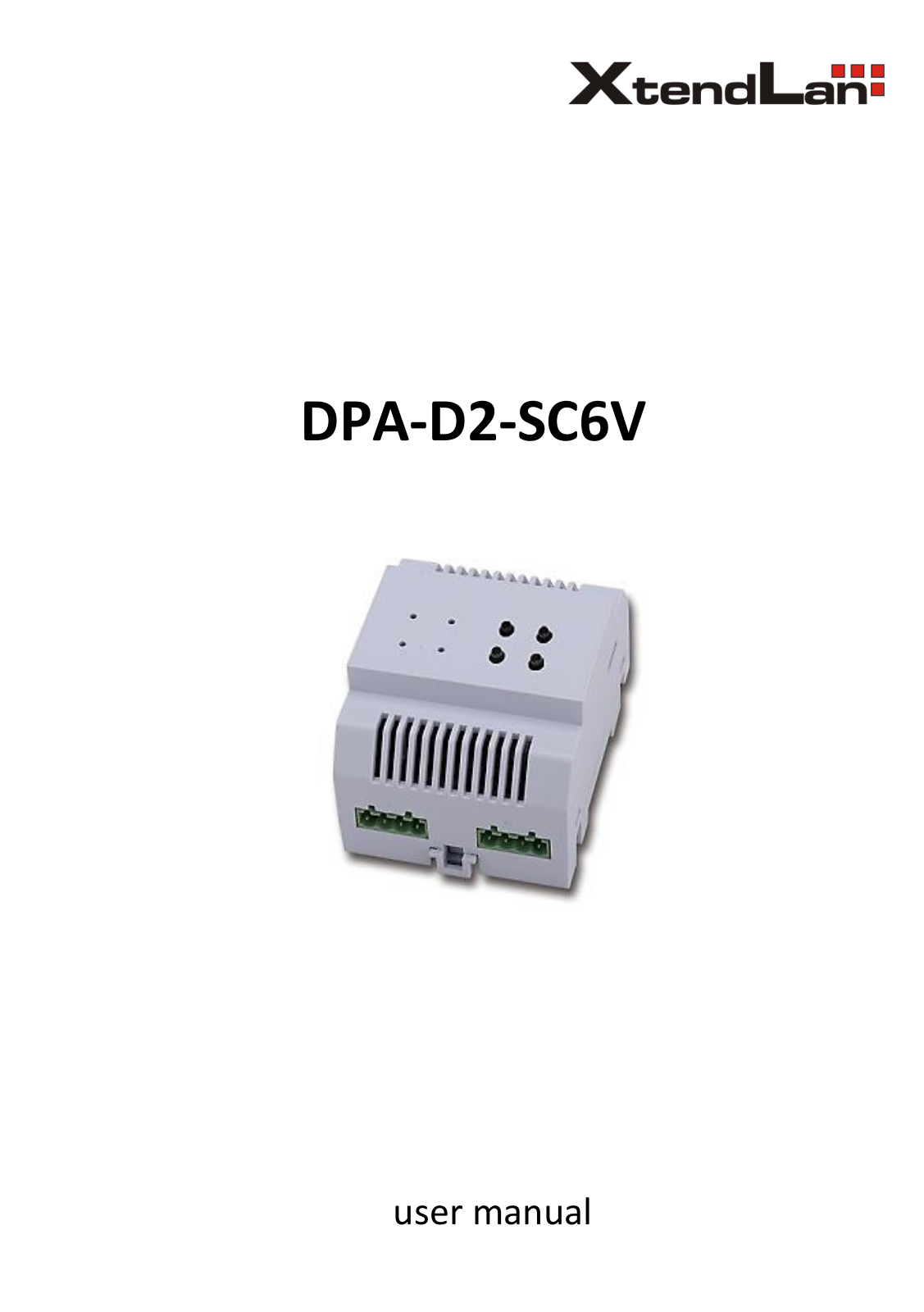

DPA-D2-SC6V
user manual

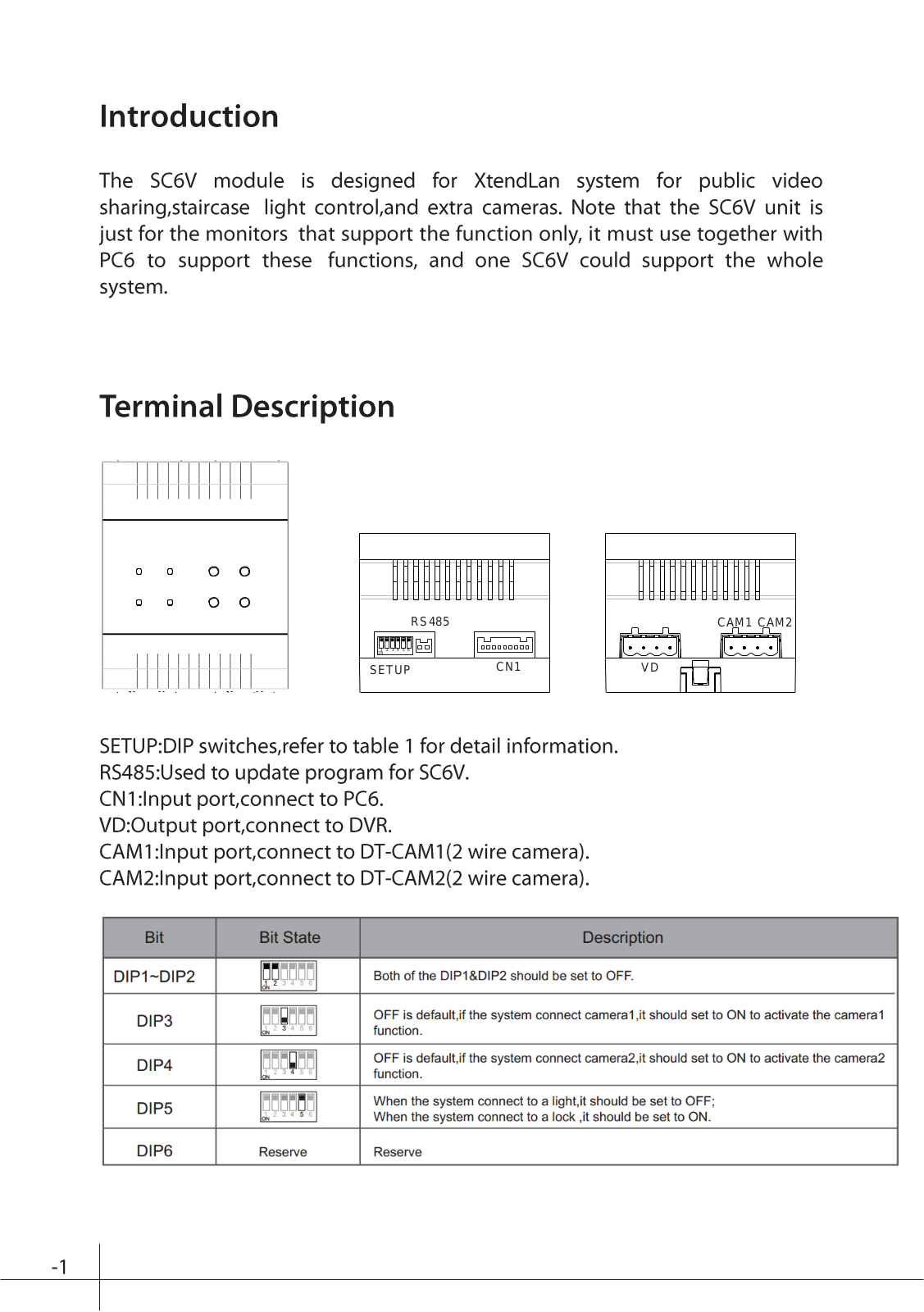

1 2 3 4 5 6
ON
SETUP
RS485
CN1
VD
CAM1 CAM2

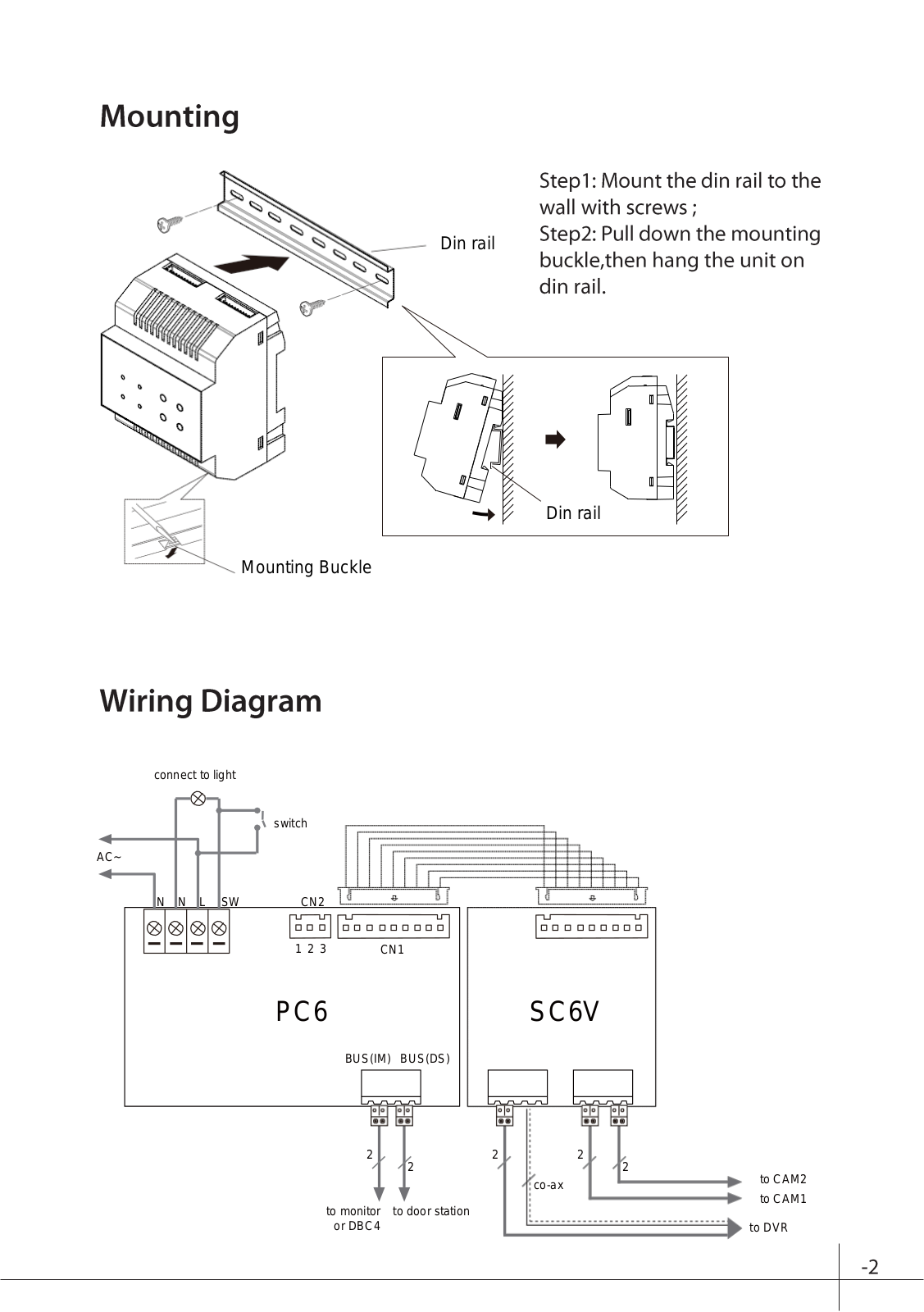

Din rail
Din rail
Mounting Buckle
connect to light
AC~
N N L SW
switch
CN2
1 2 3
CN1
BUS(IM) BUS(DS)
PC6 SC6V
2 2 2
to monitor
or DBC4
2 2
co-ax
to door station
to CAM2
to CAM1
to DVR

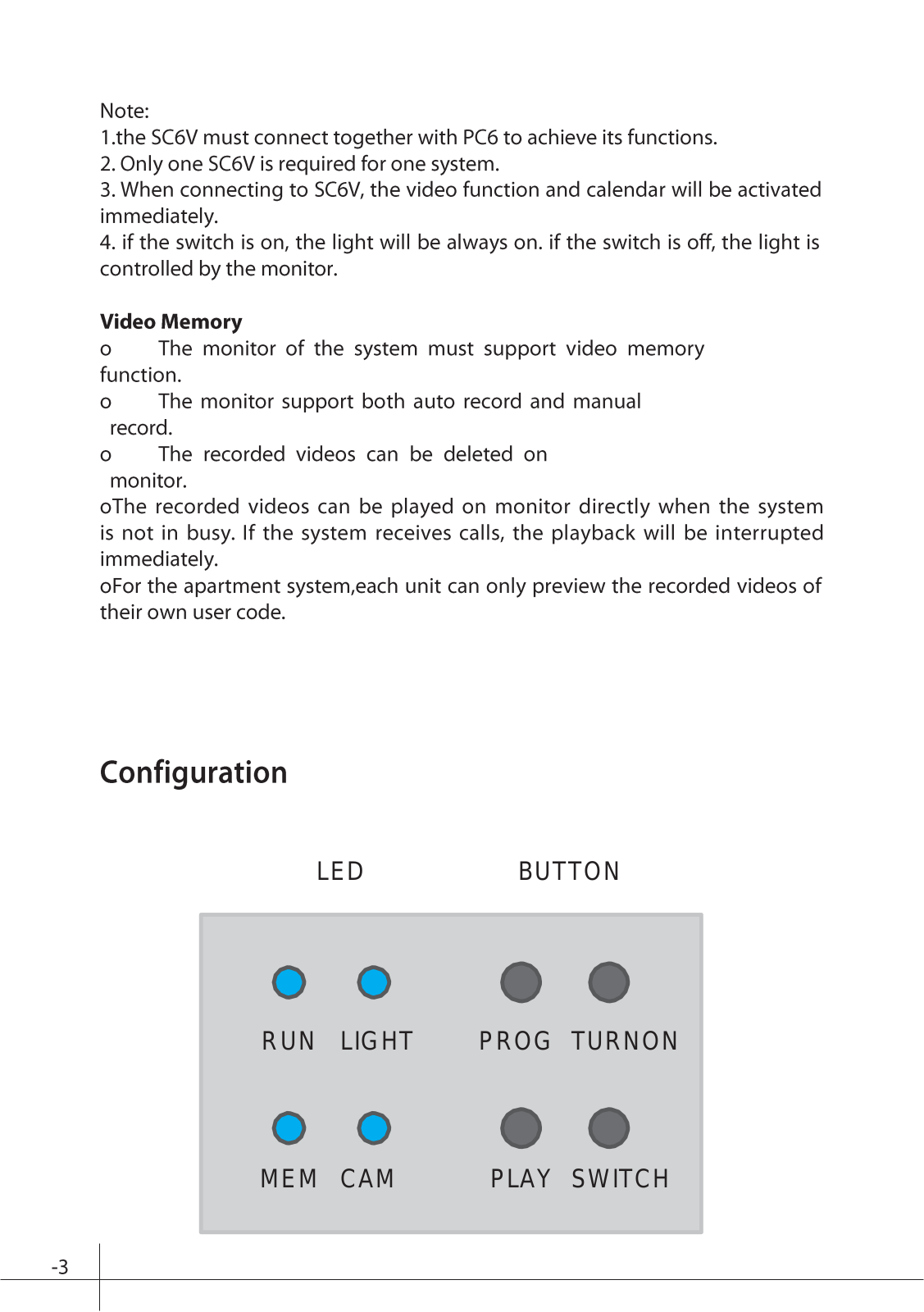

LED BUTTON
RUN LIGHT PROG TURNON
MEM CAM PLAY SWITCH

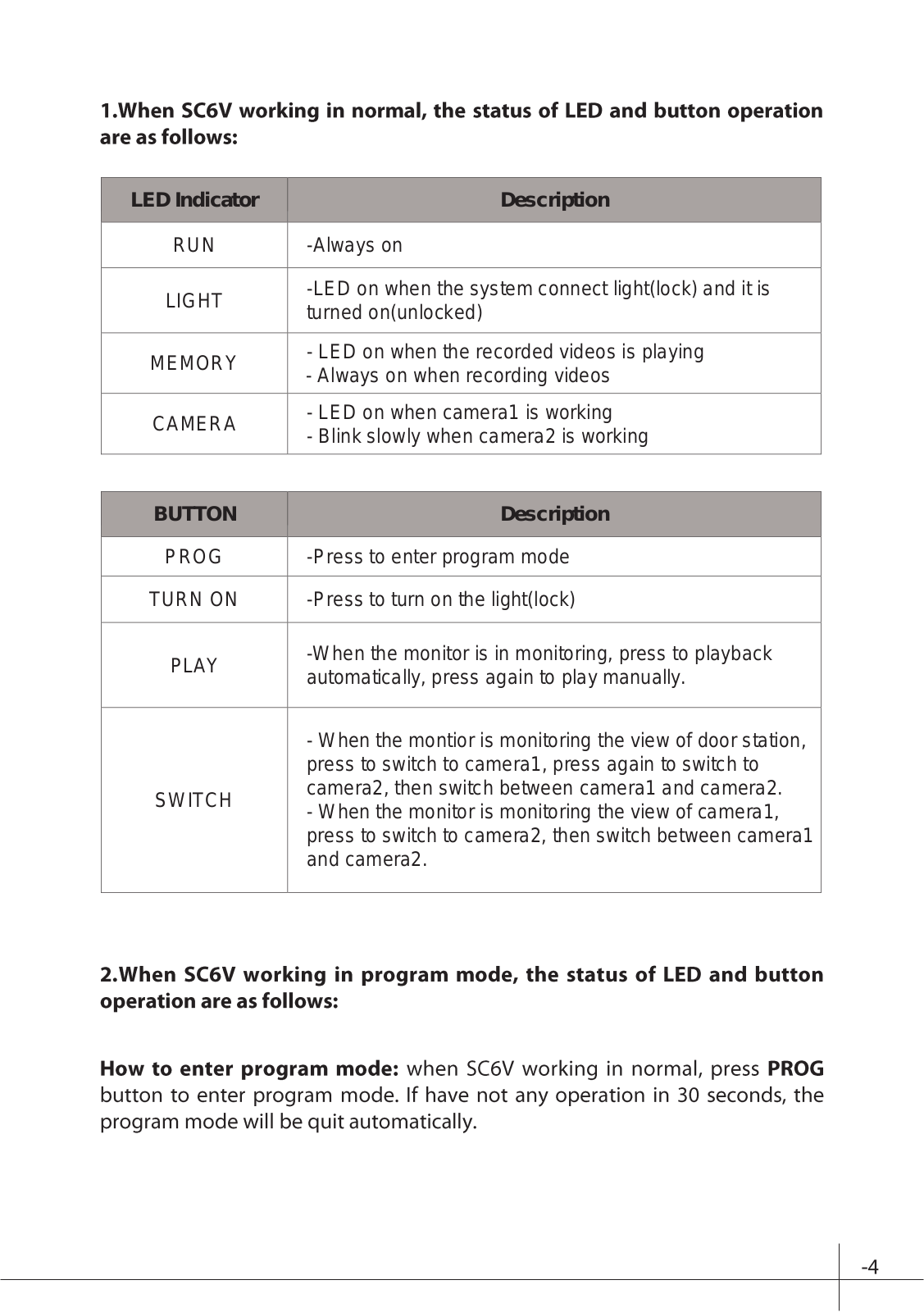

LED Indicator
Description
RUN
-Always on
LIGHT
-LED on when the system connect light(lock) and it is
turned on(unlocked)
MEMORY
- LED on when the recorded videos is playing
- Always on when recording videos
CAMERA
- LED on when camera1 is working
- Blink slowly when camera2 is working
BUTTON
Description
PROG
-Press to enter program mode
TURN ON
-Press to turn on the light(lock)
PLAY
-When the monitor is in monitoring, press to playback
automatically, press again to play manually.
SWITCH
- When the montior is monitoring the view of door station,
press to switch to camera1, press again to switch to
camera2, then switch between camera1 and camera2.
- When the monitor is monitoring the view of camera1,
press to switch to camera2, then switch between camera1
and camera2.

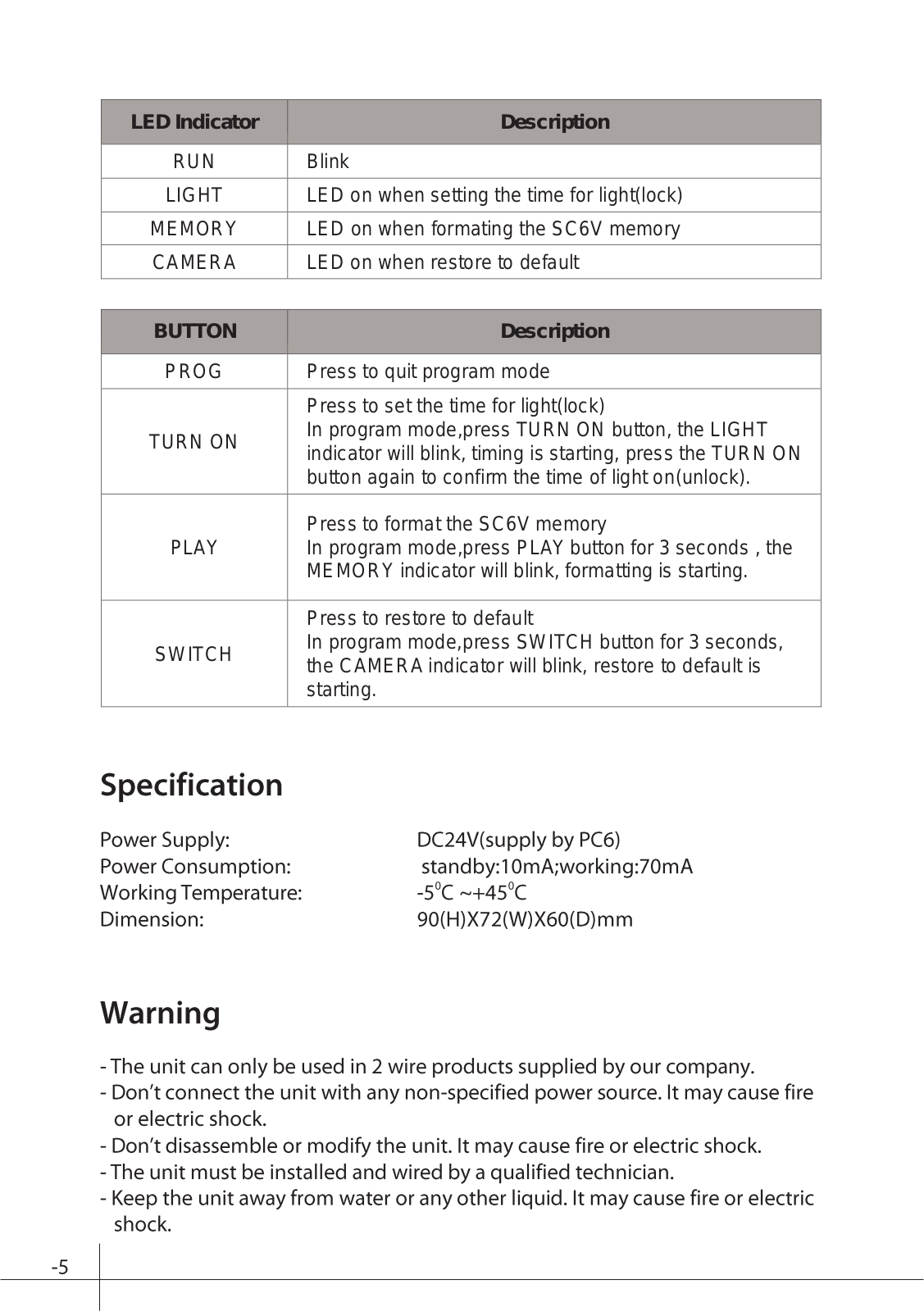

LED Indicator
Description
RUN
Blink
LIGHT
LED on when setting the time for light(lock)
MEMORY
LED on when formating the SC6V memory
CAMERA
LED on when restore to default
BUTTON
Description
PROG
Press to quit program mode
TURN ON
Press to set the time for light(lock)
In program mode,press TURN ON button, the LIGHT
indicator will blink, timing is starting, press the TURN ON
button again to confirm the time of light on(unlock).
PLAY
Press to format the SC6V memory
In program mode,press PLAY button for 3 seconds , the
MEMORY indicator will blink, formatting is starting.
SWITCH
Press to restore to default
In program mode,press SWITCH button for 3 seconds,
the CAMERA indicator will blink, restore to default is
starting.
