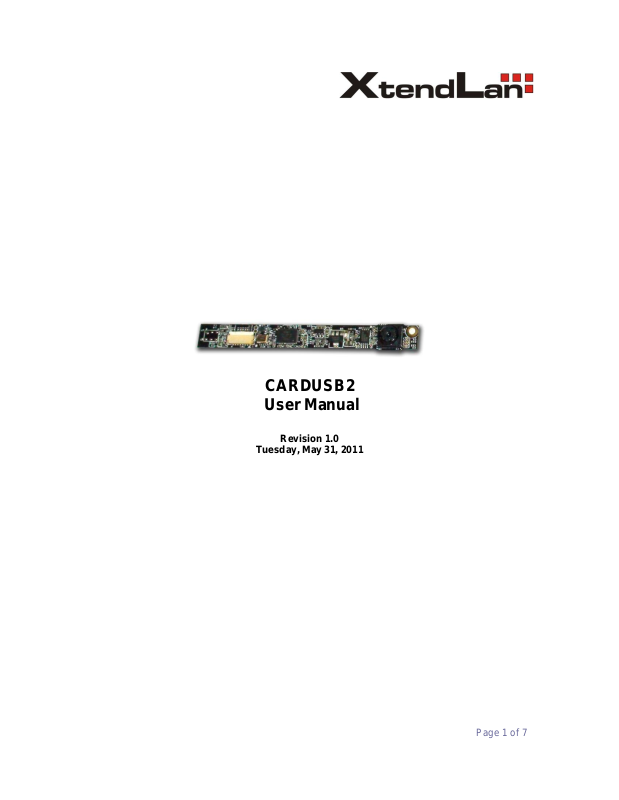

XtendLan CARDUSB2 User Manual

Page 1 of 7
CARDUSB2
User
Tuesday, May 31,
Revision
1.0 2011
Page 2 of 7
CONTENTS
1 Revision History 2
Introduction ............................................................................................................................... 4
3 Scope 4 Attachment of the CARDUSB2 to USB port of
4.1 CARDUSB2 Camera View
4.2 CARDUSB2 to PC HOST interconnecting cable
4.3 Attachment of CARDUSB2 to PC HOST interconnecting cable ..................................... 5
4.4 Attachment of CARDUSB2 to PC
5 Software
5.1 Installation
5.2 Contrast /Brightness
....................................................................................................................................... 4
Installation ................................................................................................................. 7
....................................................................................................................... 3
PC................................................................... 4
.............................................................................................. 4
view..................................................... 5
.................................................................................... 6
AMCAP2 ........................................................................................................ 7
Adjustments ................................................................................... 7
Page 3 of 7
Rev No
Date
Major Changes
1.0
May 31, 2011
Initial Draft Version
CARDUSB2
1 Revision History
Page 4 of 7
2 Introduction
This document indented to provide details of the CARDUSB2 camera sensor.
3 Scope
The scope of this document is limited to the following major goals
General instruction to start using the CARDUSB2.
4 Attachment of the CARDUSB2 to USB port of PC
The following section walks through the steps involved in fixing the CARDUSB2
4.1 CARDUSB2 Camera View
Page 5 of 7
4.2 CARDUSB2 to PC HOST interconnecting cable view
4.3 Attachment of CARDUSB2 to PC HOST interconnecting cable
Step1: Place the cable to connector as shown in this fig.
Step2: Place the cable to connector as shown in fig. Press gently on connector as indicated in the picture.
Page 6 of 7
4.4 Attachment of CARDUSB2 to PC
Page 7 of 7
5 Software Installation
5.1 Installation AMCAP2
1. Install the AMCAP2.EXE kept under the directory sample application.
5.2 Contrast /Brightness Adjustments
1. Open AMCap
2. Click Options /Video Capture Filter
3. Start adjusts Bar of Brightness or Contrast to the proper one.
