ADS-1600

16-Port ADSL IP DSLAM

User Manual

Ver. 1.0

TABLE OF CONTENTS

List of Figures .......................................................................................vi

List of Tables ........................................................................................ vii

About This Manual ................................................................................ 1

What’s the difference between ATM based DSLAM and IP based

DSLAM?................................................................................................ 3

Introduction ........................................................................................... 5

General ....................................................................................................................5

ADSL IP DSLAM Overview ......................................................................................6

ADSL IP DSLAM Application.................................................................................... 9

VLAN support ................................................................................................................. 10

Compact design for limited space...................................................................................10

Standalone System Design ............................................................................................ 10

ADSL IP DSLAM Specifications ..................................................................................... 11

Getting Started .................................................................................... 12

General ..................................................................................................................12

Unpacking your ADSL IP DSLAM ..........................................................................13

Hardware Installation .............................................................................................14

Safety Instruction............................................................................................................ 14

ADSL IP DSLAM Rear Panel Connection ...................................................................... 15

ADSL IP DSLAM Front Panel Connection...................................................................... 16

Ways of Management Connection .........................................................................17

Embedded Web Interface(EmWeb)................................................................................ 17

Command Line Interface (CLI) ....................................................................................... 17

Telnet Client .................................................................................................................... 18

System Administration with EmWeb ................................................... 19

Embedded Web Interface Menu ............................................................................20

Default (Factory) Configuration Settings {Default Setting} .....................................23

Displaying the System Information of your ADSL IP DSLAM {System Information}

...............................................................................................................................24

Save your Configuration to Flash {Save to Flash}..................................................25

Displaying Current Event {Current Event}..............................................................26

Configuring ADSL IP DSLAM ................................................................................. 28

Configuring Port Filtering {Set Port Filter} ...................................................................... 28

Configuring IP and Location {System IP / Location} ....................................................... 29

Configuring Date and Time {System Date and Time} ..................................................... 30

Changing your Password {Changing Password}............................................................ 30

DSL Line Configuration ..........................................................................................31

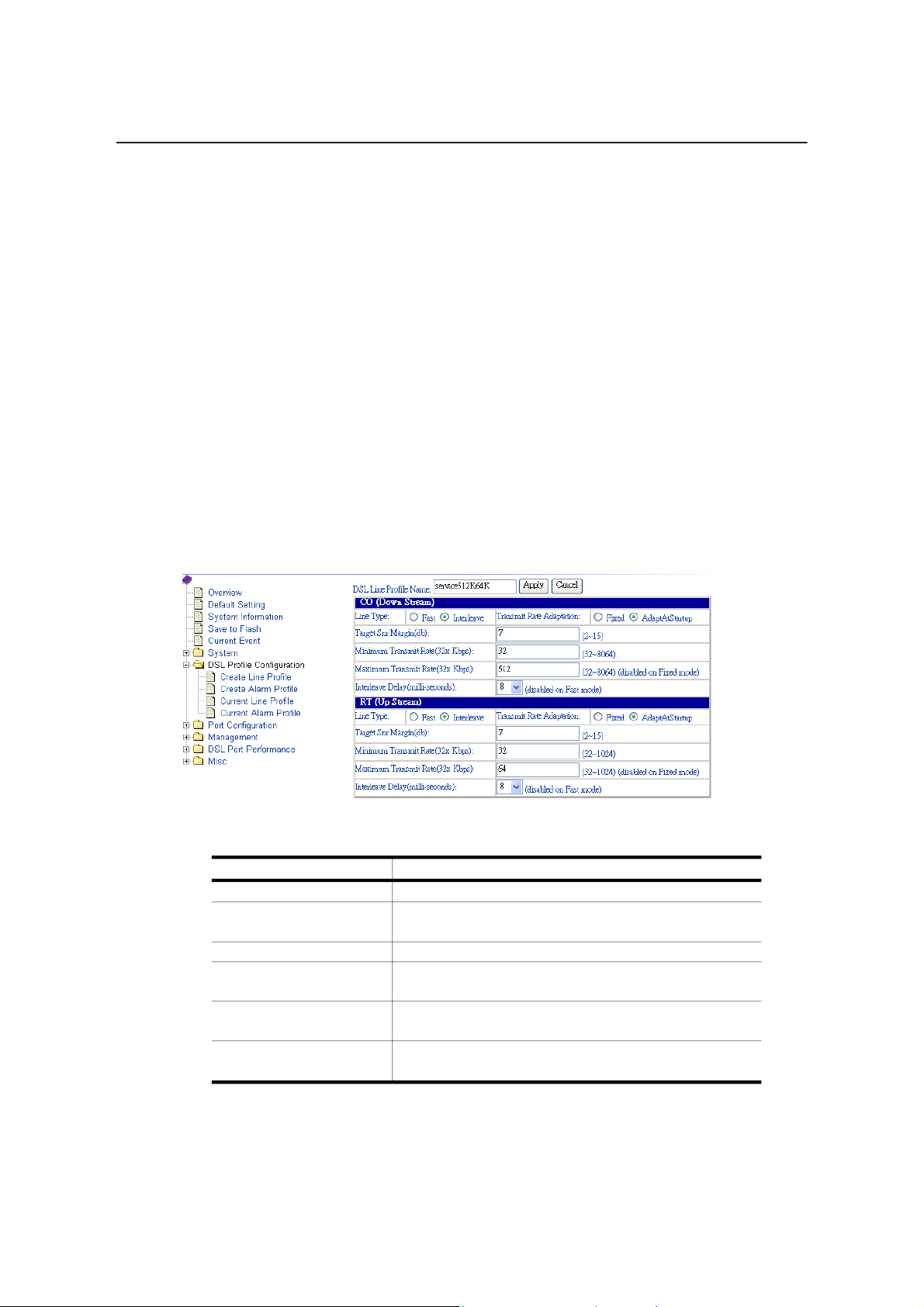

Creating a Line Profile {Create Line Profile}................................................................... 31

Creating a Alarm Profile {Create Alarm Profile} ........................................................... 32

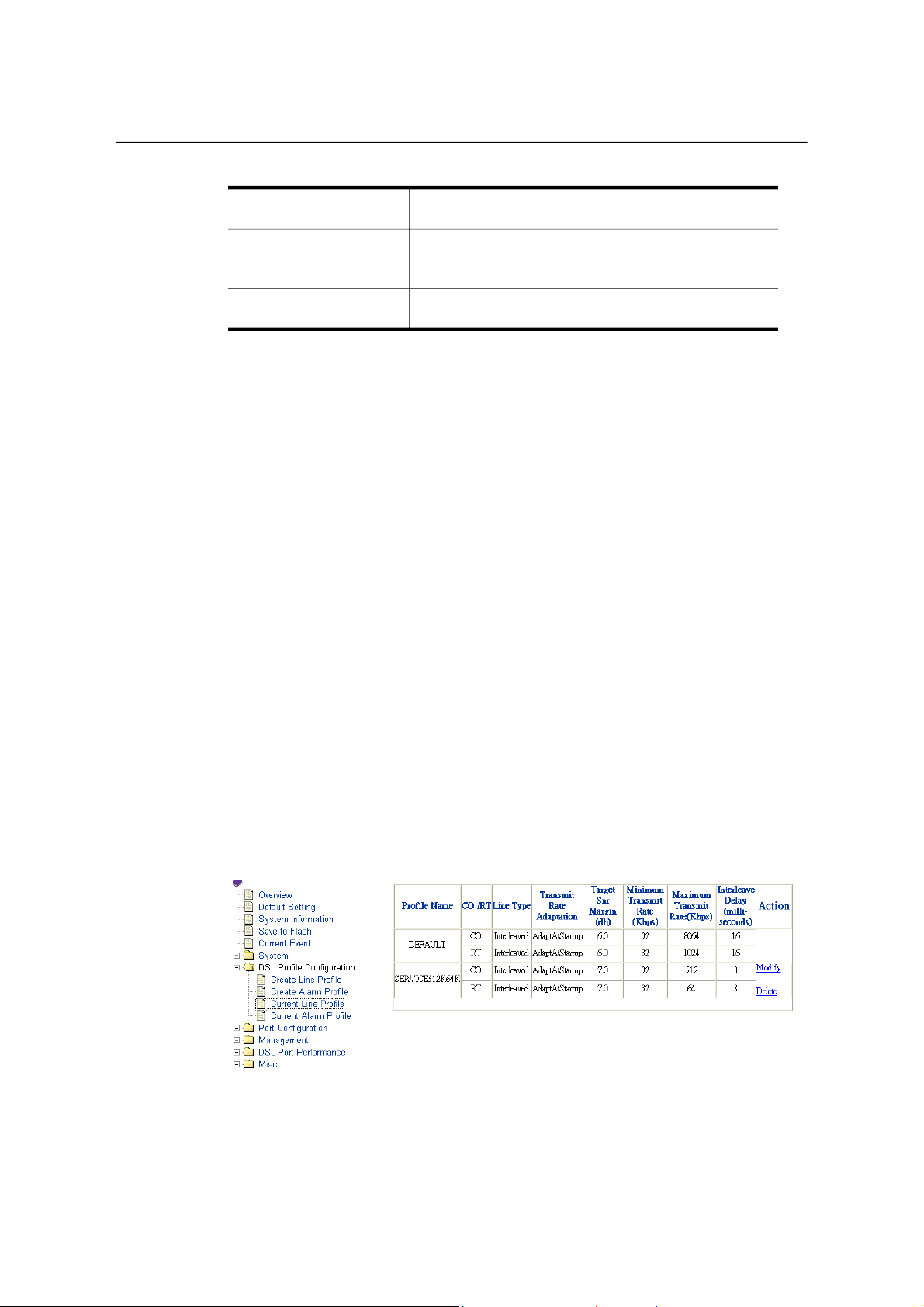

Displaying and Modifying a Line Profile {Current Line Profile} ....................................... 33

Displaying and Modifying a Alarm Profile {Current Alarm Profile} .................................. 34

Port Configuration ..................................................................................................35

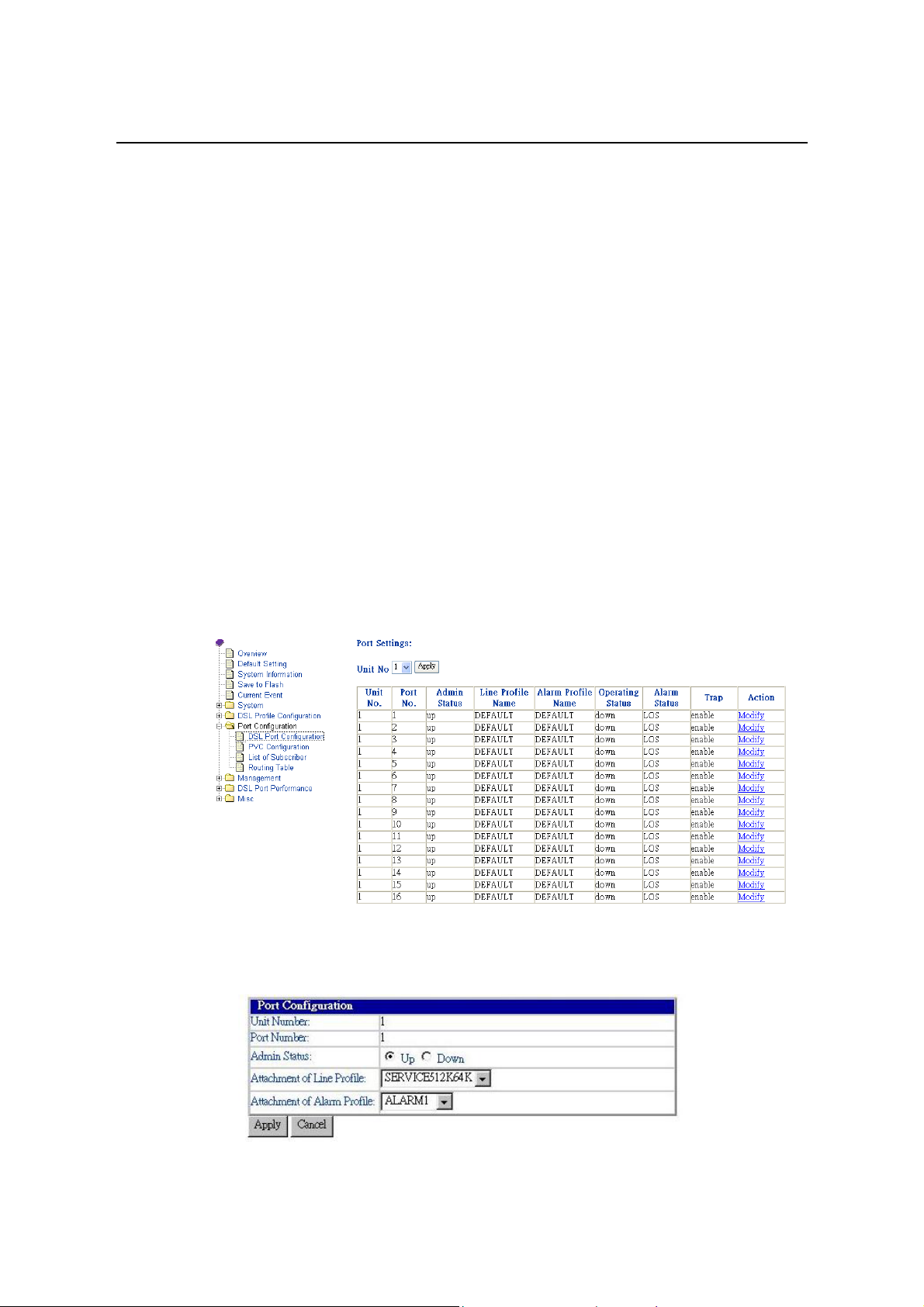

DSL Port Configuration{DSL Port Configuration}............................................................35

PVC Configuration{PVC Configuration}.......................................................................... 36

List of Subscriber {List of Subscriber}............................................................................. 38

Routing Table {Routing Table} ........................................................................................ 39

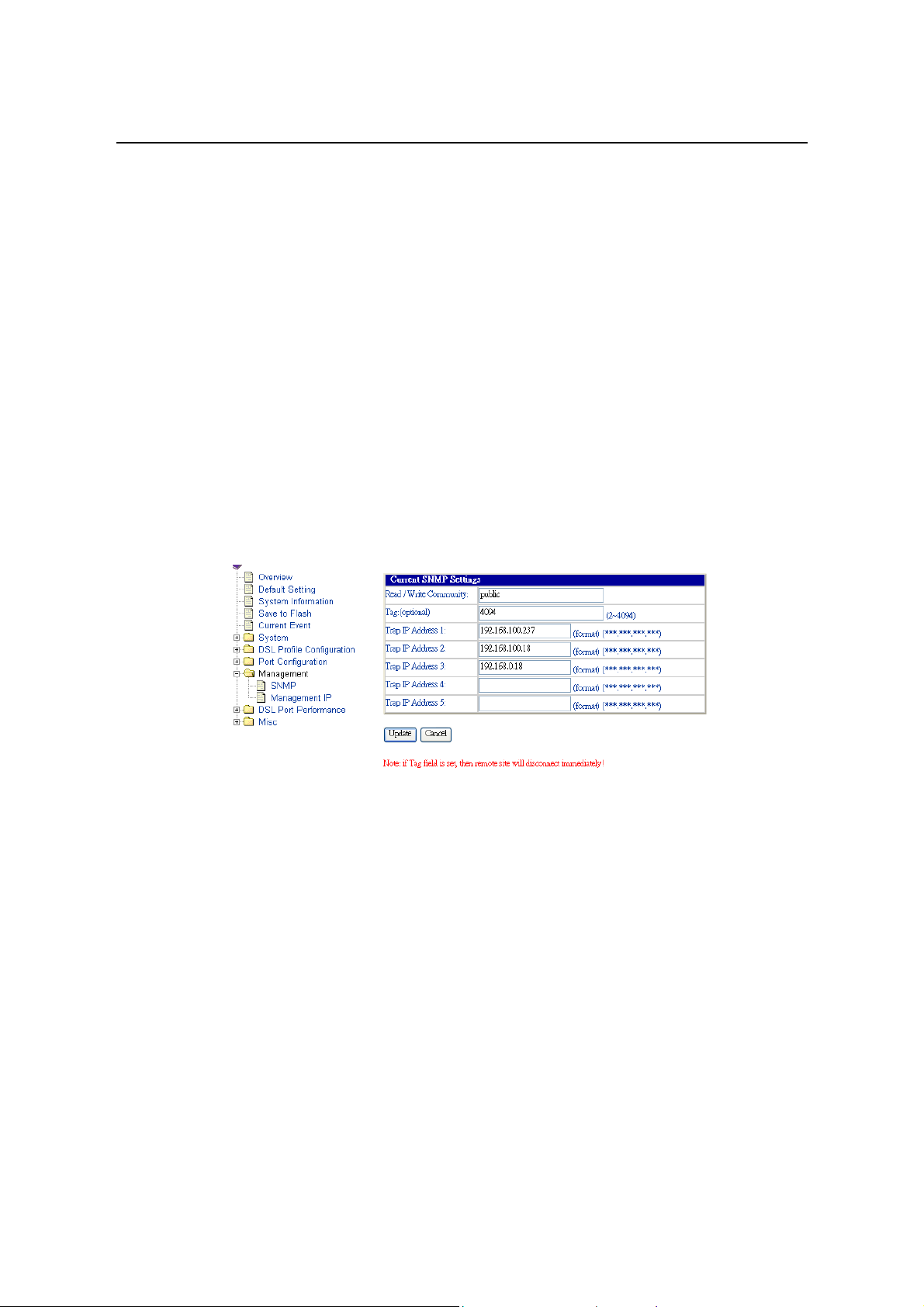

Configuring SNMP Access Parameters and Trap IPs {SNMP}....................................... 40

Configuring Management IP {Management IP} .............................................................. 41

Performance Monitor .............................................................................................41

ADSL Physical Layer PM {Physical Layer Info}.............................................................. 41

ADSL Channel Layer PM {Channel Layer Info}.............................................................. 42

ADSL Physical Layer PM within Current 15 Minutes and a Day Duration {Current

Phy-Layer PM}................................................................................................................ 43

ADSL Channel Layer PM within Current 15 Minutes and a Day Duration {Current

Channel-Layer PM} ........................................................................................................ 46

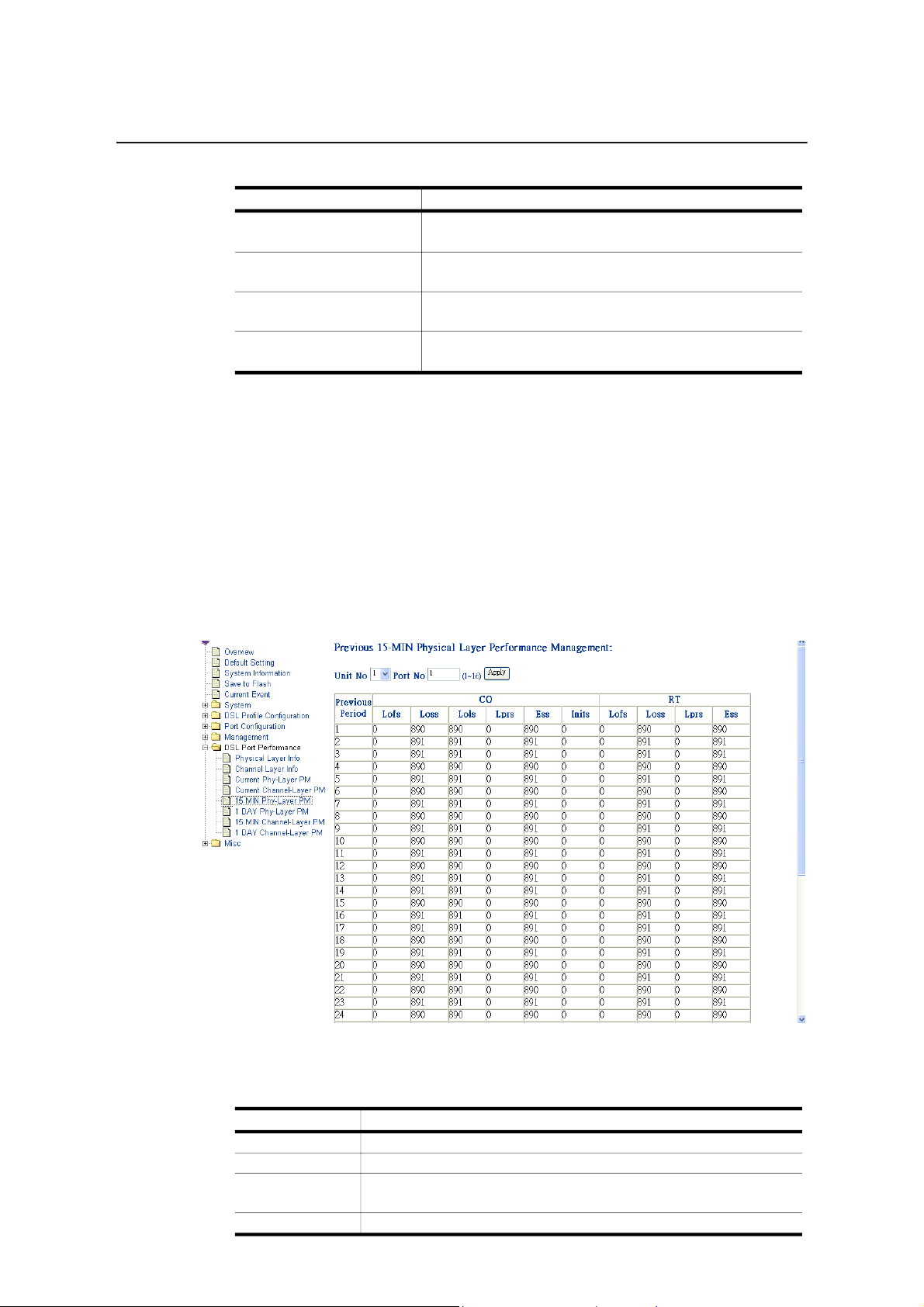

ADSL Physical Layer PM within Previous 15 Minutes Duration {15 MIN Phy-Layer PM}

........................................................................................................................................ 47

ADSL Physical Layer PM within Previous 1 Day Duration {1 DAY Phy-Layer PM} ........ 48

ADSL Channel Layer PM within Previous 15 Minutes Duration {15 MIN Channel-Layer

PM} ................................................................................................................................. 49

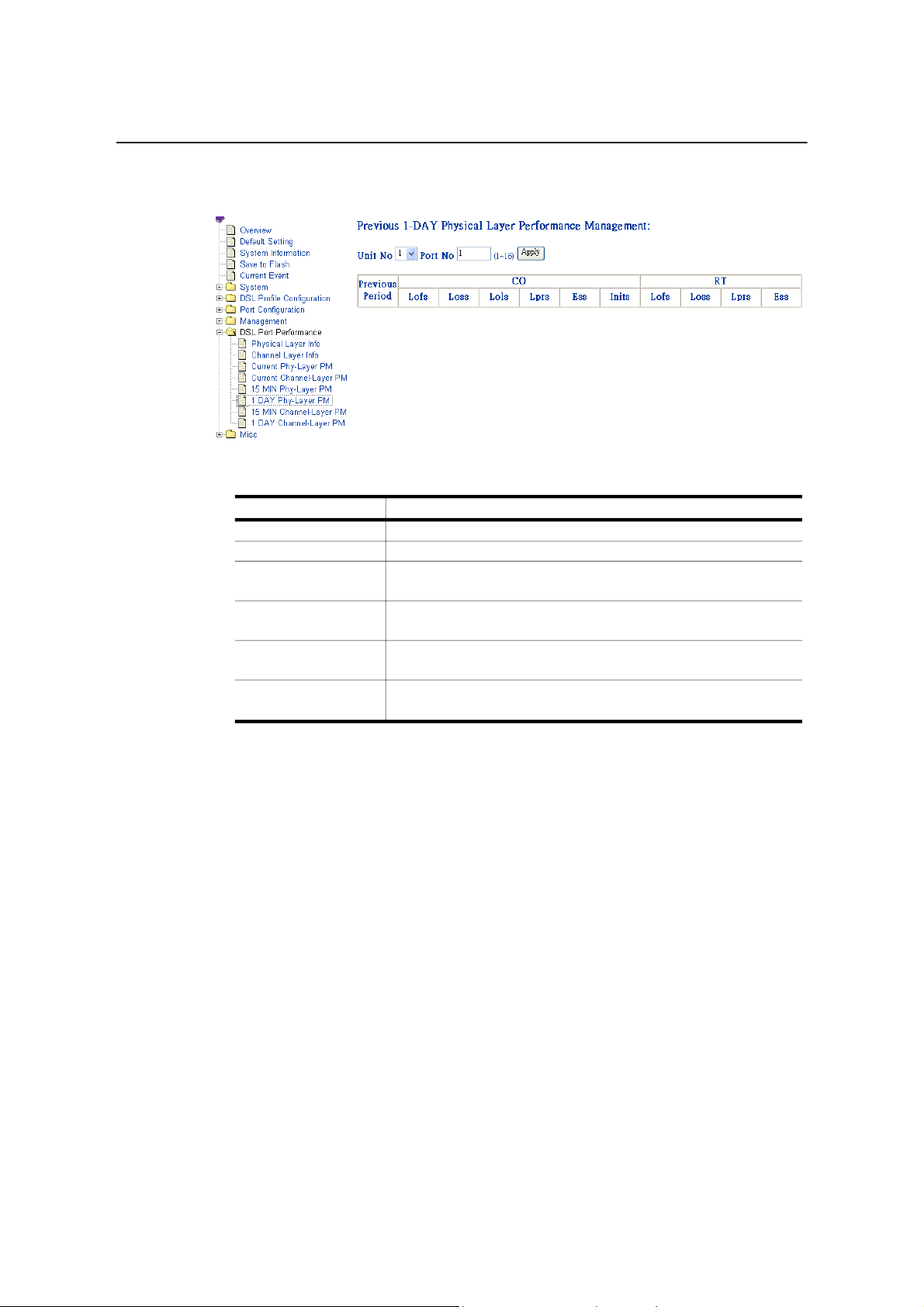

ADSL Channel Layer PM within Previous 1 Day Duration {1 DAY Channel-Layer PM} .49

Miscellanea ............................................................................................................ 50

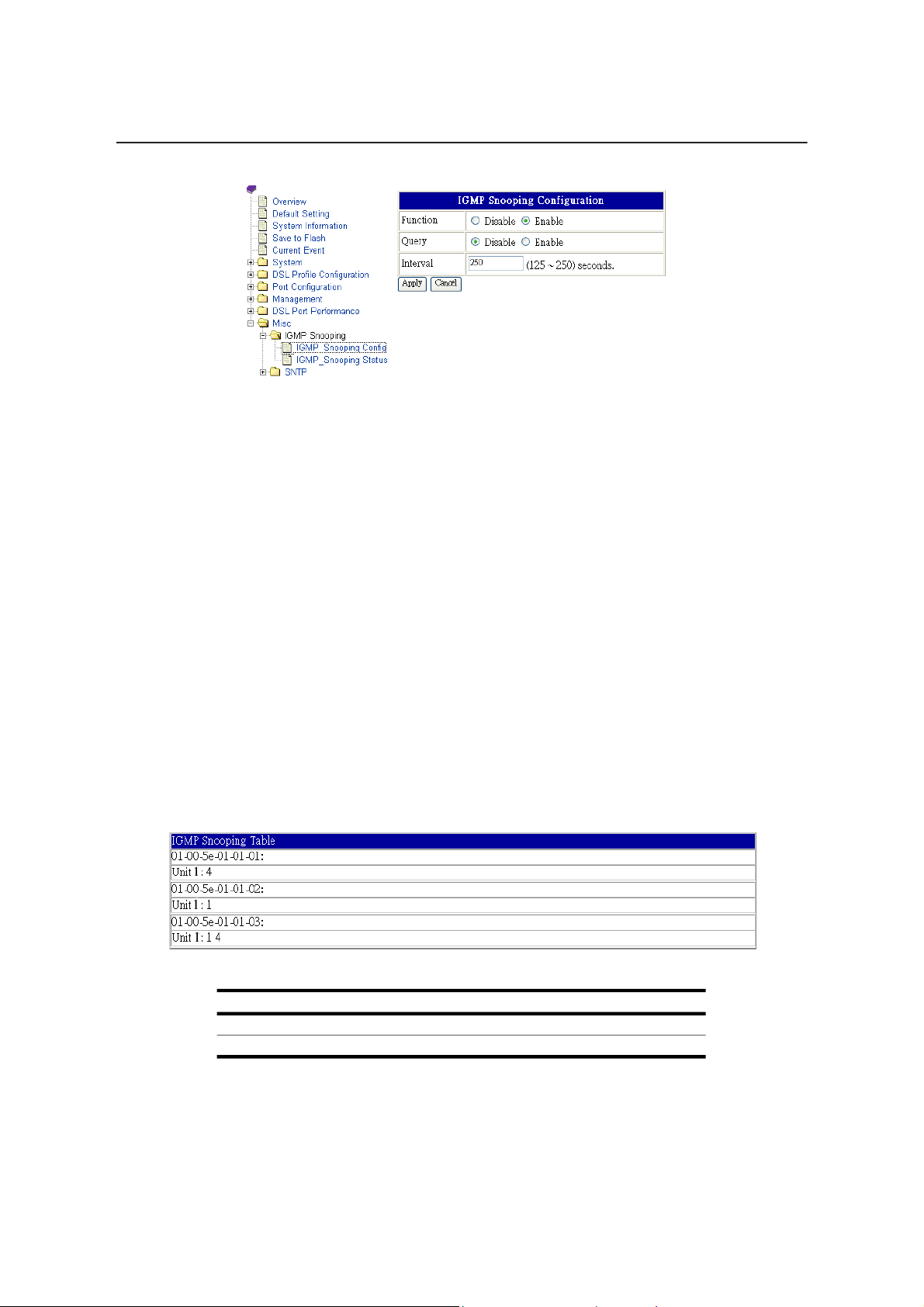

IGMP Snooping Configuration {IGMP_Snooping Config}............................................... 50

IGMP Snooping Status {IGMP_Snooping Status} .......................................................... 51

SNTP Status {SNTP Status} ........................................................................................... 52

System Administration with CLI .......................................................... 54

Command Structure ...............................................................................................54

Calling Commands ......................................................................................................... 59

General Configuration............................................................................................60

Help Command............................................................................................................... 60

History Command........................................................................................................... 60

Saving the System.......................................................................................................... 60

Event Viewing and Deleting ...................................................................................61

iii

Displaying the Current Event.......................................................................................... 61

Deleting the Event of ADSL IP DSLAM .......................................................................... 61

Reset Port....................................................................................................................... 61

Restart the ADSL IP DSLAM .......................................................................................... 62

Resetting all Configurations to Default Setting ............................................................... 62

System Upgrade............................................................................................................. 62

Logging Out your ADSL IP DSLAM ................................................................................ 63

Configuring Your ADSL IP DSLAM......................................................................... 63

System Configuration ..................................................................................................... 63

Port-Filtering Configuration............................................................................................. 65

IP Configuration.............................................................................................................. 66

Time Configuration ......................................................................................................... 67

SNTP configuration ........................................................................................................ 68

Changing the Password ................................................................................................. 69

Configuring DSL.....................................................................................................70

Creating Line Profile and Alarm Profile........................................................................... 70

Modifying DSL Profile and Alarm Profile......................................................................... 73

Deleting a DSL Profile and Alarm Profile ........................................................................ 74

Displying a DSL Profile and Alarm Profile....................................................................... 75

Port Configuration ..................................................................................................78

Enabling and Disabling a port......................................................................................... 78

Attaching DSL Profile...................................................................................................... 78

Displaying the Current Status and Information of ADSL Line ......................................... 79

PVC Configuration.......................................................................................................... 80

Subscriber Configuration ................................................................................................ 84

Routing Table configuration ............................................................................................ 86

Management Configuration.................................................................................... 88

Configuring SNMP Access Parameters .......................................................................... 88

Configuring Trap IP......................................................................................................... 89

Configuring Management IP........................................................................................... 90

Displaying Management IP............................................................................................. 90

Deleting Management IP ................................................................................................ 91

Miscellanea.....................................................................................................................91

Displaying IGMP Status .................................................................................................. 91

Displaying IGMP Group .................................................................................................. 92

Configuring IGMP ........................................................................................................... 92

Performance Monitor .............................................................................................94

Displaying the Physical Layer Information ................................................................... 94

Displaying the Channel Layer Information...................................................................... 95

Displaying Physical Performance Statistics within Current 15 Minutes and 1 Day Duration

........................................................................................................................................ 95

Displaying Channel Performance Statistics within Current 15 Minutes and 1 Day Duration

........................................................................................................................................ 97

Displaying Physical Performance Statistics during Previous 15 Minutes or 1 Day Duration

........................................................................................................................................ 99

Displaying Channel Performance Statistics during Previous 15 Minutes or 1 Day Duration

...................................................................................................................................... 100

Configuring User Account ....................................................................................101

Creating User Account.................................................................................................. 101

Modifying User Account................................................................................................ 101

Displaying the Information of User Account.................................................................. 102

Deleting User Account .........................................................................................102

Configuration Backup and Restore ................................................... 104

Configuration Restore ..........................................................................................106

ADSL IP DSLAM upgrade procedure...................................................................107

IP DSLAM rescue procedure while system crashed ............................................ 107

Troubleshooting .................................................................................112

Problems with Starting up ADSL IP DSLAM ................................................................. 113

Problems with Configuration......................................................................................... 113

Problems with SNMP.................................................................................................... 114

Problems with Telnet .................................................................................................... 114

Problems with Password .............................................................................................. 114

Appendix-A: Pin Assignment................................................................. 1

Appendix-B The SNTP timezone abbrivation........................................ 4

Appendix-C The Default Setting of ADSL IP DSLAM............................ 7

Glossary................................................................................................ 8

List of Figures

Figure 0-1 PPPoE application in Traditional ATM-based ADSL Network ....................... 3

Figure 0-2 PPPoE application in ADSL IP DSLAM with Ethernet-All-The-Way Network4

Figure 1-1 ADSL IP DSLAM Front View ........................................................................ 6

Figure 1-2 ADSL IP DSLAM Rear View ......................................................................... 7

Figure 1-3 ADSL IP DSLAM LED Identification ............................................................. 7

Figure 2-1 ADSL IP DSLAM Rear Panel Connection .................................................. 15

Figure 2-2 ADSL IP DSLAM Front Panel Connections ................................................ 16

List of Tables

Table 1-1 ADSL IP DSLAM LED Description ................................................................. 8

Table 3-1 Sysinfo field definition .................................................................................. 24

Table 3-2 Event log description.................................................................................... 26

Table 3-3 Create Line Profile Field Definitions............................................................. 31

Table 3-4 Create Alarm Profile Field Definitions .......................................................... 32

Table 3-5 PVC Configuration Field Definitions............................................................. 36

Table 3-6 Physical Layer Info Field Definitions ............................................................ 42

Table 3-7 Channel Layer Information Field Definitions ................................................ 43

Table 3-8 Current Phy-Layer PM Information Field Definitions .................................... 44

Table 3-9 Current Channel-Layer PM Information Field Definitions............................. 46

Table 3-10 15 MIN Phy-Layer PM Information Field Definition .................................... 47

Table 3-11 1-DAY Phy-Layer PM Information Field Definition...................................... 48

Table 3-12 15 MIN Phy-Layer PM Information Field Definition .................................... 49

Table 3-13 1 DAY Phy-Layer PM Information Field Definition...................................... 50

Table 3-14 IGMP Snooping Table Definition ................................................................ 51

Table 4-1 CLI Command - Action List .......................................................................... 55

Table 4-2 CLI Command – Identifier List...................................................................... 55

Table 4-3 Relation between <action> and <identifier> ................................................. 56

Table 4-4 CLI Command – Parameter List................................................................... 56

Table 4-5 “show event” Field Definition........................................................................ 61

Table 4-6 Sysinfo field definition .................................................................................. 64

Table 4-7 “show portfilter” Filed Definition.................................................................... 65

Table 4-8 Sysip Field Definition.................................................................................... 66

Table 4-9 Time Field Definition..................................................................................... 67

Table 4-10 “show lineprof” Field Definition................................................................... 76

Table 4-11 “show alarmprof” Field Definition................................................................ 77

Table 4-12 “show port” Field Definition ........................................................................ 79

Table 4-13 “show adslline” Field Definition .................................................................. 80

Table 4-14 Ways of PVC configuration either with VLAN tag or without VLAN tag...... 81

Table 4-15 “show connection” Field Definition ............................................................. 83

Table 4-16 “show vid” Field Definition .......................................................................... 84

Table 4-17 “show subscriber” Field Definition .............................................................. 84

Table 4-18 “show snmp” Field Definition...................................................................... 88

Table 4-19 “show trapdest” Field Definition.................................................................. 89

Table 4-20 “show manip” Field Definition..................................................................... 91

Table 4-21 “show adslphysical” Field Definition ........................................................... 94

Table 4-22 “show adslchannel” Field Definition” .......................................................... 95

Table 4-23 “show adslphperf” Field Definition.............................................................. 96

Table 4-24 “show adslchperf” Field Definition .............................................................. 97

Table 4-25 “show adslphintl” Field Definition ............................................................... 99

Table 4-26 “show adslchintl” Field Definition.............................................................. 100

Table 7-1 Troubleshooting the Start-up your ADSL IP DSLAM .................................. 113

Table 7-2 Troubleshooting the ADSL IP DSLAM configured setting .......................... 113

Table 7-3 Troubleshooting the SNMP server ............................................................. 114

Table 7-4 Troubleshooting Telnet ............................................................................... 114

Table 7-5 Troubleshooting the password ................................................................... 114

Table A-1 ADSL IP DSLAM CID port pin assignment.................................................. 1

Table A-2 Null modem cable pin assignment (for PC to CID port connection) ............ 1

Table A-3 ADSL IP DSLAM uplink port pin assignment .............................................. 1

Table A-4 Uplink and downlink port (Xn) pin assignment ............................................ 2

Introduction

Table A-5 8 ports ADSL LINE Connector pin assignment ........................................... 2

Table A-6 8 ports POTS splitter PHONE Connector pin assignment .......................... 2

viii

ADSL IP DSLAM

About This Manual

Audience

This book is intended for anyone who installs, manages, and configures the

ADSL IP DSLAM, one product of ADSL IP DSLAM Series, via CID/RS-232 or Telnet/Ethernet CLI command interface. The ADSL IP DSLAM is a standalone IP-based DSLAM which can concentrate and manage 16 ADSL ports.

You must have a basic understanding of ADSL and Layer 2 concentrator related

technologies, be knowledgeable about data communications, and familiar with VT-100 terminal emulation tools.

Purpose

This book describes how to install, manage, and configure the ADSL IP DSLAM

system via CLI command Line interface through CID/RS-232 interface or Telnet/Ethernet interface.

Organization

This book provides task-based instructions for installing and using the CLI

interface to configure and administrate the ADSL IP DSLAM System. The manual is organized as follows:

Chapter Title & Description

Introduction

Provides an overview of ADSL IP DSLAM System, including features, fucntions, applications of the ADSL IP DSLAM.

Getting Started

Presents platform and system requirements as well as procedures and instructions for installing the ADSL IP DSLAM.

System Administration with EmWeb

Provides all the instructions and procedures necessary for you to administer your ADSL IP DSLAM with EmWeb interface.

System Administration with CLI

Provides all the instructions and procedures necessary for you to Administer your ADSL IP DSLAM with CLI interface.

Configuration Back Up, Restore,Update and Rescue

Provides the procedures to back up configuration settings from ADSL IP DSLAM and restore to ADSL IP DSLAM. Moreover, the upade and rescue porcedures are also introduced.

ADSL IP DSLAM

Troubleshooting

Provides some potential problems and possible remedies and helps you diagnose and solve the problems.

Appendix A

Presents the pin assignment for ADSL IP DSLAM

Appendix B

Presents the SNTP time zone abbrivation.

Appendix C

Present the deafult settings of ADSL IP DSLAM

Glossary

Defines the key terms and acronyms mentioned in this maunal.

Document Conventions

Screen displays use these conventions:

# Login with Administrator privilege % Login with operator privilege > Login with guest privilege

Commands descriptions use these conventions:

[ ] Elements in square brackets are optional < > Essential values < x | y | z > Alternative keywords are grouped in < > and separated by

vertical bars

Others

Note

Means reader take note. Notes contain helpful suggestions.

ADSL IP DSLAM

What’s the difference between ATM based

DSLAM and IP based DSLAM?

Fig 0-1 & Fig 0-2 display the differences between traditional ATM-based DSLAM

and ADSL IP DSLAM in PPPoE application sample.

Figure 0-1 PPPoE application in Traditional ATM-based ADSL Network

As Fig 0-1 displays, in traditional ATM-based ADSL network, the user application

information is encapsulated by ADSL CPE into ATM cells in pre-defined VC(Virtual Channel, PVC), and then upstream the ATM cells to DSLAM via ADSL link. (In this example, the user information (PPPoE encapsulated) is encapsulated by ATU-R using RFC-1483 Bridge-mode encapsulation format.)

All the ATM cells belong to the specified VC is concentrated by the DSLAM, and

switched in the ATM network clouds, to the defined destination (ISPs, Offices, ..), at there the ATM cells and PPPoE frames is resolved by the Broadband Access Server, and the user application information is serviced.

ADSL IP DSLAM

Figure 0-2 PPPoE application in ADSL IP DSLAM with Ethernet-All-The-Way

Network

In addition to traditional ATM-based ADSL network. As Fig 0-2 displays, the user

application information is still encapsulated by ADSL CPE into ATM cells in pre-defined VC (Virtual Channel, PVC), and then upstream the ATM cells to DSLAM via ADSL link.

In the ADSL IP DSLAM, all the ATM cells belong to the specified VC are

decapsulated back to the original PPPoE encapsulated Ethernet packet (if VLAN-mode of the specified ADSL port is disabled), or mapped to the pre-defined Ethernet-VLAN packets (if VLAN-mode of the specified ADSL port is enabled). ADSL IP DSLAM concentrates all Ethernet-with/without VLAN-tag packets from 16 ports’ ADSL and uplinks to ISP’s Ethernet-All-The-Way network. The PPPoE frames will be resolved at Broadband Access Server (BAS), and the user application information was serviced.

The ADSL IP DSLAM supports ADSL CPE Bridge-mode (RFC-1483 Bridge

mode and router mode). For performance concern, ADSL IP DSLAM will not

act as BRAS to process user application information directly.

ADSL IP DSLAM provides Ethernet-with/without VLAN tag to ATM-PVC mapping

feature for the ISP to isolate user’s data with security and to provide lots of service enhancement capabilities. ADSL IP DSLAM supports 2 ATM PVC links for each ADSL CPE.

Introduction

General

This chapter will help you understand the function and application of your ADSL

IP DSLAM. It covers

ADSL IP DSLAM

 ADSL IP DSLAM Overview

This section describes the overview of your ADSL IP DSLAM. The ADSL IP

DSLAM is cost effective solution for you to complete immediate implementation of multiple of services in private and public networks.

 ADSL IP DSLAM Application

ADSL IP DSLAM can be applied in MTU/MDU/MHU and Ethernet-all-the-way

application.

 ADSL IP DSLAM Features

This section describes the features of ADSL IP DSLAM and its specification.

ADSL IP DSLAM

ADSL IP DSLAM Overview

Using the latest ADSL technology, ADSL IP DSLAM offers service providers a

very cost-effective solution for immediate implementation of multiple services in private and public networks.

ADSL IP DSLAM can concentrate and manage up to 16 ADSL lines. User can

use local RS-232 CID and/or remote TELNET/SNMP to manage the ADSL IP DSLAM directly

Since the ATM backbone coverage is not so general in the real broadband

network environment. Instead of traditional DSLAM system provides ATM uplink interface, the ADSL IP DSLAM concentrates 16 ports of the ATM over ADSL traffic which is encapsulated by ADSL CPEs, and maps each user’s data encapsulated in ATM-PVC to Ethernet-with/without VLAN-tag packet (depends on the VLAN was enabled or not for the specified ATM ports), and then uplink to Telco or ISP directly, User can enable VLAN-PVC mapping capability for each ADSL port independently. The ADSL IP DSLAM acts as bridge for the ADSL ports without enabling the VLAN-PVC mapping feature. ADSL IP DSLAM provides both Ethernet-VLAN and non-VLAN to ATM-PVC mapping feature and bridge mode for the ISP to isolate user’s data with security and to provide lots of service enhancement capabilities. ADSL IP DSLAM supports 2 ATM PVC links for each ADSL CPE.

CID

Figure 1-1 ADSL IP DSLAM Front View

As Fig 1-1 displays, in the front view of ADSL IP DSLAM, there are several LEDs

to indicate current system and link status and one 10/100 Mega Ethernet interface for uplink.

The ADSL IP DSLAM can be managed via SNMP, but each ADSL IP DSLAM will

cost one IP address, and the performance of the ADSL IP DSLAM will be little affected due to CPU usage for the SNMP agent processing.

As Fig 1-2 displays, in the rear-panel, there is one power adaptor, both -42V ~

-56V DC or 90V ~ 240V AC power module can be selected. There are two DSL module slots, each module provides 8-port with built-in POTS-splitter ADSL module, totally 16 ADSL CPE users can be supported in one ADSL IP DSLAM.

Fast Ethernet uplink for uplink

8-port ADSL module with built-in s

litte

ADSL IP DSLAM

Fan

AC power module

Figure 1-2 ADSL IP DSLAM Rear View

Fig 1-3 displays the LED identification of ADSL IP DSLAM, and Table-1 describes

its color definition and status description.

Figure 1-3 ADSL IP DSLAM LED Identification

ADSL IP DSLAM

Table 1-1 ADSL IP DSLAM LED Description

<LED ID> Color Description

Power Green Lit when power on Maint Green Lit when maintance commands were issued Alarm Green Lit when MJ/MN events happen Faullt Green Lit when system error is detected Link Green Lit when Uplink Ethernet interface was connected Act Green Blink when information is transmitted through uplink

Ethernet interface ID-0 & ID-1 & Green ID0, ID1,ID2 : off off off ------when power on ID-2 ADSL1 – Green/ Lit Solid Green when ADSL link is in active state; ADSL16 Blinking Lit Blinking Orange when the specified ADSL link is

Orange/ No light/ Red Lit Solid Red when loss of signal occurs

Note: Do not power off your ADSL IP DSLAM when LEDs “MAINT”,

“ALARM” and “FAULT” are blinking simultaneously.

in connection training state;

LED off when ADSL link is not in service

ADSL IP DSLAM

ADSL IP DSLAM Application

As the following figure shown, ADSL IP DSLAM consists of two network modules.

Each network module provides eight ADSL ports with built-in POTS splitters so that it provides broadband data service over existing copper wires without affecting the conventional voice service. ADSL IP DSLAM, therefore, is a perfect solution for both central office co-location and MTU/MHU markets.

ADSL IP DSLAM

ADSL IP DSLAM Features

VLAN support

The ADSL IP DSLAM supports mapping of Ethernet-VLAN to ATM-PVC feature

for security concern.

Compact design for limited space

The ADSL IP DSLAM occupies 1.5 U of standard Telco rack space. Its

compactness is perfect for collocation and basement installation. With the built-in POTS splitters, service providers even no need to allocate extra space for POTS splitter shelves.

Standalone System Design

For the area of less than 16 subscribers, network designer can use ADSL IP

DSLAM to provide service directly.

ADSL IP DSLAM

ADSL IP DSLAM Specifications

Getting Started

General

This chapter provides the installation instruction for the hardware installation and

system configuration of your ADSL IP DSLAM so that you can start up quickly. It includes the following sections:

ADSL IP DSLAM

 Unpacking your ADSL IP DSLAM

This section describes how to unpacking your ADSL IP DSLAM, and part number explanation.

 Hardware Installation

This section describes the power connection, loop connection and CID

connection.

 Ways of management connection

This section describes how to engage in management connection by EmWeb,

CLI and Telnet.

ADSL IP DSLAM

Unpacking your ADSL IP DSLAM

This section describes how to unpack your ADSL IP DSLAM. For a box of ADSL

IP DSLAM, there may contain the following materials:

1. ADSL IP DSLAM

2. Mounting bracket package

3. RJ-45 Ethernet cable

4. Power cord (AC power module only)

5. RS 232 cable to facilitate the connection between CID and PC

6. CD including user manaul and Quick Start Guide

7. A copy of Quick Start Guide

8. Accessory package

 Any other accessories requested at time of ordering.

Check the contents of the package and inspect the unit for any signs of damage.

Report any defects to vendor’s customer service representative. Retain all packing materials for future shipment.

Hardware Installation

• The ADSL IP DSLAM can be installed in a standard 19-inch rack, by using the

mounting brackets provided.

• Mount the shelf on the rack using the large screws provided.

• Follows the following procedures to connect and wire the system.

Safety Instruction

The following is the safety instructions for ADSL IP DSLAM before installation:

1. Read and follows all warning notices and instructions of this user manual.

ADSL IP DSLAM

2. The maximum recommended operating temperature for the ADSL IP DSLAM is 50ºC. Care must be taken to allow sufficient air circulation or space between units when the ADSL IP DSLAM is installed inside a closed rack assembly and racks should safely support the combined weight of all ADSL IP DSLAM.

3. The connections and equipment that supply power to the ADSL IP DSLAM should be capable of operating safely with the maximum power requirements of the ADSL IP DSLAM. In the event of a power overload, the supply circuits and supply wiring should not become hazardous.

4. The AC adapter must plug in to the right supply voltage. Make sure that the supplied AC voltage is correct and stable. If the input AC voltage is over 10% lower than the standard may cause the ADSL IP DSLAM to malfunction.

5. Do not allow anything to rest on the power cord of the AC adapter, and do not locate the product where anyone can walk on the power cord.

6. Generally, when installed after the final configuration, the product must comply with the applicable safety standards and regulatory requirements of the country in which it is installed. If necessary, consult for technical support.

7. A rare condition can create a voltage potential between the earth grounds of two or more buildings. If products installed in separate building are interconnected, the voltage potential can cause a hazardous condition. Consult a qualified electrical consultant to determine whether or not this phenomenon exists and, if necessary, implement corrective action before interconnecting the products. If the equipment is to be used with telecommunications circuit, take the following precautions:

• Never install telephone wiring during a lightning storm.

ADSL IP DSLAM

• Never install telephone jacks in wet location unless the jack is specially

designed for wet location.

• Never touch uninsulated telephone wires or terminals unless the telephone line

has been disconnected at the network interface.

• Use caution when installing or modifying telephone lines (other than a cordless

telephone) during an electrical storm. There is a remote risk of electric shock from lightning.

• Do not use a telephone or other equipment connected to telephone lines to

report a gas leak in the vicinity of the leak.

ADSL IP DSLAM Rear Panel Connection

The following figure shows the rear panel connection of ADSL IP DSLAM:

Figure 2-1 ADSL IP DSLAM Rear Panel Connection

Step 1 Ground the ADSL IP DSLAM by connecting a grounded wire

Step 2 Connect the ADSL line connector, a 50-pin centronic connector, of ADSL

IP DSLAM to CPE by using telco cable. Each line connector supports 8 ports of ADSL for Data path from MDF(Main Distribution Frame).

Step 3 Connect the phone connector, a 50-pin centronic connector, of ADSL IP

DSLAM to Exchange/PBX by using telco cable. phone connector is an optional module supporting Voice path to Exchange/PBX; it must be along with Line Connector.

Step 4 Connect the power adapter and plug it into an outlet.

ADSL IP DSLAM

ADSL IP DSLAM Front Panel Connection

Connect the uplink port of ADSL IP DSLAM to internet by using the RJ-45 cable,

and Connect the CID port to the console terminal by using the RS-232 cable(Null modem cable) in order to Administer your ADSL IP DSLAM through CLI.

UplinkConsole

Console Terminal For Manufacture Maintenance Only

Figure 2-2 ADSL IP DSLAM Front Panel Connections

Note: Please refer to Appendix A: pin assignment of telco cable, RJ-45 and

RS-232 cable.

ADSL IP DSLAM

Ways of Management Connection

This section will tell you how to connect and manage your ADSL IP DSLAM

through EmWeb, CLI and EMS.

Embedded Web Interface(EmWeb)

The embedded Web Interface (EmWeb), comprised of HTML files, is more userfriendly than CLI for your configuring ADSL IP DSLAM. The HTML files embedded in ADSL IP DSLAM are dynamically linked to the system’s functional command sets. You can access the EmWeb from any Web Browser.

Following the following procedure to connect the embedded Web management interface:

Establish a connection to the internet

Open the Web browser

Enter the IP address of the ADSL IP DSLAM (Default IP: 192.168.100.111)

To access any menu item on EmWeb, simply click on the item you want. The corresponding work screen will then appear on the right side frame. By pressing the Apply button will allow you to achieve your configuration, whereas pressing Cancel button will clear all your changes without applying them. In some menus, there will be Modify item will allow you to modify the existing configuration.

Command Line Interface (CLI)

The Command Line Interface is the most primary character based configuration interface. Some of configurations not provided in EmWeb can be configured through CLI. You can access CLI from the terminal emulation software.

The procedure of connecting to the CLI is as follows:

Start up the terminal emulation software on the management station.

If necessary, reconfigure the terminal-emulation software to match the switch

console port settings.

Enter Admin when prompted for a user name and password. The ADSL IP

DSLAM prompt appears when you have logged in to the management interface successfully.

Telnet Client

ADSL IP DSLAM supports only one Telnet client that you can use to connect with. Telnet provides a simple terminal emulation that allows you to see and interact with the CLI of ADSL IP DSLAM. As with any remote connection, the network interface IP address for the ADSL IP DSLAM must be established.

ADSL IP DSLAM

Bits per second 9600 Data bits 8 Parity None Stop bits 1 Flow control None

Note: as to the default setting of ADSL IP DSLAM, please refer to the

Appendix-C.

ADSL IP DSLAM

System Administration with EmWeb

This chapter provides all the instruction and procedure necessary for you to

administer your ADSL IP DSLAM with EmWeb interface.

This section describes how to log into Embedded Web Interface.

Open a web browser with the default IP address: http://10.90.90.90

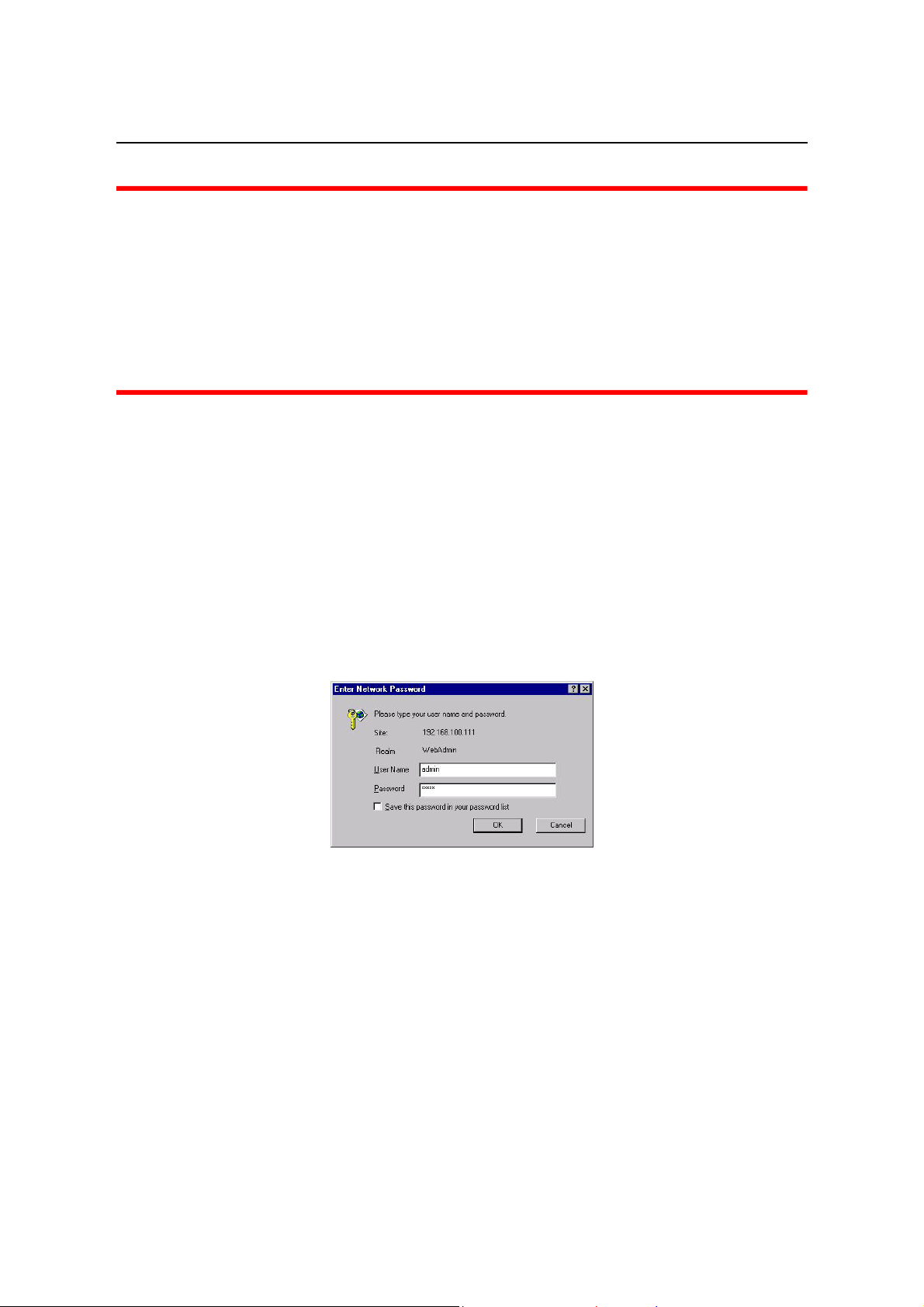

The log in screen appears as follows:

Enter your user name. If it is an initial installation, enter Admin for user name.

Enter your password. If it is an initial installation, enter Admin for password.

Note: For safety concern, it is recommended to change the password. For

changing the password, go to the Changing Password in the System menu.

See page 30.

ADSL IP DSLAM

Embedded Web Interface Menu

This section describes the overview of the embedded Web interface menu,

EmWeb. After your successfully logging into the EmWeb, the screen will appears as follows:

Default Setting

Display the information of default (factory) setting of your ADSL IP DSLAM. See

page 23.

System Information

Display the system time, system up time, system up period of your ADSL IP

DSLAM. It also provides you with the information of software version, hardware version. See page 24.

Save to Flash

Allow you to save your configuration in Flash. See page 25.

Current Event

Allow you to view the alarm and event status of your ADSL IP DSLAM. See

page 26.

System

Set Port Filter: Allow you configure the port filtering function. See page 28.

System IP / Location: Allow you to configure the IP address and location of

your ADSL IP DSLAM. See page 29.

System Date and Time: Allow you to configure the SNTP status, Time zone,

date and time of your ADSL IP DSLAM. See page 30.

ADSL IP DSLAM

Changing Password: Allow you to change your password. See page 30.

DSL Profile Configuration

Create Line Profile: Allow you to create ADSL line profile. See page 31.

Create Alarm Profile: Allow you to create ADSL alarm profile. See page 31.

Current Line Profile: Allow you to view, modify, or delete existing ADSL line

profiles. See page 33.

Current Alarm Profile: Allow you to view, modify, or delete existing ADSL

alarm profiles. See page 34.

Port Configuration

DSL Port configuration: Allow you to display, modify and delete the status of

the port. It provides the configuration of a port’s status. See page 35.

PVC Configuration: Allow you to configure PVC and VID on a port and set the priority. It also provides the modification and delete function. See page 36.

List of Subscriber: Allow you to view the existing information of subscribers and modify them. See page 38.

Routing Table: allow you to configure the routing table. See page 39.

Management

SNMP: Allow you to configure SNMP access parameters and trap IPs. See

page 41.

Management IP: Allow you to configure the management IPs so that only with those configured management IPs can access to your ADSL IP DSLAM remotely. See page 41.

DSL Port Performance

Physical Layer Info: Allow you to view the performance information on

physical layer by specifying the definite unit. See page 41.

Channel Layer Info: Allow you to view the performance information on channel layer by specifying the definite unit. See page 42.

Current Phy-Layer PM: Allow you to view the physical layer performance collected within current 15 minutes and a day duration. See page 43.

Current Channel-Layer PM: Allow you to view the channel layer performance collected within current 15 minutes and a day duration. See page 46.

15 MIN Phy-Layer PM: Allow you to view the physical layer performance

ADSL IP DSLAM

during previous 15 minutes interval. See page 47.

1 DAY Phy-Layer PM: Allow you to view the physical layer performance during previous 1 day interval. See page 48.

15 MIN Channel-Layer PM: Allow you to view the channel layer performance during previous 15 minutes interval. See page 49.

1 DAY Channel-Layer PM: Allow you to view the channel layer performance during previous 1 day interval. See page 49.

Miscellanea

IGMP Snooping Config: Allow you to configure the IGMP Snooping. See

page 50.

IGMP Snooping Status: allow you to view IGMP snooping status. See page 51

ADSL IP DSLAM

Default (Factory) Configuration Settings {Default Setting}

This section describes how to get the information of the default setting of your ADSL IP DSLAM.

1. Click on “Default Setting” from the ADSL IP DSLAM Main Menu.

The Default Setting screen appears as follows:

Default Settings

SNMP:

System

ADSL Port VCC

connection

DSL profile

Alarm profile

community : “public” no In-band management channel

IP : 192.168.100.111 Mask: 255.255.255.0 Gateway: 192.168.100.1

Bridge – mode Port-Filter(Port-based VLAN) : Enable

“up” for all ports 8/81(vpi/vci) for all ports

VLAN – tag : disable named “DEFAULT”

1) tx mode : “adaptAtStartup”

2) Line type : “Interleaved”

3) Target SNR margin : “6 dB”

4) mim tx rate : “32 Kbps”

5) max tx rate at ATU-C : “8064 Kbps”

6) max tx rate at ATU-R : “1024 Kbps”.

7) interleave delay : “16 milliseconds”

named “DEFAULT”

ATU-C side:

Thresh15MinLofs – 0 sec Thresh15MinLoss – 0 sec Thresh15MinLols – 0 sec Thresh15MinLprs – 0 sec Thresh15MinEss – 0 sec

initial failure trap – Enable

ATU-R side :

Thresh15MinLofs – 0 sec Thresh15MinLoss – 0 sec Thresh15MinLols – 0 sec Thresh15MinLprs – 0 sec

In the default setting table, the status of SNMP, IP, System, ADSL Port, VCC

connection, DSL profile and Alarm profile are displayed clearly. How to modify them will be introduced in the following sections.

ADSL IP DSLAM

Displaying the System Information of your ADSL IP DSLAM {System Information}

This section describes how to get the information of your ADSL IP DSLAM.

1. Click on “System Information” from the ADSL IP DSLAM Main Menu.

The System Information screen appears as follows:

Table 3-1 Sysinfo field definition Field Definition Current time Current system time

System Up time System up time System Up Period System Up Period Model name Model name of the system. Hardware version Hardware version of system. Software version Software version of system. MAC Address MAC Address of system

ADSL IP DSLAM

Save your Configuration to Flash {Save to Flash}

This section describes how to save the configuration you have configured to flash. This function will be needed whenever you want to restart your ADSL IP DSLAM with the updated configuration.

1. Click on “Save to Flash” from the ADSL IP DSLAM Main Menu.

The Save to Flash screen appears as follows:

Submit the Save button.

3. After submitting the Save bottom, a warning message from Web Server will pop-up immediately as the following screen shown.

Note: don’t cut off power while system is saving your configuration.

ADSL IP DSLAM

Displaying Current Event {Current Event}

This section describes how to view the current alarm and event status.

1. Click on “Current Event” from the ADSL IP DSLAM Main Menu. The Current Event screen appears as follows:

2. Click on next page item in order to view more events. The displayed data will be 20 items per page and it can display totally up to 960 items.

3. Click on DELETE ALL button in order to delete all events. The following event log description would help you to know the content of event logs in the Current Event screen.

Table 3-2 Event log description

Module Severity Description Note

ADSL related Inform port up

Major port down

Inform transmit rate has changed

Major loss of framing

Major loss of signal

Major loss of power

Minor loss of signal quality

Major loss of link

ATU-C failure during initialization due to bit errors corrupting startup exchange

Major data init. failure data.

ATU-C failure during initialization due to peer ATU not able to support requested

Major configuration init. failure configuration

ADSL IP DSLAM

Major protocol init. failure

Major no peer ATU present

Minor los

Minor lof

Minor lpr

Minor es

Minor lol

System related Inform system up

Inform user "xxx" login

Inform user "xxx" logout

Inform no defect

Major hardware failure

Inform up-link connected

Inform up-link disconnected

Unit related Inform unit plugged

Inform unit unplugged

Inform no defect

Major hardware failure

Admin related Inform port Admin. Enabled

Major port Admin. disabled

Incompatible protocol used by the peer ATU No activation sequence detected from paired endpoint.

Threshold violation

ADSL IP DSLAM

Configuring ADSL IP DSLAM

This section describes how to configure your ADSL IP DSLAM by selecting System from EmWeb Menu. This section will cover all the function from System Menu. It includes:

Configuring Port Filtering {Set Port Filter}

Allow you to configure the port filtering function.

1. Click on “Set Port Filter” from the System Menu.

The Set Port Filter screen appears as follows:

2. Click on Enabled button to allow each ADSL port to communicate back and forth with the uplink Ethernet port only.

By selecting Disabled button you allow all ADSL ports to communicate with each

other and also with the uplink Ethernet port.

3. Press Apply button in order to submit your configuration.

Note: Make sure to save all the configurations in flash by selecting Save to Flash

from main menu when you want to restart your ADSL IP DSLAM.

ADSL IP DSLAM

Configuring IP and Location {System IP / Location}

Allow you to configure the system IP address and location.

1. Click on “System IP / Location” from the System Menu.

The System IP / Location screen appears with the default setting and can be

configured as follows:

Configure the IP address you want to set, say

192.168.0.76

Configure the subnet mask with reference to IP address, say

255.255.255.0

2. Configure the gateway with reference to IP address, say 192.168.0.1

3. Configure the system name you want to set, say ADSL IP DSLAM

4. Configure the location of your ADSL IP DSLAM.

5. Configure the contact information for servicing ADSL IP DSLAM.

6. Click on the Apply button to submit your changes, or click on the Cancel button if you want to clear all the values you have configured.

Note: If you changed the Web Server's IP address, you must change the HTTP

URL Address on your web browser, after your pressing the "Apply" button, (The TCP/IP setting of the network may need to re-configure).

ADSL IP DSLAM

Configuring Date and Time {System Date and Time}

Allow you to configure the date and time of the system.

1. Click on “System Date and Time” from the System Menu.

The System Date and Time screen appears with the default setting and can be

configured as follows:

Changing your Password {Changing Password}

Allow you to change your password.

1. Click on “Changing Password” from the System Menu.

The Changing Password screen appears with your user name and your

password can be changed as follows:

2. Enter your old password.

3. Enter your new password that you want to change.

4. Enter your new password again to confirm.

5. Click on the Apply button to submit your changes, or click on the Cancel button if you want to clear all the values you have configured.

ADSL IP DSLAM

DSL Line Configuration

This section covers how to create, display, modify, or delete the line profile and alarm profile by selecting DSL Line Configuration from EmWeb Menu. This section will cover all the function from DSL Line Configuration Menu.

Creating a Line Profile {Create Line Profile}

This section describes how to create an ADSL line profile.

1. Click on “Create Line Profile” of DSL Profile configuration Menu.

The Create Line Profile screen appears as follows:

Table 3-3 Create Line Profile Field Definitions

Field Line Type

Transmit Rate Adaption Target Snr Margin (db) Minimum Transmit Rate Maximum Transmit Rate Interleave Delay (mili-seconds)

2. Configure the name of line profile, say service512K64K.

3. Configure the line profile on CO side (Down Stream). For example,

4. Configure the line type, transmit rate adaptation, target SNR margin, minimum transmit rate, maximum transmit rate, and interleave delay as Interleaved,

Definition The ADSL line type, Fast or Interleaved

Defines what form of transmitting rate to be adaptated, fixed or adaptAtStartup Target Signal / Noise Margin. The minimum transmitting rate of ATU-C side or ATU-R side. The maximum transmitting rate of ATU-C side or ATU-R side. The value of Interleave Delay for this channel.

ADSL IP DSLAM

AdaptAtStartup, 7 db, 32 Kbps, 512 Kbps, and 8 milli-seconds.

5. Configure the line profile on RT side (Up Stream). For example,

6. Configure the line type, transmit rate adaptation, target SNR margin, minimum transmit rate, maximum transmit rate, and interleave delay as Interleaved, AdaptAtStartup, 7 db, 32 Kbps, 64 Kbps, and 8 milliseconds.

7. Click on the Apply button to submit your changes, or click on the Cancel button if you want to clear all the values you have configured.

Note: (1) If you configure “Transmit Rate Adaptation” as “Fixed”, it is

recommended to configure the value of “minimum transmit rate” and “maximum transmit rate” on CO side or RT side the same. However, the value of CO side and RT side may not be the same.

(2) Line profile can be created maximum up to 10 profiles.

Creating a Alarm Profile {Create Alarm Profile}

This section describes how to create an ADSL alarm profile.

1. Click on “Create Alarm Profile” of DSL Profile configuration Menu.

The Create Alarm Profile screen appears as follows:

Table 3-4 Create Alarm Profile Field Definitions Field Loss of frame within 15

minutes

Loss of signal within 15 minutes

Loss of link within 15 minutes

Loss of power within The threshold of the number of “Loss of Power

Definition The threshold of the number of “Loss of Frame

Seconds” within 15 minutes performance data collection period. The threshold of the number of “Loss of Signal Seconds” within 15 minutes performance data collection period. The threshold of the number of “Loss of Link Seconds” within 15 minutes performance data collection period. (But only ATU-C side)

ADSL IP DSLAM

15 minutes

Errored seconds

Failure Trap

2. Configure the name of alarm profile, say alarm1.

3. Configure the alarm profile on CO side (Down Stream). For example,

4. Configure the Lofs, Loss, Lols, Lprs, Ess, and initial failure trap as 30sec, 10sec, 50sec, 5sec, 4sec, and Enable initial failure trap.

5. Configure the alarm profile on RT side (Up Stream). For example, Configure the Lofs, Loss, Lprs, and Ess as 30sec, 2sec, 2sec, and 5sec.

6. Click on the Apply button to submit your changes, or click on the Cancel button if you want to clear all the values you have configured.

Seconds” within 15 minutes performance data collection period. The threshold of the number of “Errored Seconds” within 15 minutes performance data collection period. Enable or disable the Initial Failure Trap. Default setting is disable. (Only on ATU-C side)

Note: The alarm profile can be created maximum up to 10 profiles.

Displaying and Modifying a Line Profile {Current Line Profile}

Allow you to view, modify, or delete existing ADSL line profiles.

1. Click on “Current Line Profile” of the DSL Profile configuration Menu.

The Current Line Profile screen appears as follows:

2. Click on Modify button to modify the specified profile.

3. Click on Delete button to delete the specified profile.

ADSL IP DSLAM

Displaying and Modifying a Alarm Profile {Current Alarm Profile}

Allow you to view, modify, or delete existing ADSL alarm profiles.

1. Click on “Current Alarm Profile” of the DSL Profile configuration Menu.

The Current Alarm Profile screen appears as follows:

2. Click on Modify button to modify the specified profile.

3. Click on Delete button to delete the specified profile.

ADSL IP DSLAM

Port Configuration

This section covers how to configure ports and subscriber information by selecting Port Configuration from EmWeb Menu. This chapter will cover all the function from Port Configuration Menu.

DSL Port Configuration{DSL Port Configuration}

Allow you to display, modify and delete the status of the port. It also provides the configuration of enabling or disabling a port and attaching the specific line profile and alarm profile to a port. The procedures are as follows:

1. Click on “DSL Port Configuration” of the Port configuration Menu.

For first time configuration, the DSL Port Configuration screen appears with the default setting as follows:

2. Click on Modify button to configure the specific port, says port 1. The screen will appear as follows:

3. Configure the Administration status as “Up” or “Down”. Here in example, “Up” is configured.

4. Attach the line profile, says “SERVICE512K64K”

ADSL IP DSLAM

5. Attach the alarm profile, says “ALARM1”

6. Click on the Apply button to submit your changes, or click on the Cancel button if you want to clear all the values you have configured.

PVC Configuration{PVC Configuration}

Allow you to configure PVC (Permanent Virtual Connection) and VID (VLAN ID) on a port and setting the priority. It also provides the modification and delete function. The procedures are as follows:

1. Click on “PVC Configuration” of the Port configuration Menu.

For the first time configuration, the PVC Configuration screen appears with the

default setting as follows:

Table 3-5 PVC Configuration Field Definitions Field Definition Port No. The threshold of the number of “Loss of Signal

Seconds” within 15 minutes performance data

collection period. VPI Virtual Path Identifier VCI Virtual Channel Identifier Connection Status Used to up/down connection. RFC1483 Mode Bridge or route Tag Specifies the port as either 802.1Q tagging or

802.1Q untagged.

Priority Optional Connection priority. No VLAN tag, no

priority.

ADSL IP DSLAM

2. Click on Modify button to configure the specific port, says port1. The screen will appear as follows:

3. Configure the VPI, says 0

4. Configure the VCI, says 50

5. Configure the Administration status of PVC “Up” or “Down”, says “Up.

6. Configure the RFX1483 Mode. Here in example, “Bridge” is configured.

7. Configure the Tag, says 7.

8. Configure the priority of PVC, says 7. The priority of 0 to 7 is from the lowest to the highest.

9. Click on the Apply button to submit your changes, or click on the Cancel button. If you want to clear all the values you have configured.

ADSL IP DSLAM

List of Subscriber {List of Subscriber}

Allow you to view the existing information of subscribers and modify them. The

procedures are as follows:

1. Click on “List of Subscriber” of the Port configuration Menu.

For the first time configuration, the List of Subscriber screen appears with the

default setting as follows:

2 . Click on Modify button to configure the specific port, says port1. The screen

will appear as follows:

3. Configure the subscriber name as you want, says Pantagon.

4. Configure the telephone number of subscriber, says 42361258

5. Write Note for your reference if you need.

6. Click on the Apply button to submit your changes, or click on the Cancel

button if you want to clear all the values you have configured.

ADSL IP DSLAM

Routing Table {Routing Table}

Routing Table is a matrix with a network control protocol, which gives the

hierarchy of link routing at each node.

The Routing Table screen allows you to view the routing table built in the ADSL IP

DSLAM and modify them. The procedures are as follows:

1. Click on “List of Subscriber” of the Port configuration Menu. The Routing Table screen appears with the default setting as follows:

2. Configure the Port No. (1~16), Name, Destinations and Subnet mask separately, and then click on the Apply button.

3. The newly added routing node will be listed in the routing table. If to delete one

routing node, click on the Delete.

Note: only can the routing table be configurable, when the RFC-1483 mode is

configured as “Route”. Please refer to the setting in the PVC Configuration, page 36.

ADSL IP DSLAM

Management Configuration

This section covers how to configure SNMP access parameters and management IP by selecting Management from EmWeb Menu. This section will cover all the function from Management Menu. It includes:

Configuring SNMP Access Parameters and Trap IPs {SNMP}

Allow you to configure the SNMP access parameters and trap IPs. The

procedures are as follows:

1. Click on “SNMP” of the Management Menu.

For the first time configuration, the SNMP screen appears with the default setting

of the community string” public” as follows:

2. Configure the VID (VLAN ID) of the system from 2 to 4094.

3. Configure the trap IP Addresses, as you want. Here in example, we create 3 IPs. The trap IP can be created maximum up to 5.

4. Click on the Apply button to submit your changes, or click on the Cancel button if you want to clear all the values you have configured.

ADSL IP DSLAM

Configuring Management IP {Management IP}

Allow you to configure the management IPs so that only with those configured management IPs can access to your ADSL IP DSLAM remotely. The procedures are as follows:

1. Click on “Management IP” of the Management Menu.

The Management IP screen appears as follows:

2. Configure the management group, as you want. The management IP group

can be created maximum up to 5 groups.

3. Click on the Update button to submit your changes, or click on the Cancel

button if you want to clear all the values you have configured.

Performance Monitor

This section covers performance monitor by selecting DSL Port Performance

from EmWeb Menu. It includes:

ADSL Physical Layer PM {Physical Layer Info}

Allow you to view the performance information on physical layer by specifying the

definite unit. The procedures are as follows:

1. Click on “Physical Layer Info” of DSL Port Performance Menu.

ADSL IP DSLAM

The Physical Layer Info screen appears as follows:

Note: In this example, only port 1 is connected with CPE and that is why only “No

defect” value is displayed in the unit 1/port 1 row.

Table 3-6 Field SNR margin

Attenuation

Status

output power Total output power transmitted by atu. (dBm) attainable rate

Physical Layer Info Field Definitions

Definition Noise margin value. (dB)

Difference in the total power transmitted and the total power received by the peer atu. (db) Current status of the ATU line. The possible values displayed are as follows: No defect: there are no defect on the line los: atu-r failure due to not receiving signal lpr: atu-r failure due to loss of signal

The maximum currently attainable data rate by the atu. (kbps)

ADSL Channel Layer PM {Channel Layer Info}

Allow you to view the performance information on channel layer by specifying the

definite unit. The procedures are as follows:

1. Click on “Channel Layer Info” of DSL Port Performance Menu.

The Channel Layer Info screen appears as follows:

ADSL IP DSLAM

Table 3-7 Channel Layer Information Field Definitions Field Interleave delay

Previous TX rate

Current TX rate CRC block length

Definition Interleave delay for this channel. (milli-seconds)

previous actual transmit rate on this channel if ADSL loop retain. (kbps) Actual transmit rate on this channel. (kbps) The length of the channel data-block on which the CRC operates.

ADSL Physical Layer PM within Current 15 Minutes and a Day Duration {Current Phy-Layer PM}

Allow you to view the physical layer performance collected within current 15

minutes and a day duration. The procedures are as follows:

1. Click on “Current Phy-Layer PM” of the DSL Port Performance Menu.

The Current Phy-Layer PM screen appears as follows:

ADSL IP DSLAM

Table 3-8 Current Phy-Layer PM Information Field Definitions Field CO

up stream Lofs Loss Lols Lprs Ess Inits

Current 15-min time elapsed

Current 15-min lofs

Current 15-min loss

Current 15-min lols

Current 15-min lprs

Current 15-min ess

Current 15-min inits

Current 1-day time elapsed

Current 1-day lofs

Current 1-day loss

Definition down stream

number of lof failures since reset. number of los failures since reset. number of lol failures since reset. number of lpr failures since reset. number of error seconds since reset. number of initialization attempts since reset. it includes both successful and failed attempts. number of seconds that have elapsed within the current 15 minutes. a full interval is 900 seconds. number of seconds in the current 15-minute interval during which lof was detected. number of seconds in the current 15-minute interval during which los was detected. number of seconds in the current 15-minute interval during which lol was detected. number of seconds in the current 15-minute interval during which lpr was detected. number of error seconds in the current 15-minute interval. number of inits in the current 15-minute interval. it includes both successful and failed attempts. number of seconds that have elapsed since the beginning of the current 1-day interval. number of seconds in the current 1 day interval during which lof was detected. number of seconds in the current 1 day interval during which los was detected.

ADSL IP DSLAM

Field Current 1-day lols

Current 1-day lprs

Current 1-day ess

Definition number of seconds in the current 1 day interval

during which lol was detected. number of seconds in the current 1 day interval during which lpr was detected. number of error seconds in the current 1 day interval.

ADSL IP DSLAM

ADSL Channel Layer PM within Current 15 Minutes and a Day Duration {Current Channel-Layer PM}

Allow you to view the channel layer performance collected within current 15

minutes and 1-day duration.

1. Click on “Current Channel-Layer PM” of the DSL Port Performance Menu.

The Current Channel-Layer PM screen appears as follows:

Table 3-9 Current Channel-Layer PM Information Field Definitions

Field CO

up stream

Received blocks

Transmitted blocks

Corrected blocks

Uncorrected blocks

Current 15-min time elapsed Current 15-min received blocks Current 15-min Transmitted blocks Current 15-min corrected blocks Current 15-min Uncorrected blocks current 1-day time elapsed

Definition down stream

the total number of blocks of data received since the last agent reset. the total number of blocks of data transmitted since the last agent reset. number of corrected blocks of data transmitted since the last agent reset. number of corrected blocks of data transmitted since the last agent reset. number of seconds that have elapsed since the start of the current 15-minute interval. number of blocks of data received during the current 15-minute interval. number of blocks of data transmitted during the current 15-minute interval. number of corrected blocks of data transmitted during the current 15-minute interval. number of uncorrected blocks of data transmitted during the current 15-minute interval. number of seconds that have elapsed since the start of the current day interval.

ADSL IP DSLAM

Field Current 1-day received

blocks Current 1-day transmitted blocks Current 1-day corrected blocks Current 1-day uncorrected blocks

Definition number of blocks of data received during the

current day interval. number of blocks of data transmitted during the current day interval. number of corrected blocks of data transmitted during the current day interval. number of uncorrected blocks of data transmitted during the current day interval.

ADSL Physical Layer PM within Previous 15 Minutes Duration {15 MIN Phy-Layer PM}

Allow you to view the physical layer performance during previous 15 minutes

interval.

1. Click on “15 MIN Phy-Layer PM” of the DSL Port Performance Menu.

The 15 MIN Phy-Layer PM screen appears as follows:

Table 3-10 15 MIN Phy-Layer PM Information Field Definition Field CO

up stream

Lofs

Loss

Definition down stream

counts of lof since agent reset within previous 15-min interval. counts of los since agent reset within previous 15-min

ADSL IP DSLAM

interval.

Lols

Lprs

Ess

Inits

counts of lol since agent reset within previous 15-min interval. (but only on atu-c side) counts of lpr since agent reset within previous 15-min interval. counts of es since agent reset within previous 15-min interval. counts of adsl line initialization attempts since agent reset, including both successful and failed attempts within previous 15-min interval. (but only on atu-c side)

ADSL Physical Layer PM within Previous 1 Day Duration {1 DAY Phy-Layer PM}

Allow you to view the physical layer performance during previous 1 day interval.

1. Click on “1 DAY Phy-Layer PM” of the DSL Port Performance Menu.

The 1 DAY Phy-Layer PM screen appears as follows:

Table 3-11 Field CO

up stream

lofs

loss

lols

lprs

ess

inits

1-DAY Phy-Layer PM Information Field Definition

Definition down stream

counts of lof since agent reset within previous 1day interval. counts of los since agent reset within previous 1day interval. counts of lol since agent reset within previous 1day interval. (but only on atu-c side) counts of lpr since agent reset within previous 1day interval. counts of es since agent reset within previous 1day interval. counts of adsl line initialization attempts since agent reset, including both successful and failed attempts within previous 1 day interval.(but only at atu-c side)

ADSL IP DSLAM

ADSL Channel Layer PM within Previous 15 Minutes Duration {15

MIN Channel-Layer PM}

Allow you to view the channel layer performance during previous 15 minutes

interval.

1. Click on “15 MIN Channel-Layer PM” of the DSL Port Performance Menu.

The 15 MIN Channel-Layer PM screen appears as follows:

Table 3-12 15 MIN Phy-Layer PM Information Field Definition Field CO

up stream

Received blocks

Transmitted blocks

Corrected blocks

Uncorrected blocks

Definition down stream

the total number of blocks of data received during the previous 15min interval. the total number of blocks of data transmitted during the previous 15min interval. number of corrected blocks of data transmitted during the previous 15min interval.

number of uncorrected blocks of data transmitted during the previous 15min interval.

ADSL Channel Layer PM within Previous 1 Day Duration {1 DAY Channel-Layer PM}

Allow you to view the channel layer performance during previous 1 day interval.

1. Click on “1 DAY Channel-Layer PM” of the DSL Port Performance Menu.

ADSL IP DSLAM

The 1 DAY Channel-Layer PM screen appears as follows:

Table 3-13 1 DAY Phy-Layer PM Information Field Definition Field CO

up stream

Received blocks

Transmitted blocks

Corrected blocks

Uncorrected blocks

Definition down stream

the total number of blocks of data received during the previous 1day interval. the total number of blocks of data transmitted during the previous 1day interval. number of corrected blocks of data transmitted during the previous 1day interval. number of uncorrected blocks of data transmitted during the previous 1day interval.

Miscellanea

This section covers miscellanea by selecting Misc from EmWeb Menu. It

includes:

IGMP Snooping Configuration {IGMP_Snooping Config}

Allows you to view and modify IGMP Snooping Configuration. The procedure is

as follows:

1. Enter Misc Menu and the click on “IGMP Snooping Config” of IGMP snooping menu.

2. The IGMP Snooping Config screen appears as follows:

ADSL IP DSLAM

3. Select the function is disable or enable.

4. Select the active query is disable or enable.

5. Define the active query interval, 125~250 seconds.

6. Click on Apply bottom to submit your configuration or Cancel bottom to clear

your configuration.

IGMP Snooping Status {IGMP_Snooping Status}

Allow you to view IGMP Snooping status.

1. Enter Misc Menu, and then Click on “IGMP Snooping Status” of IGMP

Snooping menu.

The IGMP Snooping Status screen appears as follows:

Table 3-14 IGMP Snooping Table Definition

Items Description Group Address IGMP group address.

Member of group Member included in groups.

ADSL IP DSLAM

SNTP Status {SNTP Status}

Allow you to view the SNTP Client status and execute further configuration. The

procedure shows as follows.

1. Enter Misc Menu and click on “SNTP Status” of SNTP menu. The SNTP screen appears as follows:

2. To configure the SNTP status, enable or disable, click on Modify, and then the screen appears as follows:

3. Select Enable to activate SNTP and then click on Apply bottom to

confirm.

4. To configure the Time zone, click on Modify and then the screen appears as follows:

ADSL IP DSLAM

5. Select a new time zone and click on Set New Timezone button to submit your setting.

6. If to add a SNTP/NTP Server IP, click on add SNTP/NTP Server IP, and the screen appears as follows:

7. Set a new server IP and click on Add button to add the IP into the SNTP/NTP server IP list or click on Cancel button to return to System Date and Time screen.

ADSL IP DSLAM

System Administration with CLI

Command Line Interface (CLI) is the primary user interface to Administrate the

system. CLI can be accessed either from the CID port or telnet session. All CLI commands are simple strings designed for the Administrator to manage your ADSL IP DSLAM easily.

Command Structure

There are three-level command structure used in the system. All commands have

the following general format:

IPDSLAM# <action> Identifier parameters

Action

Identifier

Parameter

Identify the specific function to be acted. For example, in the case of viewing the information of 16 DSLAM, you must enter the command “show port16”. “show” is the <action>. Indicate the object of the specific function to be acted. For example, in the case of viewing the information of 16 you must enter the command “show port 16”; “port” is the <identifier>. Usually indicate the destination or configuring values. In parameter description, <> means the required fields in a command, whereas [ ] and | are the optional fields in a command. For example, in the case of viewing the information of 16 port 16” to; “1” is the parameters

port, you must enter the command “show

port of ADSL IP

port,

ADSL IP DSLAM

Table 4-1 CLI Command - Action List <action> show

add

config

delete

help history Used to view the list of CLI commands that the user have used. reset restart save default upgrade exit

Description Used to view information of the selected identifier and

parameters. Used to add configuration of objects according to the identifier and parameters. Parameters are used for selecting specific facility and arguments. For example, “16” specifies the 16

port of ADSL IP DSLAM. Used to set or modify existing configuration of objects corresponding to the identifier and parameters. But lineprof name -default and alarmprof name default can not be configured. Used to delete configuration of objects corresponding to the identifier and parameters. If the delete action is confirmed, the configuration of objects will no longer exist. Used to view the detailed usage of CLI commands.

Used to reset a port of system. Used to restart the system. Used to save the configuration to Flash RAM. Used to restore the default setting to system. Used to upgrade the system file. Used to terminate the CLI.

Table 4-2 CLI Command – Identifier List

sysinfo

sysip snmp

time

sntp user password

subscriber

event trapdest

Allow users to view or config the whole system information of ADSL IP DSLAM. Allow users to view or config IP of system. Allow users to view or config VID and community for SNMP. Allow users to view or config the current system date and time. Allow users to view, add, delete or config sntp. The users’ information of system. Allow users to modify him (herself) password. Allow users to view, add, delete or config the basic information of the subscriber of each port. Allow users to view the events of system. Allow users to view, add or delete the trap destination.

Description

manip Allow users to view, add, or delete management IP groups. portfilter

port

route

connection

vid lineprof

Allow users to view or config port-filter status. Allow users to view or config status and information of each port, or allow users to enable/disable port. Allow users to view, add or delete the routing node in the routing table. Allow users to view or config the connection information of each port sorting by port id. Allow users to view the vid information sorting by VLAN ID. Allow users to view, add, delete or config ADSL line profile.

ADSL IP DSLAM

alarmprof

adslline

adslchannel

adslphysical

adslchperf

adslchintl

adslphperf

adslphintl

igmpconf igmpgroup igmppm

Table 4-3 Relation between <action> and <identifier> <action> <identifier> show

add

config

delete

Help history reset restart Save Default Upgrade exit None

Allow users to view, add, delete or config the alarm threshold values in an ADSL. Allow users to view or config the information of ADSL line. Allow users to view the channel layer parameters of ADSL lines. Allow users to view the physical layer parameters of ADSL lines. Allow users to view the performance statistics collected on channel layer of ADSL line. Allow users to view the statistics information collected on channel layer within 15-minutes or 1-day interval. Allow users to view the performance statistics collected on physical layer of ADSL lines. Allow users to view the statistics information collected on physical layer within 15-minutes or 1-day interval. Allow users to view or config the configurations of IGMP. Allow users to view the IGMP groups. Allow users to view and reset the IGMP PM.

adslchannel adslchintl adslchperf adslline adslphintl adslphperf adslphysical alarmprof connection event lineprof manip port portfilter snmp sysinfo sysip subscriber time trapdest user vid rip igmps sntp route alarmprof connection lineprof manip trapdest user sntp adslline alarmprof connection lineprof manip password port portfilter snmp subscriber sysinfo sysip time user sntp user event trapdest connection lineprof alarmprof manip route sntp show/add/config/delete/…… /show sysinfo/config time/……..

None port None None None Enable / disable

Table 4-4 CLI Command – Parameter List <action> <parameter> Description show <identifier>

all

< port no.>

llow you to view all

information.

llow you to view the specified

port’s information.

ADSL IP DSLAM

<action> <parameter> Description

< port no.> [c/r]

<action> <parameter> Description add alarmprof <profile Name> Setting alarm profile name.

(alarmprof-atuc) <Thresh15MinLofs>

<Thresh15MinLoss> value of CO side alarms. <Thresh15MinLols> <Thresh15MinLprs> <Thresh15MinESs> <InitFailureTrapEnable>

(alarmprof-atur) <Thresh15MinLofs>

<Thresh15MinLoss> value of RT side alarms. <Thresh15MinLprs> <Thresh15MinESs>

add connection < unit no./port no.> <vpi/vci> Allow you to create the PVC by

<AdminStatus>[VID] specifying a port (1 ~ 16).

[Priority] add lineprof (lineprof-atuc)

(lineprof-atur)

add manip <IP1> [musk] Allow you to define the

add trapdest <IP address> Allow you to define trap

add user <Username><Administrator| Allow you to create new

add sntp server <IP> Allow you to add a SNTP IP

add route <name><dest><mask><port Allow you to add a route

operator|guest> account of Administrator or

no>

llow you to view the CO or RT information by specifying a port (1 ~ 16).

llow you to set the threshold

Setting Line profile name. Allow you to add ATU-C items of line profile.

Allow you to add ATU-R items of lineprof.

management IP

destination.

operator or guest.

address.

config adslline <port no.> <lineprof> Modify ADSL line configuration

<alarmprof> by arguments. config alarmprof <profile Name> Modify existing alarm profile. (alarmprof-atuc) <Thresh15MinLofs> Modify the threshold value of

<Thresh15MinLoss> CO side alarms

ADSL IP DSLAM

<action> <parameter> Description (alarmprof-atur) <Thresh15MinLofs>

<Thresh15MinESs> config < port no.> <PVC1> Modify pvc (vpi/vci) and VLAN

connection <PVC2> <AdminStatus> ID by specifying a port.

[VID] [Priority] config lineprof (lineprof-atuc)

(lineprof-atur)

config manip <IP> [musk]

config password None Change the user’s password

config port <all|port#> <up | down> Set the state of ADSL port. config portfilter <enable|disable> Port filttering configuration config snmp <community> [SNMP VID] Modify the SNMP VID and

config subscriber

(subscriber)

config sysinfo (system name) (location) (contact) (console name)

< port no.>

<telephone number> <Note> by arguments.

Modify the threshold value of RT side alarms

Modify existing line profile. Modify the configuration of CO side of line profile.

Modify the configuration of RT side of line profile.

llow you to modify the existing

management IP

community. Modify subscriber information for specific port. Modify subscriber information

Modify the information of system by modifying system name, location, contact and console name.

config sysip <IP> <submask> <gateway> Modify the IP arguments of

system. config time <date> <time> config user <User-name> Modify user’s account and

<Administraot|operator|gues privilege.

t config igmps None Configure IGMP snooping config sntp <enable/disable> Configure SNTP status config sntp <timezone> Configure local time zone timezone

delete alarmprof <profile name> Delete ADSL alarm profile by

selecting alarm profile name. delete </port no.> <vpi/vci> Delete pvc by selecting (vpi/vci) connection of ADSL IP DSLAM port no. delete event none Delete all event information

ADSL IP DSLAM

<action> <parameter> Description delete lineprof <profile name> Delete ADSL line profile by

selecting profile name. delete manip <IP address> Delete the specific IP. delete trapdest <IP address> Delete Trap destination IP delete user <user name> Delete user information by

selecting user name. Delete route <name> Delete all or one item of routing

table.

help Add, delete….. Show usage of commands history none The used command. reset port < all./port no.> Reset Port restart none Restart system save none Save configuration to Flash

Ram. default none Restore the default setting. upgrade enable/disable Enable/ disable upgrate

function exit none Restore the default setting

Calling Commands

To recall commands from the history buffer, perform one of these tasks.

Command The up arrow key

The down arrow key

Task Recall commands in the history buffer, beginning

with the most recent command. Repeat the key sequence to recall successively older commands. Return to more recent commands in the history buffer after recalling commands with “the up arrow key”. Repeat the key sequence to recall successively more recent commands.

General Configuration

Help Command

“Help” command can be used to get help specific to a command mode by

entering help <command> or help <command> <parameter>.

Command: help

History Command

“History” command is used for to trace the command all users have entered.

ADSL IP DSLAM

Command: history

Saving the System

Describes how to save system configuration you have defined to Flash RAM.

Command: save

Note: Before you restart the system, remember to save the system by entering

the command “save” or the system will restart at the previous settings.

ADSL IP DSLAM

Event Viewing and Deleting

Displaying the Current Event

Describes how to display the current event of system.

Command: show event

Example: This example shows how to display the current status of system.

IPDSLAM # show event

-------------------------------------------------------------------------------------- No Time Source Severity Description

-------------------------------------------------------------------------------------- 1 2001/07/16 14:27:05 major loss threshold occurs 2 2001/07/16 14:27:15 port down

8 5 inform

Table 4-5 “show event” Field Definition Field Definition No Index of each event.

Time The time when the event occurs. Source The port where the event occurs. Severity Priority of event (major/minor/inform) Description Description of the event information.

Deleting the Event of ADSL IP DSLAM

Describes how to delete the event of system.

Command: delete event

Reset Port

Describes how to reset the specific port.

Command: reset port <all / port no.>

Example: This example shows how to reset the specific unit 1/ port 8.

ADSL IP DSLAM

IPDSLAM # reset port 8 Yes or No <y/n>?

Restart the ADSL IP DSLAM

Describes how to restart the system without turning on/off power.

Command: restart

Example: This example shows how to restart the system.

IPDSLAM # restart Yes or No <y/n>? System is restarting now. Wait…

Note: Before you restart the system, be sure that you save all the configurations

by entering the command “save” or the system will start with the previous settings.

Resetting all Configurations to Default Setting

Describes how to reset all configurations to default.

Command: default

Note: The system will return to the original default settings.

Example:

IPDSLAM # default Danger!! This will affect your whole system.

Yes or No <y/n>?

You have restored the default setting to system.

System Upgrade

Describes how to enable or disable download without in-band management

channel (VLAN).

Command: upgrade <enable | disable>

Argument List:

Parameter type Description Enable / disable Enable / disable upgrade mode

ADSL IP DSLAM

Example: This example shows how to enable download without in-band

management channel.

IPDSLAM # upgrade enable

Yes or No <y/n>? y

System is in the “upgrade” mode now. You could start to upgrade the system file.

Logging Out your ADSL IP DSLAM

Describes how to log out the system.

Command: exit

Note: Before you log out the system, be sure that you save all the configurations

by entering the command “save” or the system will start with the previous settings.

Configuring Your ADSL IP DSLAM

System Configuration

Displaying Hardware and Software Information

Describes how to view the hardware and software information of ADSL IP

DSLAM.

Command: show sysinfo

Example: This example shows how to display the hardware and software

information of ADSL IP DSLAM. The following descriptions are default setting, of which system name, location, contact and console name can be modified.

IPDSLAM # show sysinfo System name: IPDSLAM Location: Contact: Console name: IPDSLAM

1. Hardware version: A1

2. Software version: 1.00

ADSL IP DSLAM

3. Serial number: 00-01-eb-02-02-7a

4. Description: Asotel DSA-3216 ADSL IP DSLAM

5. Temperature: Normal

Table 4-6 Sysinfo field definition

Field Definition System name

Location Contact Console name Hardware version Software version Serial number Description FAN status

Alias name of ADSL IP DSLAM Location of system Contact person for service and how to contact. Console name of the system. Hardware version of system. Software version of system. Serial number of system. Description of system. Normal/Alarm

Modifying System Information

Describes how to modify the system information of system name, location,

contact and console name.

Command: config sysinfo

Argument List:

Parameter type Parameter data-type Description

and field

System name String, <= 32 Name of ADSL IP DSLAM. Location String, <=32 Location of system Contact String, <= 32 Contact person and how to

contact

Console name String, <=16 (default: Name of console tittle.

ADSL IP DSLAM) (Empty for default)

Example: This example shows how to modify the name of system as ZTE 123,

console name as DSLAM and description of system as East Building

IPDSLAM # config sysinfo (sysinfo-name)# ZTE 123 (sysinfo-location

)# East Building (sysinfo-contact)# Lee Gi, gi@yah.com (sysinfo-console name)# DSLAM System name: ZTE 123 Location: East Building Contact: Lee GI, GI@YAH.COM Console name: DSLAM

Yes or No <y/n>?

ADSL IP DSLAM

Port-Filtering Configuration

Displaying Port-Filtering

Describes how to display the status of port-based VLAN.

Command: show portfilter

Example: This example shows how to view the status of port-based VLAN

IPDSLAM # show portfilter Port filter: enable

Table 4-7 “show portfilter” Filed Definition Items Description Enable/ disable Enable: Allow each ADSL port to communicate back

and forth with the uplink Ethernet port only. Disable: Allow all ADSL ports to communicate with each other and also with the uplink Ethernet port.

Modifying Port-Filter

Describes how to configure port-filtering function whether to allow each ADSL

port communicate with the uplink Ethernet port only or communicate with each other and so do with the Ethernet port.

Command: config portfilter <enable|disable>

Argument List:

Parameter type Parameter Description

data-type and field

Status Enable/disable Enable: Allow each ADSL port to

communicate back and forth with the uplink Ethernet port only. Disable: Allow all ADSL ports to communicate with each other and also with the uplink Ethernet port.

Example: This example shows how to enable the portfilter and allow each ADSL

port to communicate with the uplink Ethernet port only.

IPDSLAM # config portfilter enable

Yes or No <y/n>?

This example shows how to disable the portfilter and allow all ADSL port to

communicate with each other and also with the uplink Ethernet port.

IPDSLAM # config portfilter disable

Yes or No <y/n>?

Note: The default setting is “Enable”

IP Configuration

Displaying System IP

Describes how to view the system IP.

Command: show sysip

Example: This example shows how to display the system IP. The following

descriptions are default setting.

IPDSLAM # show sysip IP: 192.168.10.2 Submask: 255.255.255.0 Gateway: 192.168.10.1

ADSL IP DSLAM

Table 4-8 Sysip Field Definition Field Definition IP IP of System

Submask Submask of system. Gateway Gateway IP

Modifying System IP

Describes how to modify the system IP.

Command: config sysip <IP> <Submask> <Gateway>

Argument List:

Parameter type Parameter data-type Description

and field

IP A.B.C.D IP of ADSL IP DSLAM Submask A.B.C.D Submask of ADSL IP DSLAM Gateway A.B.C.D Gateway of ADSL IP DSLAM

Example: This example shows how to modify the system IP as 192.168.10.100,

submask as 255.255.255.0 and gateway as 192.168.10.1.

IPDSLAM # config sysip 192.168.10.100 255.255.255.0 192.168.10.1 <IP>: 192.168.10.100 <Submask>: 255.255.255.0 <Gateway>: 192.168.10.1

Yes or No <y/n>?

Time Configuration

Displaying Time

Describes how to display the current system time, system up time and period

Command: show time

Example: This example shows how to display the time of ADSL IP DSLAM.

IPDSLAM # show time

1.Current Time: 2001/07/16 11:05:35

2.System up time: 2001/7/15 10:00:25

3.System up period: 1 day 01:05:10

Field Definition Current Time Current system time.

System up time System up time. System up period System up period.

ADSL IP DSLAM

Table 4-9 Time Field Definition

Modifying Time

Describes how to modify the date and time of system.

Command: config time <date> <time>

Argument List:

Parameter type Parameter data-type Description

and field

date yyyy/mm/dd e.g: 2001/07/13 time hh:mm:ss 24-hour time format

Example: This example shows how to modify the system time to date:2001/07/13,

time: 20:25:30.

IPDSLAM # config time 2001/07/13 20:25:30 Date: 2001/07/13 Time: 20:25:30

Yes or No <y/n>?

SNTP configuration

Displaying SNTP

Describe how to display the SNTP.

Command: show sntp

Example: This example shows how to display the SNTP of ADSL IP DSLAM.

IPDSLAM# show sntp

SNTP Status: Disable

Time Reference Server IP addr:

Active Time Reference Server IP addr:0.0.0.0

ADSL IP DSLAM

-SNTP CLIENTS STATUS-

--------------------------------- Clock Synchronized: FALSE SNTP Standard Version Number: SNTP Mode<s> Configured: Unicast Local Time: Fri, 05 Mar 2004 – 09:40:27 Local Time Zone; UTC, Universal <coordinated> Time Time Difference +-UTC: +0:00 Server Stratum: Precision: Server Reference ID: ----

IPDSLAM #

Adding a SNTP server address

Describe how to add a SNTP server address.

Command: add sntp server <IP>

Example:

IPDSLAM IPDSLAM #

# add sntp server 192.168.100.88

1 second

Modifying sntp

Describe how to modify the sntp.

Command: config sntp <enable/Disable>

Example:

ADSL IP DSLAM

IPDSLAM

# add sntp enable

IPDSLAM #

Modifying sntp timezone

Describe how to modify the local timezone.

Command: config sntp timezone<timezone>

Note: as to the abbreviation of timezone, please refer to the Appendix-B, the

SNTP timezone Abbreviation.

Example: config local time zone as NZT, New Zealand.

IPDSLAM

# config sntp timezone NZT

IPDSLAM #

Changing the Password

This section describes how to change own password regardless of user’s

privilege.

Command: config password

Example: This example shows how the user changes his own password.

IPDSLAM # config password Enter new password:******** Confirm password : ********

Yes or No <y/n>?

ADSL IP DSLAM

Configuring DSL

Creating Line Profile and Alarm Profile

Creating DSL Profile

Describes how to create a DSL Profile.

Command: add lineprof <profile name>

Argument List:

Parameter type Parameter data-type and Description

field

lineprof name String, <= 32 The name of ADSL line

Rate Mode Integer, Defines what form of

fixed : (1) transmitting rate to be adaptAtStartup : (2) adaptated.

Line Type Fast : (1) The ADSL line type.

Interleaved : (2)

TargetSnrMargin Integer, 2 ~ 15 Target Signal / Noise

MinTxRate Integer, The minimum transmitting

ATU-C: “32~ 8064” rate of ATU-C side or ATU-R: “32 ~ 1024” ATU-R side.

MaxTxRate Integer, The maximum

ATU-C: “32 ~8064” transmitting rate of ATU-C ATU-R: “32 ~1024” side or ATU-R side.

MaxInterleaveDelay Integer, 1,2,4,8,16,32,64 The value of Interleave

profile.

Margin.

Delay for this channel.

Note: 1. If you select “Line Type” as “Fast”, you cannot select the value of

“MaxInterleaveDelay”. Please refer to the first example.

2. If you select “Rate Mode” as “Fixed”, the configuration of “MinTxRate” and “MaxTxRate” must be the same. Please refer to the second example.

Example1: This example shows how to create a DSL profile named

service512K64K.

IPDSLAM # add lineprof service512K64K (lineprof-atuc)# 2 2 7 32 512 8 (lineprof-atur)# 2 2 7 32 64 8 ADSL Line Profile “SERVICE512K64K” content: AT U -C: Rate Mode: adaptAtStartup LineType: Interleaved

ADSL IP DSLAM

TargetSnrMargin: 7 MinTxRate: 32 MaxTxRate: 512 MaxInterleaveDelay: 8 AT U -R: Rate Mode: adaptAtStartup RateChanRatio: Interleaved TargetSnrMargin: 7 MinTxRate: 32 MaxTxRate: 64 MaxInterleaveDelay: 8 Yes or No <y/n>

Example 2: This example shows how to create a DSL profile named fast.

IPDSLAM # add lineprof fast (lineprof-atuc)# 1 1 6 768 768 (lineprof-atur)# 1 1 6 128 128 ADSL Line Profile “fast” content: AT U -C: Rate Mode: fixed LineType: Fast TargetSnrMargin: 6 MinTxRate: 768 MaxTxRate: 768 AT U -R: Rate Mode: fixed mode RateChanRatio: Fast TargetSnrMargin: 6 MinTxRate: 128 MaxTxRate: 128 Yes or No <y/n>

Note: The configuration of default DSL profile named “DEFAULT” is as follows:

ATU-C:

1. RateMode: AdaptAtStartup

2. RateChanRatio: Interleaved

3. TargetSnrMargin: 6.0

4. MinTxRate: 32

5. MaxTxRate: 8064

6. MaxInterleaveDelay: 16 ATU-R:

1. Rate Mode: adaptAtStartup

2. RateChanRatio: Interleaved

3. TargetSnrMargin: 6.0

4. MinTxRate: 32

5. MaxTxRate: 1024

6. MaxInterleaveDelay:16

ADSL IP DSLAM

Creating Alarm Profile

This section describes how to create an alarm profile.

Command: add alarmprof <profile name>

Argument List:

Parameter type Parameter Description

data-type and field

alarmprof name String, <= 32 The name of ADSL alarm profile. Thresh15MinLofs Integer, 0 ~ 900 The threshold of the number of

Thresh15MinLoss Integer, 0 ~ 900 The threshold of the number of

Thresh15MinLols Integer, 0 ~ 900 The threshold of the number of

Thresh15MinLprs Integer, 0 ~ 900 The threshold of the number of

Thresh15MinESs Integer, 0 ~ 900 The threshold of the number of

InitFailureTrapenable enable / disable Enable or disable the Initial

“Loss of Frame Seconds” within 15 minutes performance data collection period.

“Loss of Signal Seconds” within 15 minutes performance data collection period.

“Loss of Link Seconds” within 15 minutes performance data collection period. (But only ATU-C side)

“Loss of Power Seconds” within 15 minutes performance data collection period.

“Errored Seconds” within 15 minutes performance data collection period.

Failure Trap. Default setting is disable. (Only on ATU-C side)

Example: This example shows how to create an alarm profile named test.

IPDSLAM # add alarmprof test (alarmprof-atuc)# 30 10 50 5 4 enable (alarmprof-atur)# 30 2 2 5 ADSL Alarm Profile “test” content: AT U -C: Thresh15MinLofs: 30 Thresh15MinLoss: 10 Thresh15MinLols: 50 Thresh15MinLprs: 5 Thresh15MinESs: 4 InitFailureTrapEnable: enable

ADSL IP DSLAM

AT U -R: Thresh15MinLofs: 30 seconds Thresh15MinLoss: 2 seconds Thresh15MinLprs: 2 seconds Thresh15MinESs: 5 seconds Yes or No <y/n>

Note: the configuration of default dsl profile named “default” is as follows: ATU-C:

1. Thresh15minlofs: 0

2. Thresh15minloss: 0

3. Thresh15minlols: 0

4. Thresh15minlprs: 0

5. Thresh15miness: 0

6. Initfailuretrapenable: enable ATU-R:

1. Thresh15minlofs: 0

2. Thresh15minloss: 0

3. Thresh15minlprs: 0

4. Thresh15miness:0

Modifying DSL Profile and Alarm Profile

Modifying DSL Profile

Describes how to modify existing DSL profile but you cannot modify default

profile.

Command: config lineprof <profile name>

Argument List: the same as Creating DSL Profile. See page 70.

Example: This example shows how to modify the existing DSL line profile named

service512K64K.

IPDSLAM # config lineprof service512K64K (lineprof-atuc)# 2 2 6 128 512 1 (lineprof-atur)# 2 2 6 32 64 1 ADSL Line Profile “service512K64K” content: AT U -C: Rate Mode: adaptAtStartup LineType: Interleaved TargetSnrMargin: 6 MinTxRate: 128 MaxTxRate: 512 MaxInterleaveDelay: 1 AT U -R:

ADSL IP DSLAM

Rate Mode: adaptAtStartup LineType: Interleaved TargetSnrMargin: 6 MinTxRate: 32 MaxTxRate: 64 MaxInterleaveDelay: 1 Yes or No <y/n>?

Modifying Alarm Profile

Describes how to modify alarm profile but you cannot modify default profile.

Command: config alarmprof <profile name>

Argument List: Same as Creating Alarm Profile. See page 72

Example: This example shows how to modify the existing alarm profile test.

IPDSLAM # config alarmprof test (alarmprof-atuc)#5 5 5 5 5 enable (alarmprof-atur)#5 5 5 5 5 ADSL Alarm Profile “test” content: AT U -C: Thresh15MinLofs: 5 Thresh15MinLoss: 5 Thresh15MinLols: 5 Thresh15MinLprs: 5 Thresh15MinESs: 5 InitFailureTrapEnable: enable AT U -R: Thresh15MinLofs: 5 Thresh15MinLoss: 5 Thresh15MinLprs: 5 Thresh15MinESs: 5

Deleting a DSL Profile and Alarm Profile

Deleting DSL Profile

Describes how to delete a profile but you cannot delete the default profile.

Command: delete lineprof <profile name>

Example: This example shows how to delete existing line profile service512K64K.

IPDSLAM # delete lineprof service512K64K Yes or No <y/n>?

ADSL IP DSLAM

Deleting Alarm Profile

Describes how to delete a alarm profile but you can’t delete the default profile.

Command: delete alarmprof <profile name>

Example: This example shows how to delete existing alarm profile test.

IPDSLAM # delete alarmprof test Yes or No <y/n>?

Displying a DSL Profile and Alarm Profile

Displaying DSL Profile

This section describes how to display all DSL profile or specific profile.

Command: show lineprof <all | line profile name>

Argument List:

Parameter Description all Show all information.

Line profile name ADSL line profile name.

ADSL IP DSLAM

Example:This example shows how to display default line profile.

IPDSLAM # show lineprof default AT U -C:

1. RateMode: adaptAtStartup

2. LineType: Interleaved

3. TargetSnrMargin: 6.0

4. MinTxRate: 32

5. MaxTxRate: 8064

6. MaxInterleaveDelay: 16 AT U -R:

1. Rate Mode: adaptAtStartup

2. RateChanRatio: Interleaved

3. TargetSnrMargin: 6.0

4. MinTxRate: 32

5. MaxTxRate: 1024

6. MaxInterleaveDelay: 16

Table 4-10 “show lineprof” Field Definition Field Definition RateMode The form of transmit rate adaptation

(fixed/adaptAtStartup) LineType Fast or Interleaved mode. TargetSnrMargin Target Signal/Noise Margin. (dB) MinTxRate The minimum transmitting rate of ATU-C side or

ATU-R side. (Kbps) MaxTxRate The maximum transmitting rate of ATU-C side or

ATU-R side. (Kbps) MaxInterleaveDelay The value of Interleave Delay for this channel.

(milli-seconds)

Displaying Alarm Profile

Describes how to display all alarm profile or specific alarm profile.

Command: show alarmprof <all | alarm profile name>

Argument List:

Parameter Description all Show all information.

Alarm profile name ADSL alarm profile name.

ADSL IP DSLAM

Example: This example shows how to display the default alarm profile.

IPDSLAM # show alarmprof default AT U -C:

1. Thresh15MinLofs: 0

2. Thresh15MinLoss: 0

3. Thresh15MinLols: 0

4. Thresh15MinLprs: 0

5. Thresh15MinEss: 0

6. InitFailureTrapenable: enable AT U -R:

1. Thresh15MinLofs: 0

2. Thresh15MinLoss: 0

3. Thresh15MinLprs: 0

4. Thresh15MinEss: 0

Table 4-11 “show alarmprof” Field Definition Items Description Thresh15MinLofs The threshold of the number of “Loss of Frame

Seconds” within 15 minutes performance data collection period. (seconds)

Thresh15MinLoss The threshold of the number of “Loss of Signal

Seconds” within 15 minutes performance data collection period. (seconds)

Thresh15MinLols The threshold of the number of “Loss of Link

Seconds” within 15 minutes performance data collection period. (seconds) (Only ATU-C side)

Thresh15MinLprs The threshold of the number of “Loss of Power

Seconds” within 15 minutes performance data collection period. (seconds)

Thresh15MinESs The threshold of the number of “Errored Seconds”

within 15 minutes performance data collection period. (seconds)

InitFailureTrapenable The status of the Initial Failure Trap

(enable/disable). (seconds) (Only ATU-C side)

ADSL IP DSLAM

Port Configuration

Enabling and Disabling a port

Describes how to enable and disable a port.

Command: config port <all | port no.> <up | down>

Argument List:

Parameter Description all |port no. Select destination

up | down Enable/Disable ADSL port

Example: This example shows how to set the port 8 enable.

IPDSLAM # config port 8 up

Yes or No <y/n>? y

Attaching DSL Profile

Describes how to attach a profile to a port.

Command: config adslline < port no.> <lineProfile> <alarmProfile>

Argument List:

Parameter type Parameter Description

port no. (1 ~ 16) Indicated ADSL IP DSLAM port no. LineProfile String, <=32 Specifies an ADSL line profile name. AlarmProfile String, <=32 Specifies an ADSL alarm profile name.

data-type and field

Example: This example shows how to attach the profile “service 512K64K” and

alarm profile “test” to port 8, and displays the result:

IPDSLAM # config adslline 8 service512K64K test LineProfile: SERVICE512K64K AlarmProfile: TEST Yes or No <y/n>?

ADSL IP DSLAM

Displaying the Current Status and Information of ADSL Line

Displaying the Current Status of Line

Describes how to show the Administration, operating, alarm and trap status.

Command: show port <all |port no.>

Argument List:

Parameter Description all Show all information.

port no. (1 ~ 16). Indicate the specific port.

Example: This example shows how to display the current status of port 8.

IPDSLAM # show port 8

1. Port ID: 1/8

2. Admin Status: up

3. Operating Status: up

4. Alarm Status: Normal

5. Trap: disable

The following example shows how to display the all port status.

IPDSLAM # show port all

Port ID Admin Status Operating Status Alarm Status Trap

----------------------------------------------------------------------------------------

up up Normal enable

. … …

16 up up Normal enable

---------------------------------------------------------------------------------------- Press ‘y’ for continue, ‘n’ for break and press Enter.

Table 4-12 “show port” Field Definition Items Description Port ID The specific ADSL IP DSLAM port no (port no.).

Admin Status The desired state of interface (up/down) Operating Status The current operational state of interface

(up/down) Alarm Status Alarm status…normal means “no alarm” Trap enable/disable.

Displaying the information of ADSL Line

Describes how to get the information of line coding, line type, standard

compliance, channel mode and which line profile and alarm profile have attached at the specific ADSL line.

Command: show adslline <all | port no.>

ADSL IP DSLAM

Argument List:

Parameter Description all Show all information.

port no. Port ID

Example: This example shows how to display the port 8 ADSL line information.

IPDSLAM # show adslline 8

1. LineCoding: Multimode

2. LineType: fastOrInterleaved

3. Standard Compliance: G.dmt

4. Channel Mode: fast

3. LineProfile: default

4.AlarmProfile: default

Table 4-13 “show adslline” Field Definition Field Definition LineCoding Multimode

LineType fastOrInterleaved Standard Compliance ( G.dmt / G.lite / T1.413 / Multimode / other) Channel Mode ( No Channel / fast / interleaved ) LineProfile Assigned ADSL line profile name. AlarmProfile Assigned ADSL alarm profile name.

PVC Configuration

Creating PVC

Describes how to configure a permanent virtual connection, virtual LAN ID,

connection priority, Administration status and VLAN tag on the specific port.

Command: add connection < port no.> <vpi/vci> <up|down><b/r> [VID]

Argument List:

Parameter type Parameter data-type Description

port no. (1 ~ 16) Indicated port no. PVC (0 ~ 4095) / VPI/VCI

Admin Status up/down Used to up/down connection. VID (optional) 2 ~ 4094 Optional VLAN ID, no element

RFC-1483 b/r Bridge or route Priority (optional) 0 ~ 7 (Max:7 , Min:0) Optional Connection priority. No

[priority]

and field

(0 ~ 65535)

represents the connection is without VLAN tag.

VLAN tag, no priority.

ADSL IP DSLAM

Example: This example shows how to configure the VPI-0, VCI-50, up

Administration status, enable VLAN tag with VLAN ID-4002 and highest connection priority on port 8.

IPDSLAM # add connection 8 0/50 up b 4002 7 Port 8 PVC: 0/50 AdminStatus: up VID: 4002 rfc1483 b<ridge>|r<oute>: b Priority: 7 yes or No <y/n>?

This example shows how to configure the VPI-0, VCI-50, up Administration status,

and without VLAN tag on port 8 of unit 1

IPDSLAM # add connection 8 0/50 up Port 8 PVC: 0/50 AdminStatus: up yes or No <y/n>?

Note: (1) Virtual Connection can be configured up to 2 connections on the same

port but the VLAN ID can not overlap with the existing VLAN ID.

(2) The default setting for PVC is 8/81, and you can modify and delete the default

setting.

(3) The default setting of VLAN ID is without VLAN tag.

(4) On the same port, one PVC or two PVCs can be created. On the creation of

one PVC, the configuration of VLAN ID can either be enabling VLAN tag or disabling VLAN tag. On the creation of two PVCs, the configuration of VLAN ID can either be enabling both VLAN tags or just disabling VLAN tag on a PVC whereas the other will remain with VLAN tag. The situation of both PVC without VLAN tag cannot be configured. Please refer to the table 4-13 for understanding ways of PVC configuration either with VLAN tag or without VLAN tag:

Table 4-14 Ways of PVC configuration either with VLAN tag or without VLAN tag

Port 1 The same With VLAN tag With VLAN tag

port Without VLAN tag

PVC 2nd PVC

Without VLAN tag With VLAN tag

Modifying PVC

Describes how to modify the virtual connection of the port.

Command: config connection < port no.> <vpi_old/vci_old>

ADSL IP DSLAM

<vpi_new/vci_new> <up|down><b/r> [VID] [priority]

Argument List:

Parameter type Parameter data-type Description

and field

PVC_old 0 ~ 4095(vpi) / Existing old ATM PVC

0 ~ 65535(vci)

PVC_new 0 ~ 4095(vpi) / New ATM PVC you want to

0 ~ 65535(vci) modify.

Others Same as Creating PVC. See page 80

Example: This example shows how to modify the previous example of This

example shows how to modify the previous example of “PVC-0/35, AdminStatus-up, VID-4002, Priority-7” to “PVC-0/80, AdminStatus-up, bridge”.

IPDSLAM # config connection 3 0/35 0/80 up b 300 7 Port 8: PVC:

0/35 -> 0/80 AdminStatus: up rfc1483 b<ridge>|r<oute>: b VID:300 Priority:7 yes or No <y/n>?

Deleting PVC

Describes how to delete virtual connection you set, including the default setting.

Command: delete connection < port no.> <vpi/vci>

Argument List:

Parameter type Parameter data-type and Description

field

port no. (1 ~ 16) Indicated ADSL IP

DSLAM port no.

PVC (0 ~ 4095) / (0 ~ 65535) VPI/VCI

Example: This example shows how to delete the connection of port 8.

IPDSLAM # delete connection 8 0/50

Yes or No <y/n>?

ADSL IP DSLAM

Displying PVC

Sorted by Port ID

Describes how to display existing virtual connection on each port and sorted by

port ID.

Command: show connection <all | port no.>

Argument List:

Parameter Description all Show all information.

port no. (1 ~ 16). Indicate the port no.

Example: This example shows how to display the virtual connection of port 8.

IPDSLAM # show connection 1/8

Port ID VID Priority Admin OpStatus 1483 mode

PVC

-----------------------------------------------------------------------------------

8 0/40 4000 6 up up bridge 8 8/ 9 7

81 up down bridge

------------------------------------------------------------------------------------

Table 4-15 “show connection” Field Definition Items Description Port ID The specific ADSL IP DSLAM port no.

PVC VPI/VCI VID VID. Priority The priority of this connection. (Max: 7 / Min:0) Admin Status The Admin status of each connection (up/down). OpStatus The operating status of each connection (up/down). 1483 mode The RFC-1483 mode (bridge/route)

Sorted by VID

Describes how to display existing virtual connection on each port and sorted by

VID.

Command: show vid <all | port no.>

Argument List:

Parameter Description all Show all information.

port no. (1 ~ 16). Indicate the specific port no.

Example: This example shows how to display all virtual connection and sorted by

increasing VID.

ADSL IP DSLAM

IPDSLAM # show vid all

------------------------------------------------------------------------------------ VID Port ID PVC Priority Admin Status Operating Status

------------------------------------------------------------------------------------

4081 1/1 0/40 7 down down 4082 1/2 0/40 7 up up

4083 1/3 0/41 7 up up

.. .. .. .. .. ..

------------------------------------------------------------------------------------ Press ‘Y’ to continue, ‘N’ to break then press Enter.

Table 4-16 “show vid” Field Definition Field Definition VID VID.

Port ID The ADSL IP DSLAM port no. PVC vpi/vci. Priority The priority of this connection. (Max:7 / Min:0) Admin Status The desired state of each connection (up/down) Operating Status The current operational state of each connection

(up/down)

Subscriber Configuration

Displaying the Information of Subscriber

Describes how to view the information of subscriber of each port.

Command: show subscriber <all | / port no.>

Argument List:

Parameter Description all Show all information.

port no. Port ID

Example: This example describes how to view the subscriber information on

specific port.

IPDSLAM # show subscriber 8

1. Subscriber name: pantagon

2. Telephone number: 4236125861

3. Note: Ok

Table 4-17 “show subscriber” Field Definition Field Definition Subscriber name Subscriber name of this port.

ADSL IP DSLAM

Telephone number Telephone number of this port. Note The description of subscriber of this port.

Modifying the Information of Subscriber

Describes how to modify the information of subscriber by specifying port no.

Command: config subscriber <port no.>

Argument List:

Parameter type Parameter Description

data-type and field

port no. (1 ~ 16) Indicated ADSL IP DSLAM port

no. Subscriber name String, <= 15 The desired subscriber name Telephone number String, <= 11 The desired telephone number Note String, <= 20 Remarks

ADSL IP DSLAM

Example: This example shows how to modify the subscriber description of port 7.

IPDSLAM # config subscriber 7 (subscriber) help < Subscriber name > < Telephone number > < Note > (subscriber) adms 2148485965 Test_Again. ADSL port “1/7” subscriber information: Subscriber name: adms Telephone number: 2148485965 Note: Test_Again.

Yes or No <y/n>?

Routing Table configuration

The following route commands, including show route, add route and delete route,

allow user to configured, if the RFC-1483 mode is configured as “Route” in the PVC Configuration. They will be introduced as follows.

Displaying all routes

Describe how to view all routes in the routing table.

Command: show route

Argument List:

Parameter type Parameter Description

data-type and field

Name String, <=10 Name of the route

Example:

IPDSLAM # show route

Name )

-------------------------------------------------------------------------------------------------

grape 192.168.100.36 255.255.255.255 12 banana 3

apple 192.168.100.0 255.255.255.0

Destination Subnet mask GW(port no

192.168.100.35 255.255.255.255 1

Add a route

Describe how to add a roué into the routing table.

ADSL IP DSLAM

Command: add route <name><dest><mask><port no>

Example:

IPDSLAM

name: best dest; 192.168.100.55 mask: 255.255.255.255 port: 8

Yes or No <y/n>?

# add route best 192.168.100.55 255.255.255.255 8

Delete a route

Describe how to add a roué into the routing table.

Command: add route <name>

Example:

IPDSLAM # delete route best

name: best

Yes or No <y/n>?

ADSL IP DSLAM

Management Configuration

Configuring SNMP Access Parameters

Displaying SNMP

Describes how to display the information of SNMP.

Command: show snmp

Example: This example shows how to display the information of SNMP.

IPDSLAM # show snmp

1.VID: 4094

2.Community: public

Table 4-18 “show snmp” Field Definition Field Definition VID SNMP VID

Community SNMP Community

Modifying SNMP

Describes how to modify the SNMP.

Command: config snmp <community> [VID]

Argument List:

Parameter type Parameter data-type Description

and field

Community String, <32 SNMP Community VID 2 ~ 4094 VID for SNMP.

Note: The community string is case-sensitive.

Example: This example shows how to modify SNMP with community string

“public” and no VID

IPDSLAM # config snmp public VID: 0 community: public

Yes or No <y/n>?

This example shows how to modify SNMP with the configuration of community

string - “private” and VID – “4025”

IPDSLAM # config snmp public 4025 VID: 4025 community: public

Yes or No <y/n>?

Configuring Trap IP

Creating Trap IP

Describes how to create the destination of trap IP.

Command: add trapdest <IP>

Argument List:

Parameter type Parameter data-type Description

IP A.B.C.D IP address

ADSL IP DSLAM

and field

Note: The trap IP can be created maximum up to 5 traps.

Example: This section describes how to create the trap IP as 210.61.88.2

IPDSLAM # add trapdest 210.61.88.2

Yes or No <y/n>

Displaying SNMP Trap

Describes how to display the IP of destination that SNMP trap reached.

Command: show trapdest

Example: This example shows how to display the IP of destination that SNMP

trap reached.

IPDSLAM # show trapdest Trap destination IP as follows:

192.168.100.12

192.168.100.100

Table 4-19 “show trapdest” Field Definition Field Definition IP A.B.C.D (Max: 5 trap IP)

Deleting SNMP Trap

Describes how to delete a specific trap IP.

ADSL IP DSLAM

Command: delete trapdest <IP address>

Example: This example shows how to delete the trap IP 192.168.0.100.

IPDSLAM # delete trapdest 192.168.0.100

Yes or No <y/n>?

Configuring Management IP

Creating Management IP

Describes how to create the management IP.

Command: add manip <IP address> <mask>

Argument List:

Parameter type Parameter data-type Description

and field

IP address A1.A2.A3.A4 IP address <group> G1.G2.G3.G4 Group mask

Note:

The management IP can be created up to 5 group of IPs at most no matter you

set the group mask or not.

No management IP is configured in default setting, i.e., any IP can access to your

ADSL IP DSLAM

Example: This example shows how to create a group management IP and let all

IPs within the range of “IP address“ and “mask” able to access to your ADSL IP DSLAM.

IPDSLAM # add manip 192.168.100.1 255.255.255.0

Yes or No <y/n>?

Displaying Management IP

Describes how to display the management IP.

Command: show manip

Example: This example shows how to display existing management IP.

ADSL IP DSLAM # show manip

IP Address Mask

------------------------------------------------------------------

192.168.0.1 255.255.255.128

192.168.100.1 255.255.255.0

210.67.0.128 255.255.255.128

------------------------------------------------------------------

Table 4-20 “show manip” Field Definition Field Definition IP Address Mask

Deleting Management IP

Describes how to delete the management IP.

Command: delete manip <IP address>

Argument List:

ADSL IP DSLAM

Parameter type Parameter data-type Description

and field

IP address A1.A2.A3.A4 IP address

Example: This example shows how to delete management IP group of

192.168.0.1

IPDSLAM # delete manip 192.168.0.1

Yes or No <y/n>?

Miscellanea

Displaying IGMP Status

Describe how to show the status of IGMP.

Command: show igmps status

Items IGMP Snooping

Active Query Active Query Interval

Description Enable/Disable

Enable/Disable 125 ~ 250 seconds

ADSL IP DSLAM

Example:

IPDSLAM # show igmps status

IGMP Snooping Configuration:

IGMP Snooping : Enable

DenseSparse : Sparse

* /

Active Query : Enable

=> Query Interval : 125 Seconds.

IGMP & IP Multicast Statistics:

Received IP multicast Frames : 69884

Number of Received IGMP Report : 22

Number of Received IGMP Leave : 0

Number of IGMP Query Sent : 2

Displaying IGMP Group

Describe how to show the status of IGMP.

Command: show igmps group

Items Description Group Address IGMP group address.

Member of group Member included in groups.

example:

IPDSLAM # show igmps group

IGMP Snooping Groups:

01-00-5e-01-01-01:

Unit 1:

01-00-5e-01-01-02:

Unit 1:

01-00-5e-01-01-03:

Unit 1:

01-00-5e-01-01-04:

Unit 1:

01-00-5e-01-01-05:

Unit 1:

IPDSLAM #

Configuring IGMP

Describe how to configure the IGMP configuration.

Command: config igmps
