X-Tatic S7 Manual For Use

Manual for use with

and

MVM

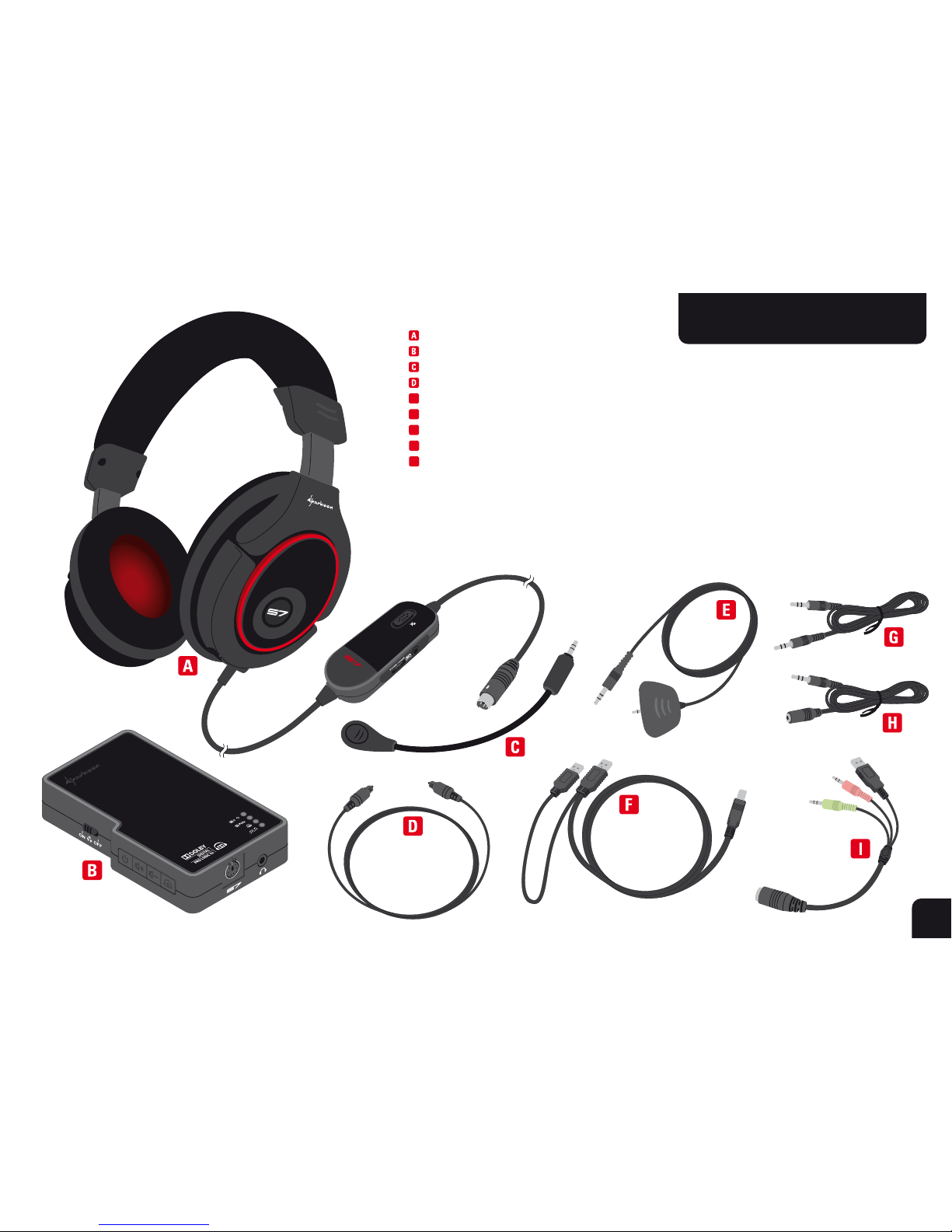

X-Tatic S7
Sound Control Unit (SCU)
Detachable microphone
Optical connection cable (S/PDIF)
Microphone connection cable for Xbox

®

360 (3.5 mm jack > 2.5 mm jack)
USB2.0 Y cable (2x type A > type B)
Stereo connection cable (3.5 mm jack > 3.5 mm jack)
Stereo extension cable (3.5 mm plug > 3.5 mm jack)
G6 adapter cable (G6 > USB2.0 A and 2x 3.5 mm connectors)

E

F

G

H

I

Package contents

1

MVM

MVM

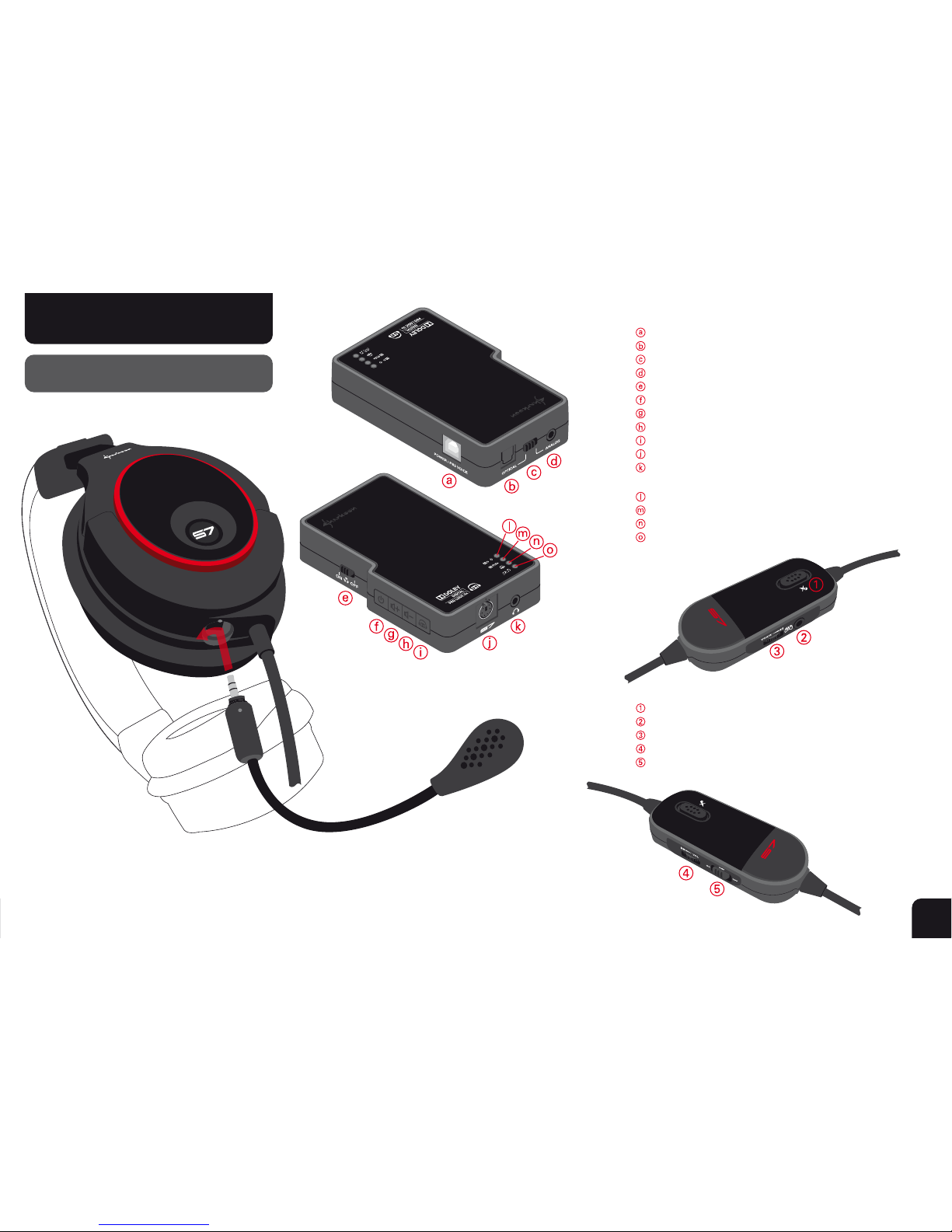

Basic information

Getting started

USB connector (for power and PS3™/PC microphone)
Optical audio input (S/PDIF)
Switch between optical and analog input
Analog audio input
ON/OFF switch for 3D stereo function
SCU power on/off button
Volume +
Volume ­Dolby

®

Headphone button
X-Tatic S7 headphone connector (G6)
Analog output for speakers or non S7 headset
(3.5 mm jack)
Power/Source LED
Dolby

®

ProLogic IIx® on/off LED
Dolby

®

Headphone on/off LED

Gaming/Music mode LED

Microphone on / off and Microphone Voice Monitoring
Connection for Xbox

®

360 microphone
Microphone volume controller
Volume adjustment controller
Amplifier on/off switch

Locate and align the markings on both the headset and the microphone.
Plug the microphone into the microphone connector.
Turn the microphone to the front to lock it.

2

MVM

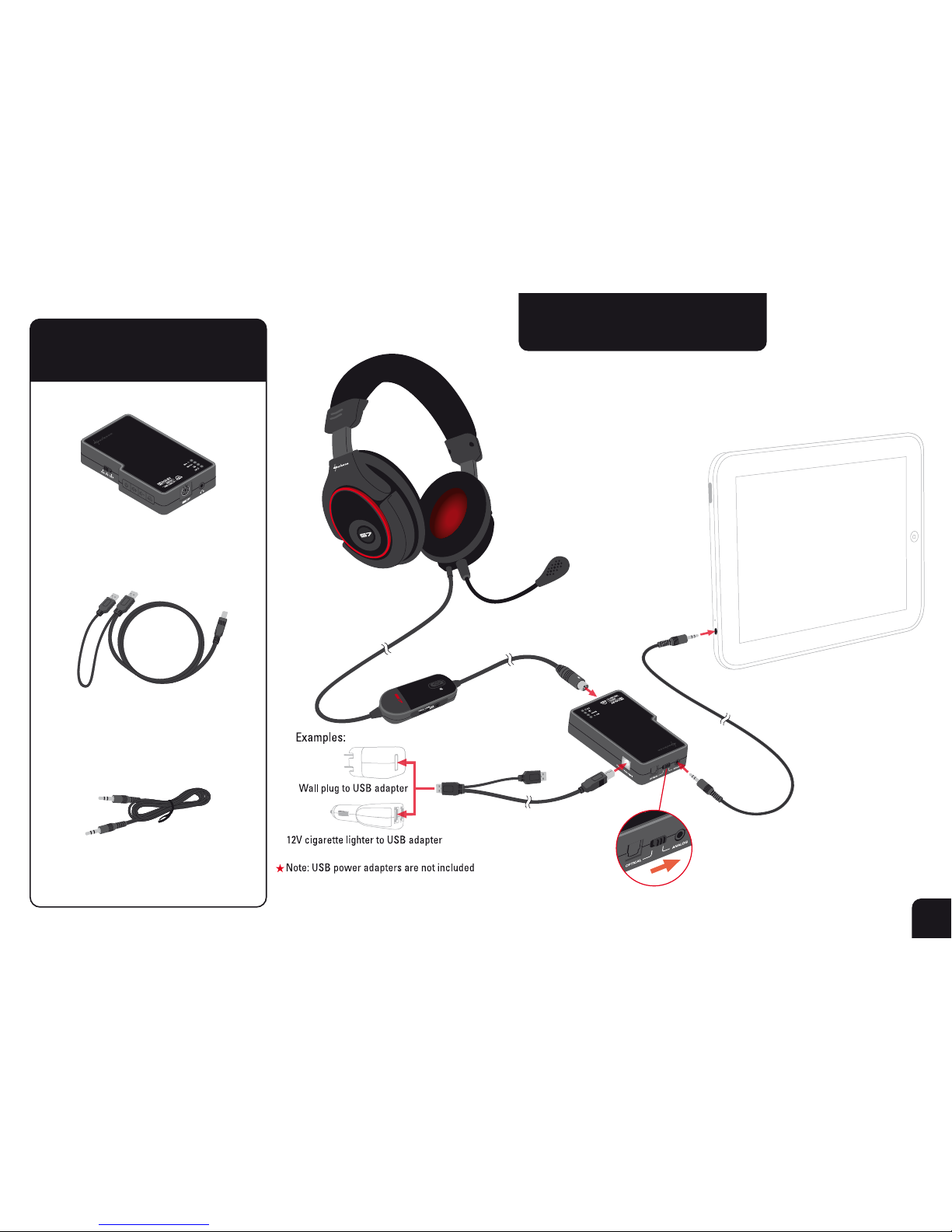

Cabling

Required parts for Tablet PCs
and MVP players

Sound Control Unit (SCU)

USB2.0 Y cable (2x type A > type B)

Stereo connection cable
(3.5 mm jack > 3.5 mm jack)

In case a single USB port of the
connected device does not supply
sufficient power, please connect
both USB connectors of the
USB2.0 Y cable.

3

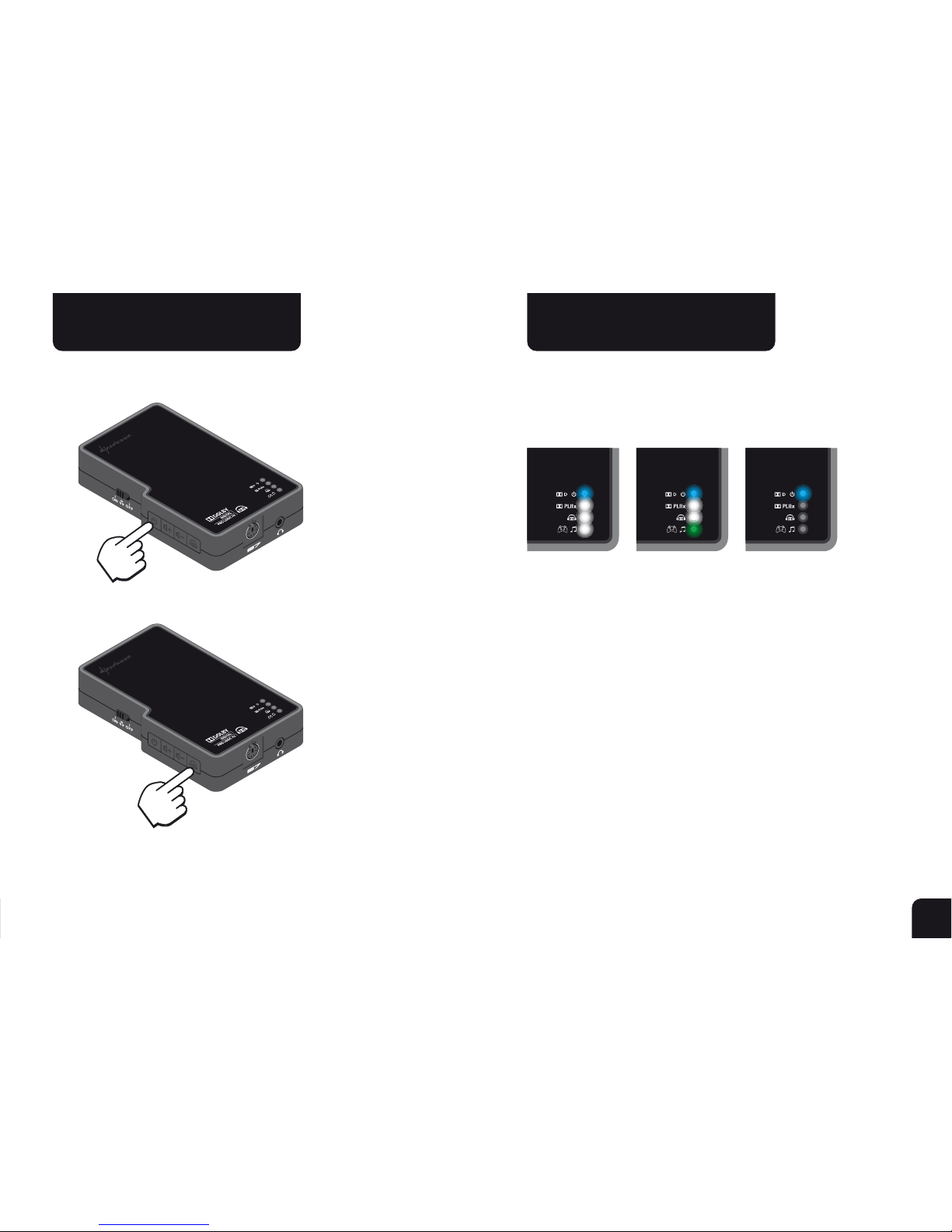

SCU settings SCU LED indications

Press 1x: Dolby® Headphone Gaming mode
Press 2x: Dolby

®

Headphone Music mode

Press 3x: Dolby

®

Headphone off

Gaming mode Music mode

Stereo Input
Dolby

®

Headphone Output

Stereo bypass

4

Important notes

Avoid listening at a high volume level for a longer period of time. Doing so may harm your hearing.

Dolby, Pro Logic, the double-D symbol and the respective images/logos are registered trademarks or trademarks of Dolby Laboratories.

PlayStation, PlayStation 3, PS3 and the respective images/logos are registered trademarks or trademarks of Sony Computer Entertainment Inc.
Xbox, Xbox 360, Xbox Live, Windows 7, Microsoft and the respective images/logos are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or
other countries.

All named products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected.

As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice.
National product specifications may vary.

All rights reserved especially (also in extracts) for translation, reprinting, reproduction by copying or other technical means. Infringements will lead to compensation.

All rights reserved especially in case of assignation of patent or utility patent. Means of delivery and technical modifications reserved.

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/96/EC.

Please be informed about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help
prevent potential negative consequences to the environment and human health.
