XTAR 18650-3500 Datasheet

Download
Page 1

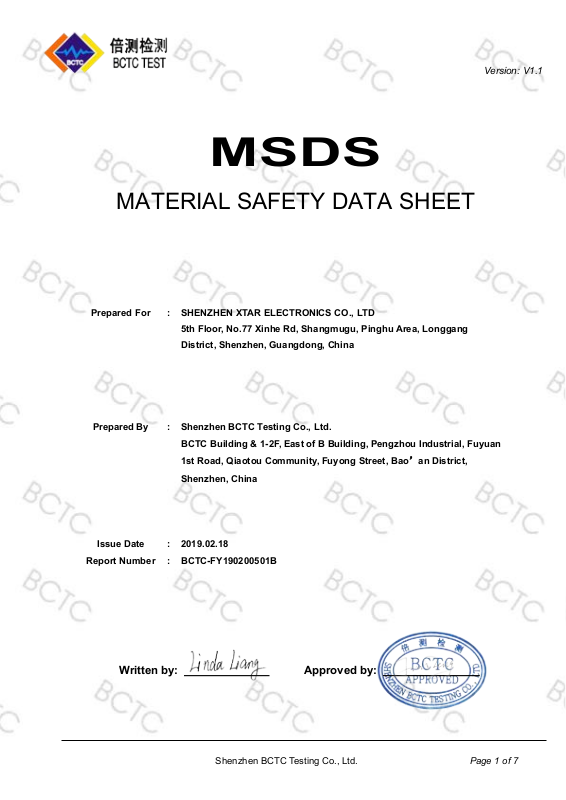

MSDS
Prepared For
:
Prepared By
:
Issue Date
:
Report Number
:
MATERIAL SAFETY DATA SHEET
Version: V1.1
Written by: Approved by:
Shenzhen BCTC Testing Co., Ltd. Page 1 of 7
Page 2
Material Safety Data Sheet
* The MSDS is prepared based on the information provided by client. The contents and formats of this MSDS are revised as per
client's request.
Section 1-Chemical Product and Company Identification
Product Name
Rechargeable Li-ion Battery
Model
18650 3500mAh
Trade Mark
Ratings
3.6V, 3500mAh, 12.6Wh
Weight
48.5g
Manufacturer
SHENZHEN XTAR ELECTRONICS CO., LTD
Manufacturer
address
5th Floor, No.77 Xinhe Rd, Shangmugu, Pinghu Area, Longgang District, Shenzhen,
Guangdong, China
Emergency Telephone
N/A
Fax
N/A
Section 2- Composition Information
Chemical Composition
CAS No.
Weight (%)
Trade Secret
Lithium Cobalt Dioxide
(LiCoO2)
12190-79-3
34.36
*
Graphite (C)
7782-42-5
26.3
*
Poly Vnylidene Fluoride
(PVDF)
24937-79-9
13.24
*
Acetylene Black
1333-86-4
2.32
*
Electrolyte
623-53-0/21324-40-3
10.25
*
Other
N/A
13.53
*
“ * ” The exact percentage (concentration) of composition has been withheld as a trade secret.
Section 3- Hazards Identification
Emergency overview:
N/A
Classification according to GHS
Not a dangerous substance according to GHS
Label elements:
Hazard pictogram(s)
Not Available
Signal word
Not Available
Hazard statement(s)
Not Available
REPORT NO.: BCTC-FY190200501B
Shenzhen BCTC Testing Co., Ltd. Page 2 of 7
Page 3
Material Safety Data Sheet
Precautionary statement(s):
Prevention
Not Available
Response
Not Available
Disposal
Not Available
Environmental hazards:
No relevant information
Important symptoms:
See section 11 for more information
Section 4- First Aid Measures
Eye contact
Flush eyes with plenty of water for least 15 minutes, occasionally lifting the upper and lower eyelids. Get medical aid.
Skin contact
Remove contaminated clothes and rinse skin with plenty of water or shower for 15 minutes. Get medical aid.
Inhalation
Remove from exposure and move to fresh air immediately. Use oxygen if available.
Ingestion
Give at least 2 glasses of milk or water. Induce vomiting unless patient is unconscious. Call a physician.
Section 5- Fire Fighting Measures
Flash Point
N/A
Auto-lgnition Temperature
N/A
Extinguishing Media
H2O, CO
2
Special Fire-Fighting Procedures
Self-contained breathing apparatus
Unusual Fire and Explosion Hazards
Cell may vent when subjected to excessive heat-exposing battery contents
Hazardous Combustion Products
Carbon monoxide, carbon dioxide, lithium oxide fumes.
Section 6- Accidental Release Measures
Personal precautions, protective equipment and emergency procedures:
If the battery is released, remove personnel from area until fumes dissipate. Provide maximum ventilation to clear out hazardous gases. The preferred response is to leave the area and allow the vapors to dissipate. Avoid skin and eyes contact or inhalation of vapors. Remove spilled liquid with absorbent and incinerated. If leakage of the battery happens, liquid could be absorbed with sand, earth or other inert substance and contaminated area should be ventilated meantime.
Environment precautions:
Do not allow product to reach sewage system or any water source. Inform respective authorities in case of seepage into water course or sewage system. Do not allow to enter sewers surface or ground water.
REPORT NO.: BCTC-FY190200501B
Shenzhen BCTC Testing Co., Ltd. Page 3 of 7
Page 4
Material Safety Data Sheet
Methods and material for containment and cleaning up:
If battery casing is dismantled, small amounts of electrolyte may leak. Collect all released material in a plastic lined container. Dispose off according to the local law and rules. Avoid leached substances to get into the earth, canalization or waters.
Section 7- Handling and Storage
Handling
The battery should not be opened, destroyed or incinerate, since they may leak or rupture and release to the environment the ingredients that they contain in the hermetically sealed container. Do not short circuit terminals, or over charge the battery, forced over-discharge, throw to fire. Do not crush or puncture the battery, or immerse in liquids.
Storage
Avoid mechanical or electrical abuse. Storage preferably in cool, dry and ventilated area, which is subject to little temperature change. Storage at high temperatures should be avoided. Do not place the battery near heating equipment, nor expose to direct sunlight for long periods.
Other Precautions
The battery may explode or cause burns, if disassembled, crushed or exposed to fire or high temperatures. Do not short or install with incorrect polarity.
Section 8- Exposure Controls/Personal Protection
Engineering Controls
Use local exhaust ventilation or other engineering controls to control sources of dust, mist, fumes and vapor.
Keep away from heat and open flame. Store in a cool, dry place.
Personal Protective Equipment
Respiratory Protection: Not necessary under normal conditions. Skin and body Protection: Not necessary under normal conditions, Wear
suitable protective clothing and gloves if handling an open or leaking battery. Hand protection: Wear suitable gloves if handling an open or leaking battery. Eye Protection: Not necessary under normal conditions, Wear safety glasses
if handling an open or leaking battery.
Other Protective Equipment
Have a safety shower and eye wash fountain readily available in the immediate work area.
Hygiene Measures
Do not eat, drink, or smoke in work area. Maintain good housekeeping.
Section 9- Physical and Chemical Properties
Form
Solid
Color
Blue
Odour
Not Available
pH
Not Available
Melting point/freezing point
Not Available
Boiling Point and Boiling range
Not Available
REPORT NO.: BCTC-FY190200501B
Shenzhen BCTC Testing Co., Ltd. Page 4 of 7
Page 5
Material Safety Data Sheet
Flash Point
Not Available
Upper/lower flammability or explosive limits
Not Available
Vapor Pressure
Not Available
Vapor Density
Not Available
Relative density
Not Available
Solubility in Water
Not Available
Auto-ignition temperature
Not Available
Decomposition temperature
Not Available
Evaporation rate
Not Available
Flammability (soil, gas)
Not Available
Viscosity
Not Available
Section 10- Stability and reactivity
Stability
The product is stable under conditions described Section 7
Conditions to Avoid
Heat above 70°C or incinerate. Deform, Mutilate, Crush, Disassemble, Overcharge, Short circuit, Expose over a long period to humid conditions.
Incompatible Materials
Oxidizing agents, acid, base.
Hazardous Decomposition Products
Carbon monoxide, carbon dioxide, lithium oxide fumes.
Possibility of Hazardous Reaction
Not Available
Section 11 – Toxicological Information
Irritation
Risk of irritation occurs only if the cell is mechanically, thermally or electrically abused to the point of compromising the enclosure. If this occurs, irritation to the skin, eyes and respiratory tract may occur.
Sensitization
Not Available
Neurological Effects
Not Available
Teratogenicity
Not Available
Reproductive Toxicity
Not Available
Mutagenicity (Genetic Effects)
Not Available
Toxicologically Synergistic Materials
Not Available
REPORT NO.: BCTC-FY190200501B
Shenzhen BCTC Testing Co., Ltd. Page 5 of 7
Page 6
Material Safety Data Sheet
Section 12- Ecological Information
Ecological Toxicity
Not Available
Mobility in soil
Not Available
Persistence and Degradability
Not Available
Bioaccumulation potential
Not Available
Other Adverse Effects
Not Available
Section 13- Disposal Considerations
Product disposal recommendation
Observe local, state and federal laws and regulations.
Uncleaned packaging recommendation
Disposal must be made according to official regulations
Section 14 – Transport Information
Label for conveyance
Lithium Battery Label
UN Number
UN 3480 or UN 3481
Transport hazard class(es)
9
Packing group
--
Marine pollutant
No
UN Proper shipping name
Lithium ion Batteries (Including lithium ion polymer batteries) Lithium ion Batteries packed with equipment (Including lithium ion polymer
batteries) Lithium ion Batteries contained in equipments (Including lithium ion polymer
batteries)
Transport information:
Rechargeable Li-ion Battery (Sample Model: 18650 3500mAh) is tested and has passed in accordance with UN manual of Tests and Criteria, Part III, subsection 38.3.
The goods shall be complied with the requirements of Section IB~II of Packing Instruction 965 or of Section II of Packing Instruction 966 967 of 60th DGR Manual of IATA or special provision 188 of IMDG CODE (Amdt. 39-18).
Separate Lithium-ion batteries when shipping to prevent short-circuiting. They should be packed in strong packaging for support during transport, ensure that the goods will not falling, dropping, and breakage, Prevent collapse of cargo piles and wet by rain.
Transport Fashion: By air, by sea, by railway, by road.
REPORT NO.: BCTC-FY190200501B
Shenzhen BCTC Testing Co., Ltd. Page 6 of 7
Page 7
Material Safety Data Sheet
Section 15- Regulatory information
Law information
《Dangerous Goods Regulations》 《Recommendation on the Transport of Dangerous Goods Model Regulations》 《International Maritime Dangerous Goods》 《Technical Instructions for the Safe Transport of Dangerous Goods》 《Classification and code of dangerous Goods》 《Occupational Safety and Health Act》(OSHA) 《Toxic Substance Control Act》(TSCA) 《Consumer Product Safety Act》(CPSA) 《Federal Environmental Pollution Control Act》(FEPCA) 《The Oil Pollution Act》(OPA) 《Superfund Amendments and Reauthorization Act Title III (302/311/312/313)》(SARA) 《Resource Conservation and Recovery Act》(RCRA) 《Safety Drinking Water Act》(CWA) 《California Proposition 65》 《Code of Federal Regulations》(CFR)
In according with all Federal, State and local laws.
Section 16- Other Information
The information above is believed to be accurate and represents the best information currently available to us. However, concorde makes no warranty of merchantability or any other warranty, express or implied, with respect to such information, and we assume no liability resulting from its use. Users should make their own investigations to determine the suitability of the information for their particular purposes. Although reasonable precautions have been taken in the preparation of the data contained herein, it is offered solely for your information, consideration and investigation. This material safety data sheet provides guidelines for the safe handling and use of this product; it does not and cannot advise on all possible situations, therefore, your specific use of this product should be evaluated to determine if additional precautions are required.
-- End of Report --
REPORT NO.: BCTC-FY190200501B
Shenzhen BCTC Testing Co., Ltd. Page 7 of 7
