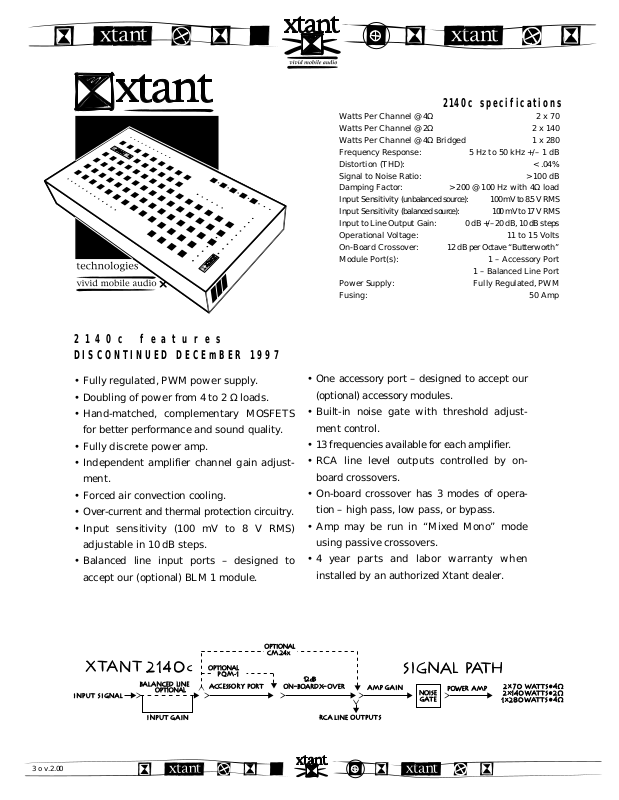

Xtant Technologies 2140-C Owners manual
3 o v.2.00
2140c specifications
Watts Per Channel @ 4Ω 2 x 70
Watts Per Channel @ 2Ω 2 x 140
Watts Per Channel @ 4Ω Bridged 1 x 280
Frequency Response: 5 Hz to 50 kHz +/– 1 dB
Distortion (THD): < .04%
Signal to Noise Ratio: > 100 dB
Damping Factor: > 200 @ 100 Hz with 4Ω load
Input Sensitivity (unbalanced source): 100 mV to 8.5 V RMS
Input Sensitivity (balanced source): 100 mV to 17 V RMS
Input to Line Output Gain: 0 d B +/– 20 dB, 10 dB steps
Operational Voltage: 11 to 15 Volts
On-Board Crossover: 12 dB per Octave “Butterworth”
Module Port(s): 1 – Accessory Port
1 – Balanced Line Port
Power Supply: Fully Regulated, PWM
Fusing: 50 Amp
2140c features
DISCONTINUED DECEmBER 1997
• Fully regulated, PWM power supply.
• Doubling of power from 4 to 2 Ω loads.
• Hand-matched, complementary MOSFETS
for better performance and sound quality.
• Fully discrete power amp.
• Independent amplifier channel gain adjustment.
• Forced air convection cooling.
• Over-current and thermal protection circuitry.
• Input sensitivity (100 mV to 8 V RMS)
adjustable in 10 dB steps.
• Balanced line input ports – designed to
accept our (optional) BLM 1 module.
• One accessory port – designed to accept our
(optional) accessory modules.
• Built-in noise gate with threshold adjustment control.
• 13 frequencies available for each amplifier.
• RCA line level outputs controlled by onboard crossovers.
• On-board crossover has 3 modes of operation – high pass, low pass, or bypass.
• Amp may be run in “Mixed Mono” mode
using passive crossovers.
• 4 year parts and labor warranty when
installed by an authorized Xtant dealer.
