Thank you for purchasing Xstatic Pro Lighting Spacex RX, This model is designed for any stage lighting with
DMX-512 Protocol to transmit standard DMX512 data between lights controllers wirelessly. The innovation of
this product really brings us convenience for installation.
These products are adapted with 2.4G ISM frequency, which is global opening and without any limitations. It is
high effective GFSK modulate, communication design, 126 channels jumping frequency automatically and
high anti-jamming ability.
Product Outline：

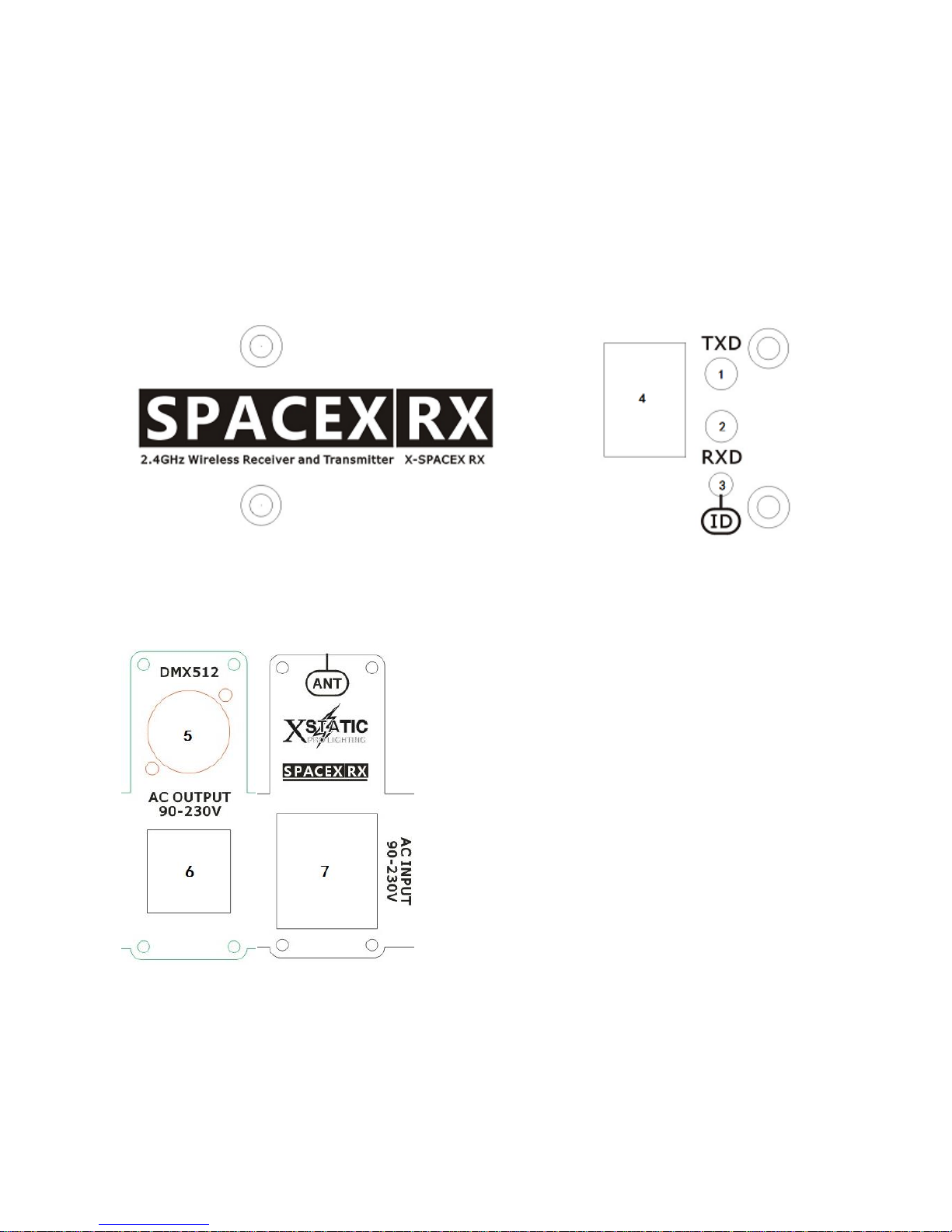

1. Indicator light for Transmitter
2. Indicator light for Receiver
3. ID Option Knob
4. LED Matrix Display for ID
5. DMX Output Socket
6. Power Output Socket
7. Power Input Socket
:
Page 3
Features
1. Model: SPACEX RE
2. 4 grade power rate output for option.
3. 126 channels jumping frequency self-moving，self-moving to option non-interfere frequency section,
ensuring communication is reliable.
4. 16 groups ID coding for setting，User can use 16 groups individual wireless net without any interfere
each other in the same place.
5. Input voltage ：AC90-250V
6. Communication distance：500M（visible distance）
7. Working frequency：2.4G ISM,126 channels
8. Max transmitting power rate：20dBm
9. Receive sensitive：-94dBm
10. DMX single terminal：3PIN male-female socket
Operation:
1. RF frequency- - - - - - - - - - - - - - - - - - 2. 400-2. 525 G，Total 126 channels
2. Transmitting power rate- - - - - - “0”=2dBm “1”=8dBm “2”=14dBm “3”=20dBm，Press
“PA” for setting
3. ID Code- - - -“0-F” 16 groups ID coding，press “ID” for setting，Please set the same ID for
Transmitter and Receiver for DMX connecting.

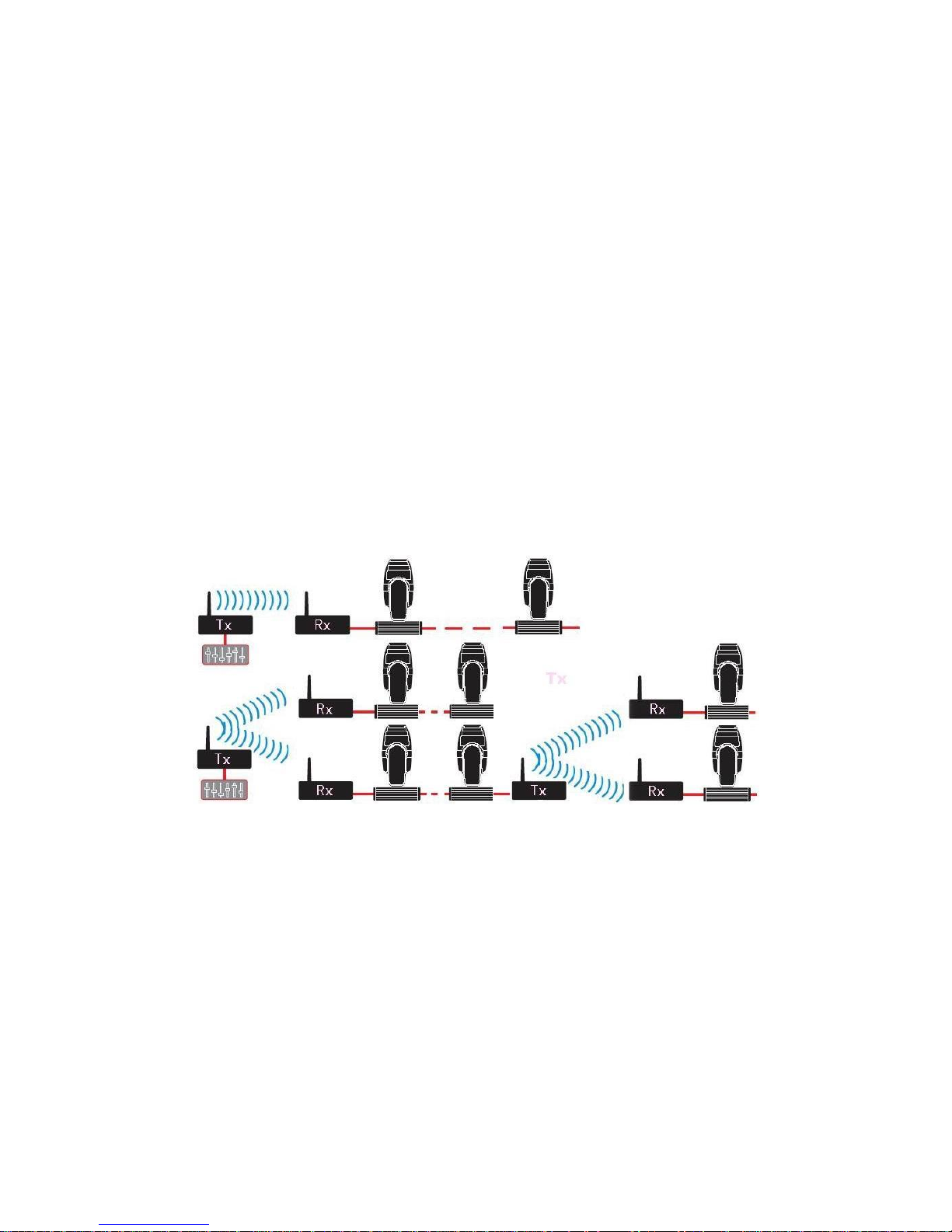

Connecting Scheme
：
Establishing Communication
：
1. Power on
2. Press “PA” to set transmitting power rate value， then press “ID” to set the receiver /
transmitter with same ID. Please pay more attention, it is very important to set different
ID value for different group of Wireless net.
3. When T&R have good communication with each other, Rxd Indicator LED will flash
with fast speed.
4. Done.
Caution:
Indoor use only.
1 year warranty
The working condition should be under temperature -20°C~+45°C，10%～90%RH.
