XRPlus XRS 2004 User Manual

Download

Stand Alone Type

DVR SYSTEM

USER’S MANUAL

(XRS 2004 Series)

XRPLUS Incorporated

• INDEX

• CHAPTER 1. Specification & System organization

1. Specification -------------------------------------------------------------- 4

2. Product Contents List -------------------------------------------------------- 6

3. System Organization --------------------------------------------------------- 7

• CHAPTER 2. Description

1. Front Panel --------------------------------------------------------------- 8

2. Rear Panel --------------------------------------------------------------- 10

3. Remote Controller ---------------------------------------------------------- 11

• CHAPTER 3. Installation

1. Hard Disk Installation ------------------------------------------------------- 12

2. CD-RW & Hard Disk Installation ----------------------------------------------- 14

3. Camera Connection -------------------------------------------------------- 16

4. Monitor Connection -------------------------------------------------------- 16

5. Computer Connection ------------------------------------------------------- 16

6. Network Connection -------------------------------------------------------- 16

7. Alarm/Relay/PTZ Connection ------------------------------------------------- 17

8. Power Connection --------------------------------------------------------- 17

9. Finishing Installation -------------------------------------------------------- 18

※ Hard Disk Format ---------------------------------------------------------- 18

•CHAPTER 4. Display

1. System Power ON ---------------------------------------------------------- 19

2. Screen View Selection ------------------------------------------------------ 20

3. Screen Rotation Mode (SCR MODE) -------------------------------------------- 20

4. PTZ/FOCUS Control -------------------------------------------------------- 21

5. System Power OFF --------------------------------------------------------- 21

•CHAPTER 5. Search

⊙ Go to Search Mode --------------------------------------------------------- 22

1. Search by Date/Time ------------------------------------------------------- 22

2. Search by Event ----------------------------------------------------------- 23

• INDEX

• CHAPTER 6. MENU

⊙ Go to Menu -------------------------------------------------------------- 25

⊙ Go to System Setup -------------------------------------------------------- 25

1. Display ------------------------------------------------------------------ 26

2. Camera ----------------------------------------------------------------- 27

3. Audio ------------------------------------------------------------------- 30

4. System ------------------------------------------------------------------ 30

5. Event/Sensor ------------------------------------------------------------- 36

6. Disk Management ---------------------------------------------------------- 39

⊙ Go to Record Menu -------------------------------------------------------- 40

1. Recording Operation -------------------------------------------------------- 40

2. Continuous/Motion Record Schedule -------------------------------------------- 41

3. Alarm Record Schedule ----------------------------------------------------- 42

⊙ Go to Archiving ----------------------------------------------------------- 43

1. CD-RW and USB Back up --------------------------------------------------- 43

• CHAPTER 7. CLIENT

⊙ Remote Program Install ----------------------------------------------------- 44

1. Function Introduction ------------------------------------------------------- 46

2. Setting ------------------------------------------------------------------ 47

3. Monitoring --------------------------------------------------------------- 54

4. Search ------------------------------------------------------------------ 58

5. Web Client --------------------------------------------------------------- 65

1. Specification & Organization

1. Specification

Video standard PAL/NTSC Audio 2-way Audio conference Monitor display Real time:25 Fps (PAL), 30Fps(NTSC) per camera Covert camera operation Programmable Event/Log search Up to 1,000,000 for user login/out, config changes, remote access,

connects/disconnects

Record Scheduling Daily, Weekly adjust specific Hr per channel Remote Access TCP/IP, View, Search, Recording & Control by Client Program or I.E. Playback Single and quad picture Pre/Post alarm recording 5 secs(Pre), 3 mins(Post), programmable per camera VGA For monitors with Multi Sync Function only(1024 X 768(60Hz)) Activity detection 12x12 grid, Sensitivity levels: 10 Simplex/Duplex operation Triplex Video inputs 4 x 1Vp-p, CVBS, 75ohms, BNC, looping inputs Monitor outputs 1 x CVBS/S-VHS, VGA Spot output 1 x 1Vp-p, CVBS, 75ohms, BNC Audio inputs 4 x line-in, RCA sockets Audio output 1 x line-out, RCA socket Resolution 352x240,704x240,704x480(NTSC), 352x288,704x288,704x576(PAL) Compression standard Mpeg4 Recording speed 352x240 : 120/100 (NTSC/PAL) , 704x240 : 60/50 (NTSC/PAL)

704x480 : 30/25 (NTSC/PAL)

Image size 3-5 Kbyte (352x240, 352x288), 5-10 Kbyte (704x240, 704x288)

6-16 Kbyte (704x480, 704x576)

Hard disk capacity 2 X HDD, 1 X CD-RW (STANDARD DC SUPPLY USE) Secondary Storage USB default (USB memory stick, USB HDD), CD-RW Alarm inputs 4 x TTL, programmable as NC/NO Alarm outputs 1 x Relay with NO/NC contact; 30VDC/1A, 125VAC/0.5A resistive Back-up file formats AVI, JPG, BMP

1. Specification & Organization

Network Speed Control 8 levels Pre-alarm recording Up to 5 sec., programmable per camera OSD languages English, Spanish, Chinese, Dutch, Portuguese, French, Russian, Japanese,

Polish, Romanian, German

Ethernet interface 10/100-Base-TX, RJ-45 Remote Function Live View, Live Recording, Search, Set-up, Back-up PTZ Control RS-485 interface Supply voltage 100VAC-240VAC, 5A, 60/50Hz Power consumption Approx. 60watts Temperature range 5℃ to 50℃

1. Specification & Organization

2. Product contents List

Please Confirm the Contents When open Package.

①Basic Contents

XRS 2004

12V Adaptor Power Cable

Remote Controller

② Option Contents

HDD

Remote Client Program Instal user manual

CD-RW USB MOMORY

AAA Battery X 2

l CD /

1. Specification & Organization

3. System Organization

Camera #1-4

Alarm Sensor #1-4

Alarm Input/Out

XRS 2004

Video In

Video Out

Relay Out

TCP/IP

Backup

Remote Client PC

NETWORK

Image Printer

AVI Backup

WEB Client

VCR

VGA Monitor

AV Monitor

Remote Controller

USB

CD-RW

(It is not supported)

2. Description

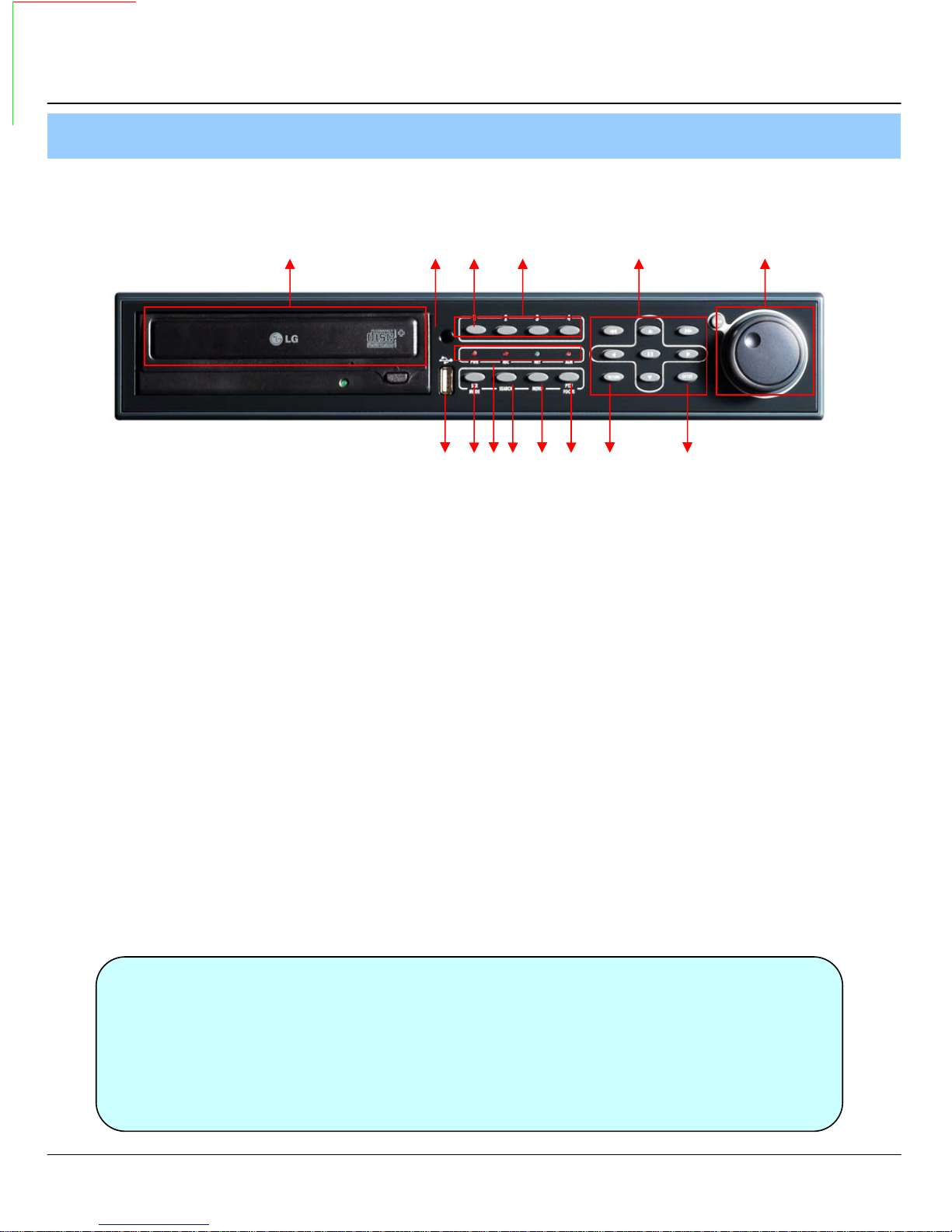

1. Front Panel (XRS 2004)

①②③

⑥

④⑤

⑦⑧⑨⑩

① Power : System Power On/Off.

② Remote Controller Sensor Input.

③ CD-RW : CD-RW Device for Backup.

④ USB Port: USB port for use the USB memory stick and USB HDD Backup

⑪

⑭

⑫⑬

⑤ Led Indicator : Indicate Present System Status Information.

( POWER: System On/Off , RECORD: Record On/Off , NETWORK: Client Network Connection

Status, ALARM: Alarm Sensor Detection Status )

⑥ Channel Selection Button : Select Channel or Input Password.

⑦ SCR MODE : Select Screen Division Mode or Rotation Mode.

⑧ SEARCH : Go to Search Mode for Searching Data.

⑨ MENU : Go to System Menu.

⑩ PTZ/FOCUS : Go to Camera PTZ/FOCUS Control.

⑪ Search Controller : Searching Recorded Data or Control Menu & PTZ/FOCUS.

⑫ ENTER : Apply Changing Setup.

⑬ RETURN : Cancel Setup or Return to Previous Mode.

⑭ JOG SUTTLE : Search Mode for Searching Data

Tip

• Power Button is Soft Style to Prevent System Failure by Wrong Operation.

• Channel Selection Button is Prior to SCR Mode.

• When Remote Controller Sensor Input is Blocked by Something, it Cause

1 Remote Controller do NOT Work Properly.

• When Press any Button, it Operate with Beep Sound.

• In Case of CD-RW, the Real Appearance will be Differ from the above Picture

1 Depends on its Model.

2. Description

2. Rear Panel

①③

④⑤

① Video In : BNC Port for Connection of DVR & Camera. (4 Camera Connectable)

② Loop Back : Output DVR Camera Video to Loop Back Port. (4 BNC Port)

③ Monitor Out : Output DVR Video to AV Monitor.

④ Spot Out : Output Spot-out Video to AV Monitor.

⑤ NTSC/PAL : Select NTSC or PAL Type.

⑥⑨

⑧⑩⑪⑬② ⑦⑫

⑥ VGA OUT : Output Video to a Computer Monitor by Connected VGA (Option)

⑦ SVHS : Output Video by Connected SVHS.

⑧ Audio Out : Output Audio Data.

⑨ Audio In : Audio Input Terminal Related with #1~4 Camera.

⑩ Ethernet (TCP/IP) : Port for Cross cable. (Possible to Remote Surveillance.)

⑪ Alarm/Relay/RS-485 : Connect Port for Sensor, Relay, & PTZ.

⑫ RS-232C : Connect Port for Program Debug.

⑬ DC Power Input : Power Supply by DC 12V Adaptor.

• When System Installation, Please Install under System Power OffStatus.

Tip

• Please Use Specific Adaptor when Power Supply.

2. Description

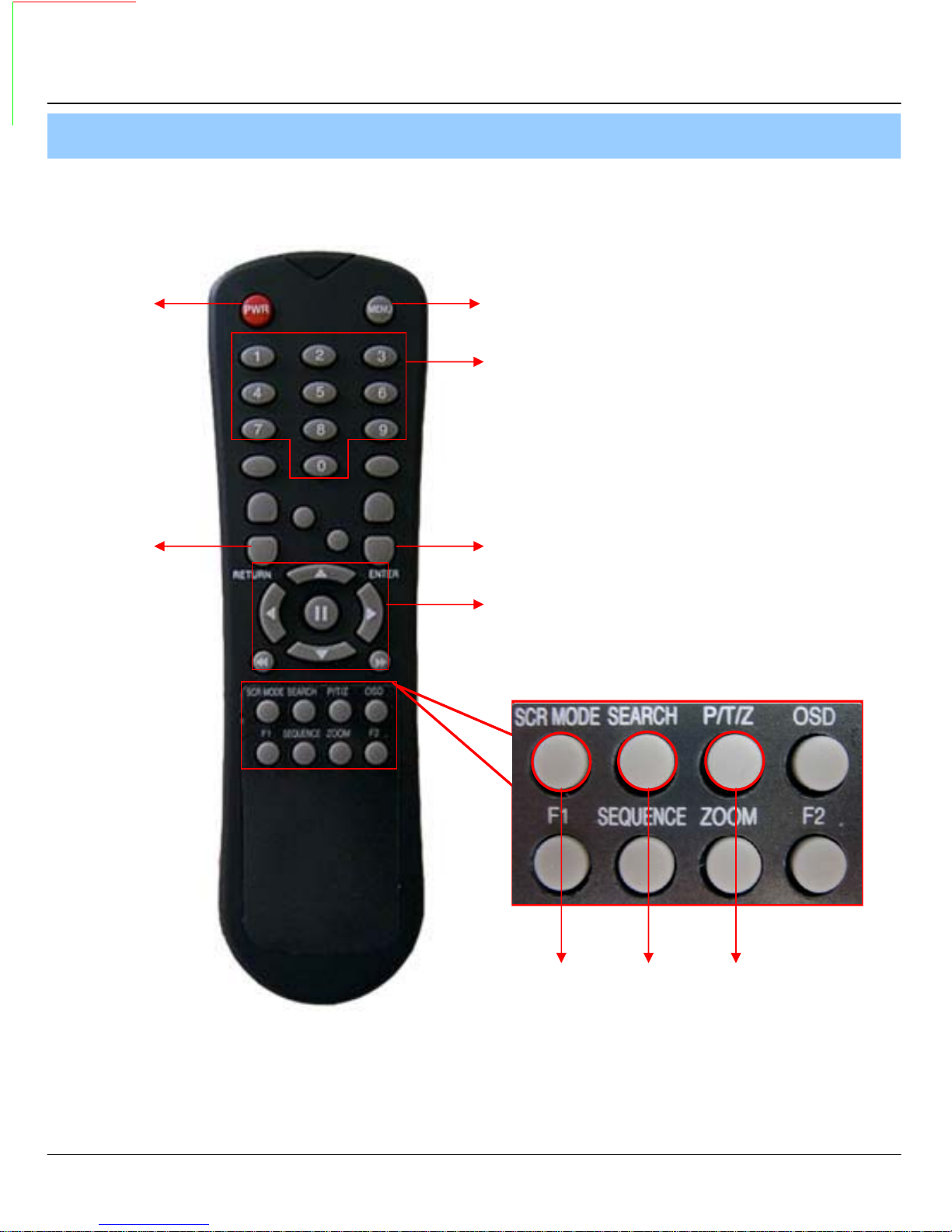

3. Remote Controller

POWER

System ON/OFF

RETURN

Cancel Setup or Return to Previous

MENU: Open Menu

Channel Selection Button (4ch Available, #1~4 Button)

ENTER: Apply Setup Change

Search Controller : Control Playback Option, Menu Movement, PTZ/Focus Control

• Unused Button’s Description is Omitted.

• Every Button is Operated Same as Front Panel Button.

• Remote Controller can Operate when Remote Controller Sensor Input Part Reacted Each Other.

※ If there are many DVR at the same place, they are reacted together when press remote controller.

Change Screen Mode

Open Search Mode

PTZ/IRIS Mode

3. Installation

1. Hard Disk Installation

① Jumper Setup as Master or Slave

※ Example of Samsung HDD Jumper Setup

• Jumper Setup as master or Slave, Following the

` Direction of Surface of Hard Disk.

• Jumper Located at Hard Disk Data Cable or

1 Rear Side of Hard Disk.

• If One Hard Disk Installation, Setup as Master If Two Hard Disk Installation, Second One Setup as Slave.

‼ When Hard Disk Add or Exchange, Must System Off

Properly (System Off by Power Button). If not, it’s a

Cause of Fatal Hard Disk Error.‼

② IDE Cable Connection to Main Board

• Refer to General Pin Setting in Jumper Pin Setting on HDD Surface.

• When One HDD Install, Setup Pin as Master and Connect Pin

1 at the Left End of Jumper.

• When Two HDD Install or Additional Install, First One Setup as

1 Master and the Other is for Slave. Slave Setup has No Pin.

• When More than Two HDD install, Setup as Master or Slave

1 to Connect One IDE Cable at the Same Method of Above.

!!Please Use Hard Disk which Possible to Supply Higher than

UDMA66.!!

• Confirm the IDE Cable Inside of Product

• Among the Three Connector, Indicated Blue Color

1 Connector Must be Connected with Main Board.

Other 1 Connectors Connected with HDD

3. Installation

② Connect IDE Cable to Hard Disk

• Insert Disk, Red Cable Head to Power Cable Plug

• Connect Power Cable to Hard Disk in the Same Way

※ If One HDD Install, Connect with End of Connector (Black)

Recommended.

If Add HDD, Connect with Middle Connector (Gray) Recommended.

One HDD Installation Two HDD Installation Bracket Installation

③ After Finishing Cable Connection, Attach Hard Disk with Screw & Bracket

Tip

IDE2 IDE1

For Rear Panel

• When Install Master HDD, Please Connect

1 at IDE1 Port by Master Cable.

• It means, Master Connector which

1 Connected with IDE1 Cable Must 1 Connected with HDD (Master).

ㅡMaster, Slave?

• IDE Hard Disk can connect two equipment at one cable (port). For the purpose of prevent confusing, two equipment named ‘Master’ & ‘Slave’. ’Master’ is one hard disk or first hard disk and ‘Slave’ is below second hard disk.

3. Installation

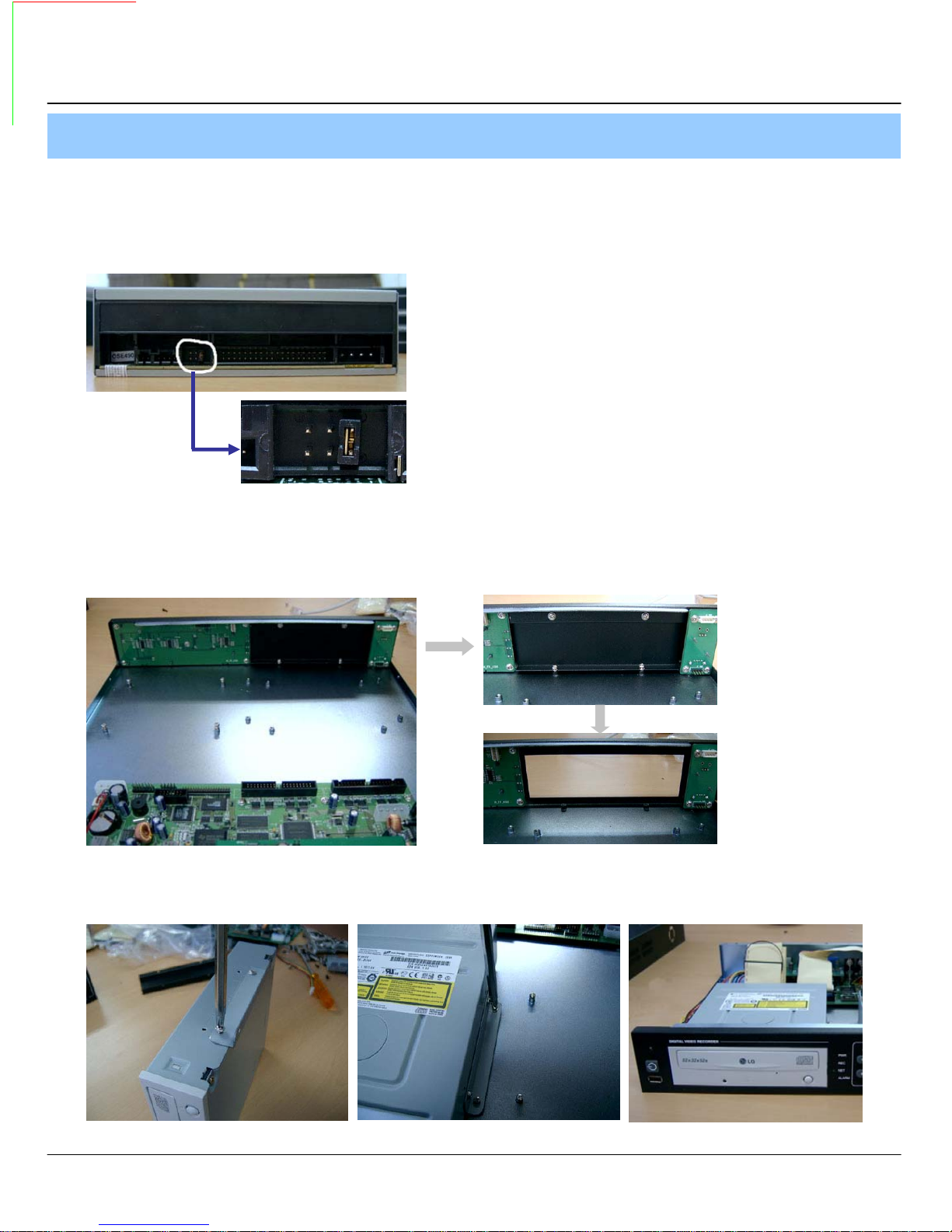

1. CD-RW & Hard Disk Installation (XRS 2004)

① Jumper Setup as Master or Slave

• Jumper Setup as Master or Slave (Refer to CD-RW

1 Direction at the Surface).

• If Install One CD-RW at One IDE Cable, Setup as Master If Install One CD-RW & HDD at One IDE Cable,

1CD-RW Setup as Slave.

‼ When CD-RW Install, Exchange, or Remove, Please

System Off Properly (System Off by Power Button) and Disconnect DVR Power.‼

Incase of LG-8526B, MASTER

② Remove Bracket for W/O CD-RW at the Front

③ After Assemble with Bracket, Attach to the Case

3. Installation

④ Connect by IDE Cable & Power Cable at the CD-RW

Tip

For Rear Panel

• When Install Master HDD, Please Connect

1 at IDE1 Port by Master Cable.

• It means, Master Connector which

1 Connected with IDE1 Cable Must 1 Connected with HDD (Master).

⑤ After Assemble with HDD Bracket & Connect Cable (Refer to Previous page for HDD Setup)

IDE2 IDE1

⑥ Example of Install CD RW & HDD

HDDx1 HDDx2 HDDx2 + CD-RW

<EX>When Two HDD Installation

3. Installation

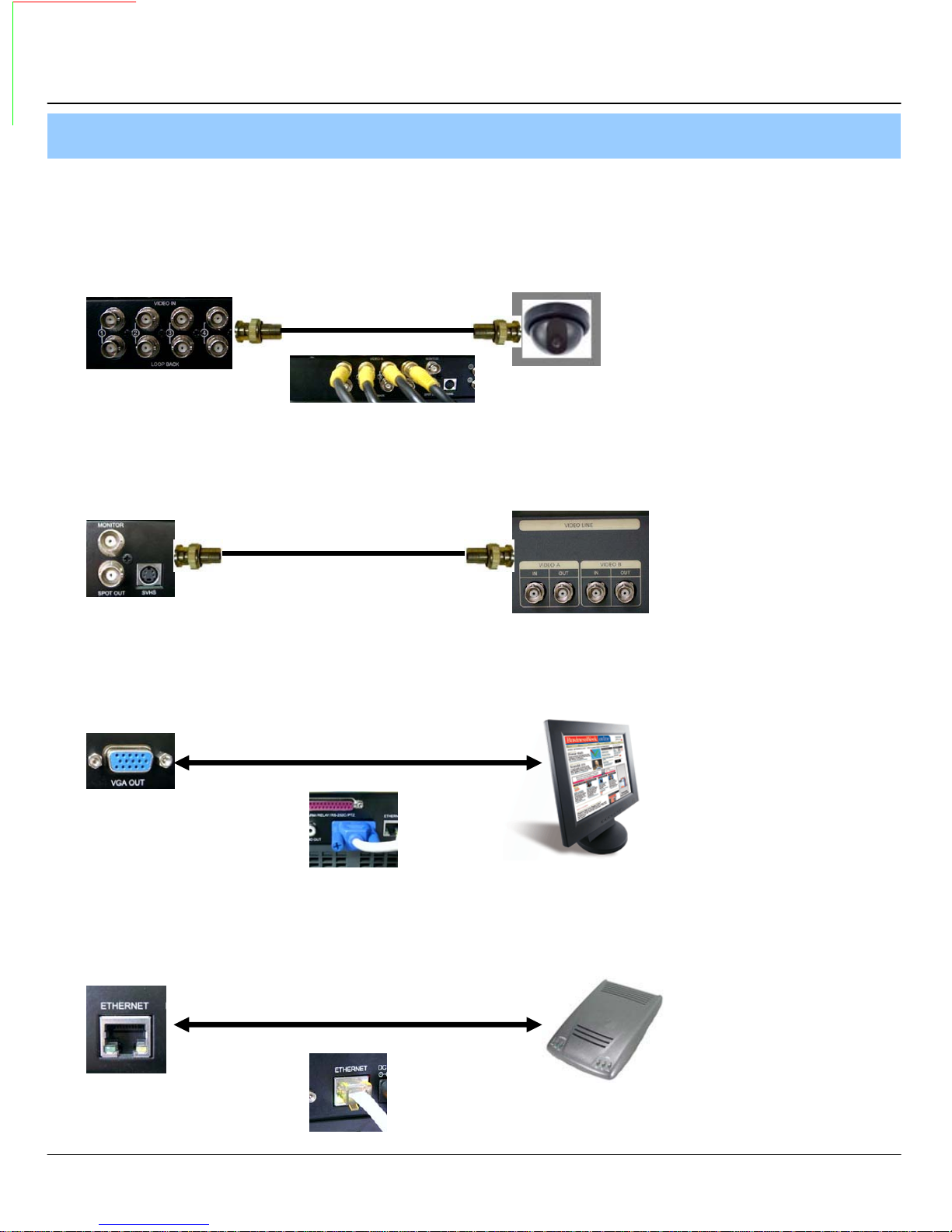

2. Camera Connection

Connect Camera at BNC Port in Back Side Panel.

3. Monitor Connection

Connect Monitor Terminal or S-VHS Terminal to Monitor

4. Computer Connection

Connect VGA OUT Terminal to Computer Monitor

5. Network Connection

Connect Ethernet Terminal and Network Cable

3. Installation

6. Alarm/Relay/PTZ Connection

①ALARM

Alarm Input - ‘IN1, IN2, IN3, IN4’ : Connect Sensor Input by Channel

‘GND’ : Connect Ground System

②RELAY

Alarm Output – ‘NO, NC’ : After Checking Alarm Output Type (Normal Open or Normal Close)

and Connect to ‘NO, NC’ ‘COM’ : Connect Remain Grounding Conductor

③ RS-485

①②③

Connect PTZ Camera – ‘D+, D-’ : Connect PTZ Camera Control Line (+ , – Terminal)

RS485

D+ D-

Example of Connection PTZ Camera No. 14 Pin Connector

7. Power Connection

Connect DC Power Input Terminal and Specific Adaptor

PTZ 14 Pin Cable

⑨ R+

⑩ R- ⑪ T+ ⑫ T-

3. Installation

8. Finishing Installation

System Start by Power Button after Finishing Installation

※ Hard Disk Format

- If Do Not New Hard Disk Format, System Can’t Recognize the HDD. So it’s Same Situation of No HDD. Please Format HDD when Insert New HDD.

(Only Display Possible, Not Work Menu & Search)

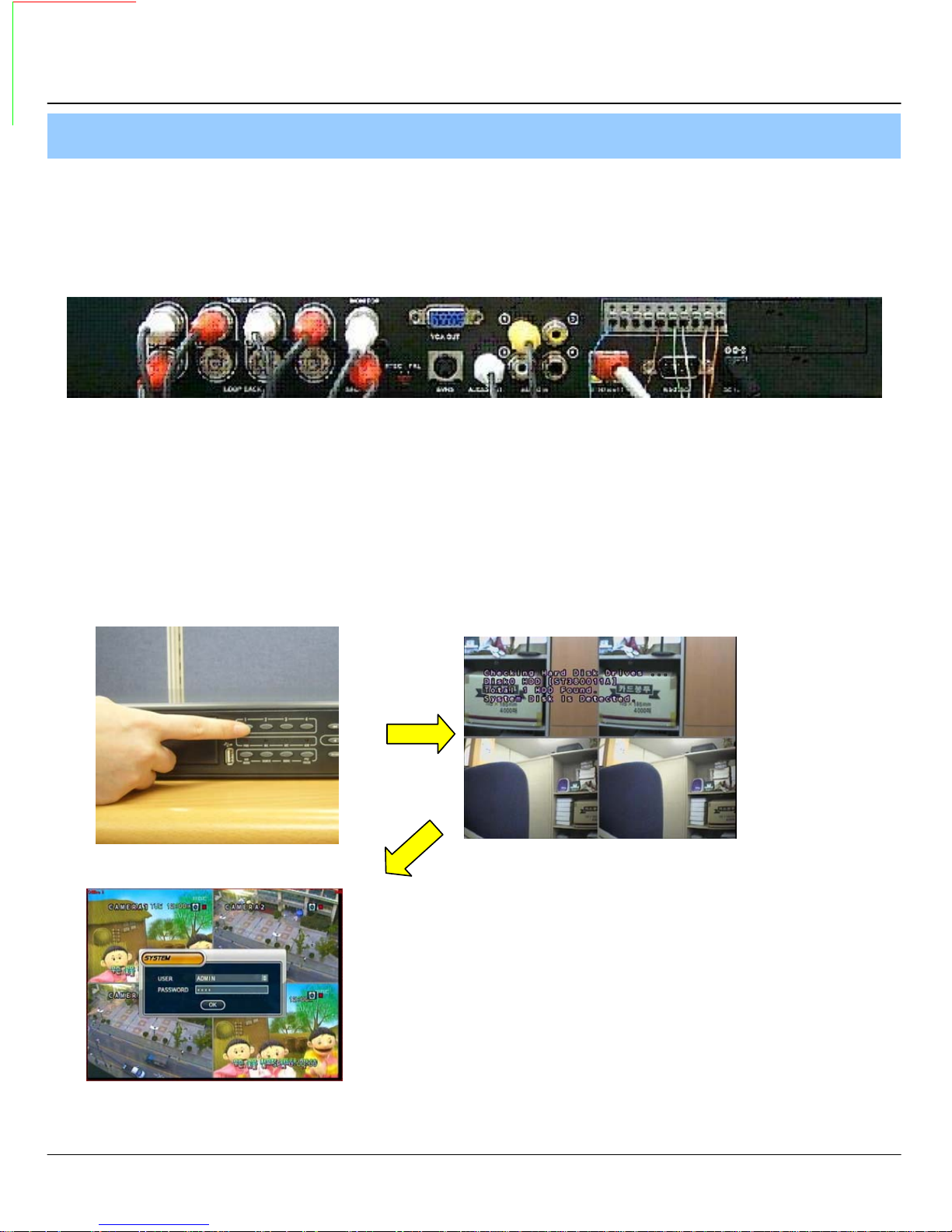

1. Power On

3. System Start (Initial Mode)

2. New HDD Format

(Select By Play , Backward Play Key)

When new discovery HDDs are two, It ask about each

format. Then choose the Yes about all HDDs. If you

Format the first HDD only, maybe second HDD don’t

Format.

※ When you are doing to format, Never turn off.

If tuen off, HDD is able to occur fatal error.

4. Menu

1.Display

- Video Setup for Watch Mode

1-1. OSD

• Every System Setup can Change or Maintain

1 at Menu (6 Setup)

•

ENTER

To Open Detail Menu, press “the Enter”

•

RETURN

Return to Previous Menu or Return to Watch Mode

• Status Bar : Record Condition Mark On/Off (Recording: Red, Pre-recording : Green)

• Camera Title: Setup Camera Name to Show Left-Upper Side

• Event Icon: Indicate the menu location by icon

Move to Menu Using by Up & Down Button

1-2. MONITOR

• Border : Border Mark On/Off when 4CH Division Watch Mode

• Border Color : Select Border Color

(White, Blue, Red, Yellow, Green, Gray)

• Motion Sensor : Set Up Motion Sensor

• Alpha Blending: Choose the transparency(1~100)

•GUI Blending

• Sequence Dwell : Setup Rotation Cycle Time (1~60 Sec.) when 4CH Rotation Mode at Watch Mode

• Spot-Out Dwell : Setup Spot-Out Time Cycle (1~60 Sec.) to Transmit Video

• De-interlace Mode : Remove Screen Spread on High

Resolution , Low Frame ※Only Applying When D1(704X480)

• Alarm Pop-Up Mode: When alarm happen, Alarm happened

channel Pop-up

• Alarm Pop-Up Dwell: Alarm Pop-up Time(1~60Sec.)

• When finishing that change the setup data,

Tip

Press the certainly.

4. Menu

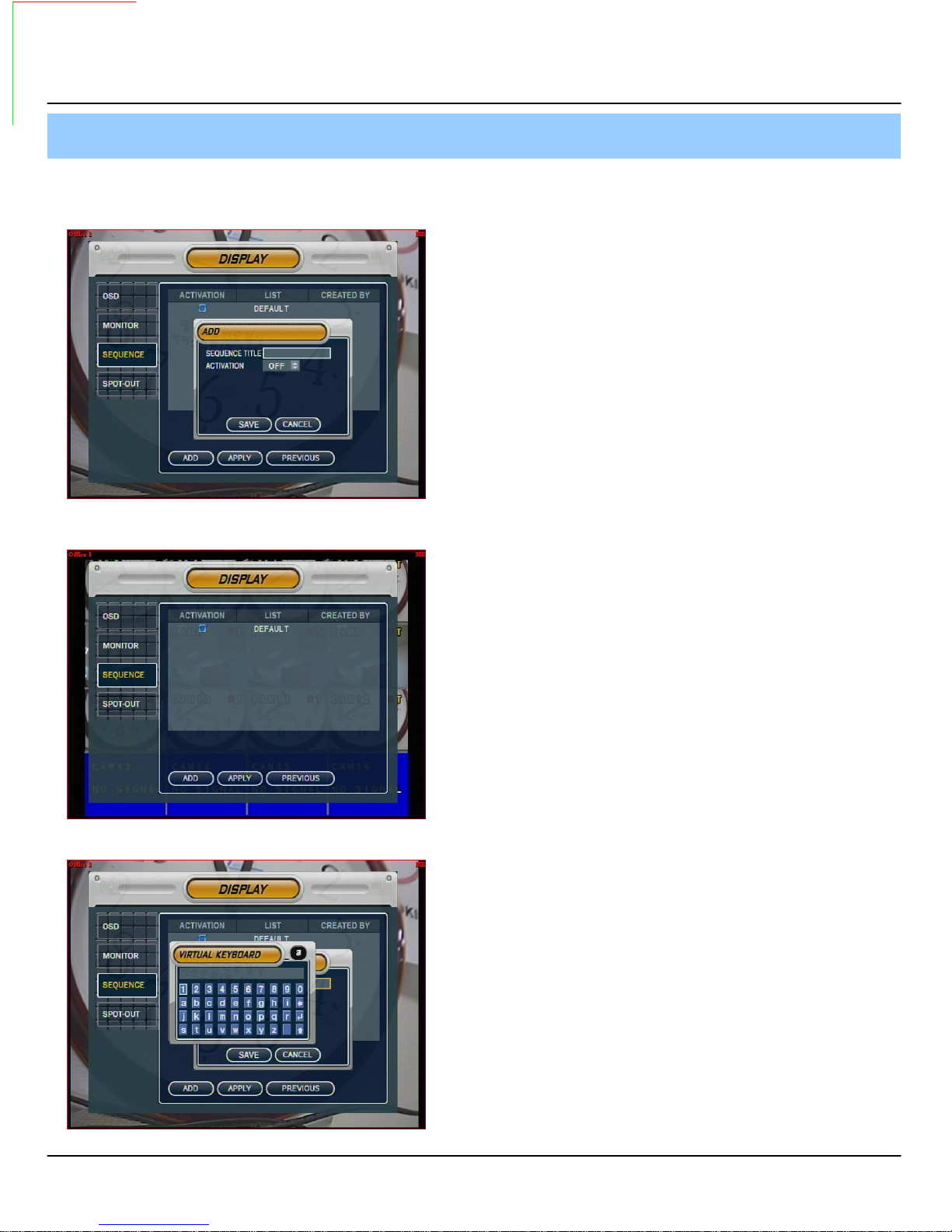

1-2. SEQUENCE

• Activation : Activation On/Off

• List : Sequence Title

• Choose Add to Add Sequence

• Input Sequence Title

• Choose Activation

• Save and Exit

• When input sequence title, You can use virtual keyboard by pres

sing enter button.

4. Menu

2.Camera

-Setup Camera

2-1. Camera Title

• Covert : Setup Covert On/Off *What’s Covert?

When Covert On Watch Mode, Display Video is Hidden, but Recording is On.

• Title : Setup Camera Name by Virtual keyboard

2-2. Color Setup

• Input the title by “Enter” after choose by button.

• Control the Monitor Bright, Contrast, Color, Tint

• All Setup Possible to Control 0~100

• Setup Channel by Channel

4. Menu

Tip

2-3. PTZ Setup

※ How to use the Virtual Keyboard

• Input the title by “Enter” after choose by

• Press the button for shift then choose the other characters.

• Address : Select PTZ Camera Address

• PTZ Protocol : Select Kind of PTZ Camera • Enter button and setup the detailed PTZ

• Baud Rate : Setup PTZ Communication Speed (2400, 4800, 9600,19200, 38400 BPS)

※PTZ Supplied Protocol : Samsung(MRX-1000), Samsung(SCC641),Honeywell(SD1)

Honeywell((GMC),Lilin(Fastdome), Fastrax(Ⅱ), GC(655N), D-MAX, Sunin DSC-230, Scan Dome-Ⅱ, Vicon,Philips8560-700 Sensormatic,Panasonic(WV-CS850), Panasonic(WV-CSR604),VRX-2101 Kalatel(KTD-312), PELCO-D, PELCO-P,Dynacolor(D7722)

4. Menu

2-4. Motion Sensor

• Choose the Partial Motion Region channel by

channel

• Sensitivity: 1~10

• Move Cursor by Direction Key and Press Enter at

Selected Region

• Select All : Select Entire Region

• Deselect All : Cancel Region Setup

• Cancel : Cancel Change Setup & Exit

• Save & Exit : Save the Changes & Exit

4. Menu

3. Sound

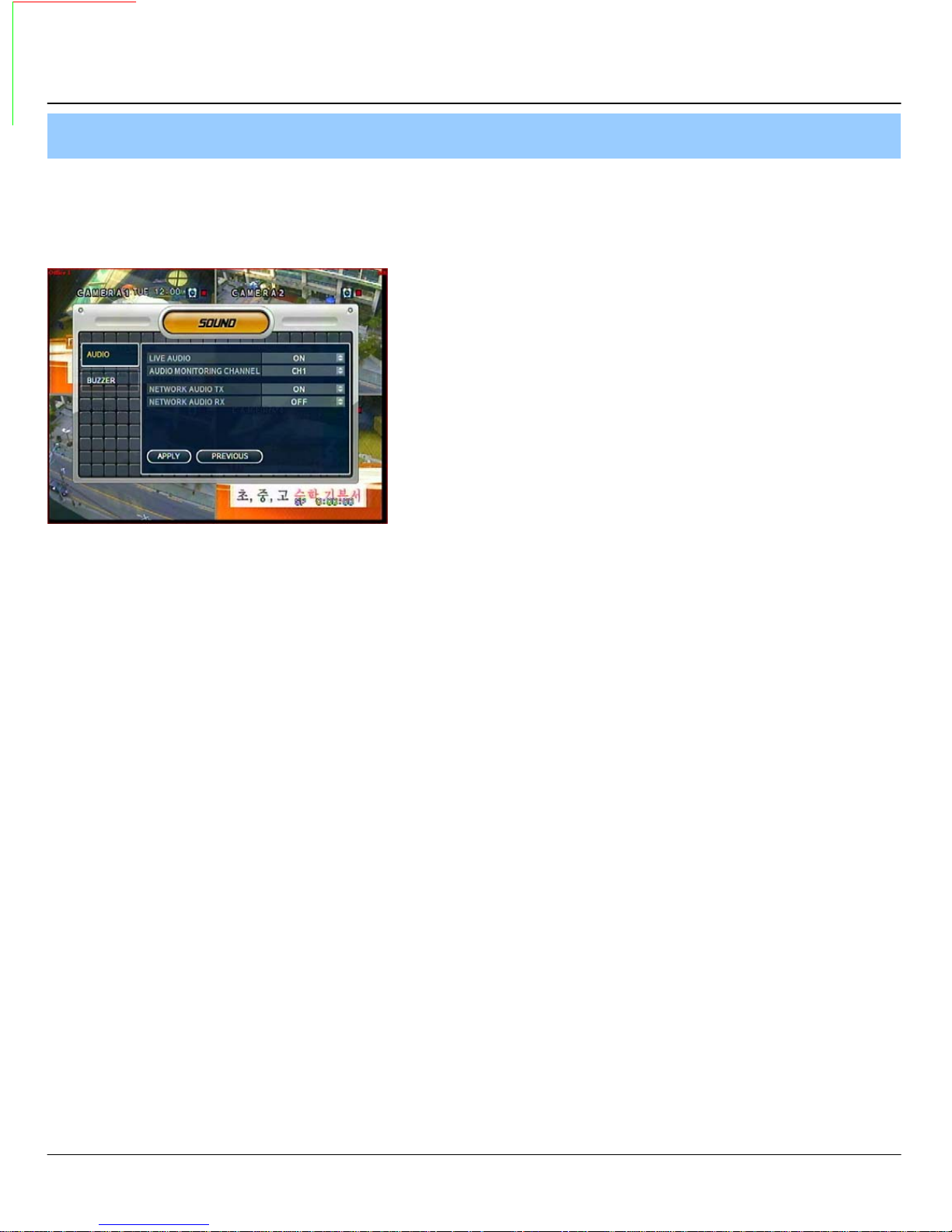

3-1. Audio

- Audio Setup

• Live Audio : Audio Output ON/OFF Live Audio Output from Audio In Terminal

• Audio Monitoring Channel: Select Channel for Audio Output

1 Nr. 1~4 Audio In

• Network Audio TX: Choose the Audio transmission

• Network Audio RX: Choose the Audio receive

3-2. Buzzer

- Buzzer Setup

• Keypad : Setup keypad buzzer

• Remocon : Setup remocon buzzer

4. Menu

4. System

- Basic Environment Setup

4-1. date/time

※ First of all, Timezone should be setup as your location.

• Date TIME: Setup Present Date (If Time Setup to Past Date, Ask Delete Data for the Past Date.

NO->Date/Time No Change, YES->After Delete Past Data and Change Date/Time )

• Date Format : Select Date Output Type (Ex: 2005-00-00, 2005/00/00)

• Time Format : Setup Time Type as 12 Hour Base or 24 Hour Base

• Network Time Server: Setup Present Time by Time Server.

• D.S.T: Daylight Saving Function On/Off

• Time Zone Setup : Choose the time by GMT standard.

Tip

※ How to Time setup

1. Setup Timezone as your location.

2. Setup the Network Time server and press the “Sync” button.

3. If correct time is not getted automatically, setup the date/time manually.

4. If don’t follow as upper, you may have the time error and the recording data search error.

4. Menu

4-2. Network

• IP Address : Input IP Address

• Gateway : Input Gateway IP for Internet Server

• Subnet Mask : Input Subnet Mask IP

• DNS Server: Input DNS Server IP

• DDNS Server: Input DDNS Server IP

• Net Client Port : Input net client server

• Web Server Port : Input web server port

• Max TX Speed : Setup Max TX Speed

※ If Change Network Setup, New Change Apply

when after Rebooting.

• DHCP (Dynamic Host Configuration Protocol) : Indicate IP Address for the DVR Automatically.

1. Enter to ‘System -> Network’ on the Menu.

2. Setup DHCP On/Off.

3. DHCP Off : User Input IP Address by Himself.

4. DHCP On : After DHCP On, Reboot the System.

5. Can see the setup IP automatically at the system information.

• DDNS (Dynamic DNS): You can connect the DVR by the fixed domain name(ex.00115f000001.dvrlink.net) at client or Web without entering the IP address.

※ If you use the DDNS, there is no necessity to enter again the IP Address every connection.

1. Enter to ‘System -> Network' on the menu.

2. Setup DHCP On or Enter the IP address.

3. Setup DDNS ON and reboot.

4. Enter to ‘System -> System information’ on the menu.

5. Confirm the MAC address.

6. The domain name is "MAC address.dvrlink.net".

EX) If Mac Address is 00-11-5f-00-b5-a7, the domain name is "00115f00b5a7.dvrlink.net"

7. If you connect by "00115f00b5a7.dvrlink.net" at client program or Web, you can connect the DVR.

• Web Service

• Net Client Service

Tip

※ 1. If your network connect at the router, please must port forwarding.

2. Please must enter the exact IP address, DNS Server, Gateway, Subnet Mask.

3. Please must connect the DVR at External Network. If you don't follow 1,2,3 , you can't receive the DDNS service.

4. Menu

4-3. Mail

• Server: Setup the mail server • Setup by Virtual Keyboard after press the “ENTER”

• Port: mail server port

• Security: On/Off

• User & Password: input the DVR login user ID and Password.

4. Menu

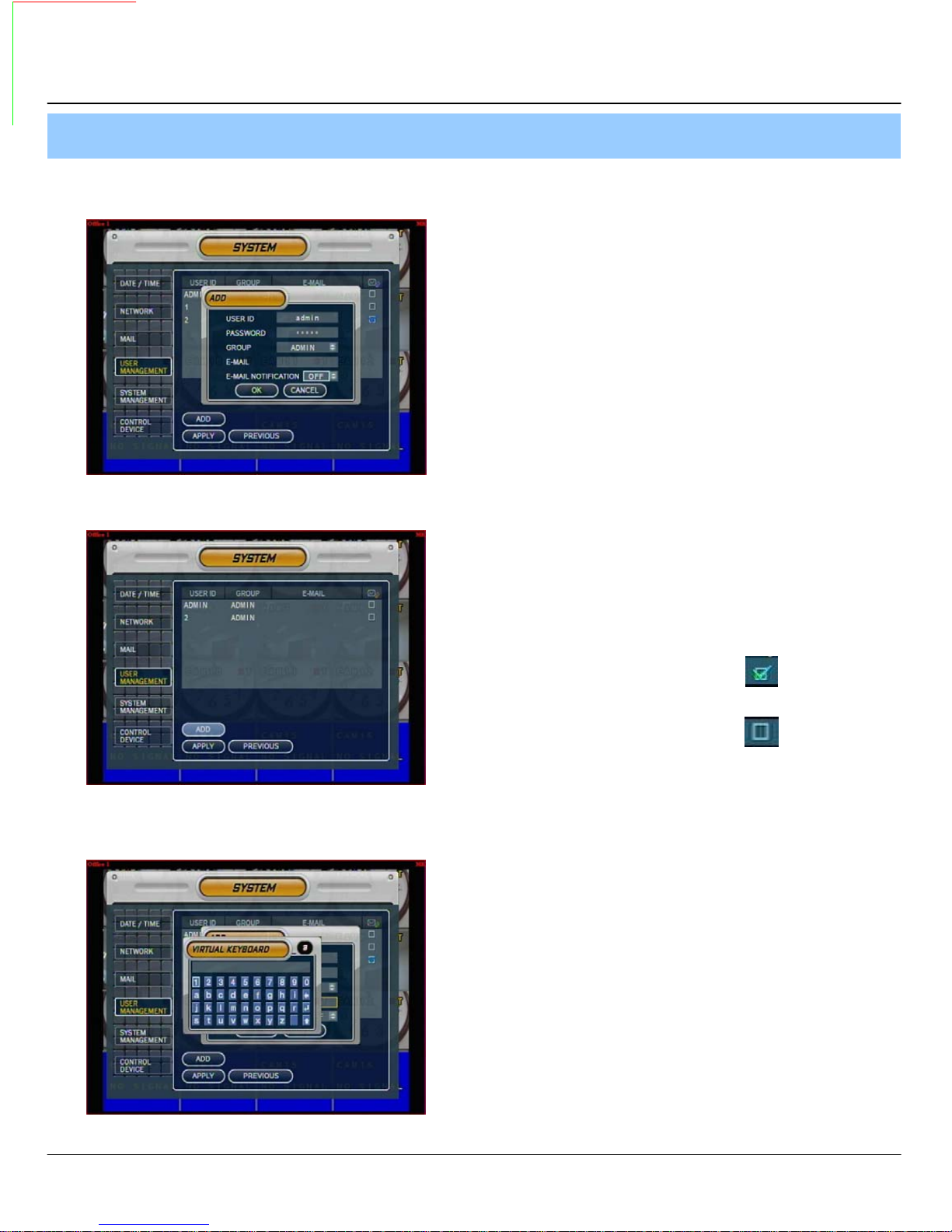

4-4. User Management

User setup

• It is consisted 3 User Group as Administrator,

Manager, User.

• Total 7 user belong to 3 User Group can be made.

• Input User ID, Password.

• Choose the Group.

• Input the E-mail Address.

• It can edit User ID information.

• E-mail notification On/Off : 1. ON:

2. OFF:

• Input the E-mail by Virtual Keyboard.

4. Menu

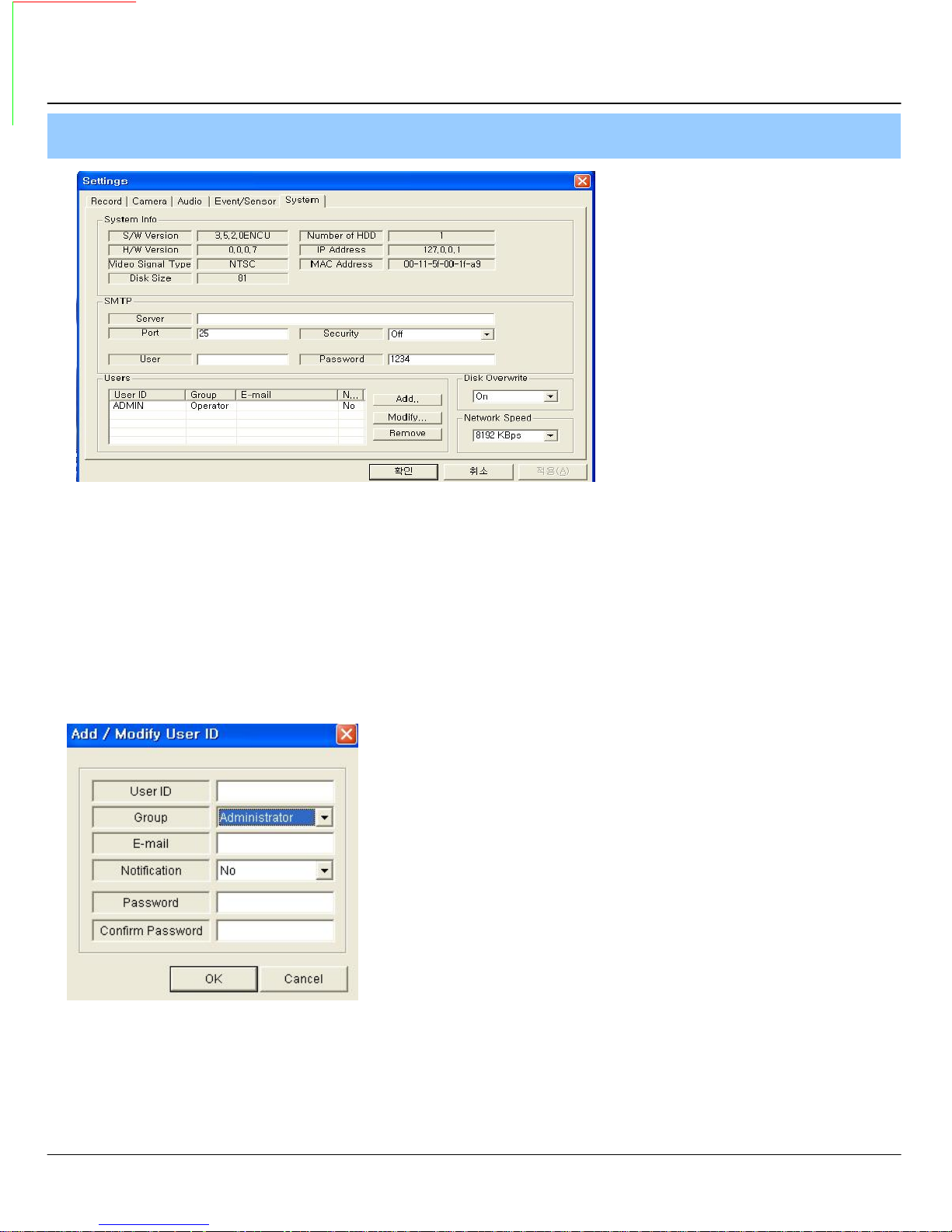

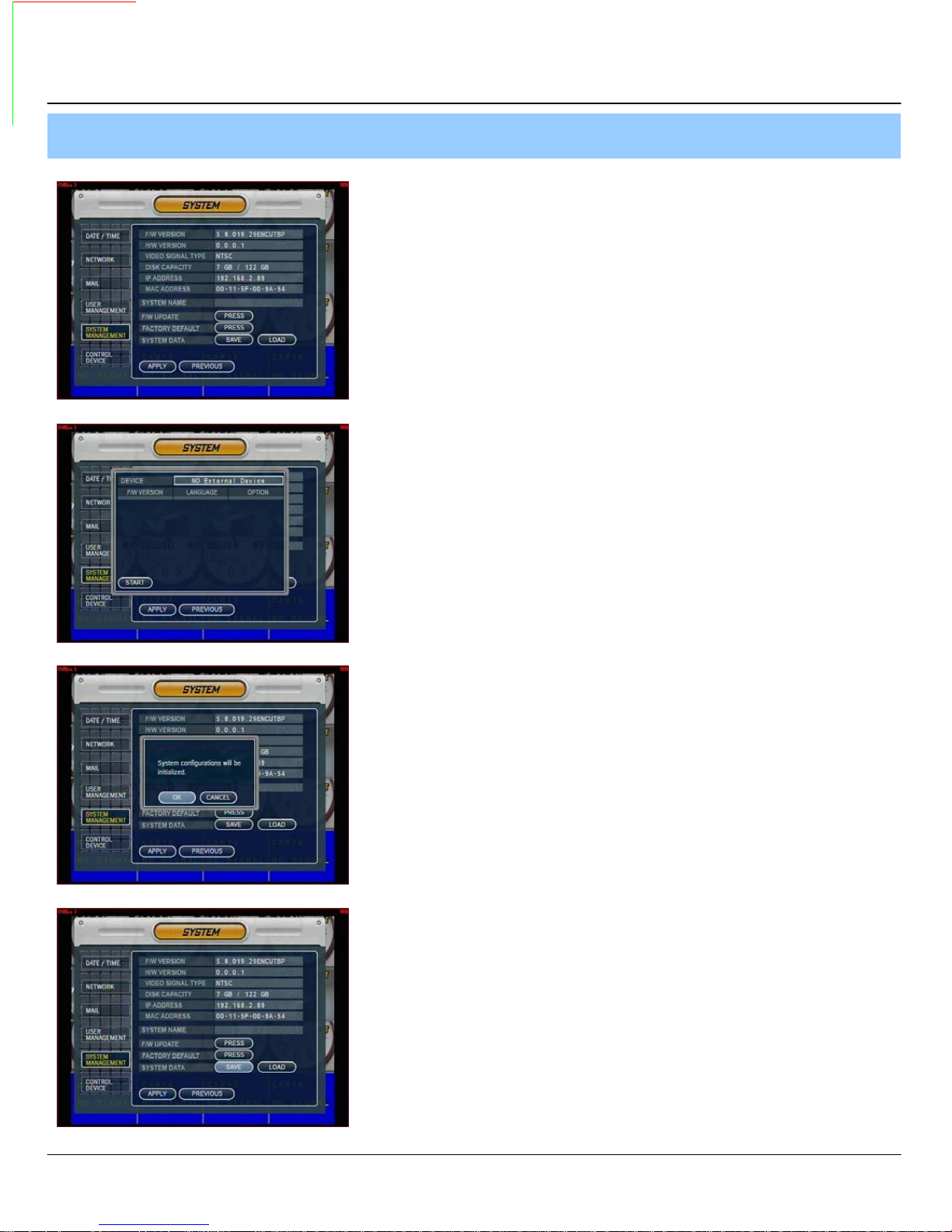

4-5. System Information • S/W Version: Server Firmware Version

• H/W Version : Hardware version

• Video Signal Type: NTSC or PAL

• Disk Capacity: used HDD capacity of the total HDD capacity

• IP Address: DVR’s IP Address

• MAC Address: Fixed MAC address of the DVR

4. Menu

4-6. Factory Default

• Press “Press” to Start Initialize.

• Showing Warning Message and Press OK to Run Initialize.

• If do Factory Default, Every Setup is Initialized, but Saving Image is Not Erase.

5. Event/Sensor

5-1. HDD Event

• Drive: HDD connected location

• Smart Alarm: On/Off

• Check interval: HDD checking Time

4. Menu

5-2. Alarm Input

5-3. Alarm Output

• Operation: Setup Alarm Sensor Connection Status (enable/disable)

• Type : Setup Alarm Sensor N/Open, N/Close Type

Tip

※ Setup each channel when alarm, video loss, motion are

happened.

• Channel : Select Channel

• Mode: Setup Reacted Relay as Latched/Transparent Mode.

• Type: Setup Relay Type N/Open or N/Close.

• Operation: Setup Relay Connect with Alarm Sensor.

• Duration: Setup Reacted Relay Time. (5sec~5min or Until key-in)

• HDD Event: Alarm On/Off when HDD has the problem.

•Latched/Transparent

Latched – When Sensor Alarm Activated, Relay Reacted in Setup Duration Transparent – Relay Reacted Temporary During Sensor Alarm Activate

4. Menu

5-4. Buzzer out

• Buzzer On/Off

• Operation: Setup Buzzer.

• Mode: Setup Reacted Relay as Latched/Transparent Mode.

• HDD Event: Buzzer On/Off when HDD event is happened.

• Duration: Buzzer time(5sec~5min or Until key-in)

• setup each channel when alarm, video loss, motion are happened.

4. Menu

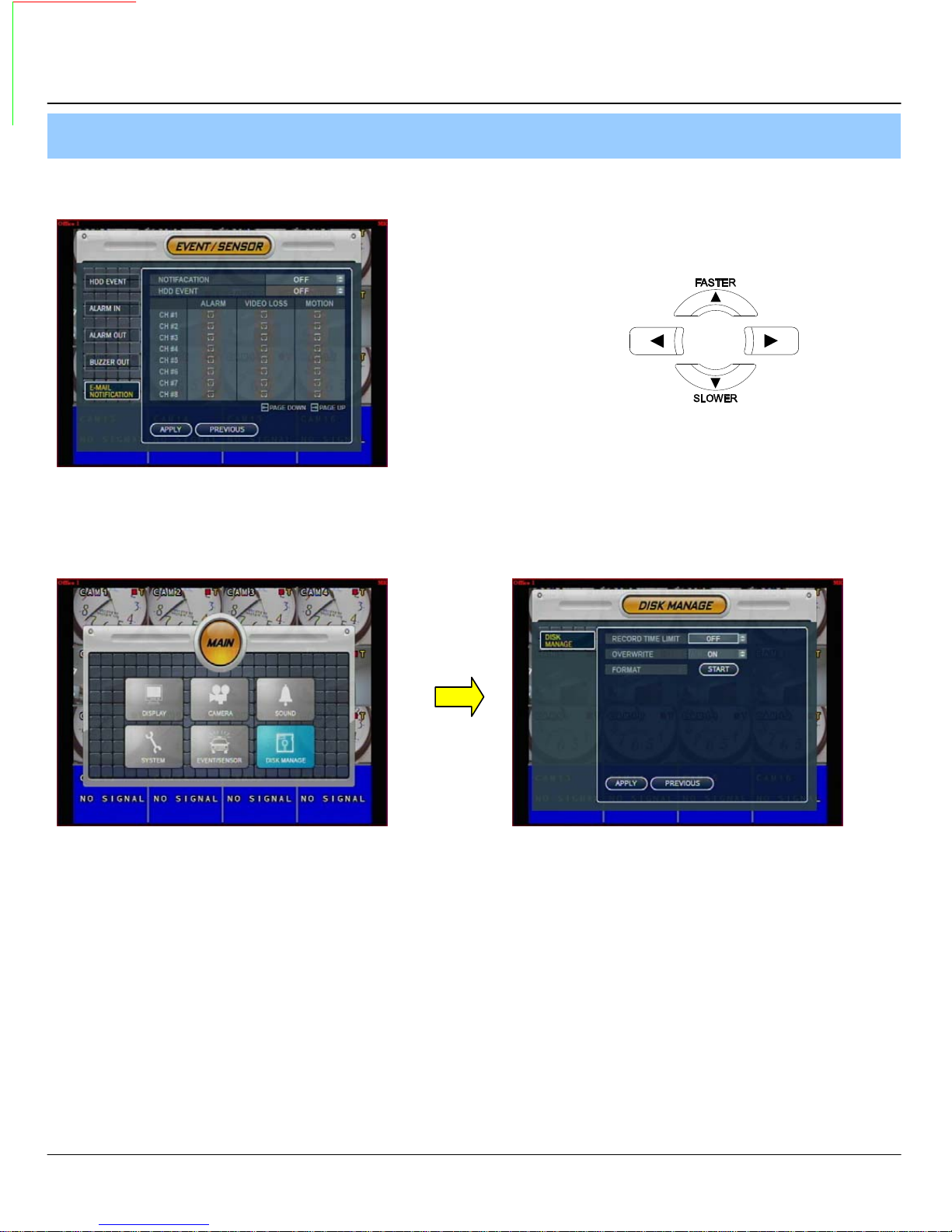

5-5. E-mail Notification

6. Disk Management

• If the alarm, video loss, motion and HDD event are happened,

send the notification at the E-mail.

• Choose the function by button.

• Disk Overwrite : Select Overwrite Permission when Hard Disk Full O N: Overwrite Hard Disk from Oldest Data OFF: When Hard Disk Full, Stop Recording and Buzzer Activate

• Format : Refreshment Hard Disk. All Recorded Data Deleted

5. Menu

⊙ Go to Record Menu

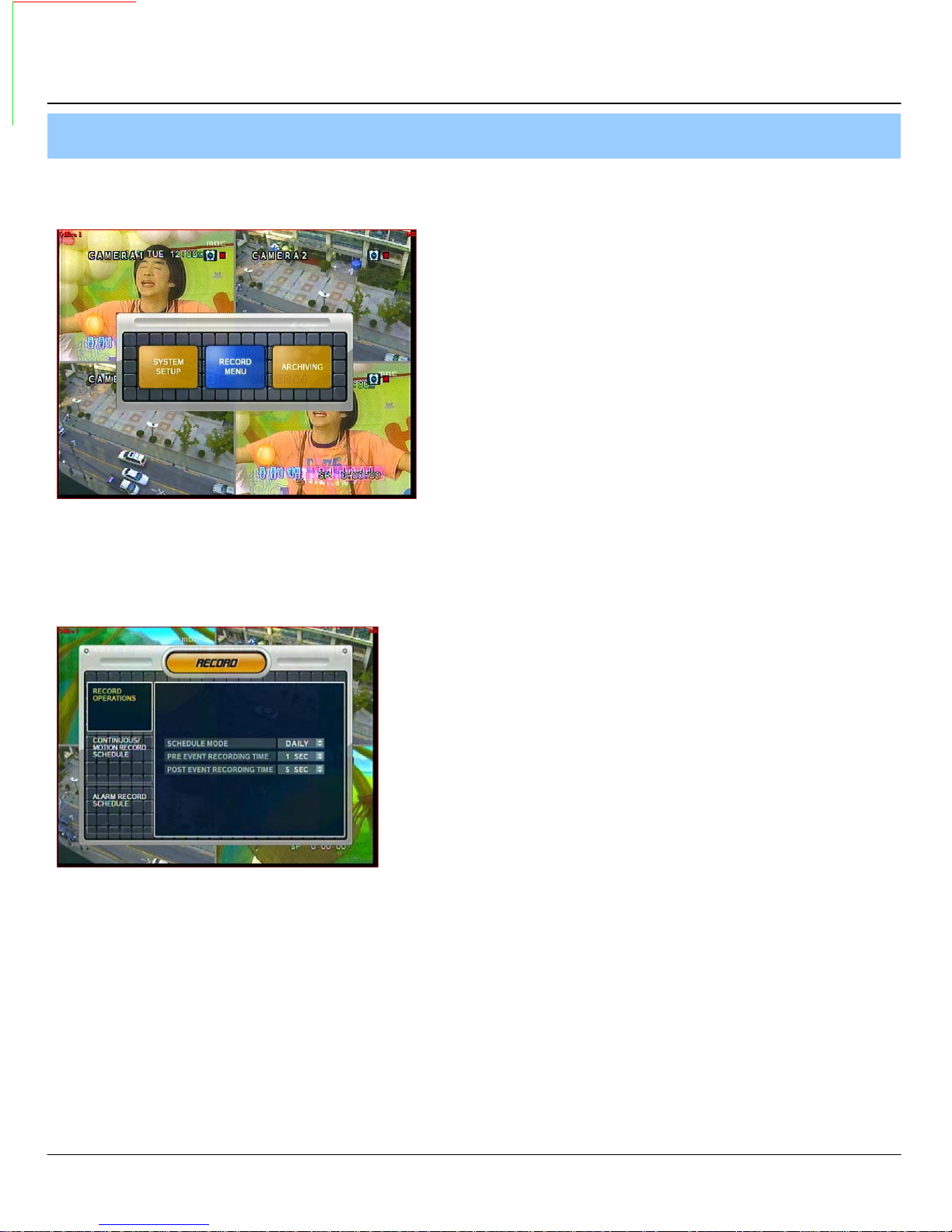

1. Recording Operations

• Schedule Mode: Choose the DAILY or WEEKLY.

• Pre-Event Recording Time : Setup Pre-Event recording Time. 1 (1~5 sec)

• Post-Event Recording Time: Setup Post-Event recording Time. 1

(1~5 sec)

5 Menu

2. Continuous/Motion Record Schedule

2-1. DAILY

• Continuous record setup

• Motion record setup

2-2. WEEKLY

• Setup each channel

• Put the choose area at here and press “Enter” button.

• Continuous record setup

• Motion record setup

•Setup each day

• Setup each channel

5. Menu

3. Alarm Record Schedule

3-1. DAILY

• Alarm record setup

3-2. WEEKLY

• Setup each channel

• Put the choose area at here and press “Enter” button.

• Alarm record setup

•Setup each day

• Setup each channel

5. Menu

⊙Go to Archiving

① Device : Indicate CD-RW Model and USB MEMORY Model Automatically.

② Start Time : Select Start Backup Time.

① ② ③

④

⑤⑥

If you use the CD-RW and USB memory (or USB HDD) together,

it can choose the CD-RW and USB by Button.

⑦

③ End Time : Select End Backup Time.

④ Channel & Video/Audio Selection : Select Channel, Video, & Audio for Backup.

⑤ Title : Change the Title of Backup by virtual keyboard.

⑥ Event : Select Attach Event Text File in Backup.

⑦ Start : Start Backup.

• Compatible CD Writer Models are LG(GCE-8526B,GCE-8527B),

Tip

SAMSUNG(SW-252F, TS-H292A, SH-522C),ASUS(CRW-5232AS),GIGABYTE(GO-R5232B)

• Compatible USB memory stick Models are LG(Royal,mobile,mirror), IMATION(iflash),Memorive PRO+

and Compatible USB HDD is CUTIE(FHD-254).

• Inside of Backup CD,USB Including Necessary Codec for Playback (IMM4 Install File).

• In case of RW Possible CD, Please Delete Previous Data on PC for Recording Again.

6. Client

• System Requirement

① Main Board (CPU): Pentium-500(Minimum), Pentium 4 recommend ② OS: Higher than Windows 98,DirectX 7.0A ③ Memory (RAM): More than 128 M ④ VGA: Graphic card that support the DIRECT-X

※IMM4 Codec (When Playback Backup File)

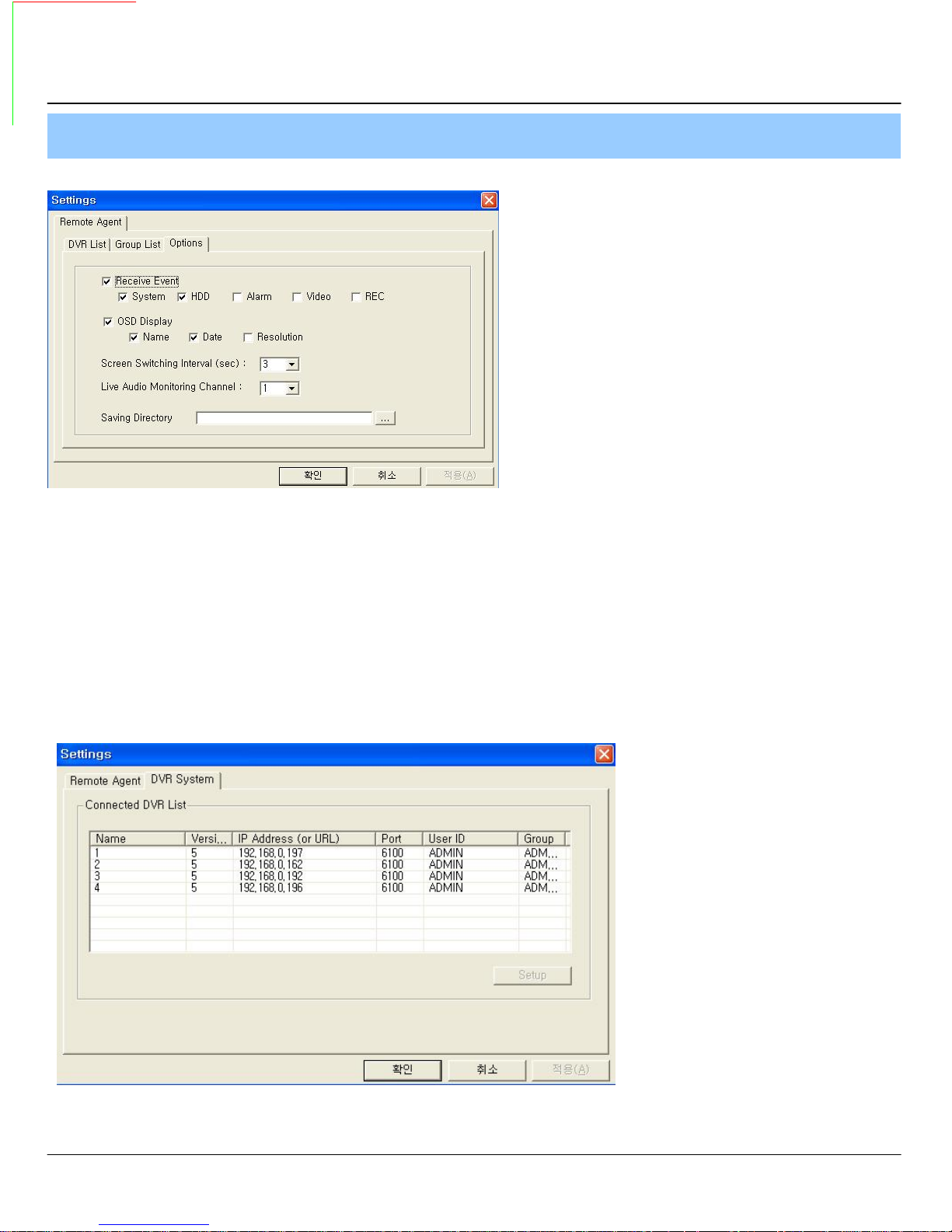

• DVR Remote Agent Install

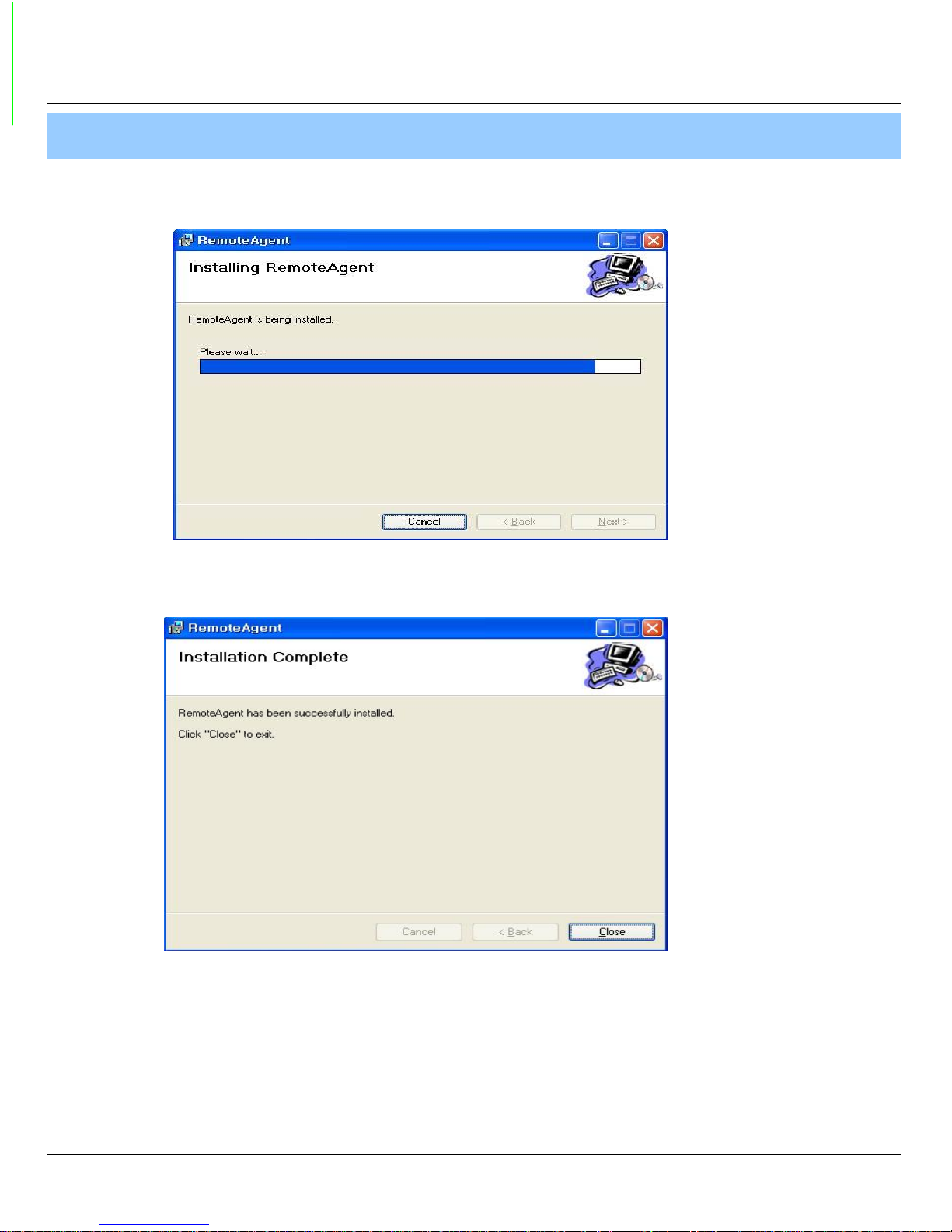

① Open CD-ROM Drive and Run DvrRemoteAgentSetup.exe and then Appear Setup Menu

② Close All Running Software and Press Next to Move Next Step

6. Client

③ Ask designate Folder to Install DvrRemoteAgent, Recommend Basic setup c:₩program files:₩CMSLite.

Click Next.

④ Showing Progress of Copy of Files

⑤ Finish DvrRemoteAgent Program Installation

6. Client

1. Function Introduction

①

②

⑭

③

④

⑤

⑥

⑦

⑧

⑨

⑩

⑪

⑫

⑬

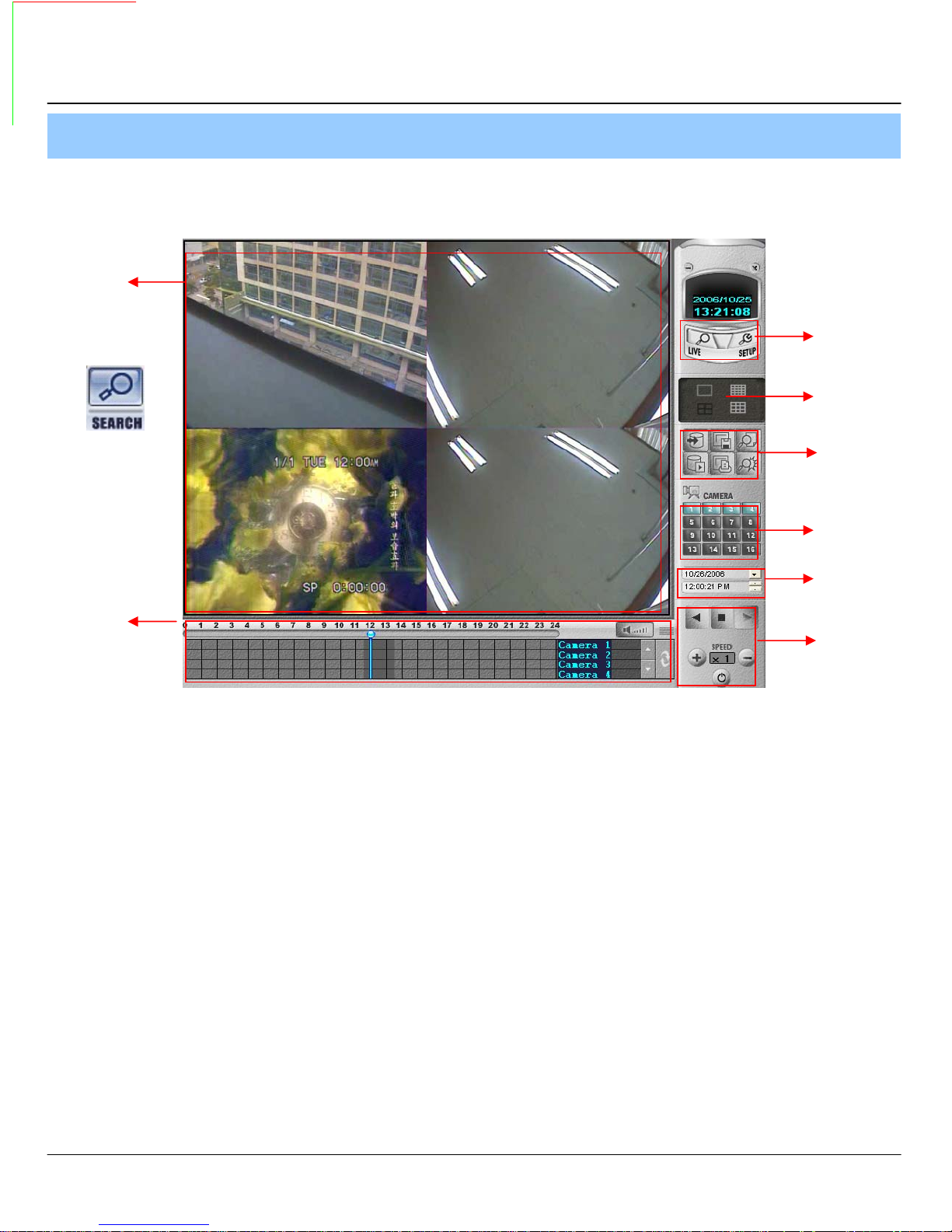

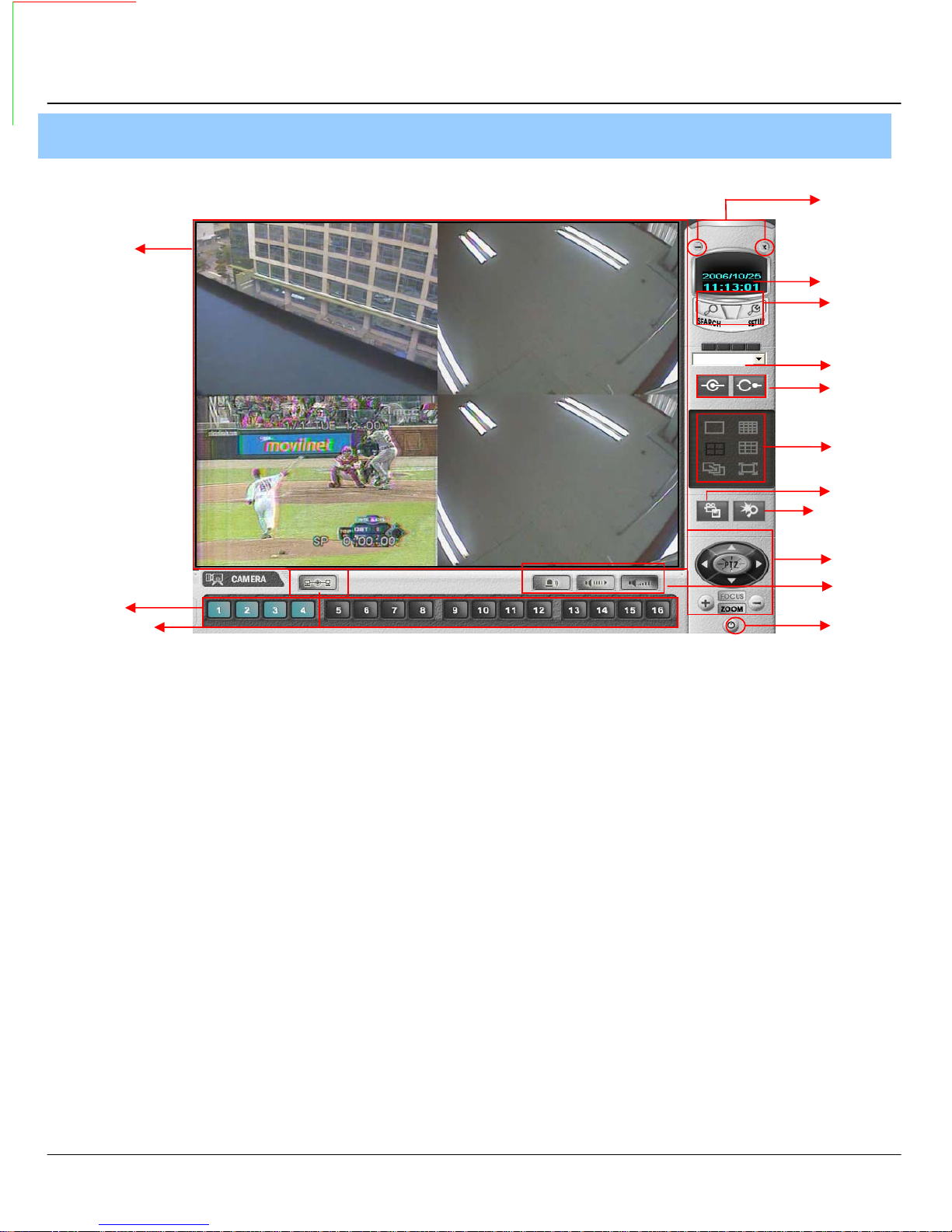

① Main Screen Image : Showing Present Surveillance Camera Image

② Camera Selection Button : Indicate Connected Camera No. & Select Image to Click Camera No.

③ Hidden/Exit : Hide DVR Client Window or Exit Program

④ Time Output : Showing Present Time & Date

⑤ SEARCH : Move to Search Mode to Play Video

SETUP : Move to Setup to Change Network Setup or Option

⑥ DVR Selection : Select I/D to Connect Server

⑦ Connect : Connect DVR

Disconnect : Disconnect from DVR

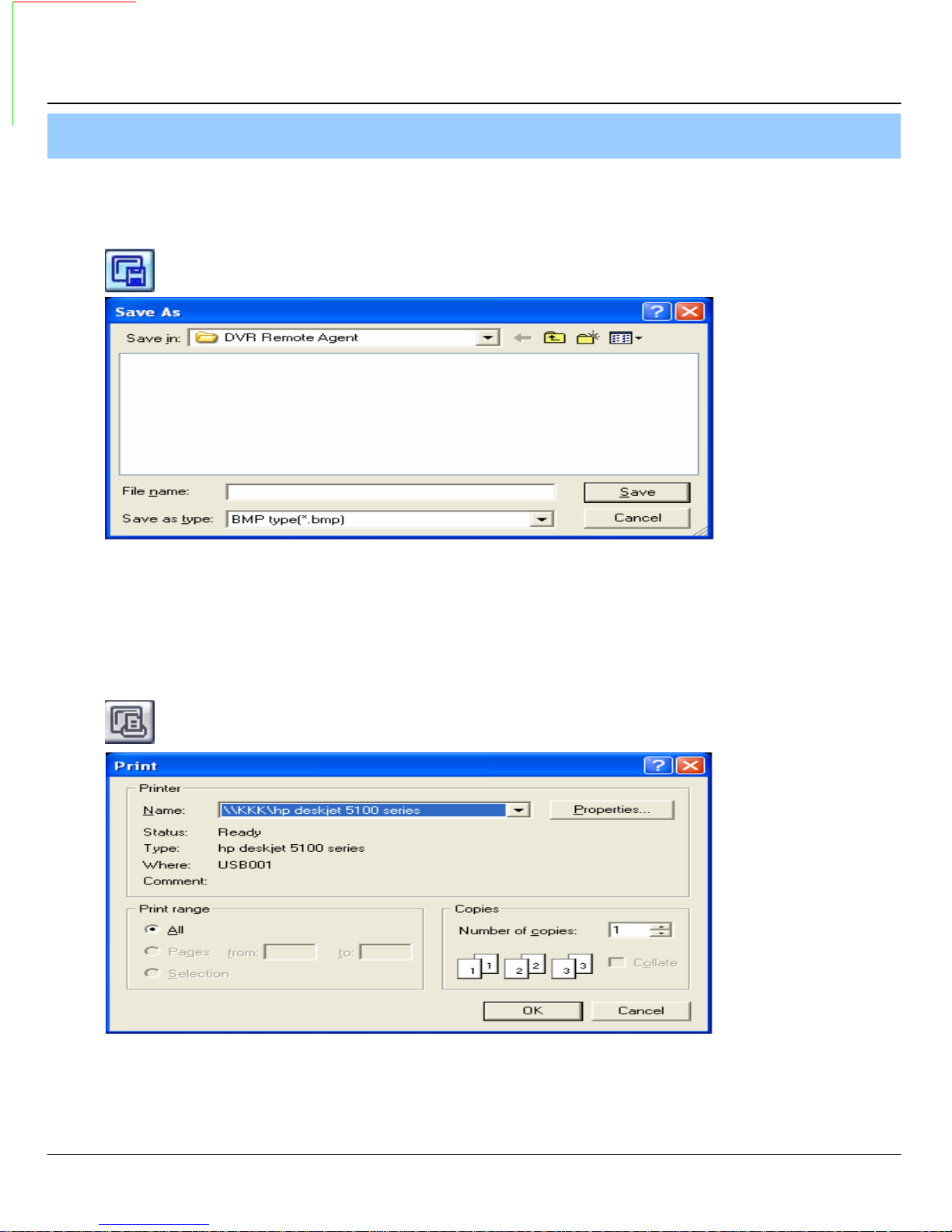

⑧ Screen Division Selection : Change Screen Division Mode ⑨ Save by AVI file : Transmission Live Image Save by AVI File

⑪ Event Viewer: Showing Present Event in Server & Find Image ⑫ PTZ Control Button : Control Camera PTZ & Focus ⑬ Audio Button and Alarm : Control Two Way Audio & Mute and Alarm On/Off ⑭ Exit : Exit DVR Client

⑮ Connection Status: Showing the connected DVR.

6. Client

2. Setting

2-1. DVR List

①

②③④

① DVR Status : Indicate Present Saving DVR & DVR Information.

② Click to Input New DVR Information.

③ After Amend All DVR Information, Applying Change DVR Information

④ Selected DVR Delete at DVR Status.

• Click the “ADD” button.

⑤ ⑥ ⑦

⑧ ⑨

⑤ Input Name to Add or Amend DVR. ⑥ Input DVR IP Address to Add or Amend. ⑦ Indicate Port No. ⑧ Input ID for Connecting DVR. ⑨ Input Password for Connecting DVR.

6. Client

2-2. Group List

②

①

③④⑤

① Group list ② DVR list belonging to the Group ③ Click to make the Group. ④ After Amend Group Information, Applying Change Group Information. ⑤ Selected Group Delete at Group Status.

• Click the “ADD” button.

①

②

③

① Input the Group name. ② selected Group members list. It can control Total 4 DVR at the same time. ③ Click the button after select the DVR. Then it is registered atthe group. ④ Remove the selected DVR.

④

6. Client

2-3. Option

①

②

③

④

⑤

① Receive Event : Select Kinds of Event as Multiple. Remote Client Only Receive Selected Event.

(System, HDD, Alarm, Video, REC)

② OSD Display : Select Screen Information. (Name, Date, Resolution)

③ Screen Switching Interval (sec) : During the Monitoring, Select Screen Rotation Interval Time

(From 1 sec. to 300 sec.)

④ Live Audio Monitoring Channel : Select Channel for Listening Audio at Remote Among 4Ch Audio.

⑤ Saving Directory : Designate Remote PC Backup Image Saving Folder.

2-4. DVR Server Remote Setup

• Choose the DVR for setup and click the “Setup” button.

6. Client

• Click DVR System Setup Tap, Password Input Window Open After Input Password, Setup Window Pop-up.

• DVR System Tap Indicated Only when Connect as Administrator.

• DVR System Setup Possible to Control Almost Every Setup at the Remote.

• When Activate Setup or Changing Setup at the DVR Server, It’s Impossible to Change Setup at the Remote.

• During System Setup at the Remote, DVR Server Setup Start Make to Close Remote System Setup Automatically.

①Record Setup

• Record Operations

- Schedule Mode: Weekly or Daily

-Sunday ~ Saturday

- Pre Event Recording Time: 0 ~ 5(Second)

- Post Event Recording Time: 5 ~ 180(Second)

• Alarm Recording Schedule

- Click the “Set: Button for Alarm Recording.

• Continuous/Motion record Schedule

- Click the “Set: Button for Continuous/Motion

record Schedule.

6. Client

②Camera Setup

• Status/Title Setup

- Setup for Each Camera (Connection Status or Camera Name).

•Color Setup

- Setup Color for Each Screen.

• Covert/PTZ Setup

- Setup Each Camera Covert Function & PTZ Protocol.

•Motion Area

- Click the “Camera” Button.

- Choose the area.

- Click the “Properties” button.

- Setup about PTZ camera.

③Audio Setup

• Live Audio Setup

- Live Audio & Two Way Audio Setup for Server.

6. Client

④Event/Sensor Setup

• Alarm Input

- Setup for Each Channel Alarm Connection & Type.

• Alarm Out

- Setup each channel when alarm, videoloss, motion are happened.

- HDD Event: Alarm On/Off when HDD has the problem.

- Operation: Setup Relay Connect with Alarm Sensor

- Mode: Setup Reacted Relay as Latched/Transparent Mode

- Type: Setup Relay Type N/Open or N/Close

- Duration: Setup Reacted Relay Time (5sec~5min or Until key-in)

• Buzzer out

- Setup each channel when alarm, videoloss, motion are happened.

- Buzzer: On/Off

- Duration: Buzzer time(5sec~5min or Until key-in)

- HDD Event: Buzzer On/Off when HDD event happen

- Keypad : Setup Key Input Sound

- Remocon: Setup remocon Input Sound

• HDD Event

- Drive ID: HDD Connected location

- Smart Alarm: On/Off

- Temperature: HDD Temperature

- Polling Time: HDD Checking Time

• E-mail Notification

- If happen the alarm, videoloss, motion and HDD event, setup the notification at the E-mail.

- HDD Event: E-mail notification On/Off when HDD event is happened.

- Notification: On/Off

6. Client

⑤ System Setup

•System Info

- Possible to Watch DVR System Status.

•SMTP

- Setup the mail server and user’s E-mail.

•Users

- Setup the Users.

- Click the “Add” or “Modify” button.

• Disk Overwrite

- Setup DVR HDD Overwrite On/Off.

• Network Speed

6. Client

3. Monitoring

3.1 Selection Network I/D

• Select I/D to Connect Server.

• I/D can be Add, Change, and Delete at Setup

3.2 Screen Division Selection

Tip

• 1*1 View : Showing One (1) Video which User Selected (Selection Video by Camera Selection Button)

• 4*4 View : 4 Screen Division Mode

• 9*9 View : 9 Screen Division Mode

• 16*16 View : 16 Screen Division Mode

• Screen auto switching : One Large Screen Mode Showing One by One (1*1

View) Depend on User Selection Time (Not Work Screen

Division Mode)

• Full Screen View : Present Video Move to Full Screen Mode

Mouse Double Click when Return Previous

*Mouse Double Click Make the Same Function as Full Screen.

※ Multi DVR Client

• 4EA DVRs can be control the live view, search the data, backup data and

setup about each channel at the same time.

• Refer to p48 about setup.

6. Client

• 9 Division Mode • 16 Division Mode

3.3 P/T/Z Control

• Press the PTZ Button.

• P/T/Z Controller : Camera P/T/Z Control by Direction Keys

• FOCUS/ZOOM Select Button : Focus

or Zoom Control

by +,- Button

• +,- Control Button : Focus or Zoom Control

6. Client

3.4 AVI File Conversion

• Click AVI Conversion Button to Start AVI File Conversion.

• During AVI Conversion Showing a Message and before

1 Click ‘Stop” Save AVI File continuously .

• ‘Press ‘Stop’ to Open Designate File Name

1 & Saving Location, and Save AVI File.

• Saved AVI File can Open Ordinary Moving

1 Picture Player or Backup Player.

3.5 Color Adjustment

• Moving Picture Player Codec Version Need

1 Higher than Divx 5.1 & IMM4 Codec.

• Click Controller Possible to Control Color

• Change Brightness, Contrast, Saturation from 0 to 100

• Click OK to Finish Changing Setup

6. Client

3.6 Event Viewer

① Indicate Event Occurred Order No.

② Indicate Event Occurred DVR No.

③ Indicate Event Occurred Camera No.

④ Indicate Event Occurred Time & Date

⑤ Indicate Event Detail Description

⑥ After Select Event, Move Search Bar in Search Mode

⑦ Return to Search Main to Play Selected Event Image

①② ③ ④

⑥

⑤

⑦

6. Client

4. Search

4.1 Function Introduction

①

③

④

⑤

⑥

⑦

②

① Search Screen : Playing Selected Video

② Search Bar : Search & Indicate Camera Recording Situation by Time Bar

③ LIVE : Return to Watch Mode

SETUP : Open Setup to Change Network Setup or Option

④ Screen Division Selection : Change Playing Screen Division Mode

⑤ SEARCH Option : Backup Video or Search Event

⑥ Camera Selection Button : Select Camera at the 1*1 View

⑦ Quick Search : Find Image to Designate Date & Time

⑧ Search Controller : Control Playing Video

⑧

6. Client

4.2 Search Method

②

① Indicate 0~24 Hour

② Indicate Recording Situation (Blue : No Record, Yellow : Recorded Image at the Time)

③ Search Bar : Select Video to Drag Mouse Search Controller in Recorded Area

④ Indicate Camera Channel to Confirm Camera Recording Situation

⑤ If Connected Channel is 5 or More, Another Channel will be Scroll.

⑥Sound

⑦ Refreshment Recording Information Situation Window by Camera Channel

①

③

④

⑥

⑤

⑦

Search Bar will Move, if Input Date & Time

Program Exit

Click Date Setup and Select Date on Calendar

Play Video as Normal Speed (Forward and Backward)

Search speed control

64 Times( Forward and Backward)

6. Client

4.3 SEARCH Option

③Save Image

①Backup

②Backup Play

④Print Image

①Backup – Backup Image from Server to Remote PC

⑤Log Search

⑥Event Viewer

•Time Range

Designate Backup Image Data Length to 1

Input Start Time & End Time.

• Channel : Check Camera Channel for Backup

• Include Audio : Check Audio Including when Backup

• Select All Deselect All

• Press OK to Open Backup Status & Start Backup.

• When Finish Backup, Back Status Window Disappear & Backup Data Save at Hard Disk Root Folder in

Remote PC.

6. Client

②Backup Play (DVR Player) –Transfer to DVR Player

④

⑤

352 X 2408

①

② ③

① Showing Image (Possible to Only 1*1View Mode)

② Backup File Open to Play First Video

Ex. : ch02_04131730_04131735.rec ( Backup File for # 2 ch. Apr.13, 17H30M ~17H35M )

③ Indicate Present Playing Video Camera Channel No.

④ Indicate Present Time & Date and Possible to Search Time & Date

⑤ Search Controller, the Same Way of Previous Search

Tip

• Backup Play Setup in Search Mode is the Same as DVR Player, 1

1 so it can be Run Independently without Running Remote Program.

• Backup Player & Ordinary Moving Picture Player Possible to Playback,

1 Real Time AVI Backup File can Display as the Same Format.

6. Client

③ Save Image – Capture Image & Saving Image at Hard Disk or Removable Disk

• Click ‘Save Image’ Icon During Playing Video

• Designate File name, File Type (JPG,BMP), and Location and Press Saving

• Conversion and Saving Image from Remote Viewer

④ Print Image – Present Image Capture and Print Out Image

• During Play Video, Click ‘Print Image’

• After Selecting Printer, Start Image Printing

• Print Out Remote Viewer Image

6. Client

⑤ Log Search – Find Video Centering around Event Log at DVR.

①

②

③④ ⑤ ⑥

⑧

⑦

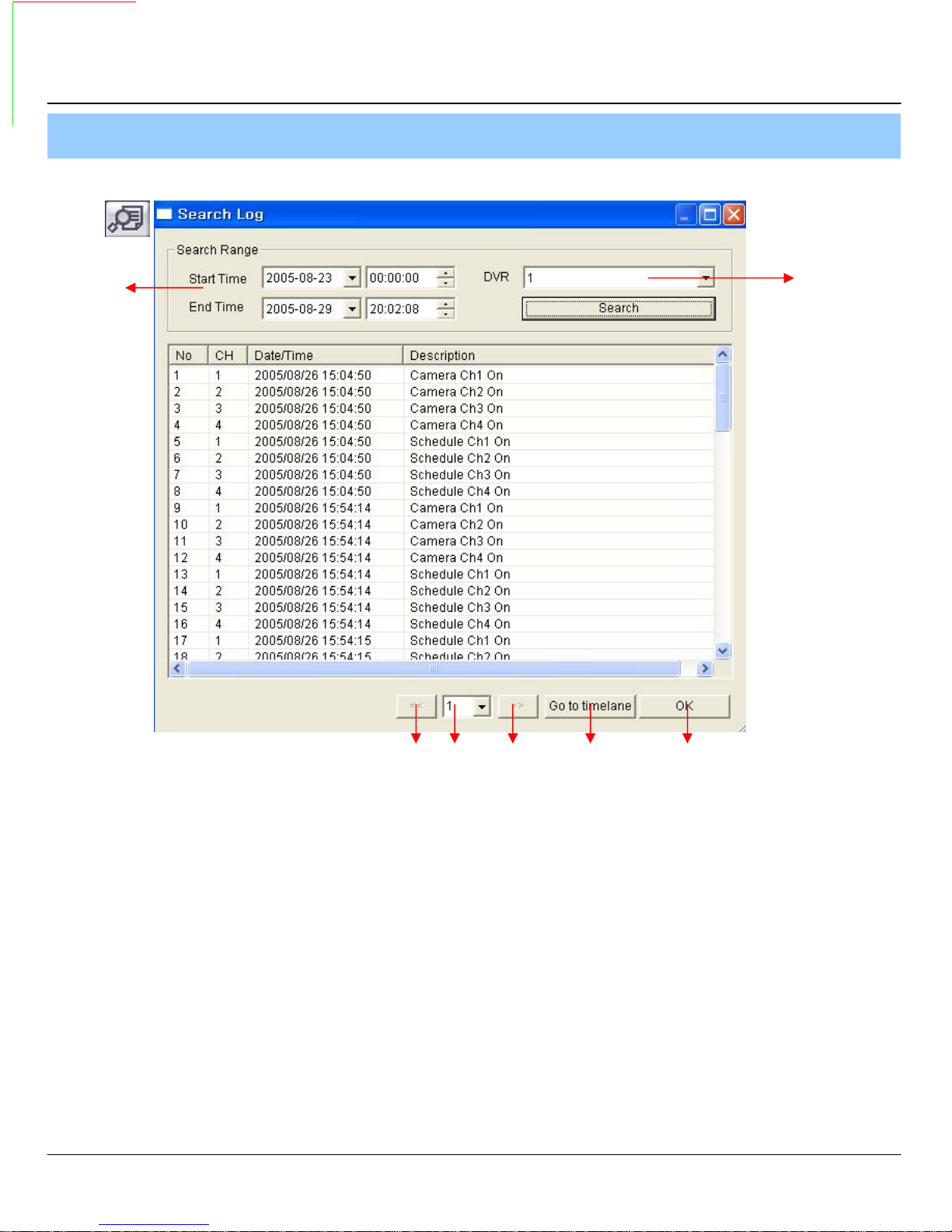

① Input Start Time and End Time at the Selected Date to Search Event

When Press Search Button, Event Output at the Below Window

② Choose the DVR for searching the log.

③ Indicate Event Log Order No. ( Max Event Log No. of 1 Page is 100 )

④ Indicate Event Occurred Camera No.

⑤ Indicate Event Occurred Time & Date

⑥ Indicate Event Detail Description

⑦ Move to Previous Page

⑧ Move to Next Page

⑨ Move to User Select Page

⑩ After Select Event, Move Search Bar in Search Mode

⑪ Return to Search Main to Play Event Image

⑨

⑩⑪

6. Client

⑥ Event Viewer- Showing Present Event in Server & Find Image

① Indicate Event Occurred Order No.

② Indicate Event Occurred DVR No.

③ Indicate Event Occurred Camera No.

④ Indicate Event Occurred Time & Date

⑤ Indicate Event Detail Description

⑥ After Select Event, Move Search Bar in Search Mode

⑦ Return to Search Main to Play Selected Event Image

①② ③ ④

⑥

⑤

⑦

6. Client

5. Web Client

• WEB Client Connection

① Input IP Address or URL for DVR Server at the Internet Explorer Address Input Place.

② When Appear Active-X install Message, Please Click Confirm or Continue.

③ Showing Web Client Window at Internet Explorer.

④ All function is same with RemoteAgent.

XRPlus XRS 2004 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
