Network Camera
IPC-100 User Manual
XRPLUS INCORPORATED
WWW.XRPLUS.CO.KR
sales@xrplus.co.kr
IPC-100 User Manual
Safety Precaution
We appreciate your purchasing IPC series. Before installing the product,
please read the followin g wi t h ca r e .
Make sure to turn off the power before installing IPC-100.
Do not install under the direct sunlight or in dusty areas.
Make sure to use the product within the temperature and humidity specified in t he
specification.
Do not operate the product in presence of vibrations or strong magnetic fields.
Do not put electrically conducting materials in the ventilation hole.
Do not open the top cover of the product. It may cause a failure or electric shock on
the components.
To prevent from overheating, make sure to keep the distance at least 10cm from the
ventilation hole.
Check for proper voltage before connecting the power.
-1-
IPC-100 User Manual
Table of Content
Table of Content..................................................................................................2
1. Introduction .....................................................................................................3
1. About User Manual..................................................................................3
2. Feature.....................................................................................................3
3. Product and Accessories .........................................................................4
4. Part Names and Functions......................................................................5
5. System Connections................................................................................6
2. Installation.......................................................................................................8
1. Connecting Network(LAN).......................................................................8
2. Connecting Audio.....................................................................................8
3. Connecting Serial Ports...........................................................................9
4. Connecting Sensor and Alarm.................................................................9
5. Connecting Power ...................................................................................9
6. Check if It Works......................................................................................9
3. System Operation ...........................................................................................9
1. Remote Video Monitoring....................................................................9
2. Initialization of IP Address..................................................................10
4. Remote Configuration...................................................................................12
1. Using Internet Explorer..........................................................................12
2. IPC-100 Configuration...........................................................................13
2.1 System Configuration...................................................................13
2.2 Video Configuration......................................................................15
2.3 Audio Configuration ......................................................................18
2.4 Network Configuration..................................................................19
2.5 Serial Port Configuration ..............................................................21
2.6 Event Configuration......................................................................22
2.7 Preset Configuration.....................................................................25
2.8 User Configuration........................................................................27
2.9 Camera Configuration..................................................................29
-2-
IPC-100 User Manual
1. Introduction
1. About User Manual
The User Manual is to provide information on operation of the high quality Network
Camera, IPC-100. In this guide, information on installation, operation, configuration of
IPC-100 is written as well as how to trouble shoot in case problems arise.
2. Feature
IPC-100 is a network camera and a video and audio surveillance transmission system
based on IP network through LAN, ADSL/VDSL, and Wireless LAN.
Video
- High-quality compression algorithm, H.264
- Compression in various resolution: CIF, Half-D1, D1
- Wide range of video transmission rate: 32kbps ~ 4Mbps
- Various transmission mode: CBR, VBR
- Motion detection
Audio
- Multi-transmission mode: Uni-direction (IPC-100 -> Client PC or Decoder,
Client PC or Decoder ->IPC-100), Bi-direction
Network
- Static IP and Dynamic IP(DHCP, PPPoE)
- One to one and one to many connection
- Multicasting
- Automatic transmit rate control according to network condition
Serial Data
- One serial ports (RS-485)
- Data pass-through mode: Serial data communication between IPC-100 and
Decoder
-3-
Sensor and Alarm
- Connections to external sensor and alarm devices
- Event Alarm
User Interface
- System status display utilizing OSD(On Screen Display)
- System configuration using Internet Explorer
Reliability
- Reliable embedded system
- System recovery utilizing dual watch-dog functions
IPC-100 User Manual

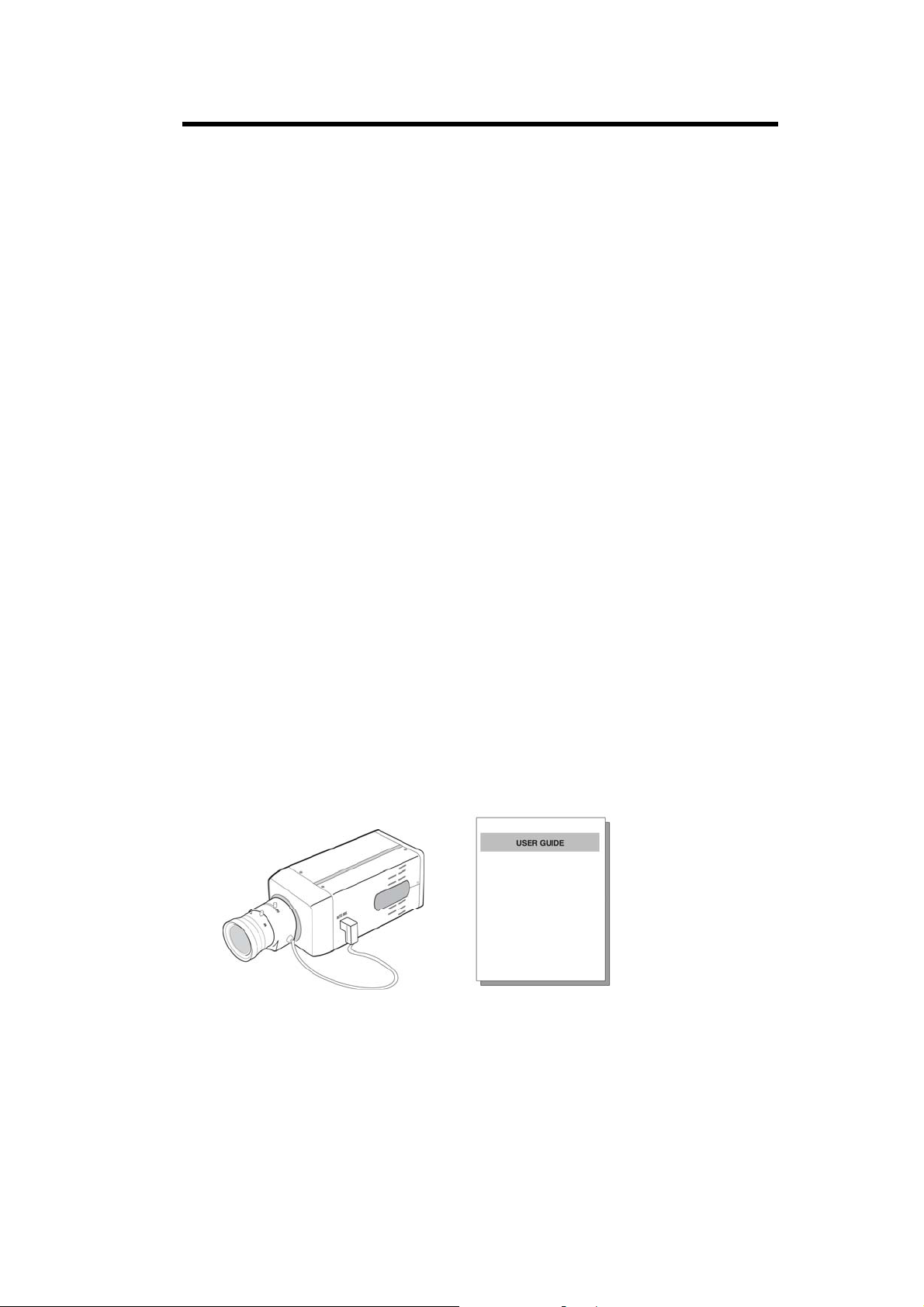

3. Product and Accessories
IPC-100 System User Manual
Power adaptor and cable CMS S/W CD
-4-
IPC-100 User Manual
<Picture 1> Product and Accessories

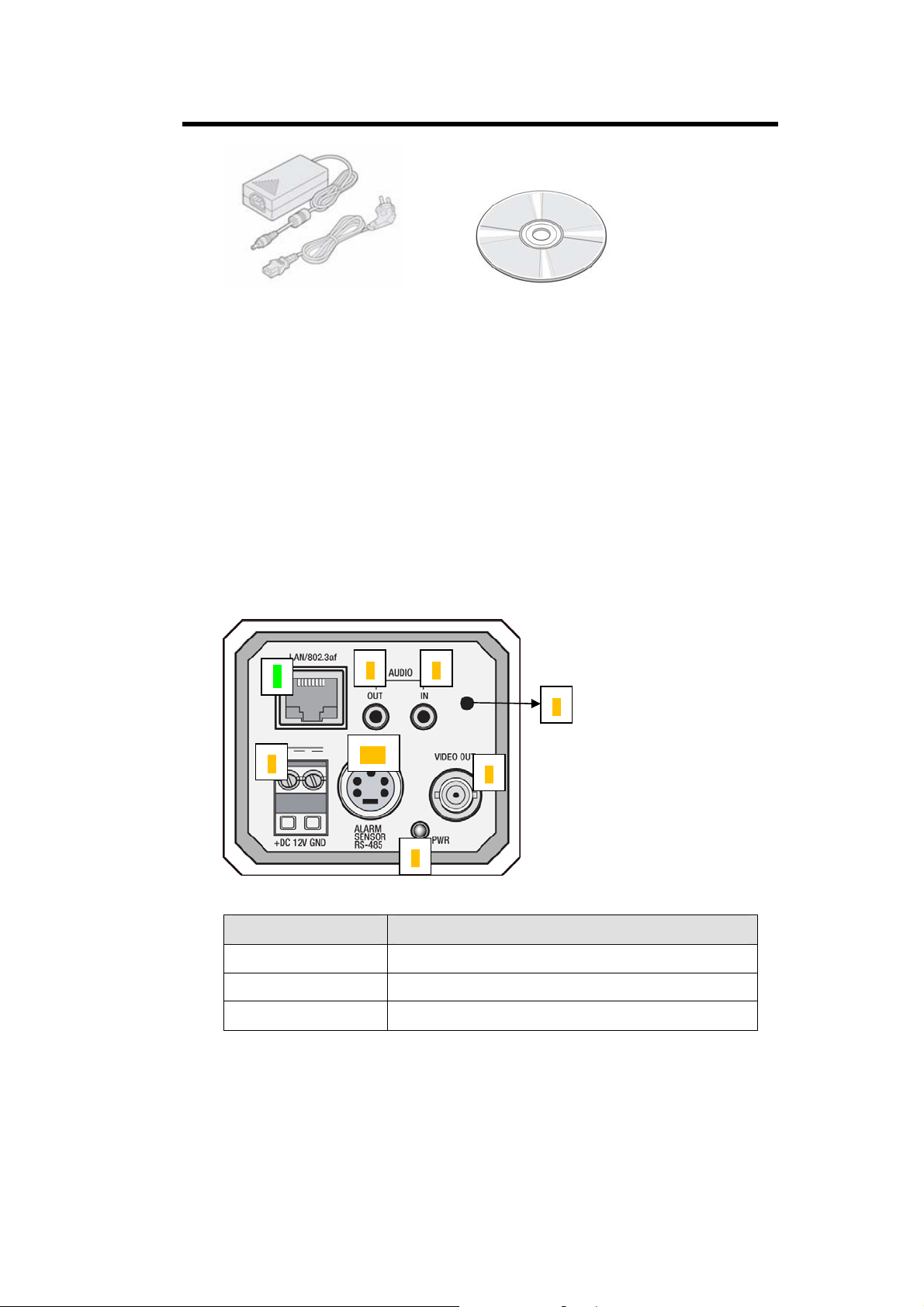

4. Part Names and Functions
Rear
1
5
6, 7
Connector Function
1. LAN/802.3af LAN port/802.3af PoE (Power over Ethernet)
2. AUDIO OUT Audio output
32
4
9
8
3. AUDIO IN Audio input
-5-
IPC-100 User Manual
4. RESET Button Reset button for network reset
5. POWER IN DC 12V power input
6. SENSOR/ALARM Sensor input/ Relay output
7. RS-485 Serial port. Support RS-485 protocol
8. POWER LED Power LED
9. VIDEO OUT Video output
5. System Connections
IPC-100 systems can be connected in either 1-to-1 fashion where one IPC-100 is
connected one PC client or decoder system or 1-to-many fashio n where one IPC-100
connected to many PC and decoder systems. (IPE-3100 video server can work as a
decoder system which takes the data from a video server or IP camera, decodes and
outputs analog video.)
Topology
Generally, the IPC-100 and the PC & decoder are conne cted in 1-to-1 mode or 1-tomany connection is also supported.

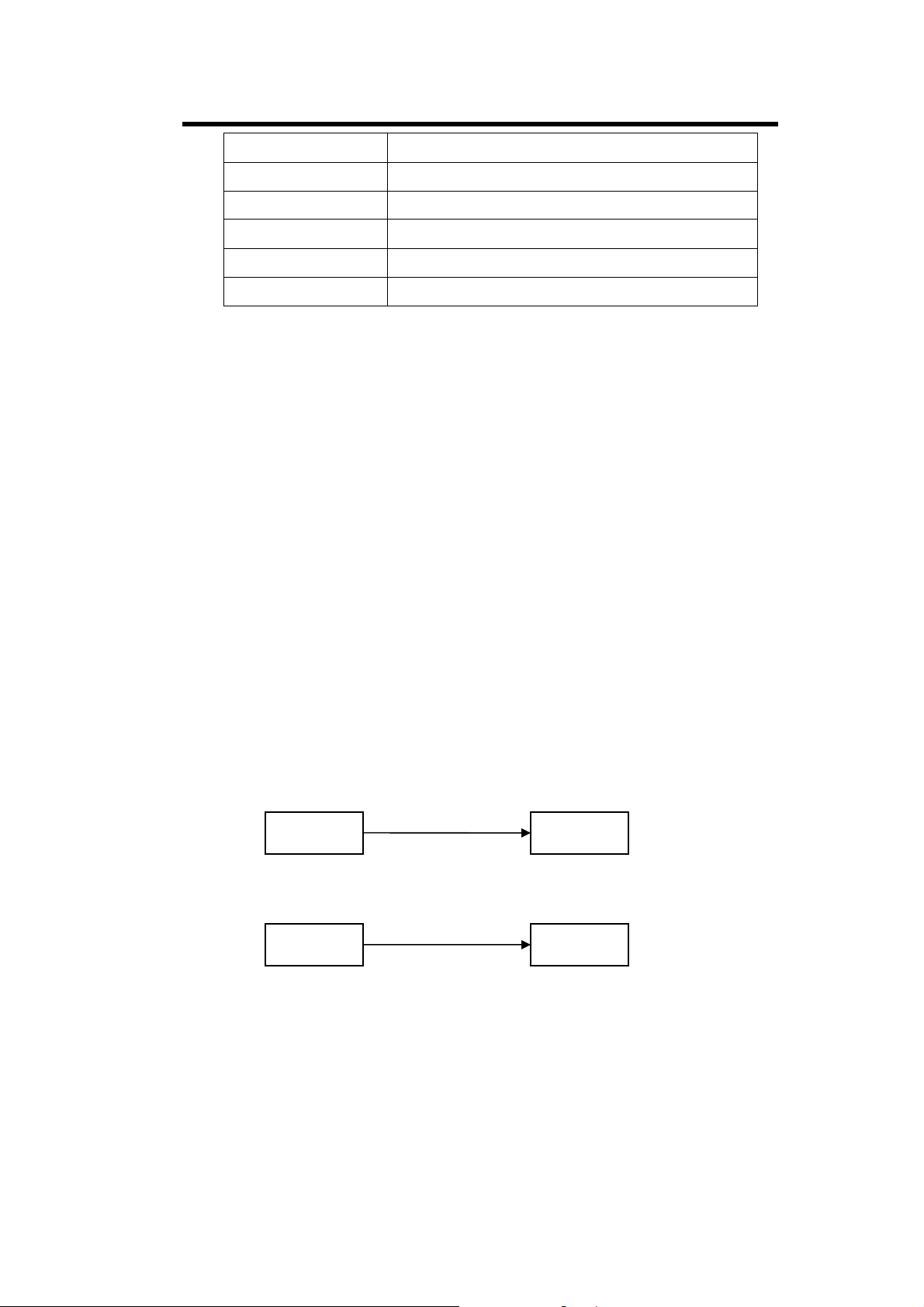

1:1 Connection (Unidirection)
Site
IPC Decoder
Site
IPC PC
Remote Center
Remote Center
Mostly used configuration is 1 to 1 connection. An IPC-100 is installed at a site where
-6-
IPC-100 User Manual
video images can be transmitted and a PC or a decoder is installed at a center location
to receive and view the video images on analog monitor. Audio and serial data are
transferred in either direction.
1:N Connection (Unidirection)
Site
IPC
Remote Center
PC or Decoder
PC or Decoder
PC or Decoder
In this configuration, a site can be monitored from many remote center locations.
Although up to 64 PCs or decoders can be connected to on IPC-100, in the real network
environment, network bandwidth can limit the maximum connections.
Functionally, the central monitoring system software can replace the decoder.
Multicast Mode
Within the network that supports multicasting, a large number of decoders can be used
to receive video effectively from an IPC-100 using a single streaming of video and audio.
Relaying
Site
IPC Decoder
Center 1
Center 2
Decoder
In this arrangement, video and audio can be retransmitted from a center to another
center. The arrangement is useful when the network bandwidth to the site is limited
while there are more than one center wanting to monitor the site.
-7-

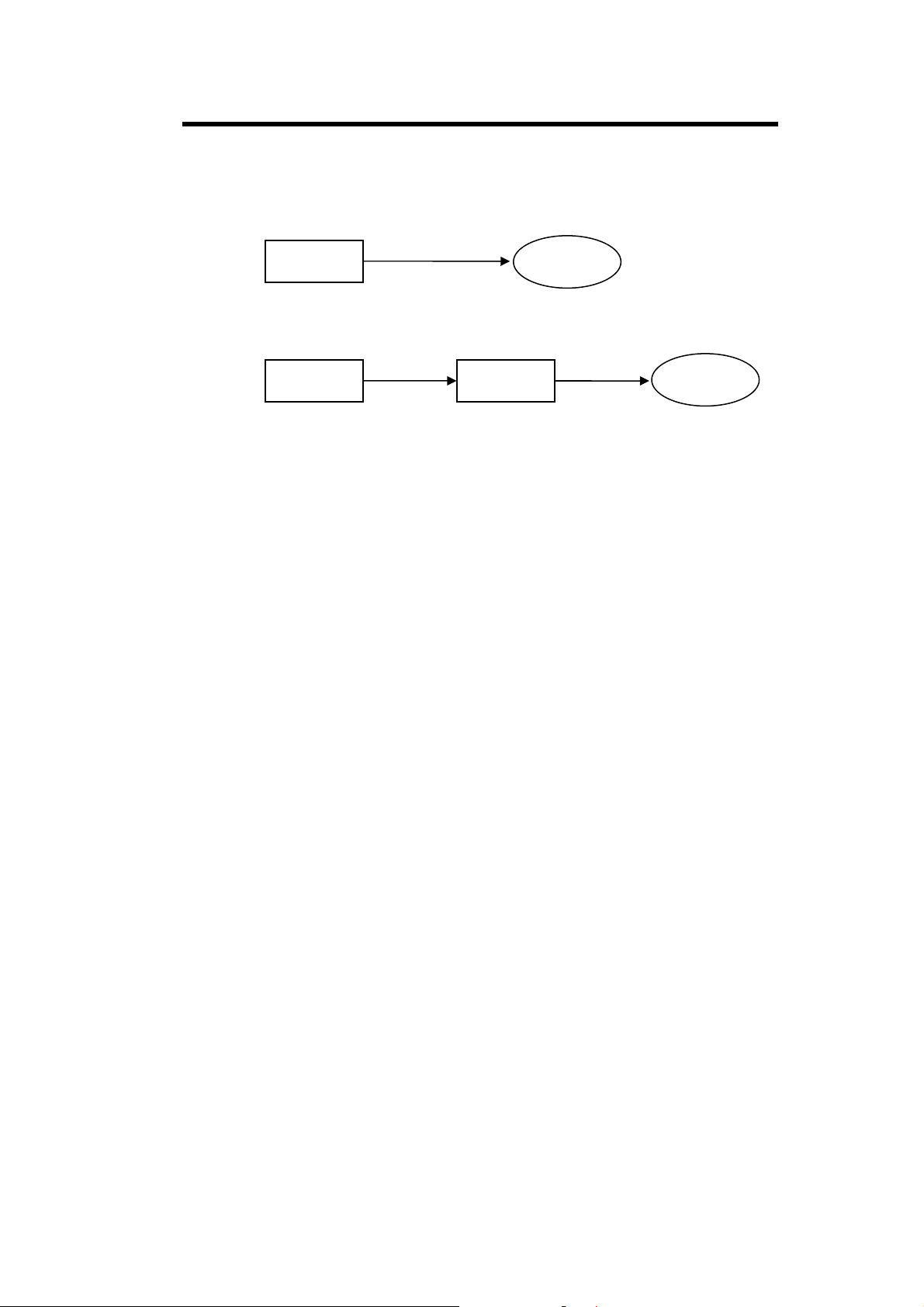

Central Monitoring System
IPC-100 User Manual
Site
IPC
Site
IPC Decoder
CMS (Central Monitoring System) is a Windows based remote monitoring program to
access multiple IPC-100 for real-time monitoring or control of the encoders and
connected cameras. Please refer to CMS User Manual for more information on CMS.
Remote Center
Remote Center
CMS
CMS
2. Installation
1. Connecting Network (LAN)
Connect LAN and there is a Video output to check video quality.
2. Connecting Audio
Audio is bi-directional in any configuration. If necessary, it can be configured to be in
transmit-only, receive -only or bi-directional mode.
-8-
IPC-100 User Manual
- Connect audio input and output ports to audio devices accordingly.
- Audio signal is in line level, therefore, microphone or speaker with amplification
function should be used.
3. Connecting Serial Ports
The serial port (RS-485) in IPC-100 can be connected to external equ ipment such as
PTZ receiver etc. Then, PC client can send PTZ commands to the external equipment
via serial port. When a decoder system instead of PC client is connect ed to IPC-100,
the serial port of IPC-100 and that of the decoder system works in pass-through mode.
That is, data at one port are delivered to the other port, vice versa.
4. Connecting Sensor and Alarm
Connect sensor and alarm devices to corresponding terminals accordingly.
5. Connecting Power
After confirming the power source, connect power adaptor and connect the 12VDC
connector to the system. Soon the system will boot up to an operating mode.
6. Check if It Works
As soon as the power is supplied to the system, it will boot and, after about 30 seconds,
the system will be ready for operation.
3. System Operation
1. Remote Video Monitoring
There are two ways to view the video once connections are made between the site and
center system. In order for a proper operation, an IP address must be set accordingly
and please refer to IP Manager in Chapter 4 or Remote Setting in Chapter 5 for a
further details.
Default ID : admin Password : 1234
-9-
IPC-100 User Manual
Video Monitoring with Decoder Sy stem
Once the IPC-100 IP address is set in the remote IP address section of the decoder, the
decoder system will connect to the IPC-100 and start receiving the video images.
Normally, a monitor connected to the decoder will display video images.

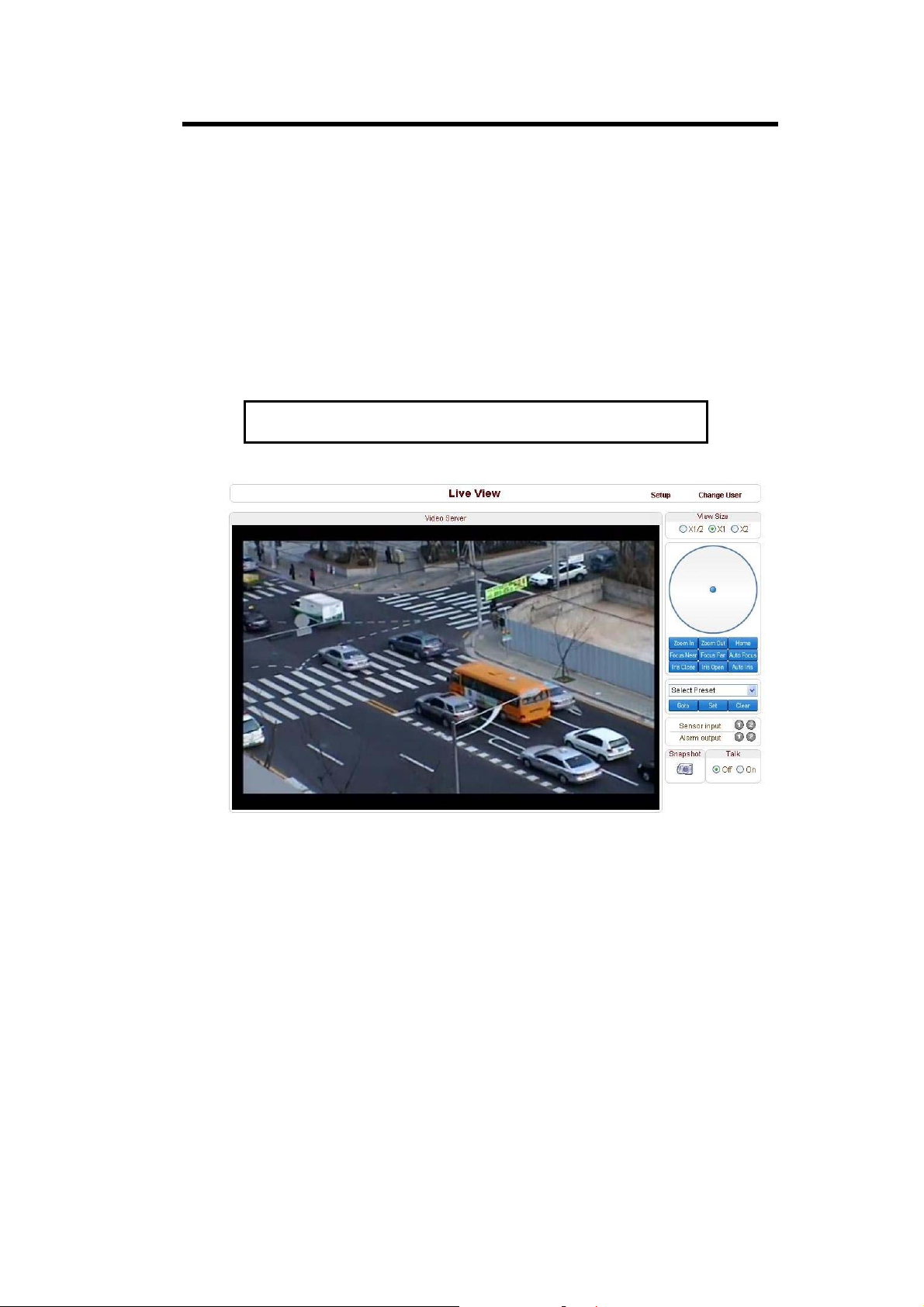

Video Monitoring using Internet Explorer
If an encoder’s IP address in entered on the Internet Explorer, the system will ask for
confirmation to install Active-X control. Once authorized, the Internet Explorer will start
to display video images from the encoder as shown below.
http://192.168.10.100
2. Initialization of IP Address
If a system IP address is lost, the system can be reset to a known IP address using the
reset button in the back side of the system:
c While system is in operation, press the reset button more than 5 seconds.
d The system will reboot automatically
e Once the system has been rebooted, IP address will be set to the following.
- IP mode: Fixed IP
-10-
- IP address: 192.168.10.100
- Subnet mask: 255.255.255.0
- Gateway : 192.168.10.1
- Base port : 2222
- Http port : 80
IPC-100 User Manual
-11-
IPC-100 User Manual
4. Remote Configuration

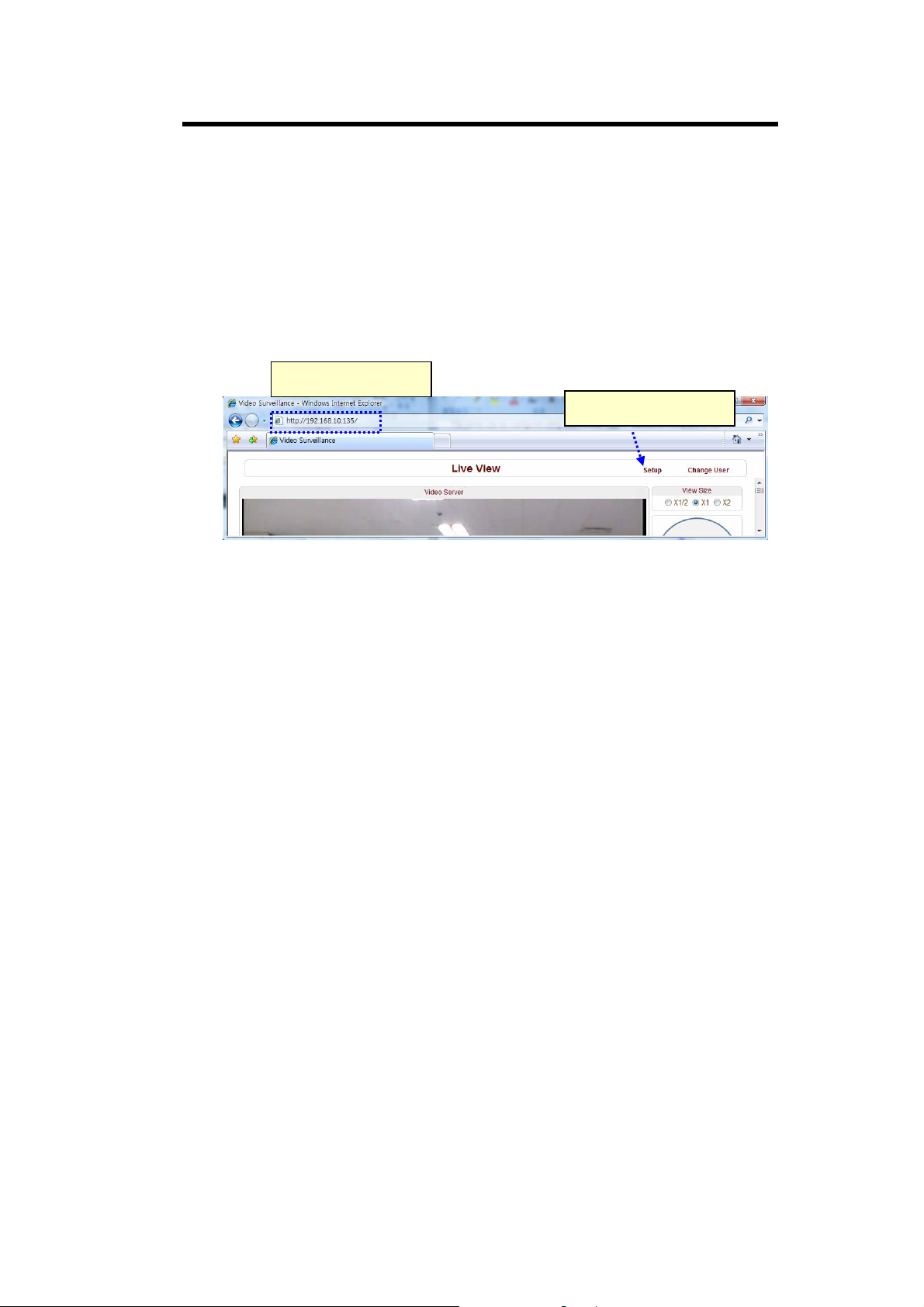

1. Using Internet Explorer
The server can be configured using web browser. Type IP address of IPC-100 in the
address input area of Internet Explorer, then a live viewing screen will be displayed.
Press Setup button located in the upper right area of the monitoring screen, then the se
page for server setup will be displayed.
c Enter IP address
d Press Setup button
The configurations are grouped into 8 categories: System, Video, Audio, Network,
Serial, Event, Preset and User. Any configur ation changes are not applied until Apply
is pressed. Leaving the page without pressing Apply button, changes in the page will be
discarded.
-12-
2. IPC-100 Configuration

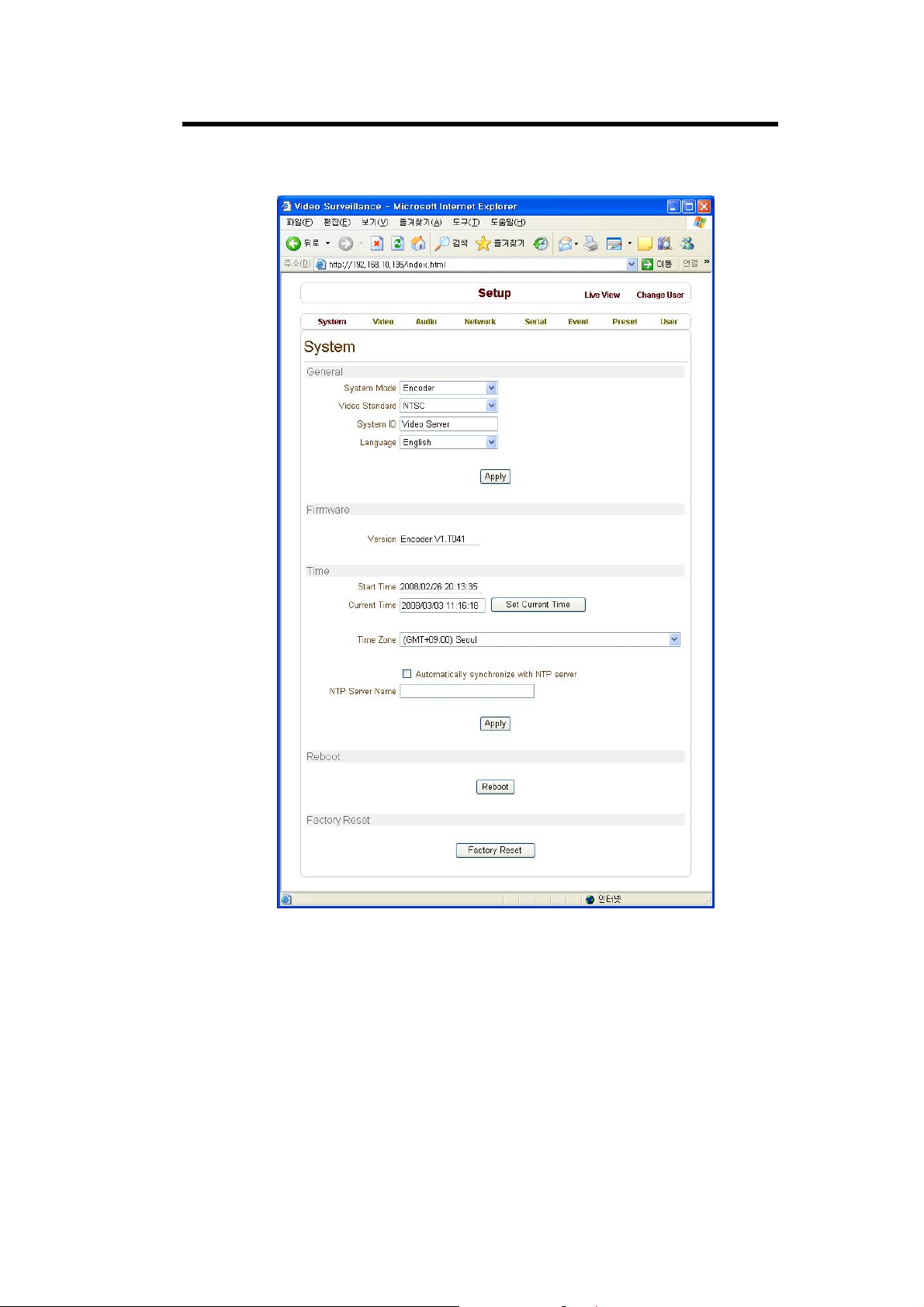

2.1 System Configuration
IPC-100 User Manual
Video Standard
Video signal type: Select NTSC or PAL
System ID
-13-
System ID: Alphanumeric System ID to be transferred to remote software
Language
Language to be used for web-based configuration (English, Japanese and
Korean)
Firmware version
Current firmware version
Start Time
Latest system boot date and time
Current Time
Current date & time: Enter a new date and time and press Set Current Time
IPC-100 User Manual
button to update date & time.
Time Zone
Time zone: Select time zone of where the system is installed. Depending on the
time zone, Daylight Saving Time will work automatically..
Automatically synchronize with NTP server
Synchronize system time with an NTP server using NTP (network time
protocol). Name of the NTP server should be registered on NTP server Name.
Reboot Server
Pressing Reboot Server button will cause the system to reboot. Do not press
the Reboot button unless the server needs a reboot.
Factory Reset
Set all settings to the factory default values. System log and user registrations
are also cleared.
-14-
2.2 Video Configuration
IPC-100 User Manual
Preference
Preference in video compression and transmission: With ‘Bitrate’ selected,
the video compression will be effected by the ‘Bitrate’ value entered. With
‘Quality’ selected, the video compression will be effected by the quality of
-15-
Resolution
Frame rate
Quality
IPC-100 User Manual
image selected. Therefore, ‘Bitrate’ and ‘Quality’ corresponds to CBR and
VBR respectively.
Selectable video compression resolution:
NTSC: 720X480, 720x240, 352X480, 352X240
PAL: 720X576, 720X288, 352X576, 352X288
Selectable video frame rate: Determine the maximum number of frames of
video images to compress. The frame rate of actually transmitted video
can be affected by the network bandwidth limitation.
Video image compression quality: The selection is possible with
Preference is set to ‘Quality’.
Bitrate
Video bitrate: The value is applicable when Preference is set to ‘Bitrate’.
I-Frame Interval
I-frame interval: Possible values between 0 and 255. There will be no Iframes if 0 is selected.
Use Motion Detection
Turn on/off motion detection operation.

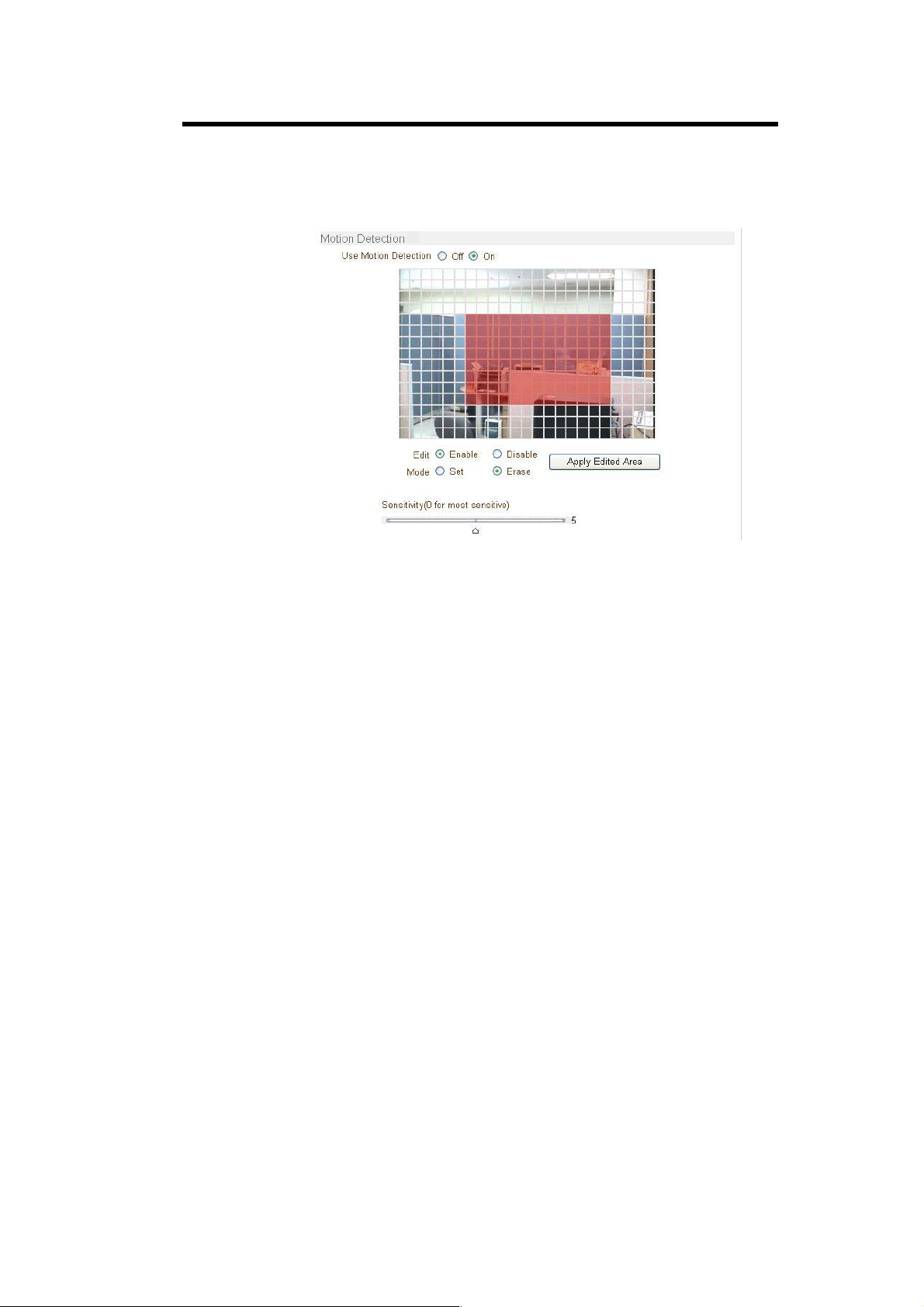

Motion Detection Area Editing
Configure regions for motion detection. Regions of arbitrary shape can be
configured by the following steps.
c Enable Edit item.
d Select editing Mode. Set is for including cells to motion detection region
and Erase is for excluding.
-16-
IPC-100 User Manual
e Select cells using the right button of the mouse. Multiple cells can be
selected conveniently by press and dragging.
f Press Apply Edited Area to save the editing.
Sensitivity
A condition to trigger events with motion detection. The value determines
the sensitivity of the motion detection within a block: the smaller, the more
sensitive.
Information Display
System ID and/or server time can be display over the video window in
Internet Explorer. Each item can be turn on or off separately, and position
also can be configure. These information are displayed after the video is
decompressed.
Burn-in OSD
Inserts system ID and date/time in the compressed video. Separately
System ID and Time can be turned On or Off in the video. Position
specifies the position of such data.
Brightness
Controls input video brightness by selecting values between 0 and 100.
-17-
Contrast
Controls input video contrast by selecting values between 0 and 100.
Hue
Controls input video Hue by selecting values between 0 and 100.
Saturation
Controls input video saturation by selecting values between 0 and 100.

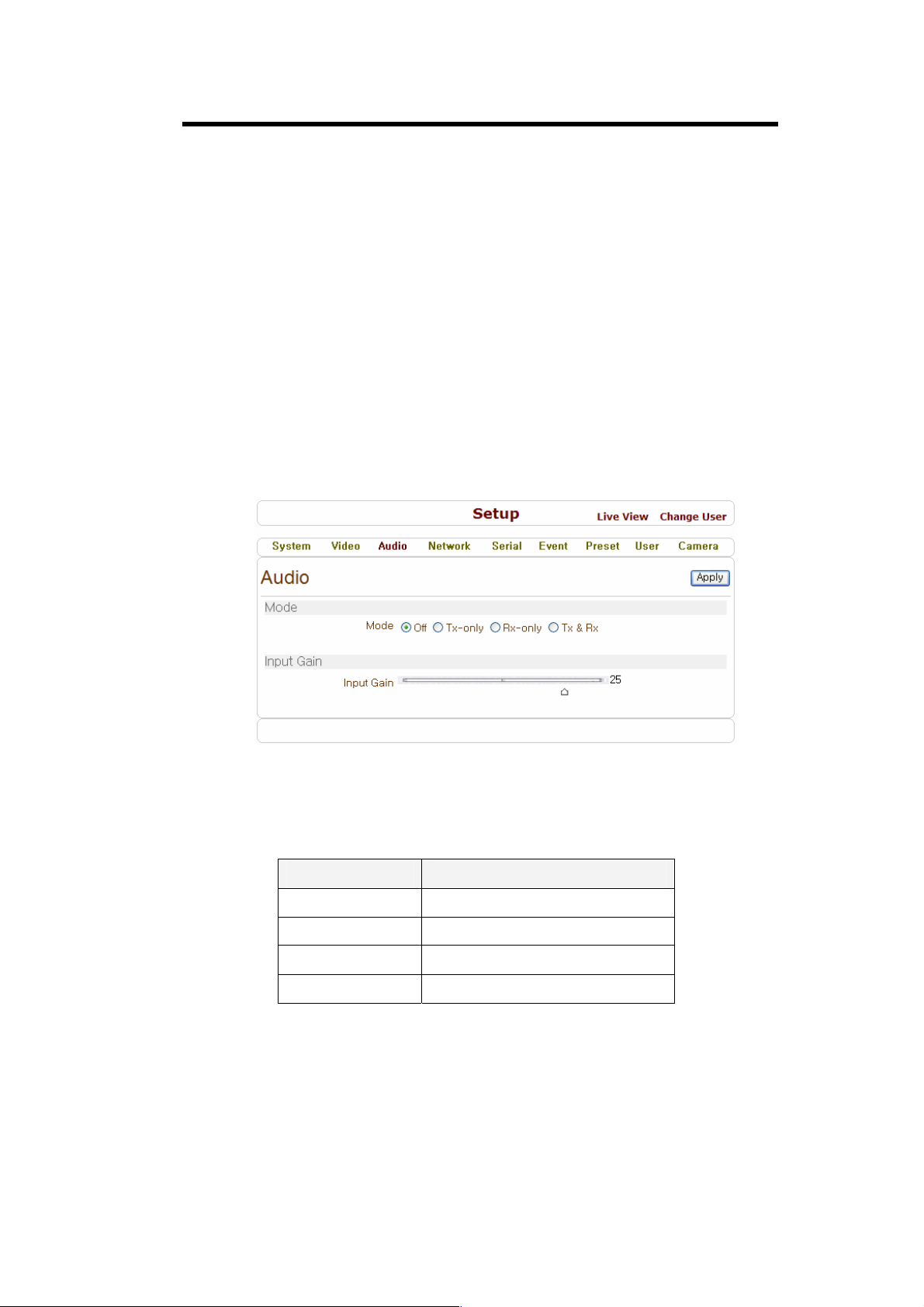

2.3 Audio Configuration
IPC-100 User Manual
Mode
Select audio operation mode.
Mode Action
Off No operation
Tx-Only Transmit only
Rx-Only Receive only
Tx & Rx Transmit and Receive
-18-
Input Gain
Set audio input gain.

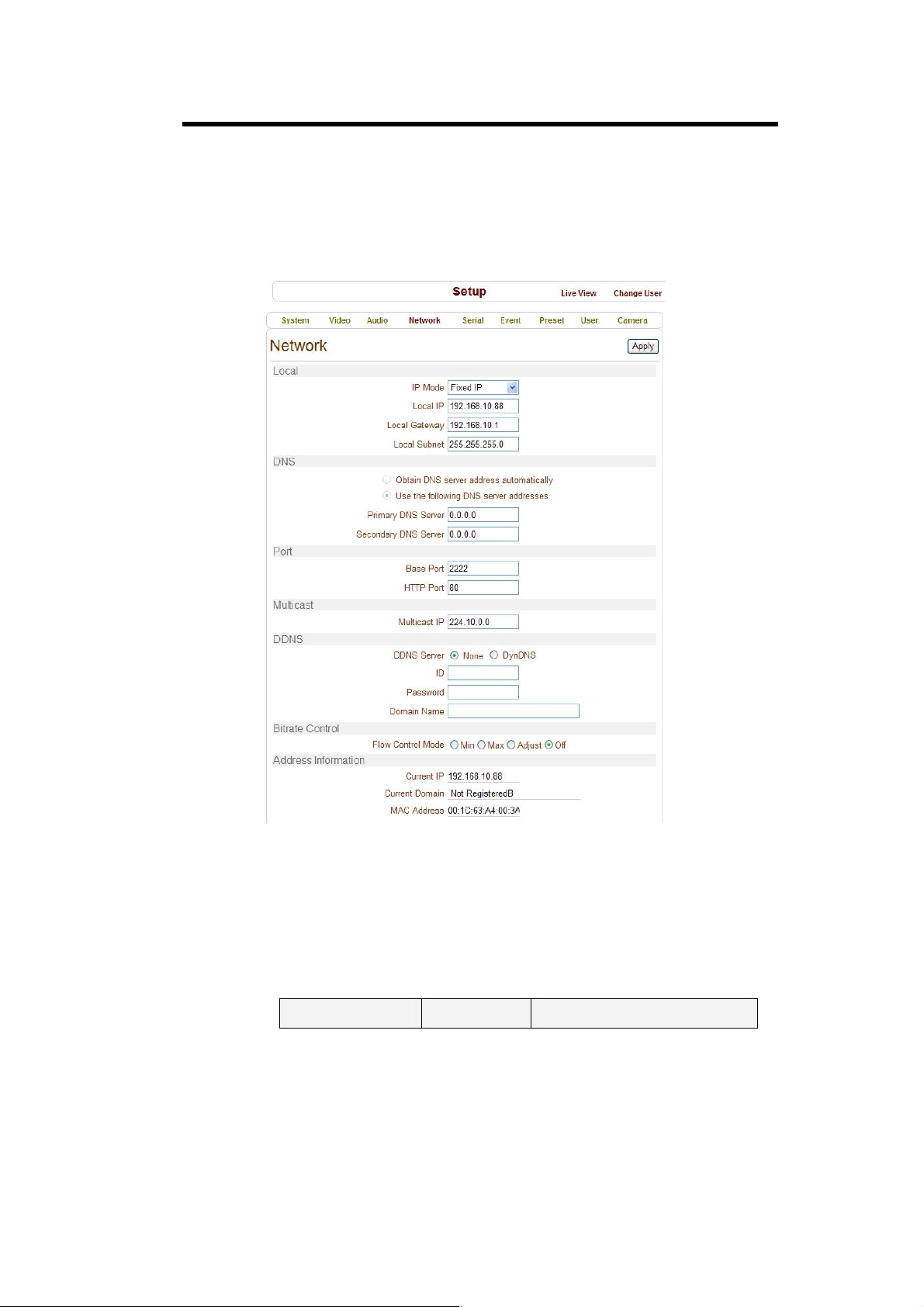

2.4 Network Configuration
IPC-100 User Manual
IP Mode
Three IP modes are supported. Depending on the selected mode, further
configuration items come as follows.
IP Mode Selection Description
-19-
IPC-100 User Manual
Local IP Fixed IP address
DNS
Base Port
HTTP Port
Fixed IP
DHCP
☞ Please ask an IP address information from ISP provider or network manager.
Set DNS server IP address.
Local Gateway Gateway IP address
Local Subnet Subnet mask
N/A
Network base port use for communication between systems. In order for the
servers and remote systems to be connected together, the port number must
be identically set.
HTTP port use for web-based connection
Multicast IP
The multicast IP address selection range is between 224.0.1.0 and
238.255.255.255. The selection can be used only when medi a protocol is set to
Multicast. The multicast address must be the same for the system to be
connected using multicast protocol.
DDNS
If you want to use DDNS service, use DynDNS service. Refer www.dyndns.org
for details.
Flow Control Mode
When several clients connect to a server, bandwidths of networks clients may
differ and some clients may not receive encoded stream full y. To handle such
situation, three flow control modes which can be chosen according to users’
preference are provided.
-20-
Address Info
Display network related information.
IP Address
IPC-100 User Manual
Mode Description
Min The bitrate is automatically adjusted to a client with
smallest network bandwidth.
Max The bitrate automatically adjusted to a client with
largest network bandwidth size. When set to this mode,
a client with smaller bandwidth will not receive all
frames of video.
Adjust The bitrate is adjusted to most optimum rate by learning
the network bandwidth.
Off Flow control is off.
The server own IP address. This information is useful when the server ’s IP
mode is set to DHCP.
Domain Name
In case the server is registered with DDNS server, the registered domain
name is displayed.
MAC Address
Display the MAC address of the server. In case the server is registered
with DDNS server, the MAC address is used in DDNS registration.
2.5 Serial Port Configuration
In case for the user who uses IPC-100 / 200 / 300, there might be very seldom case to
use this Serial port.
Serial Port Configuration
Differ to IPE-3100 Video server, There are one serial ports, RS-485, in IPC-100.
Sensor Type
There are one sensor input ports on IPC-100. the sensor port can be
-21-
configured to the following.
Function Operation
OFF Not used
IPC-100 User Manual
NO (Normally Open)
NC (Normally Closed)
The function of the sensor port is set based on the type of the sensor
connected.

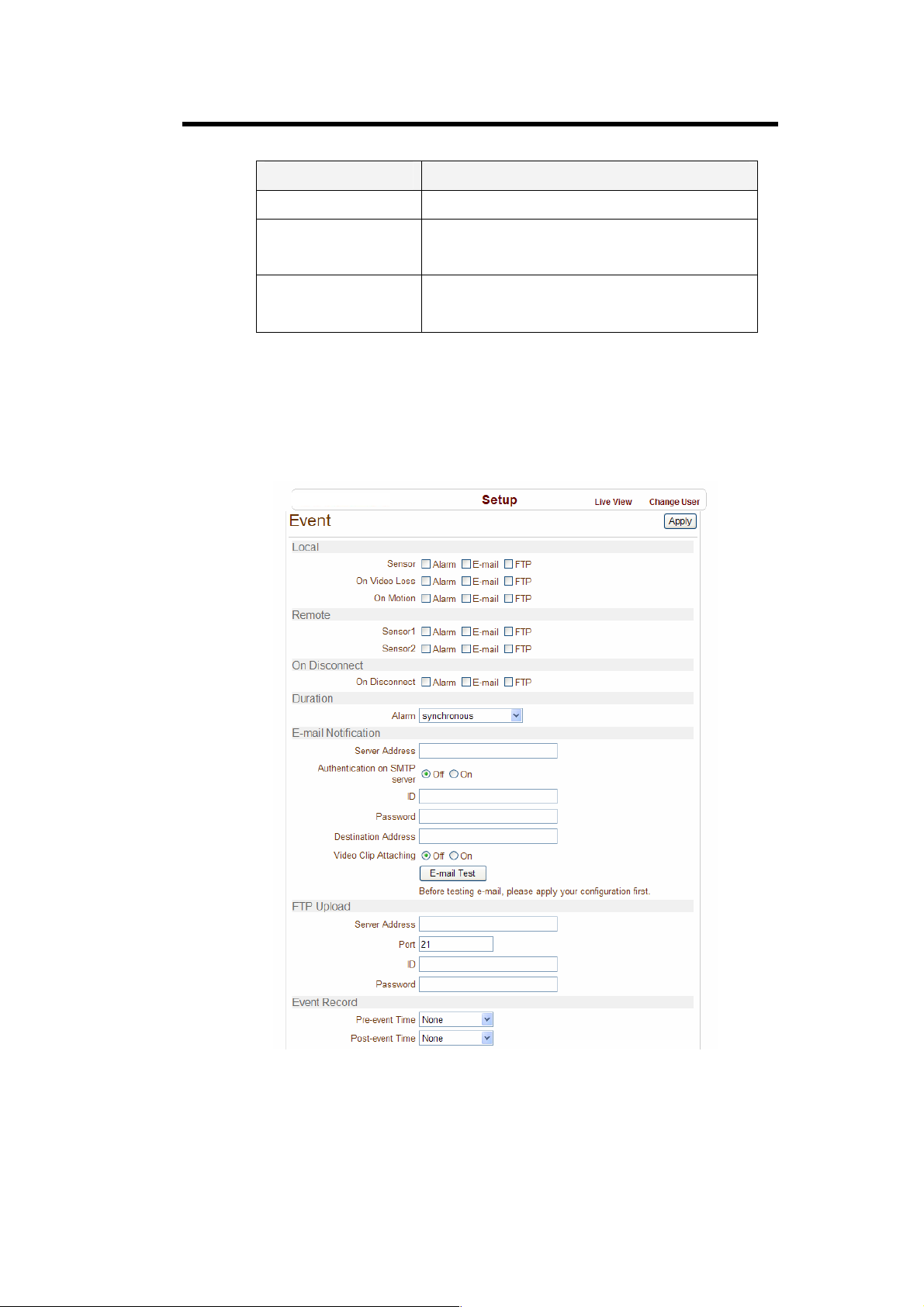

2.6 Event Configuration
The port is normally open and activated when
closed.
The port is normally closed and activated when
opened.
-22-
IPC-100 User Manual
The IPC-100 series has one sensor port and alarm port. Actual numbers of
sensor, alarm ports and beep may vary depending on models.
When a decoder system instead of a PC client is co nnected to a IPC-100, one system
becomes a Local system and the other a Remote system (Generally a system which is
being used by the user is called as Local system). Then, actions for events can be
configured for events from remote system as well as for local system. For example, it is
possible to turn on an alarm device in local(center) decoder system when a sensor
device in remote(site) IP camera is triggered. Local section configures the actions for
events from local (self) system, and configuration activates local devices and Remote
sections configures the actions for events from remote (peer) system.
. The following table lists the possible actions for events.
Sensor In One sensor in port
Alarm out Triggers alarm (relay) port.
Sensor
Configure the actions when the sensor is activated. Multiple actions can be set
for a single event.
On Video Loss
Configure the actions when video input signal is lost. Multiple actions can be
set for a single event.
On Motion
Action Description
Sends E-mail to the specified address. AVI file can be
E-mail
attached
FTP Upload AVI file to a specified FTP server
Configure the actions when motion is detected. Multiple actions can be set for a
single event.
-23-
IPC-100 User Manual
On Disconnect
Configure the actions when the link (connection) with peer system is
disconnected. Multiple actions can be set for a single event.
Alarm activation duration
Set the duration of alarm activation in case of an event. If it is set to continuous,
it will be in active state until an operator reset it manually.
E-mail Notification
Specify the information to send E-mail as the action of an event. The address of
mail (SMTP) server needs to be specified on Server Address field and Port
specifies the port for SMTP operation (Port 25 is the default port in SMTP
operation. If different port is configured in the SMTP server, this port needs to
be changed accordingly). When the server requires authentication, ID and
password of an E-mail account need to be entered also. Destination address
needs to be entered on Destination Address field. More than one address can
be entered by delimiting comma(,) or semi-colon(;). Destination address can
take up to 63 characters. Video clip of AVI file format at the moment of the
event can be attached by setting Video Clip Attaching.
FTP Upload
Specify the information for uploading video file as the action of an event. The
address of an FTP server to receive video files is specified on Server Address
field, and Port specifies the port for FTP operation (Port 21 is the default port in
FTP operation. If different port is configured in the FTP server, this port needs
to be changed accordingly.). ID and password for accessing the FTP server
also need to be specified.
Event Recording
Specify how a video clip is to be generated for E-mail sending or FTP uploading.
Pre-event Time specifies the duration of recording before an event happens.
Post-event Time specifies the duration after the event is cleared.
-24-
2.7 Preset Configuration
d Preset Name
IPC-100 User Manual
c Move PTZ Camera to normal view
f Save
e Press Set Button
This function is available for using IPC-100 / 300 in order to control PTZ effectively.
Configure up to 15 preset positions. Preset function is not available on some PTZ
receivers. Make sure to check if a PTZ receiver supports preset.
Preset Configuration
Set the PTZ Presets by following the next steps.
c Move cameras to desired view using PTZ control buttons.
d Enter Preset name.
e Press Set button.
f Once all the presets are set, press Save List button.
-25-
Move to Preset Position
Select a preset from the Preset and press Go To button, then, the camera will
move to the selected preset position.
2.8 User Configuration
IPC-100 User Manual
User can be registered and privilege level of a user can be specified. User configuration
is allowed only to admin user. Max 16 users can be registered and each user can have
one of four privilege.
Privilege Allowed Operations Remarks
Admin All operations User ID = admin
Manager
All operations except for user
configuration
User Live viewing and PTZ control
Guest Live vi ewing only

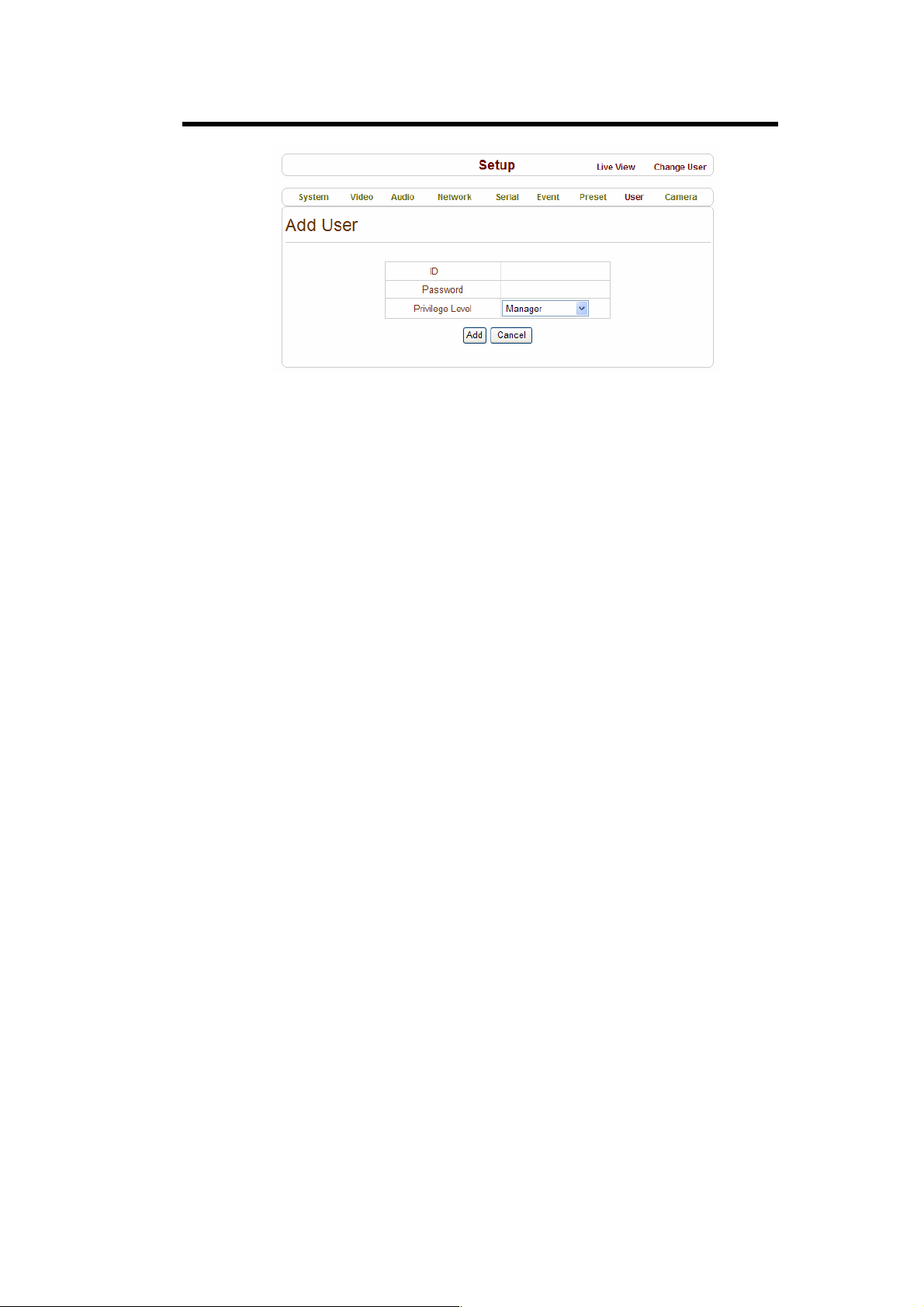

Add User
Page for adding a user comes on pressing Add button.
-26-
IPC-100 User Manual
User ID and password need to be entered and privilege level need to be
selected. User ID and password consist of alphanumeric string of max 15
characters.
Delete User
A user is deleted by pressing Delete button.
Change Password
Pressing Modify Password button after selecting a user shows a page for
changing password.
In case changing admin password, old password is checked.

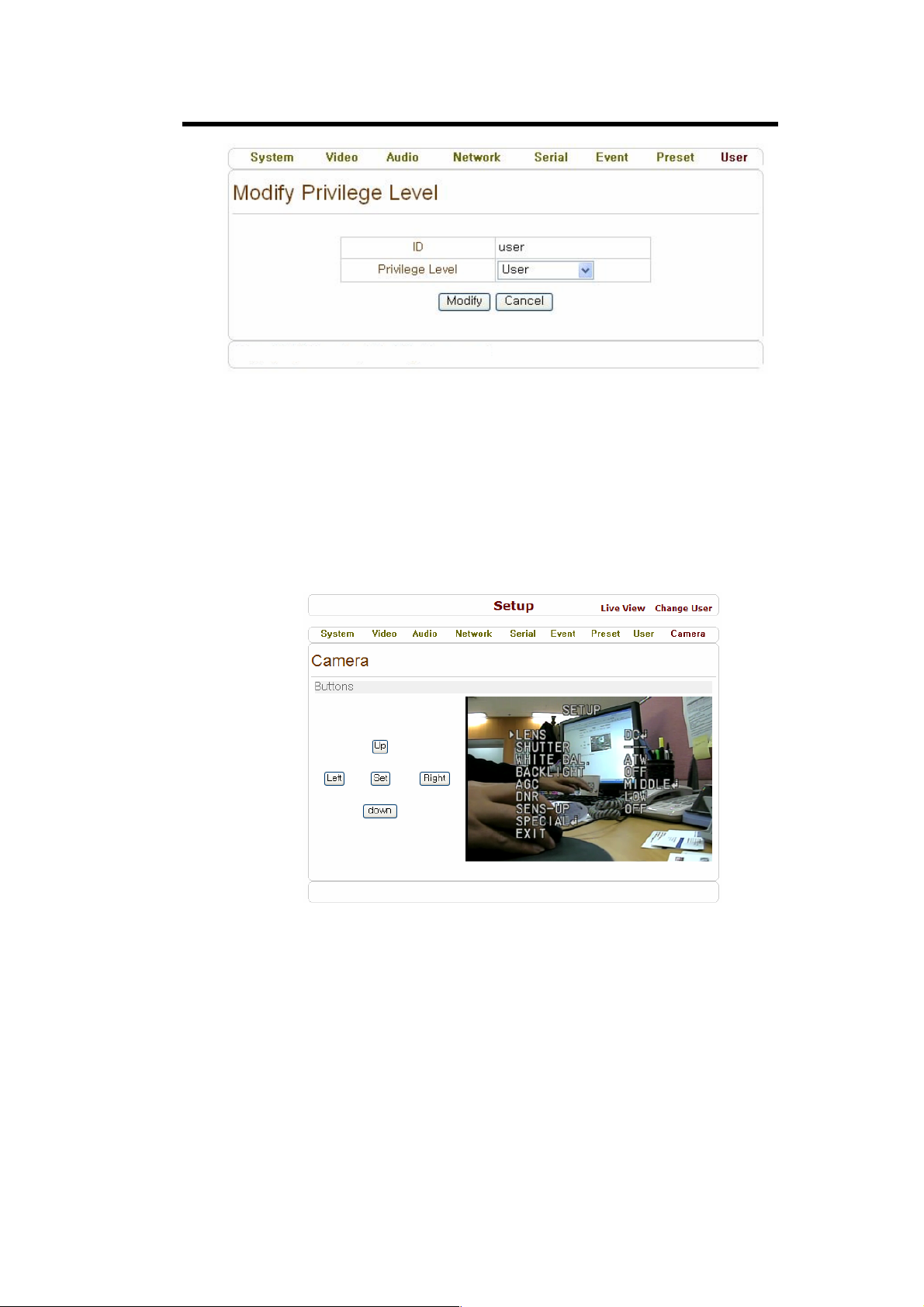

Modify Privilege Level
Pressing Modify Privilege button after selecting a user shows a page for
changing the privilege. It is not allowed to change the privilege level of admin
user.
-27-
Login Policy
Skip Login is provided for convenient access to the server when authentication
is not required. When Skip Login is set to Enable, login step is skipped. The
privilege level after login in this way is determined by the setting of Privilege
IPC-100 User Manual
Level After Login Skipped.
2.9 Camera Configuration
Settings for analog part of the camera can be configured. Camera-specific menu is
displayed using OSD on video display, and this menu can be operated with 5 buttons on
the page.
-28-
Loading...
