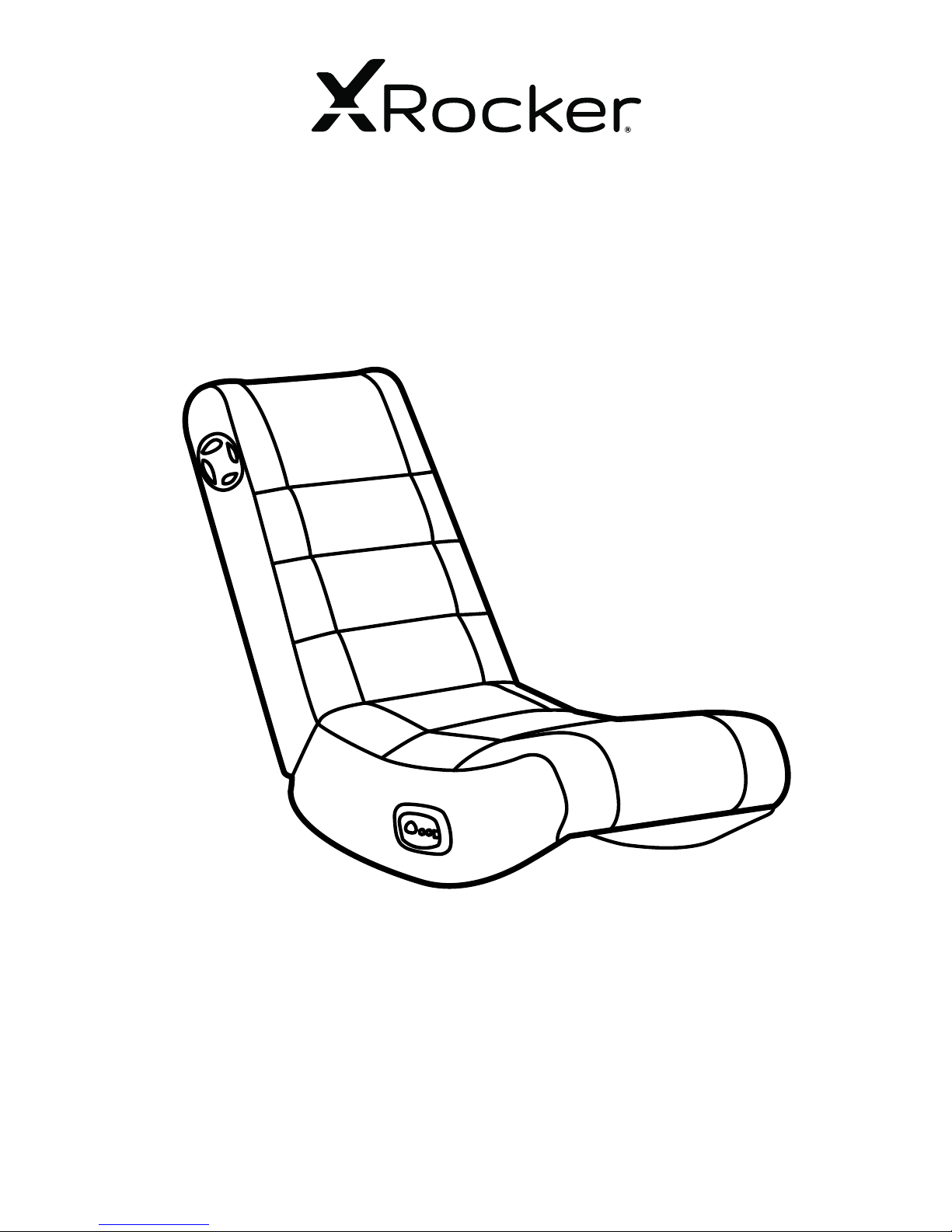

X Rocker Flash User Manual

User Manual Item no: 5120701
Need Help? Email: Service@XRockerNaon.co.uk
Phone: 01274 683 109 www.XRockerNaon.co.uk
IMPORTANT: You must keep your original retail receipt as proof of purchase.
Flash
2
chair. You are now close to enhancing your favourite games with glorious audio!
To get started, please assemble the chair using
the assembly instrucons on the separate leaet and then follow the instrucons in this manual to
get rocking!
Table of contents
3 Box contents and control panel overview 4 Wired Connecon guide: TV (All consoles) 5
Connect by controller (PS4 only)
6 Troubleshoong ps 7 Health and safety informaon 8 Power supply safety informaon
Welcome to X Rocker!
3
Control panel overview
B1 - 3m 3.5mm to 3.5mm audio cable
B2 - Power supply cable
B3 - RCA female to female adapters
B4 - 0.15m 3.5mm to RCA male audio cable
+
+
+
+
B
B1
B3
B4
B2
4
1. Connect B1 Cable to X Rocker control panel 3.5mm INPUT socket
2. Connect other end of the B1 cable to the TV headphone socket.
3. Once connected to your TV, increase volume to 50% of the maximum for the best sound level.**
*N.B: If your TV does not feature a headphone socket then you may need
console for audio. **Depending on your TV you may need to Increase the headphone
(All consoles)
B1
TV/Mobile/Tablet
5
1. Connect the B1 headset socket.
2. Connect the other end of the B1 cable to the chair via the green port.
3. With the PS4 turned on and in the main menu, press and hold the
4. In this menu select [Adjust sound and devices]
5. Then select [output to headphones]
6.
[Chat Only] to [All audio]
7. Make sure the volume in the previous menu is set to the maximum.
Connect by controller: (PS4 systems only)
B1
6
Troubleshoong ps
• Make sure that the power cable is connected correctly.
• Make sure that the power supply at the power source is working correctly.
• With the chair turned to the ON posion, give the power cable a slight wiggle in the port. If any lights icker (or not) then please contact support (details below).
• Connect a mobile phone to the X Rocker
using the phone connecon guidelines in the manual to test the chair for sound.
• Conrm that the device/system is correctly congured as per previous connecon guide.
• Make sure that you indeed have a
headphone socket on your TV. This will typically be marked with a headphone symbol or “H/P OUT”
• Please make sure that the volume of
the source device is at a higher level to
strengthen the audio signal.
• Please contact X Rocker support (service@XRockerNaon.co.uk) regarding this issue.
• You may need to purchase a TOSlink adapter. If you are unsure as to which to
purchase then please contact X Rocker at
service@XRockerNaon.co.uk regarding this issue.
No power going to control panel
Issue Troubleshoong steps
No sound
Stereo speakers do not produce sound / sound is faint
The cables connected to my X Rocker have been broken accidentally
Don’t have a headphone socket on
your TV?
7
Health and safety informaon
• Avoid immersing or allowing the X Rocker to come into contact
with liquids.
• Please consult X Rocker Support before unscrewing any of the electrical
components on the chair.
• Please be mindful of any cabling laid out between the X Rocker and
power source/audio device.
• Please be mindful of cabling aached when moving/swivelling
the X Rocker.
• If the cables or electrical equipment are broken then this may present
a choking risk, please contact Support for replacements and dispose of
these parts safely.
• Do not stand on the X Rocker or exceed the 120kg weight limit via
other means.
• Do not lean back on the chair to the point in which the pedestal would
li o the ground.
• X Rocker armrests are designed for support and comfort during
gameplay, please do not use these as support for geng in/out of the chair.
• Playing audio for long periods at loud volumes may contribute to
dicules in hearing.
• Please be considerate to others when playing audio through the
X Rocker speakers at higher volumes.
8
Power Supply unit trademark: BI; Model name: BI12T-050100-I;
Input: 100-240V~, 50/60 Hz, 0,5A; Output: 5 VDC, 1 A;
ATTENTION: A. For Power Adapter, the apparatus shall not be exposed to dripping
or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus; B. For Power Adapter, the MAINS plug is used as the disconnect device,
the disconnect device shall remain readily operable; C.Only use the attachments/accessories specified by manufacturer.
Need Help? Email: Service@XRockerNaon.co.uk
Phone: 01274 683 109
www.XRockerNaon.co.uk
IMPORTANT: You must keep your original retail
receipt as proof of purchase.
