2
FEATURES

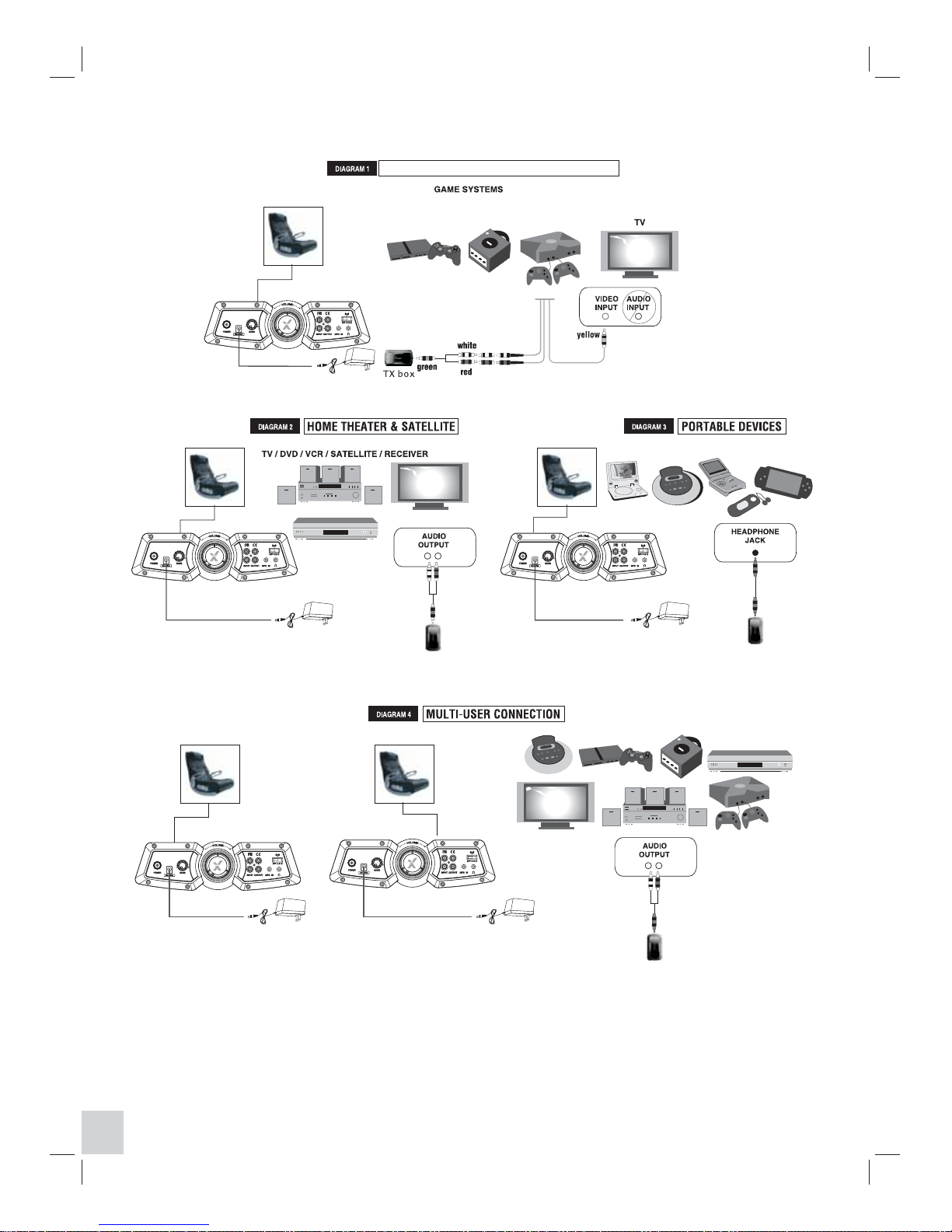

A-Control Panel
A1-Bass Volume Adjustment
A2-Volume Adjustment
Jack for linking multiple chairs
Switch
A3-Audio Input Jack
A4-Audio Output
A5-Wireless Band
A6-Power On/Off Switch
A7-9V DC Power Input Jack
A8-Power Indicator Light
A9-MP3 Input Jack
A10-Headphone Jack
A11A12-Audio Input Jack of TX
A13-Power On/Off Switch of TX
A14-Wireless Band Switch of TX
DC 3V/200mA Power Input Jack of TX
A13
A12
A11
A14
AUDIO IN
OFF/ON
BAND
123…………
DC IN DC 3V
A9
A1
A2 A3 A4 A5
A6
A7
A10A8
Need Help? Email: service@acebayou.com Web: Phone: 866.969.2603www.thexrocker.com
3
0.492ft/0.15m
B4
B7
*SOME PARTS MAY VARY SLIGHTLY
B-Accessories Supplied
B1-3m RCA Stereo to RCA stereo plug cable(1 PC)
B2-1m 3.5mm stereo male to 3.5mm stereo male cable (1PC)
B3-RCA female to female barrel adapter (2 PC )
B4-0.15m RCA stereo male to 3.5mm stereo male cable (1PC)
B5-0.15m 3.5mm stereo male to 3.5mm stereo male cable (1PC)
B6-INPUT:100-240V AC 50/60Hz
OUTPUT:9V DC 1000mA 9W Main POWER Adapter. (EFFICIENCY LEVEL: 115V )
B7-TX Box
C-Audio Specification
.Ⅰ
＞
＞
＜
＜
Ⅱ
＜
The unit specifications:
Signal-to-Noise Ratio(Amplifier):Subwoofer: 50dB
Satellite: 60dB
Frequency Response: 60Hz~15kHz
Distortion: Subwoofer: 4% (F=100Hz)
Satellite: 1% (F=1kHz)
Input: DC 9V/1A
.TX / RX specification:
1) TX Power supply 3V DC
2) TX Current: 40mA
3) RX Current: 20mA
4) TX Transmission distance: < 65.6 ft / 20 meters (No buildings
or other barriers)
5) Environmental temperature: 14 F~158 / -10 ~70
6) Modulation mode: FSK
7) TX Work frequency: 914, 914.5,915MHz
8) RX Work frequency: 914, 914.5,915MHz
9) TX Power: 10dBM
10) RX Sensitivity:-100dBM
11) RX frequency range: 50Hz~13KHz
12) Second harmonic suppression: -40dB
13) Band quantity: 3 channels
/200mA
2XAAA Batteries (BATTERIES ARE NOT INCLUDED )
F
00
℃℃
9.84ft/3m
3 28ft/1m.
B2
B1
0.492ft/0.15m
B5
B6
B3
S
Need Help? Email: service@acebayou.com Web: Phone: 866.969.2603www.thexrocker.com
