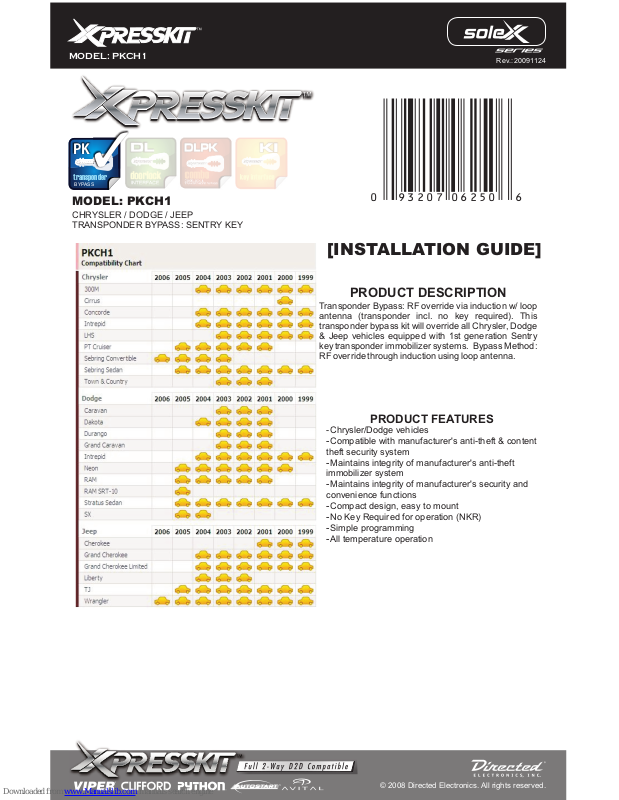

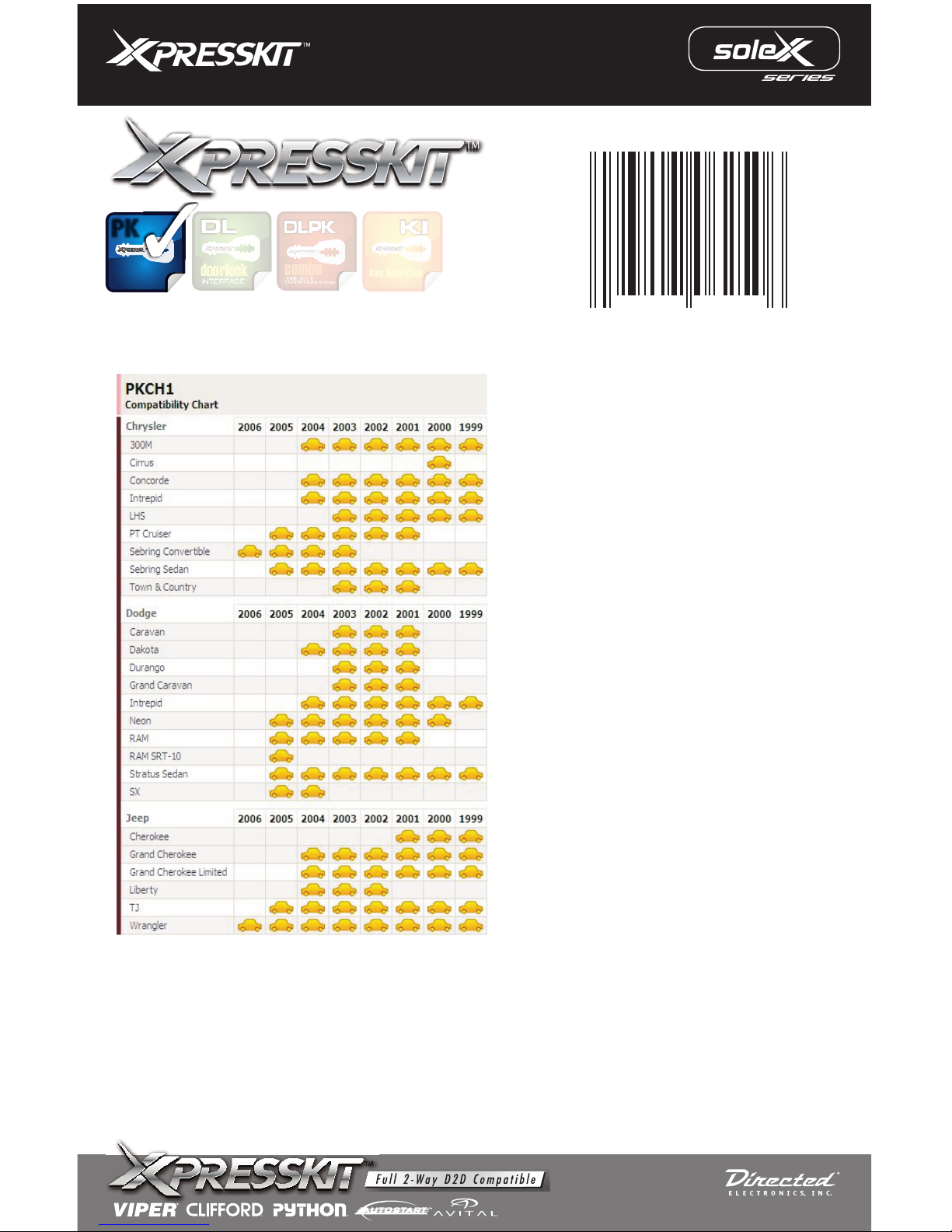

Page 1
0 69 3 2 0 7 0 6 2 5 0
PRODUCT DESCRIPTION
Transponder Bypass: RF override via induction w/ loop
antenna (transponder incl. no key required). This
transponder bypass kit will override all Chrysler, Dodge
& Jeep vehicles equipped with 1st generation Sentry
key transponder immobilizer systems. Bypass Method:
RF override through induction using loop antenna.
PRODUCT FEATURES
-Chrysler/Dodge vehicles
-Compatible with manufacturer's anti-theft & content
theft security system
-Maintains integrity of manufacturer's anti-theft
immobilizer system
-Maintains integrity of manufacturer's security and
convenience functions
-Compact design, easy to mount
-No Key Required for operation (NKR)
-Simple programming
-All temperature operation
MODEL: PKCH1
[INSTALLATION GUIDE]
CHRYSLER / DODGE / JEEP
TRANSPONDER BYPASS: SENTRY KEY
transponder
PK
BYPASS
© 2008 Directed Electronics. All rights reserved.
MODEL: PKCH1
Rev.: 20091124
Page 2

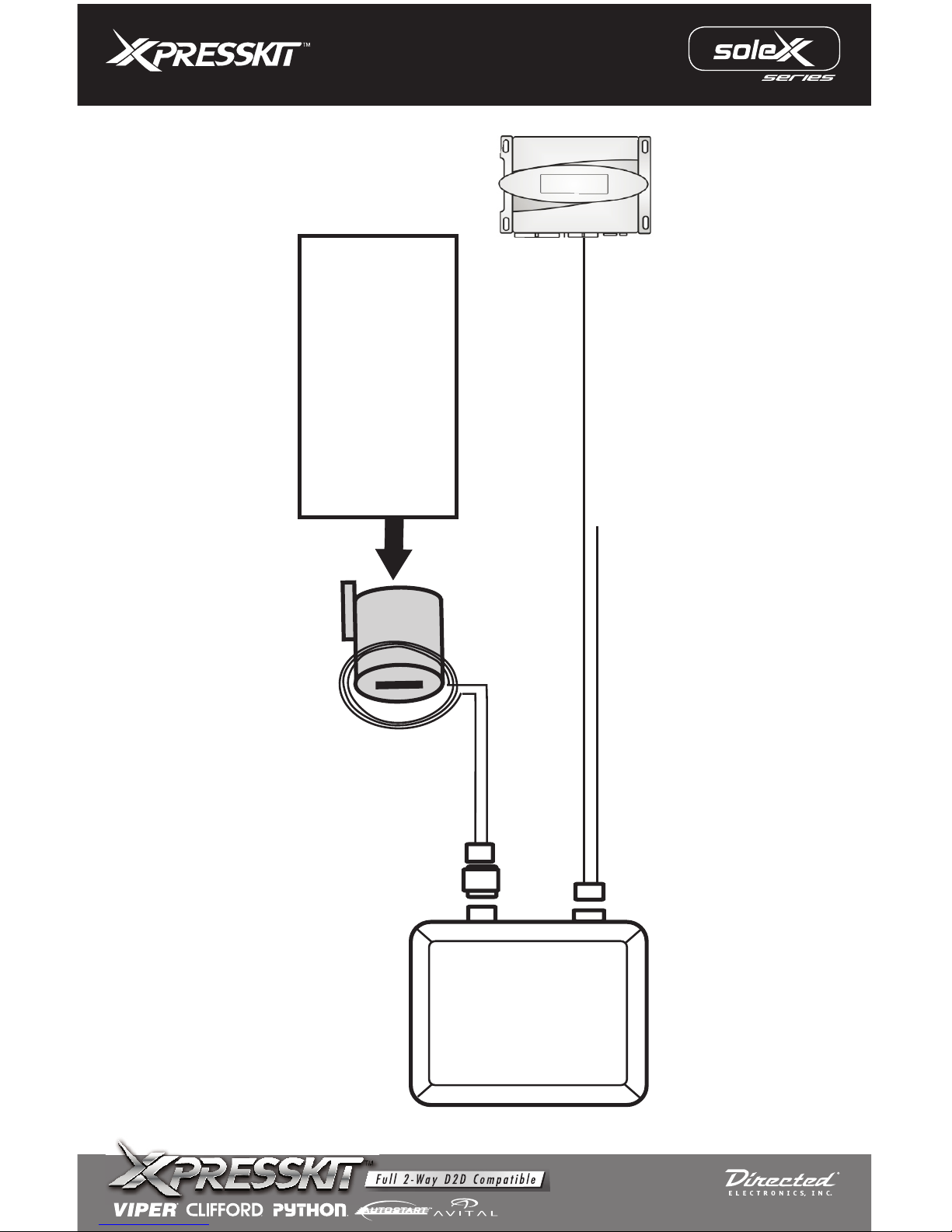

Red 12 Volts Constant(+)
COIL
Brown (-) Negative Ground Output When Running
R
EMOT
E
STA
R
T
E
R
NOTE
LOCATE THE COIL AROUND THE
IGNITION KEY
3 OR 5 TURNS OF LOOP IS
REQUIRED
YOU CAN PROGRAM THE
TRANSPONDER ONLY ONCE.
(2\4 Pages)
© 2008 Directed Electronics. All rights reserved.
MODEL: PKCH1
Rev.: 20091124
Page 3
PKCH1 MODULE PROGRAMMING MODE
You will need 2 valid keys. Proceed as follows:
1- Insert first key and turn to the IGN “ON” position: “THEFT” light will turn ON, then go “OFF”.
Remove the first key.
2- Within 5 seconds, insert second key: turn and hold in IGN “ON” position. After approx.
10 seconds, the door chime will sound** once to indicate vehicle is in programming mode.
3- Turn the ignition OFF
YOU NOW HAVE 60 SECONDS TO PROCEED WITH THE NEXT STEP.
4- For the next 2 steps position & hold the PKCH1 module (screw side) towards the front
of the ignition barrel (key cylinder). (Coil Loop is NOT USED during PK programming)
5- Using a jumper wire, power up vehicle ignition, without starting vehicle, for approx. 10 secs.
until the “THEFT” light comes “ON” solid. “THEFT” light will then flash and return back to
solid to indicate the PKCH1 module is now programmed successfully.
IMPORTANT NOTE:
Once the PK (Transponder Bypass) portion has been programmed to a vehicle, it cannot be used on
any other Chrysler vehicle. (This a Chrysler Sentry Key feature from factory.)
**As a reference: door should be left open during programming.
- No wiring harnesses should be connected while programming Transponder Bypass.
- Do not install bypass module on a metal surface.
- Some cars won't chime when they get into programming but “THEFT” light will flash.
TECH NOTE:
(3\4 Pages)
© 2008 Directed Electronics. All rights reserved.
MODEL: PKCH1
Rev.: 20091124
Page 4
For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product,
Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable
reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”), which proves to be
defective in workmanship or material under normal use, provided the following conditions are met: the Part was
purchased from an authorized DIRECTED dealer; and the Part is returned to DIRECTED, postage prepaid, along
with a clear, legible copy of the receipt or bill of sale bearing the following information: consumer’s name, address,
telephone number, the authorized licensed dealer’s name and complete product and Part description.
This warranty is nontransferable and is automatically void if the Part has been modified or used in a manner contrary
to its intended purpose or the Part has been damaged by accident, unreasonable use, neglect, improper service,
installation or other causes not arising out of defect in materials or construction.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO
EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR
PARTICULAR PURPOSE AND WARRANTY OF NON INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE
EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR
ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.
DIRECTED HEREBY DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD
PARTIES INCLUDING DEALERS OR INSTALLERS. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING
DIRECTED OR ITS SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF
CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN
THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED SHALL BE STRICTLY
LIMITED TO THE AUTHORIZED DIRECTED DEALER’S PURCHASE PRICE OF THE PART. DIRECTED SHALL
NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY
CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF
EA RNINGS, CO MMERCIAL LOSS, LO SS OF E CON OMIC OPP ORTUN ITY AN D THE LIKE.
NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFER A LIMITED WARRANTY TO
REPLACE OR REPAIR AT DIRECTED’S OPTION THE PART AS DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of
incidental or consequential damages. This warranty gives you specific legal rights and you may also have other
rights that vary from State to State. DIRECTED does not and has not authorized any person or entity to create for it
a n y ot h er o b li g at i on , p r om i se , d u ty o r o b li g at i on i n c on n ec t io n w i th t h is P a rt .
920-0007 07-06
LIMITED ONE-YEAR CONSUMER WARRANTY
This
Interface
kit
/ Data Bus Interface
part has been
tested on
the listed
vehicles. Other
vehicles
will be added to the select
vehicle list upon completion
of compatibility testing. V
isit
website for
latest
vehicle
application
guide. DISCLAIMER: Under
no circumstances shall
the manufacturer
or the distributors
of
the bypass
kit /
data
bus interface
part(s)
be held
liable
for any
consequential damages
sustained
in
connection with
the
part(s) installation. The manufacturer
and
it’
s distributors
will
not, nor
will
they authorize
any representative
or
any other
individual
to
assume
obligation or
liability
in relation
to
the interface
kit
/ data
bus interface part(s) other
than
its replacement. N.B.:Under no circumstances shall the manufacturer
and distributors of this
product
be liable
for consequential
damages
sustained in connection
with this
product
and
neither
assumes
nor authorizes any representative
or
other
person
to
assume
for it
any
obligation
or
liability
other than the replacement
of
this
product only
.
(4\4 Pages)
PROTECTED BY U.S. PATENTS: 5,719,551; 6,011,460 B1 *;6,243,004 B1; 6,249,216 B1; 6,275,147 B1; 6,297,731 B1; 6,346,876 B1; 6,392,534 B1; 6,529,124 B2; 6,696,927 B2; 6,756,885 B1; 6,756,886 B2;
6,771,167 B1; 6,812,829 B1; 6,924,750 B1; 7,010,402 B1; 7,015,830 B1; 7,031,826 B1; 7,046,126 B1; 7,061,137 B1; 7,068,153 B1; 7,205,679 B1; CDN. PATENT: 2,320,248; 2,414,991; 2 , 4 1 5 , 0 1 1 ;
2,415,023; 2,415,027; 2,415,038; 2,415,041; 2,420,947; 2,426,670; 2,454,089 EUROPEAN PATENT:1,053,128 PAT. PENDING: 2,291,306; MADE IN CANADA
© 2008 Directed Electronics. All rights reserved.
MODEL: PKCH1
Rev.: 20091124
