Page 1
Platform: DBALL2
Firmware: VW06
Update Alert: Firmware updates are posted on the web on a regular basis. We recommend
that you check for firmware and/or install guide updates prior to installing this product.

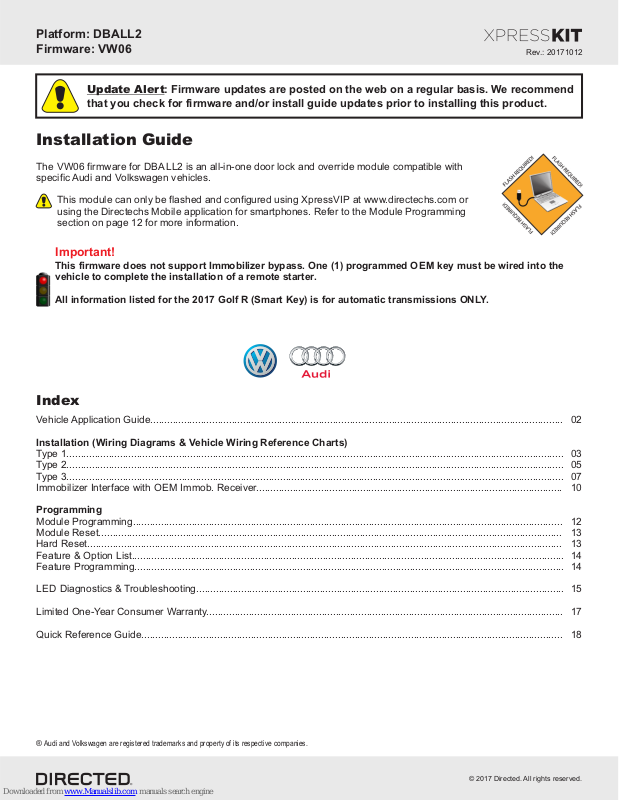

Installation Guide
The VW06 firmware for DBALL2 is an all-in-one door lock and override module compatible with
specific Audi and Volkswagen vehicles.
This module can only be flashed and configured using XpressVIP at www.directechs.com or
using the Directechs Mobile application for smartphones. Refer to the Module Programming
section on page 12 for more information.
Important!
This firmware does not support Immobilizer bypass. One (1) programmed OEM key must be wired into the
vehicle to complete the installation of a remote starter.
All information listed for the 2017 Golf R (Smart Key) is for automatic transmissions ONLY.
Rev.: 20171012
Index
Vehicle Application Guide...................................................................................................................................................
Installation (Wiring Diagrams & Vehicle Wiring Reference Charts)
Type 1.................................................................................................................................................................................
Type 2.................................................................................................................................................................................
Type 3.................................................................................................................................................................................
Immobilizer Interface with OEM Immob. Receiver.............................................................................................................
Programming
Module Programming.........................................................................................................................................................
Module Reset.....................................................................................................................................................................
Hard Reset.........................................................................................................................................................................
Feature & Option List..........................................................................................................................................................
Feature Programming.........................................................................................................................................................
LED Diagnostics & Troubleshooting...................................................................................................................................
Limited One-Year Consumer Warranty...............................................................................................................................
Quick Reference Guide......................................................................................................................................................
02
03
05
07
10
12
13
13
14
14
15
17
18
® Audi and Volkswagen are registered trademarks and property of its respective companies.
© 2017 Directed. All rights reserved.
Page 2
Platform: DBALL2
Firmware: VW06
Rev.: 20171012
Page 2
Vehicle Application Guide
The following table lists the vehicles and features which are compatible with this product. The number assigned to each
year allows you to determine which installation type should be used for your vehicle.
Vehicles
2018
2017
2016
2015
PK-Universal RF Bypass- Key Req'd
AV-Parking Lights Control
DL-Arm Factory Security
DL-Disarm Factory Security
DL-Door Lock Control
DL-Door Unlock
DL-Driver Priority Unlock
DL-Trunk / Hatch Release
FOB-Control of aftermarket alarm with OEM remote
RS-RAP Shut Down (Retained ACC Power)
RS-Tach / RPM Output
SS-Entry Monitoring ALL Door Pins
SS-Entry Monitoring Hood Pin
SS-Entry Monitoring Trunk/Hatch Pin
SS-Factory Alarm Trigger Monitoring
ST-Brake Status (foot brake)
ST-Door Locks Status
Audi
A3 (Smart Key) • • • • • W • • • • • • D • • • • • D • D • •
S3 (Smart Key) • • • • • W • • • • • • D • • • • • D • D • •
TT (Smart Key) • • • W • • • • • D • • • • • D • D • •
Volkswagen 18 17 16 15
Golf (Smart Key) • • • • W • • • • • • D • • • • • D • D • •
Golf Alltrack (Smart Key) • • • • • • • • • D • • • • • D • D • •
Golf GTI (Smart Key) • • • • • • • • • • • D • • • • • D • D • •
Golf R (Smart Key) • • • • • • • • • • • D • • • • • D • D • •
Golf SportWagen (Smart Key) • • • • W • • • • • • D • • • • • D • D • •
ST-E-Brake Status
ST-Ignition Status
Lege nd:
D: Data-to-Data (D2D) only AV: Horn & Lights Controls
•: D2D and Wire-to-Wire (W2W) DL: OE Door Lock & Alarm Controls
W: Wire-to-Wire FOB: Sync CAN Interface w/ FOB Remote
PK: Transponder & Immobilizer Override
RS: Remote Start & Engine Controls
SS: Integrated Security & Monitoring
ST: Function/Feature Status
© 2017 Directed. All rights reserved.
Page 3
Platform: DBALL2
Firmware: VW06

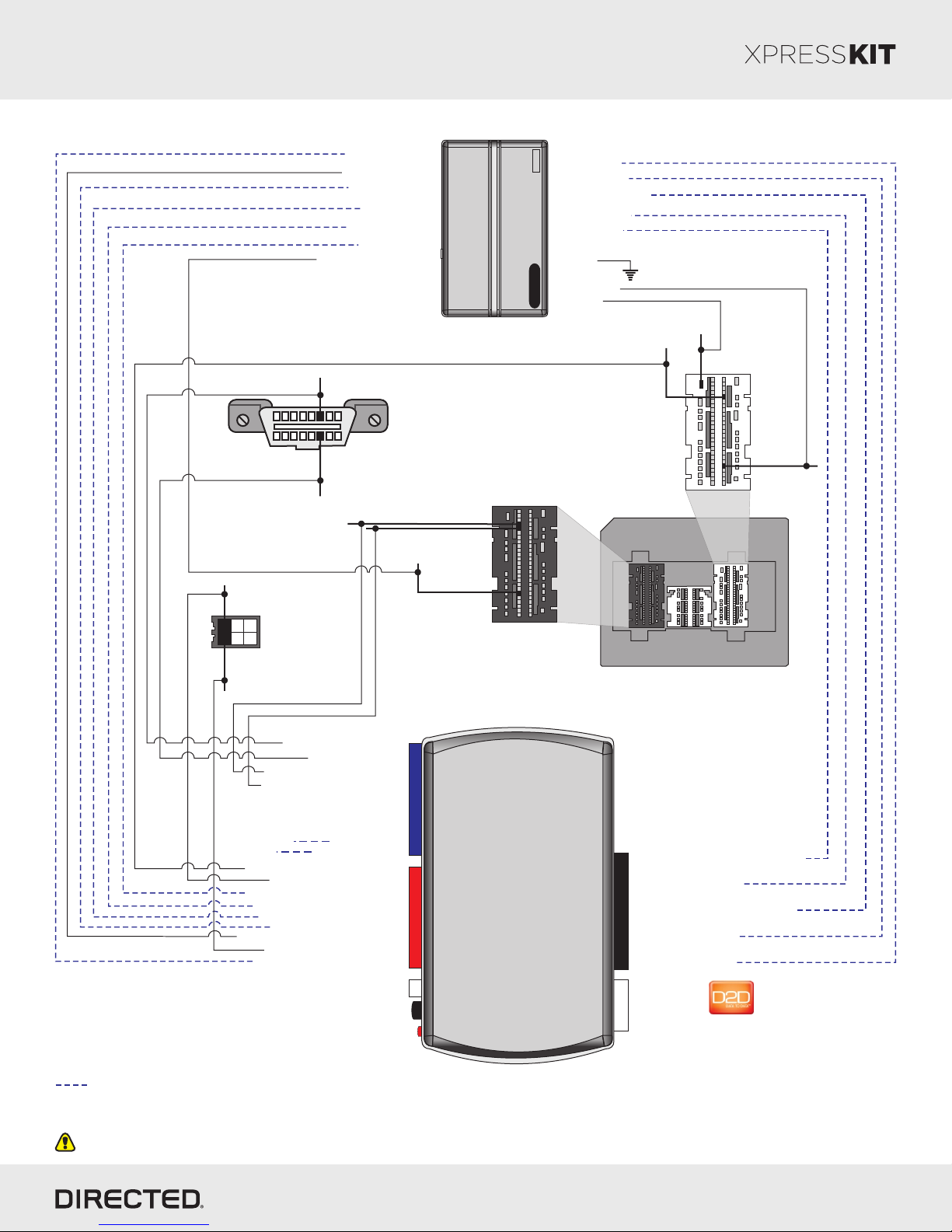

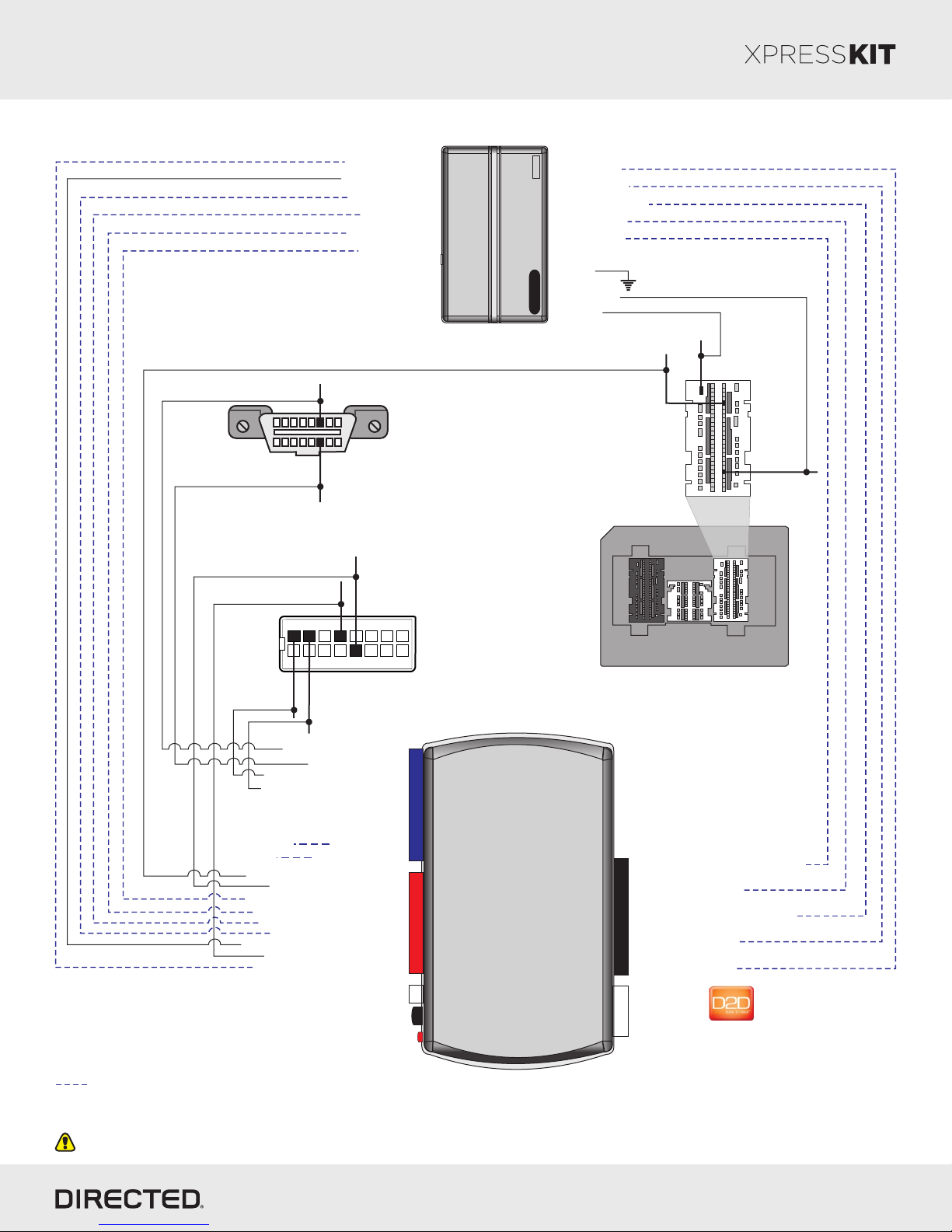

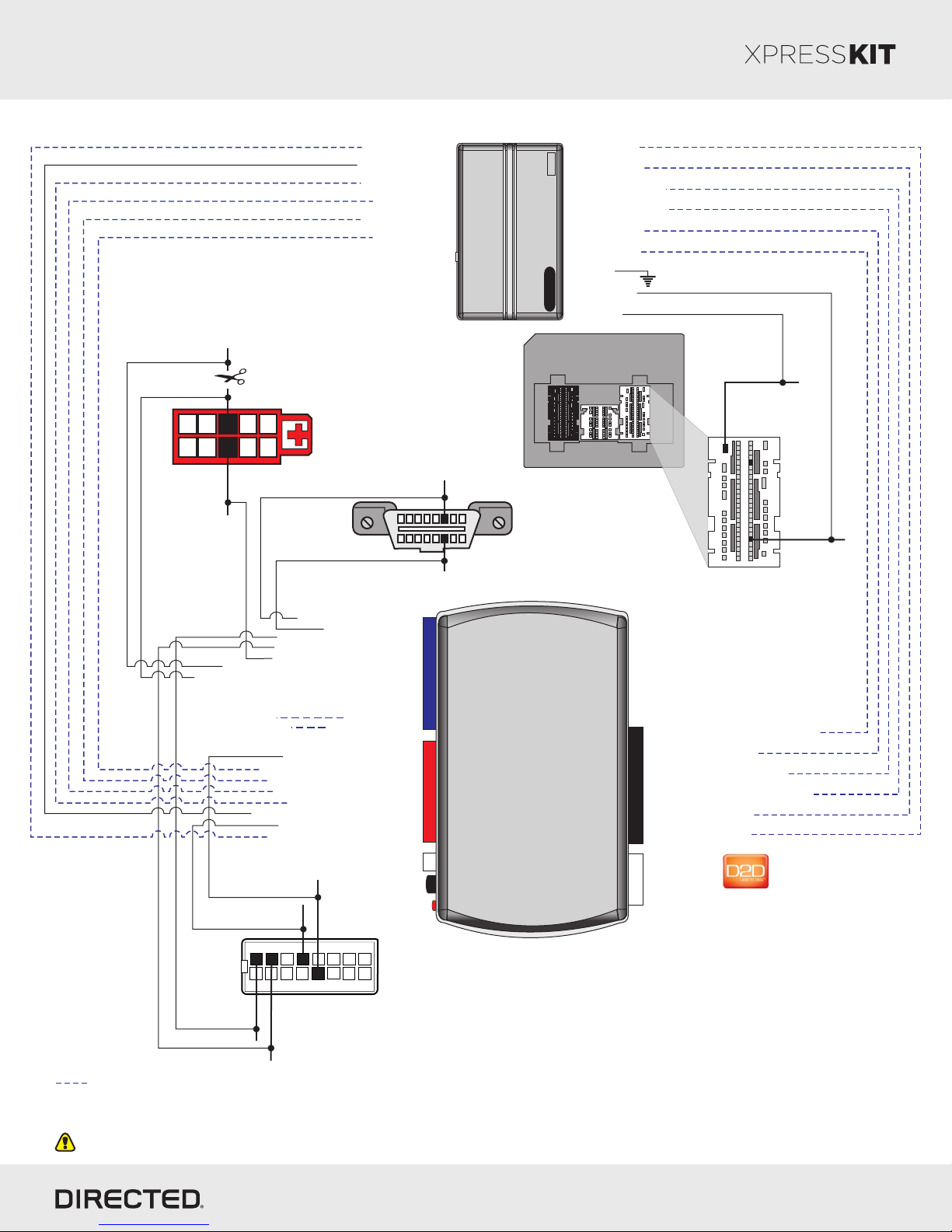

Installation Type 1
Rev.: 20171012
Page 3
HS CA N 1 High:
Orange/Red, pin 6
1
9
HS CA N 1 Low:
Orange/Brown, pin 14
(-) PTS 1: Blue/White, pin 4
(-) PTS 2: Blue/Yellow, pin 13
(-) Hood Status Input
(+) Ignition Status Input
(+) Brake Status Input
[1] (AC) Tach Input
(-) Trunk Status Input
(-) Door Status Input
8
16
OBDII
Diagnostic
Connector
Remote
Starter
(-) Lock Output
(-) Unlock Output
(-) Trunk Release Output
(+) Ignition Output
(-) GWR (Status)
(-) Ground
(+) Starter Output
(+) 12V Input
(-) Hazards:
Violet/Red
pin 42
VESC M (A3)
(white 73-pin connector)
1
12
(+) 12V:
Red/White or
Red/Gray, pin 1
13
38
63
73
37 62
(+) Brake:
Black/Red,
pin 58
15816
14
7
HS CA N 2 High:
Orange/Green,
pin 16
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
(+) 12V
(-) Ground
(-) Hazard Light Output: Black/White: 1
(-) Door Status Output: Green/White: 3
(-) Trunk Status Output: Red/Black: 4
[1] (AC) Tach Output: Violet/White: 5
(+) Ignition Status Output: Gray/Black: 7
(-) PT S 2 Output: Violet/Brown: 9
(-) Hood Status Output: Blue/Red: 12
HS CA N 2 Low:
Orange/Brown,
pin 15
HS CAN 1 High: Tan/Black: 3
HS CAN 1 Low: Tan: 4
[2] Key Wrap: Orange/Red: 10
[2] Key Wrap: Yellow/Red: 11
[2] Key Wrap: Brown/Red: 12
(-) Ground: Black: 14
(-) PT S 1 Output: Green/Black: 2
(+) Brake Status Output: Gray: 6
11412
6
3
5
(+) 12V: Red: 13
Column Module
2
1
(black 16-pin under column)
14 12
2
RF
Prog. Button
LED
DBALL2
A1
10
4
A2
VESC M: Vehicle Electrical
System Control Module
(high above drivers kick)
10: Blue/White: (-) GWR (Status) Input
9: Pink: (+) Ignition Input
3: Red/White: (-) Trunk Release Input
2: Blue: (-) Unlock Input
1: Green: (-) Lock Input
(+)12V
RX
(-) Ground
TX
A3
P#: XKD2D65
Electronic Steering
9
10
13
Not required in D2D mode.
[1] Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[2] For Key Wrap instructions refer to pages 9-10.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
© 2017 Directed. All rights reserved.
Page 4
Platform: DBALL2
Firmware: VW06
Rev.: 20171012
Page 4
Type 1 - Vehicle Wiring Reference Chart
Wire Information Connector Information
Function Color Pin Pola rity Location Color Pins
Audi A3 (Sma rt Key) & S3 (Smart Key) 2015-2018
HS CAN 1 High Orange/Red 6 Data OBDII. Black 16
HS CAN 1 Low Orange/Brown 14 Data OBDII. Black 16
HS CAN 2 High Orange/Green 16 Data Electronic steering column module. Black 16
HS CAN 2 Low Orange/Brown 15 Data Electronic steering column module. Black 16
Push-to-Start 1 Blue/White 4 (-) Electronic steering column module. Black 16
Push-to-Start 2 Blue/Yellow 13 (-) Electronic steering column module. Black 16
12V Red/White or Red/Gray 1 (+) VESCM connector A3. White 73
Brake Black/Red 58 (+) VESCM connector A3. White 73
Hazard Light Violet/Red 42 (+) VESCM connector A3. White 73

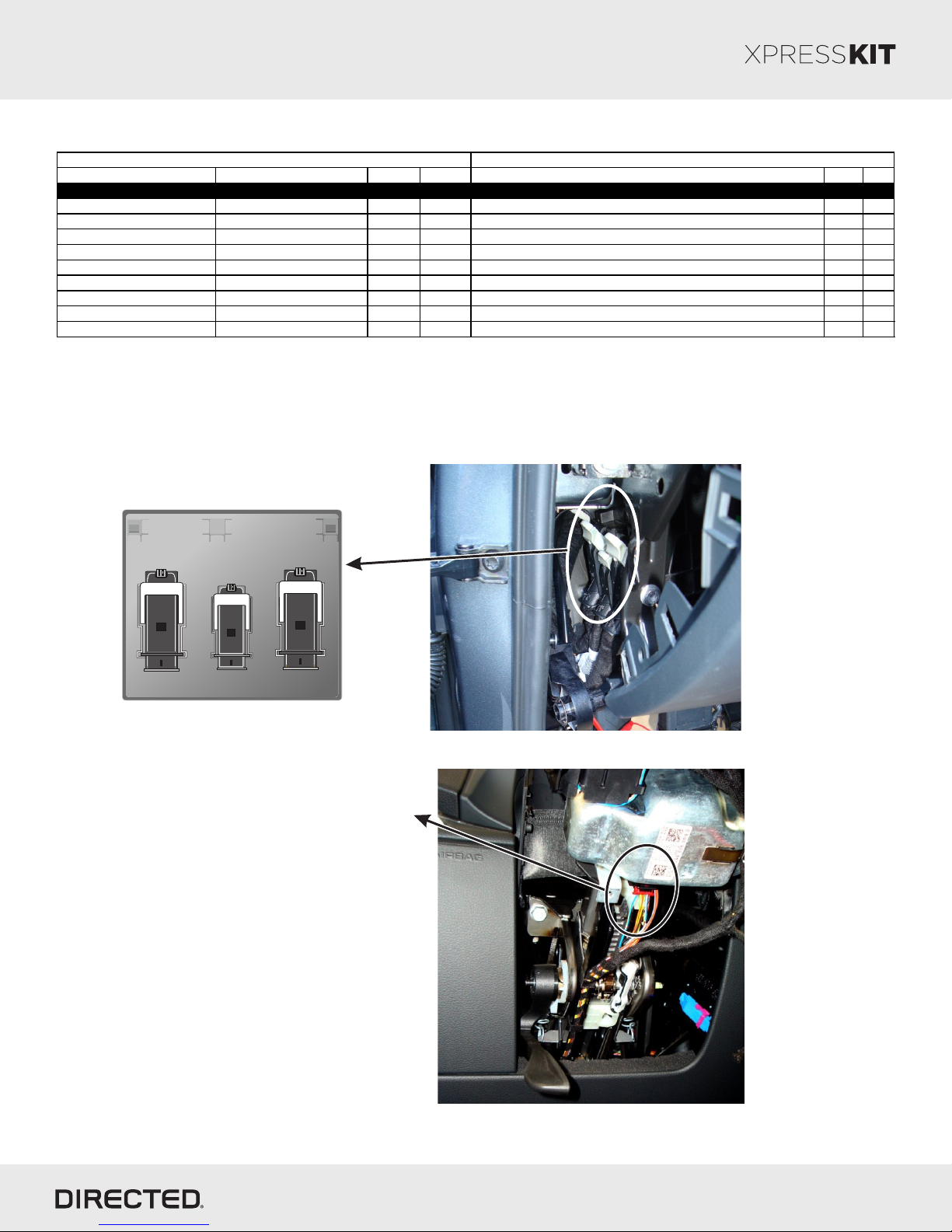

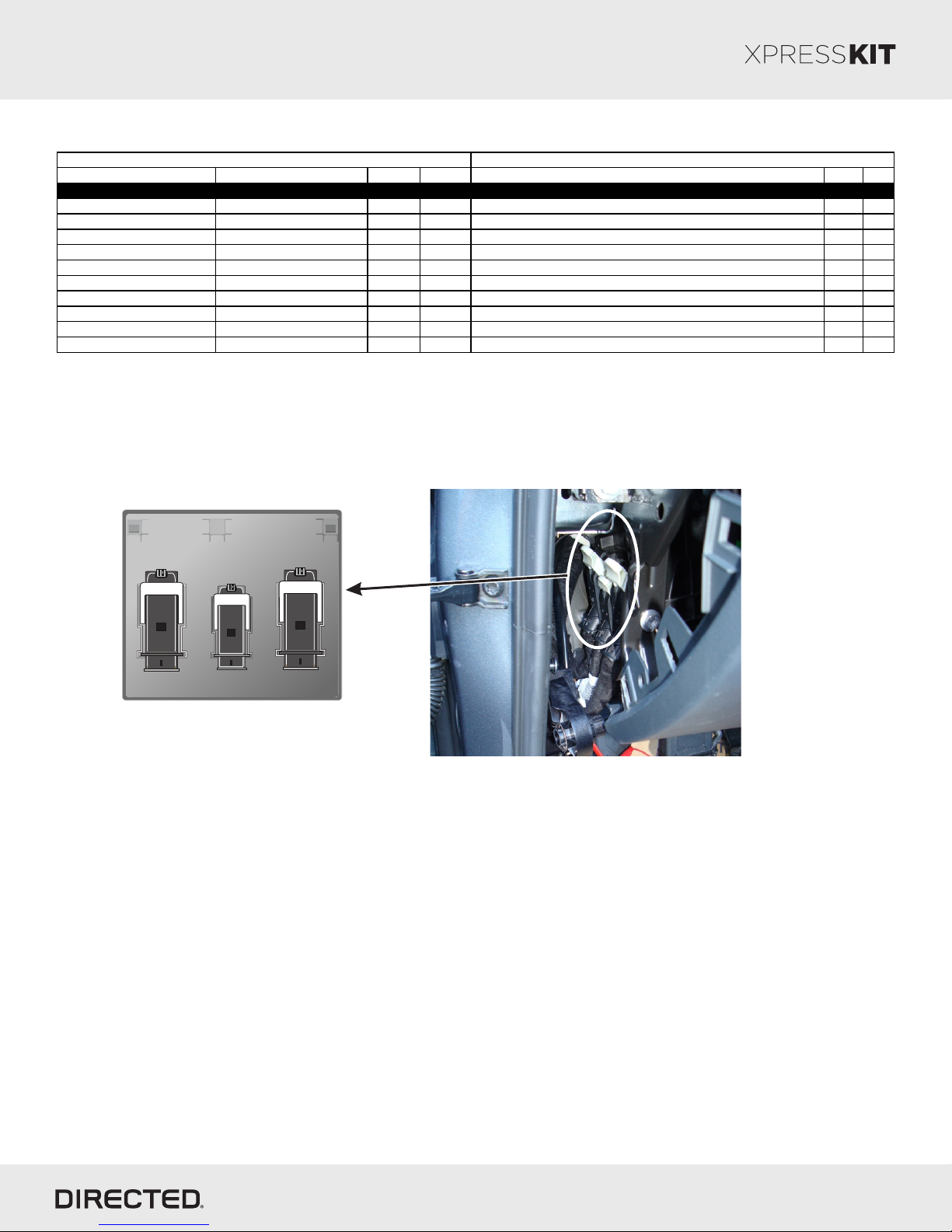

Locating Components in the vehicle
VESCM - Vehicle Electrical System Control Module
at Driver Side under dash, above Driver Kick Panel
A1
A2
A3
ESCLCM - Electronic Steering Column
Lock Control Module
at Steering Column
© 2017 Directed. All rights reserved.
Page 5
Platform: DBALL2
Firmware: VW06
Installation Type 2
Rev.: 20171012
Page 5
HS CA N 1 High: Red, pin 6
1
9
HS CA N 1 Low:
Orange/Brown, pin 14
(-) PTS 1:
Blue/White, pin 3
PTS Switch
251
3
(black connector
4
6
at start/stop button)
(-) PTS 2:
Blue/Yellow, pin 6
(-) Hood Status Input
(+) Ignition Status Input
(+) Brake Status Input
[1] (AC) Tach Input
(-) Trunk Status Input
(-) Door Status Input
(-) Trunk/Hatch Release Output
8
16
OBDII
Diagnostic
Connector
HS CA N 2 High:
Lt. Green, pin 16
HS CA N 2 Low:
Orange/Brown,
(-) Trunk/Hatch
Remote
Starter
Black VES CM Connector A1
(above drivers kick)
13
1
pin 17
Release:
pin 32
12
37 62
Gray/Green,
(-) Lock Output
(-) Unlock Output
(-) Trunk Release Output
(+) Ignition Output
(-) GWR (Status)
(-) Ground
(+) Starter Output
(+) 12V Input
White VES CM Connector A3
38
63
73
(above drivers kick)
(-) Hazards:
Violet/Red
pin 42
12
A1
A2
VESC M: Vehicle Electrical
System Control Module
(high above drivers kick)
13
1
37 62
(+) 12V:
Red/Gray, pin 1
38
63
(+) Brake:
Black/Red,
pin 58
73
A3
HS CAN 1 High: Tan/Black: 3
HS CAN 1 Low: Tan: 4
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
[2] Key Wrap: Orange/Red: 10
[2] Key Wrap: Yellow/Red: 11
[2] Key Wrap: Brown/Red: 12
(+) 12V
(-) Ground
(-) Hazard Light Output: Black/White: 1
(-) PT S 1 Output: Green/Black: 2
(-) Door Status Output: Green/White: 3
(-) Trunk Status Output: Red/Black: 4
[1] (AC) Tach Output: Violet/White: 5
(+) Brake Status Output: Gray: 6
(+) Ignition Status Output: Gray/Black: 7
(-) PT S 2 Output: Violet/Brown: 9
(-) Hood Status Output: Blue/Red: 12
(+) 12V: Red: 13
(-) Ground: Black: 14
14 12
2
RF
Prog. Button
LED
DBALL2
10: Blue/White: (-) GWR (Status) Input
9: Pink: (+) Ignition Input
10
3: Red/White: (-) Trunk Release Input
2: Blue: (-) Unlock Input
1: Green: (-) Lock Input
(+)12V
4
RX
(-) Ground
TX
P#: XKD2D65
Not required in D2D mode.
[1] Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[2] For Key Wrap instructions refer to pages 9-10.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
© 2017 Directed. All rights reserved.
Page 6
Platform: DBALL2
Firmware: VW06
Rev.: 20171012
Page 6
Type 2 - Vehicle Wiring Reference Chart
Wire Information Connector Information
Function Color Pin Pola rity Location Color Pins
Audi TT (Smart Key) 2016-2017
HS CAN 1 High Red 6 Data OBDII. Black 16
HS CAN 1 Low Orange/Brown 14 Data OBDII. Black 16
Push-To-Start 1 Blue/White 3 (-) PTS connector. Black 6
Push-To-Start 2 Blue/Yellow 6 (-) PTS connector. Black 6
12V Red/Gray 1 (+) VESCM connector A3. White 73
Brake Black/Red 58 (+) VESCM connector A3. White 73
Hazard Lights Violet/Red 42 (-) VESCM connector A3. W hite 73
HS CAN 2 High Light Green 16 Data VESCM connector A1. Black 73
HS CAN 2 Low Orange/Brown 17 Data VESCM connector A1. Black 73
Trunk/Hatch Release Gray/Green 32 (-) VESCM connector A1. Black 73
Locating Components in the vehicle
VESCM - Vehicle Electrical System Control Module
at Driver Side under dash, above Driver Kick Panel
A1
A2
A3
© 2017 Directed. All rights reserved.
Page 7
Platform: DBALL2
Firmware: VW06
Installation Type 3
9 8 6
8
10
5 4 2 1
3
(+) Parking Light:
Gray/Yellow,
pin 3
CUT
Parking Light Interrupt
Red/White, pin 8
Headlight Switch
(red conn. at light switch)
HS CA N 1 High: Orange/Red, pin 6
OBDII
Diagnostic
Connector
(-) Hood Status Input
(+) Ignition Status Input
(+) Brake Status Input
[1] (AC) Tach Input
(-) Trunk Status Input
(-) Door Status Input
1
9
HS CA N 1 Low:
Orange/Brown, pin 14
Starter
8
16
(-) Lock Output
(-) Unlock Output
Remote
(-) Trunk Release Output
(+) Parking Light Output
(+) Ignition Output
(-) GWR (Status)
(-) Ground
(+) Starter Output
(+) 12V Input
A2
A1
VESC M: Vehicle Electrical
System Control Module
(high above drivers kick)
A3
(+)12V:
Red/White,
pin 1
13
38
37 62
63
(+) Brake:
Black/Red,
pin 58
73
1
12
White VES CM Connector A3
(above drivers kick)
Rev.: 20171012
Page 7
HS CAN 1 High: Tan/Black: 3
HS CAN 1 Low: Tan: 4
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
Parking Light Interrupt (vehicle side): Yellow: 8
Parking Light Interrupt (conn. side): Orange/Yellow: 9
HS CA N 2 High:
Orange/Green,
pin 16
(+) Parking Light Output: Brown: 7
[2] Key Wrap: Orange/Red: 10
[2] Key Wrap: Yellow/Red: 11
(+) 12V
(-) Ground
Violet/Blue, pin 4
Violet, pin 13
[2] Key Wrap: Brown/Red: 12
(-) PTS 1 Output: Green/Black: 2
(-) Door Status Output: Green/White: 3
(-) Trunk Status Output: Red/Black: 4
[1] (AC) Tach Output: Violet/White: 5
(+) Brake Status Output: Gray: 6
(+) Ignition Status Output: Gray/Black: 7
(-) PTS 2 Control: Violet/Brown: 9
(-) Hood Status Output: Blue/Red: 12
(-) PTS 1:
(-) PTS 2:
13
15816
14
6
7
5
HS CA N 2 Low:
Orange/Brown,
pin 15
(+) 12V: Red: 13
(-) Ground: Black: 14
9
10
11412
2
3
1
14 12
2
RF
Prog. Button
LED
Electronic Steering
Column Module
(black conn. under column)
DBALL2
10: Blue/White: (-) GWR (Status) Input
9: Pink: (+) Ignition Input
8: Violet: (+) Parking Light Input
10
3: Red/White: (-) Trunk Release Input
2: Blue: (-) Unlock Input
1: Green: (-) Lock Input
(+)12V
4
RX
(-) Ground
TX
P#: XKD2D65
Not required in D2D mode.
[1] Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
[2] For Key Wrap instructions refer to page 9.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
© 2017 Directed. All rights reserved.
Page 8
Platform: DBALL2
Firmware: VW06
Rev.: 20171012
Page 8
Type 3 - Vehicle Wiring Reference Chart
Wire Information Connector Information
Function Color Pin Pola rity Location Color Pins
Volkswage n Golf Alltrack (Sma rt Key) 2017
HS CAN 1 High Orange/Red 6 Data OBDII. Black 16
HS CAN 1 Low Orange/Brown 14 Data OBDII. Black 16
Push-To-Start 1 Violet/Blue 4 (-) Electronic steering column module. Black 16
Push-To-Start 2 Violet 13 (-) Electronic steering column module. Black 16
HS CAN 2 High Orange/Green 16 Data Electronic steering column module. Black 16
HS CAN 2 Low Orange/Brown 15 Data Electronic steering column module. Black 16
12V Red/White 1 (+) VESCM connector A3. White 73
Brake Black/Red 58 (+) VESCM connector A3. White 73
Parking Light Interrupt Red/White 8 Cut Headlight switch. Red 10
Parking Light Gray/Yellow 3 (+) Headlight switch. Red 10
Volkswage n Golf / GTI (Smart Key) 2015-2017
HS CAN 1 High Orange/Red 6 Data OBDII. Black 16
HS CAN 1 Low Orange/Brown 14 Data OBDII. Black 16
Push-To-Start 1 Violet/Blue 4 (-) Electronic steering column module. Black 16
Push-To-Start 2 Violet 13 (-) Electronic steering column module. Black 16
HS CAN 2 High Orange/Green 16 Data Electronic steering column module. Black 16
HS CAN 2 Low Orange/Brown 15 Data Electronic steering column module. Black 16
12V Red/White 1 (+) VESCM connector A3. White 73
Brake Black/Red 58 (+) VESCM connector A3. White 73
Parking Light Interrupt Red/White 8 Cut Headlight switch. Red 10
Parking Light Gray/Yellow 3 (+) Headlight switch. Red 10
Volkswage n Golf R (Smart Key) 2015-2017
HS CAN 1 High Orange/Red 6 Data OBDII. Black 16
HS CAN 1 Low Orange/Brown 14 Data OBDII. Black 16
Push-To-Start 1 Violet/Blue 4 (-) Electronic steering column module. Black 16
Push-To-Start 2 Violet 13 (-) Electronic steering column module. Black 16
HS CAN 2 High Orange/Green 16 Data Electronic steering column module. Black 16
HS CAN 2 Low Orange/Brown 15 Data Electronic steering column module. Black 16
12V Red/White 1 (+) VESCM connector A3. White 73
Brake Black/Red 58 (+) VESCM connector A3. White 73
Parking Light Interrupt Red/White 8 Cut Headlight switch. Red 10
Parking Light Gray/Yellow 3 (+) Headlight switch. Red 10
Volkswage n Golf SportWagen (Smart Key) 2015-2017
HS CAN 1 High Orange/Red 6 Data OBDII. Black 16
HS CAN 1 Low Orange/Brown 14 Data OBDII. Black 16
Push-To-Start 1 Violet/Blue 4 (-) Electronic steering column module. Black 16
Push-To-Start 2 Violet 13 (-) Electronic steering column module. Black 16
HS CAN 2 High Orange/Green 16 Data Electronic steering column module. Black 16
HS CAN 2 Low Orange/Brown 15 Data Electronic steering column module. Black 16
12V Red/White 1 (+) VESCM connector A3. White 73
Brake Black/Red 58 (+) VESCM connector A3. White 73
Parking Light Interrupt Red/White 8 Cut Headlight switch. Red 10
Parking Light Gray/Yellow 3 (+) Headlight switch. Red 10
© 2017 Directed. All rights reserved.
Page 9
Platform: DBALL2
Firmware: VW06

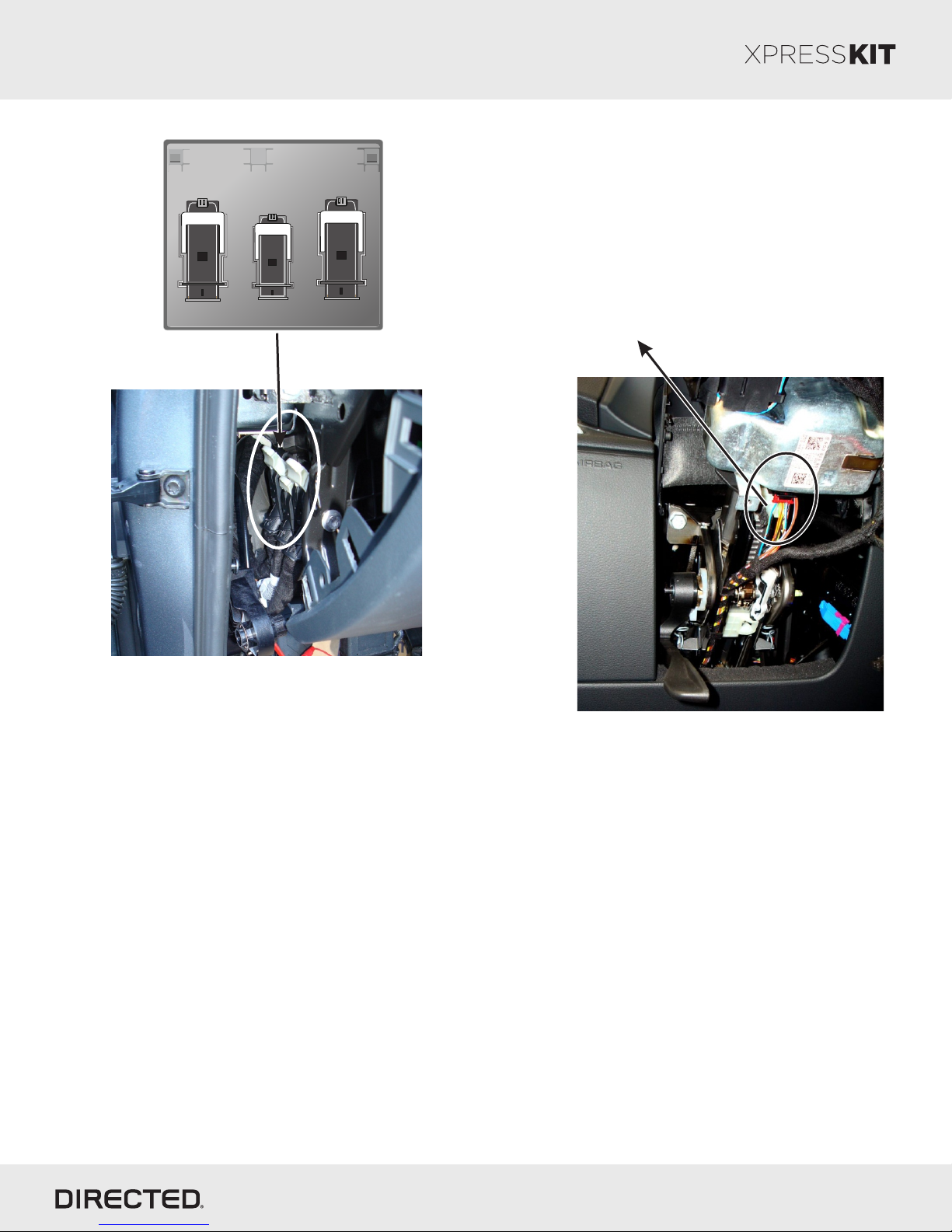

Locating Components in the vehicle
Rev.: 20171012
Page 9
A1
A2
A3
ESCLCM - Electronic Steering Column
VESCM - Vehicle Electrical System Control Module
at Driver Side under dash, above Driver Kick Panel
Lock Control Module
at Steering Column
© 2017 Directed. All rights reserved.
Page 10
Platform: DBALL2
Firmware: VW06

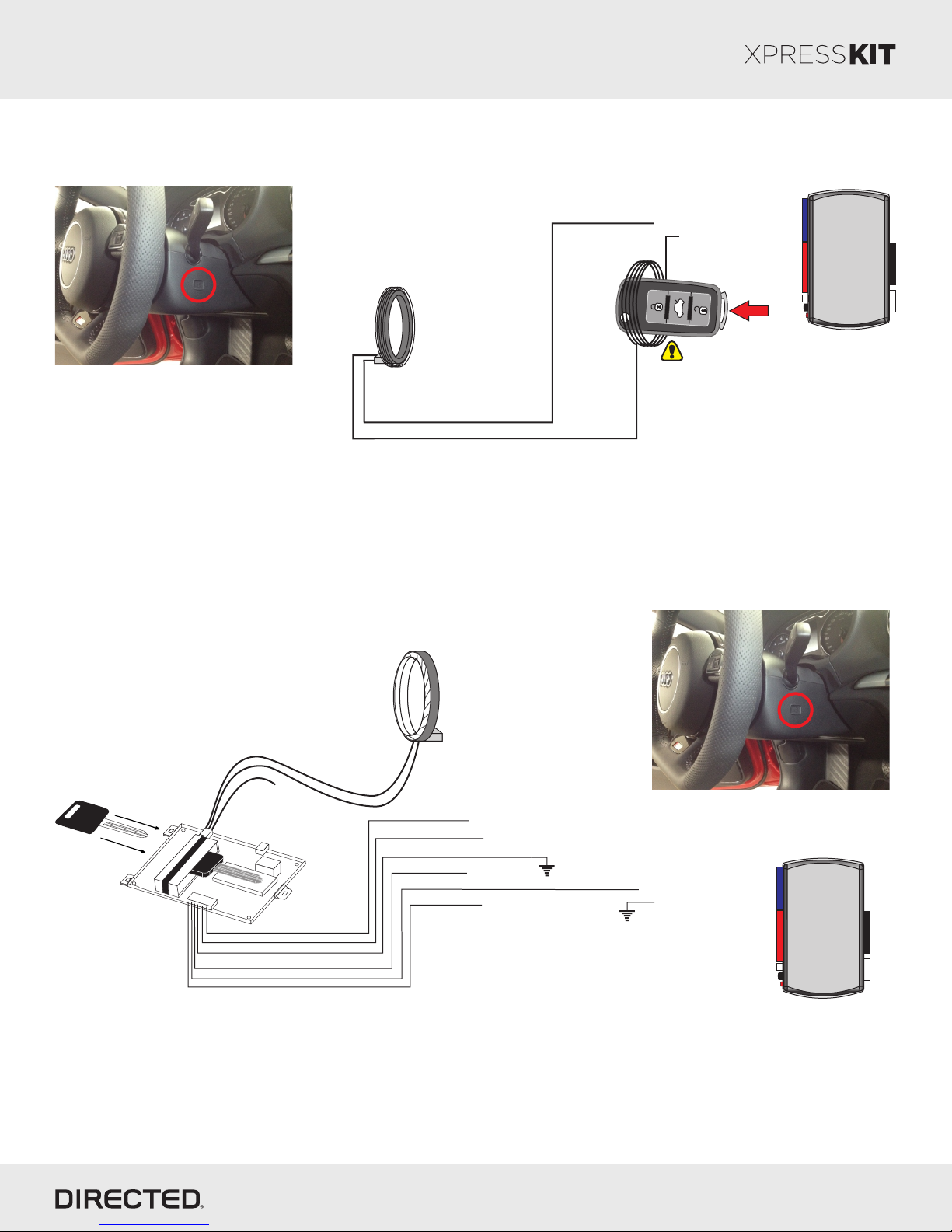

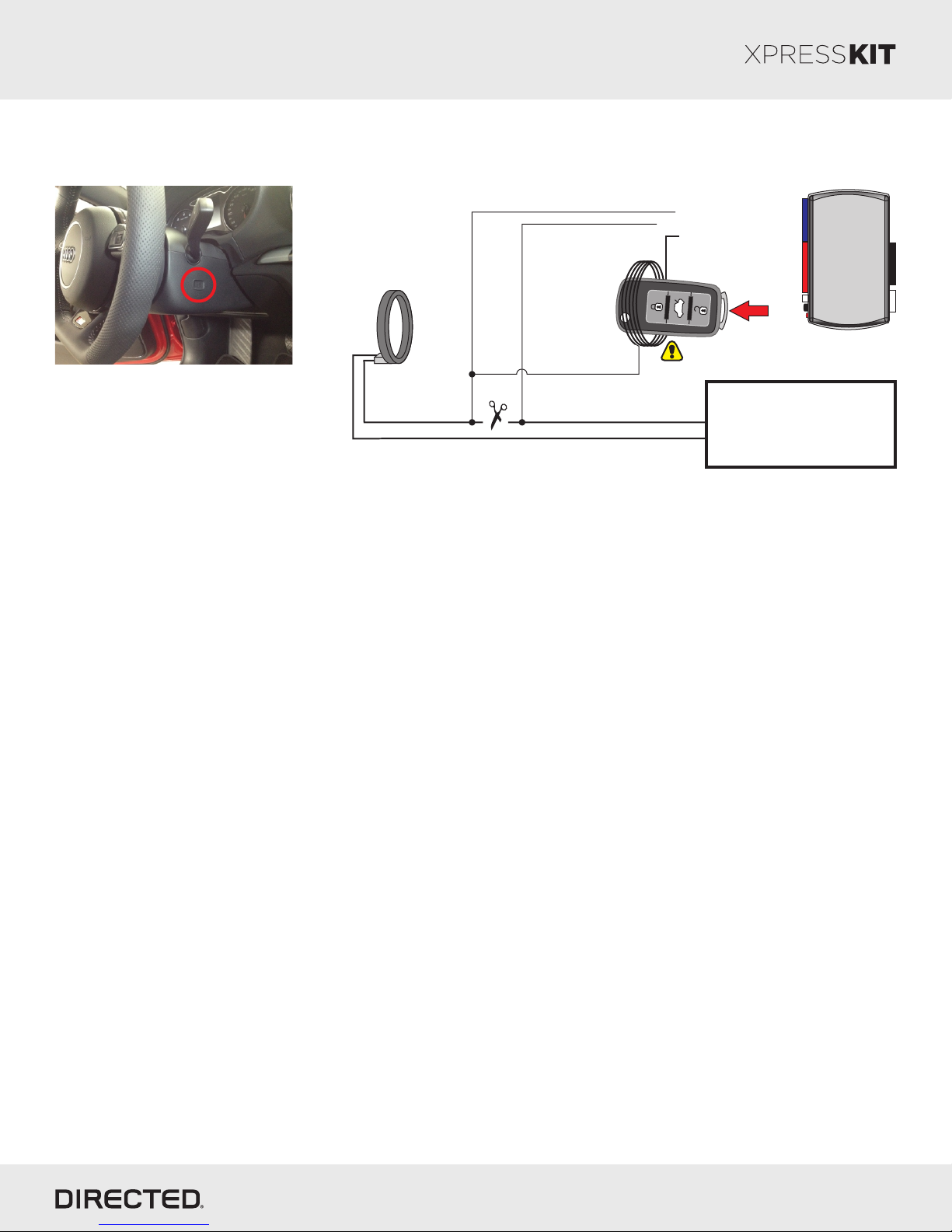

Method 1: Immobilizer interface with OEM Immob. Receiver
Push-To-Start (PTS)
Rev.: 20171012
Page 10
14 12
2
RF
Prog. Button
LED
OEM
Immobilizer
Receiver
4-6 loops
Common Relay 2: Yellow/Red: 11
NO Relay 2: Brown/Red: 12
Remove battery from
OEM Remote Control
Note: OEM immobilizer receiver is located
on the underside of the steering column,
where the ignition switch would normally be.
NOTE:
- Your OEM remote may differ from the model shown in the illustrations.
- Remove Battery from OEM FOB prior to performing the Key Wrap.
- Make 4-6 loops and place them around the front of the plastic body of the vehicle's coded key as shown above.
- Test and secure mounted loop before reassembling the vehicle.
Method 2: Immobilizer interface with 556U (PTS)
556U or 556UW is sold SEPARATELY.
DBALL 2
10
4
OEM
Immobilizer
Receiver
OEM Valet Key
PIN 6 Green
PIN 5 Violet
PIN 4 Black
PIN 3 Violet
PIN 2 Blue
PIN 1 Red
(+) 12V
Note: OEM immobilizer receiver is located
on the underside of the steering column,
where the ignition switch would normally be.
Relay Common: Yellow/Red: 11
Relay N.O.: Brown/Red: 12
14 12
2
RF
Prog. Button
LED
IMPORTANT!: Not all OEM keys can be inserted in 556U because of their size.
Make sure the key will fit, otherwise it is recommended to use a different method.
DBALL 2
10
4
© 2017 Directed. All rights reserved.
Page 11
Platform: DBALL2
Firmware: VW06
Method 3: Key wrap for Push-to-Start (PTS) using OEM Immobilizer Ring.
Push-To-Start (PTS)
Rev.: 20171012
Page 11
14 12
2
RF
Prog. Button
LED
OEM
Immobilizer
Receiver
4-6 loops
NC Relay 2: Orange/Red: 10
Common Relay 2: Yellow/Red: 11
NO Relay 2: Brown/Red: 12
Remove battery from
OEM Remote Control
Note: OEM immobilizer receiver is located
on the underside of the steering column,
where the ignition switch would normally be.
Immobilizer ECU
- Make 4-6 loops and place the around the front of the plastic body of the vehicle’s coded key as
shown above.
- Connect with OEM Immobilier Ring as shown in the above diagram.
- When possible, use valet key for key wrap. if blade key is used, battery must be removed.
DBALL 2
10
4
© 2017 Directed. All rights reserved.
Page 12
Platform: DBALL2
Firmware: VW06
Rev.: 20171012

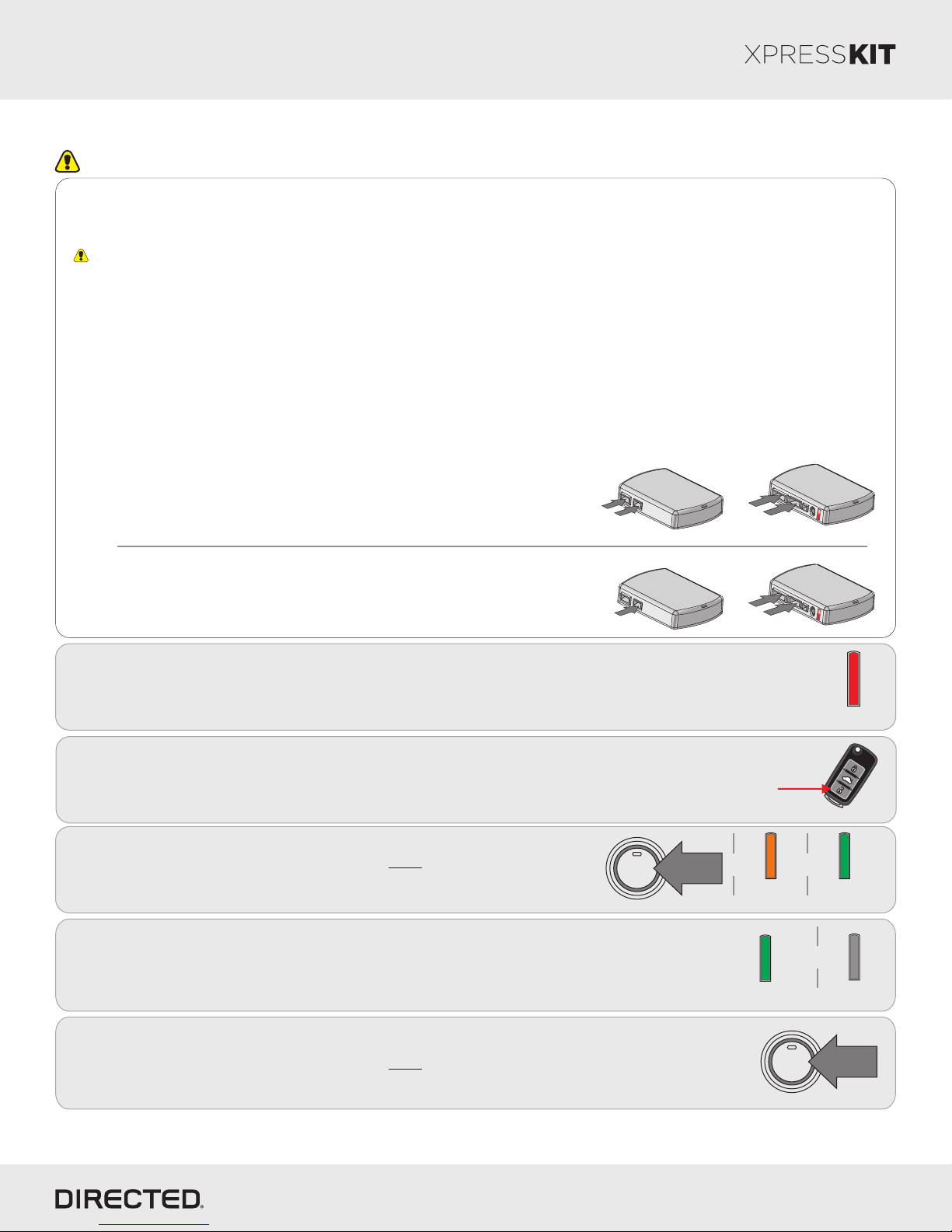

Module Programming
Refer to the LED Diagnostics section on pages 15-16 for more information and for troubleshooting purposes.
Important
Make all the required connections to the vehicle, as described in the wiring diagram(s) found in this guide, and double check to
ensure everything is correct prior to moving onto the next step.
Warning! To take advantage of advanced features, you must use XpressVIP 4.5 (and higher) or the Directechs Mobile app.
Flashing a module using your computer:
1. Connect the interface module to your computer using the
XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and
select the Flash Module button.
3. Follow the instructions to select your vehicle, installation
type, and configure your options.
4. Once you have configured the firmware options, click on the
FLASH button.
When the flashing operation is successful, you can proceed with the programming instructions below.
Flashing a module using your smartphone or tablet
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or
tablet.
3. Select FLASH YOUR MODULE and follow the on screen
instructions.
Page 12
D2D Installation
If required for your installation, connect the 10-pin, 12-pin and 14-pin harnesses to
the module, then connect the 4-pin D2D harness.
OR
W2W Installation
If required for your installation, connect the 10-pin and 12-pin harnesses to the
module, then connect the 14-pin harness to the module.
1
2
3
Wait until the LED turns ON solid red.
Press the Unlock button on the OEM remote.
Press the Push-to-Start (PTS) button once to turn the ignition
ON. The LED flashes orange then flashes green.
1X
rd
nd
2
rd
nd
2
Flashes
orange
14-pin
12-pin
14-pin
12-pin
&
Solid
Flashes
green
D2D
10-pin
th
4
st
1
D2D
10-pin
st
1
ENGIN E
START
PUSH
STOP
3
3
&
4
5
The LED will then turn ON solid green for 3 seconds and shut OFF.
Press the Push-to-Start (PTS) button once to turn the ignition OFF.
You have successfully completed the module programming sequence.
&
Solid green x
3 secs
ENGIN E
START
1X
© 2017 Directed. All rights reserved.
STOP
Off
PUSH
Page 13
Platform: DBALL2
Firmware: VW06
Rev.: 20171012
Page 13

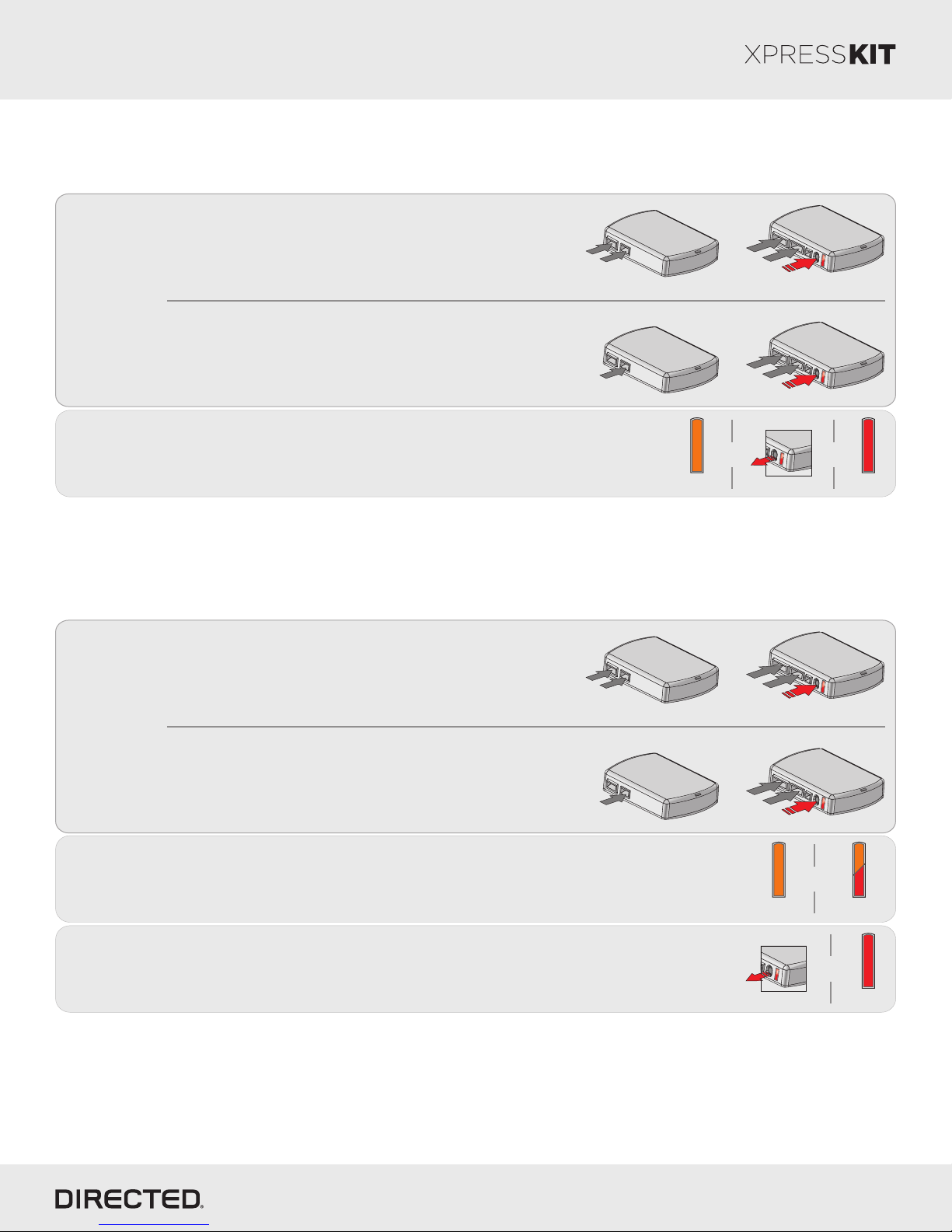

Module Reset
A module reset will only erase programming performed in the previous steps. All settings (firmware) and settings flashed
to the module using the web config tool will not be affected.
D2D Installation
If required for your installation, connect the 10-pin, 12-pin &
14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness.
D2D
10-pin
th
5
st
1
rd
3
14-pin
12-pin
nd
2
th
4
OR
1
2
Hard Reset
Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. See the Feature & Option List section of this guide.
W2W Installation
If required for your installation, connect the 10-pin & 12-pin
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange then release the
programming button. The LED then turns ON solid red.
D2D Installation
If required for your installation, connect the 10-pin, 12-pin &
14-pin harnesses to the module. Press and hold the
th
5
programming button, then connect the 4-pin D2D harness.
D2D
10-pin
st
1
th
4
14-pin
12-pin
nd
2
rd
3
& &
rd
3
Release
nd
2
4
14-pin
th
12-pin
Solid Solid
D2D
10-pin
st
1
1
2
3
OR
W2W Installation
If required for your installation, connect the 10-pin & 12-pin
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds
until the LED starts to flash orange and red.
Release the programming button. The LED turns ON solid red.
D2D
10-pin
st
1
th
4
nd
2
rd
3
Solid
Release
14-pin
12-pin
&
Flashes
&
Solid
© 2017 Directed. All rights reserved.
Page 14
* Default
Fea t. Operation Flashes / Option Description
Platform: DBALL2
Firmware: VW06
Rev.: 20171012
Page 14
Feature & Option List
It is recommended to configure all the features and options listed below using the configuration tool found on the module
flashing page on www.directechs.com. The web offers more options; however, manual configuration of the features is
possible using the information on this page.
RFTD Output
1
Type
Unlock Driver
2
Priority
1. No RF Output* Module is connected to a remote starter using a standard installation.
2. RFTD Output Module is connected to an XL202 using an RSR or RXT installation (when available).
3. SmartStart Module is connected to SmartStart using an RSR or RXT installation (when available).
1. Driver priority*
Unlocks only the driver door when the button is first pressed, and unlocks all doors when it is
pressed a second time within 5 seconds.
2. All Unlocks all doors when the button is first pressed.
The OEM alarm will not be controlled by the interface upon remote start. No disarm or arm
1. Disabled
command will be executed at the beginning or end of the sequence; it must be controlled by
the Remote Starter.
Smart OEM Alarm Control will behave like a standard Safelock feature on a remote starter. It
will unlock at the beginning of the sequence, and relock after start and shutdown.
Smart OEM Alarm Control will synchronize with the OEM alarm so that it will disarm and
Smart OEM
3
Alarm Control
2. Safelock
rearm the vehicle in the remote start sequence, only when required. Smart OEM Alarm Control
3. Enabled*
will monitor the alarm and door lock status to detect if the disarm or rearm is required. If the
vehicle is unlocked or is not equipped with factory alarm, the disarm/rearm will not be
executed.
Feature Programming
To enter feature programming routine
-
Turn the ignition ON, then OFF.
-
Within 5 seconds, press and HOLD the programming button until the LED turns ON orange (after 3 seconds). Release the
Programming button.
-
The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate
the current option of feature 1 (i.e. 1x green followed by 1x red indicates feature 1 is set to option 1). The flashing sequence will repeat
until a new command is entered.
Programming
Button
Changing feature options
-
Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature.
-
The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green slowly
the number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.
Accessing another feature
-
Press and release the programming button a number of times to advance from the current feature to the next desired feature.
-
The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly to
indicate the current option of the current feature. The flashing sequence will repeat until a new command is entered.
When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.
Once a feature is programmed
-
Other features can be programmed.
-
The feature programming can be exited.
Exiting feature programming
-
No activity for 30 seconds; after 30 seconds, the LED will turn ON orange for 2 seconds to confirm the end of the programming
sequence.
OR
-
Press and HOLD the programming button for 3 seconds. After 3 seconds, the LED will turn ON orange for 2 seconds to confirm the
end of the programming sequence.
© 2017 Directed. All rights reserved.
Page 15
Platform: DBALL2
Firmware: VW06
LED Diagnostics & Troubleshooting
LED Description Troubleshooting
Module Programming
Off
Solid red
Module has no power.
Waiting to begin the programming sequence.
Make sure the D2D harness is connected or that the 12
Volt is present between the red and black wires. If the
12 Volt is present, the module may be defective.
Ensure the correct programming procedure is being
followed.
Rev.: 20171012
Page 15
Flashes red
& green
Solid orange
Flashes
green
Flashes
orange
Flashes
orange
slowly
Solid green
x 3 secs
Solid orange
x 3 secs
Initialization failed.
Transponder functions were skipped.
All required CAN networks has been detected. Normal operation.
1 of 2 CAN networks has been detected. Normal operation
Key2GO initiated.
Module was successfully programmed with all functions. Normal operation
Module was successfully programmed without
transponder functions.
Module Programming - Error Codes
Flashes red
x 1
Flashes red
x 1
Flashes red
x 2
CAN2 not detected.
J1850 not detected.
CAN1 not detected.
Reset the module and complete the programming again.
If the issue persists, please contact Technical Support.
(If compatible) when RXT mode is not desired or
convenience features are needed, please reset and
reprogram the module.
Please follow the steps indicated in “Module
programming” to complete the Key2GO programming.
Normal operation.
Check the CAN2 Orange/Green and Orange/Brown wire
connections. Wake up the data bus by turning the
ignition on and try again. If your installation does not
require this connection, skip this step by pressing the
programming button 5 times.
Check the J1850 wire connection. Wake up the data bus
by turning the ignition on and try again.
Check the CAN1 Tan and Tan/Black wire connections.
Wake up the data bus by turning the ignition on and try
again. If your installation does not require this
connection, skip this step by pressing the programming
button 5 times.
Flashes red
x 3
Flashes red
x 4
Flashes red
x 5
Flashes red
x 6
Flashes red
x 7
Bypass data not detected.
Bypass processing error.
ISO 1 not detected.
ISO 2 not detected.
MUX not detected.
Check the bypass line connection. If more than one wire
is used, make sure they are not inverted. Ensure the
vehicle still operates correctly using the factory key.
The bypass calculation failed. Reset the module and try
again. If the condition persists, please contact Technical
Support.
The Yellow/Black wire did not detect the expected
signal. Refer to "Installation (wiring diagrams & vehicle
wiring reference charts)" to check the connections.
The Orange/Black wire did not detect the expected
signal. Refer to "Installation (wiring diagrams & vehicle
wiring reference charts)" to check the connections.
The Violet/Green or Violet/Brown wire did not detect the
expected voltage value. Refer to "Installation (wiring
diagrams & vehicle wiring reference charts)" to check
the connections.
© 2017 Directed. All rights reserved.
Page 16
Platform: DBALL2
Firmware: VW06
LED Description Troubleshooting
Flashes red
x 11
Flashes red
x 12
Skip programming.
BCM programming.
External module synchronization
If programming BCM still fails after making sure doors
are unlocked press on the reset button 5 times to skip
this step.
Failed to program the BCM. Check if doors are locked. If
so, unlock them to solve the problem.
Rev.: 20171012
Page 16
(Flashes red,
red then
orange) x 10
OBDII feature is not supported.
Activation Ground Whe n Running (Status)
Flashes
green
Flashes red
& orange
Flashes
green
quickly
Flashes red
x 10
Flashes red
x 21
Ground When Running (Status) command received. The module has initialized the remote start sequence.
Ignition ON command received.
Start ON command received.
PTS shutdown error.
CAN bus incorrectly detected.
Commands
Flashes
orange x 1
Flashes
orange x 2
Flashes
orange x 3
Flashes
orange x 4
LOCK command received.
UNLOCK command received.
TRUNK command received.
AUX1 command received.
The diagnostic data bus was not detected, therefore the
SmartStart features will be limited.
The module has received the Ignition ON command and
is processing the remote start sequence.
The module has received the Start ON command and is
processing the remote start sequence.
The PTS output from the module was not activated due
to safety protection.
Verify the CAN1 and CAN2 connections. Refer to
“Installation (wiring diagrams & vehicle wiring reference
charts)” to check the connections.
If the bypass module fails to flash, it did not receive the
signal. Commands can come from RF or D2D.
Flashes
orange x 5
Flashes
orange x 6
AUX2 command received.
AUX3 command received.
Shutdown codes
Flashes
green x 1
Flashes red
x 1
Flashes red
x 2
Flashes red
x 3
Flashes red
x 4
Takeover successful. Normal operation.
Runsafe was not disabled.
Brake was not detected.
Smart key was not detected.
Speed was detected.
No UNLOCK command was received prior to opening the
door, or the 45 second timer expired in takeover mode.
The brakes were not detected, which prevents the
system from shutting down the vehicle.
The smart key was not detected, which prevents the
system from shutting down the vehicle.
The vehicle was detected as moving, which prevents the
system from shutting it down.
© 2017 Directed. All rights reserved.
Page 17
Platform: DBALL2
Firmware: VW06
Rev.: 20171012
Page 17
Limited One Year Consumer Warranty
For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed
Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the
security or remote start accessory piece (hereinafter the “Part”), which proves to be defective in workmanship or material
under normal use, provided the following conditions are met: the Part was purchased from an authorized DIRECTED dealer;
and the Part is returned to DIRECTED, postage prepaid, along with a clear, legible copy of the receipt or bill of sale bearing the
following information: consumer’s name, address, telephone number, the authorized licensed dealer’s name and complete
product and Part description.
This warranty is nontransferable and is automatically void if the Part has been modified or used in a manner contrary to its
intended purpose or the Part has been damaged by accident, unreasonable use, neglect, improper service, installation or
other causes not arising out of defect in materials or construction.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, EXCEPT AS STATED ABOVE, ALL WARRANTIES, INCLUDING
BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY,
FITNESS FOR PARTICULA R PURPO SE AND WARR ANTY OF NONINF RINGEMEN T OF INTELLECT UAL
PROPERTY, ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY
PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH ITS
PRODUCTS. DIRECTED HEREBY DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF
THIRD PARTIES INCLUDING DEALERS OR INSTALLERS. DIRECTED IS NOT OFFERING A GUARANTEE OR
INSURANCE AGAINST VANDALISM, DAMAGE, OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS,
AND DIRECTED HEREBY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION,
LIABILITY FOR THEFT, DAMAGE, OR VANDALISM. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING
DIRECTED OR ITS SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF
CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE
DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED
TO THE AUTHORIZED DIRECTED DEALER’S PURCHASE PRICE OF THE PART. DIRECTED SHALL NOT BE
RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL
DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL
LO SS, LOSS OF ECO NOMI C OPP ORT UNIT Y AND THE L IKE. NOT WITHSTAN DING THE AB OVE, TH E
MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR AT DIRECTED’S OPTION THE
PART AS DESCRIBED ABOVE.
This warranty only covers Parts sold within the United States of America and Canada. Parts sold outside of the United States of
America or Canada are sold “AS-IS” and shall have NO WARRANTY, express or implied. Some states do not allow limitations
on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights and you may also have other rights that vary from State to State. DIRECTED does not and has
not authorized any person or entity to create for it any other obligation, promise, duty or obligation in connection with this Part.
For further details relating to warranty information of Directed products, please visit the support section of DIRECTED’s
website at: www.directed.com
920-10012-01 2013-07
This Interface kit / Data Bus Interface part has been tested on the listed vehicles. Other vehicles will be added to the select
vehicle list upon completion of compatibility testing. Visit website for latest vehicle application guide. DISCLAIMER: Under no
circumstances shall the manufacturer or the distributors of the bypass kit / data bus interface part(s) be held liable for any
consequential damages sustained in connection with the part(s) installation. The manufacturer and it’s distributors will not, nor
will they authorize any representative or any other individual to assume obligation or liability in relation to the interface kit / data
bus interface part(s) other than its replacement. N.B.: Under no circumstances shall the manufacturer and distributors of this
product be liable for consequential damages sustained in connection with this product and neither assumes nor authorizes
any representative or other person to assume for it any obligation or liability other than the replacement of this product only.
Protected by U.S. Patents: 5,719,551; 6,011,460 B1 *; 6,243,004 B1; 6,249,216 B1; 6,275,147 B1; 6,297,731 B1; 6,346,876
B1; 6,392,534 B1; 6,529,124 B2; 6,696,927 B2; 6,756,885 B1; 6,756,886 B2; 6,771,167 B1; 6,812,829 B1; 6,924,750 B1;
7,010,402 B1; 7,015,830 B1; 7,031,826 B1; 7,046,126 B1; 7,061,137 B1; 7,068,153 B1; 7,205,679 B1; Cdn. Patent:
2,320,248; 2,414,991; 2,415,011; 2,415,023; 2,415,027; 2,415,038; 2,415,041; 2,420,947; 2,426,670; 2,454,089; European
Patent: 1,053,128; Pat. Pending: 2,291,306. Made in Canada.
© 2017 Directed. All rights reserved.
Page 18
Quick Reference Guide
DBALL2-VW06
© 2017 Directed. All rights reserved.
1

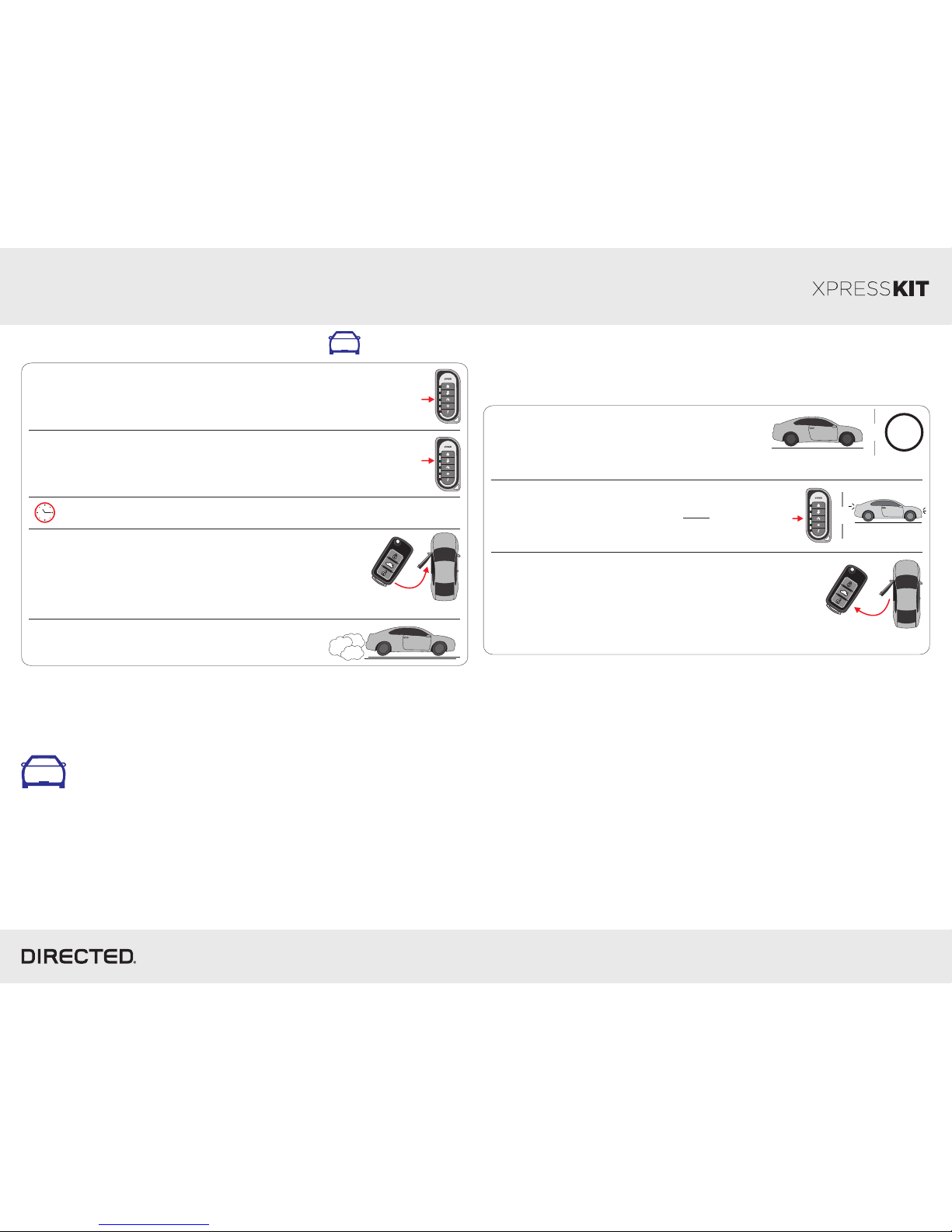

Stop the vehicle in a safe parking spot
and put the gear in Park (P).
* Your aftermarket remote may differ from the model shown in the illustrations.
Stop & put vehicle in Park (P)
P
&
Exit vehicle with
Key
Pit Stop Mode
The Pit Stop Mode feature is practical when you need to stop and run an errand,
but wish to keep the engine running.
Note: We recommend that you always lock the doors
of your vehicle when leaving it unattended.
It is now safe to leave the engine running and exit
the vehicle with the key in hand.
3
Vehicle Takeover with Get In and Go*
4
3
1
Close the vehicle doors, hood and trunk, then press
the Remote Start button on the transmitter to start
the vehicle.**
2
Press the brake pedal, put the car
in gear and drive off.
Enter the vehicle, while making sure the
factory remote is inside with you.
Press the Unlock button on the OEM
or aftermarket remote.**
Ready to
drive off
Press
remote start
button**
** Your aftermarket remote may differ from the model shown in the illustrations.
Enter vehicle
with key fob
GG
* Get In and Go connections required.
Get In and Go
Get In and Go is designed to provide users with easy takeover when
entering their Push-to-Start (PTS) equipped vehicle, once it has been
remote started.
Typically, users would have to remote start their vehicle, then get inside and press
the vehicle start button to perform a takeover. There is therefore a physical action
required to drive away. With Get In and Go technology, you simply remote start the
vehicle, unlock the doors, get in and go... Nothing to do but put the gear in drive and
enjoy your vehicle.
This unique feature monitors a variety of parameters such as the key fob, vehicle
speed sensor and door sensor, in order to perform takeover securily.
GG
Complete the following steps within 45 seconds
or the vehicle will shut down.
2
Press the button to remote start the vehicle.*
The parking lights with flash once to
indicate the vehicle is not in Pit Stop
Mode.
Flashes x1
Press
remote start
button*
&
Page 19
Quick Reference Guide
DBALL2-VW06
© 2017 Directed. All rights reserved.
Notes
Button(s)
Actions
Press & hold for 1 second to lock.
Press & hold for 1 second to unlock.
Press & hold for 1 second to remote
start.
Press & hold for 5 seconds to activate
the trunk release (optional).
Press once, then to activate the
rear hatch/tail glass release (optional).*
Press 3 times, then to activate
the panic mode.
Press once, then to reset the
remote starter runtime.

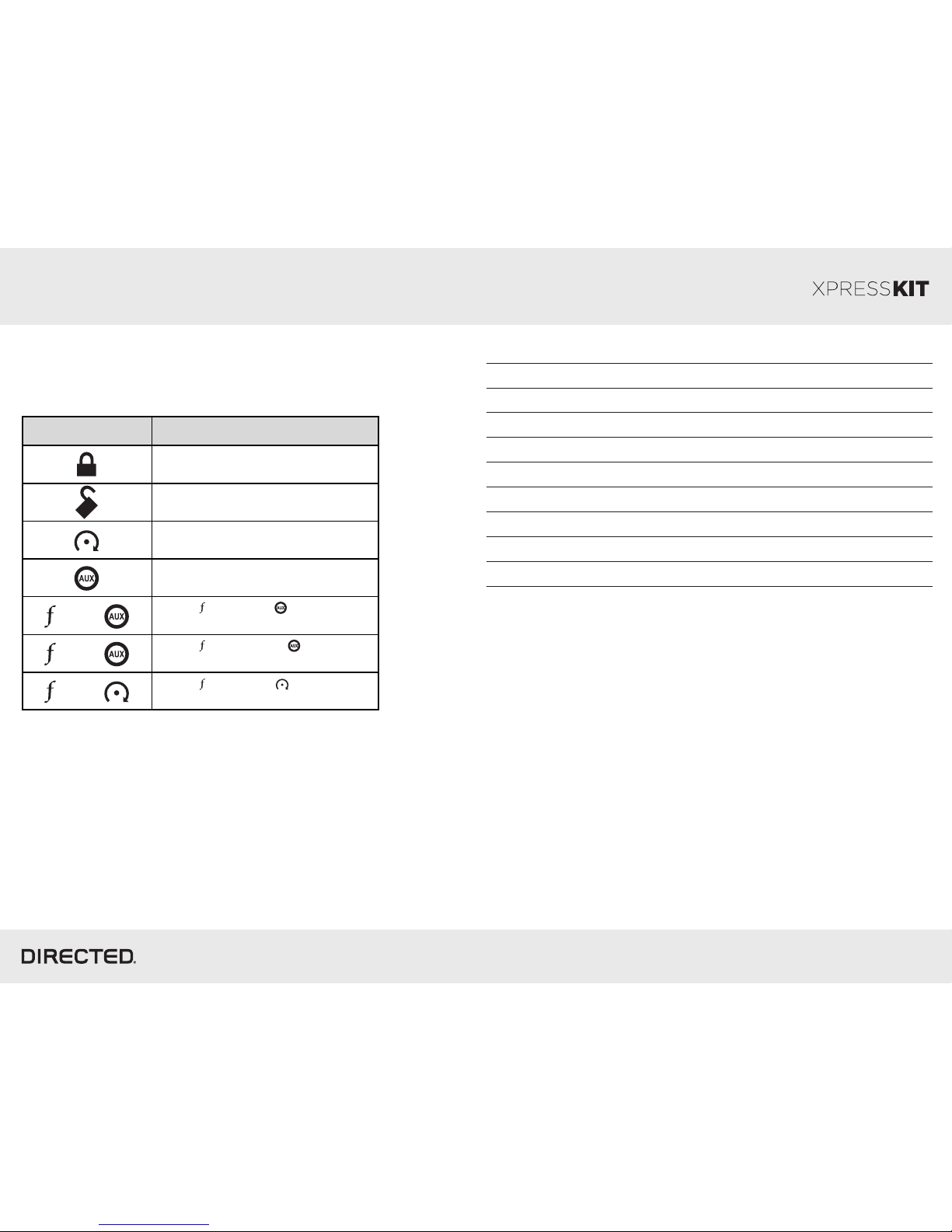

List of Available Commands
* This output is configurable. see your authorized installation center for more
information.
Note that the information below is for Viper, Clifford and Python models. Icons and
commands may differ depending on the remote brand and model purchased. Refer
to your authorized installation center for more information.
x1 +
x3 +
x1 +
Loading...
