Page 1

www.visual-plus.com

EX9

Wireless Radio Keypad

Ver 1.3

Company

Visual CorporationPlus

Page 2

EX9 Wireless Radio Keypad User Manual v1.3

EX9-43B TX2A RX2

Contents

1 Product Description ..................................................................................................................... 2

2 Technical Specifications .............................................................................................................. 2

3 Mounting ..................................................................................................................................... 3

4 Terminal blocks and Jumper settings ........................................................................................... 3

5 Programming ............................................................................................................................... 4

6 Programming Flowchart ............................................................................................................... 6

7 Relay Settings ............................................................................................................................. 7

8 Total Reset ................................................................................................................................. 8

9 Operating the wireless keypad .................................................................................................... 8

10 Examples .................................................................................................................................... 8

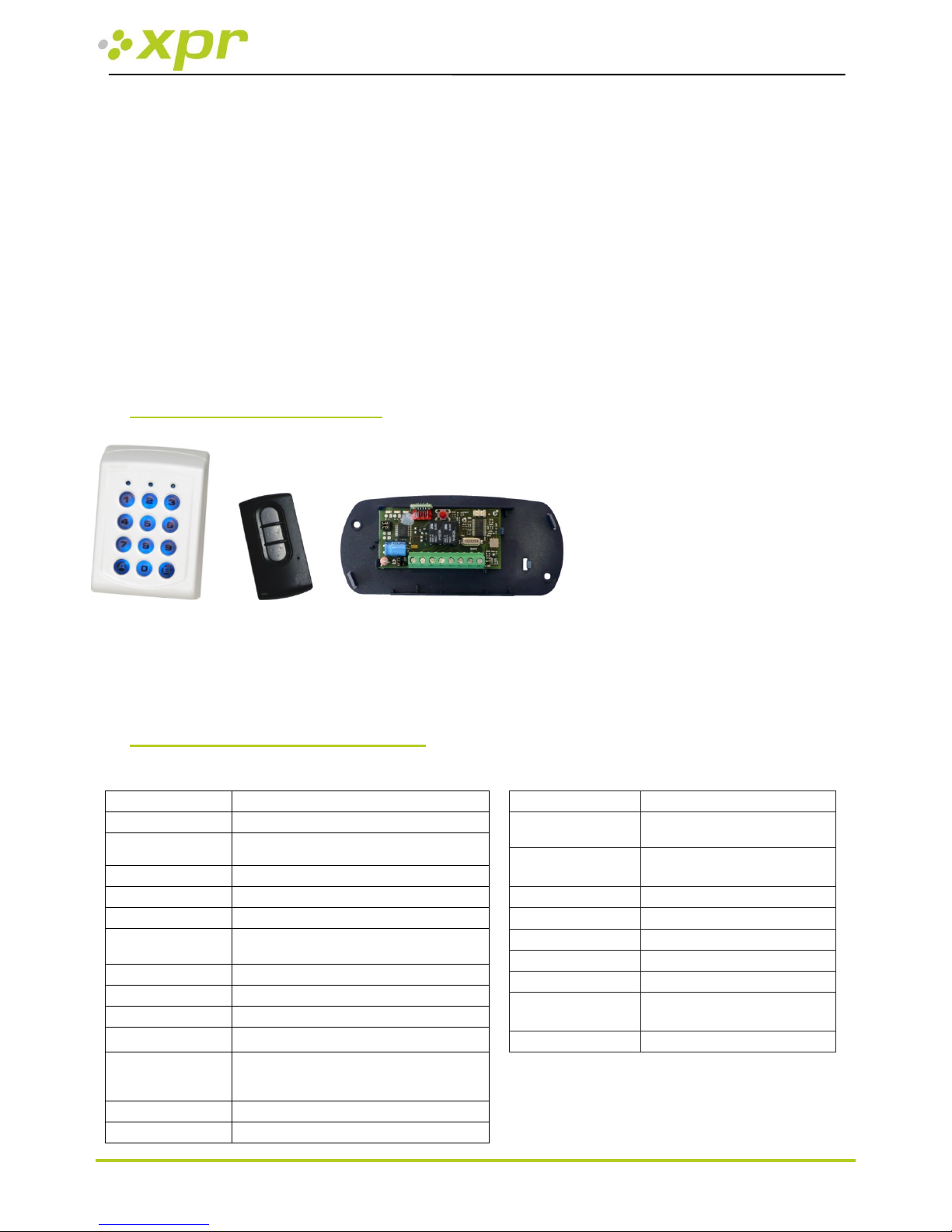

1) PRODUCT DESCRIPTION

EX9 is a set of wireless rolling code keypad (EX9-43B) as a transmitter and radio receiver RX2. Only enrolled code in the transmitter and memorized in the receiver will activate the relay output. The receiver can also memorize code from the remote transmitter TX2A.

Programming/deleting of the codes, the transmission duration is done at the keypad, memorizing the codes and programming of the relays (time, mode) is done at the radio receiver.

2) TECHNICAL SPECIFICATIONS

EX9-43B

Keys

Backlit polycarbonate

Channels

Programming Master Code

1 Users codes

Relays time setup

1 to 10 seconds

Range

120 mt in open space

Green led

Key press/ error and confirmation signal/ transmission in progress

Red led

Keypad locked indicator

Amber led

Configuration menu entrance

Buzzer

Power supply

12/24V AC/DC input and/or 9V battery

Max absorption

27mA in transmission with 9V battery 120mA in transmission with 24Vac power supply

IP rating

Dimensions (mm)

119,5x83,5x40

RX2

Codifying

Rolling code

Memorisable transmitters

- 1000 with memory - 30 without memory

Power supply

12 Vac/dc Jumper C closed 24 Vac/dc Jumper C open

Consumption

50mA

Channels

Antenna

Tuned at 433.92 MHz

Frequency

433.92 MHz

Reach

80 - 250 mt

Relay contact

1A up to 30 Vdc / 0.5A up to 42.4 Vac

Temperature

-10…55 °C

Page 3

EX9 Wireless Radio Keypad User Manual v1.3

DIP SWITCH 2

On: Buzzer ENABLED Off: Buzzer DISABLED

DIP SWITCH 1

On: backlighting ENABLED Off: backlighting DISABLED

Power Supply if battery is not used 12/24VAC/DC

1 - 2 RELAY 1 (NO)

3 - 4 RELAY 2 (NO)

5 - 6 POWER SUPPLY 12/24Vac/dc

7 ANTENNA GROUND

8 ANTENNA

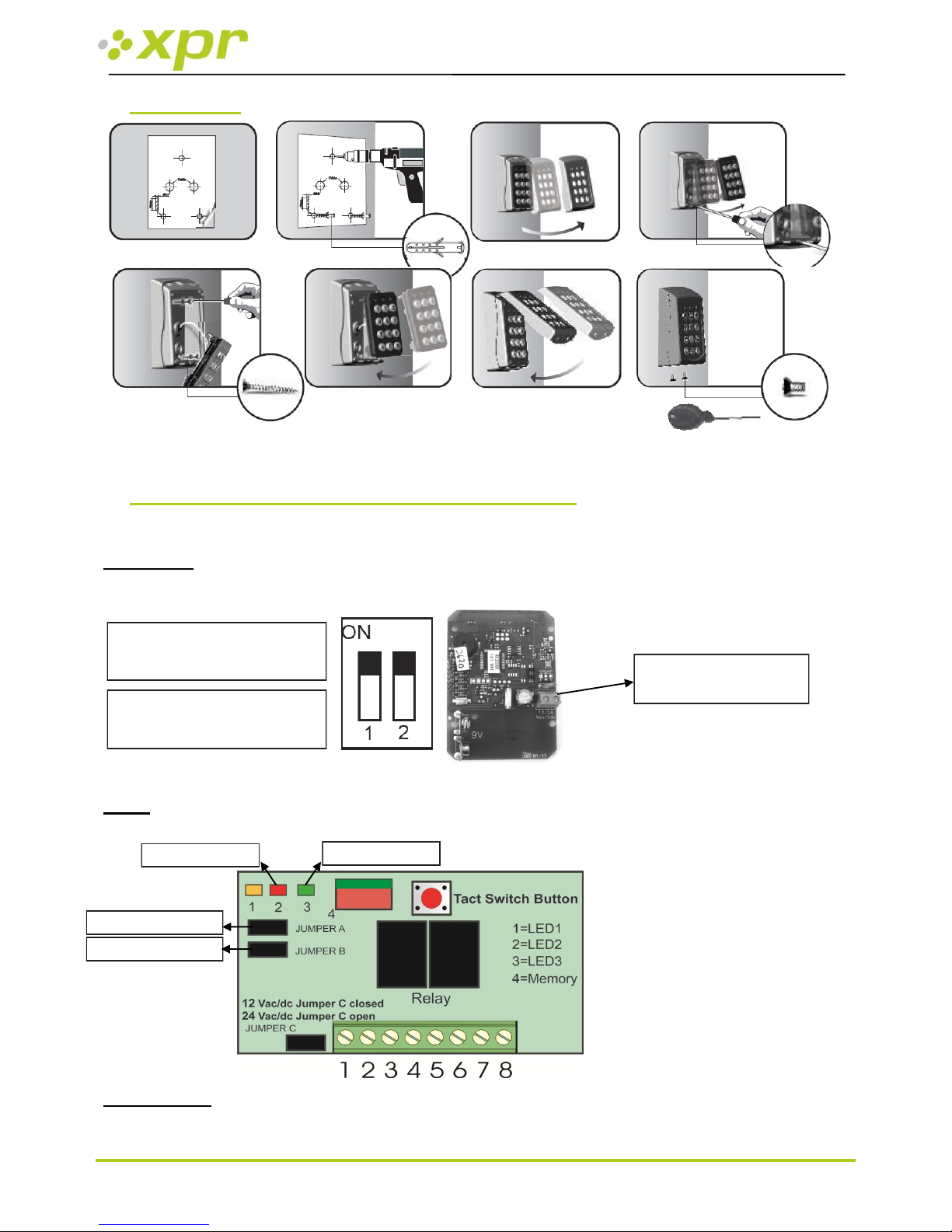

3) MOUNTING

4) TERMINAL BLOCKS AND JUMPER SETTINGS

EX9-43B:

On the back side of the card there is a DIP-SWITCH that allows enabling/disabling the buzzer and the backlighting of the keypad.

RX2:

Power Supply:

Jumper C closed: 12V AC/DC Jumper C open: 24V AC/DC

2 (M3x6mm) security screws

Page 4

EX9 Wireless Radio Keypad User Manual v1.3

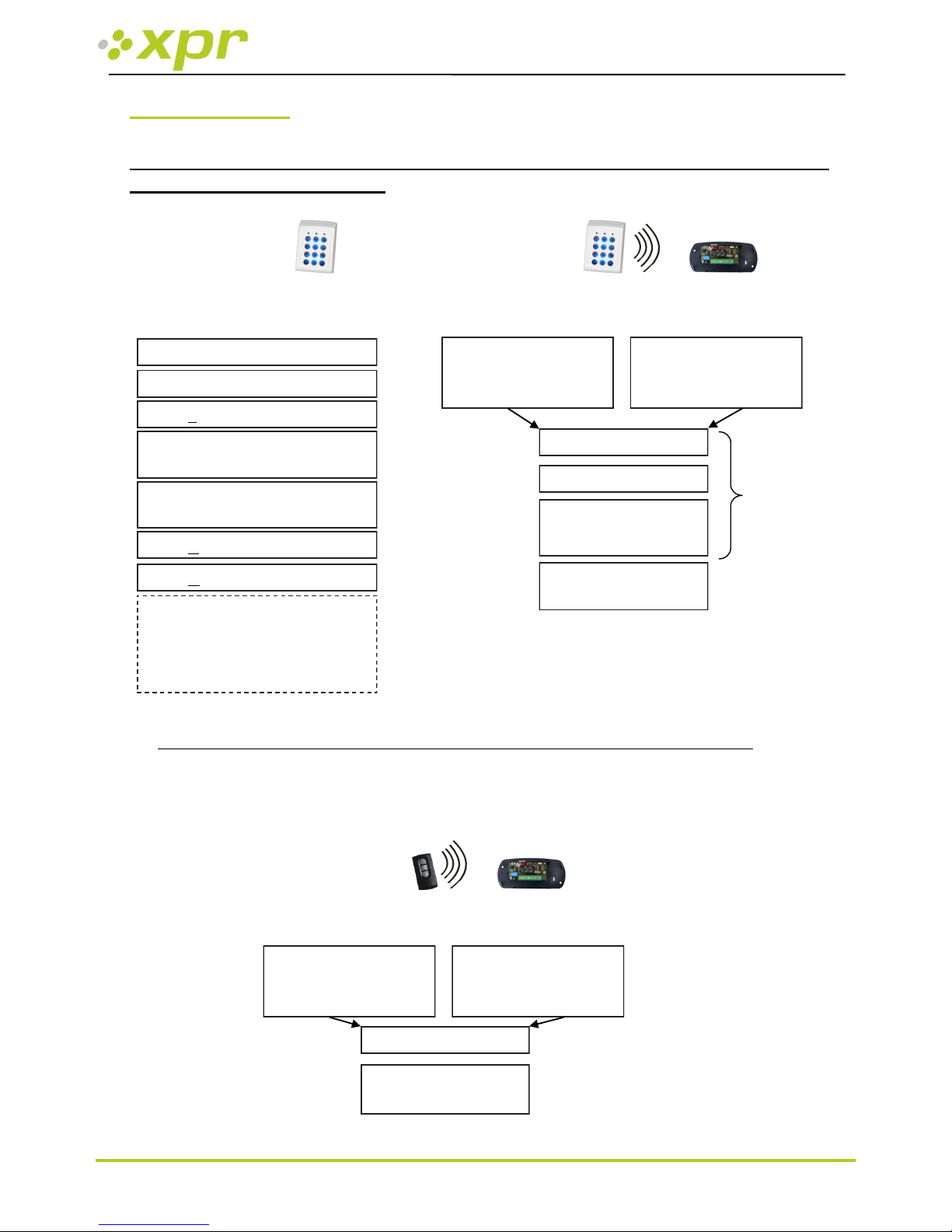

STEP 2)

Send the User into RX2 Reciever

STEP 1)

Add New User in EX9-43B

STEP 3)

Send TX2A Code into RX2 reciever

5) PROGRAMMING

Entering the programming menu is done by the Master Code which is written on the Sticker on back of the Keypad.

NOTE: The keypad automatically associates the transmission channel 1 to every new user

CODE + A + 1

Press the Tact Switch ones for Relay1 (LED 1 & 2 ON)

Enter the User code

Press the Tact Switch twice for Relay2 (LED 2 & 3 ON)

Press A

Enter the User channel (1 – default)

LED 2 or 3 blinks 3 times

Press the Tact Switch ones for Relay1 (LED 1 & 2 ON)

Press TX2A Button

Press the Tact Switch twice for Relay2 (LED 2 & 3 ON)

LED 2 or 3 blinks 3 times

Enter the master code

Press B

Press 0

Enter the memory location of the user to be memorized 01 to 99

Enter the new code (1-8 digits) Press A

Press B to exit

Try the Code, press XXXX+A+1 Green LED will blink indicating that the transmission is in progress

Page 5

EX9 Wireless Radio Keypad User Manual v1.3

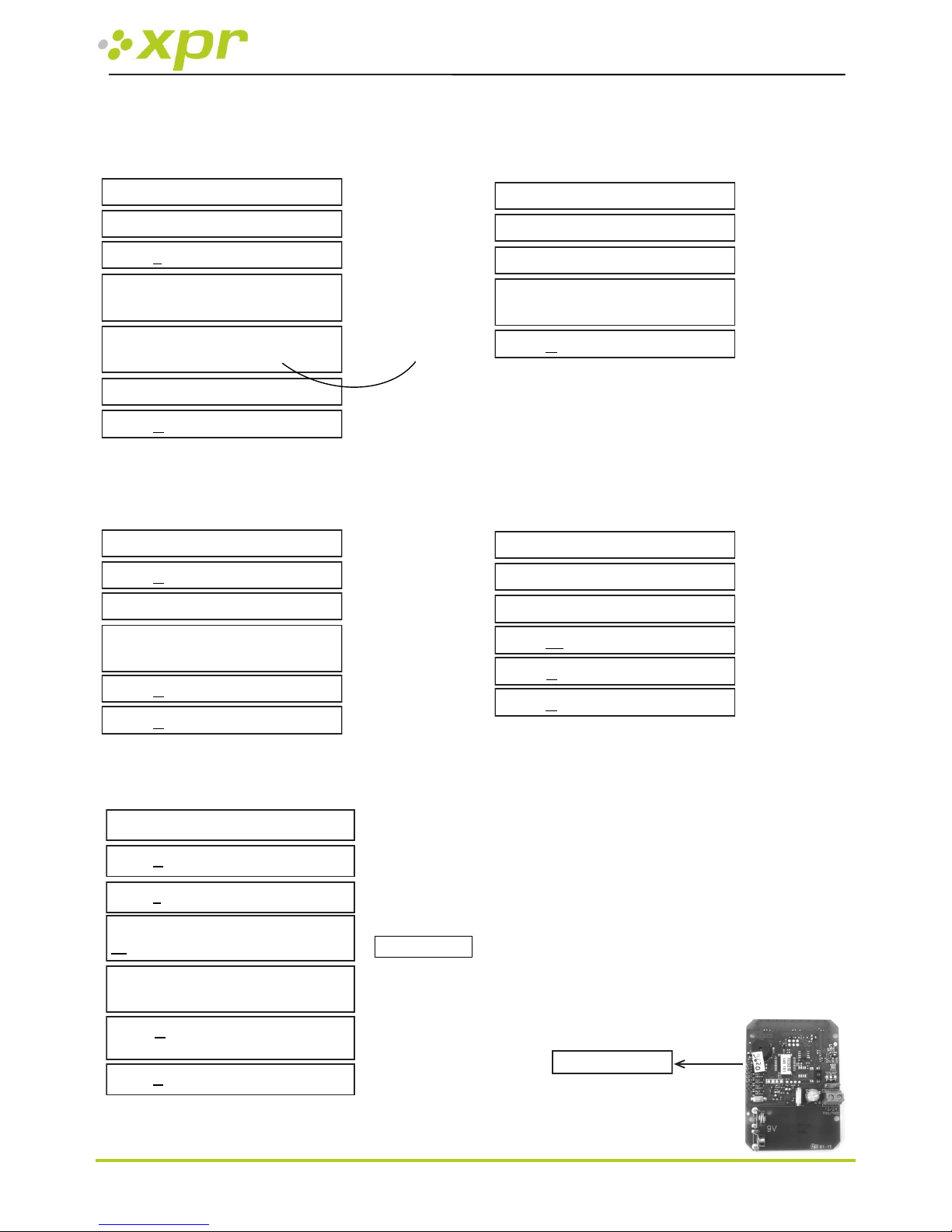

Assign transmission channel

Transmission duration setup Delete one User

Delete ALL Users

The transmission time is set to 2 seconds by default.

The transmission time setting applies to ALL users and ALL transmission channels

Other settings:

Change Master Code

Enter the master code

Press B

Press 3

Enter the memory location of the user to be enabled 01 to 99

Enter the channels to be enabled from 1 to 10 (0)

Press A

Press B to exit

Enter the master code

Press B

Press 1

Enter the transmission time to be enabled from 1s to 10s (0)

Press B to exit

Enter the master code

Press B

Press 9

Enter the memory location of the user to be delated from 01 to 99

Press A

Press B to exit

Enter the master code

Press B

Press 8

Press 99

Press A

Press B to exit

NOTE: Before making any operation, take the sticker you find on the back of the keypad and put it on the space here below (as shown in the drawing) where it is written the master code set by the factory.

Attach here the adhesive or write the master code

NOTE: In case of total reset of the device, the master code will

come to be the one indicated. The loss of this code will make the keypad unusable.

Enter the MASTER code (1-8 digits)

Press B

Press 0

Enter the memory location of the master

Enter the new MASTER code from 1 to 8 figures long

Press A (only if the access code is shorter that 8 figures)

Press B to exit

XXXX+A+(1)

Page 6

EX9 Wireless Radio Keypad User Manual v1.3

Master code

(1-8 digits)

Confirm by pressing B

Confirmation

OK?

Series of short beeps +

ORANGE led flashing

END

Long beep + ORANGE led

fix ON

Memorizing a new

user code

Press 0

Enter the memory location

of the user to memorize

from 01 to 99

Changing the

master code

Press 0

Enter the memory location

of the master code 00

Transmission

duration setup

Press 1

Enter the duration of the

transmission

from 1s (1) to 10s (0)

Deleting all users

Press 8

Enter 99

Enter the new code

from 1 to 8 digits

Deleting one user

Press 9

Enter the memory location of the user to be deleted from 01 to

Assigning the

transmission

channels

Press 3

Enter the memory location

of the user from 01 to 99

Press the channels to be enabled from 1 to 10 (0)

Save data

B to exit

the menu

Confirm by pressing B

The Orange led

goes off

END

Yes

YES

6) PROGRAMMING FLOWCHART

Page 7

EX9 Wireless Radio Keypad User Manual v1.3

7) RELAY SETTINGS

MODE 1: IMMEDIATE - The

relay remains active until the radio signal persists

MODE 2: ON/OFF (Latch) - the relay remains active until a subsequent command is given or when the transmitter button is pressed once again

MODE 3: ON TIME - the relay, once activated, remains active for a programmable time of 3 seconds up to 18 hours

Jumper A OPEN for Relay 1 Jumper B OPEN for Relay 2

Jumper A CLOSED for Relay 1 Jumper B CLOSED for Relay 2

Jumper A OPEN for Relay 1 Jumper B OPEN for Relay 2

For Relay 1: Press and hold the Tact Switch for 3 sec. Until

LED 1 is ON, LED 2 blinking

For Relay 2: Press and hold the Tact Switch for 3 sec. Until

LED 1 is ON, LED 3 blinking

Press the Tact Switch ones again to select MODE 3 (SLOW Blinking)

For Relay 1: Press and hold the Tact Switch for 3 sec. Until

LED 1 is ON, LED 2 blinking

For Relay 2: Press and hold the Tact Switch for 3 sec. Until

LED 1 is ON, LED 3 blinking

Press the Tact Switch ones again to select MODE 1 (FAST Blinking)

Wait until the LED’s go OFF

Click for beggining of count and the LED will start to blink with 1 blink per second. Count the seconds to which the relay will be set.

Take TX2A

which opens

that relay

Click for end of count.

Done.

The difference between the 2 clicks is the relay open time

Enter the User Code that opens that Relay

Take EX9-43B

Keypad

Press A

Done.

The difference between pressing 1 and again 1 is the relay open time

Press 1 for beggining of count and the LED will blink with 1 blink per second. Count the seconds to which the relay will be set.

Press 1 for end of count.

Page 8

EX9 Wireless Radio Keypad User Manual v1.3

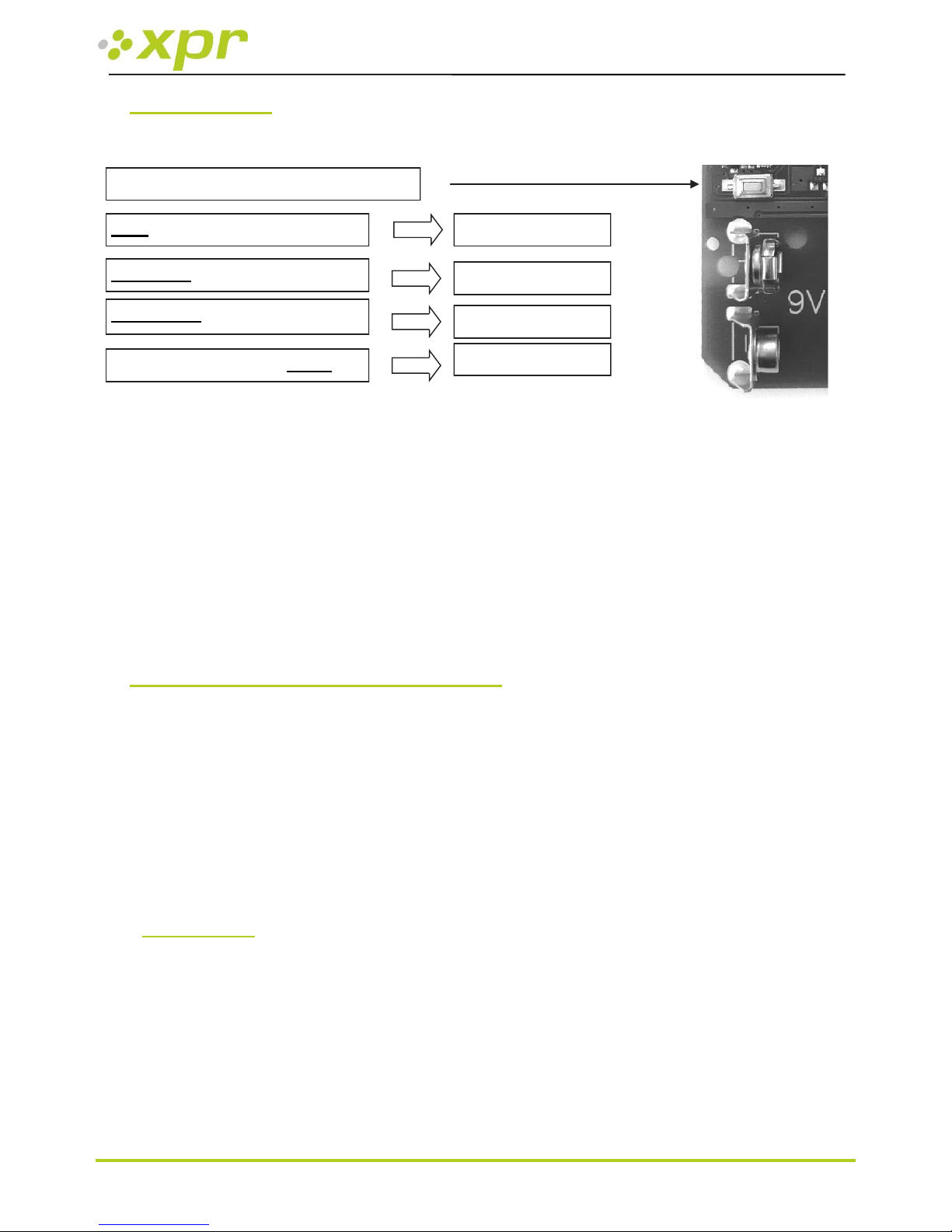

8) TOTAL RESET

Total reset of EX9-43B

MOTE: IN CASE OF TOTAL RESET ALL THE USERS ARE DELETED, THE MASTER CODE AND ALL THE SETTINGS ARE RETURN FACTORY DEFAULT.

Total Reset of RX2

1. Cut the power supply of the receiver’s card

2. Keep pressed the tact switch button and supply power again to the receiver: led 1 turns on after approximately 5 seconds.

3. Release the button of the receiver

4. Wait for the blinking (2 or 3) of LED1. All codes are cancelled once turned off.

9) OPERATING THE WIRELESS KEYPAD

To operate your wireless keypad, type the Code then A then the Number of the transmission channel.

Example: If your code is 1234, to activate the relay press:

1234 + A (Long beep) + 1 (short beep and green led blinks for transmission time)

10 ) EXAMPLES

Task: Assign User with Code: 1234, to activate relay 2. The Relay 2 has to stay open as long as the

radio signal persists, assuming that the Master Code is 5555.

1. Enter the Master Code 5555 and press B, Press 0, press 01, press 1234, press A, press B

2. Take the Radio receiver. OPEN the Jumper B (immediate mode). Press the Tact Switch Button twice and LED1 and LED3 will be on. On the Keypad pres 1234+A+1 and LED3 (green) on the radio Receiver will blink 3 times indicating that the Code is memorized.

Try the Code, press 1234 + A + 1 and relay 2 will go ON.

Keep reset key pressed

DO NOT release the key

Beep emitted by the keypad

DO NOT release the key

The keypad continuously Beeps

Two Beeps emitted by the keypad

Three Beeps emitted by the keypad

Release the key
