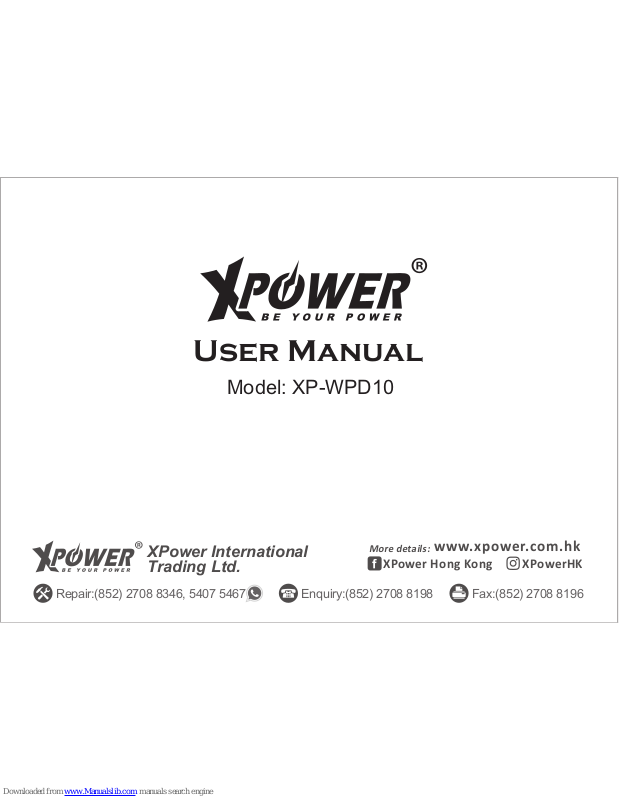

User Manual
Model: XP-WPD10
Repair:(852) 2708 8346, 5407 5467
Enquiry:(852) 2708 8198
Fax:(852) 2708 8196
www.xpower.com.hk
XPowerHKXPower Hong Kong
More details:
XPower International
Trading Ltd.
Introduction:
Packing Content & Specifications:
• Lithium polymer battery
• Battery capacity: 10,000mAh 38Wh
• Input 1(Micro USB QC): 5V/2A, 9V/2A(max)
• Input 2 & Output 1(Type-C PD 3.0):
5V/3A, 9V/2A, 12V/1.5A(max)
• Output 2(USB QC 3.0):
5V/3A, 9V/2A, 12V/1.5A(max)
• Wireless Output: 10W(max)
• Dimension: H144 x W70 x D16(mm)
• Weight: 216g
1: Appearance Introduction
2: Output 2 (USB QC 3.0)
3 Input 2 & Output 1(Type-C PD 3.0)
Input 1(Micro USB QC)
1: Power button
1: Wireless charger
1
2
3
4
5
4
5
3
2
1
WPD10
Power Bank
PouchType-C to
USB-A cable
User Guide:
1. Press the power
button to indicate
the battery
capacity level.
2. Connect WPD10
to your devices
with charging
cable. It will start
charging
automatically.
3. Press the power
button once and
put your Qi
device on the
wireless charging
area. It will start
charging
automatically.
2: WPD10 is applied to charge for devices with input DC 5V-12V/QC/PD, equipped with charge cable
compatible with most mobile phones and other digital communication devices.
Charging devices:
Battery
Capacity
Power Button
4. Disconnect with
your device after
30 seconds,
WPD10 will turn
off automatically.
Warm Tips:
。Avoid crash, hit, scrap, throw and prevent any damage to the power bank.
。You may use the dry cloth to clean the power bank but avoid to use with any chemical cleaning
product.
。With Smart IC intelligent chip, XPower power bank can auto detects and maximizes compatibility
when charging. Besides, XPower power bank is using built-in intelligence chip to avoid short circuit,
over charge, over heat, over current, etc. XPower purchases USD200 million 3rd party product liability
insurance. Public and Products Liability Insurance provides you with funds to pay compensation to a
third party arising from injury or damage if proved product damage form XPower product.
。If the weather or temperature is hot, the temperature of the XPower power bank and the charging
device may be higher than normal during charging. The temperature will be higher when put both
devices together. Thus, it is better if putting the XPower power bank in the air circulation environment
and should be avoided storing in the handbag, on or under the bed, etc.
。If you have any technical problem on our product, please feel free to contact our customer service
department.
Insert the Type-C connector of the charging
cable provided into the input port of WPD10,
and insert the USB connector into the output
port of your charger.
Charging WPD10:
FCC and CE Radiation Norm
This equipment has tested and found to comply with the limits for Class B digital device pursuant to Part 15 of Federal
Communications Commission (FCC) rules.
This equipment has tested and found to comply with the limits of the European Council Directive on the approximation of law
of the member states relating to electromagnetic compatibility(89/336/EEC) according to EN 55022 Class B.
FCC and CE Compliance Statement
These limits are designed to reasonable protection against frequency interference in residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not installed or used in accordance with the instructions, may
cause harmful interference to radio communication, However, there is no guarantee that interference will not occur in television
reception, which can be determined by turning the equipment off and on. The user is encouraged to try and correct the
interference by one or more of the following measures: Reorient or relocate the receiving antenna increase the separation
between the equipment and the receiver Connect the receiver is connected to.
RoHS stands for Restriction of Hazardous Substances, and impacts the entire electronics industry and many electrical products
as well. The original RoHS, also known as Directive 2002/95/EC, originated in the European Union in 2002 and restricts the use
of six hazardous materials found in electrical and electronic products. All applicable products in the EU market since July 1,
2006 must pass RoHS compliance.
Directive 2011/65/EU was published in 2011 by the EU, which is known as RoHS-Recast or RoHS 2. RoHS 2 includes a
CE-marking directive, with RoHS compliance now being required for CE marking of products. RoHS 2 also added Categories 8
and 9, and has additional compliance recordkeeping requirements.
Disclaimer Statement
Thank you for your choice to purchase and use XPower products! Please read this user manual carefully before using the
product, to ensure correct operation method. We strongly recommend you to make data backup before using this product so as
to make sure your data are completely safe. As the equipment manufacturer, XPower do not afford any direct or indirect
responsibility for documents and data lose caused by any factor. Manufacturers do not have the obligation to afford any
compensation and data recovery. XPower do not make special promise to users and distributors, XPower do not afford any
unexpected data lose, direct or indirect loss. If you start to use this product, that means you understand and accept this
disclaimer!
Copyright Description
All XPower products and relative data’s belong to XPower International Trading Ltd. . XPower International Trading Ltd. have
the right of produce and copyright, reproduction is prohibited. This user manual includes, but not limited to all information with
copyright protection, without permission from XPower International Trading Ltd. , no one is allowed to clone, copy, excerpt,
translation or use for other things.
This user manual does not have any form of warranty, position statement or other hint. If there is any direct or indirect data lose,
economic loss or enterprise bankruptcy caused by this user manual or its product information mentioned, XPower International
Trading Ltd. and its staff will not afford any responsibility for that. Besides, the product specification and information mentioned
in this user manual are just for your reference, and contents will update at any time without further notice. XPower International
Trading Ltd. will not take responsibility for any error or negligence in this user manual.
The product name mentioned in this user manual can be only used for identification, and this name may be part of the other
company’s registered trademark or production rights. When below two situations happened, this product will not have XPower’s
warranty and service.
(1) The product does not belong to XPower’s authorization of warranty, specification alteration and parts replacement.
(2) Product bar code is vague or lost. The user manual will update as the product specification or driver’s change. Please
visit the XPower International Trading Ltd. official website to get the details: www.xpower.com.hk .
CAUTION!
The Federal Communication Commission warns the user that changes or modifications to the unit not expressly approved
by the party responsible for compliance could void the user’s authority to operate the equipment.
