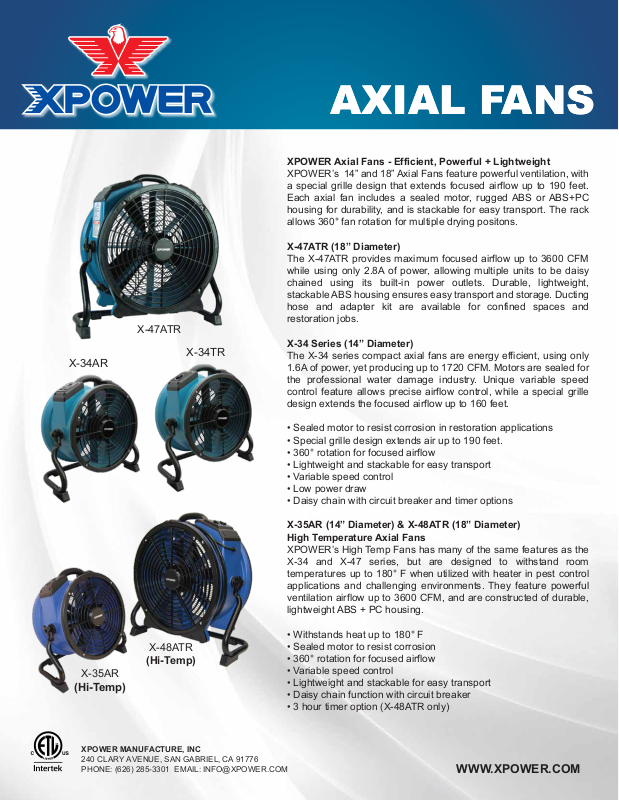

X-34AR
X-47ATR
X-34TR
AXIAL FANSAXIAL FANS
XPOWER Axial Fans - Efficient, Powerful + Lightweight
XPOWER’s 14” and 18” Axial Fans feature powerful ventilation, with
a special grille design that extends focused airflow up to 190 feet.
Each axial fan includes a sealed motor, rugged ABS or ABS+PC
housing for durability, and is stackable for easy transport. The rack
allows 360° fan rotation for multiple drying positons.
X-47ATR (18” Diameter)
The X-47ATR provides maximum focused airflow up to 3600 CFM
while using only 2.8A of power, allowing multiple units to be daisy
chained using its built-in power outlets. Durable, lightweight,
stackable ABS housing ensures easy transport and storage. Ducting
hose and adapter kit are available for confined spaces and
restoration jobs.
X-34 Series (14” Diameter)
The X-34 series compact axial fans are energy efficient, using only
1.6A of power, yet producing up to 1720 CFM. Motors are sealed for
the professional water damage industry. Unique variable speed
control feature allows precise airflow control, while a special grille
design extends the focused airflow up to 160 feet.
X-35AR
(Hi-Temp)
X-48ATR
(Hi-Temp)
• Sealed motor to resist corrosion in restoration applications
• Special grille design extends air up to 190 feet.
• 360° rotation for focused airflow
• Lightweight and stackable for easy transport
• Variable speed control
• Low power draw
• Daisy chain with circuit breaker and timer options
X-35AR (14” Diameter) & X-48ATR (18” Diameter)
High Temperature Axial Fans
XPOWER’s High Temp Fans has many of the same features as the
X-34 and X-47 series, but are designed to withstand room
temperatures up to 180° F when utilized with heater in pest control
applications and challenging environments. They feature powerful
ventilation airflow up to 3600 CFM, and are constructed of durable,
lightweight ABS + PC housing.
• Withstands heat up to 180° F
• Sealed motor to resist corrosion
• 360° rotation for focused airflow
• Variable speed control
• Lightweight and stackable for easy transport
• Daisy chain function with circuit breaker
• 3 hour timer option (X-48ATR only)
XPOWER MANUFACTURE, INC
240 CLARY AVENUE, SAN GABRIEL, CA 91776
PHONE: (626) 285-3301 EMAIL: [email protected]
WWW.XPOWER.COM
Page 2
SPECIFICATIONSSPECIFICATIONS
X-35AR
(High Temp)
X-48ATR
(High Temp)
360° Rotation (10" Height
Rack Included)
360° Rotation (10" Height
Rack Included)
360° Rotation (10" Height
Rack Included)
360° Rotation (12.5"
Height Rack Included)
360° Rotation (12.5"
Height Rack Included)
Unit Dimensions (LxWx H)
18.6"x9.4"x19.2" 18.6"x9.4"x19.2" 18.6"x9.4"x19.2"
21.9"x9.8"x22.5"
Pallet Qty
Model No X-34AR X-34TR
Volts/Hertz
Motor
Power
Rated Airflow
Speeds
Cord Length 20' / 14AWG 10' / 18AWG 20' / 14AWG 20' / 14AWG 20' / 14AWG
Operating Position
Daisy Chain
3 Hour Time r
Stackable
Unit We ight
Housing
Safe ty Certification ETL/CETL ETL/CETL ETL/CETL ETL/CETL ETL/CETL
115V/60Hz 115V/60Hz 115V/60Hz 115V/60Hz 115V/60Hz
1/4HP 1/4HP 1/4HP 1/3HP 1/3HP
1.6A 1.6A 1.6A 2.8A 2.8A
1720 CFM 1720 CFM 1720 CFM 3600 CFM 3600 CFM
Variable Variable Variable Variable Variable
Yes No Yes Yes Yes
No Yes No Yes Yes
Yes Yes Yes Yes Yes
16.7 Lbs 15.3 Lbs 17.6 Lbs 22.2 Lbs 26.6 Lbs
ABS ABS ABS + PC ABS ABS + PC
X-47ATR
21.9"X9.8"X22.5"
Dual The rmal Protec�on Yes Yes Yes Yes Yes
42 Units 42 Units 42 Units 28 Units 28 Units
AIRFLOW DIAGRAMSAIRFLOW DIAGRAMS
Auxiliary Outlet
with Circuit Breaker
for Daisy Chain
Produces Efficient, Powerful
Specially Designed Air Fin Guide
for More Focused & Extended
Airflow Range Up to 190 ft.
Rubber Footing that Works
Stackable Daisy Chain
Sealed Motor that
and Quiet Airflow
Stand Alone Design with
Even With/without Rack
PRODUCT FEATURESPRODUCT FEATURES
Ducting Hose
(X-47ATR Only)
3-Hour Timer &
Variable Speed
Control Switch
Durable ABS or ABS+PC
Housing Design
Quick Release Knob for
Easy Angle Adjustment
Wrap Around Cord Design
Fully Installed Rack / Stand
Allowing 360° Angle Rotation
Adapter Kit
(X-47ATR Only)
