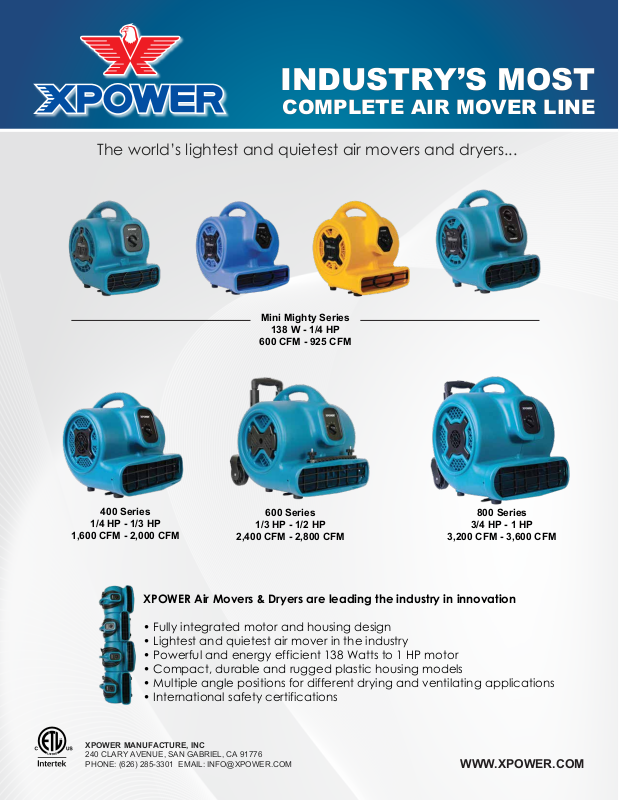

Page 1
INDUSTRY’S MOST
INDUSTRY’S MOST
COMPLETE AIR MOVER LINE
COMPLETE AIR MOVER LINE
The world’s lightest and quietest air movers and dryers...
Mini Mighty Series
138 W - 1/4 HP
600 CFM - 925 CFM
400 Series
1/4 HP - 1/3 HP
1,600 CFM - 2,000 CFM
XPOWER Air Movers & Dryers are leading the industry in innovation
• Fully integrated motor and housing design
• Lightest and quietest air mover in the industry
• Powerful and energy efficient 138 Watts to 1 HP motor
• Compact, durable and rugged plastic housing models
• Multiple angle positions for different drying and ventilating applications
• International safety certifications
XPOWER MANUFACTURE, INC
240 CLARY AVENUE, SAN GABRIEL, CA 91776
PHONE: (626) 285-3301 EMAIL: [email protected]
2,400 CFM - 2,800 CFM
600 Series
1/3 HP - 1/2 HP
800 Series
3/4 HP - 1 HP
3,200 CFM - 3,600 CFM
WWW.XPOWER.COM
Page 2
Air Mover Series
Stackable Yes Yes Yes Yes
Daisy Chain X-600A (GFCI) No No No
Filter Kit Optional Optional X-800TF Opt ional
Carpet Clamp Optional Opt ional Opt ional Optional
Telescopic Handle w/ Wheels No No P-800H (3 Position) P-830H & X-830H (3 Position)
Unit Dimensions
15.9"x15.7"x16.3" 15.9"x15.7"x16.3" 15.9"x18.7"x18.7" 15.9"x18.7"x18.7"
Safety Certif ications ETL / CETL ETL / CETL ETL / CETL ETL / CETL
Dual Thermal Protection Yes Yes Yes Yes
Pallet Quantity 36 Units 24 - 36 Units 16 Units 16 Units
600 SERIES
800 SERIES
SPECIFICATIONSSPECIFICATIONS
Air Mover Series
Stackable Yes Yes Yes Yes Yes Yes
No No No Yes No X-430TF
Daisy Chain Yes Yes Yes Yes X-400A No
Filter Kit No No No No OPTIONAL X-430TF
Unit Dimensions
11.5" x 9.3" x 12.3" 10.7" x 12.4" x 13.3" 10.7" x 12.4" x 13.3" 10.7" x 12.4" x 13.3" 13.9" x 14.8" x 14.6" 13.9" x 14.8" x 14.6"
Safety Certifications ETL/CETL ETL/CETL ETL/CETL ETL/CETL ETL/CETL ETL/CETL
Dual Thermal Protection Yes Yes Yes Yes Yes Yes
Pallet Quantity 84 Units 72 Units 72 Units 72 Units 45 Units 45 Units
400 SERIES
MINI MIGHTY SERIES
Model No. 80A 100A 130A 230AT 400 430
Voltz/Hertz 115V / 60 Hz 115V / 60 Hz 115V / 60 Hz 115V / 60 Hz 115V / 60 Hz 115V / 60 Hz
Motor 138 W 173 W 1/5 HP 1/4 HP 1/4 HP 1/3 HP
Power 1.2A 1.5 A 2.0 A 2.3 A 3.0 A 3.8 A
Rated Airflow 600 CFM 600 CFM 700 CFM 925 CFM 1600 CFM 2000 CFM
Speeds 3 Speed 3 Speed 3 Speed 3 Speed 3 Speed 3 Speed
Cord L ength 10 ft. 10 ft. 10 ft. 10 ft. 20 ft. 20 ft.
Operating Positio ns 4 4 4 4 4 4
3 Hour Timer
Unit Weight 7.9 Lbs. 9.5 Lbs. 9.3 lbs 9.9 Lbs. 15 - 17.2 Lbs. 15 - 17 Lbs.
(Lx Wx H)
Housing PP PP PP PP PP & ABS ABS
Model No. 600 630 800 830
Voltz/Hertz 115V / 60 Hz 115V / 60 Hz 115V / 60 Hz 115V / 60 Hz
Motor 1/5 & 1/3 HP 1/2 HP 3/4 HP 1 HP
Power 1.5-3.8 A 5.0 A 7.5 A 8.5 A
Rated Airflow 2400 CFM 2800 CFM 3200 CFM 3600 CFM
Speeds 3 Speed 3 Speed 3 Speed 3 Speed
Cord L engt h 25 Ft. 20 Ft. 20 - 25 Ft. 20 - 25 Ft.
Operating Positio ns 4 4 4 4
ACCESSORIES:
400 Series - 400FK
600 Series - 600FK
800 Series - 800FK
3 Hour Timer No No X-800TF No
Unit Weight 21.5 Lbs. 18.7 - 21.9 Lbs. 23 - 27.6 Lbs. 24 - 28.5 Lbs.
(Lx WxH)
Housing PP & ABS PP PP & ABS PP & ABS
Telescopic Handle
Filter Kit
600/800 Series - CCK
600 Series - 600HK
800 Series - 800HK
Carpet Clamp Kit
INDUSTRIES WE SERVE
