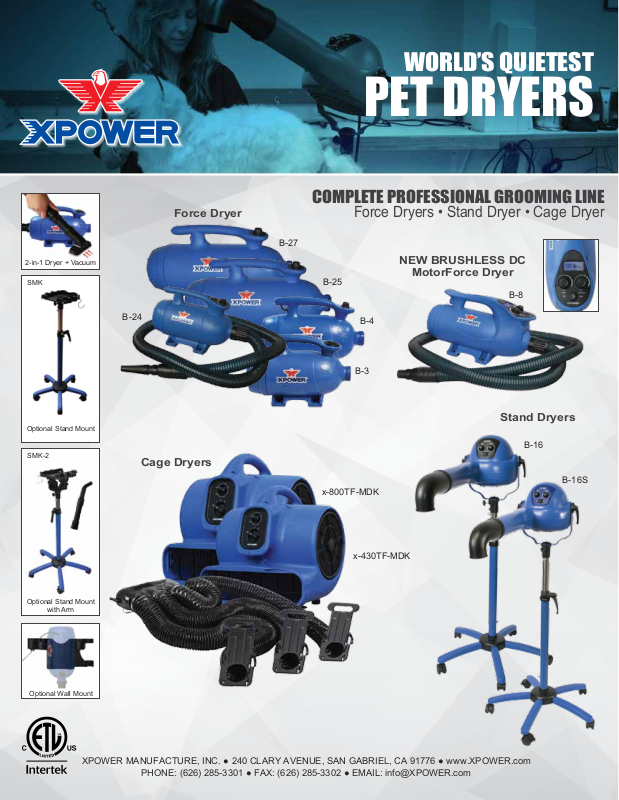

Page 1
Force Dryer
WORLD’S QUIETEST
PET DRYERS
COMPLETE PROFESSIONAL GROOMING LINE
Force Dryers • Stand Dryer • Cage Dryer
B-27
2-in-1 Dryer + Vacuum
SMK
Optional Stand Mount
SMK-2
B-24
Cage Dryers
NEW BRUSHLESS DC
MotorForce Dryer
B-25
B-8
B-4
B-3
Stand Dryers
B-16
B-16S
x-800TF-MDK
Optional Stand Mount
with Arm
Optional Wall Mount
XPOWER MANUFACTURE, INC. ● 240 CLARY AVENUE, SAN GABRIEL, CA 91776 ● www.XPOWER.com
x-430TF-MDK
PHONE: (626) 285-3301 ● FAX: (626) 285-3302 ● EMAIL: [email protected]
Page 2
Model
B-3 B-4 B-8 B-8s B-24 B-25 B-27
SINGLE
BRUSH
DOUBLE
BRUSH
DOUBLE
BRUSH
No. of Units per Pa lle t
Model B-16 B-18
No. of Units per Pallet
Model X-430TF X-800TF
MDK Compa�ble 430MDK 800MDK
No. of Units per Pallet 45 16
Model 430MDK 800MDK SMK SMK-2 SCA WMK
No.of Units per Pallet
Volts/Cycle
Power
Motor
Max AMP
Rated Airflow
Speeds
Heating Element
Unit We ight
Unit Dimensions
Box W eight
Box Dimensions
Cord Length
Filter System
Styling Nozzles
Housing
Thermal Protection
Safety Certification
SPECIFICATIONS
Force Dryers
115V/60Hz 115V/60Hz 115V/60Hz 115V/60Hz 115V/60Hz 115V/60Hz 115V/60Hz
2HP 3HP 3 HP 3 HP 3HP 4HP 6HP
SINGLE BRUSH BRUSHLESS DC BRUSHLESS DC SINGLE BRUSH
8A 10A 12A 15A 12A 12A 19A
100CFM 120CFM 150CFM 150CFM 150CFM 160CFM 180CFM
2 Variable Variable Variable Variable Variable Variable
n/a n/a Variable Variable 2 Settings n/a n/a
8.2 lbs 10.8 lbs 12.3 lbs 12.5 lbs 8.8 lbs 12.3 lbs 13.0 lbs
13"x6"x9" 14"x6.5"x9.5" 17.2"x6.3"x9.8" 17.2"x6.3"x9.8" 14"x6.3"x9.2" 17.7"x6.3"x9.3" 17.7"x6.3"x9.3"
9.5 lbs 12.2 lbs 13.6 lbs
15"x9"x10" 15.3"x9.6"x11.2" 20.5"x9.9"x10.9" 20.5"x9.9"x10.9" 17.7"x9.8"x9.6" 20.5"X9.8"X9.6" 20.5"x9.8"x9.6"
10' 10' 10' 10' 10' 10' 10'
Yes Yes Yes Yes Yes Yes Yes
4 4 3 3 3 3 3
ABS ABS ABS ABS ABS ABS ABS + PC
Yes Yes Yes Yes Yes Yes Yes
ETL/CETL ETL/CETL ETL/CETL ETL/CETL ETL/CETL ETL/CETL N/A
84 84 56 56 70 70 70
13.8 lbs 10.2 lbs 14.7 lbs 14.8lbs
Stand Dryers Cage Dryers
Volts/Cycle 115V/60Hz 115V/60Hz
Power 1/4HP 1/3HP
Motor Brushless DC Brushless DC
Max AMP 12A 18A
Rated Airflow 300CFM 380CFM
Speeds Variable Variable
Hea�ng Element
Unit Weight 17lbs 18lbs
Unit Dimensions 34.5"x25"x60" 34.5"x25"x60"
Box Weight 21lbs 22lbs
Box Dimensions 27.5"x13"x10.2" 27.5"x13"x10.2"
Cord Length 13' 13'
Filter System
Housing ABS ABS
Thermal Protec�on
Safety Cer�fica�on ETL/CETL N/A
35 35
Accessories
Volts/Cycle 115V/60Hz 115V/60Hz
Power 1/3HP 3/4HP
Motor Induc�on Induc�on
Max AMP 3.8A 7.5A
Rated Airflow 2000CFM 3200CFM
Speeds 3 3
Unit Weight 17lbs 24.8lbs
Unit Dimensions 13.9"x14.8"x14.6" 15.9"x17.5"x18.5"
Box Weight 21lbs 29.3lbs
Box Dimensions 15.5"x15"x15.2" 19.3"x18.7"x17.3"
Cord Length 20' 25'
3-Hr Timer
Filter System
Housing ABS ABS
Thermal Protec�on
Safety Cer�fica�on ETL/CETL ETL/CETL
Unit Weight 10 lbs 10.4 lbs 7.5 lbs 8.8 lbs. 8.8 oz. 1.1 lbs
Unit Dimensions 15.75"x9"x104" 17.5"x 9"x104" 22"x22"x49" 26"x26"x53.5" 16.5"x3.2"x2.5" 16"x2.5"x8"
Box Weight 11lbs 11.5lbs 10.8lbs 12.1 lbs. 0.8 lbs. 1.35lbs
Box Dimensions 20"x10"x11" 19"x10.6"x11.2" 28"x10"x7.1" 28.3"x10.4"x8.5" 3.2"x2.8"x16.5" 16.3x"8.1"x2.8"
48 48 40 40 672 224 (8 x 28)
