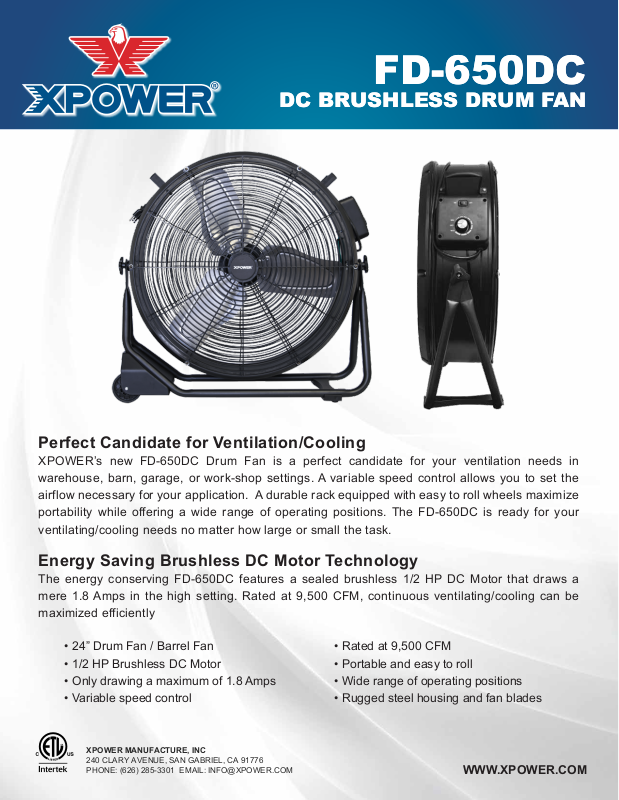

Page 1
FD-650DCFD-650DC
DC BRUSHLESS DRUM FANDC BRUSHLESS DRUM FAN
Perfect Candidate for Ventilation/Cooling
XPOWER’s new FD-650DC Drum Fan is a perfect candidate for your ventilation needs in
warehouse, barn, garage, or work-shop settings. A variable speed control allows you to set the
airflow necessary for your application. A durable rack equipped with easy to roll wheels maximize
portability while offering a wide range of operating positions. The FD-650DC is ready for your
ventilating/cooling needs no matter how large or small the task.
Energy Saving Brushless DC Motor Technology
The energy conserving FD-650DC features a sealed brushless 1/2 HP DC Motor that draws a
mere 1.8 Amps in the high setting. Rated at 9,500 CFM, continuous ventilating/cooling can be
maximized efficiently
• 24” Drum Fan / Barrel Fan
• 1/2 HP Brushless DC Motor
• Only drawing a maximum of 1.8 Amps
• Variable speed control
• Rated at 9,500 CFM
• Portable and easy to roll
• Wide range of operating positions
• Rugged steel housing and fan blades
XPOWER MANUFACTURE, INC
240 CLARY AVENUE, SAN GABRIEL, CA 91776
PHONE: (626) 285-3301 EMAIL: [email protected]
WWW.XPOWER.COM
Page 2
SPECIFICATIONSSPECIFICATIONS
10 Ft.
200° Rotation
Unit Dimensions
30.1 x 9.3 x 29 in.
Box Dimensions
32.4 x 11.8 x 33.3 in.
Palle t Qty
Model No FD-650DC
Volts/Hertz
Motor
Power
Rated Airflow
Airflow Travel Distance
Speeds
Cord Length
115V / 60Hz
1/2 HP
0.1 - 1.8 Amps
9500 CFM
220 Ft.
Variable
Operating Position
Unit We ight
(LxWxH)
Box W eight
(LxWxH)
Housing
Safety Certification ETL / CETL
Dual Thermal Protec�on
Listed XPOWER products meet OSHA standards for the workplace.
(Rack Included)
29.3 Lbs.
34.8 Lbs.
Metal Housing
Yes
8 Units
Sealed MotorMultiple Positions Rack Handle
Variable Speed
Control Panel
Wheels
for Mobility
