X-600/ X-600A/ X-630
P-600/ P-630 (115V/230V)
X-600 / X-600A / X-630
P-600 / P-630

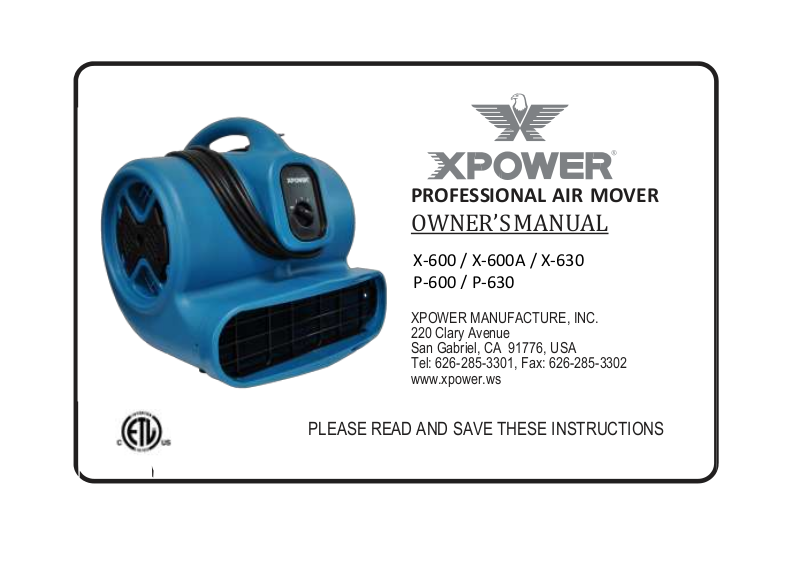

PROFESSIONAL AIR MOVER
OWNER’S
MANUAL
XPOWER MANUFACTURE, INC.
220 Clary Avenue
San Gabriel, CA 91776, USA
Tel: 626-285-3301, Fax: 626-285-3302
www.xpower.ws
PLEASE READ AND SAVE THESE INSTRUCTIONS
Index
Introduction ...............................................................................................................................
Operation / Instructions..............................................................................................................
Safety Instructions......................................................................................................................
Maintenance Instructions / Troubleshooting...............................................................................
Specifications.............................................................................................................................
Warranty / Service ............. ........................................................................................................
Parts List ....................................................................................................................................
Daisy Chain Specifications / Accessories ..................................................................................
Warranty Registration Form .......................................................................................................
2
3
4
5
6
7
8
9
10
Introduction
XPOWER Air Movers are ETL/CETL/CE/GS certified and multifunctional Air Mover with
the most efficient engineering design. All XPOWER Air
Features:
• Low power draw with a velocity over 2400 CFM when switch on High.
• Super quiet and super light weight.
• Optional Easy clean filter system.
• Easy carrying and storage stackable.
• Easily disassembled for thorough cleaning and service.
• “Power cord” lengths are 20’/25’ in US and 10’ for Canada
• Easy cord wrap on handle
• Safety screens on open vents.
• 3 speed switch.
• 4 air flow positions (0°, 20°, 45°, 90°).
0° 20°
45° 90°
• Durable and rugged housing with 5 Years Warranty.
Operation / Instructions
XPOWER Air Movers are intended to move air and to dry
floors, walls, furniture, etc. Durable and easy to operate with
an effective balance of static pressure and airflow, the units
are suitable for a variety of applications.
1.
XPOWER Air Movers are shipped ready to be put into service.
Prior to plugging the unit into the power source,
inspect completely for any shipping damage.
2. Plug the electrical cord into the power outlet.
3.
Carefully place the Air Mover unit on a stable, flat dry surface.
4.
The unit has four air flow positions, capable to aim airflow
across flat surfaces or angled upward.
5. Turn the switch to desired speed and make sure it is
operating correctly.
6.
All Air Movers in operation must be supervised at all times.
AIR MOVER
STORAGE:
Air Movers can
be stacked
(up to 4) on
their sides for
storage.
NOTICE:
1.Stacking
feature is not
secure for
transportation.
2.Remove the
filters before
stacking.
Safety Instructions
1. To prevent electric shock, do not operate the unit in standing water. Never plug in or unplug
the unit with wet hands or while standing in water.
2. To avoid risk of injury, do not direct air flow at face or body.
3. To reduce the risk of fire or electric shock, do not use the Air Mover with any solid-state speed
control device.
4. Use only with GFCI protected receptacles. Please contact a qualified electrician for verification
and / or installation of a GFCI receptacle if necessary.
5. Do not operate any Air Mover with a damaged cord or plug. Discard the unit or return it to an
authorized service facility for examination and/or repair.
6. Unplug the Air Mover from the power supply before servicing or cleaning.
7. Do not run the po wer cord under carpeting. Do not cover the power cord with throw rugs,
runners, or similar coverings. Place the power cord away from traffic area to prevent tripping.
8. Do not allow children to play with or around an Air Mover at any time.
9. Do not move or carry an Air Mover while unit is operating.
10.
All Air Movers in operation must be supervised at all times.
PROBLEM
POSSIBLE CAUSE
SOLUTION
Air Mover not
running
No power input
Plug in the Air Mover; check circuit breaker
Switch not turned on
Turn on switch
Air Mover fan wheel jammed
Remove material jamming fan wheel
Intake or exhaust blocked
Turn unit off and allow to cool,
then remove blockage
Air over vibrates
excessively
Accumulation of dirt on fan blades
Clean Air Mover fan blades
1. To keep the Air Mover clean, use a damp cloth to wipe the surface of the housing.
2. Never clean the Air Mover with water.
3.
When not in use, unplug and store the Air Mover in a dry indoor place out of reach of children.
4. Always disconnect the Air Mover from its power source before performing any maintenance or
cleaning.
5. Clean the filters (optional item) as often as necessary to avoid loss of airflow.
For any problems not listed below, call your local distributor or contact our Service Department.
Maintenance Instructions
Troubleshooting
Model
X-600
P-600
X-600A
X-630
P-630
Power
1/3 hp
1/3 hp
1/3 hp
1/2 hp
1/2 hp
Amp
3.8 A
3.8 A
3.8 A
5 A
5 A
Weight
20 lbs
19 lbs
20 lbs
21 lbs
20 lbs
Speeds
Three
Three
Three
Three
Three
Size (H x W x D)
16 x 16 x 16 in.
16 x 16 x 16 in.
16 x 16 x 16 in.
16 x 16 x 16 in.
16 x 16 x 16 in.
Daisy Chain
N.A
N.A
YES
N.A
N.A
Cord Length
25 ft
20 ft
25 ft
25 ft
20 ft
Overheating
Protecting
Thermally
Protected
Thermally
Protected
Thermally
Protected
Thermally
Protected
Thermally
Protected
Rated Airflow (on high)
2400 CFM
2400 CFM
2400 CFM
2800 CFM
2800 CFM
Positions
4 (0°, 20°, 45°, 90°)
4 (0°, 20°, 45°, 90°)
4 (0°, 20°, 45°, 90°)
4 (0°, 20°, 45°, 90°)
4 (0°, 20°, 45°, 90°)
Housing
ABS
PP
ABS
ABS
PP
Safety Marks
ETL / C-ETL
ETL / C-ETL
ETL / C-ETL
ETL / C-ETL
ETL / C-ETL
Filter System
Optional
Optional
Optional
Optional
Optional
Specifications
XPOWER LIMITED WARRANTY
XPOWER Warranty covers the unit from defects in materials and craftsmanship. The Warranty
covers normal use for a term of one year from the original date of purchase including parts,
labor and one way shipping. The XPOWER Air Mover Housing is covered for a term of five
years from the date of original purchase.
Important !
Warranty does not cover signs of misuse including, but not limited to, a unit that has been
dropped, subjected to water damage, tampered with, improper voltage use and unauthorized
maintenance and repairs. The POWER CORD and FILTERS are not covered by the warranty.
Service
In order to receive service or replacement parts under warranty, you must:
A. Must Call for a Return Merchandise Authorization (RMA) number through Service Department and
obtain ship back instructions.
B. Must have original proof of purchase.
C. Must use original none damaged packaging or Industrial certified packaging method.
The end user will be responsible to ship the unit (with the RMA number showing on the
shipping label) to the XPOWER Service Department. Upon inspection, we will advise you of
the repairs needed and the cost (if applicable). XPOWER will provide repair or replacement
parts depending on warranty.
- 7 -

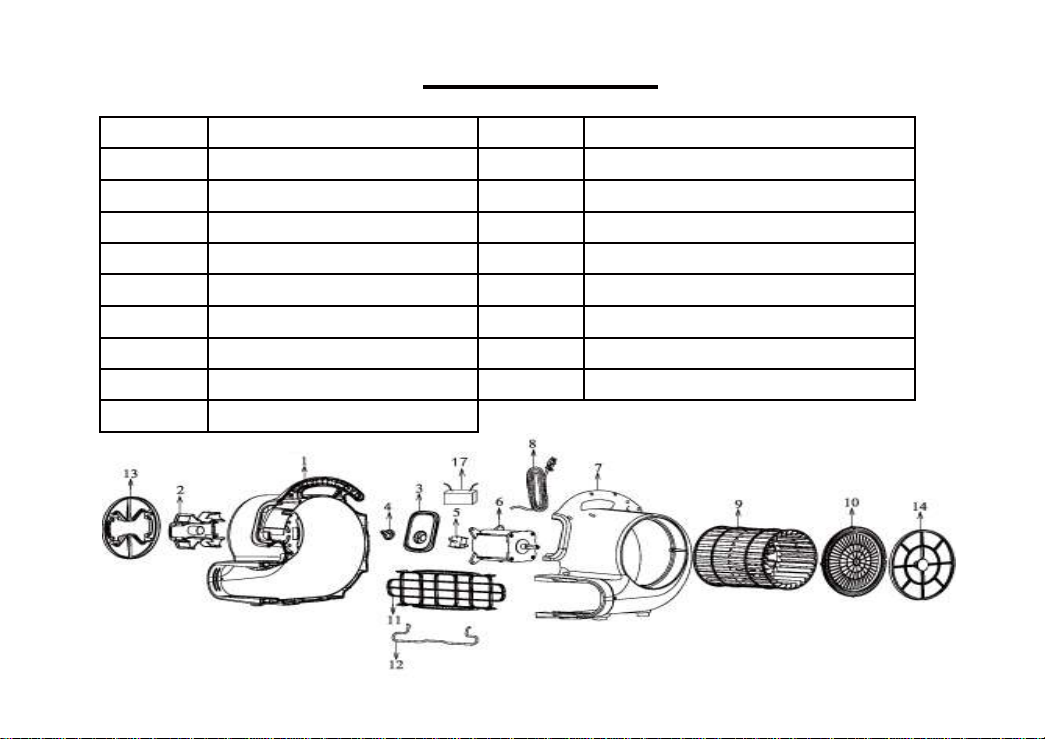

600 Series Parts List
Item No.
Parts Name
Item No.
Parts Name
600-1
Left Housing
600-2
Grid Cover (Motor Side)
600-3
Switch Plate
600-4
Switch Knob
600-5
Switch Plate
600-6
Motor
600-7
Right Housing
600-8
Power Cord
600-9
Fan
600-10
Grid Cover (Fan Side)
600-11
Air Outlet Grid Cover
600-12
Kick Stand
600-13
Filter I (Motor Side)
600-14
Filter II (Fan Side)
600-15
Rubber Feet (Not Shown)
600-16
Screws and Nuts (Not Shown)
600-17
Capacitor
- 8 -

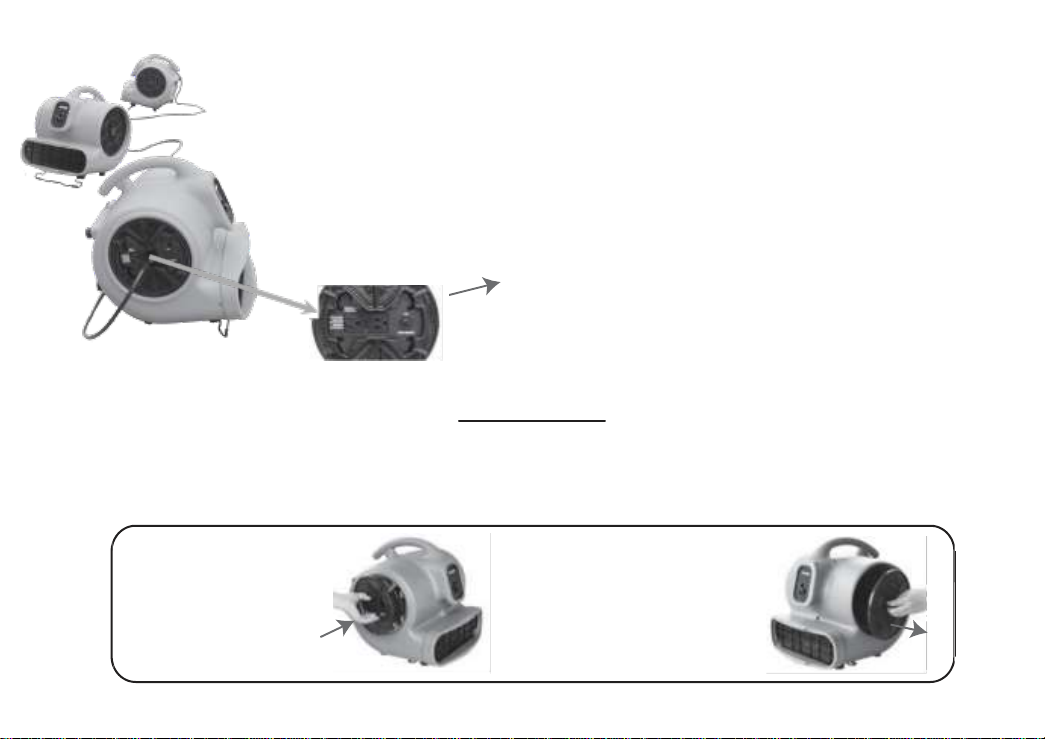

Daisy
Chain Specifications (applicable for model X-600A)
XPOWER Air Mover Model X-600A is daisy chainable with a low 3.8 amp draw.
The 12-amp on-board circuit breaker will allow two (2) additional X-600A units to
run on one circuit at the same time.
Filters (optional)
Note:
Air Mover
outlet
overloads,
trips,
unplug
button.
Plug
switch.
the units
Accessories
has
an on-board
the circuit breaker
the
units
back
into the power source and turn
and
circuit
press
breaker. If
will
trip.
the circuit
the auxiliary
If
the breaker
breaker
reset
on
the
A set of filters is available for the XPOWER Air Mover which will help prevent small debris
from entering the Air
soapy
water,
Installation:
Filters snap into
Note:
F
ilter
I is for the Motor side,
F
ilter
II is for
rinse
the
with
the
air inlets.
Fan side
Mover.
clean
To clean the
water
and let dry
filters:
remove
thoroughly before
Filter Removal:
Pull
the filters
Note:
After cleaning make sure
the filters
installing.
filters
from the unit and wash with warm
reinstalling.
out of the blower.
are dry
before
- 9 -
and dust
WARRANTY REGISTRATION
Please complete and mail or fax for your product warranty. F or a multiple
paper. Address:
XPOWER
MANUFACTURE, INC. 220 Clary Avenue San Gabriel, CA 91776,
Tel: (626) 285-3301; Fax: ( 626)
Company Name / Contact Person / Title
Address City
State / Province Zip Country
Phone
Fax E-mail
Model #
Date of Purchase / /
Purch
Additional Comments / Suggestions
units,
please list serial numbers on a separate sheet of
285-3302
Serial
#:
ased From
USA
From:
TO:
XPOWER MANUFACTURE, INC.
220 Clary Avenue
San Gabriel, CA 91776, USA
Tel: (626) 285-3301; Fax: (626) 285-3302
