Xplova E7 Smart Cycling Computer
User’s Manual
© Copyright 2015, Xplova Incorporated. This publication, including all
photographs, illustrations and software, is protected under international
copyright laws, with all rights reserved. Neither this User’s Manual, nor any of the
material contained herein, may be reproduced without written consent of the
manufacturer. Download the latest version of this document at www.xplova.com.
Visit http://tour.xplova.com/
Create group biking events, plan routes, upload activities and workout
summary cloud service
Manufactured by:
Xplova Inc.
www.xplova.com
5F-1A, No. 128, Xinhu 2nd Road, Neihu District,
Taipei City 11494, Taiwan (R.O.C.)
Tel: 886-2-77207928
Fax: 886-2-77207938
http://www.xplova.com/en/support/
Email: sales @xplova.com
Version: 1.20!
2
Getting Started 5
Features of the Xplova E7 5
Getting to Know the Xplova E7 7
Accessories 8
ANT+ Accessories 8
Charging the Xplova E7 9
Installing Xplova E7 on bike 10
Using Xplova E7 11
Acquiring GPS Signal 12
The LCD Screen 12
Selecting Data Display 15
Adjusting the Backlight 16
Selecting Bike Profile 16
Marking Lap / Location 17
Restarting Recording 18
Idle Mode 18
Changing the Settings 19
Menu Button Controls Description 19
The Menu Tree 20
1.ALT (Altitude) Menu 21
2. RECORD Menu 25
WARNING Menu 28
4. GPS Menu 29
5. SOUND Menu 31
6. S-PAUSE (Smart Pause) Menu 32
7. Bike Menu 33
8. HRM (Heart Rate Monitor) Men 39
9. USER Menu 40
10. INFO (Information) Menu 41
11. TIME Menu 42
12. UNIT Menu 43
3
13. LANGUAGE Menu 44
14. F-RESET (Factory Reset) Menu 44
The Accessories 46
Heart Rate Monitor (Optional accessory from Xplova) 46
Combo Cadence Sensor (optional accessory from Xplova) 48
Appendix 51
Xplova E7 Specifications 51
Wheel Size Table 52
Declarations of Conformity 53
4
Getting Started
Congratulations on having purchased the Xplova E7 Smart Cycling Computer.
In this chapter, you will discover key features and understand how to set up your
device and use the basic features of the user interface.
Features of the Xplova E7
The Xplova E7 is a light-weight and stylish GPS Cycling Computer for
performance driven cyclists and those who are keen to share their cycling
journeys with friends. With Xplova Smart Dynamic Logging Technology, Xplova E7
automatically tracks speed, distance, location, elevation, slope using a high
sensitivity GPS and barometer.
Xplova E7 equips the latest Bluetooth Low Energy technology, when connects
with Xplova Meetup APP in smartphones, the real time cycling data including geo
coordinates are transferred from Xplova E7 to tour.xplova.com event channel
which allows riders to do the live-tracking of group members in the Xplova
Meetup APP.By adding an ANT+ compatible Heart Rate Monitor, Speed/Cadence
Combo Sensor or compatible Power Meter, Xplova E7 becomes a training
companion which dutifully records every detail of your ride. All these recorded
activities can be uploaded to http://tour.xplova.com/ community portal for
performance analysis, off-line competition, mapping and sharing.
State of the art Smart Cycling Computer
•
High performance and low power consumption 32-bit processor
•
Large-screen display, Shows up to 7 cycling data simultaneously
•
Bluetooth Low Energy, connects with Xplova Meetup for Live-Tracking
•
Built-in rechargeable battery, typical operation for 16 hours
•
120 hours of data logging, 220 hours if no ANT+ accessories connected
•
Intuitive data select buttons
•
High sensitive GPS receiver, flexible to turn on/off GPS
5
•
High precision Barometric altimeter for altitude and slope calculation
•
Low power digital wireless sensors support (ANT+) for Combo cadence
sensor, Heart Rate Monitor, Power Meter, Speed sensor, Cadence sensor,
etc.
Xplova Smart Dynamic Logging Technology
•
Automatically tracks all cycling data
•
No more Start/Stop key to record an activity
6
Getting to Know the Xplova E7
Xplova E7 Front View
Xplova E7 Rear View
7
•
Short press to mark lap and position.
•
In Settings short press to return
•
Long press to save current record
and start a new record.
•
USB cover
•
Buzzer hole
•
Holder latch
•
Pressure sensor
temperature sensor hole
microUSB連接埠
（在防蓋下）
•
Short press to switch
the data displayed on
the upper screen
•
Long press to enter or
exit the menu.
Power
•
Short press to turn the
power on
•
Long press to turn the
power off
•
Short press to change
the backlight level
•
Short press to switch
the data displayed on
the lower screen
•
Long press to select a
bike profile
Accessories
The Xplova E7 comes with the accessories shown below. Check to make sure
all items are included in the package; if anything is missing, contact your Xplova
retailer.
Standart Accessories
Optional Accessories
The Xplova E7 can be paired with optional accessories to provide a complete
solution for cycling and outdoor activities. Follow the instructions on “Using the
Accessories” to pair and install the following devices:
•
Heart Rate Monitor (HRM)
•
Speed / Cadence Combo Sensor
•
USB Charger
ANT+ Accessories
The Xplova E7 is built-in 2.4GHz ANT+ Digital Wireless Receiver, which
supports standard ANT+ accessories including Combo cadence sensor, Heart Rate
Monitor, Power Meter, Speed sensor, Cadence sensor, etc. In additions, Xplova E7
supports the Power Meter with Left/Right output percentage display. The
compatible Power Meters are:
iCranks, InfoCrank, xpedo, SRAM/Quarq, SRM, Power2Max, etc. for more
information, please contact Xplova Customer Service: service@xplova.com
8
•
Micro USB Cable
•
Bike Mount with
•
Rubber Bands
Charging the Xplova E7
Before using your Xplova E7, make sure it is properly charged and ready to
go. Charge the Xplova E7 for at least 3 hours before first use to make sure the
built-in battery is fully charged. Xplova E7 can be charged using the supplied USB
cable to connect to any standard USB port or USB power adapter.
9
!
!
Installing Xplova E7 on bike
1. Align the mount pad to the bike handle bar and
the bike mount to the mount pad.
2. Loop a rubber band from one corner of the bike
mount, passing through the bottom side, to the
other corner.
3. Loop a rubber band from another corner,
passing through the bottom side, to the other
corner to secure the bike mount in place.
4. Align the mounting guide to the bike mount.
5. Install and then turn the Xplova E7 clockwise to
lock it in place.
10
Using Xplova E7
This chapter provides instructions on how to power up your device and use
the button controls and full features and functions of your Xplova E7.
Powering Up the Xplova E7
After charging the Xplova E7, you are now ready to begin using your device.
Short press . The LCD screen briefly displays the device firmware
version.
NOTE: During charging long press 3 sec. to power on.
NOTE: The firmware version may appear differently from the above
illustration.
Powering Off the Xplova E7
To turn the power off, long press 3 sec. A POWER OFF
message is displayed on screen.
11
Acquiring GPS Signal
The Xplova E7 comes fully equipped with X-Navi technology designed to
maximize your cycling experience. Once turned on, the Xplova E7 automatically
searches for satellite signals. Go outside to an area free from tall obstructions.
The greater the exposure, the faster the Xplova E7 will be able to acquire a signal.
Signal acquisitions can take 5 to 15 minutes to complete under open skies. The
GPS icon indicates the signal strength when GPS is fixed.
The LCD Screen
•
Status Bar:
Displays status icons:Battery Status, Selected Bike, Bluetooth Connected,
GPS Signal Status.
•
DATA1: Upper data display main data area
Displays speed, heart rate, cadence, distance, recording status, speed
status.
•
DATA2：Lower data display dot matrix data area
Displays the clock, altitude, slope, trip time, calories, temperature, and
power information.
Status bar icon description
Battery Status:
Shows the battery capacity and charging status
12
Status Bar
DATA2
Lower Data Display
DATA1
Upper Data display
DATA1: Upper Data Display Icon
Selected Bike:
Shows the current selected bike profile
Bike 1 is selected with its connected accessories
settings
Bike 2 is selected with its connected accessories
settings
Customized settings for running, walking, driving or
Bike 3
Bluetooth
Connected
Shows when connected with Xplova Meetup APP
GPS Signal
Status
Shows the GPS signal strength
Good GPS signal reception, 3D fixed
Fair GPS signal reception, 2D fixed
Poor GPS signal reception, not fixed
Searching GPS signal, not fixed
No GPS signal
strength icon
GPS is turned off
Heart Rate Status
Display Heart Rate Monitor status
Heart Rate Monitor receiver is on
Heart Rate Monitor receiver is on but no signal
received
No Heart Rate
icon
Heart Rate Monitor receiver is off
Cadence Status
Display Cadence Sensor status
(Note: Xplova E7 supports standard ANT+ COMBO
Cadence Sensor, Standalone Cadence Sensor and
Cadence Sensor built-in Power Meter)
Cadence Sensor receiver is on
13
Cadence Sensor receiver is on but no signal received
No Cadence
Sensor icon
Cadence Sensor receiver is off
Speed Status
Display the current speed is above or under average
trip speed
Current speed is above average trip speed
Current speed is under average trip speed
Recording Status
Display the recording status
In recording
Pause recording: When current speed is lower than the
Smart-Pause speed setting, Xplova E7 data recording
will be paused.
14
Selecting Data Display
The LCD display shows different types of data
DATA1: Upper Screen Data, Main data display area
Short press repeatedly to toggle the upper data display for Current
data, Average data and Maximum data.
DATA2: Lower Screen Data, Dot matrix display area
Short press repeatedly to toggle the lower data display for:
1. Bike1 ODO、Clock.
2. Altitude + Slope、Trip Time
3. Total Climb、Trip Time
4. Calories + Temperature、Trip Time
5. Current Power + Left % Right Power、Trip Time.
15
Current data
Average data
Current
distance
Current speed
Current heart
rate
Current
cadence
Maximum data
。
Short press
AVG (Average)
Average heart
rate、Average
cadence、Average
speed
MAX(Maximum)Maxi
mum heart rate、
Maximum cadence、
Maximum speed
。
Short press
Short press
。
Adjusting the Backlight
To adjust the brightness setting, short press repeatedly to scroll
through the brightness options. Options are: HIGH, LOW, OFF.
Selecting Bike Profile
You can configure up to three bike profiles on Xplova E7: (Bike1),
(Bike2), and CUST (Custom.)
1. Long press 3 seconds to enter Bike profile selection.
2. Short press to scroll through bike profile options.
16
Bike1 ODO, Clock.
Altitude + Slope, Trip Time
Total Climb, Trip
Time.
Current Power + Left % Right Power, Trip
Time
Calories + Temperature, Trip
Time.
。。。
。
。
Short
press
Short
press
Short
press
Short
press
Short
press
3. Short press to confirm selection.
Operation note:
•
The appears on the upper right scree for Bike profile selection,
short press to scroll the options.
•
The appears on the lower left screen for confirmation, short press
to confirm selection.
Marking Lap / Location
During recording, press to mark a new LAP or mark the current
location to the current recording session. the Xplova E7 will display the latest LAP
data for 5 seconds."
•
Upper Screen Data:
LAP caption、LAP average heart rate、LAP average cadence、LAP average
speed
•
Lower Screen Data:
LAP number、LAP distance、LAP time
17
Gear selection
Main display page
short press save
and return
Long press 3
Sec.
Short
press
Restarting Recording
During recording, long press to start a new recording.
"
The Xplova E7 starts recording when it is powered on, if you want to reset the
time and distance from zero, you can long press for 3 seconds, the
Xplova E7 starts countdown, stores the current record and displays the current
record number, e.g. R01 and then starts a new record, e.g. R02 immediately after
emitting the continuous beep sound.
Note: Xplova E7 may not start a new record after long pressing
for 3 seconds, if the current speed is lower than the Smart-Pause speed limit.
However, once the Xplova E7 finds the current speed is higher than the SmartPause speed limit, it resumes recording automatically.
Idle Mode
When no movement nor sensors are detected in 30 minutes, the Xplova E7
goes to idle mode to save power. In idle mode, only the battery icon and clock are
displayed. Press any buttons to return to normal mode or when speed is detected.
After being idle for 2 hours, the Xplova E7 automatically turns off.
18
Starts the new record R02
Countdown to store the
record R01
Long Press 3
sec.
In recording
New record R02
New record starts
New record number
Changing the Settings
The Xplova E7 has a number of customizable settings available so you can
control functionality and personalize your device.
To bring up the menu, long press .
Menu Button Controls Description
button
Short press button to scroll to the next Menu.
Short press button to scroll through other Options.
button
Short press button to enter the [setting of option]
Short press button to repeat the current [setting of option]
19
Indicate the function of
DATA1 button
Indicate the function of
DATA2 button
Confirm the Option
and return to previous
screen
Name of Menu or
Option
Setting of Options
Main screen
Enter the Menu
Long Press 3
sec.
Indicate the [setting of option] is selectable when it is blinking
A blinking field is the current data field. Short press
button to select the value, short press button to scroll to
the next field.
Return button
Indicate short press to confirm and save the option and return to
previous screen.
The Menu Tree
1. ALT (Altitude) : Altitude calibration, allows you to pre-set up to three altitude
settings.
2. RECORD: Allows you to view your activity records.
3. WARNING: Allows you to configure the Xplova E7 to notify you when you
exceed a specified time, distance, calories burnt, heart rate value or auto LAP
count.
4. GPS:Allows you to view GPS signals and reset or turn off the GPS receiver.
5. SOUND :Allows you to enable or disable beep sound.
6. S-PAUSE :(SMART PAUSE): Allows you to specify the minimum speed limit by
which the Xplova E7 will automatically pause when the device goes below that
limit.
7. BIKE: Allows you to configure the wheel size and set the current bike to pair
with combo, cadence and speed sensors or a power meter.
8. HRM (Heart Rate Monitor) :Allows you to pair your device with a heart rate
monitor.
9. USER: Allows you to set your profile.
10.INFO: Allows you to configure the Xplova E7 device name and check the serial
number and firmware version.
11.TIME: Allows you to configure the Xplova E7 clock."
12.UNIT: Allows you to set the default unit of measurement.
13.LANGUAGE: Allows you to set the default language
14.F-RESET: (Factory Reset) Allows you to reset the device to its factory default
settings.
NOTE: Some settings can be changed and backup via http://tour.xplova.com/.
20
1.ALT (Altitude) Menu
The Xplova E7 measures the altitude using a high-resolution barometric
altimeter.
The Altitude menu allows you to calibrate the altimeter to ensure accuracy.
The altimeter is highly sensitive to changes in air pressure and may be affected by
changing weather conditions. It is recommended to periodically calibrate the
altimeter. The Xplova E7 provides 3 pre-set altitude reference points for
calibration, if there is no altitude information at the place your stand, you can set
the current altitude according to the altitude value received from the GPS.
The Xplova E7 provides 3 pre-set altitude reference points:
•
Home ALT (Altitude): Allows you to pre-set your Home altitude value.
•
POS1 ALT: Allows you to pre-set the altitude value at POSITION 1.
•
POS2 ALT: Allows you to pre-set the altitude value at POSITION 2.
To calibrate the altimeter:
1. Long press button to bring up the menu: 1.ALT and the screen
shows the current altitude reading from the built-in barometric altimeter.
2. Short press [DATA2] button to enter the list of ALT options.
3. Short press [DATA1] button repeatedly to scroll through ALT
options: [HOME ALT] 、[CURR ALT] 、[POS1 ALT] 、[POS2 ALT] and [GPS
ALT].
21
3
256
4.2
4.3
4.4
4.5
Adjust value
Enter ALT
options
Confirm
and return
Return
Scroll ALT
options
Enter
setting
Scroll field
Return
4. You can manually set the current altitude value into [CURR ALT] or select
the [GPS ALT] : altitude value received from the GPS as the current altitude.
4.1.To manually set the altitude value under [CURR ALT]
4.2.Short press [DATA2] to enter the setting.
4.3.Short press [DATA1] to adjust the value.
4.4.Short press [DATA2] to move to another field digit.
4.5.Short press to confirm the value and return to previous screen.
4.6.Short press to return to the menu: 1. ALT
5. Short press to return to main display screen.

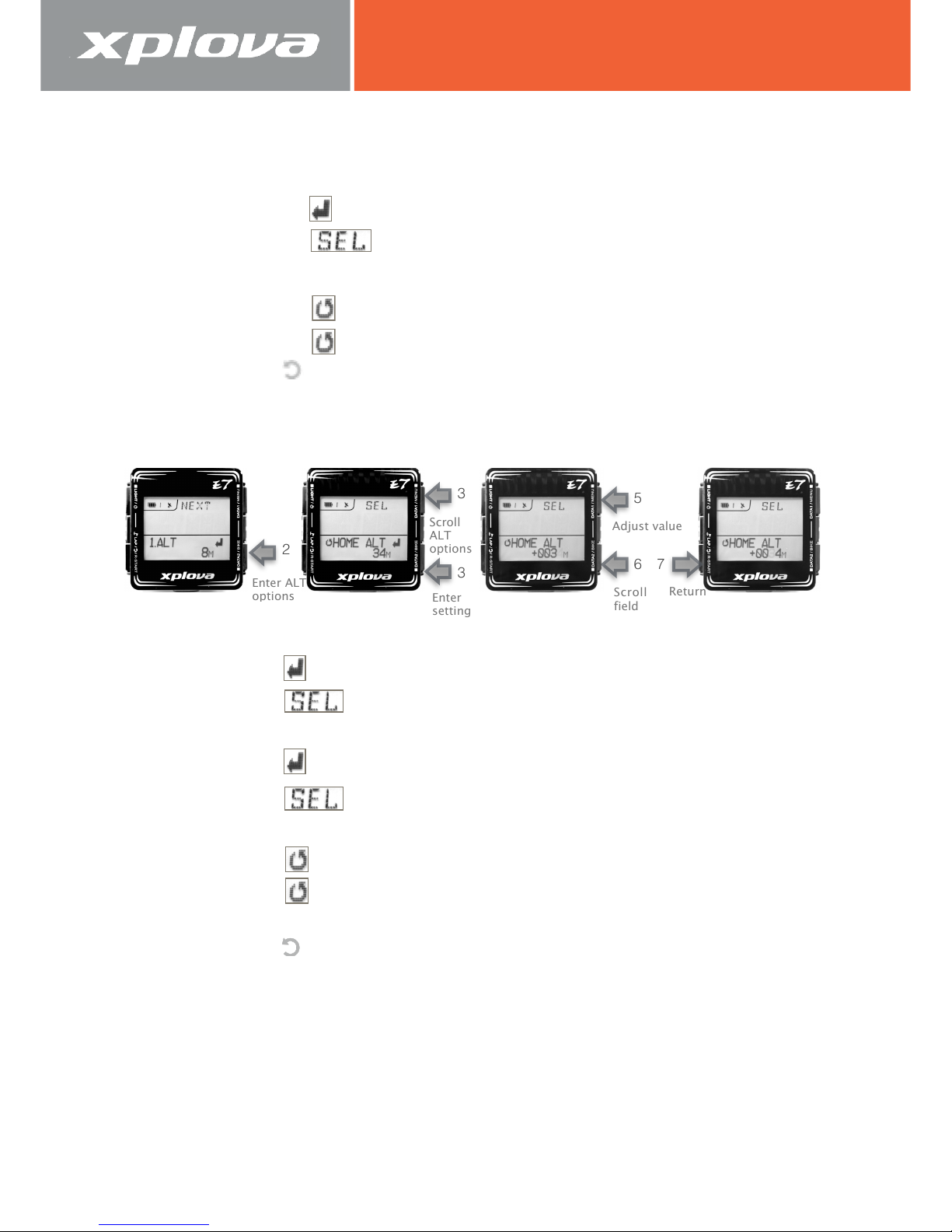

To pre-set the altitude reference point:
1. Long press [DATA1/MENU] button to bring up the menu: 1.ALT
2. Short press [DATA2] button to enter the list of ALT options.
3. Short press [DATA1] button repeatedly to select one of below ALT
options: [HOME ALT] 、 [POS1 ALT] and [POS2 ALT].
4. Short press [DATA2] to enter the setting.
5. Short press [DATA1] to adjust the value.
6. Short press [DATA2] to move to another field digit.
7. Short press to confirm the value and return to previous screen.
8. Short press to return to the menu: 1. ALT and the screen shows the
current altitude reading are calibrated to the pre-set altitude.
9. Short press to return to main display screen.
To pre-set the altitude reference point via tour.xplova.com:
The [Device settings] in tour.xplova.com provides the mechanism to get the
altitude value from the map for Home, POSITION 1 (ALT1) and POSITION 2 (ALT2).
Due to the altitude value comes from the terrain data of the earth; please do not
22
32567
3
Enter ALT
options
Enter
setting
Adjust value
Scroll
field
Return
Scroll
ALT
options
set bridges, tunnels or high buildings as the reference pint to avoid the altitude
discrepancy by artificial architectures.
Please connect your Xplova E7 to your computer, sign-in tour.xplova.com
then clicking [Device settings].
Note: please install the [JAVA plugin] in your browser to ensure the
interoperability between tour.xplova.com and the Xplova E7 work properly.
Click [EDIT]
Click the map icon to get altitude from the map
23
Click the position where you want to get the altitude from the map, click the
[Set altitude] to confirm the setting.
Save [My configurations]
24
Restore [My configurations] back to the Xplova E7
2. RECORD Menu
With the RECORD menu, you can view the record summary in an activity.
When the remaining memory is less than 3%, the oldest record will be overwritten.
The record time depends on the enabled sensors.
•
GPS only：around 220 hours
•
GPS + Combo sensor or GPS + HRM：around 180 hours
•
GSP + Combo sensor + HRM：around 160 hours
•
GPS + Combo sensor + HRM ＋power meter : abound 70~120 hrs depends
on power meter data format.
To view the record summary:
1. Long press [DATA1/MENU] to bring up the menu.
2. Short press [DATA1/MENU] to scroll to 2.RECORD Menu.
3. The screen shows the percentage of remaining memory.
4. Short press [DATA2] button to enter the list of activity records.
5. Short press [DATA2] repeatedly to select the date of the activity
25
you want to view the information. 2015 JAN17 02 means the 2nd record of
2015 Jan 17.
6. Short press [DATA2] to confirm the selection. The screen shows R[NUM]
and its starting time and date. If there are multiple records in an activity, it
will be serially numbered in the R[NUM].
7. Short press [DATA1] to the R[NUM] of the activity you want to view
the information.
Note: this option is only available when there are multiple records in an
activity
8. Short press [DATA2] to confirm the selected record.
9. Short press [DATA1] repeatedly to scroll through the view pages
that you want to view:
•
Page 1. Record number: Record distance，Record time.
•
Page 2. AVG (Average): Average heart rate、Average cadence、Average
Speed、Average power.
•
Page 3. MAX (Maximum): Maximum heart rate、Maximum cadence、
Maximum Speed、Maximum power.
•
Page 4. Others: Summary of Calories burned、Total climb
•
Page 5. LAP Count
11.
Short press button until returning to the main display screen.
26
27
4
5
6
7
8
9
9
9
9
Enter
RECORD
list
Select
activity
Confirm
selection
Select record
number
Confirm
selection
Record number: Record
distance，Record time.
AVG (Average):
Average heart rate、
Average cadence、Average
Speed、Average power.
MAX (Maximum):
Maximum heart rate、
Maximum cadence、
Maximum Speed、
Maximum power.
Others: Summary of Calories
burned、Total climb
LAP Count
Select
view page
Select
view page
Select
view page
Select
view page
WARNING Menu
With the WARNING menu, you can set up alerts to help you stay within
predefined ranges during your bicycle riding. You can program the Xplova E7 to
warn you when you exceed set durations, distances, calories, heart rate or AUTOLAP mark.
"
•
BY TIME: Set a duration after which the alarm will sound and display a
warning message.
•
BY DIST: Set a distance after which the alarm will sound and display a
warning message.
•
BY CAL: Set a calorie value where after the value is reached the alarm will so
•
BY MAXHR: Set the maximum heart rate beyond which the alarm will sound
and display a warning message.
•
AUTO-LAP: Turn on this option when a distance is also set in the DIST
warning option, the alarm will sound and display the LAP Average data
whenever reaching the distance mark.
To set up warnings:
1. Long press [DATA/MENU] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 3. WARNING Menu.
3. Short press [DATA2] to enter the list of WARNING options.
4. Short press [DATA1] repeatedly to select the warning type.
Options are: [BY TIME] 、[BY DIST] 、[BY CAL] 、[BY MAXHR] 、[AUTO-LAP]
5. Short press [DATA2] to enter the submenu.
28
3
4
5
6
7
8
9
10
Enter
WARNING
list
Scroll
options
Enter
submenu
Scroll
submenu
options
Confirm
selection
Adjust
value
Scroll field
Return
Enter
submenu
5
6. Short press [DATA1] repeatedly to scroll through the options:
•
(Value): Select to activate the function and set the limit.
•
OFF: To deactivate the function.
•
ON: To activate the function (Only available in AUT-LAP submenu).
7. If you select (value), short press [DATA2] to confirm the selection.
8. Short press [DATA1] repeatedly to adjust the value.
9. Short press [DATA2] to move to another field digit.
10.Short press to confirm the value and return to the previous screen.
11.Short press to return to the main display screen.
4. GPS Menu
The GPS menu allows you to view the GPS signal strength, reset the GPS
receiver and turn on/off the GPS receiver.
You can turn off the GPS receiver to extend the battery power for around 20
hours if you do not need the GPS track data from the Xplova E7. "
Note: If the ANT+ COMBO cadence sensor or the Speed sensor is not
installed, turn off the GPS receiver will lose speed information due to no geo
coordinates to be calculated into the speed data.
GPS ON OFF Control
1. Long press [DATA1] to bring up the menu
2. Short press [DATA1] repeatedly to scroll to 4. GPS
3. Short press [DATA2] to enter the list of GPS options.
4. Short press [DATA1] repeatedly to scroll through the options to [GPS
SETUP]
5. Short press [DATA2] to enter the submenu.
6. Short press [DATA1] repeatedly to scroll through the options:
29
3
Enter GPS
list
5
Enter
submenu
6
Scroll
submenu
options
7
Confirm
and return
4
Scroll GPS
options
●
OFF: To turn off t he GPS receiver.
●
ON: To turn on the GPS receiver.
7. Short press [Return] to confirm the setting and return to the previous
screen.
8. Short press [Return] to return to the main display screen.
To view the GPS signal strength:
The GPS strength indicates the GPS reception status and the number of
satellites which have been detected.
•
NA : Not fixed
•
2D : 2 dimensional fixed
•
3D : 3 dimensional fixed
•
The cylinder bars indicate the GPS signal strength
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 4. GPS Menu.
3. Short press [DATA2] to enter the list of GPS options.
4. Short press [DATA1] repeatedly to scroll through the options to
[GPS Signal Strength].
5. Short press [Return] to return to the previous screen.
6. Short press [Return] to return to the main display screen.
To reset the GPS receiver:
If the Xplova E7 cannot fix your current position in 10 minutes, it is
recommended to reset the GPS receiver. Usually, the Xplova E7 will get GPS fixed
in 3 minutes after resetting the GPS receiver.
1. Long press [DATA1] to bring up the menu.
30
3
5
4
Enter GPS
list
Return
Scroll
options
2. Short press [DATA1] repeatedly to scroll to 4. GPS Menu.
3. Short press [DATA2] to enter the list of GPS options.
4. Short press [DATA2] to enter the list of GPS options.
5. Short press [DATA2] to enter the submenu.
6. Short press to reset GPS receiver or short press to
cancel.
7. Short press [Return] to return to the previous screen.
8. Short press [Return] to return to the main display screen.
5. SOUND Menu
The Xplova E7 emits beep sounds when buttons are pressed or to indicate
warnings, reminders, etc. The Sound menu allows you to enable or disable sounds
on your device.
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 5. SOUND Menu.
3. Short press [DATA2] to enter the list of SOUND options.
4. Short press [DATA1] repeatedly to scroll through the options:
•
OFF: To disable sounds.
31
3
Enter Option
5
Confirm
& Return
4
Scroll
Option
3
Enter GPS
Menu
5
Enter
submenu
6
Select [NO]
6
Select [YES]
4
Scroll
options
•
ON: To enable sounds.
5. Short press [Return] to confirm the setting and return to the previous
screen.
6. Short press [Return] to return to the main display screen.
6. S-PAUSE (Smart Pause) Menu
The S-PAUSE menu allows you set the minimum speed limit. By which when
the current speed is under the specified speed, the device will automatically pause.
To set the S-PAUSE speed limit:
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 6. S-PAUSE Menu.
3. Short press [DATA2] to enter the list of S-PAUSE options.
4. Short press [DATA1] repeatedly to scroll through the options:
•
(Value): Select to activate the function and set the speed limit.
•
OFF: To deactivate the function.If you select (value), short press [DATA2]
to confirm the selection.
5. Short press [DATA1] repeatedly to adjust the value.
6. Short press [DATA2] to move to another field digit.
7. Short press [Return] to confirm the value and return to the previous
screen.
8. Short press [Return] to return to the main display screen.
32
８
3
7
6
4
8
5
return
Enter S-
PAUSE
options
Scroll field
Adjust
Value
Scroll S-PAUSE
options
Confirm
& return
Enter setting
7. Bike Menu
The BIKE menu allows you to configure the bike wheel size and set the
current bike to pair with a standard ANT+ combo cadence sensor, standalone
cadence sensor, standalone speed sensor or a power meter.
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 7. BIKE Menu.
3. The screen shows the selected bike: (bike1), (bike2) or CUST
(Custom)
4. Short press [DATA2] to enter the list of BIKE options.
5. Short press [DATA1] repeatedly to scroll through the BIKE options.
Options are: [WHEEL] 、[CMB] 、[CAD] 、[SPD] 、[PWR].
To set the Wheel Size:
6. Scroll through the BIKE options to [WHEEL]
7. Short press [DATA2] to enter the [WHEEL] submenu
8. Short press [DATA1] repeatedly to adjust the value.
9. Short press [DATA2] to move to another field digit.
10.Short press [Return] to confirm the value and return to the BIKE options.
33
4
Enter BIKE
options
5
Scroll BIKE
options
9
7
8
10
Scroll field
Enter
submenu
Adjust
Value
Confirm
& Return
To pair a Combo (Speed/Cadence) Cadence Sensor: "Scroll through the
BIKE options to [CMB].
Note: Leave the CMB OFF if there is no Combo Cadence Sensor installed on
your bike.
11.Short press [DATA2] to enter the [CMB] submenu.
12.Short press [DATA1] repeatedly to scroll to the option [CMB ON].
13.Short press [DATA2] to scan for the combo sensor, in the meantime,
enable the combo sensor during the scanning. After paired, a set of combo
sensor device ID will be appeared on the screen.
14.if paired successfully. Short press [Return] to confirm the setting and
return to the previous screen.
•
If not, short press [DATA2] to rescan the combo sensor.
15.Short press [Return] to return to the BIKE options.
34
11
12
13
14
14
15
in scanning
& pairing
Enter
Submenu
Enter
SCAN
Return
Rescan
Confirm &
setting
Select
CMB ON
To pair a Cadence Sensor: "Scroll through the BIKE options to [CAD].
Note: Leave the CAD OFF if there is no standalone Cadence Sensor installed
on your bike or there is a COMBO Cadence Sensor has been installed and paired
already.
16.Short press [DATA2] to enter the [CAD] submenu
17.Short press [DATA1] repeatedly to scroll to the option [CAD ON].
18.Short press [DATA2] to scan for the cadence sensor, in the meantime,
enable the cadence sensor during the scanning. After paired, a set of
cadence sensor device ID will be appeared on the screen.
19.If paired successfully. Short press [Return] to confirm the setting and
return to the previous screen.
•
If not, short press [DATA2] to rescan the cadence sensor.
20.Short press [Return] to return to the BIKE options.
To pair a Speed Sensor: "Scroll through the BIKE options to [SPD].
Note: Leave the SPD OFF if there is no standalone Speed Sensor installed on
your bike or there is a COMBO Cadence Sensor has been installed and paired
already.
35
in scanning
& pairing
Enter
Submenu
Enter
SCAN
Return
Rescan
Confirm &
setting
Select
CAD ON
19
19
20
16
17
18
21.Short press [DATA2] to enter the [SPD] submenu
22.Short press [DATA1] repeatedly to scroll to the option [SPD ON].
23.Short press [DATA2] to scan for the speed sensor, in the meantime,
enable the speed sensor during the scanning. After paired, a set of speed
sensor device ID will be appeared on the screen.
24.If paired successfully. Short press [Return] to confirm the setting and
return to the previous screen.
●
If not, short press [DATA2] to rescan the speed sensor.
25.Short press [Return] to return to the BIKE options.
To setup a Power Meter: Scroll through the BIKE options to [PWR].
Note: Leave the PWR OFF if there is no Power Meter installed on your bike.
In the [PWR] submenu, the options are:
●
OFF/ON: Un-pair / Pair the power meter with your Xplova E7
●
CALI: Calibrate the power meter.
●
DISP: Determine which power meter data to be displayed in the main
display screen.
36
24
24
25
212223
in scanning
& pairing
Enter
Submenu
Enter
SCAN
Return
Rescan
Confirm &
setting
Select
SPD ON
To pair a Power Meter:
26.Short press [DATA2] to enter the [PWR] submenu
27.Short press [DATA1] repeatedly to scroll to the option [PWR ON].
28.Short press [DATA2] to scan for the power meter, in the meantime,
enable the power meter during the scanning. After paired, a set of power
meter device ID will be appeared on the screen.
29.If paired successfully. Short press [Return] to confirm the setting and
return to the previous screen.
•
If not, short press [DATA2] to rescan the power meter.
30.Short press [Return] to return to the BIKE options.
To calibrate the power meter: Short press [DATA2] to enter the [PWR]
submenu.
31.Short press [DATA1] repeatedly to scroll to the option [CALI].
32.Short press [DATA2] to confirm the selection. The calibrated data will be
37
323333
31
Enter
setting
Confirm
setting
Recalibrate
Select
CALI
in scanning
& pairing
Enter
Submenu
Enter
SCAN
Return
Rescan
Confirm &
setting
Select
SPD ON
24
24
25
212223
appeared on the screen.
33.If calibrated successfully. Short press [Return] to confirm the setting and
return to the previous screen.
●
If not, short press [DATA2] to recalibrate the power meter.
To determine which power meter data to be displayed in the main
display screen: Short press [DATA2] to enter the [PWR] submenu.
34.Short press [DATA1] repeatedly to scroll to the option [DISP].
35.Short press [DATA2] to enter [DISP] submenu
36.Short press [DATA1] to scroll through the [DISP] options: [NOW/
AVG] 、[NOW/30SEC] 、[NOW/3MIN] 、[NOW/MAX] and [NOW/L%R].
37.Short press [Return] to confirm the setting and return to the previous
screen.
38.Short press [Return] to return to the BIKE options. Short press [Return]
again to return to the main display screen.
●
NOW/AVG: Current power output (W)] / [Average power output (W)]
●
NOW/30SEC: Current power output (W)] / Latest 30 second average
power output (W)
●
NOW/3MIN: Current power output (W)] / Latest 3 minute average
power output (W)
●
NOW/MAX: Current power output (W)] / Maximum power output (W)
38
343536
363636
36
Select
DISP
Enter
setting
Scroll
DISP
options
Scroll
DISP
options
Scroll
DISP
options
Scroll
DISP
options
Scroll
DISP
options
●
NOW/L%R: Current power output (W)] / Left power output % 、 Right
power output %
8. HRM (Heart Rate Monitor) Men
The HRM menu allows you to monitor your exercise and body condition.
To pair Heart Rate Monitor:
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 8. HRM Menu.
3. Short press [DATA2] to enter the list of HRM options.
4. Short press [DATA1] repeatedly to scroll to the option [HRM ON].
5. Short press [DATA2] to scan for the HRM, in the meantime, enable the HRM
during the scanning. After paired, a set of HRM device ID will be appeared
on the screen.
6. If paired successfully. Short press [Return] to confirm the setting and
return to the previous screen.
•
If not, short press [DATA2] to rescan the HRM.
7. Short press [Return] to return to the main display screen.!
39
676
3
4
in scanning
& pairing
Enter HRM
options
Enter
SCAN
Return
Rescan
Confirm &
setting
Select
HRM ON
9. USER Menu
The USER menu allows you to edit information about yourself.
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 9. USER Menu.
3. Short press [DATA2] to enter the list of USER options.
4. Short press [DATA1] repeatedly to scroll through the options: SEX,
BIRTH YR (Birth Year), WEIGHT, and HEIGHT.
To select Sex: Short press [DATA1] repeatedly to scroll to SEX option.
5. Short press [DATA2] to enter SEX submenu.
6. Short press [DATA1] repeatedly to select MALE or FEMALE.
7. Short press [Return] to confirm the setting and return to the previous
screen.
To setup Birth Year:：
8. Short press [DATA1] repeatedly to scroll to BIRTH YR option.
9. Short press [DATA2] to enter BIRTH YR submenu.
10.Short press [DATA1] repeatedly to adjust the value.
11.Short press [DATA2] to move to another field digit.
12.Short press [Return] to confirm the setting and return to the previous
40
14
345
9
19
4
4
4
Enter USER
options
Enter
submenu
Scroll
options
Scroll
options
Scroll
options
Scroll
options
Enter
submenu
Enter
submenu
Enter
submenu
screen.
!
To setup Weight:
13.Short press [DATA1] repeatedly to scroll to WEIGHT option.
14.Short press [DATA2] to enter WEIGHT submenu.
15.Short press [DATA1] repeatedly to adjust the value.
16.Short press [DATA2] to move to another field digit.
17.Short press [Return] to confirm the setting and return to the previous screen.
To setup Height:
18.Short press [DATA1] repeatedly to scroll to HEIGHT option.
19.Short press [DATA2] to enter HEIGHT submenu.
20.Short press [DATA1] repeatedly to adjust the value.
21.Short press [DATA2] to move to another field digit.
22.Short press [Return] to confirm the setting and return to the previous screen
23.Short press [Return] to return to the main display screen.
10. INFO (Information) Menu
The INFO menu allows you to configure the Xplova E7 device name and check
the serial number and firmware version.
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 10. INFO Menu.
3. Short press [DATA2] to enter the list of INFO options.
4. Short press [DATA1] repeatedly to scroll through the options: NAME
41
4
3
4
5
Scroll
options
Enter INFO
options
Enter
submenu
Scroll
options
(Device Name), S/N (Device Serial Number), VER (Device Version).
5. When scroll to NAME; short press [DATA2] to enter NAME submenu. The
device name is appeared in the Xplova Meetup APP when establishing the
Bluetooth connection.
6. Short press [DATA1] repeatedly to adjust the value.
7. Short press [DATA2] to move to another field digit.
8. Short press [Return] to confirm the setting and return to the previous
screen.
9. Short press [Return] to return to the main display screen.
11. TIME Menu
The TIME menu allows you to configure your device according to the time
zone in your location and set up Daylight Saving Time (DST) if applicable.
設定時間
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 11. TIME Menu.
3. Short press [DATA2] to enter the list of TIME options.
4. Short press [DATA1] repeatedly to scroll through the options: TZ
(Time Zone), DST (Daylight Saving Time).
5. When scroll to TZ; short press [DATA2] to enter TZ submenu.
42
10
9
8
5
7
6
4
3
Enter TIME
options
"Scroll
options
Enter TZ
submenu
Select
Time Zone
Confirm
setting
Confirm
setting
Enter DST
submenu
Select DST
On/OFF
6. Short press [DATA1] repeatedly to adjust the time zone value.
7. Short press [Return] to confirm the selection and return to the previous
screen.
8. Short press [DATA1] repeatedly to scroll to DST; short press [DATA2
] to enter DST submenu.
9. Short press [DATA1] to select ON or OFF.
10.Short press [Return] to confirm the selection and return to the previous
screen.
11.Short press [Return] to return to the main display screen.
•
Note: The hour, minute, second will be calibrated automatically when the
Xplova E7 gets the GPS signal.
12. UNIT Menu
The UNIT menu allows you to select the default unit of measurement to use
when displaying and calculating your exercises.設定單位
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 12. UNIT Menu.
3. Short press [DATA2] to enter the list of UNIT options.
4. Short press [DATA1] to select M:KM:KG °C (Metric) or FT:MI:LB °F
(English) system.
5. Short press [Return] to confirm the selection and return to the previous
screen.
6. Short press [Return] to return to the main display screen.
43
5
4
4
3
Enter UNIT
options
Confirm
selection
Scroll
options
Scroll
options
13. LANGUAGE Menu
The LANGUAGE menu allows you to set the default language.
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 13. LANGUAGE Menu.
3. Short press [DATA2] to enter the list of LANGUAGE options.
4. Short press [DATA1] repeatedly to scroll through the LANGUAGE option
5. Short press [Return] to confirm the selection and return to the previous
screen.
6. Short press [Return] to return to the main display screen.
14. F-RESET (Factory Reset) Menu
The F-RESET menu allows you to reset your device to its factory default
settings.
1. Long press [DATA1] to bring up the menu.
2. Short press [DATA1] repeatedly to scroll to 14. F-RESET Menu.
3. Short press [DATA2] to enter the list of F-RESET options.
4. Short press to select YES : Reset done and return to the main display
screen
44
4
5
3
Enter
LANGUAGE
options
"Scroll
options
"Confirm
selection
4
4
3
Enter
F-RESET
options
Select
[NO]
Select
[YES]
•
Short press to select NO: return to the previous screen; short
press [Return] again to return to the main display screen.
45
The Accessories
Heart Rate Monitor (Optional accessory from Xplova)
The Heart Rate Monitor (HRM), XA-HR2 from Xplova is attached to an elastic
band worn around the chest.
Wearing the heart rate monitor
Wear the heart rate monitor around your chest as close as possible to the
heart with the monitor segment worn in the middle of the chest.
For best contact, wet the contact rubber before wearing.
Changing the Heart Rate Monitor Battery
46
OPEN
CLOSE
1. Using a coin, turn the battery cover on the back of the sensor counterclockwise until it opens.
2. Remove the old battery and replace with a new one.
3. Replace the battery cover and tighten with a coin.
Note: To extend the life cycle of the textile belt, please detach it from the
main unit and softly clean the belt with water after exercise.
47
Combo Cadence Sensor (optional accessory from Xplova)
The combo cadence (includes the cadence sensor and a speed sensor), XA-
CS1 or XA-CS2 from Xplova, attaches to the chain stay of your bike to help you
track your speed and cadence accurately.
Installing the Combo Cadence Sensor
1. Position the sensor on the chain stay of your bike.
2. Use the supplied cable ties to hold the sensor in place. Do not fully tighten.
3. Attach the magnet to a spoke. Do not fully tighten.
4. NOTE: To ensure optimum performance, pay attention to the alignment
point and make sure that the distance between the sensor and the magnet
are within 5mm.
48
5. Attach the magnet to the left crank. Do not fully tighten.
6. Adjust the magnets and the sensors, making sure the air gap between
sensor markings and magnets is less than 5 mm.
7. When setup is complete, tighten the cable ties.
49
Cadence
Magnet
Cadence Sensor
Speed Magnet
Speed sensor
Sensing
Point
Sensing
Point
Speed
Magnetic
Changing the Combo Cadence Battery
1. Using a coin, turn the battery cover on the back of the sensor counter-
clockwise until it opens.
2. Remove the old battery and replace with a new one.
3. Replace the battery cover and tighten with a coin.
50
Appendix
Xplova E7 Specifications
Hardware
Size & Weight
55 (L) x 54 (W) x 19.6 (H) mm, 57.7 g
Display
38 x 28 mm (1.8 inch), Monochrome LCD and 3-level adjustable backlight
Battery Operation Time
Typical 16 hours, if turn off GPS receiver: 36 hours
Main buttons
POWER/ Backlight, LAP/R-START, DATA1/MENU, DATA2/BIKE
Sensors
Barometric altimeter, temperature sensor, gravity sensor
GPS Receiver
High sensitivity -160dbm
Memory
GPS: 220 hours if no ANT+ accessories connected
GPS+Combo or GPS+HRM: 180 hours
GPS+Combo+HRM: 160 hours
GPS+Combo+HRM+Power Meter: 70~120 hours depends on the Power Meter
data size
Wireless
ANT+ wireless receiver 、 Bluetooth Low Energy
Environment
IPX7 waterproof, anti-shock, operation temp. -10~50°C
Interface
Standard micro USB data connection
Charging
Standard USB 5V
Device Function
User and Bike Profiles
Support 1 user data and 3 bike profiles
Data recording
Smart Dynamic Logging Technology
Cycling Data
Time, speed, distance, altitude, temperature, slope, heart rate, cadence,
calories, lap, power, etc.
Connect to Smartphone
Support Bluetooth Low Energy enabled iOS and Android OS Smartphones
Cloud service
tour.Xplova.com
Upload activity、Personal activity summary、Activity/Event diary、Create
Events, Route planning
Smartphone APP
Xplova Meetup APP
Live Tracking for group biking, upload activity in real time. Available for
Android and iOS Smartphones
Accessories
Standard
Bike mounts, USB cable
Optional
ANT+ heart rate monitor, ANT+ combo cadence sensor
ANT+ compatibility
Support standard ANT+ sensors: Heart Rate Monitor, Combo (speed+cadence)
sensor, Speed sensor, Cadence sensor and Power Meter
Compatible ANT+ Power
Meter
iCranks, InfoCrank, xpedo, SRAM/Quarq, SRM, Power2Max, etc. for more
information, please contact Xplova Customer Service: service@xplova.com
51
Wheel Size Table!
ETRTO
Wheel Spec.
Circumference
(mm)
12 x 1.75
935
14 x 1.50
1020
14 x 1.75
1055
16 x 1.50
1185
47-305
16 x 1.75
1195
18 x 1.50
1340
18 x 1.75
1350
47-406
20 x 1.75
1515
20 x 1-3/8
1615
22 x 1-3/8
1770
22 x 1-1/2
1785
24 x 1
1753
24 x 3/4 管狀
1785
24 x 1-1/8
1795
24 x 1-1/4
1905
47-507
24 x 1.75
1890
24 x 2.00
1925
24 x 2.125
1965
26 x 7/8
1920
23-571
26 x 1(59)
1913
26 x 1(65)
1952
26 x 1.25
1953
26 x 1-1/8
1970
37-590
26 x 1-3/8
2068
26 x 1-1/2
2100
26 x 1.40
2005
ETRTO
Wheel Spec.
Circumference
(mm)
40-559
26 x 1.50
2010
47-559
26 x 1.75
2023
50-559
26 x 1.95
2050
54-559
26 x 2.00
2055
26 x 2.10
2068
57-559
26 x 2.125
2070
26 x 2.35
2083
57-559
26 x 3.00
2170
27 x 1
2145
27 x 1-1/8
2155
32-630
27 x 1-1/4
2161
27 x 1-3/8
2169
650 x 35A
2090
650 x 38A
2125
18-622
650 x 38B
2105
700 x 18C
2070
700 x 19C
2080
20-622
700 x 20C
2086
23-622
700 x 23C
2096
25-622
700 x 25C
2105
28-622
700 x 28C
2136
700 x 30C
2170
32-622
700 x 32C
2155
700C 管狀
2130
37-622
700 x 35C
2168
700 x 38C
2180
40-522
700 x 40C
2200
52
Note：Actual wheel circumference might be varies for different brand.
Declarations of Conformity
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:"
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to
•
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications
not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment. (Example - use only shielded
interface cables when connecting to computer or peripheral devices).
======================================================
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE
AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
53
Duales System Deutschland GmbH Participant
!CE Declaration of Conformity (CENELEC Europe)
!
WEEE directive
Disposal of Waste Electrical and Electronic Equipment by users in private
households in the European Union.
This symbol on the product or on the packaging indicates that this can not
be disposed of as household waste. You must dispose of your waste equipment
by handling it over to the applicable take-back scheme for the recycling of
electrical and electronic equipment. For more information about recycling of this
equipment, please contact your city office, the shop where you purchased the
equipment or your household waste disposal service. The recycling of materials
will help to conserve natural resources and ensure that it is recycled in a manner
that protects human health and environment.
54
Loading...
