Xplore XSLATE R12, iX125R1 Getting Started Manual
1 Boutons de fonction
2 Capteur de lumière
ambiante
3 Microphones
4 Webcam
5 Flash de l’appareil photo de
webcam
6 Écran tactile
7 Bouton d’accueil Windows
8 Microphone
9 Flash de l’appareil photo de
documentation
10 Appareil photo de
documentation
11 Boutons de volume
12 Batterie
13 Verrou de la batterie
14 Voyants de charge de la
batterie
15 Appuyez pour acher les
voyants de charge de la
batterie
16 Haut-parleurs
17 Couvercle SSD
18 Passage de l’antenne
19 Bouton d’alimentation
20 Bouton de sécurité
Windows—Verrouillage et
Déverrouillage
(Ctrl+Alt+Suppr)
21 Indicateur de chargement
de la batterie
22 Port adaptateur secteur
23 Port sortie audio
24 Port USB
25 Port HDMI
26 Port d’entrée d’expansion
27 Lecteur d’empreinte
digitale
28 Point d’attache du stylet
29 Emplacement du stylet
1 Funktionstaste
2 Umgebungslichtsensor
3 Mikrofon
4 Webkamera
5 Webkamera skameraleute
6 Touchscreen-Anzeige
7 Windows-Starttaste
8 Mikrofon
9 Dokumentation-
skameraleute
10 Dokumentationskamera
11 Lautstärketasten
12 Batterie
13 Akkuschacht
14 Akkuladungsstatus-LEDs
15 Drücken, um
Akkuladungsstatus-LEDs
anzuzeigen
16 Lautsprecher
17 SSD-Abdeckung
18 Antennendurchgang
19 Netzschalter
20 Taste “Windows-
Sicherheit”—Sperren
und Entsperren
(STRG+ALT+ENTF)
21 Anzeige beim Laden des
Akkus
22 Netzadapteranschluss
23 Audio-Ausgang
24 USB-Anschluss
25 HDMI-Anschluss
26 Erweiterungseingang
27 Fingerabdruckleser
28 Anker für Stift-
Haltevorrichtung
29 Stiftschacht
1 Botones de función
2 Sensor de luz ambiental
3 Micrófonos
4 Cámara Web
5 Luz de cámara de web
6 Pantalla táctil
7 Botón Inicio de
Windows
8 Micrófono
9 Luz de cámara de
documentación
10 Cámara de
documentación
11 Botones de volumen
12 Batería
13 Pestillo de batería
14 Luces del indicador de
carga de la batería
15 Pulse para ver las luces
del indicador de carga
16 Altavoces
17 Cubierta de SSD
18 Paso a través de la antena
19 Botón de encendido
20 Botón de seguridad de
Windows: Bloqueo y
desbloqueo
(Ctrl+Alt+Supr)
21 Indicador de carga de
la batería
22 Puerto del adaptador
de alimentación
23 Puerto de salida de
audio
24 Puerto USB
25 Puerto HDMI
26 Puerto de entrada de
expansión
27 Lector de huellas
28 Punto de unión del
cordón del lápiz
29 Espacio para el lápiz
1 Botões de função
2 Sensor de luz ambiente
3 Microfones
4 Web camera
5 Luz da câmera de web
6 Tela sensível ao toque
7 Botão Página Inicial
do Windows
8 Microfone
9 Luz da câmera de
documentação
10 Câmera de
documentação
11 Botões de volume
12 Bateria
13 Trava da bateria
14 Luzes indicadoras de
carga da bateria
15 Pressione para
visualizar as luzes
indicadoras de carga
16 Alto-falantes
17 Tampa de SSD
18 Pass-through da
antena
19 Botão de energia
20 Botão de segurança
do Windows—
Bloqueando e
Desbloqueando
(Ctrl+Alt+Delete)
21 Indicador de
carregamento
da bateria
22 Porta do adaptador
de energia
23 Porta de saída de áudio
24 Porta USB
25 Porta HDMI
26 Porta de entrada de
expansão
27 Leitor de impressão
digital
28 Fixação da correia da
caneta
29 Baia da caneta
1
3
4
5
2
6
7
20
19
21

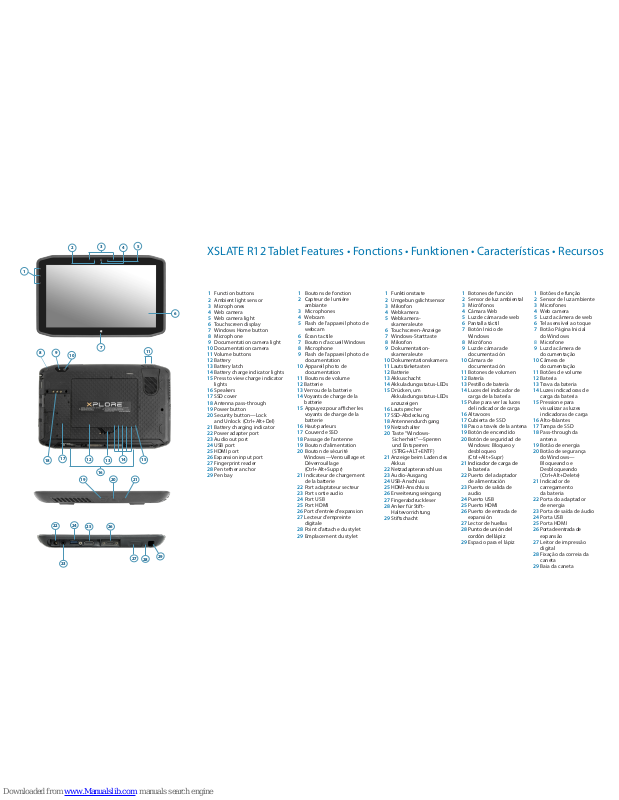

XSLATE R12 Tablet Features • Fonctions • Funktionen • Características • Recursos
1 Function buttons
2 Ambient light sensor
3 Microphones
4 Web camera
5 Web camera light
6 Touchscreen display
7 Windows Home button
8 Microphone
9 Documentation camera light
10 Documentation camera
11 Volume buttons
12 Battery
13 Battery latch
14 Battery charge indicator lights
15 Press to view charge indicator
lights
16 Speakers
17 SSD cover
18 Antenna pass-through
19 Power button
20 Security button—Lock
and Unlock (Ctrl+Alt+Del)
21 Battery charging indicator
22 Power adapter port
23 Audio out port
24 USB port
25 HDMI port
26 Expansion input port
27 Fingerprint reader
28 Pen tether anchor
29 Pen bay
12
13
15
14
16
10
17
18
22
26
23
24
25
27
28
29
8 9
11
2
XSLATE R12 Getting Started
Model iX125R1
Getting Started with the XSLATE® R12 Tablet PC
Locking and unlocking
To lock and unlock your XSLATE R12, press the Security
button on the left side of the Tablet PC.
Using touch
Your XSLATE R12 is equipped with touch, which means you can
use your ngers to select items and open les, zoom in and out,
scroll through browser windows and documents, and more.
Touch works like a mouse. Tap to select an item and double-tap
to open it.
Tip To open a right-click menu using touch, press your
nger on the display until a square appears. Then lift
your nger and the shortcut menu appears.
Calibrate the pen and your nger so that they can be detected
more accurately on the touchscreen display. You can do this
calibration when you rst start using your Tablet PC and whenever the pointer doesn’t align with your pen or nger. To start
the application, tap the Tablet Center tile, then tap Tablet, and
then tap Pen and Touch.
Using the pen
An important dierence between traditional PCs and tablet
PCs is that you frequently use a digitizer pen instead of a
mouse and keyboard. The XSLATE R12 pen has a pressure-sensitive tip and a function button. Pressing the function button is
equivalent to right-clicking a mouse.
Function button
(right-click)
Pen tip
Using sleep mode
Put your XSLATE R12 in Sleep mode when you go away for a
short period of time to conserve battery power. When you
return, the Tablet PC quickly resumes activity and your desktop
is the same as you left it.
To put the Tablet PC in Sleep mode, press and release the
Power button .
Note The power button blinks when the tablet is in sleep
mode.
To wake up the tablet from Sleep mode, press the Power
button again.
Powering on and off
To power up your tablet, press the Power button and wait for
Windows to appear on screen.
To shut down your XSLATE R12 from Windows®, tap the Windows icon in the lower left corner of the screen or press the
Keyboard button. Tap Power and then tap Shut down. If
Windows doesn’t respond, force the tablet PC to shut down by
pressing the Power button for about ve seconds.
Using the ngerprint reader
The XSLATE R12 is equipped with a ngerprint reader so that
you can log on to your Tablet PC by scanning your ngerprint
instead of entering a password. This provides an added level
of security and is a fast and convenient way to log on to your
tablet.
Press Press and hold
Button 1 Tablet Center Windows® Journal
Button 2 xCapture Pro™ application Pictures directory
Button 3
Tablet PC settings or barcode reader
(if equipped with the SlateMate™
option)

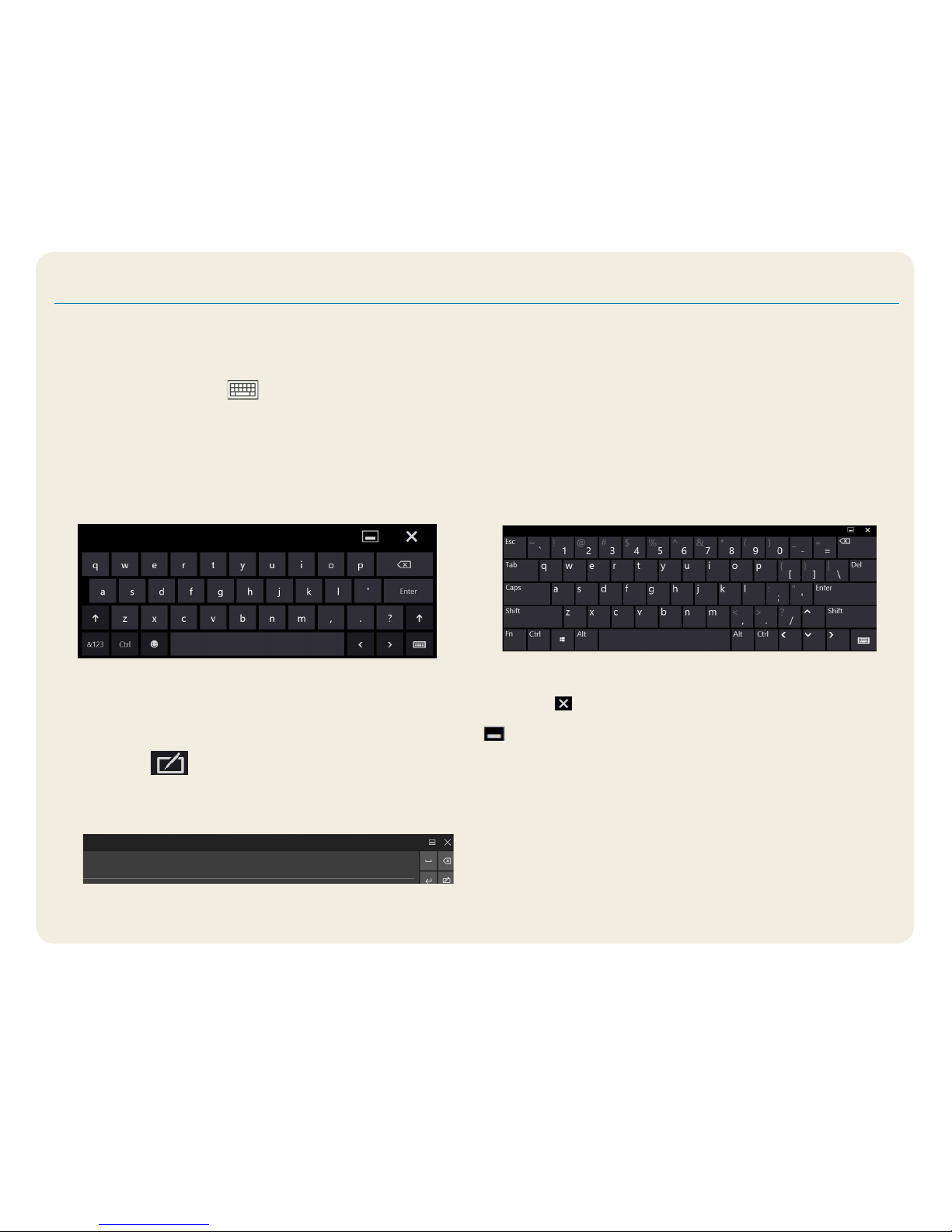

On-screen keyboard
Checking battery power
To check the remaining battery power, tap the power indicator
in the Windows notication area. This icon changes appearance,
depending on whether the Tablet PC is plugged in or running
on battery.
If the Tablet PC is plugged in, tap the plug icon.
If it is on battery power, tap the battery icon.

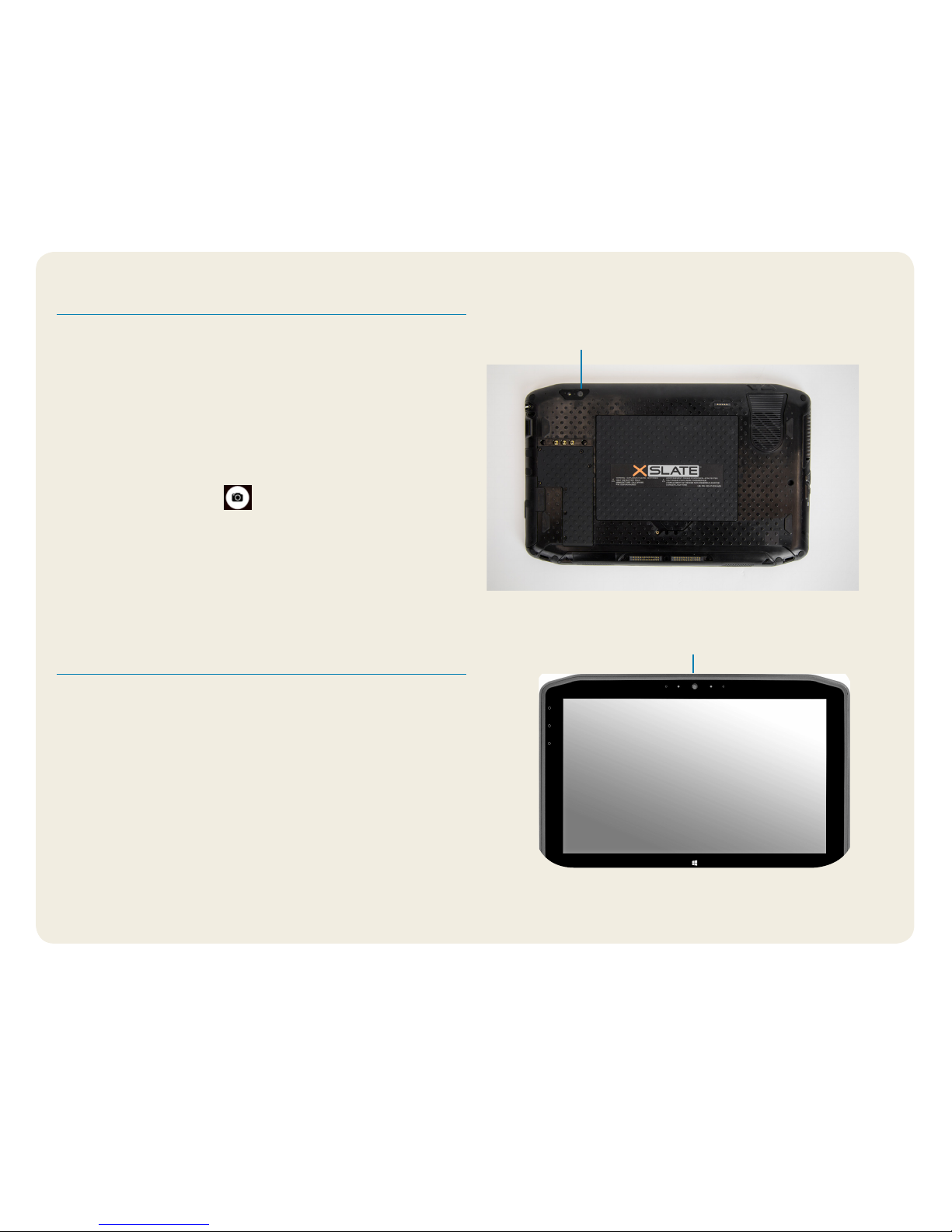

The ve lights on the back of the tablet battery also
indicate the battery’s level of charge—from one
green light (20% charged) to ve green lights (fully
charged). Press the button to the right of the lights to
view the remaining charge level.
Battery charge
indicator lights
Press to view charge
indicator lights
3
XSLATE R12 Getting Started
Model iX125R1

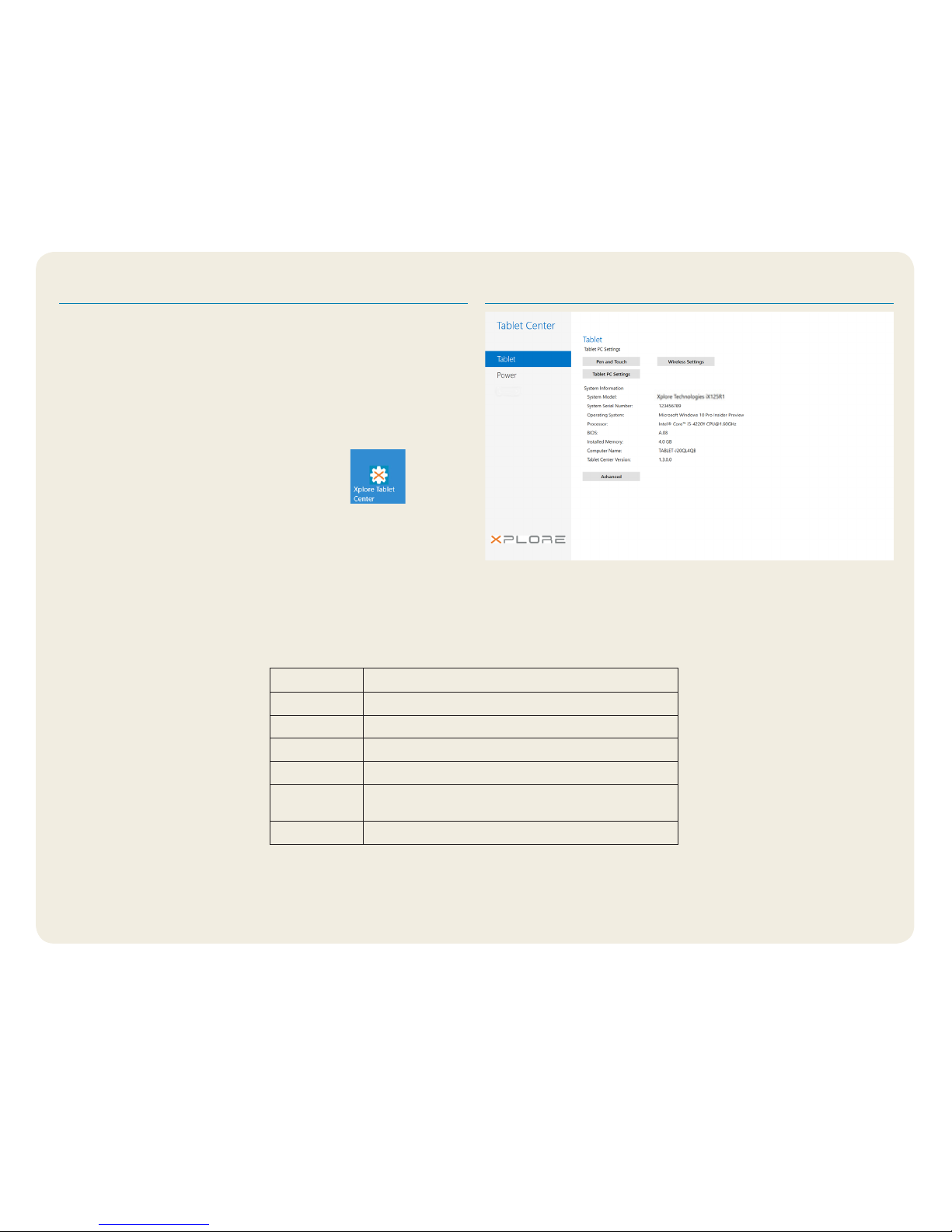

Using the LED function buttons on the front of the XSLATE R12
The LED function buttons on the front of the Tablet PC provide many functions without using the pen. For some actions, you press
a function button. For other actions, you press and hold the function button. These actions are listed in this table. You can also
customize the buttons to perform actions that suit your needs.
Button 3
Button 1
Button 2
